Product Code: S745-23

23-1/4" Peachtree Balance

Name: 23-1/4" Peachtree Balance
SKU: S745-23
Price: 22.82 USD
Availability: InStock

$22.82

Quantity	Price
1-9	$22.82/ea
10-24	$22.01/ea
25-49	$21.19/ea
50-99	$20.38/ea
100+	$19.89/ea

Please Note: Bulk pricing applies only to purchases of the same option

Option Price

22.25-3 22.25-4 +$0.75 22.25-9 +$3.79

Quantity

Add to Wishlist

Product Description

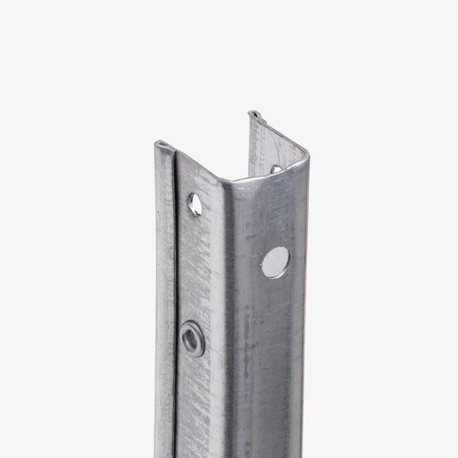

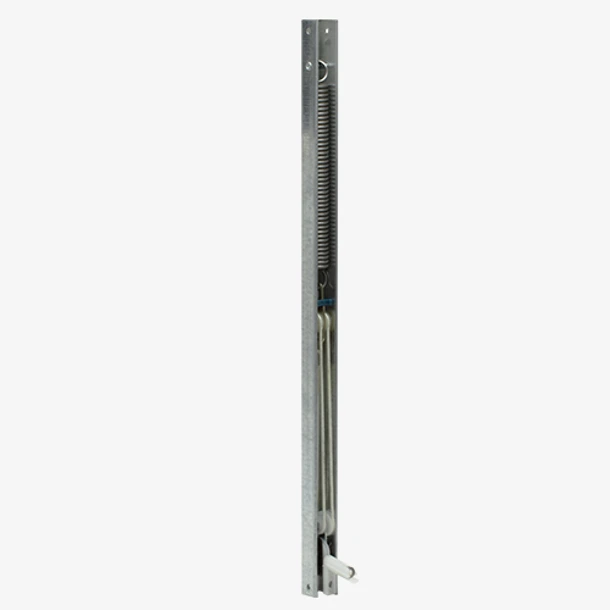

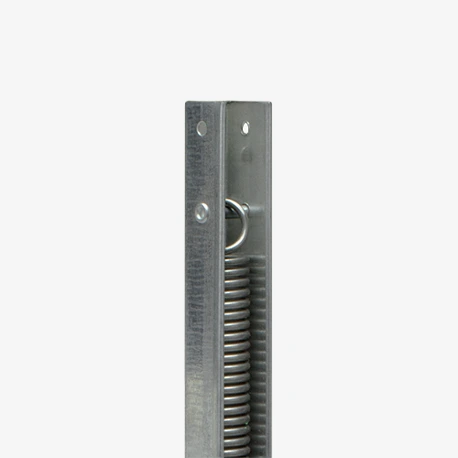

This is a Series 745 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

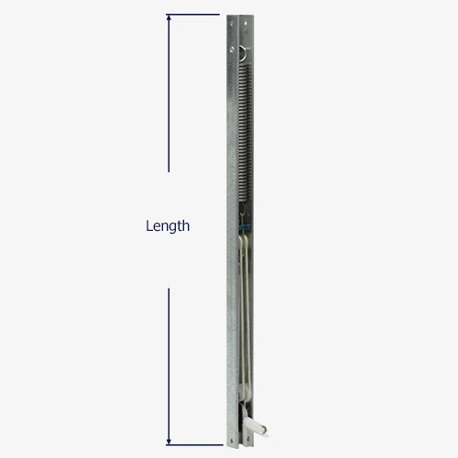

This balance has a 23-1/4" long metal channel.

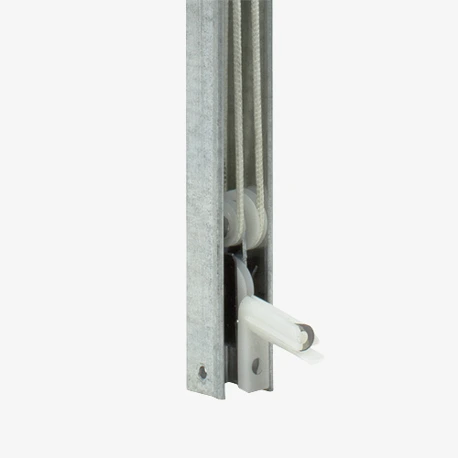

Comes fully assembled with a terminal plug and will be ready to install out of the box.
The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
Can work for either the left or right side of the window interchangeably.
Used in Peachtree-Ariel non-tilt single-hung windows.

Stamp Option	Sash Weight Range
22.25-3	13 to 19 lbs
22.25-4	20 to 23 lbs
22.25-9	28 to 30 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.

Good Idea!

Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.

Helpful Tip!

The stamp option is a code that indicates how much weight a pair of balances can support. You can use the stamp on your original channel balance as a reference in most cases, or you can weigh your sash and refer to the chart above. If your sash's weight falls outside the weight ranges listed on that chart, or you are still unsure how to proceed, ask our experts for help.

Peachtree window balance

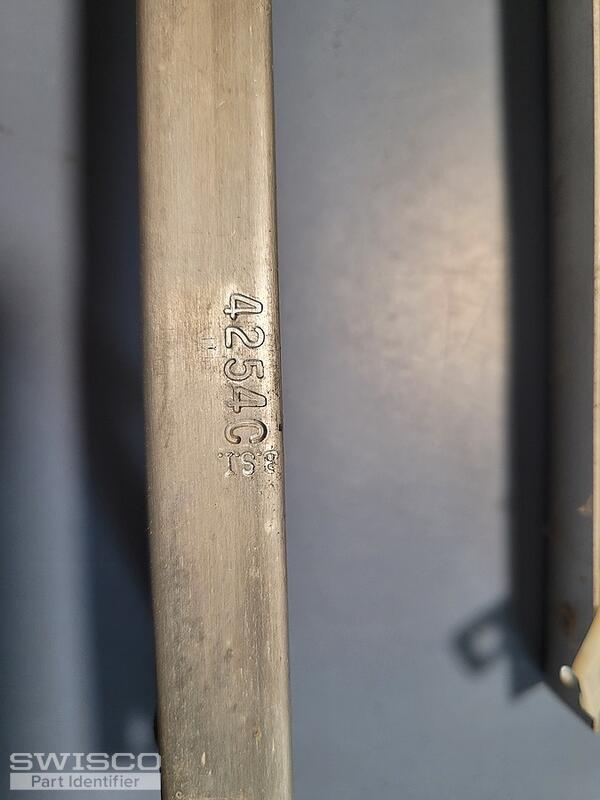

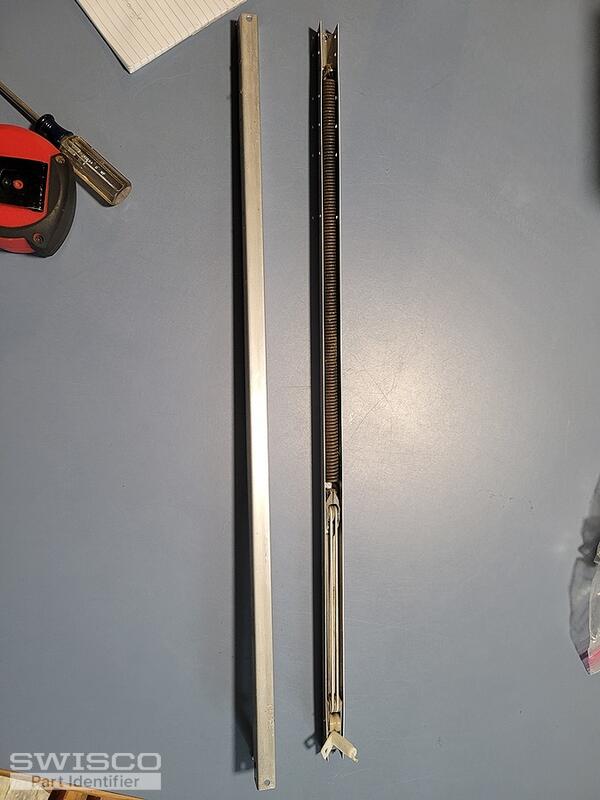

I'm pretty sure I've figured out the right balances; just sending info I have to check. The windows are Peachtree double hung, non-tolt. I believe they are Ariel model. Over 30 years old. Number on downstairs window balance is 4254C. Length is 23-1/4", weight is about 23 lbs

Peachtree balances

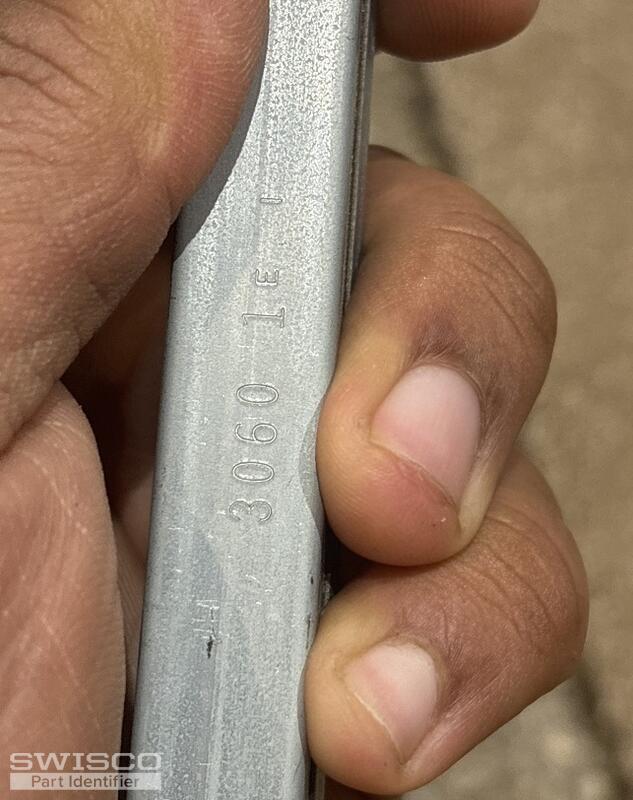

I have Peachtree balances, but a Swisco rep says Sash 1 doesn't fit the mold. Sash #1: Peachtree Stamp: 3060 1E 1 Balancer Length: 27-1/4" Balancer Width: 9/16" Sash Weight: 16lbs Sash #2: Peachtree Stamp: 3654 D1 Balancer Length: 23-1/4" Balancer Width: 9/16" Sash Weight: 20lbs Sash #3 Peachtre ... (cont.)

Channel Balance

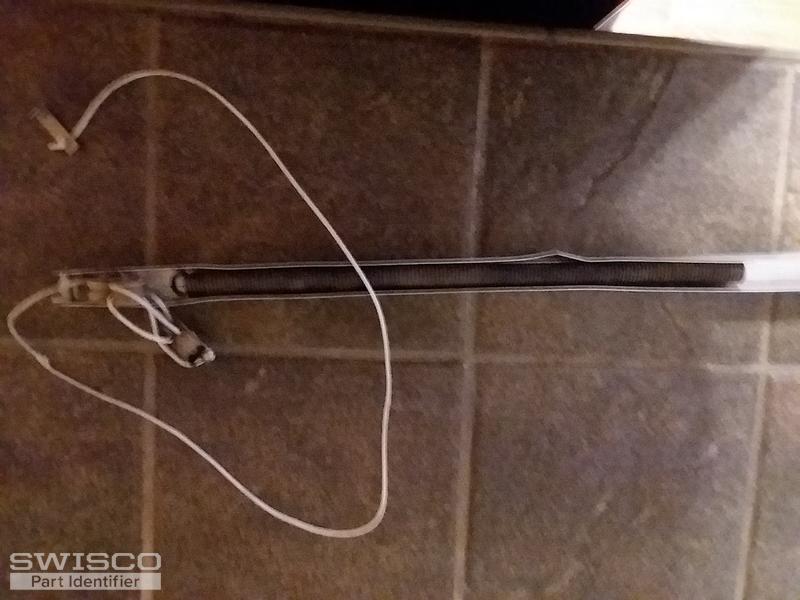

Hello I have two windows that need balances . 1 one is 20 lbs the channel is 23-3/8 long The second is 18 lbs and channel is 16-3/8 long . They are peach tree windows . Attached are pics of old balances

Window balast

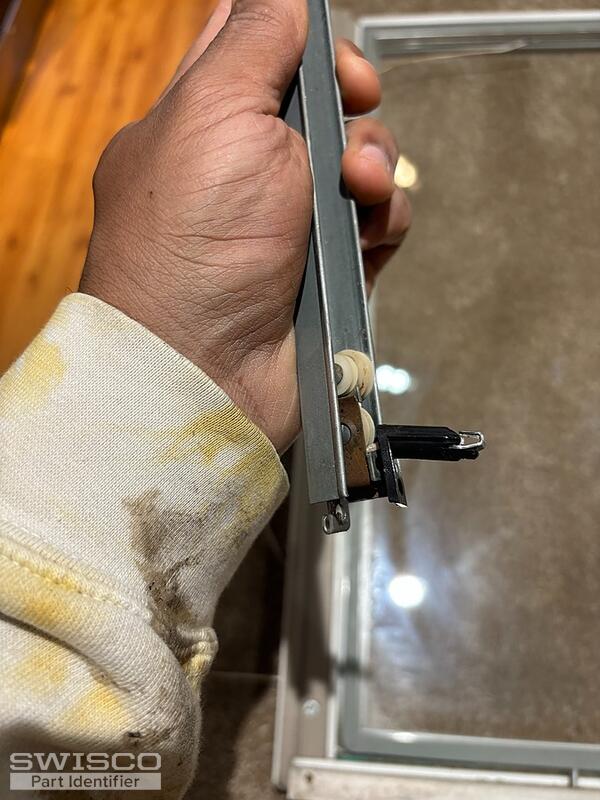

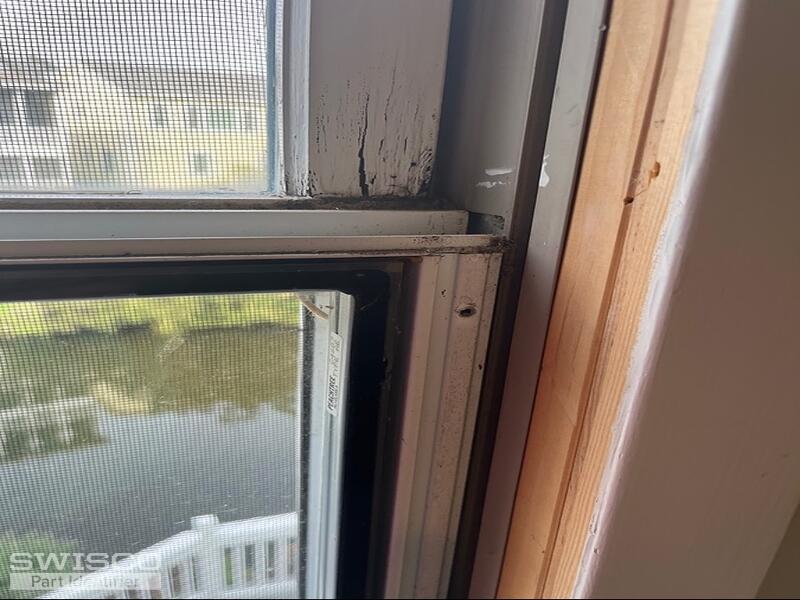

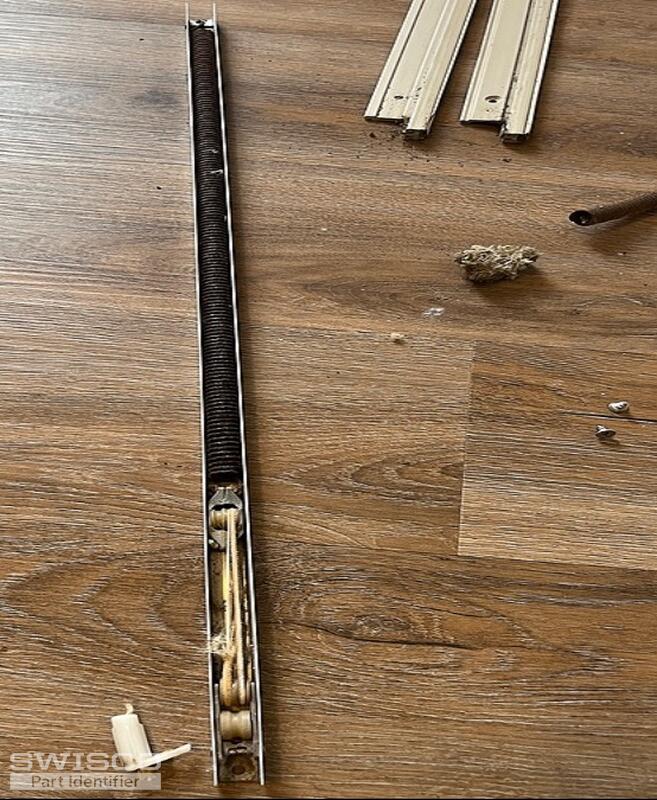

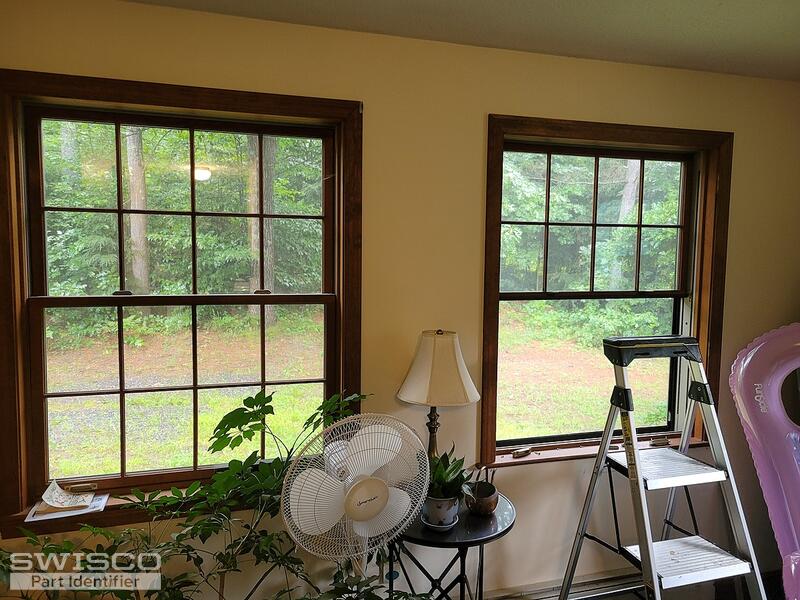

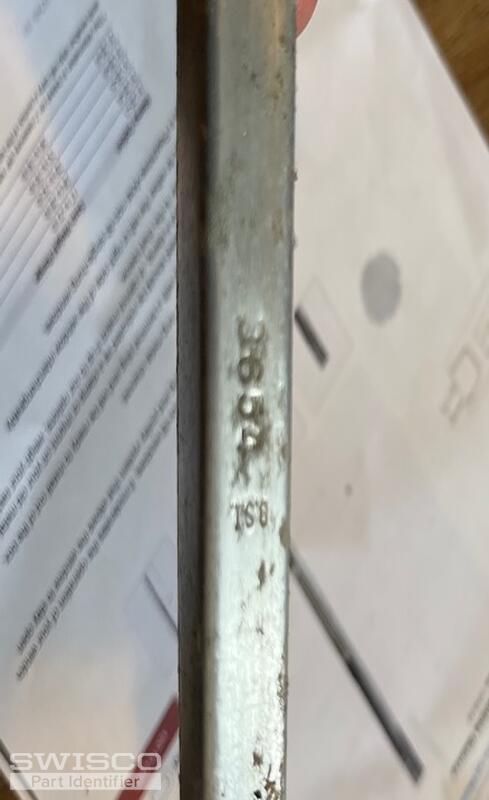

So this definitely looks like a S745 type window ballast. I have include pictures, theses windows have a wood inside veneer, that is removed, then have to slide out the channel lock and then remove the window frame. Our windows have a 23 1/4 spring frame in it, and the frame has a 3654 stamp mark ... (cont.)

Aluminum non tilt window balance

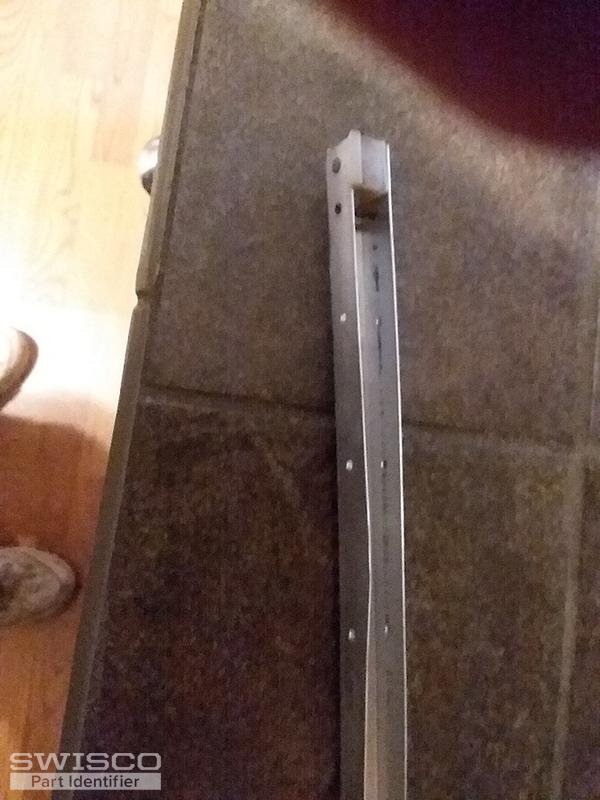

Looks like a peachtree aluminum window balance it's a 1/2 channel at 23 1/4 long only numbers are 2230 which is probably sash size.
