33" Series 765 Balance

Product Code: S765-33

33" Series 765 Balance
Main product image of the S765-33 33" Series 765 Balance
Quantity Price
1-11 $14.75
12-49 $13.27
50-99 $12.54
100-249 $11.80
250+ $11.06
Please Note: Bulk pricing applies only to purchases of the same option
Product Description

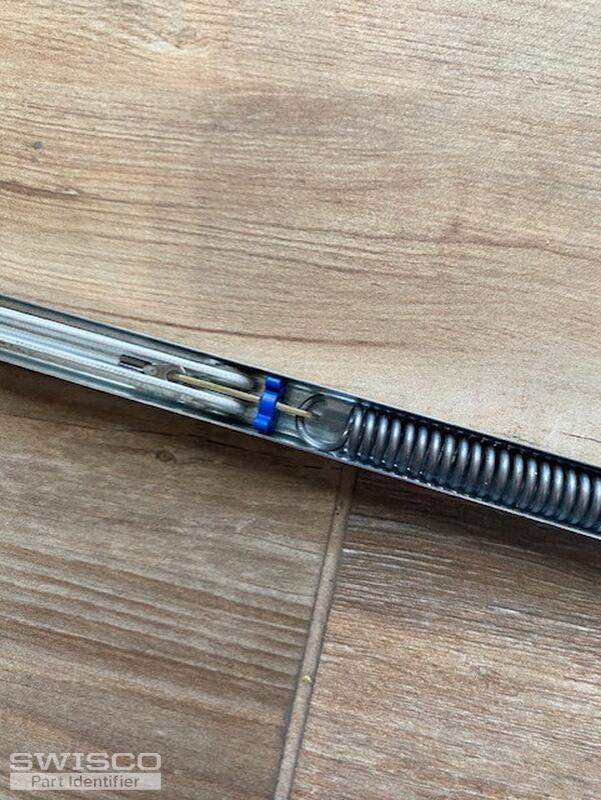

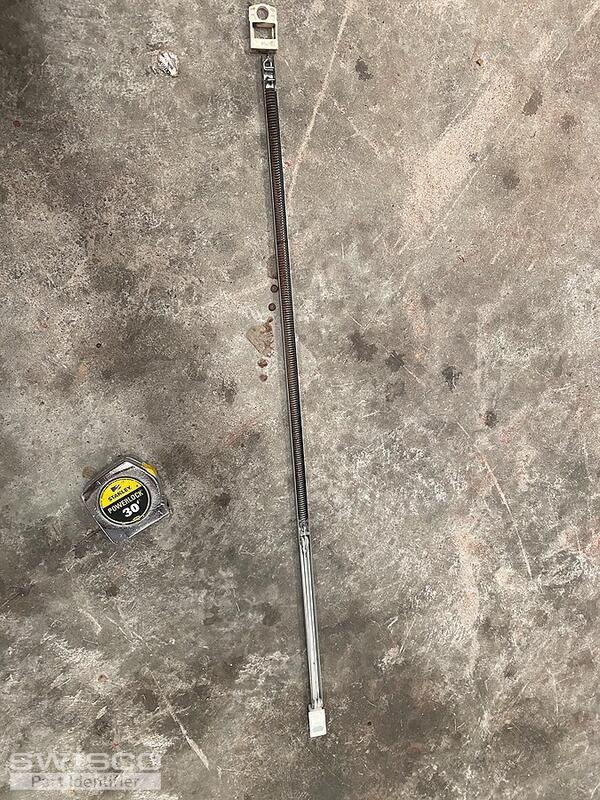

This is a Series 765 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

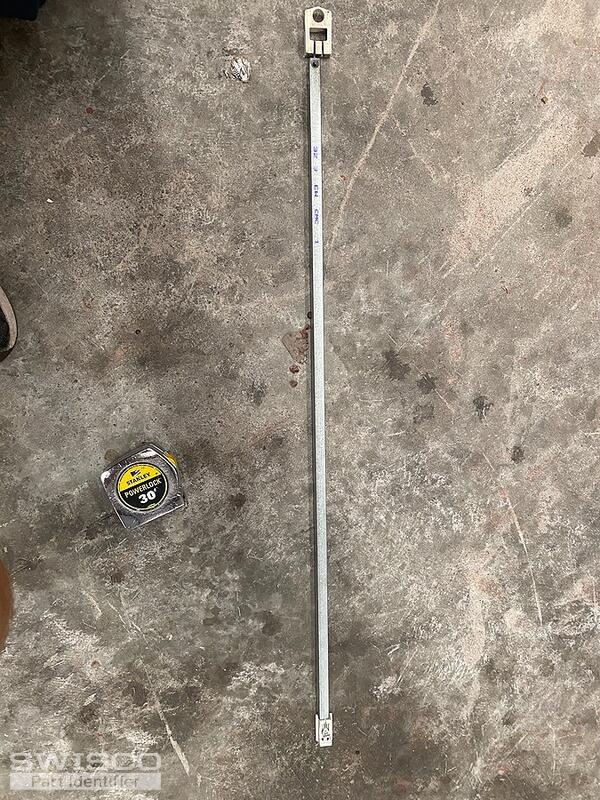

  • This balance has a 33" long metal channel.
  • Comes fully assembled with a screw clip on top and a pivot shoe hook attached at the bottom and will be ready to install out of the box.

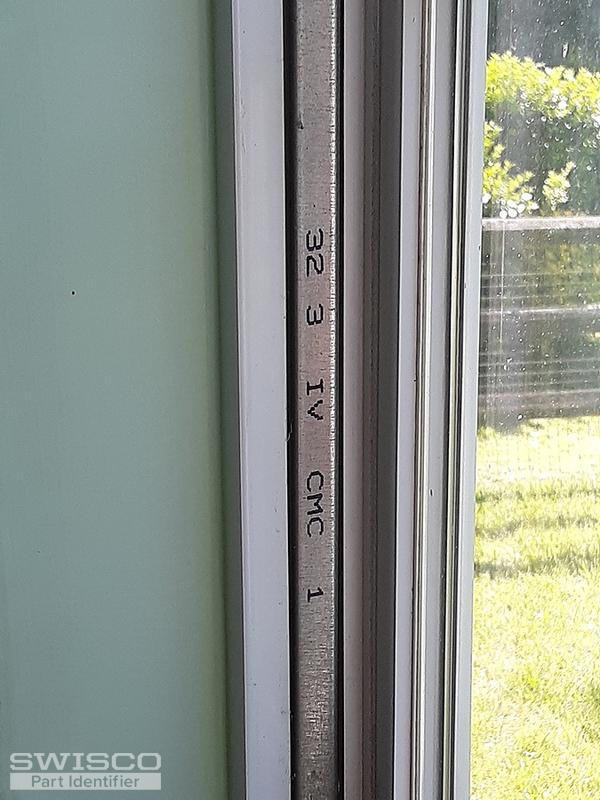

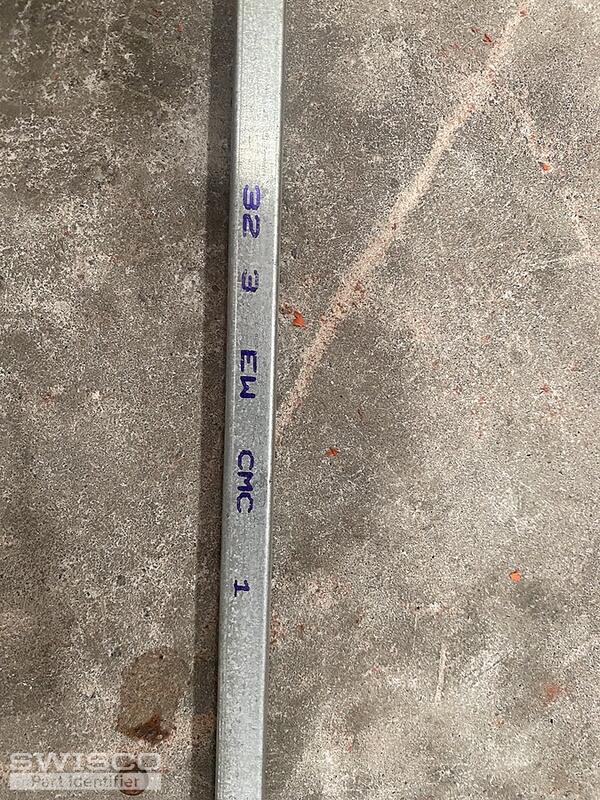

  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • Can work for either the left or right side of the window interchangeably.
  • Used in American Craftsman and Silver Line vinyl, single hung, new construction windows, as well as Silver Line Series 1200 vinyl, double-hung, replacement windows.
  • Stamp Option Sash Weight Range
    32-1 13 to 18 lbs
    32-3 18 to 24 lbs
    32-5 24 to 29 lbs
    32-7 29 to 34 lbs
    32-9 34 to 40 lbs
    *This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Related Item(s)
Customer Questions & Answers
Discussion # Of Replies Last Post Date
Stanley 2/8 6/2 windowThis discussion includes image(s). 2 Jul 22, 2021
Looking for Correct Replacement Channel BallanceThis discussion includes image(s). 2 May 11, 2020
Channel Balance for Silverline Window 2 Mar 6, 2020
Window replacement partsThis discussion includes image(s). 5 Jan 7, 2019
Block and Tackle Replacement This discussion includes image(s). 2 Nov 23, 2018
relaunching Peachtree window parts requestThis discussion includes image(s). 6 Jul 6, 2018
Installation Instructions for S765-33 : 33" Series 765 Balance 2 Jul 3, 2018
Balances for Silverline windowsThis discussion includes image(s). 3 May 29, 2018
