Viewing all customer Discussions for:

39-096 Pella Window Crank

We are looking for this crank arm

Need a replacement casement crank for a Pella wood window. Windows are probably from the 80s. Thanks

I need a left-hand hinge arm for a Pella window that was installed in the late 1990's. The outer dimensions of the window are 65 x 25, the actual window with glass that opens is 63x23PHOTO is a right-hand window right next to it. The rivet at hinge arm and bracket under window broke. So I need the h ... (cont.)

I will need what I think is a 9 3/4 in left and right arm Plus covers for the arms and handles fior each

can I replace Pella operator 29-175 with 39-096 as they look the same length if you add the last small piece that is to be screwed to the window

Please see attached pictures. Pella windows were manufactured in 1974 per numbers found on sill, 704CC. Three of the four crank handles no longer work; however, one of the original cranks (stamped #4 on top, X-429 on bottom)fits and works flawlessly over the shaft/spline. Pella sent me two different ... (cont.)

I'm sending several photos of this Pella Awning Window, it was made in the 1990's. I'm in search of the correct " Operator " for this window. There is no visible serial number to be found. I truly hope that you can help me out with replacing the needed part.

it is mico blind window theirs is 1 stamped on the bottom the lock is on the left of 3 13/16 center to center of holes left to right 3/4 center to center back to front

Hello, I need a replacement crank/operatator for a Pella casement window. the only marking I see on the window is 619 patent paending. the window handle turns but the operator will not open the window. I think the gear is stripped. thanks

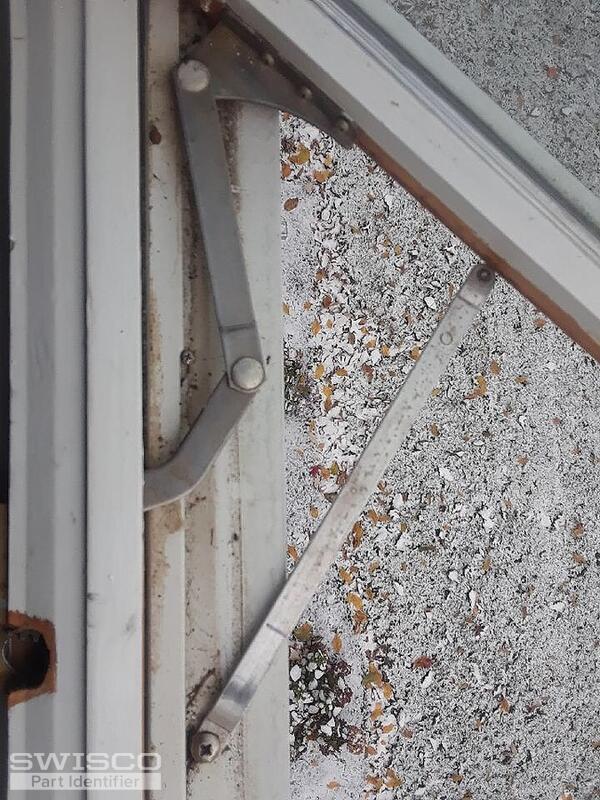

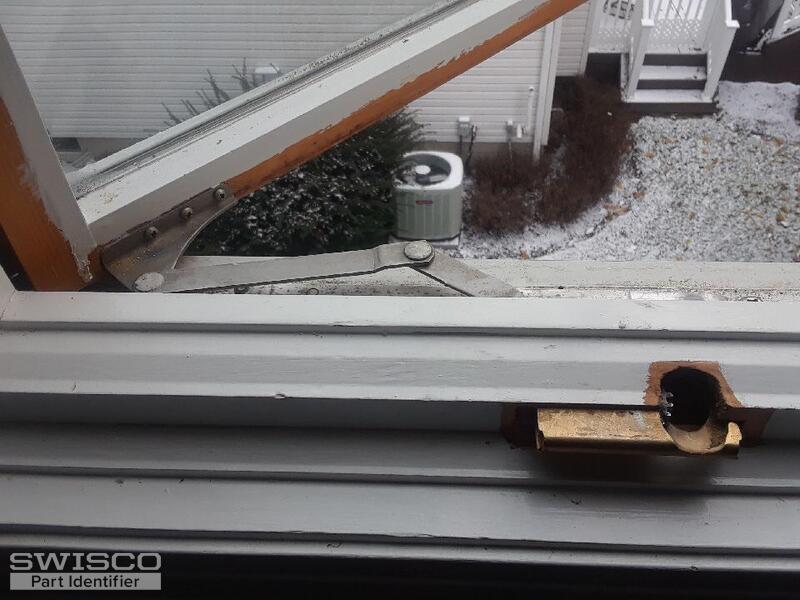

We have a window in an apt that has two issues. The first and most important is that the window lock is missing. I have attached three pics showing that lock location - the first is the missing latch and the second/third are that latch in another identical window. The second issue is that the cra ... (cont.)

I purchased the 39-176 as it looked identical to the old crank. Turns out the arm from the crank to the first link is shorter on the old one. Approx 4 ⅜ from center rivet to center rivet. The Window arm link is identical but the 39-097 looks like the crank arm might me the right length. Heres the p ... (cont.)

would a the length of the arm effect the window operation,like properly closing etc. We have the the crank operator with the long arm #39-175 , would the operator#39-097 work just as well, its less money.

Hello I need help identifying this Part! I have look and tried everywhere! I need to know as soon as possible! Thank you so much

Good Afternoon: Are there any more dimensional specifications for this model? It appears that I have a casement window that was not manufactured by Pella but incorporates a Pella gear mechanism that has failed. I'd like to be positive about the match before ordering.

What is the difference between 39-096-7 and 39-175-6? Dimensions are the same. We need the crank on the left window in kitchen. The right was replaced by window repairman two years ago. The windows (which open outward) are more than ten years old. Sal

Please explain how to replace the 39-096 and 39-097 in an existing mounted window? Do they just side in and out? Do I have to some how dismantle the bottom molding (without breaking it) to access the cranks? Please advise

our home was built in 1978 and the Pella windows are still in great shape. however i have three windows that seem to bind when closing at the last two inches when the bottom of the traveling windows makes conact with the window frame. a small nudge from the out side and the window slides into the ... (cont.)

How do you replace the window crank on a pella casement window?

I recently purchased and installed the 39-096 Pella replacemnt crank from you. The attached images refer to a small plastic/nylon slider that is supposed to align the window itself in the frame when one opens and closes t6he crank. Although not associated with the crank itself, this part appears bro ... (cont.)
