Discussions for 15-047 : SWISCO.com

Pivot Shoe for Gentak window

The pivot shoe that I removed from my Gentak window is 2 1/4 long, 1 1/4 wide,5/8 thick. But the claw at the top is facing the rear of the shoe, In your pictur the tit in the middle of the swivel is on the top and mine is on the bottom I have just order 6 blocks 15-047. Please tell me that I shouldn ... (cont.)

Pivot shoe

Need replacement part and tool to turn spring system and assemble into part

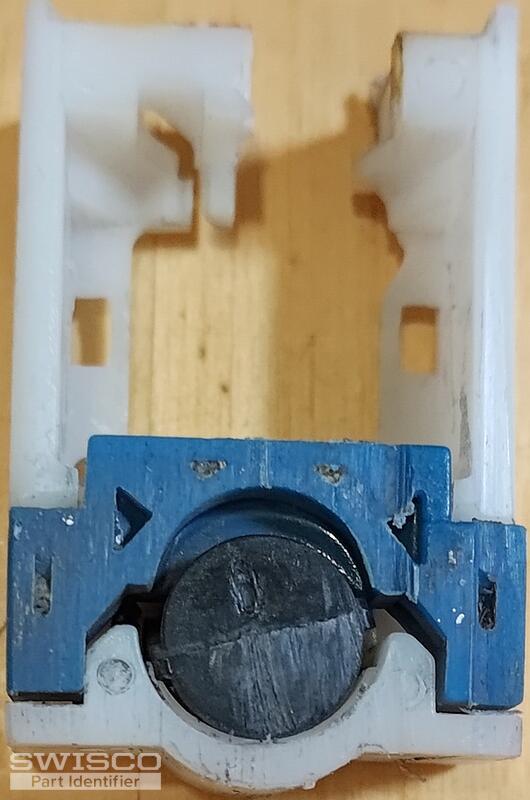

Pivot shoe ID

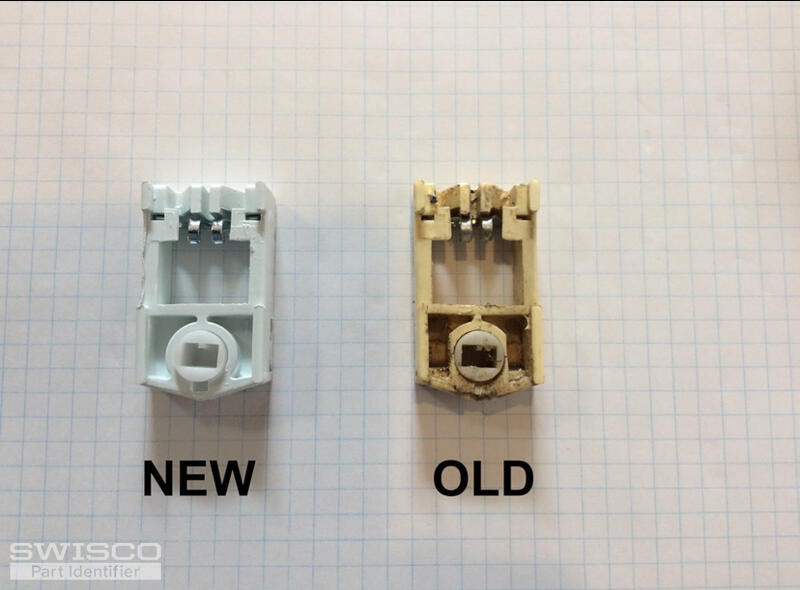

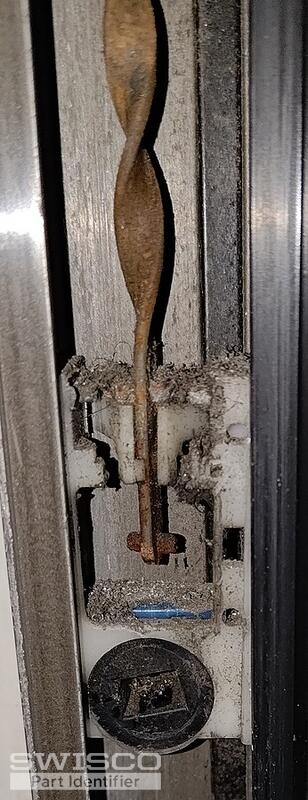

Replacing the old spiral balances in my windows, but got the wrong size pivot shoe. I got the S900-29 and the 15-045 pivot shoe to go with it, but the shoe is too small for the track. In the image is the old shoe to the right. I measured it at 1.5 in tall, 1.25 wide, and about 17/32 thick (i think?) ... (cont.)

Replacement parts

Looking for the possible parts or equivalent

+2

Pivot Shoe

Hello, Can you assist me in locating a replacement for my pivot shoe? Previously I ordered 15-045 as it appeared to be the closest but as you can see in the picture it is much smaller. Please let me know what you think Thank you

Tilt window pivot lock shoe

Hello - I need help identifying this part. Thanks!

Window balance replacement

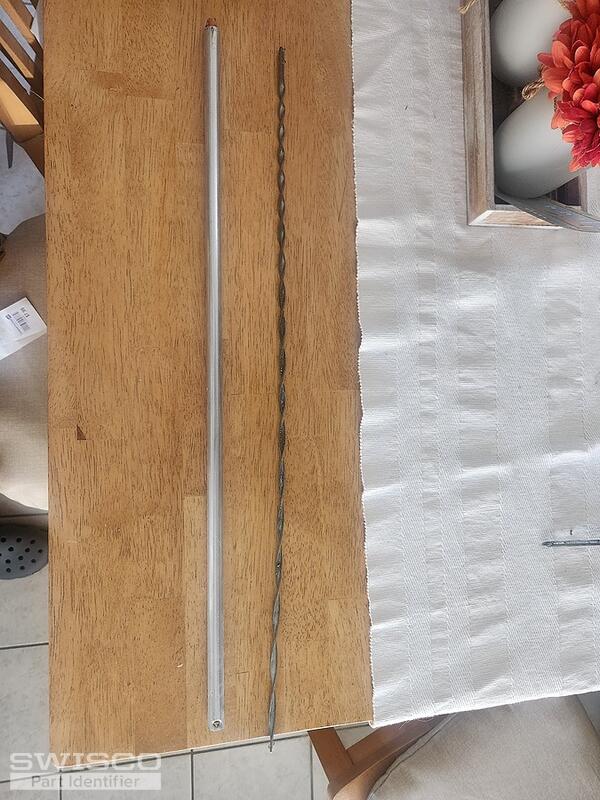

Hi, I am looking for a window sash balance replacement for both sides. I sent you photos of the old balance and attachements. The old balance is 29 inches long. The weight of the window is 20 pound. Hope you are able to save my window aither with the exact balance replacement or with somthing equiv ... (cont.)

+6

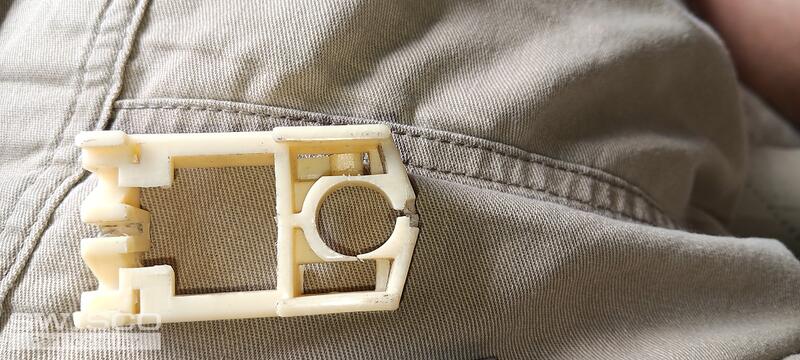

Broken Pivot Shoe

Looking to identify which part to order for a replacment. Thanks

bottom shoe

do you have something like this

Owens Corning Fiberglass Window Shoe

I need replacement Owens Corning Fiberglass Window Shoes for my windows that were manufactured in the mid 90's

Identify

Just trying to make sure I purchase the correct one

Window Balance

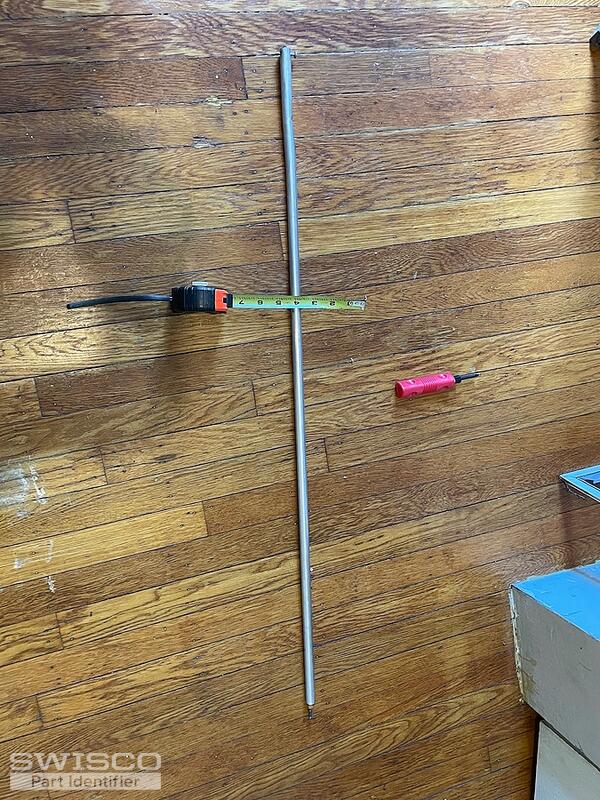

I need to find window balances to match ones in the attached photos. Total length of the balance is 28.5"

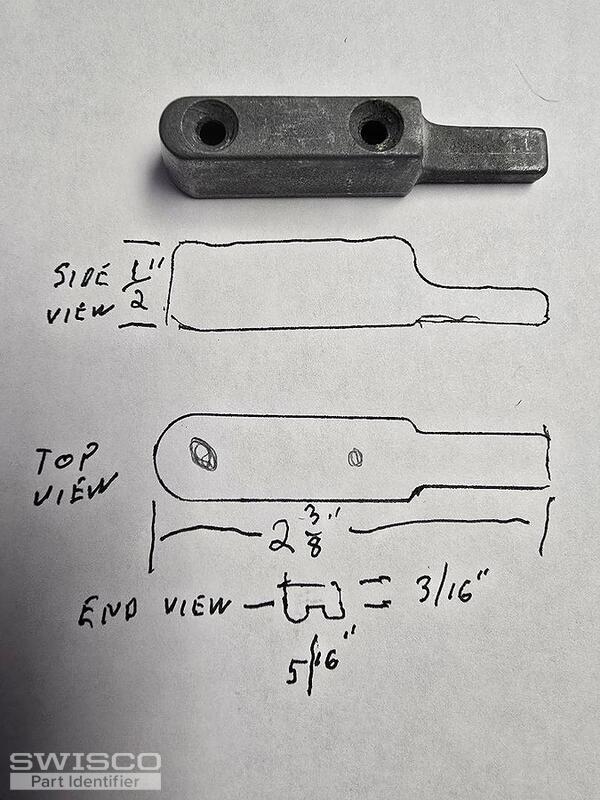

window tilt latch

+2

Replacement pivot shoes

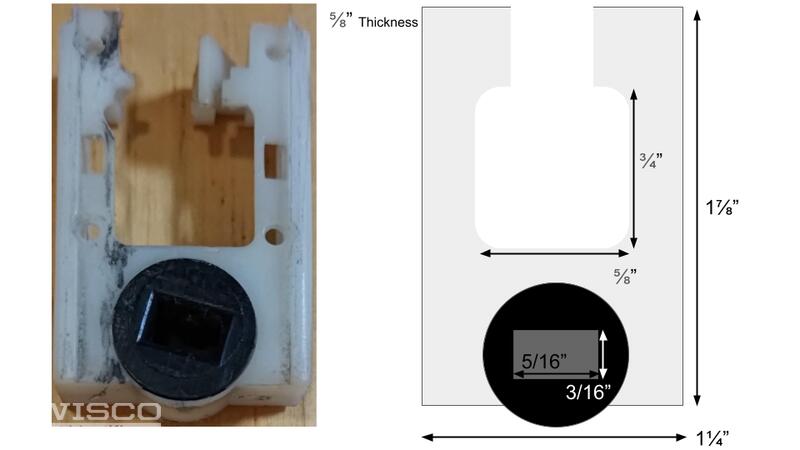

I am in need of replacement pivot shoes for some vinyl windows. The shoe dimensions are approximately 5/8" × 1 1/4" × 2 1/16". I can find no manufacturer name, model, style nomenclature on any window.

Window Repair

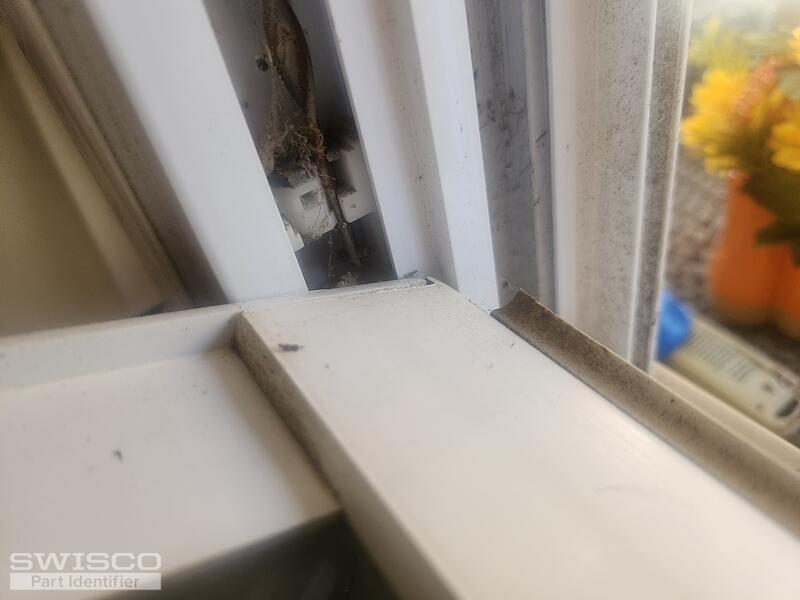

I think the part I need is called a bottom tilt pivot. I changed the srring part in the window already the Chanel balance, but now the bottom clips broke. My name is Charlie from Lobello Construction. We are repairing a bunch of your windows. And I need to order the part, but I wanna order the right ... (cont.)

pivot shoe

need a new pivot shoe but not sure which to get.

+2

Window pivot lock

Hi I need to replace 4 of these. 2" 1 1/4" 5/16 on the side and 1/2" on the narrow part.

+2

No found nomenclature

I have these balance springs on about six windows that are broken. Various lengths. But you'll see the Gap Gap is exactly 1/2 in. So I'm assuming that the balance spring itself is the 5/8 model but I'm not sure till I take one out. Need to know if you can identify it and if you have a replacement m ... (cont.)
