Viewing all customer Discussions for:

39-513 Stud Bracket

Please see pictures of the window crank we want to replace attached to this email. Best

Operator - 4" wide, # marked on body 7708 Wright Arm 4" with # 07900 Slide rail (not in picture 8 15/16" long

I'm trying to replace but unsure what kind I need.

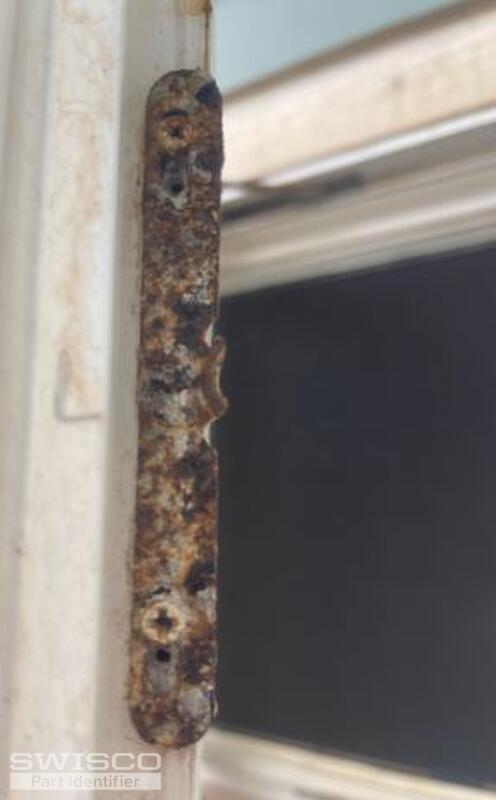

Hi good afternoon my name is Noe i have a customer, they need to cranks. Hinges and 2 pivot bars i would like to wear a quote first so I can give him the price thank you.

I have two casement windows that do not close properly due to a broken plastic slider. See photo. I believe they are Harvey windows, probably about 25-30 years old.

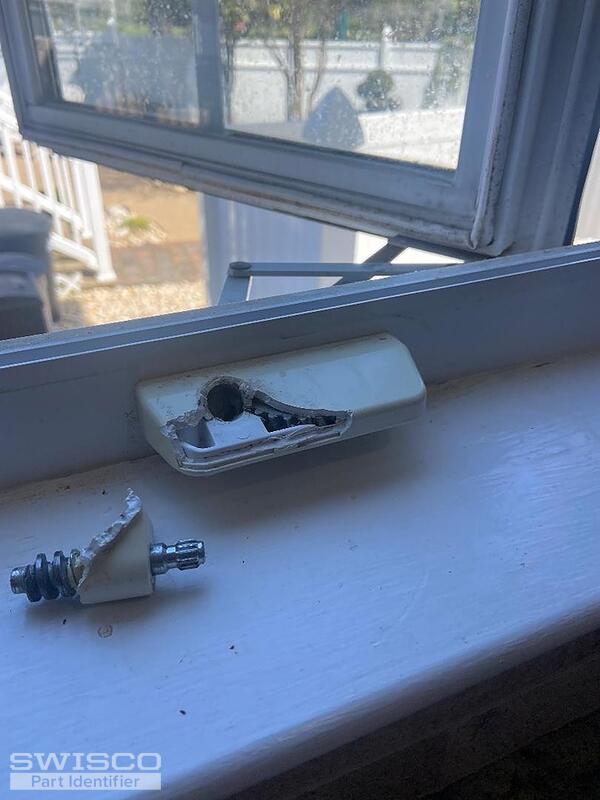

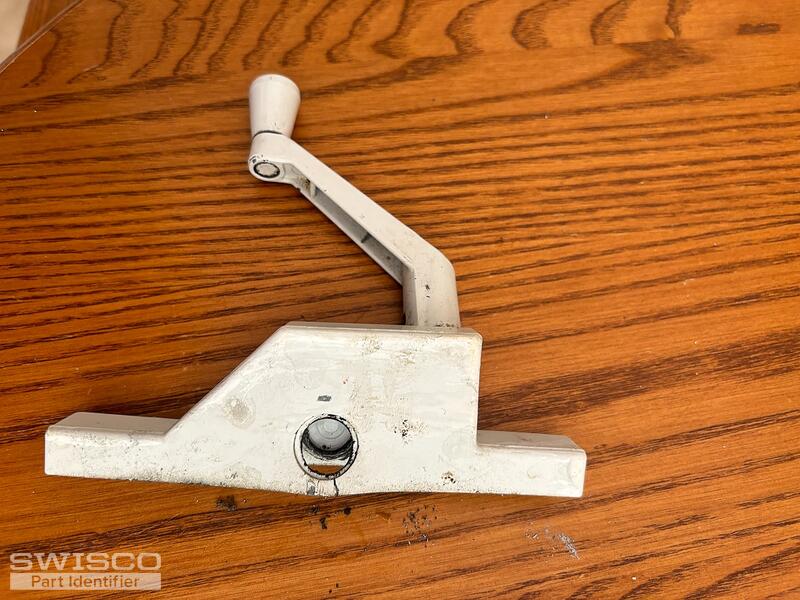

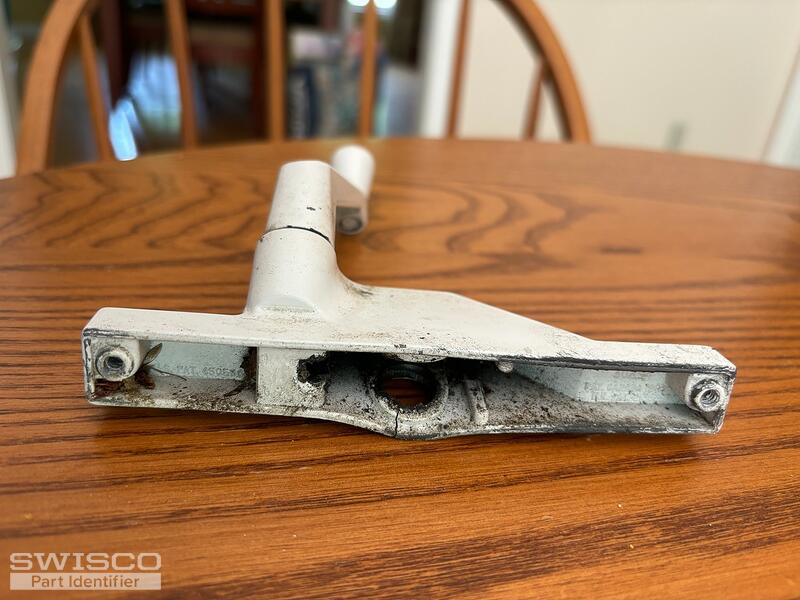

The left handle is broken off and the right side lock is broken. The color is an almond (off white)

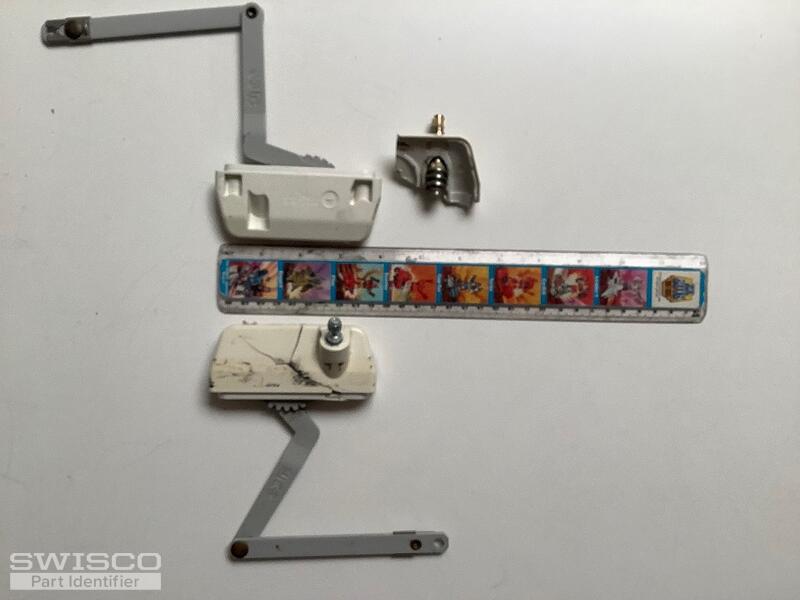

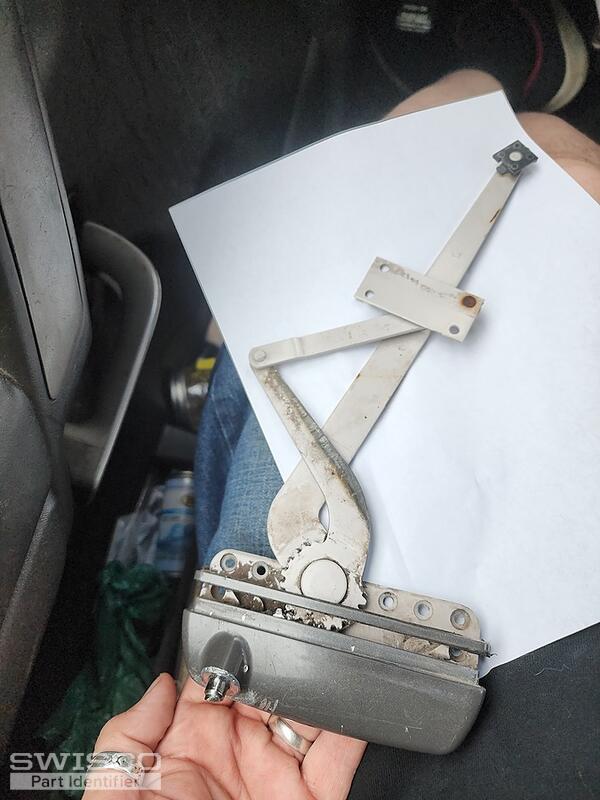

As seen in the pictures I am looking to replace the crank operator for both right and left window panes.

Need help identify parts

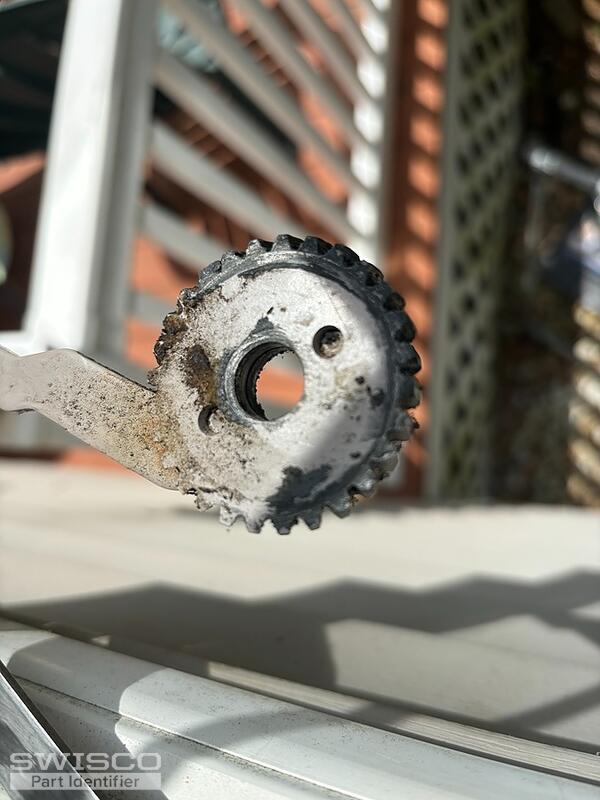

I have Lincoln crank out windows circa 1995. One of them needs a new crank out mechanism. The center gear shaft lifts out and seems to be broken. I have attached two photos and am looking for advice as to what I need to purchase. The front dimension is 4.5inches and the rear is 5.0 inches. Your ... (cont.)

Hi! I need to replace this mechanism (see photos). Inside there are numbers 30614 & 30893. There are no words or numbers on the arms. Another part of the window has NAMI printed on a sticker. Can I replace this part? Do you recognize it? Quick Learner Home Owner

The arm says Del Mar Toronto. Casements haven't been opened in years, and I'd love to replace hardware and get them fixed. Any guess as to what parts you might have to replace? Thanks!

I ordered and received replacement parts. The parts were all correct. I forgot to order one part. It is the link bar connecting the crank assembly to the window. It is approx 3 inches long. I am sorry I don't have the part to measure it. Can you identify the part from the order number I refere ... (cont.)

I need a replacement piece for my operator.Thelong chrome piece measures 12in. the numbers on one end of chrome piece are 40301. I need direction on how to proceed to order the replacement piece.

I need 1 left crank and 2 right cranks photo is of the left crank ! I

Need bracket where handle attached to

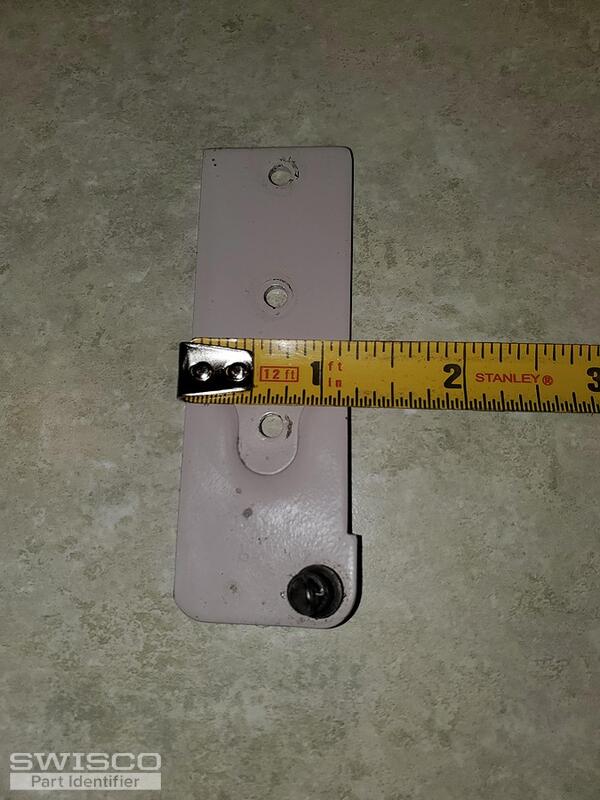

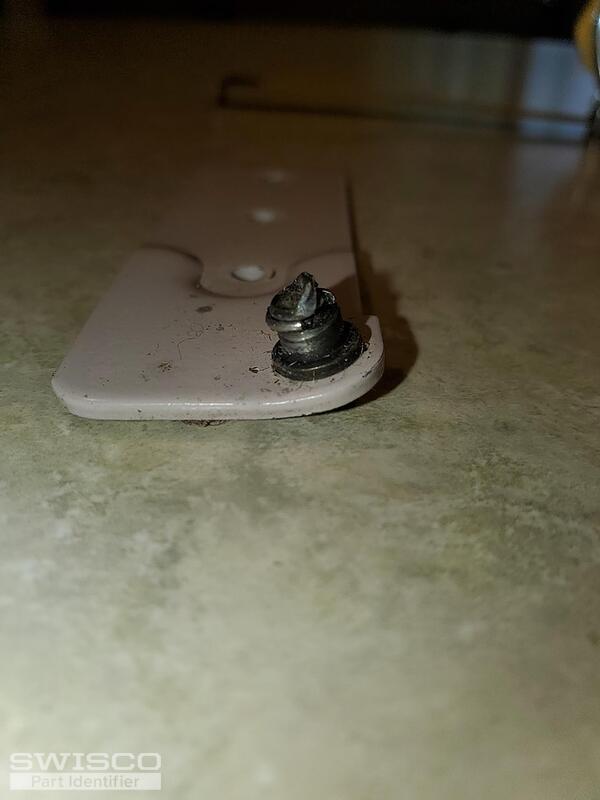

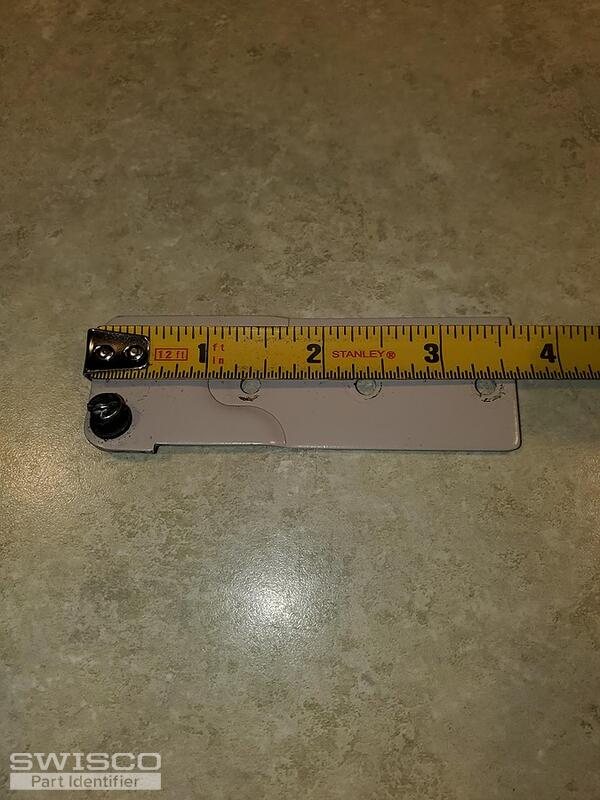

The small plate attached to bottom with pin to fasten arm on. 2 1/2 inches long by 1 1/8 inch. I bought the cranks already. They worked great, but I still need this plate

Looking for a sash bracket for weathershield casment. I didnt see one that matches in your bracket section. The window has a Truth crank arm with a stamped part number 45136. If that helps any. Thank you for your valuable time!

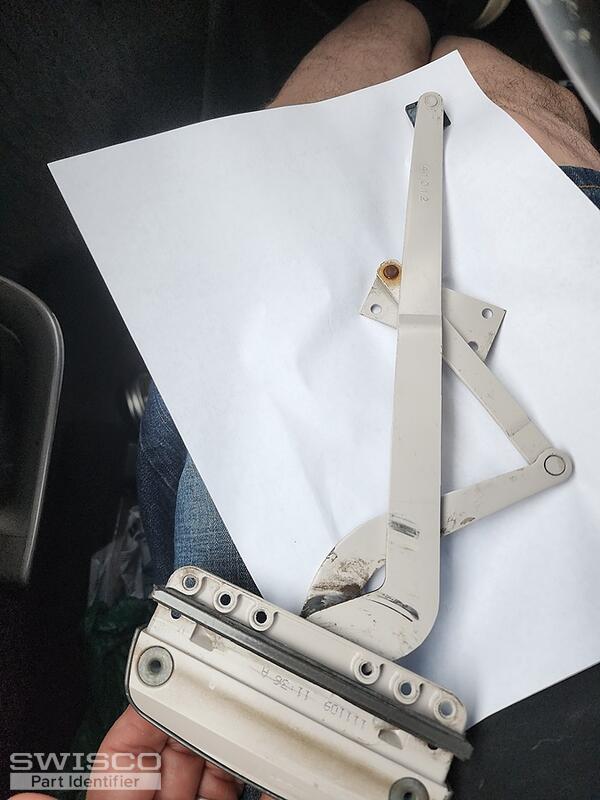

Sn# 111109 Stamped 41012 Square plastic slide

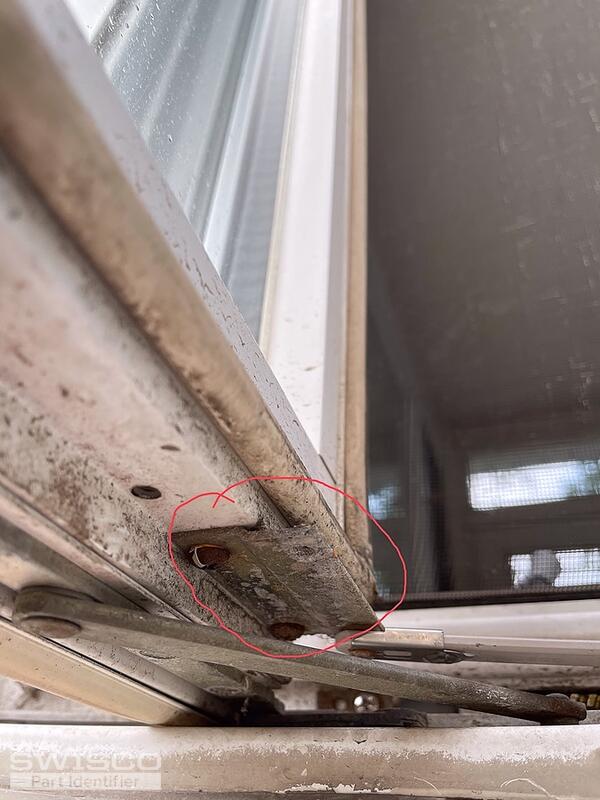

The crank assembly in pic 5705 will open but not close the window. When attempting to close, the handle screws out. The other photos are of the mitered lower trim pieces on the window exterior. The photos are of 2 different sized windows.

Hello, I'm looking for a casement window crank replacement for my windows. The brand on the handle says Alcoa. There's a number engraved on there 30744. Looks to be 5 1/2" I'm hoping you can help me! Thank you!
