Viewing all customer Discussions for:

15-121 Pivot Shoe, 9/16" Thick

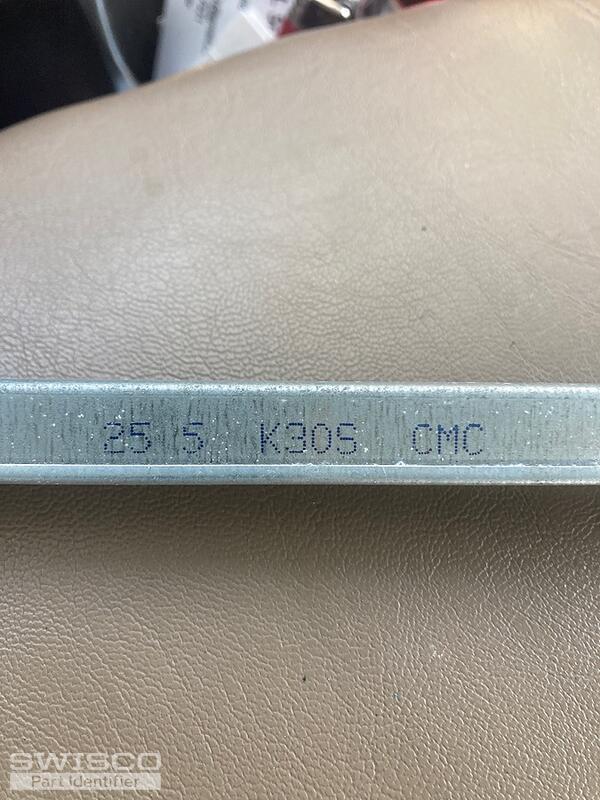

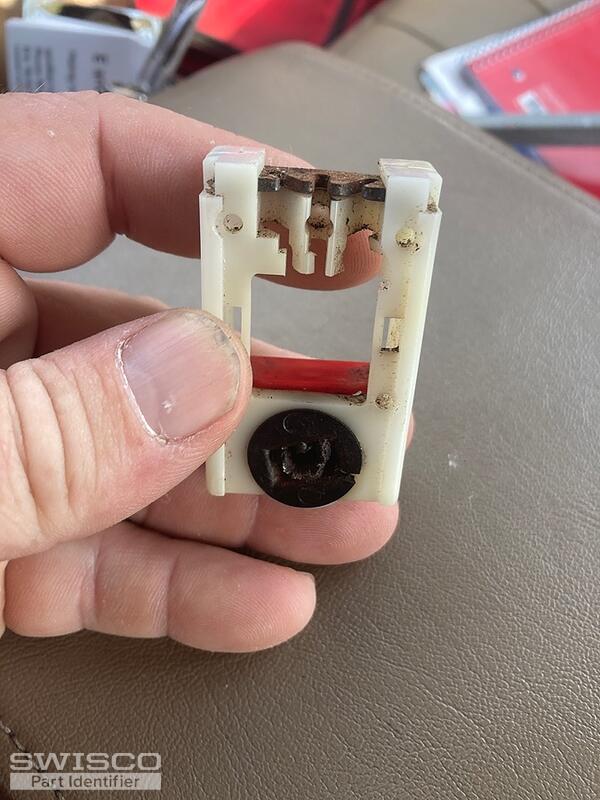

Spring assembly with shoes. Hard to read numbers but think it says 40 9 bsi vb or v6. Measurements in photos

An old tilt window needs a lot of the little parts replaced. We know the spiral balance we need (red tip 26"), but aren't sure about the pivot shoes and internal latches. The Pivot Shoes we have (see photo) have a gray/black plug/disk thing but seems to be 1/2". Are we best off ordering the black 5/ ... (cont.)

Hello,I can not find the name of these windows. The spiral balances look like they are 1/2" thick.The pivot lock shoe(?) is broken on a couple of the windows.Some of the windows will not stay up.Thank you, Joe

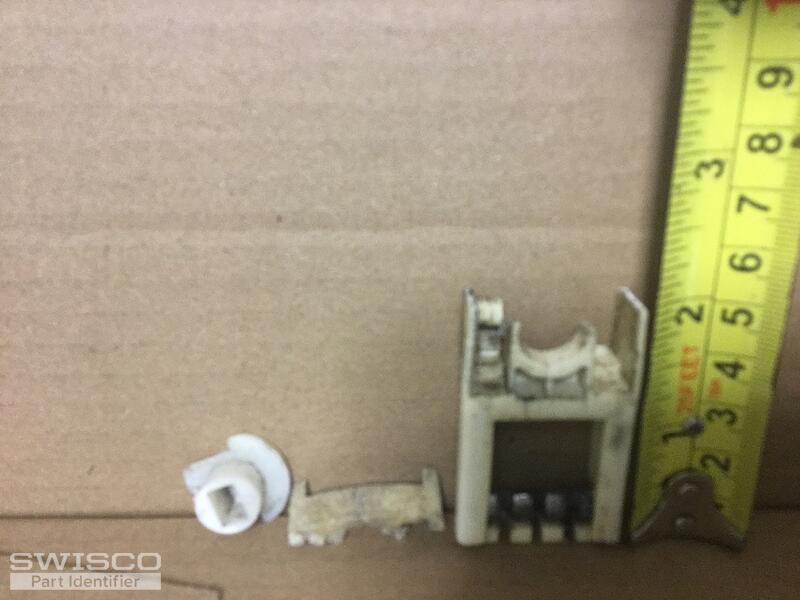

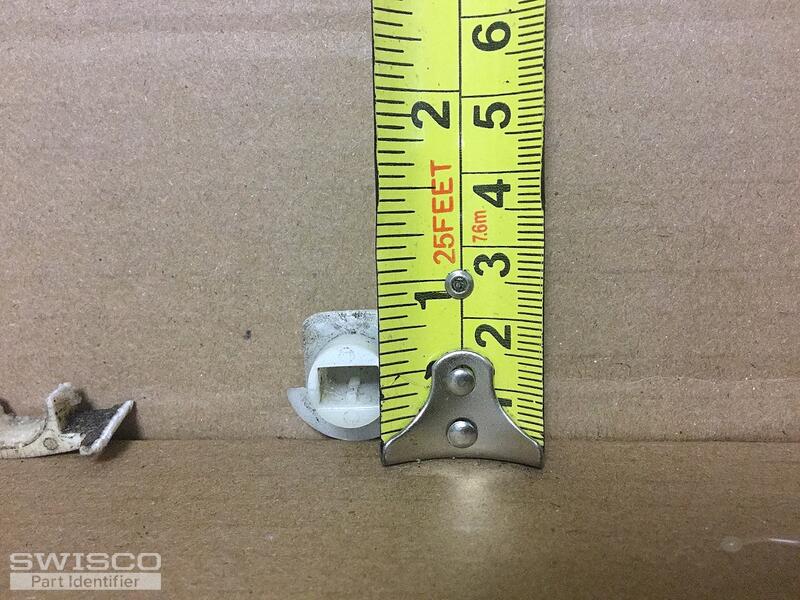

Hello Swisco, I'd like to get your help and ID the parts I need to repair a few windows, and one slide door top part. -I have the orange/red tip spiral balance and the pivot shoe is broken. kindly refer pictures - window latch - slide door top roller (not sure if it's the right name though) ... (cont.)

Not sure if part numbers. . Thank you

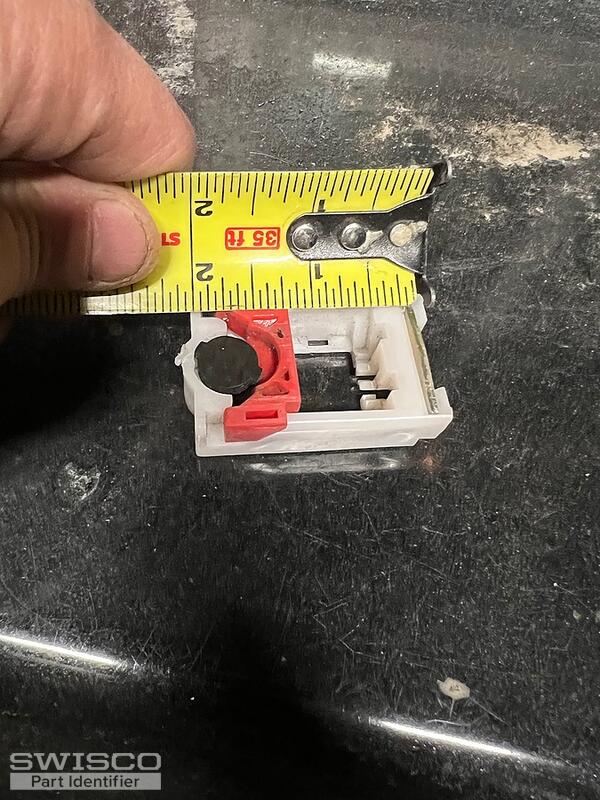

Attached is a photo of a pivot shoe in my window. I need a replacement. The channel opening depth is 9/16" and the best I could tell there is a slight gap, maybe 1/8" between the back of the shoe and the plastic channel. Can you tell me which shoe to get?

These pivots have cracked over the years from age and air conditioner vibrations. I need 8 of these shoes.

Hello, I am trying to get two of these pivot lock shoes - they are approx 17/32 thick and 1 1/4" wide by 2" high. I do not know what brand of window it is from. Thank you!

I think the measurements are 1 1/4 wide. 1/2 or 9/16 thick. 21/8 high. Round cam is 1/2 diameter center slot 5/16 by 1/2 cut out . Maybe part 15-046. Or. 15-129

I am looking for parts for old ALCAN aluminum double hung windows: Do you have the little plastic trolleys that slide up and down in the side rail? Those parts hold the sash pivot at the bottom and the balance rod. Thank you, Gilles

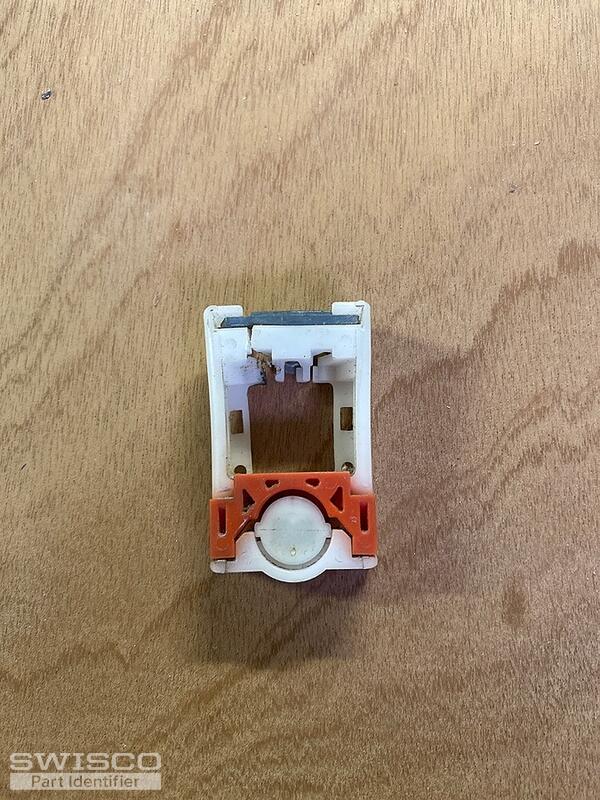

What window balance shoe is this. I need to order a new one. Thanks!

Dear Sir or Madam,Could you identify and quote the swivel lock shoe, photo attached?I need 18 items. 1.23 in width, 0.54 in thick, 2 in long.Regards,Gerd

Need to order pivot shoes and spiral balances. I have identified the balances but a little unsure about the pivot shoe. There is a number stamped on one of the old ones 590C. Can you identify it by this? It appears to be 9/16 and the one I'm leaning toward is part number 15-118. Any expertise is app ... (cont.)

Looks like 15-121 or 118?

Can you identify this part? And if so, is this something that you carry? It looks to be 2" tall and 1/2" wide. Thank you.

Showcase window. Spiral tilt window balance black - parts spring is 24" length and 1/2" diameter.

There is no brand tag on these windows. The factory put the spiral balances into the center slot, which is the weakest option. That pinched of the angle slots down, so I guess we'll change out the shoes. This looked exactly like a Great Lakes s shoe from my stock, but I don't find this one in your ... (cont.)

Current pivot shoe is 9/16" thick 1 1/4" wide. Can't tell if the length is 2 1/8" or 2 1/16" Looks like part number 15-121 or 15-118 Does it matter if I get either? Thanks.

Looking for this part. 1-1/4" wide. I ordered a smaller one that doesn't fit. Thank you.

WE ARE NEEDING TO ORDER THESE PARTS FOR A FEW WINDOWS.THANKS, EMILEE
