Viewing all customer Discussions for:

38-096 Maxim Multi-Point Lock, Long Slider

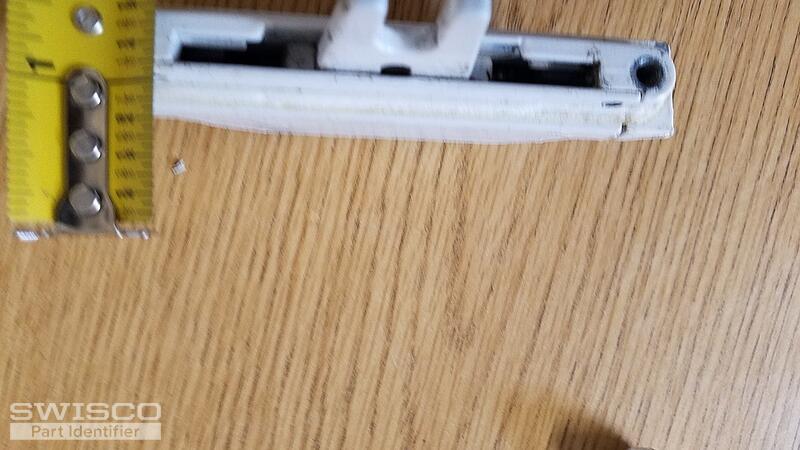

I need to replace the missing tie bar (like the one shown). It measures 39" and has 3 cone rollers and 1 lock drive point. Please advise. The pictures show the separation between cones if it makes a difference.

The handle snapped off the latch/lock mechanism on my Wincore window. I hope the labels and pix I uploaded describe the window. I can provide more if needed, but hard to be sure all of the images I tried to upload actually did so.

I'm confident your model 38-095 or 38-096 is the correct part to replace my broken casement window lock. The problem is the lock handle itself. It free floats (doesn't lock or unlock) and the window is closed and in the locked position. How do I remove the handle itself? Once the handle is remov ... (cont.)

CGI PART # HD-72-10061 MULTIPOINT LOCK, WHITE CGI PART # HD-73-10082 AWNING OPERATOR TRACK SHOE

I am looking for a replacement of my broken multi point lock. I have attached basic dimensions on the attached picture. Your part 38-095 will likely fit but I am looking for the part with corner profile not a smooth arc (shown in red on the attached Photo).

Who made this casement lock? Etching on part is 2249.

I'm not seeing anything this style on the website

There are no names on part. "2290" is cast on the inside of main body; "4" and "2249" cast on fork. The window company is Assura Windows (formerly TM Windows), in Pompano Beach Florida. The model of the window is TM 525 casement, manufactured in 2017. In an old brochure I have, they mention Roto Fas ... (cont.)

HI, I placed an order, which I will be returning some parts 38-096 because it does not. It was a bit too long and does not fit into picture #1. Opening is only 4" long when i was trying to replace it. Picture #2 is my broken part, which i'm, trying to replace. Maybe part 38-139 will fit perfectly, w ... (cont.)

I'm looking for both left and right casement lock keepers for my Ducana windows (built around 2003). The multi locking track utilizes 4 lock keepers. The keepers are missing so it's a crap shoot, but I would like to find something that may work.unfortunately the previous owner removed and three the ... (cont.)

Part number looks like 5067R1 It is the locking mechanism for the window . there are two on both sides of the window. I believe it is 4 5/8" inches long.

Looking for this part. I think I just purchased the wrong window lock from you guys at SWISCO Thank You Kenny

These pics are from a latch/lock on the side opposite the hinge of side opening casement windows - Milgard brand. If you can help me identify the part, I'd like to order probably 3.

I need a new latch (the part I am holding in my hand in the photo). The lever handle broke and no longer moves the latch. The latch is 4.5" long and the screw holes are 3.75" apart.

This is on a Milgard casement window that opens to the right. This lock is at the lower part of the window. The handle came free from the locking cam. There are few markings on the mechanism. Can you source? It's almond in color.

Hello,I need to determine the correct replacement for a Plygem casement lock as noted in the photos above. The lock cannot be fully engaged, as noted in the photo showing the latch 3/4 of the way down. The actual lock bar mechanism is intact. I do not have any other information other than what ap ... (cont.)

Mercer window latch for casement window. Moves pin upwards to latch. thanks, Jack and Kelly

I removed my casement window multipoint lock, but it seems like its screw holes are closer together than anything I can find on your site. In my picture, the screw centers are abut 3-3/8 inches apart. The grip that extends to grab the window is 1 inch. I don't see any other identifying marks on the ... (cont.)

Here are some pictures

Hello my name is Jerry Gray, I need the locking mechanism for a left out swing window. The window is a Series 238 Casement, dimension 37H x38W. The order number its from is #438273,Date 6/28/19. I really appreciate your help and time thank you.
