Viewing all customer Discussions for:

26-376 Window Sash Pivot

Hi, how are you? could you help me identify this piece that is broken?

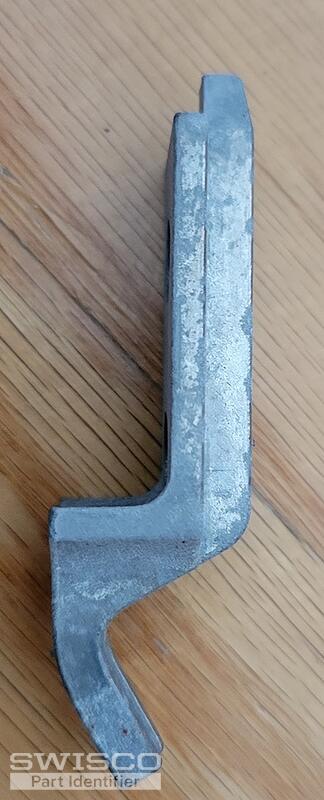

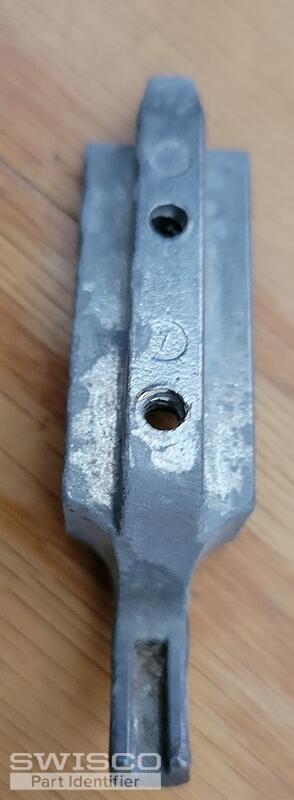

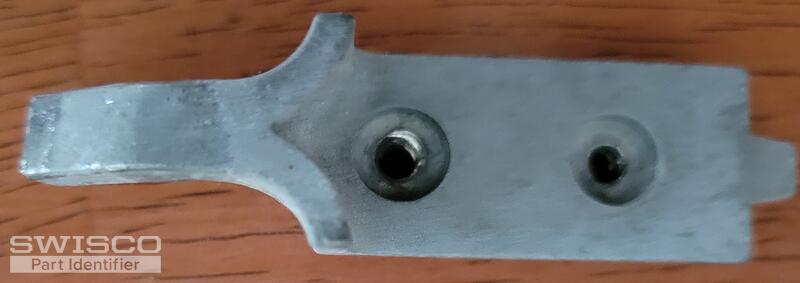

I am trying to identify a window pivot bar from an unknown brand of windows. 3 images are attached. Th part that is curved is supposed to be straight. As a result the window does not operate properly. I have been unable to find a similar part online or instore.

Can you Identify this part for me?

I don't know the brand and I couldn't find any markings/model number on the broken parts.

The one piece has the numbers 1446. The other one has the numbers 144 d-1. Something like that

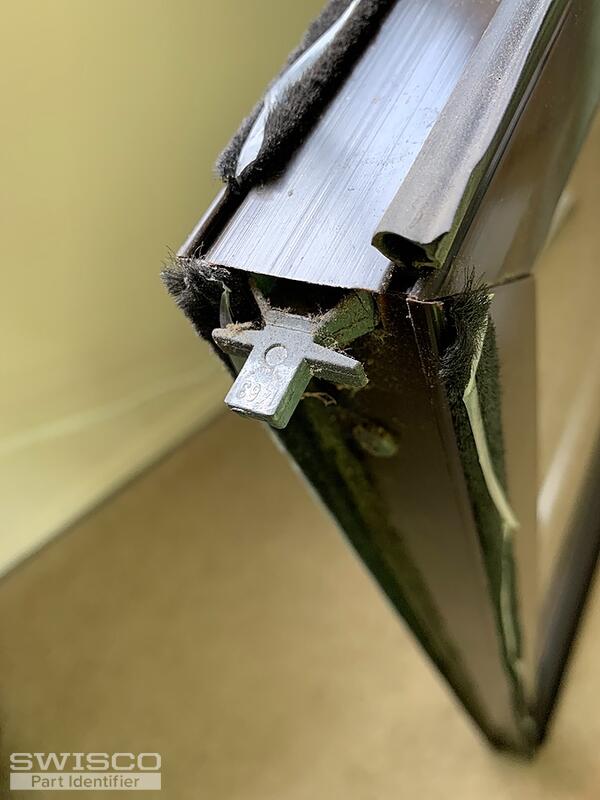

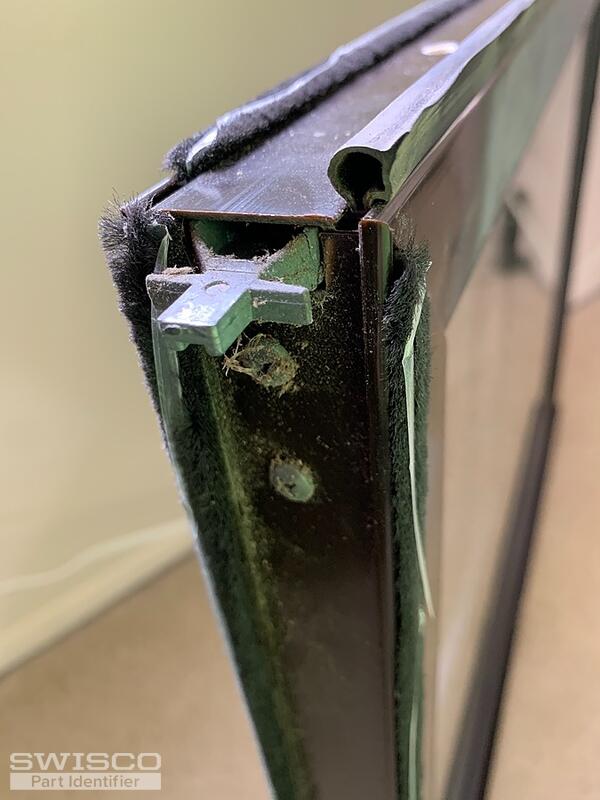

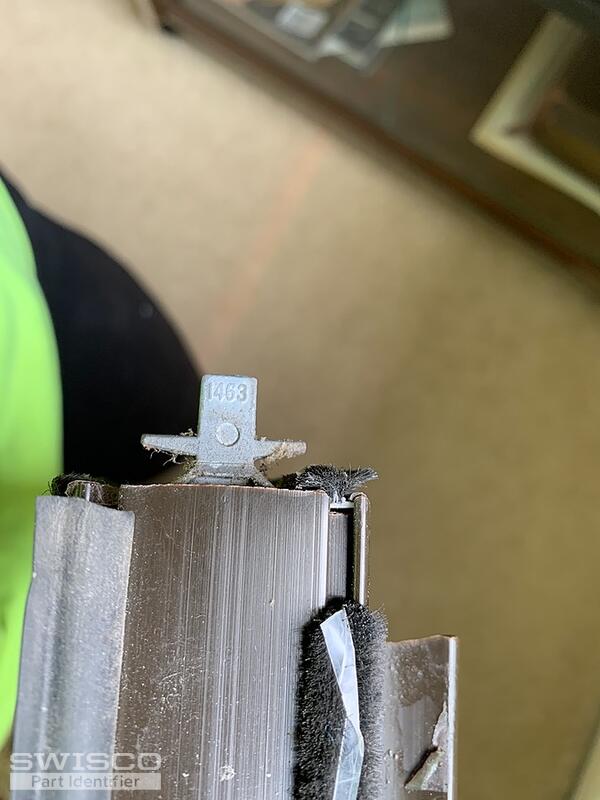

Part is approx. 2-1/2" long x 11/16" wide. it is marked 1463, with pat # 1440-1

Hello, The pivot pin is 2 3/8" long and 3/4" wide. The screw holes are 1 3/16" and 1 7/8" o/c from the pin side. I would appreciate Any help you can provide in supplying me with this part. It is the pivot pin for a double hung tilt in window. I also need to replace the spring-loaded release clips/ ... (cont.)

This part is what we need..The end is broken off. It may come out about an inch or so. Would you have anything like this?

I have several vinyl insert replacement tilt-in windows with twisted sash pins and shoes. The only part ID I can make out looks like R1658 on the pins. Any help figuring out the right make (if there is a substitute i could make work, that would be fine also). Thanks! -Jay

Good afternoon, can you identify this sash tilt pivot bar? It measures approx. 3/4" wide x 2-5/16" long x 5/16" deep. The number 463 is stamped and also PAT PEND 1440 Thanks

I need two of these. They connect the window to the lift mechanism on each side of sash. `

Hello, I need help to identify and replace parts for a double hung window. I need: Spiral tilt balance Pivot bar Balance shoe I have one window with about 28" for each sash (length of the spiral tilt balance) and one window with about 32" for each sash. Thank you

Pivot rod for double hung pull inside triple pane Omni window

Attached is a photo of a broken sash pivot bar installed on an unknown brand vinyl window by a contractor who has gone out of business. I've looked all over the window and at the paperwork supplied by the contractor and cannot find the name of the manufacturer. Any help in identifying it or a poss ... (cont.)

need to replace this pivot bar

I need to fix some broken parts on my window. I have found all of them except this one. This is the one part I don't see in your catalog. It is attached to the window with a knob that sticks into the pivot shoe of a tilt window. The attached picture PART 1 GOOD.jpg shows the part that still work ... (cont.)

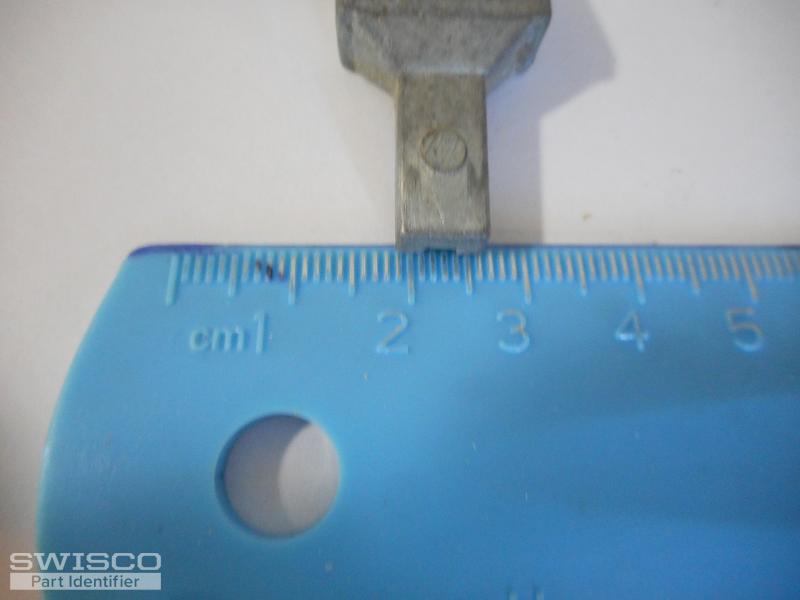

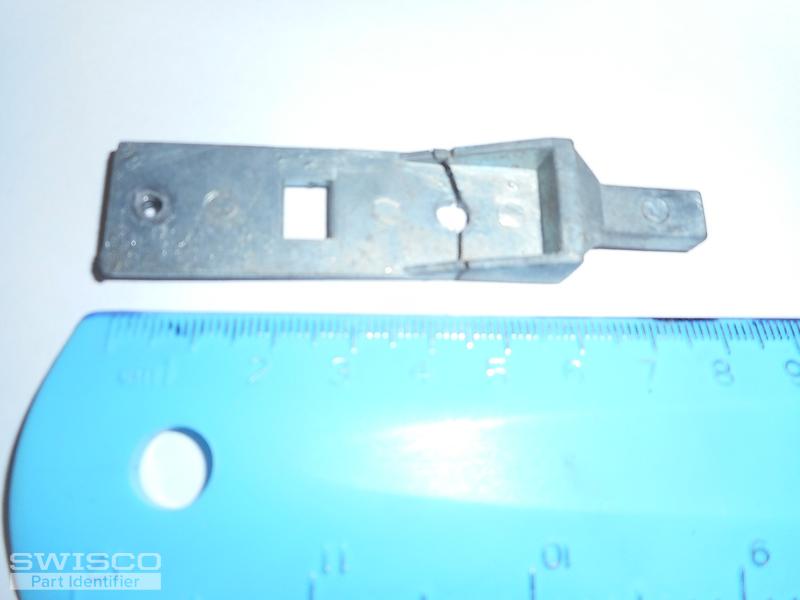

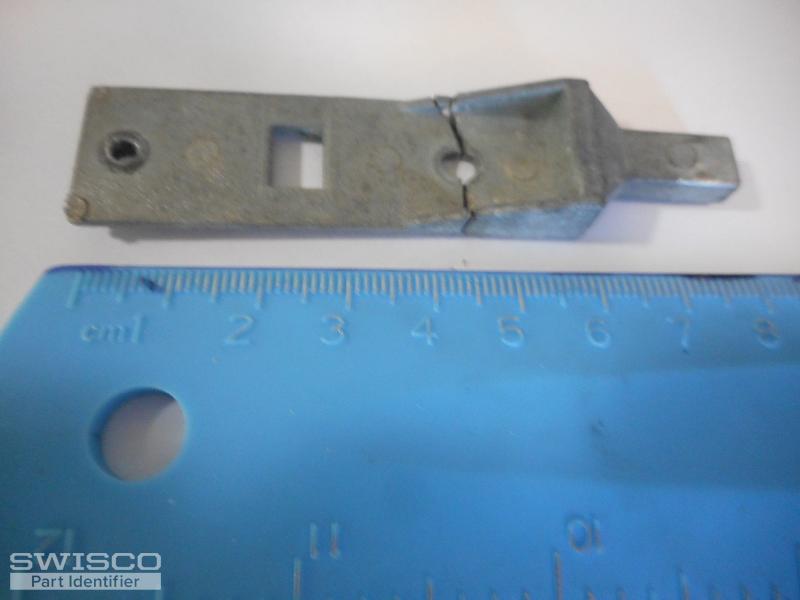

These two pieces were one piece. It is broken.The bottom left of pic 1 should be attached to the top right of pic two. The 1st pic is 3/4" wide, it is 1&13/16 Long, screw holes center hole to center hole are 11/16, it is 5/16 thick Can you identify this?

Need the other side

I have some triple pane vinyl windows (Classic CVDH) from 1987 with a broken pivot bar on one side (the Harvey part # is 1658). I ordered Swisco part 26-164 (photo #3) last year because the pivot looked the same as the Harvey. I just opened the window frame and found that the pivot bar has a diffe ... (cont.)

I have attached a picture of a corner pivot bar. It measures approximately 2.1/4" at it's longest point. 5/8" wide. 3/16 thick. Could not find in your catalog. Also my pivot shoe is 8/16" X2" X 1 .1/4". I'm wondering if there is any 8/16". may be they run small?? Please advise.
