Viewing all customer Discussions for:

39-363 Pella Pivot Plate Hinge Shoe

We are in need of Pella window parts for a casement window installed in 1977 or 78. One part on the top of the window and one part on the bottom of the window that looks like teeth. I am trying to locate the part so that my contractor can repair it.

Hello. Looking for replacement part. It’s the plastic piece in the track the arm is attached to

Lost a part for a pella casement. It attaches to the bottom corner of the window then connects to a groove in the aluminum cladding. It is metal with a plastic fitting that slides to allow the window to open. When fully open one side has enough clearence so you can wash the outside. The window w ... (cont.)

Casement windows from early 90s, i believe 91. The plastic sliders are deteriorating from age. Need top and bottom

The only serial numbers I found on the outside of jamb was a sticker: WTEAS2959L AND WTEAS2959R I need the parts that screw into the top and sill, that connect the arms shown in pictures

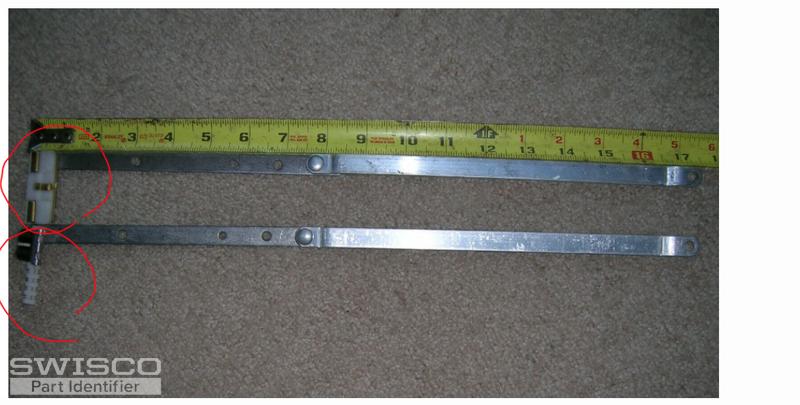

I have both LH and RH opening windows that need complete hardware replacement. (Both open in opposite directions.) Looking for new opener hinges as well as the crank mechanism and the handle for each. One of the photos has approximate dimensions. I haven't disassembled it and taken pictures yet. ... (cont.)

Recently when I went to close this window it would not close all the way and the inside bottom corner seems to be missing a part. Attached Thank you for your assistance.Cheryl

Trying to identify which company this bottom operating arm off of a casement window has came from. I am guessing pella, but I am unsure

Looking for the replacement hinge on the 1987 period pella casement window. From the inside the hinge is on the right. From the outside the hinge is on the left (Left hinge then?). Thinking it's this part ?: LH 10" Hinge Arm Assembly, Pella Product Code: 39-394 from your website. It's the shoe ... (cont.)

Not sure the manufacturer. But that bottom hinge on this particular model I have never seen !! Can u please help identify

I have several pella casement windowsinstalled in New home built in 1989. Most are hanging out of plum while the frames have stayed plum. Lifting up and down while open you can see the white guide at the top is sloppy. Bottom guide stays intake with little movement. The support hindge measures 11 an ... (cont.)

Cannot find anyone -- including Pella Service Center -- to identify and locate the cracked plastic part that is part of the top track system.

I need 2 of the screws seen in the attached picture

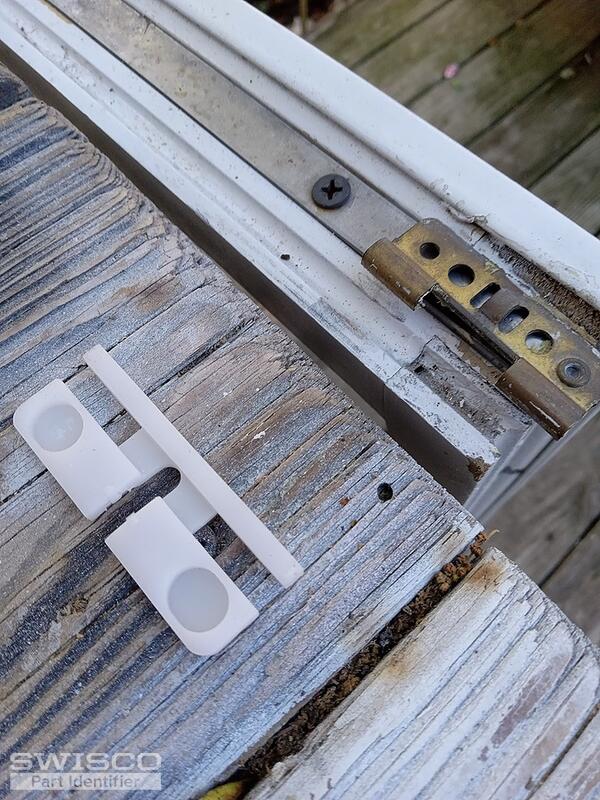

The pictures I took are of the plastic parts that slide in the bottom track and attach to the bottom of the window.

Customers needs instructions on how to install part 39-363.

I asked a Swisco rep for help with a plastic piece in the corner, but he didn't know what I meant. I hope this photo is helpful. The arrow identifies the broken part we are needing to replace. Pella casement window hinge pin.

We have Pelli casement windows in a house we just purchased. The window is fine but the hinge is missing an are so it doesn't swing properly. The serial number acoustic g to spells is L 901 WC. Do you have a replacement?

Purchased this Pella casement window in 1999 and need to purchase a hinge for this window. The picture is of me facing the window/ window swings open to the left.

I am in need of a right 10 inch hinge for a pella casement window your website said you are out do you know when you will have?Also need some of the pivot screws the hinge pivots on as in photo.And the plastic hinge stop that says wash on them.I Have the shoe 39-371 and pivot plates 39-363 in my car ... (cont.)

Looking for these parts off a Original Wood/clad. the part mustd casement window. the parts justices have the plastic end pieces
