Viewing all customer Discussions for:

26-422 Pivot Bar, 2-7/8"

I need a pic or video of how to assemble the s180 coil into the 15-187 coil housing pivot. Please tell me the 26-422 pivot bar fits into this new housing. Need a pic or video of how the this works

Latch

Hi, Last week you guys recognized my obscure pivot bars and sent me replacements. I was astonished. Now, it gets hardest. Turns out the coil balances are also broken on both sides in two windows. Can the attached photos give you a clue as to what I need?Thanks,BG

Thank you. Standing by

I didn't see these on your webpage. They are 3" long, 1/4" wide and 1/8" thick. Screw holes are 3/4" apart. Also what info do you need to get the correct coiled springs? Thanks, Dale

I can't identify any numbers on it it's really old and worn. Thanks

The pivot bar in my tilt window broke. I was sold a caldwell pivot bar that is approximately 27/7 inch long. When I tried to use the holes did not line up. This is the only label I found on my windows. Is this correct part? If so, do I drill holes to match up? Or do I need a different part? The h ... (cont.)

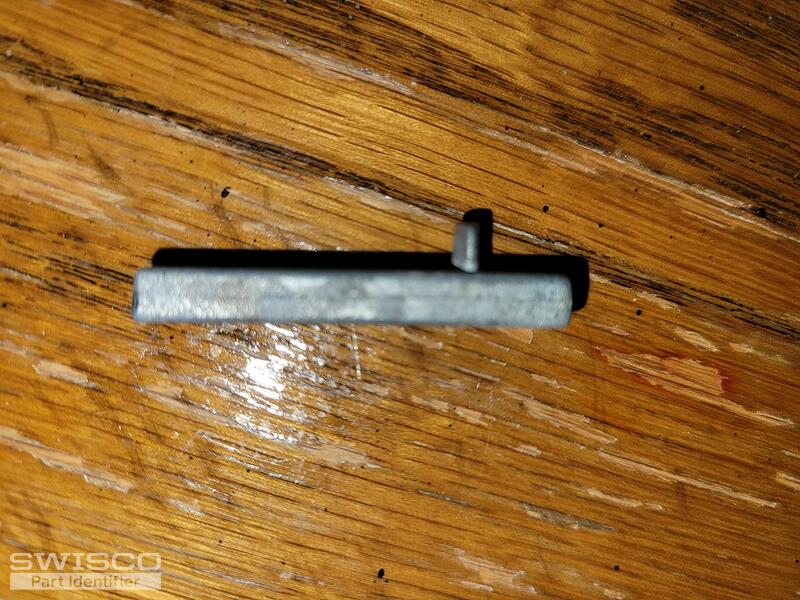

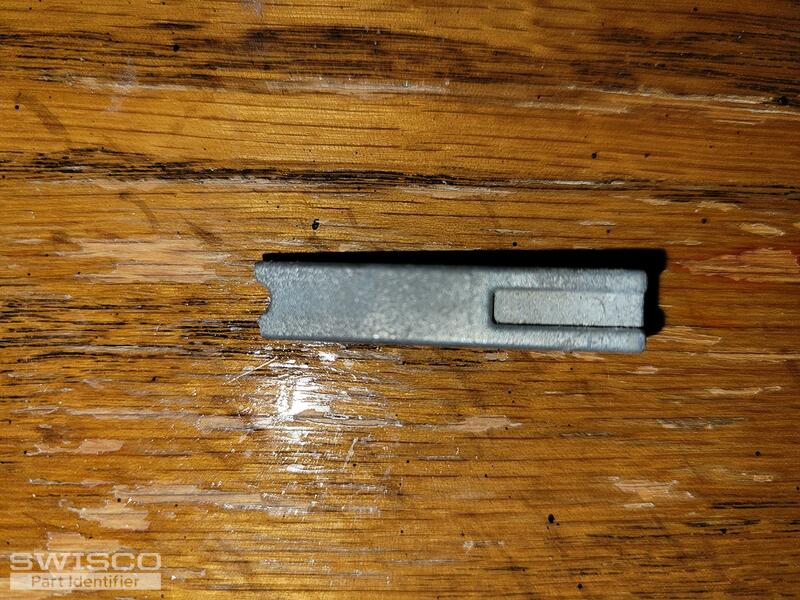

Hi I need 2 pivot pins for a soft lite window it has a nub on one side and a channel groove on the other Thank you greg

I am looking to get pivot pars for my windows that look similar or serve the same purpose. Attached pics of the existing ones. It has a number 10 etched on the top side.

Both broke when opening. Soft lite wasn't much help thank you for any help.

Can you help identify the following parts (see provided pics): I think I need the "S180-8" (8 lbs Series 180 Coil Balance) because I see an "8" stamped on the more neatly coiled part. However, I am concerned about the actual weight of the sash (12 lbs) versus the values (8) indicated on the coil ba ... (cont.)

Hi, which pivot bar is compatible with Coil Housing Pivot Product Code: 15-087.

Hi there, do you have something similar? Thanks

Good morning, do you guys carry the coil balance in the attached photo? I need L & R for a small bathroom window. Thanks for any help you can offer. Fred

I have 2 Jeld-Wen double hung windows that I need parts for.Both are on the window that is on the bottom when the window is closed.Both windows are approx 40" wide by 38" high.Both are double hung windows.Both broken parts are on the right side as you look at the window from the inside.Window 1 ?308 ... (cont.)

I'm trying to find something that I can use to replace these pivot bars. Do you have anything that would be compatible?

Hello, I think I need one sash pivot bar that broke from the base of my tilt window. Please review my pictures of where it broke off and please let me know if that is the correct part or not.

I need to replace the locking shoe in the attached image. Can you tell me if you have it? Does the shoe fit in both sides of the window or is their a left and right shoe? If so what are their part numbers?

I could use some assistance identifying which replacement piece I need to order for my windows please. Attached are screenshots with measurements of the piece. I believe it's the pivot bar hardware. Thank you.

My niece has a sash that does not stay up. The windows are about 5 years old. The coil spring appears to have 'escaped' from the 9lb Quick Tilt Balance. Unsure what "series" (i.e 140 series) is needed.
