Viewing all customer Discussions for:

26-226 Pivot Bar, 3-1/16"

I need 4 these pivot bars ASAP make that for just in case

looking for replacements

Hi I am looking for a pair of replacement pivot pins for a double hung sash. The dimensions are: 2-3/4" long, 1-7/16" to center of hole. (measurements taken from end to end). The shaft measurements are 3/16" x 1/4". The 2 part numbers that seem close are 26-030 and 26-226. Total over all length will ... (cont.)

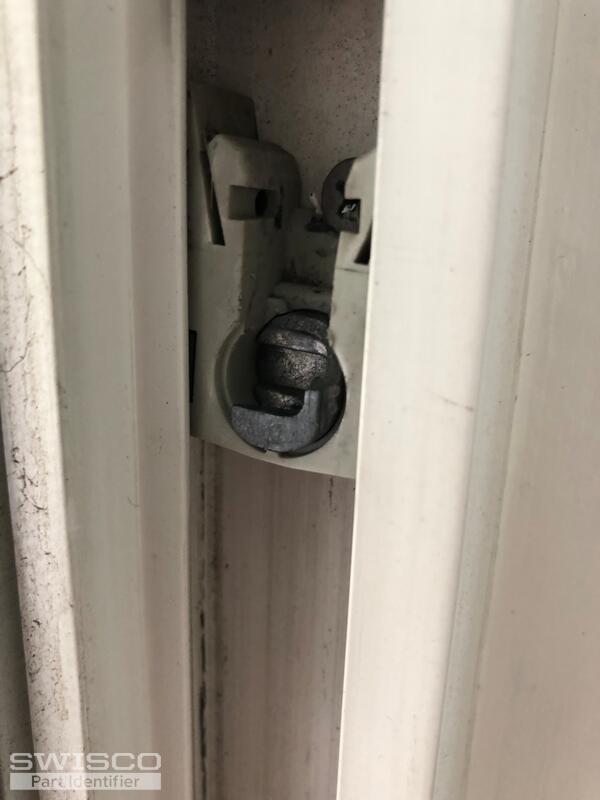

I've attached pictures of the broken and good cams, and the part of the windows that fits into them. I can't find any writing on the windows or parts, or figure out how to remove the broken parts. They are spring loaded to help open the window, but when the window tilts out it rotates the cams cau ... (cont.)

Two of the pictures show the part that broke off. The last one shows the holes for the screws to hold the pin. Thank you for your help. I sent a separate email. Edited finding this asking how to send pictures.

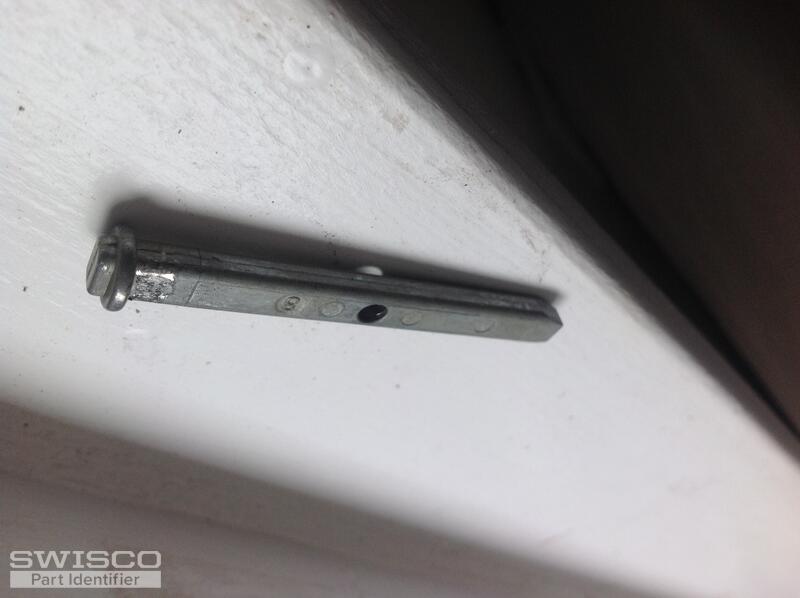

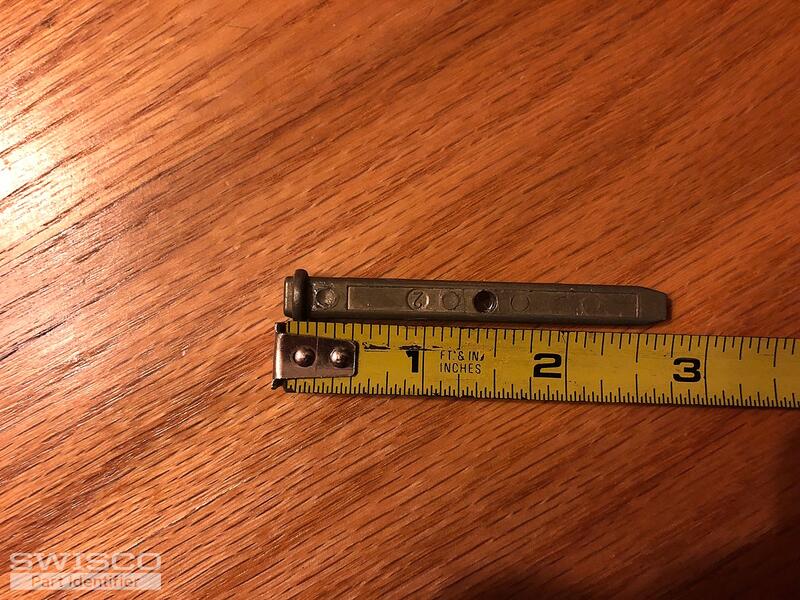

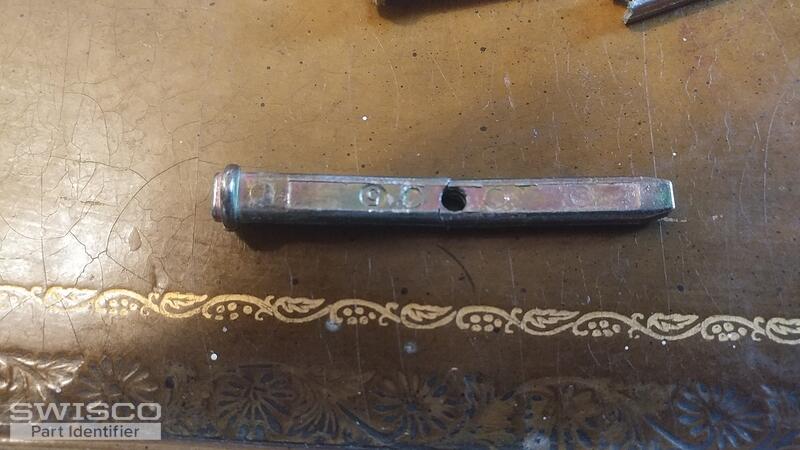

Hello, Please help, I am looking to replace broken pivot pins for the bottom sash of my window. the pin has a number 2 on it but is 2 3/4 inches long. The plastic piece it slides into is still good, however if it is sold as a kit I will take both. I need one for each side of the window (2 total) ... (cont.)

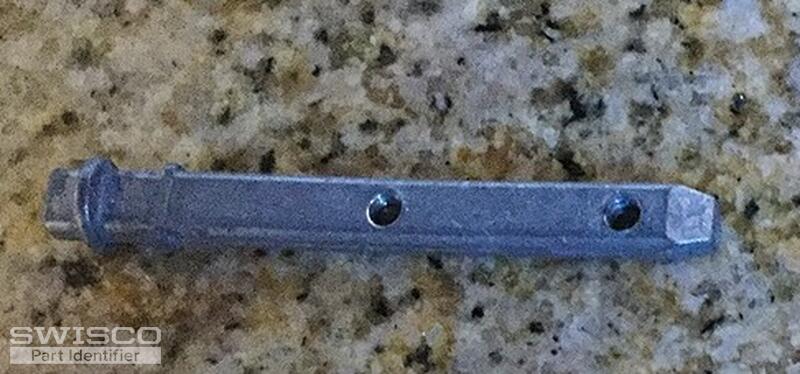

2 3/4" OAL 1 3/8" to first hole 2 1/8" to second hole

I am looking for this pivot bar 2/12 long it looks like the Center of the threaded screw hole is 11/4 in from the end it looks like 1/4 in wide if you can locate them I need 8 of them thank you

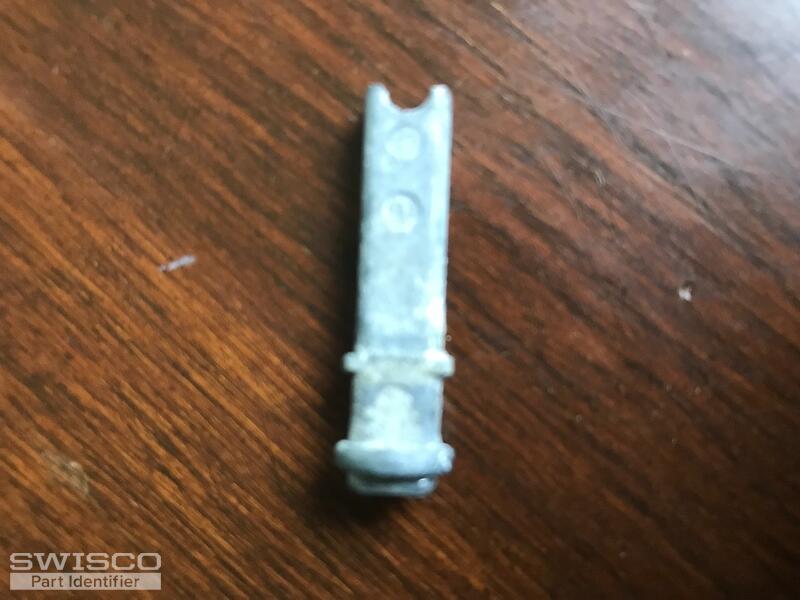

Pins appear to be aluminum, there is a circle on one side of the pin near the rounded end with a number 1 inside the circle. I'm not sure age of windows? - 2-3/4" long - top to middle of screw hole- 1-1/8"

I need to purchase 10 of these window anchors to replace broken ones. I do not have any information on what type of window it is.

Looking for this part for a ComfortWorld window. I'm not sure why the photograph makes the pivot pin look like it's only 3 inches because it is actually about 3 1/8 inch long.

Spiral balance vinyl window slide/tilt key

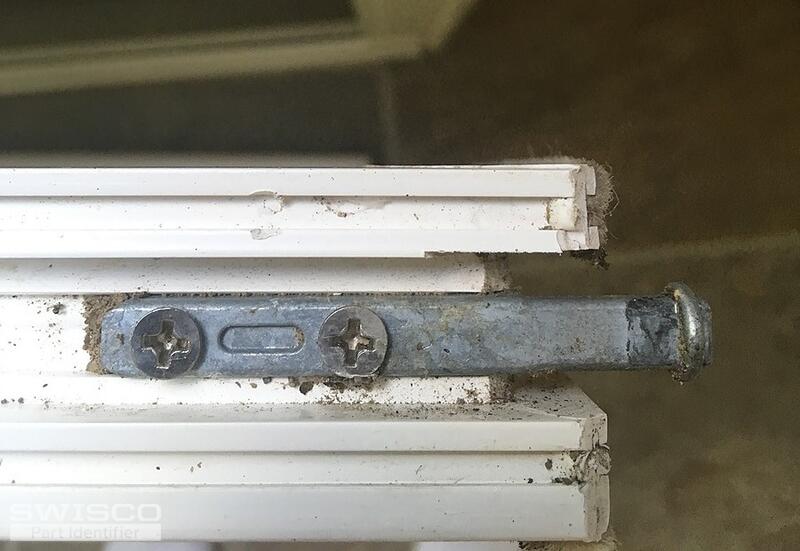

Looking for pivot bars for my Alside vinyl replacement windows, photo attached

Hello. A big wind storm blew our window out couple months ago. It appears that the hinges on top and inside the frame are gone. The photo with the two little metal pieces and pieces of plastic was all that was on the floor after the windstorm. Are these parts replaceable? And if so how much will the ... (cont.)

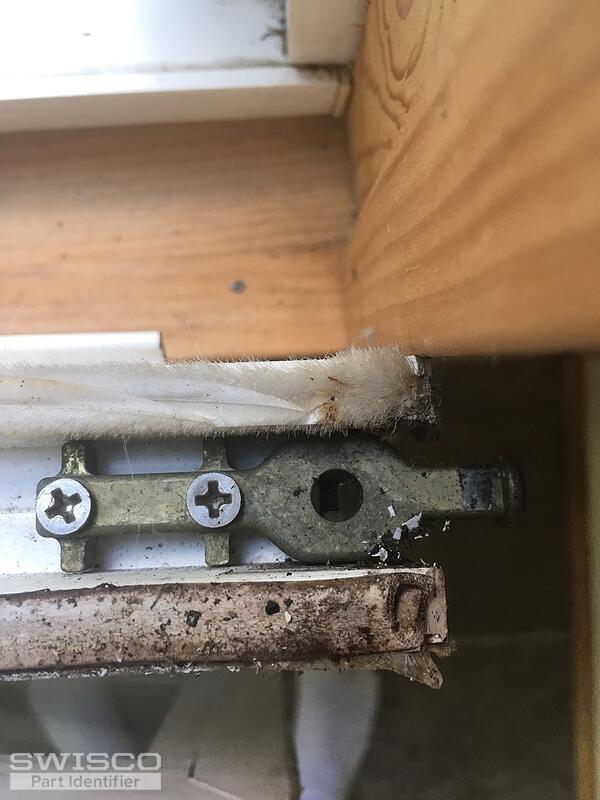

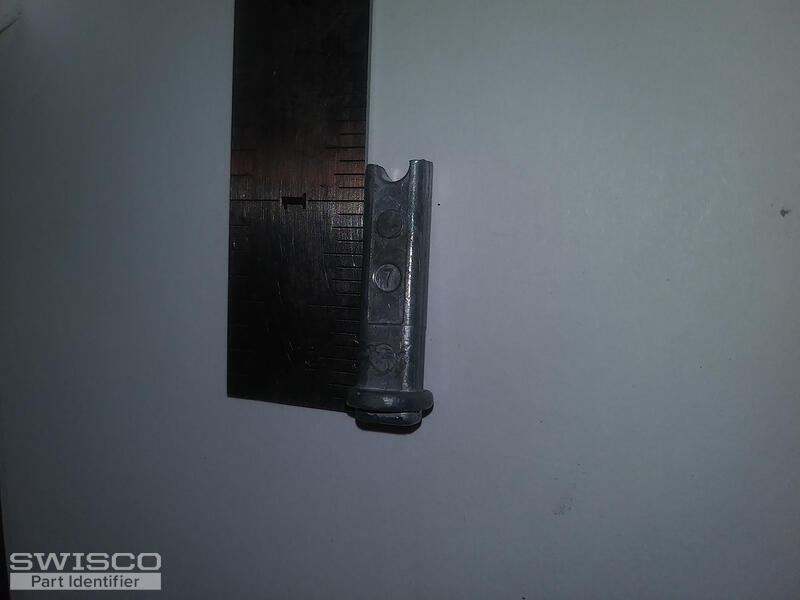

pivot bar piece is approximately 1 1/8" to center of hole a # 7 is cast into piece. Appears to be 1/4"wide perhaps slightly less.remainder of piece is in channel at bottom of window I have been unable to remove it but am able to move it further into channel. Penguin was manufacturer, window is 10-12 ... (cont.)

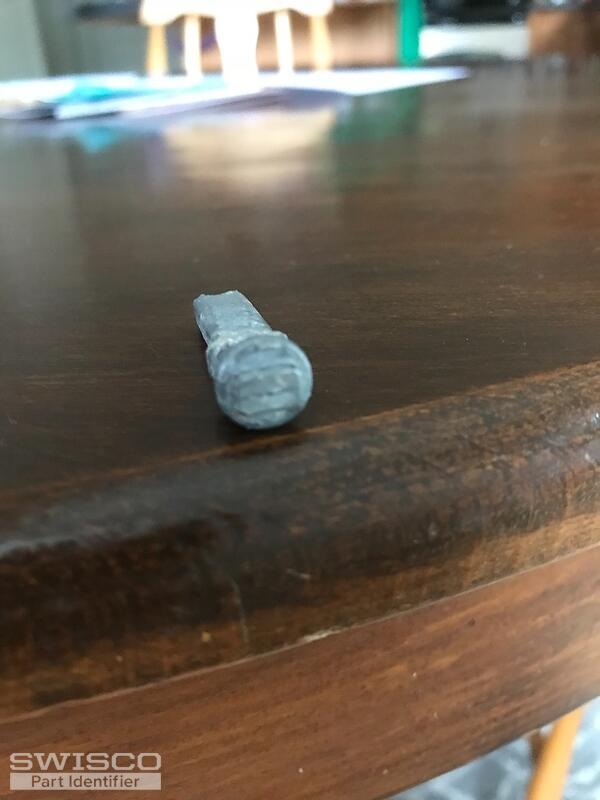

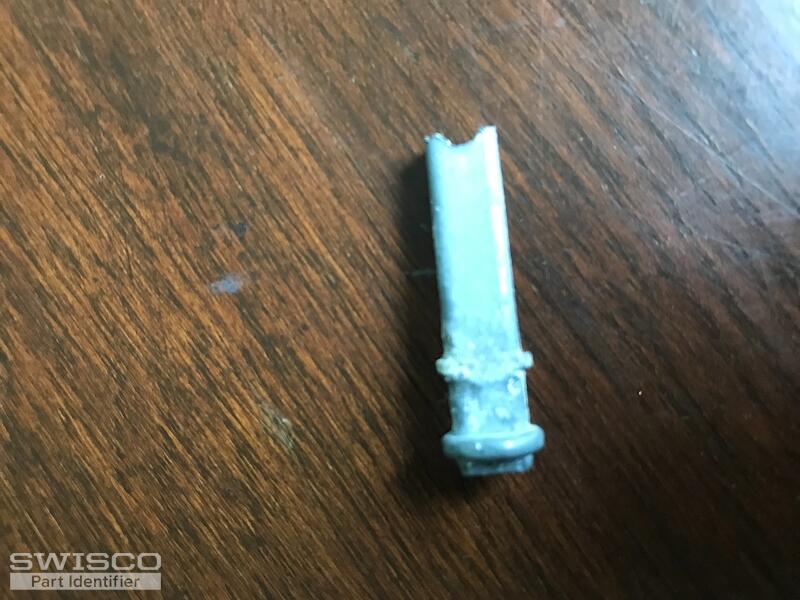

Hi, The Pivot Pin broke.Here is a picture of the other one that didn?t.No name on window The window does have a label which I will take a picture of.Please help I have had my window like this for 8 years.Thank you

New customer. Home is a manufactured home...maybe 20 years old. The Jeld Wen decal is on the sliding door. Windows have nothing that tells me manufacturer. I?m guessing manufacture of home use same company thru out for windows and doors but thats only guess. Anyway what does the guru of window / doo ... (cont.)

I have attached a sketch of the part. It is similar to your part number 26-226. However, the hole location on the piece I need is approximately 1-5/8" from the head. Any help you could possibly give me would be helpful.

Need the right pivot shoe replacement to match 26-226 pivot head. The pivot shoe need to attach to spiral ballast.

Can you help me to identify my pivot bar?
