Viewing all customer Discussions for:

36-016 Vent Pin

My windows have the Swisco 36-015 but I think the hooks are failing to rotate when I close the window. I think the window hits the hooks and stops there. I don't know the installation process for these hooks. Any help you can give me about parts you have for these window hinges and how they install ... (cont.)

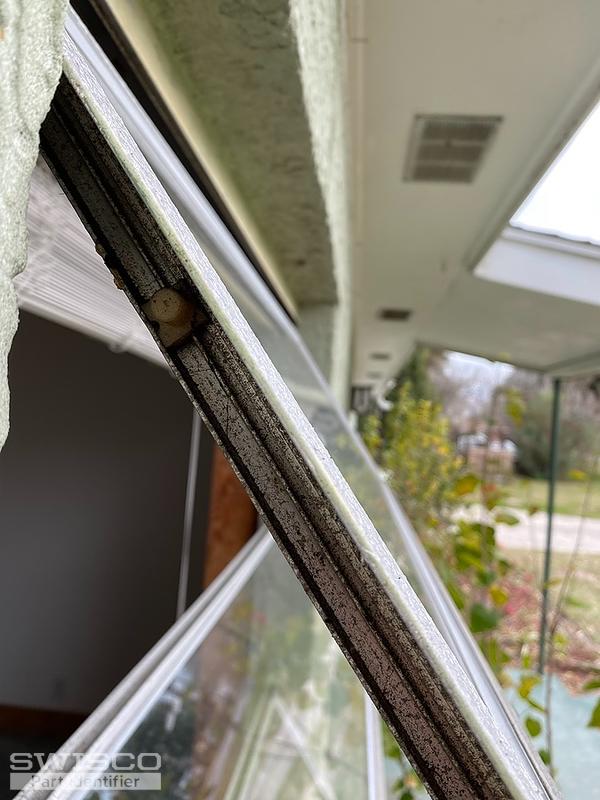

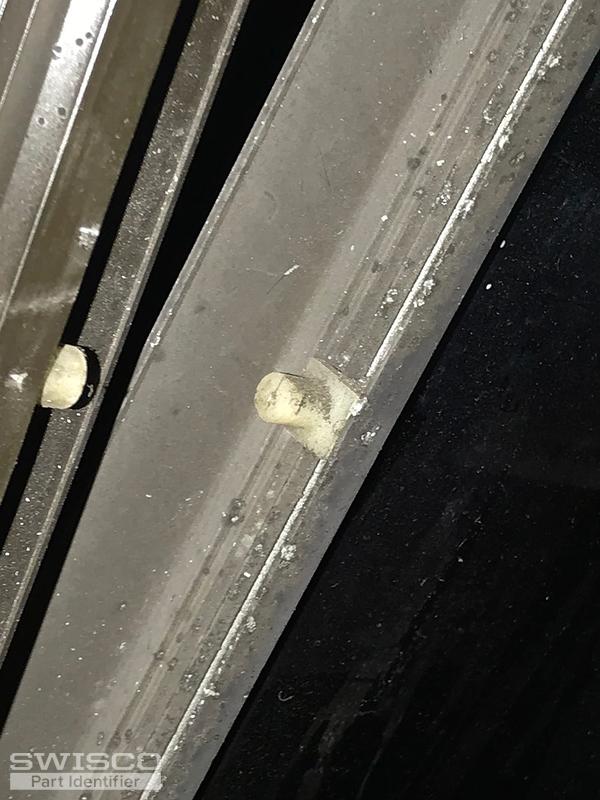

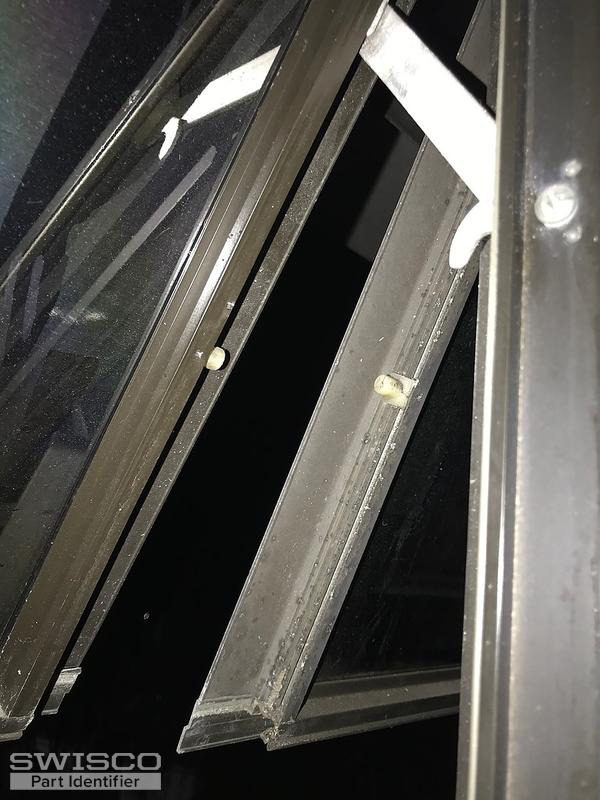

As you can see in the photos there are plastic pins attached to the sides. And hooks that hook onto the pins and prevent the window from opening after it is shut. I don't know the technical name for either of these parts or where to find them. Any help would be appreciated!

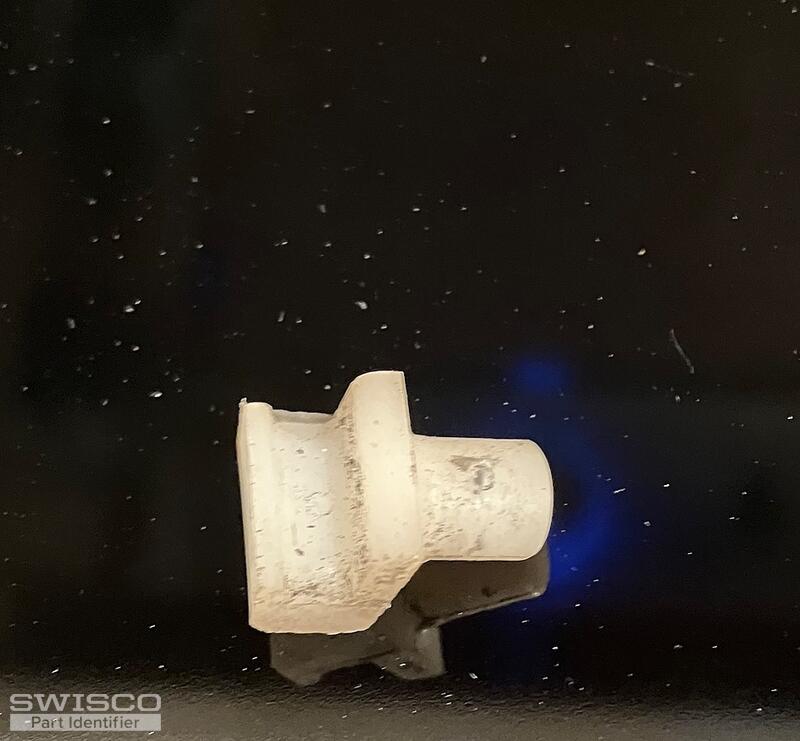

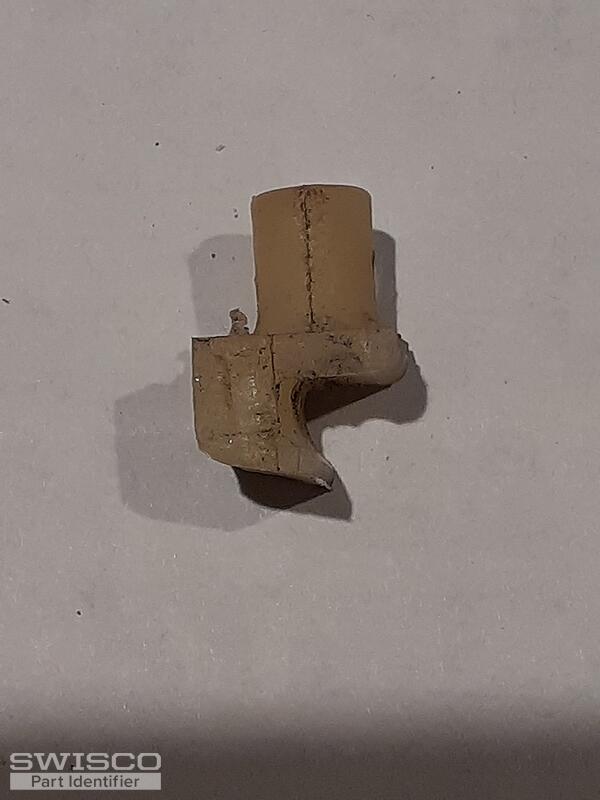

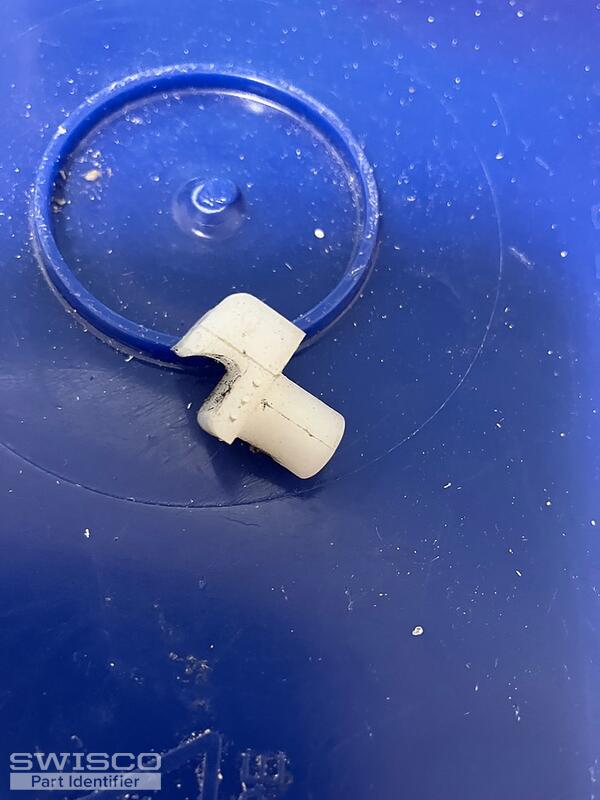

I'm looking for this plastic peg piece. As you can see one is broken and then I took a picture of one not broken and then the metal claw that grabs onto it is the reason the peg exist I do not need a new claw piece. I only need that plastic peg piece Thanks for your help Sam

Hello please can you help me to see if you have this part for sale

Metal hook goes into these vinyl clips Mine in the photo are broken

Good morning, this is a crank for a triple window operator crank. I measured to the best of my ability, so I'm going to say this is close, but not perfect. I have 4 cranks not working...I have 9 of these windows. Top hole to bottom hole: 5 1/16 Top hole is a single hole Distance between bottom 2 ... (cont.)

I have old 1964 aluminum awning windows with cranks. Nothing special The part I'm looking for connects to the vent hook (I believe that's the part name). It slides up the window on a track. Otherwise the window doesn't close and I need like 18 of them. I also wonder if there's a way to fabricate one ... (cont.)

I'm looking for this plastic part that locks a awning window. It is located on the window frame and there is one on each side. It actually snaps in place. I'm just looking for a part number etc. so I can buy it. Thank you, John

Art connect the crank arm to the window and the plastic clip is broken in the corner

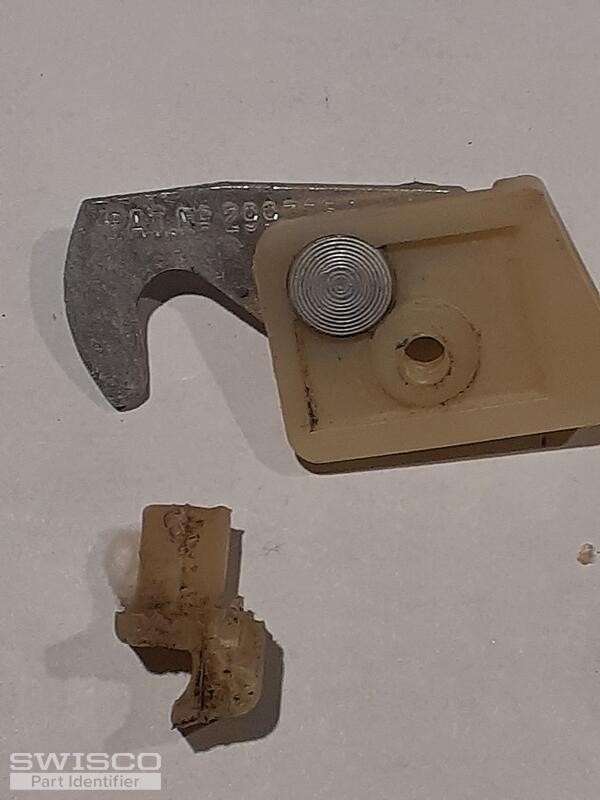

In the first picture you'll see the locking mechanism w/Pat.#299775 to the left is the plastic pin that latches to lock the pane in place. I need the plastic pin which has broken off from several windows. Can you help? Thank you

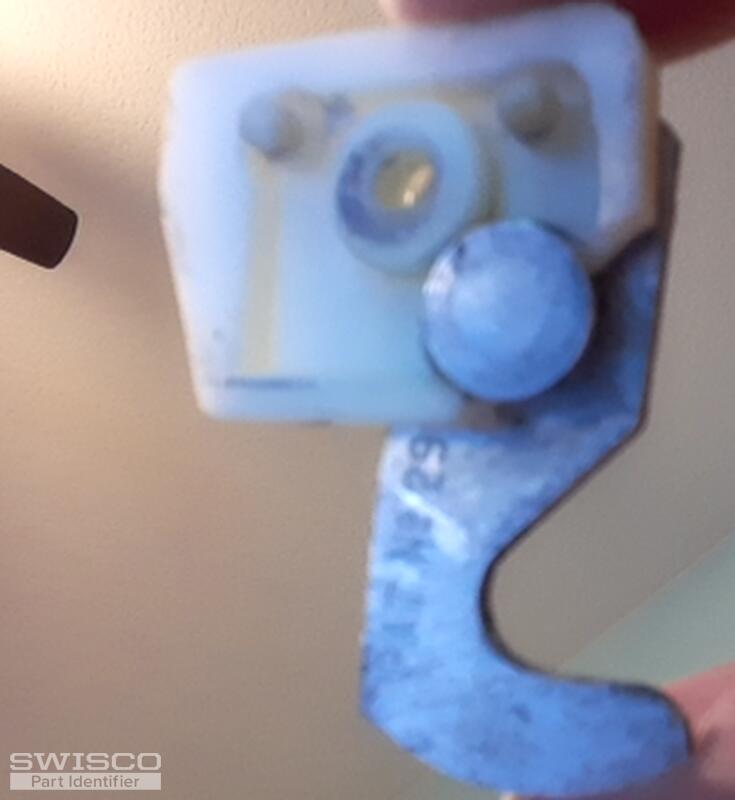

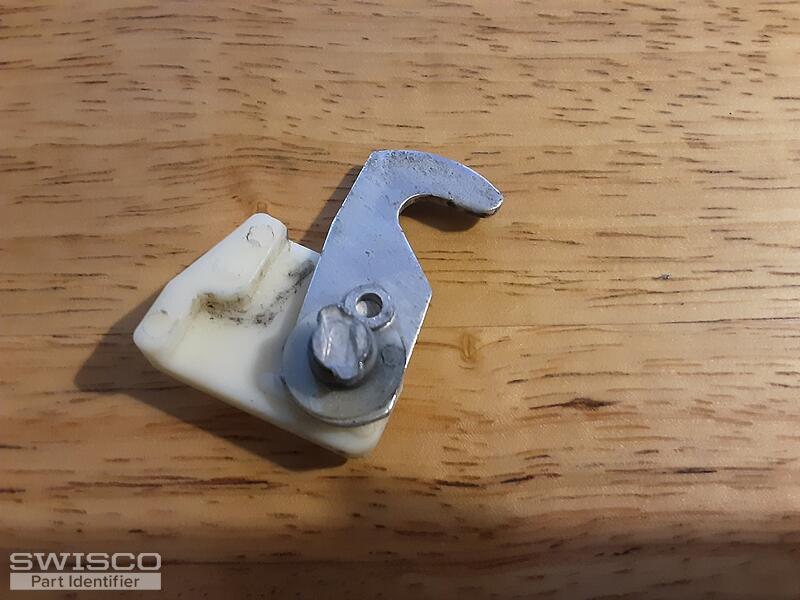

Part 1 (left and above)? Plastic/Aluminum Hook Imprinted with PAT No 2997754. Attaches by 1 small screw to fixed point on the frame. Cranked to fully closed position, Part 2 (below) rests hooked under the metal latch. Part 2 (right)? Plastic stub that appears to attach and be held by friction to th ... (cont.)

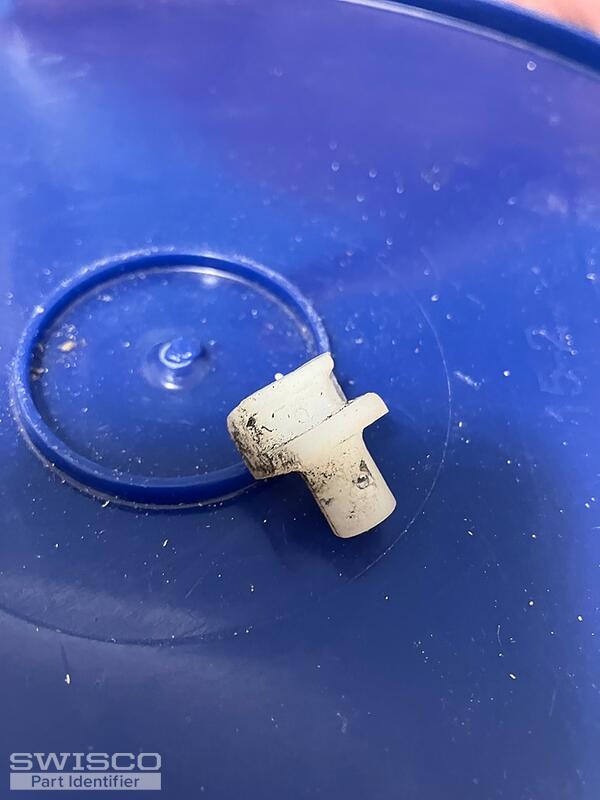

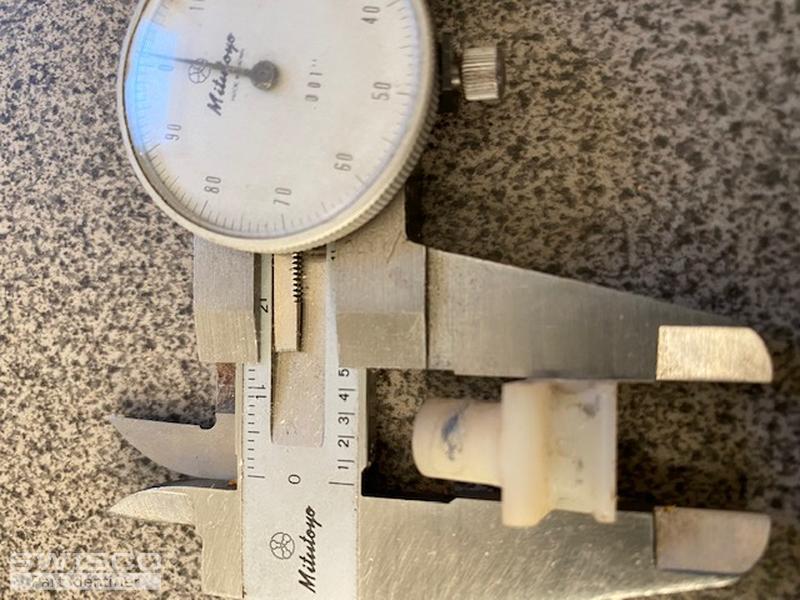

Looking for the part number to order for this vent pin, Thank you.

Please have a look and let me know what will work for me thank you

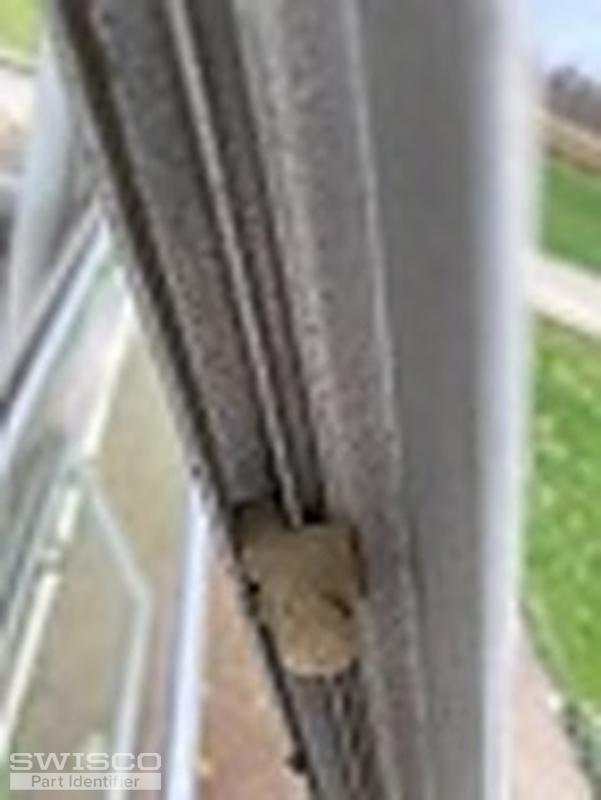

This is the part that is on the side of every window pane frame that projects from the edge of the frame that when you close the window sits under the claw in the mechanism and locks the window as the crank is turned and draws the window up and in.

Hi, the part is plastic and it breaks so it can no longer hold the metal hook. Do you have anything like this? Thanks

I am trying to locate the replacement Plastic inserts that apparently slide into the Aluminum Frame of a 5 panel Awning Window (Condo Installation) that apparently this part is the locking mechanism that when the window closed the hand crank allows a "U" shaped hook to latch onto this and brings the ... (cont.)

Hello, I bought an old apartment (1983) with original windows (uggggg) the majority of them work fine, they lock but there are a few that only one side the pin does not lock in the hook. They both seem to be in the right place compared to the other side that works so I am not sure what the problem ... (cont.)

Hello. I am repairing awning windows in 8 rental units and I need help in identifying the necessary parts required. I've attached several pictures. I believe the cranks needed are 39-017 right and 39-016 left. I will need 34 cranks and the ancillary parts you recommend.

Greetings We have just purchased an older home on Miami Shores, Florida, that we want to keep as original as possible. The house is filled with jalousie windows which seem to be all of the same make. See rhe attached photos. The most common problems are the missing machine screw with thw shou ... (cont.)

I have a few broken vent pins (36-016) on my 50 year old windows. It appears that the pins were peened in place. Once I remove the broken pins how should I secure the new pins?
