Viewing all customer Discussions for:

39-013 Casement Window Operator, 13-1/2" Arm

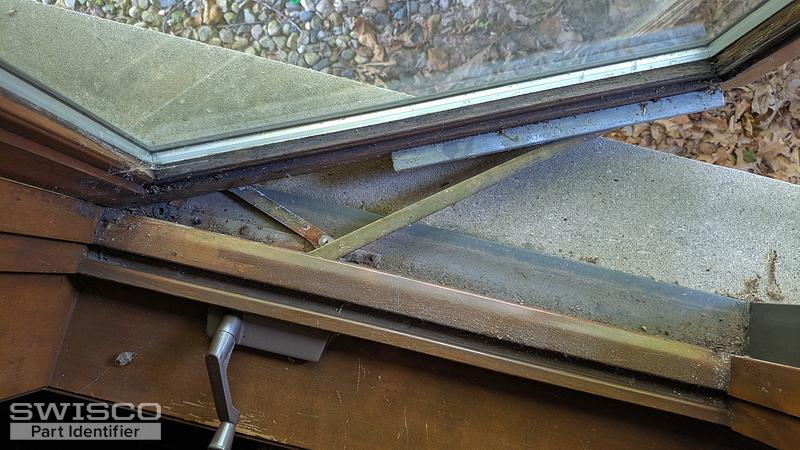

Hello, We have some windows that open with a crank 3 of them are no longer functioning properly so I need some parts. Where the handle attaches, some of the little ridges are damaged. And I am missing one crank handle as well. This part of the hardware seems to be the main issue, but hard to tell ... (cont.)

two Monda bay window cranks

The gear on my window crank appears to be stripped right before it completely closes to lock. I have included a pic for reference. The length of the shaft from the line is 11-1/2" and the dimension of the handle housing is 1-3/4" X 4". Please let me know if you can help in finding an exact replaceme ... (cont.)

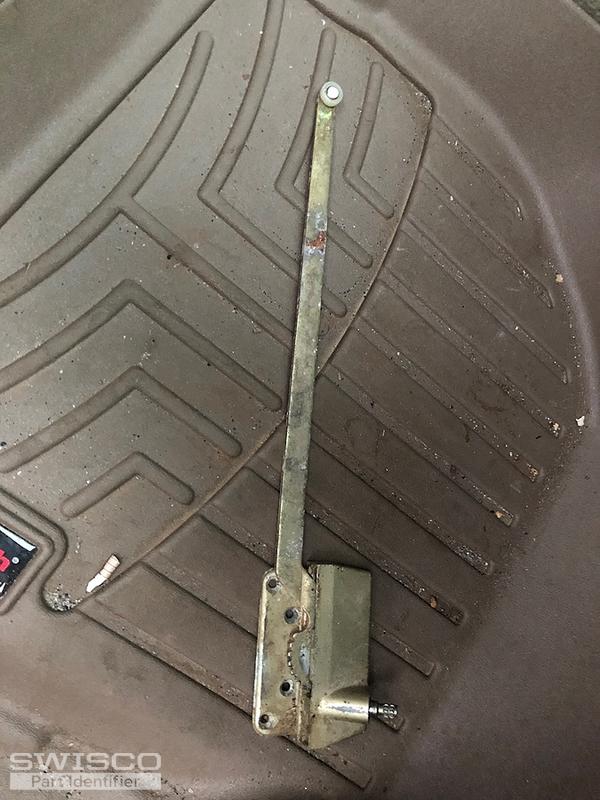

From the end of the actuator to the bend (near my little finger) is 12".

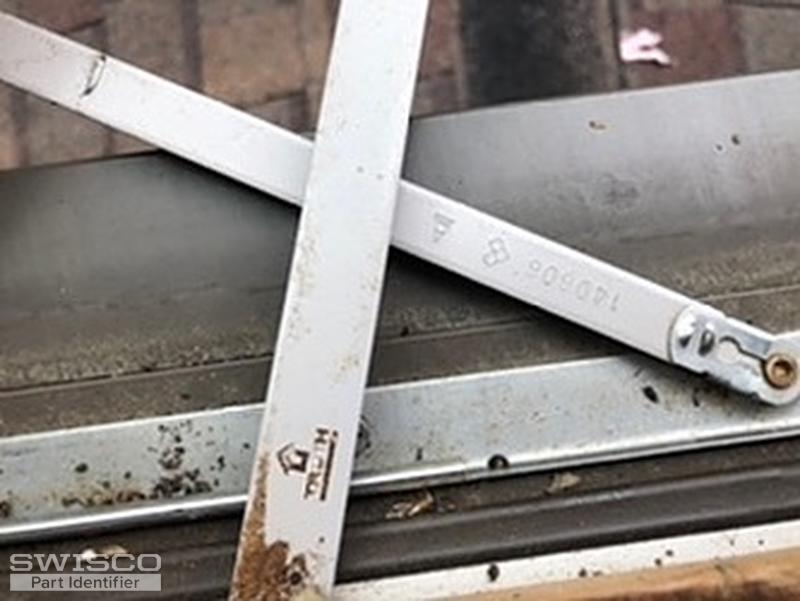

What is the name of this complete part. The name reads Hurd 40056

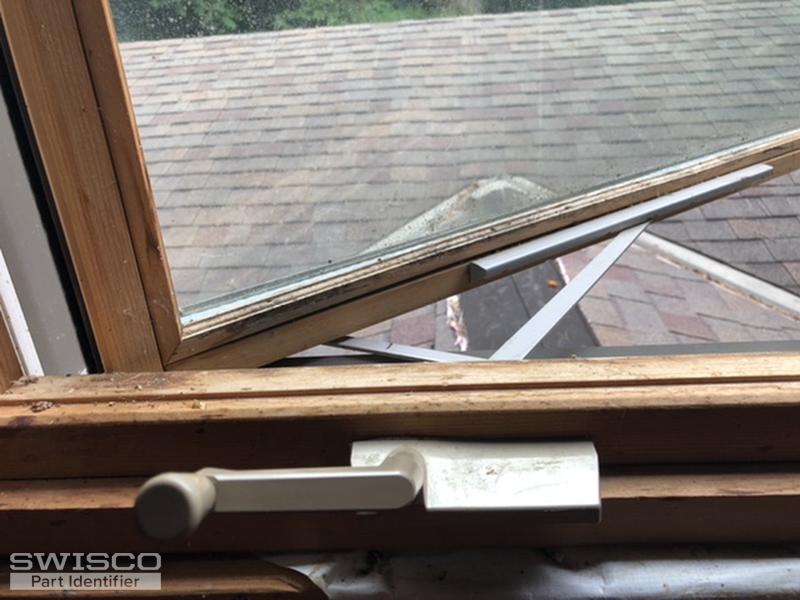

One Piece Thermogard Window Crank from House Built 1975 and renovated in 2001. Straight Edge of Window Crank that attaches to the window is 12 inches At the end of the straight edge the round plastic wheel appears to be 1/2 inch accross and 1/8 inch thick. The cutout for the window crank is 3 3/4 in ... (cont.)

This is in addition to the 5 pictures sent On the window it says Thermapane MA if that means anything

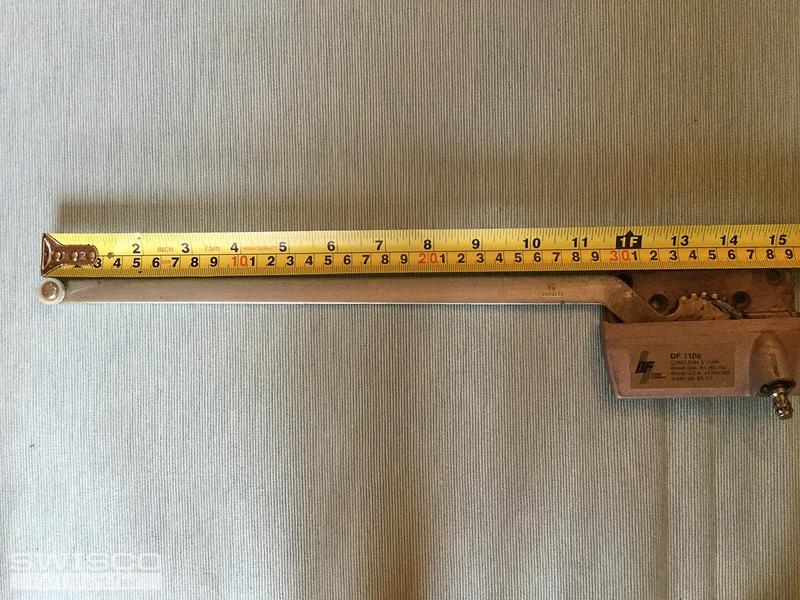

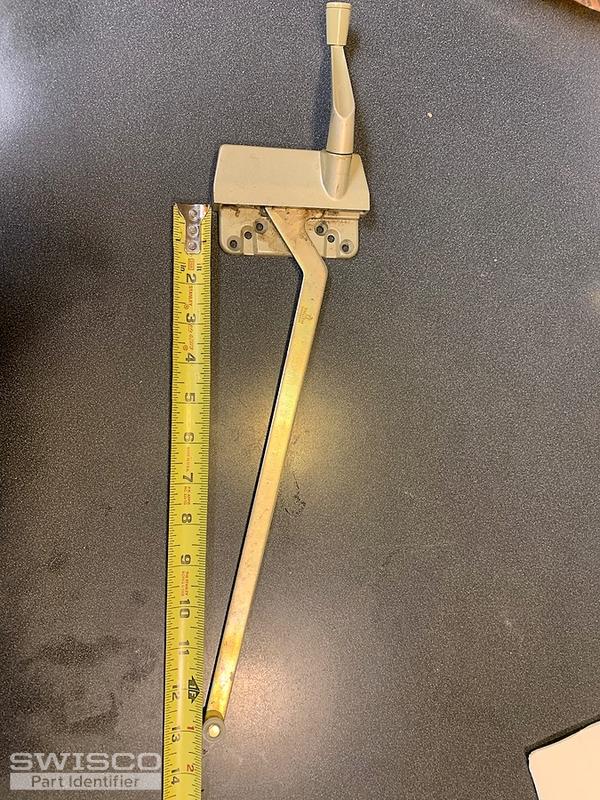

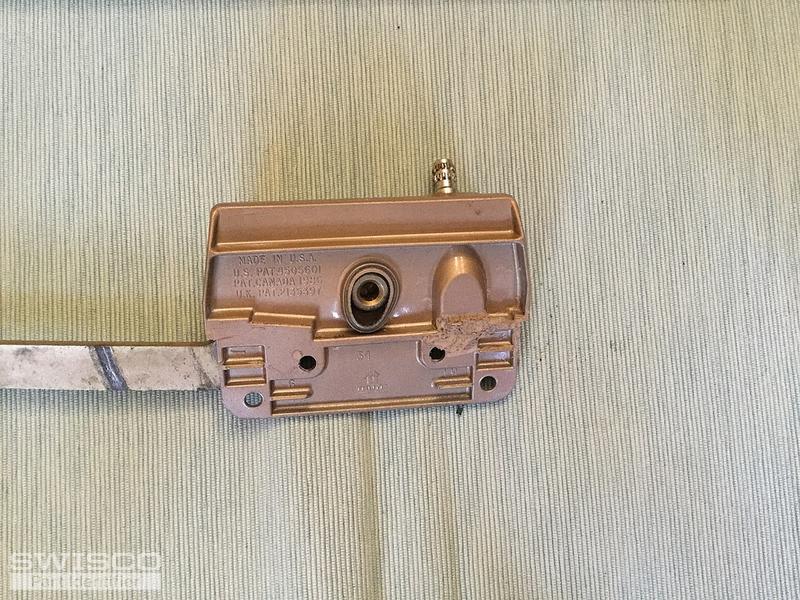

I have 3 or 4 of these DF1100 crank mechanisms to change out. I think the size is 13-1/2", tried to align tape from center of nylon guide see photo. Is this a right or left hand crank? The hole in the back of the case is an oval shape is it make this way or is this wear? What's your part number and ... (cont.)

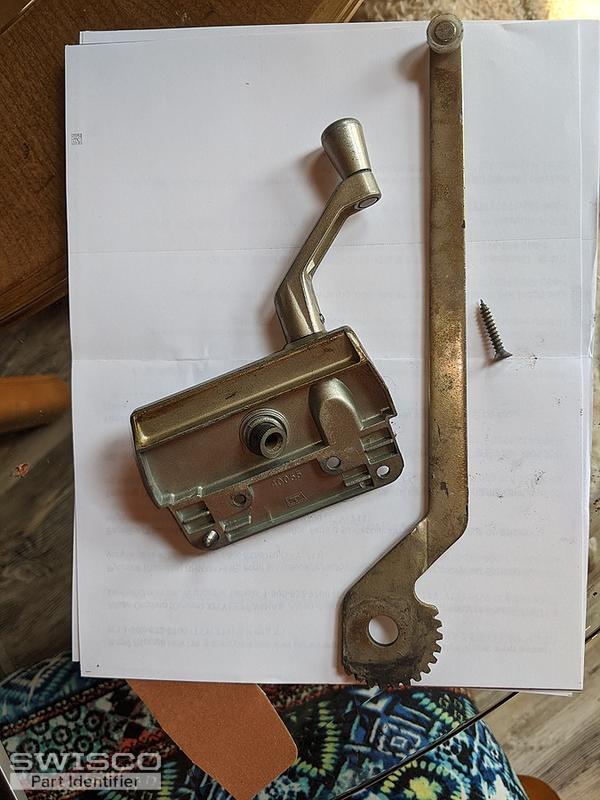

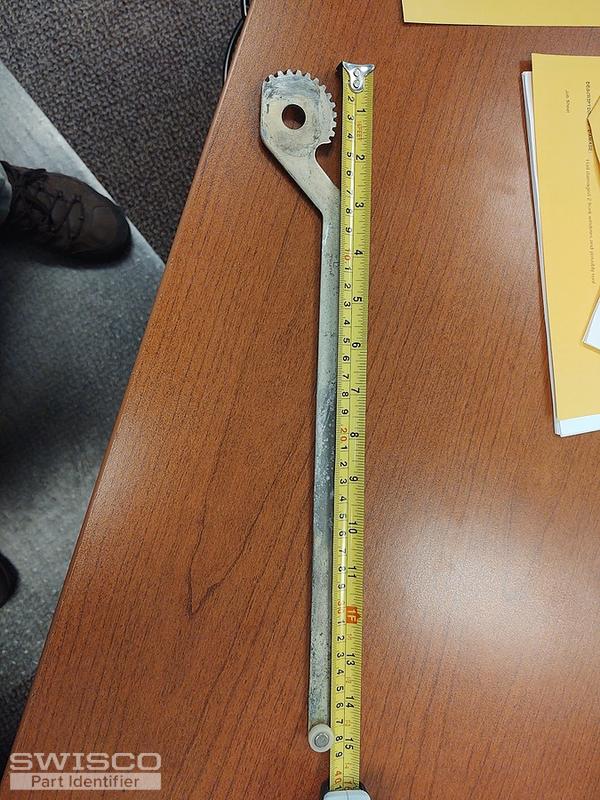

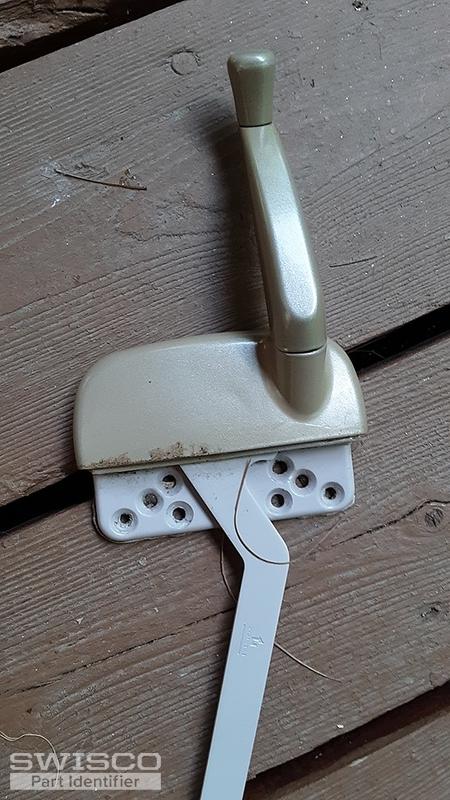

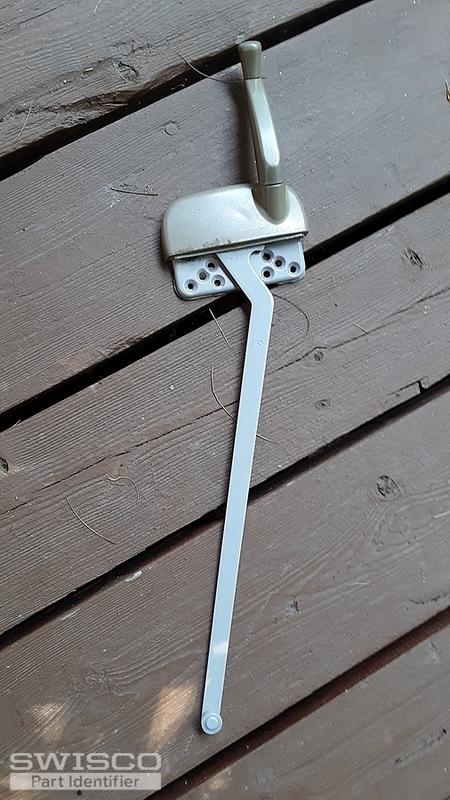

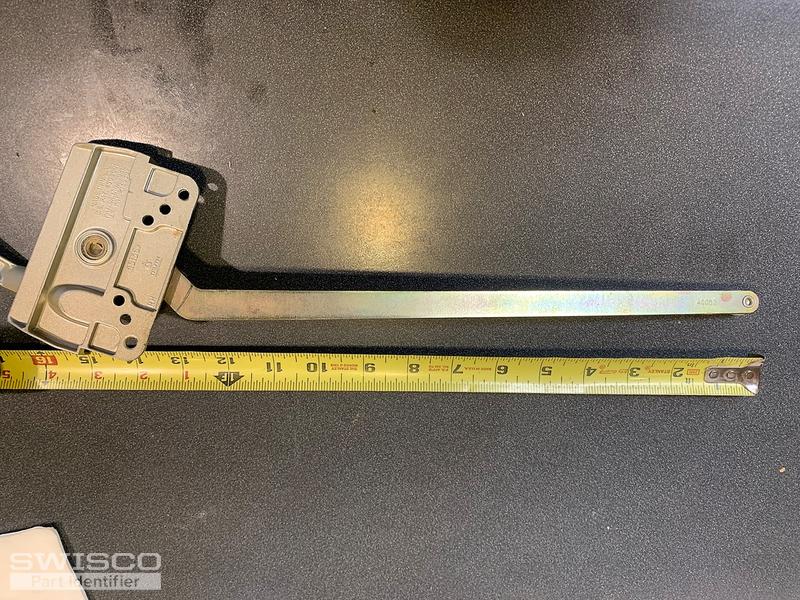

Looking to replace a couple of 13.5 inch operators. The arm has a factory bend in it and looks like the gear is part of the arm? Couldn't seem to find a part # on the arm itself.Thanks!Mike

I need 12 casement arms and cranks as described on the photos and text above. Please let me know ASAP if you can get these parts and the cost. Do you also install if you have them?

Hello, I'm looking to replace my Truth 45251 single arm operator for both LHS and RHS. I have attached the picture. Truth Operator length is 13-1/2". I am looking these 2 arm operators in Almond color. Can you please tell me which part I need to purchase from your website? Appreciate your help. T ... (cont.)

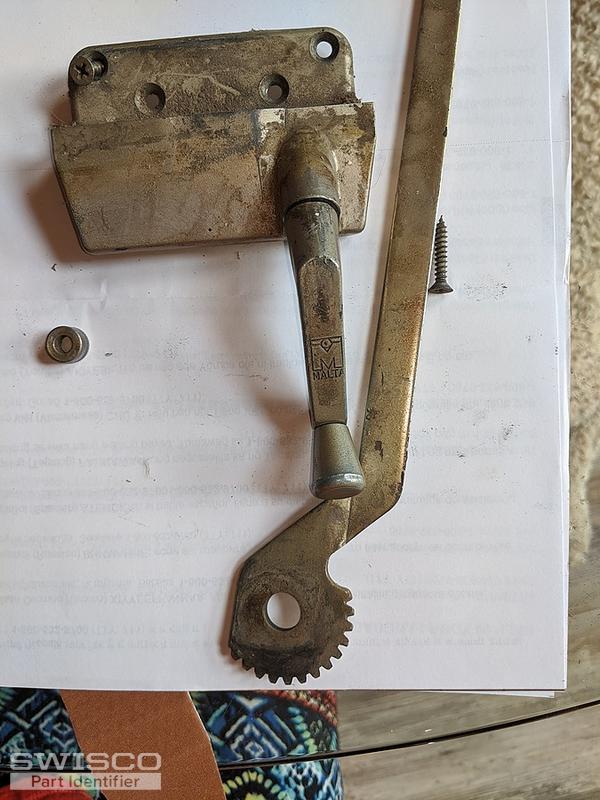

Need right and left opening mechanisms for 8 windows.Model # on casing 40055 Brand Malta.

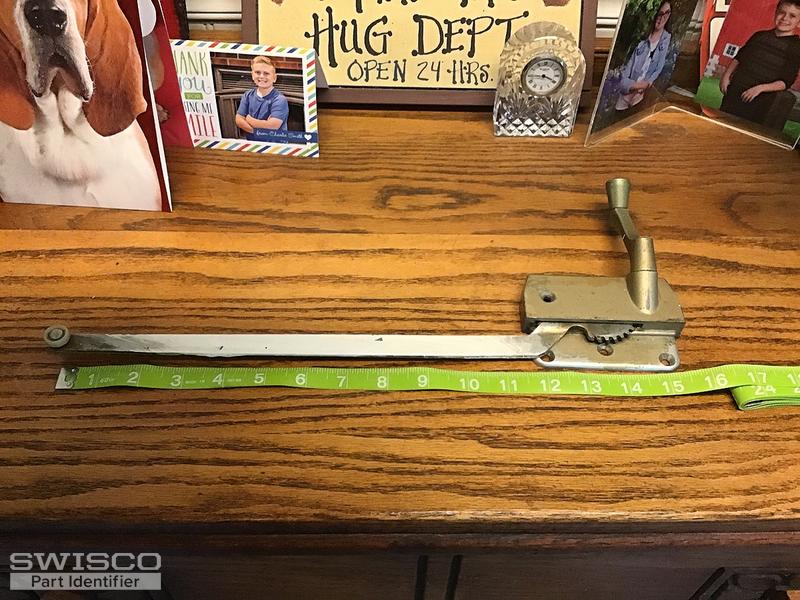

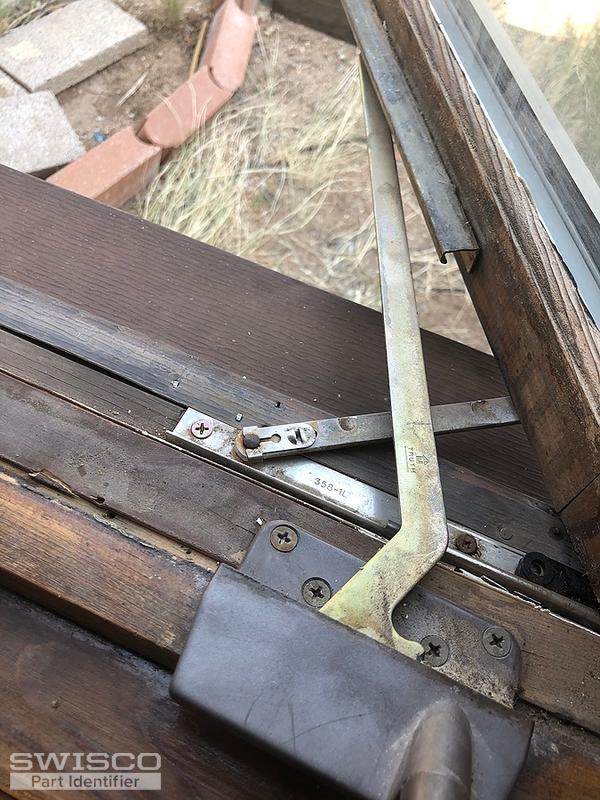

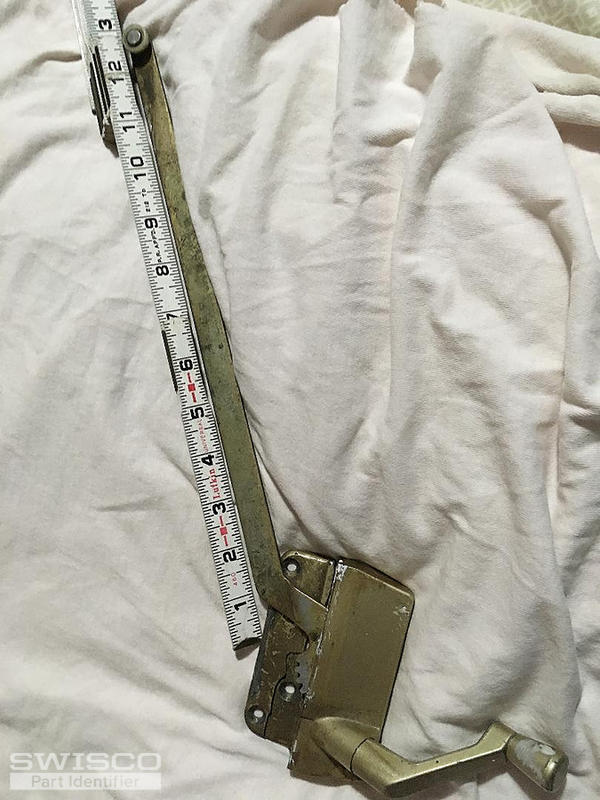

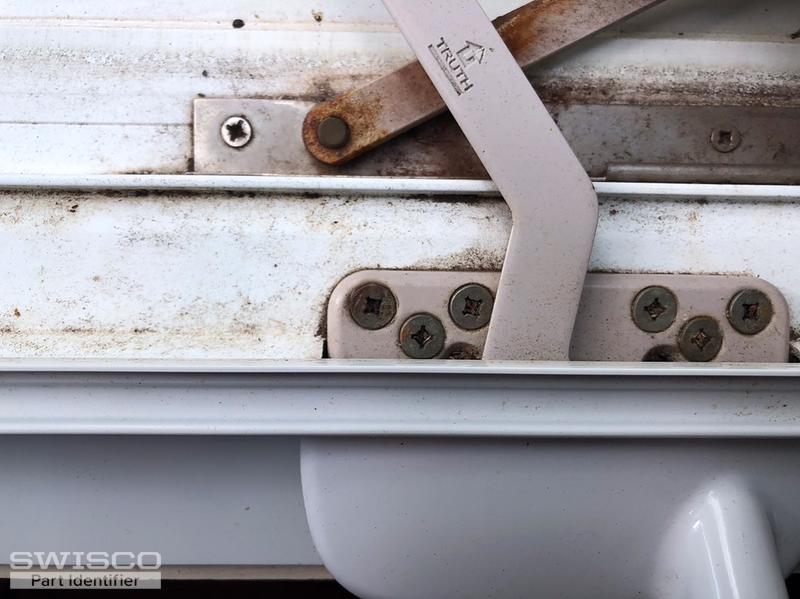

I'm looking to replace this crank. The straight part of the shaft is approximately 13 inches long from the end to the bend. Truth is printed on the shaft. Thanks.

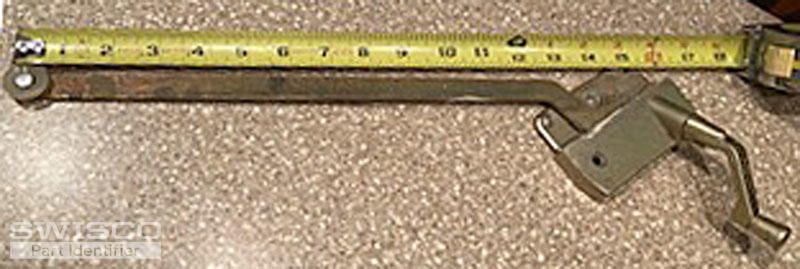

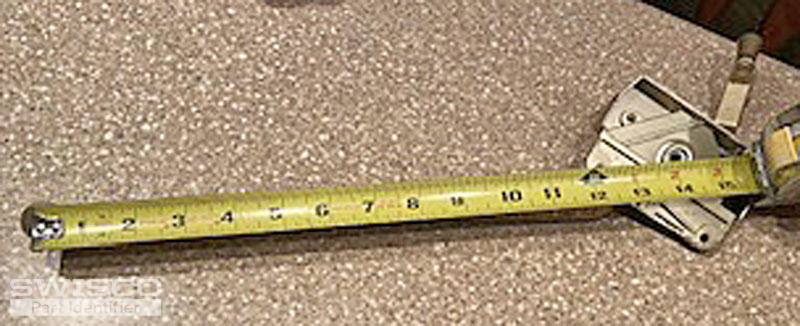

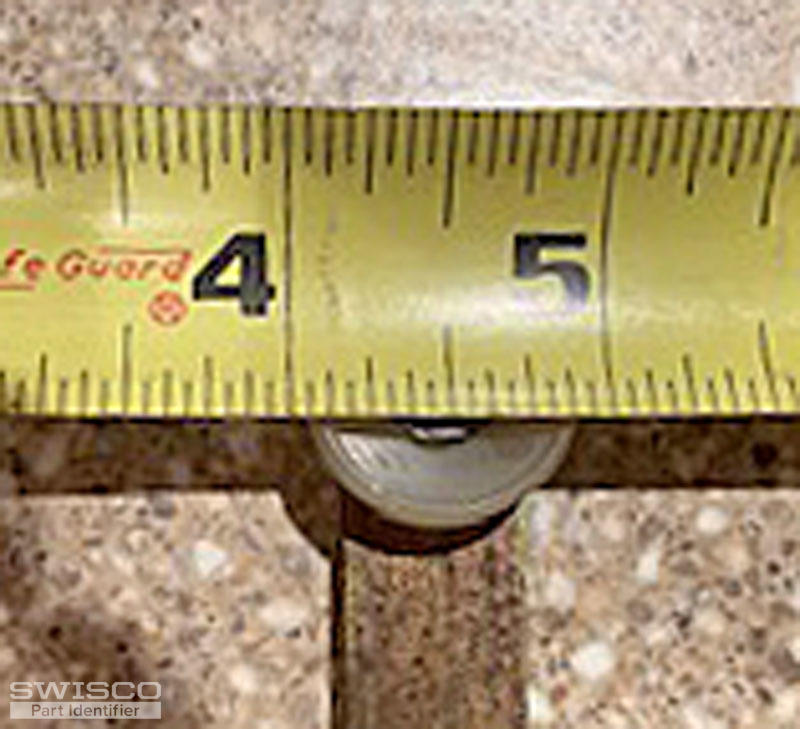

I need a few LH and RH Caradco casement window operators. The length of the single arm is 14" and the roller is 7/8" diameter. Mine looks like your 39-013 and 39-014 but the arm is only 13.5" long. But that might work, what is the diameter of the end roller?

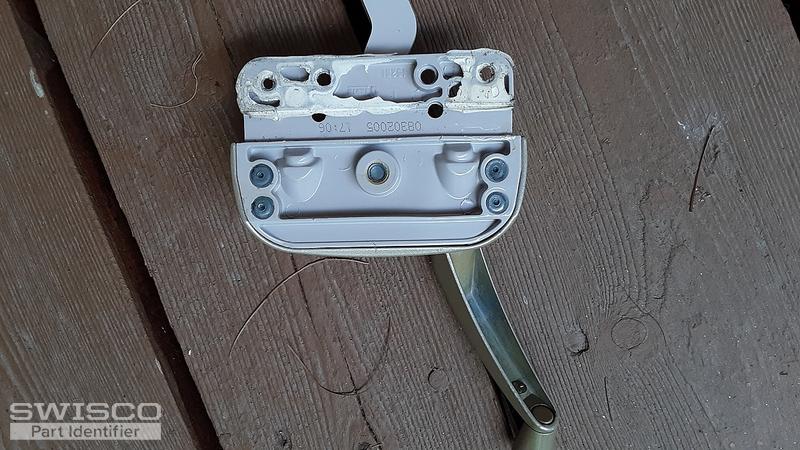

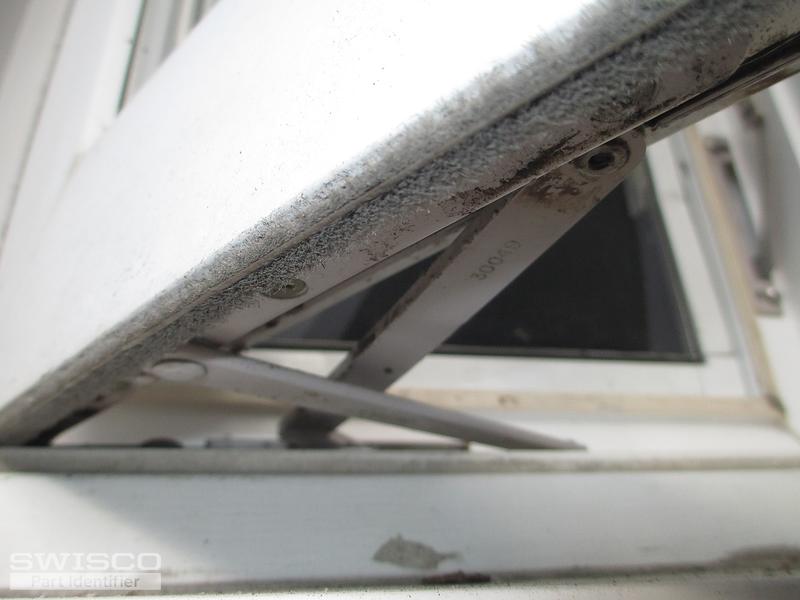

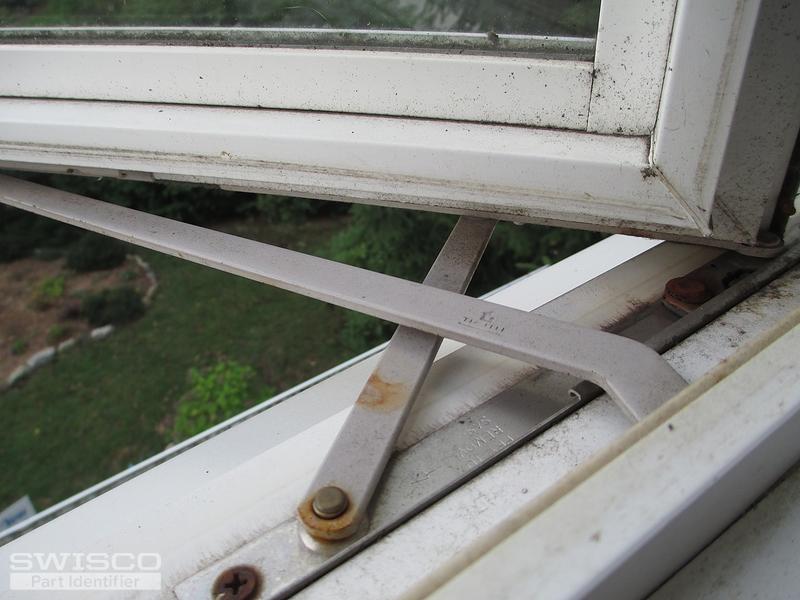

Hi, we have casement windows from the 80s and are wanting to update the operators. The number on it is Truth 30382. It looks like a dual arm and the large arm is appx 13" long. I cannot seem to find one with this spec. Can a single arm work? Can I reuse the smaller arm? Help! Thanks, Joe ... (cont.)

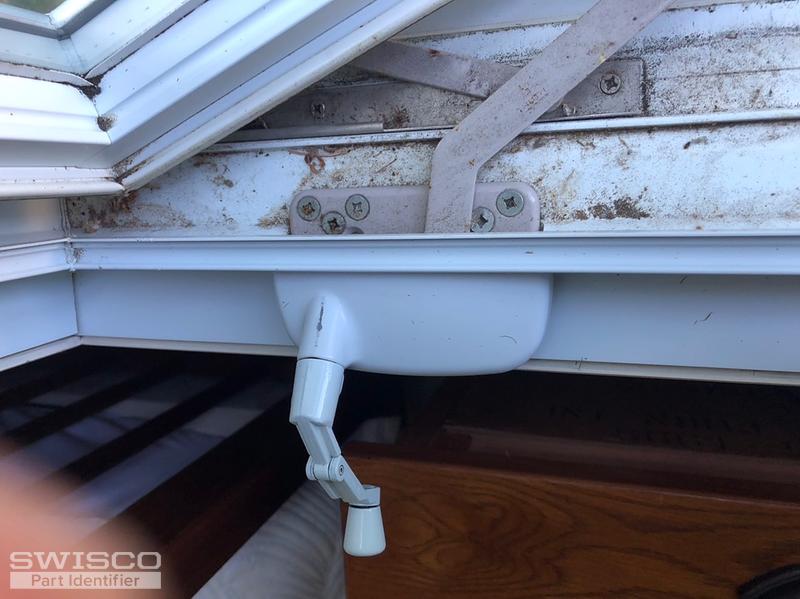

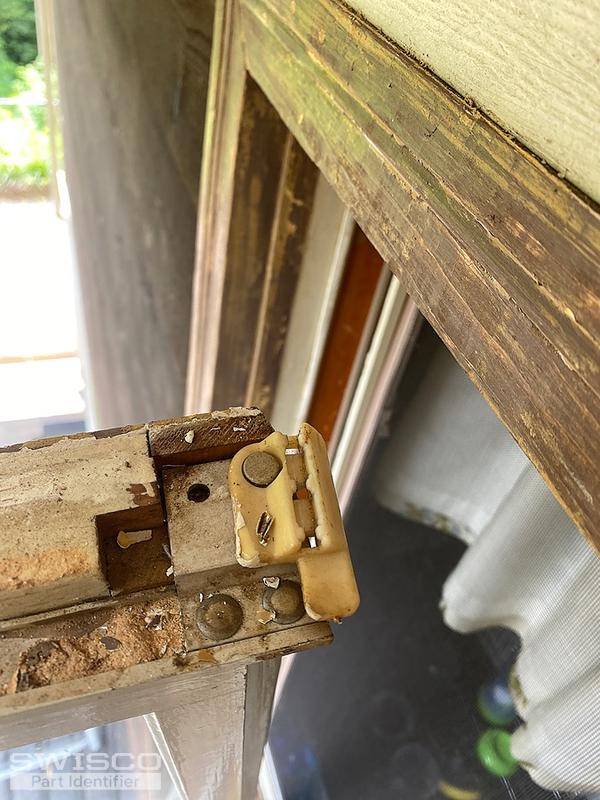

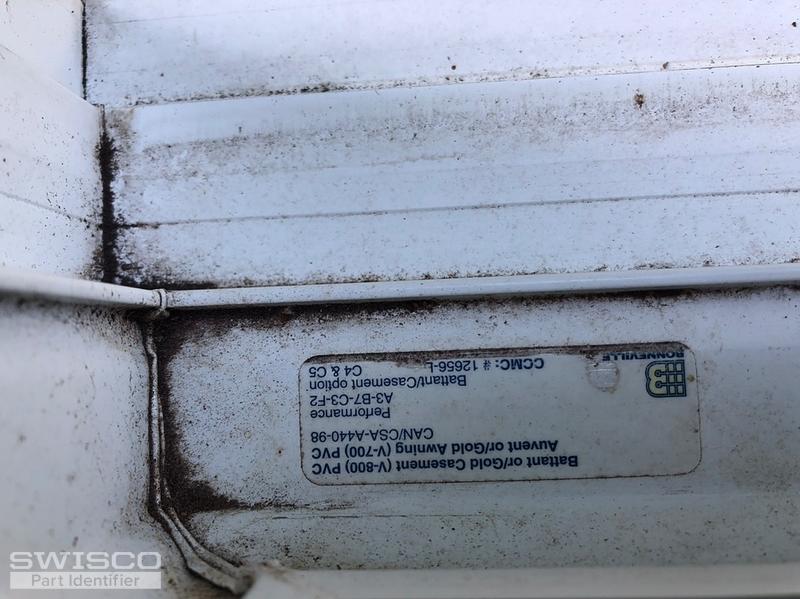

The crank in our Bonneville casement window is stripped and I have to push it initially to open it. Once opened about an inch, the crank then works. My assumption is that I need to replace the full crank unit. I am attaching phots of the crank (white), the window sill where the crank unit attache ... (cont.)

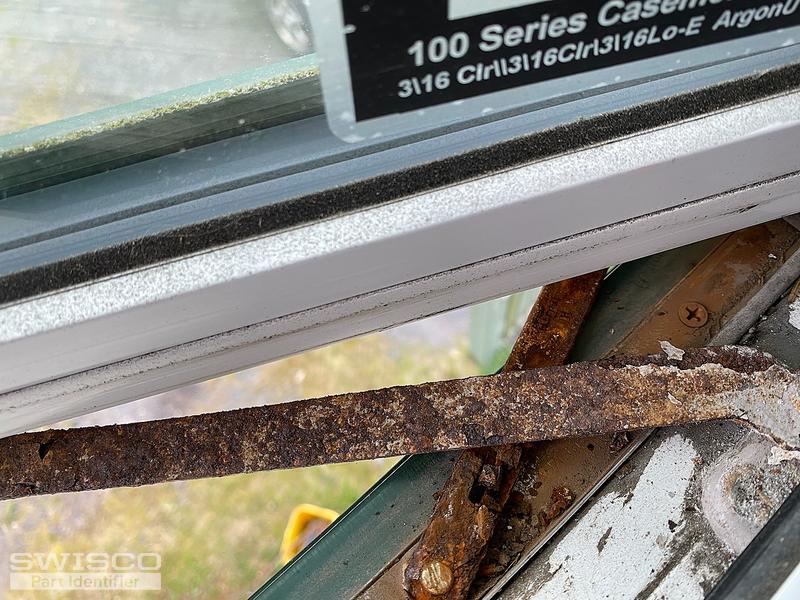

The operator appears to be stripped , I would like to replace it.

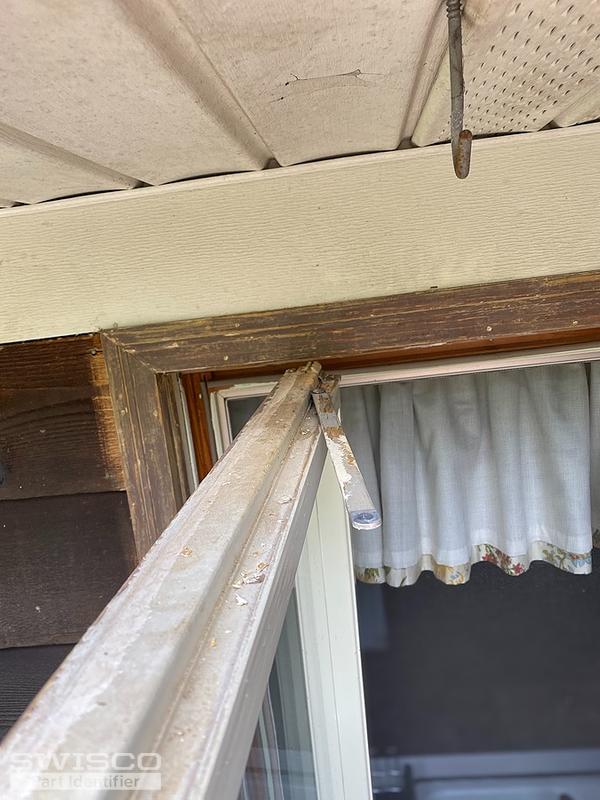

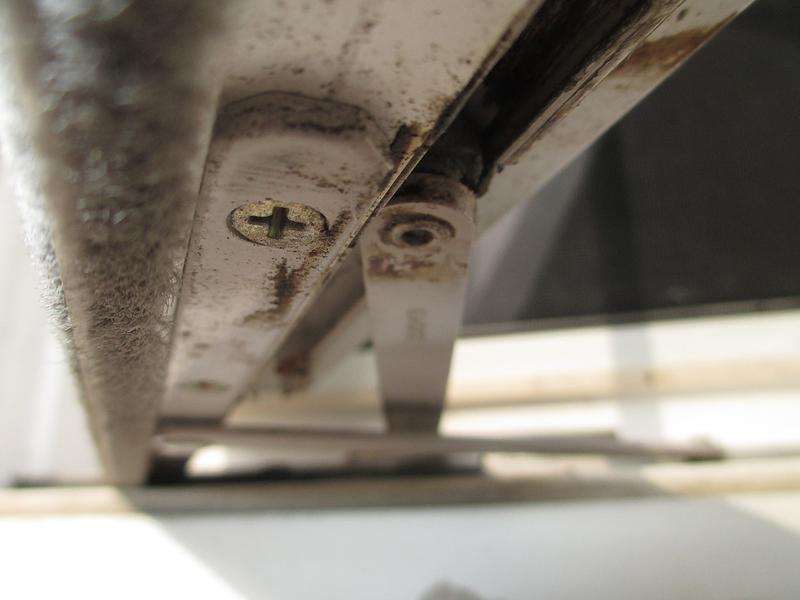

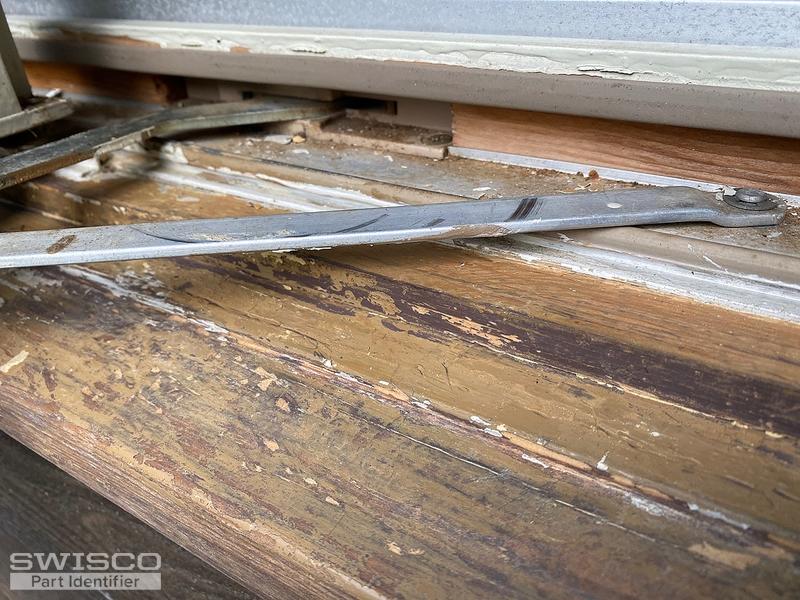

Hi, the long arm with the angle near the crank has a small plastic wheel which rides in a channel under the window; these pop out of the track where there is a small cutout in the side of the track where the wheel would slide thru to install into the track. The arms have a bit of vertical 'looseness ... (cont.)

Hello, I'm needing 2 left and 2 right casement operators. I'm converting stationary window to operable, so I will need hinges, locks and all hardware associated.

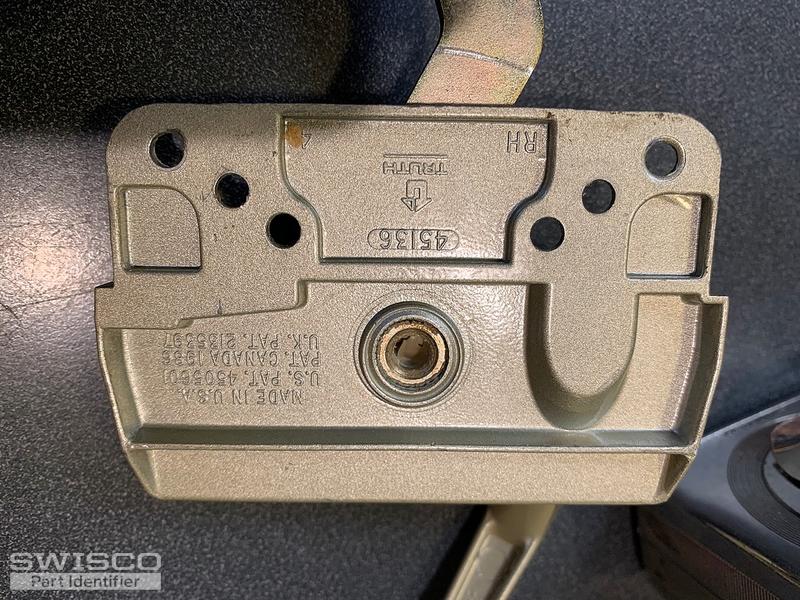

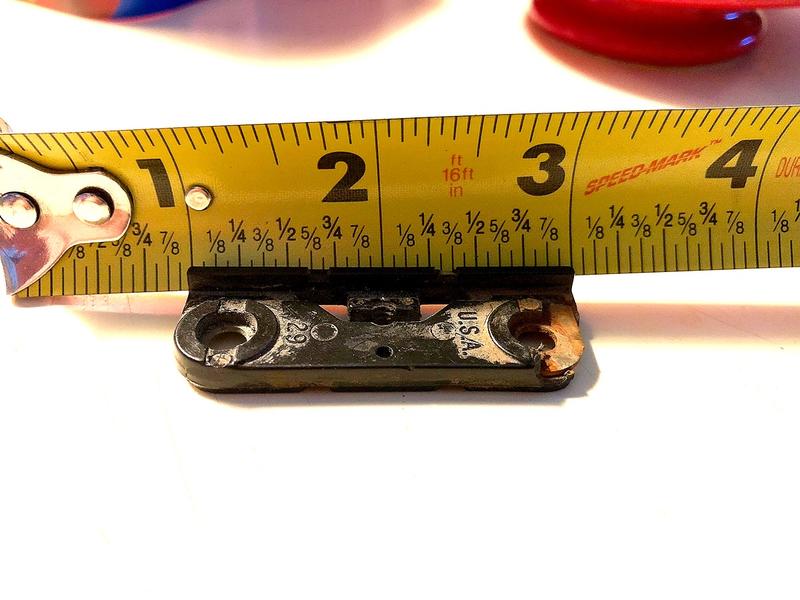

Need a replacement part for a 45136 hinge
