Viewing all customer Discussions for:

39-025 Awning Window Crank Operator

Can you identify this window crank? Crank is from a Silverline window. Marked inside with "patent no D-198202U Bottom holes 1-1/8" apart. Bottom hole to top hole 5-3/16"

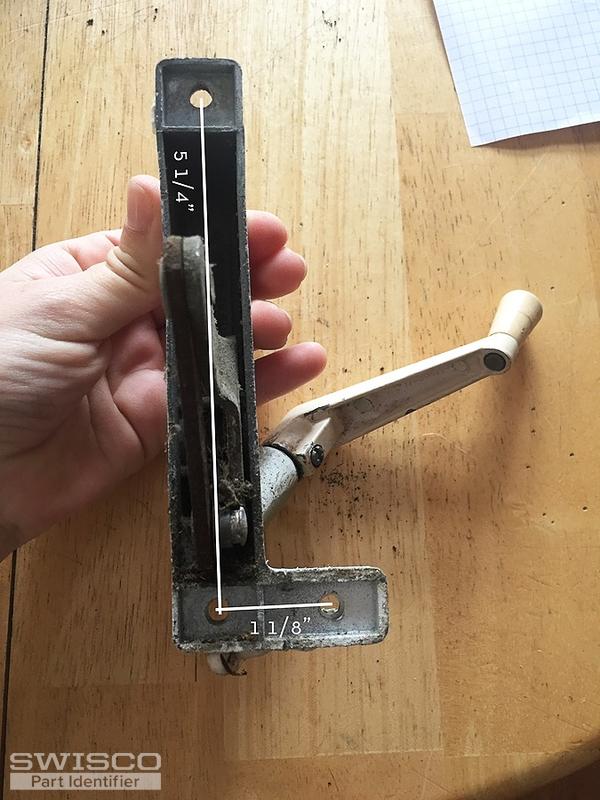

I need a replacement for this awning window operator. There are two numbers on the arm of the operator, 78 and 91 The bottom holes are 1 1/8 inches apart (center to center). The vertical holes are 5 1/4 inches apart (center to center). The arm is 4 1/2 inches long. The body dimensions are 15/16 in w ... (cont.)

Hello, I am looking for replacement parts for awning window operators in the pictures attached. Both right and left hand operators. I am not sure what brand they are, just know they are a bronze color. If you know what model will work and you have them in stock how much are they each and how muc ... (cont.)

My broken crank just has a number on it--- 3668-A I have looked at your item 39-025. looks like it might work. Looks like the mounting screw holes will match and the hole in my units arm is threaded for the connecting screw. hope you can fix me!

Silver line crank and window case 5.9"x 2.05" from screw end to screw end

Will this work if my arm length 2 1/2 inches and all other measurements are the same?

We bought new awning operator(silver) but it needs some kind of rivet as old one (white) has See attached photos( 2 of old casing that includes rivet. One of new casing

I need a bunch of the cranks and these other parts for my windows. I have measurements. Can you confirm what I think I need? Tim

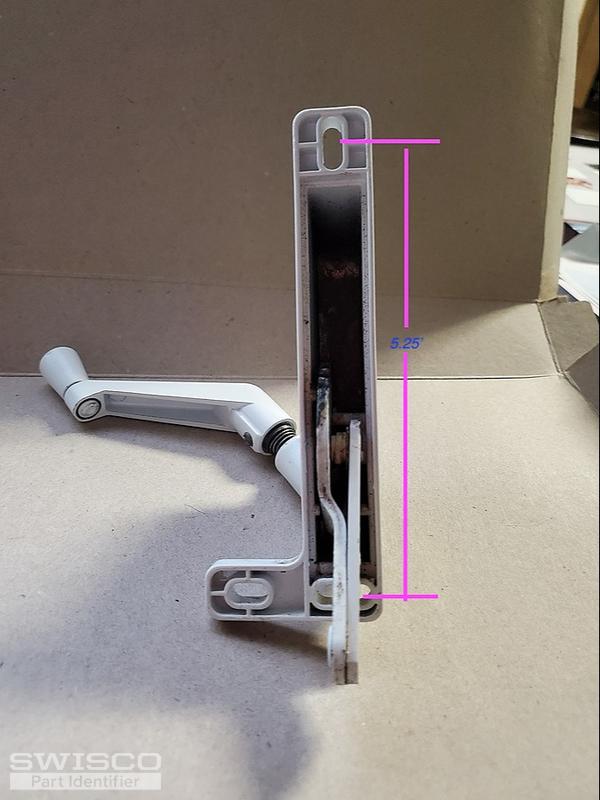

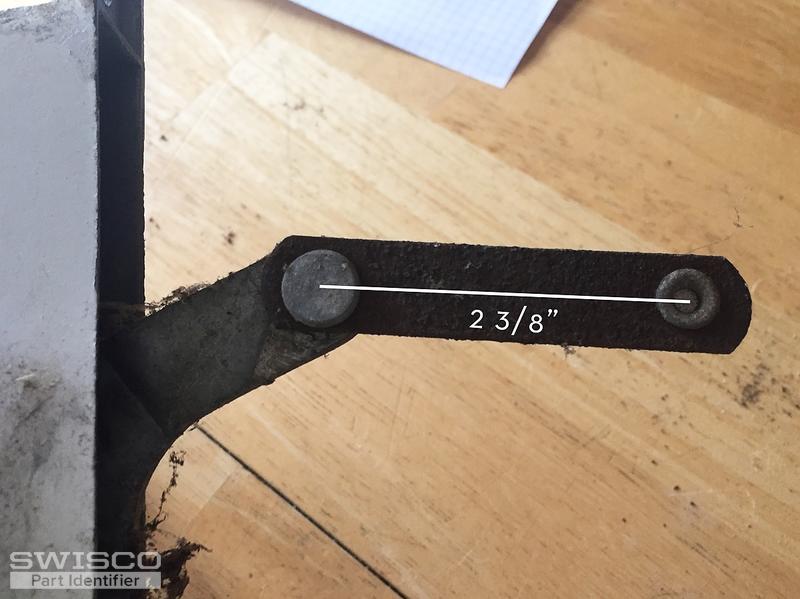

The hole spacing for the bracket is the 5-1/4" top to bottom. The operator link arm is 2-3/8". The issue is the handle comes out of the operator when closing counter clockwise at about 30% remaining before secure. Operator can open windows fully and bring them back in to some degree. Sunroom was ins ... (cont.)

Can't find any numbers, names, or markings on any of the windows or pieces. Two windows and cranks are no longer functional. We have taken everything apart to attempt to fix it with no luck. The windows will only move outward to open but not back inward to close.

It looks identical but not sure!

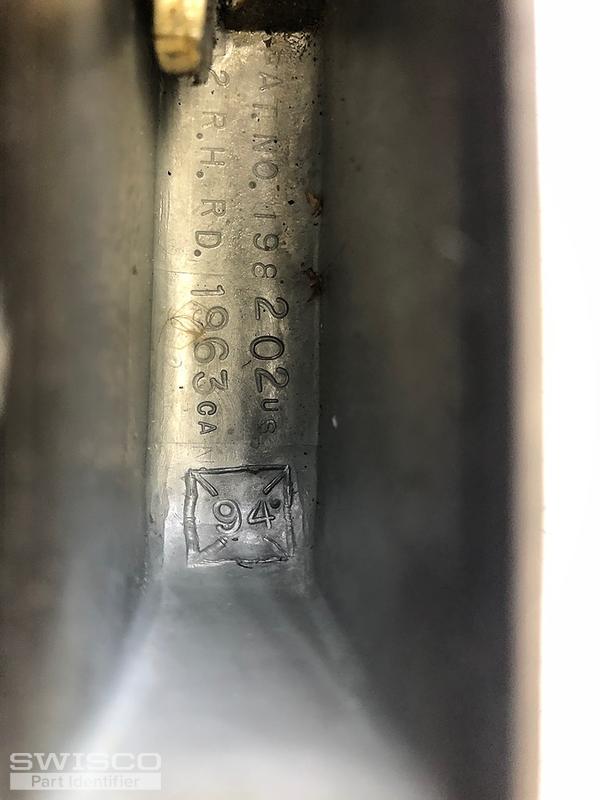

Looking for replacements; the only #s on my current operator are listed below. AT. NO. 198 202 US R.H. R.D. 1963 CAN The number 94 is also in a box with diagonal lines from the corners toward the center

We have a cottage full of aluminum awning windows manufactured by Victor Sun Control in Philadelphia. I used them for replacement parts, including replacement vents, for many years. They are gone now and I am looking for a new source. My current need is for three (3) right and one (1) left hand w ... (cont.)

Do you have this unit in bronze I believe. The holes are 5 1/4 apart.The 2 holes near each other are 1 1/4The attachment arm is 2 1/4 apartThe hole in the arm is 1/4" threadedThanks

Hole-to-hole length on the operator housing is 5 1/4", the hole-to-hole spacing on the final linkage is 2 1/2". Hole-to-hole length on the middle, geared linkage is 2 1/2". This middle linkage takes a 1/4" bend to the outside. I have no idea of the window manufacturer. I bought them 10 years ago ... (cont.)

I'm looking to replace an old (house built in 1980) window operator. Numbers inside mechanism: 11500-3 PAT NO D-198 202 U RD 1963 CAN 1 R.H I'm also attaching some pictures.

There are no identifying marks on this opener. Can you help me identify it?

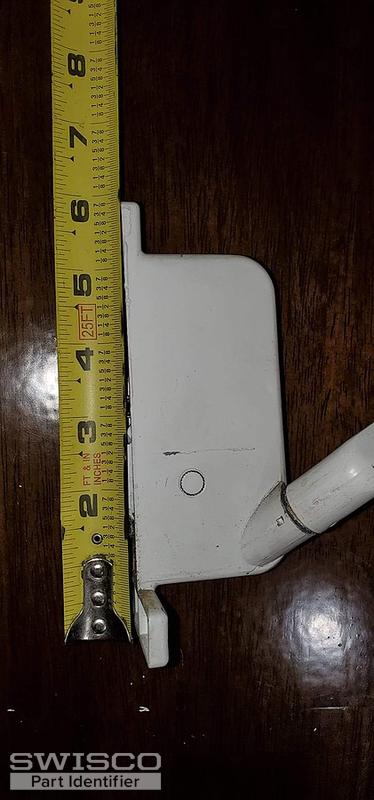

The vertical measurement is 6 inches which includes the flat sections above and below for the mounting screws. It comes out from the window about 2 1/4 inches. It is mounted by a single screw at the top and a single screw at the bottom. The notches in the handles or the post to which they attach or ... (cont.)

I would like to purchase is window crank for one that is not working well. I believe the Lenehan would work, you can tell me.A window crank just like this one that is not functioning.I also need all the supporting hardware screws what have you that would be needed to install the window crank.I look ... (cont.)

I'm writing to find out which of your products would be the best fit for our old window operators. The only marking on the inside says "FUTESA." I've attached some photos here with measurements- please let me know which would be the best match, along with any hardware we may need. Thank you so much ... (cont.)
