Viewing all customer Discussions for:

15-087 Coil Housing Pivot

I have a window that was purchased 15 years ago. I need to replace the tape balances. The manufacturer at the time was Optimum. They are no longer in business. The size of the balance shoe is 9/16 d x 1/14 wide and 1/12 high including tabs on top. The sash weight is 8lbs. The sash size is 18 .5 " hi ... (cont.)

Im inquiring anout this part do you have jt an how much does it cost this is the number on the part .... PAT.5.353.548 Thanks in advance Tricia

Hello, I am having trouble finding the balance shown. This balance is 9/16" thick. Thanks!

The metal coil has broken on one window

Hi, Don't know the name But both sides have snapped. Bottom part has "Pat 5.353.548" on it. Top coil is 1/2 inch wide and has "4 50V (U?)" mark. Also need tilt latches Hope you pros can identify these parts? Thanks, Silvio

Photo attached of the shoe and metal band attached to it that either broke or snapped out of place. Need to either get the part and replace or tutorial on how to fix without new part if possible. Thank you. Mary

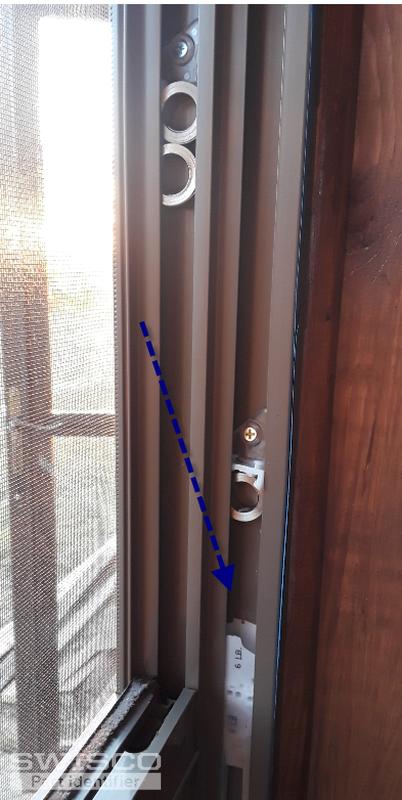

Looks like an aluminum ribbon. Was expecting a channel balancer and instead got a ribbon just in the channel???? Examined another window and no ribbon? Outside my expertise at this point.

I have a TRACO double hung window that needs the coil balances on both sides changed. The window is 26#. Thanks.

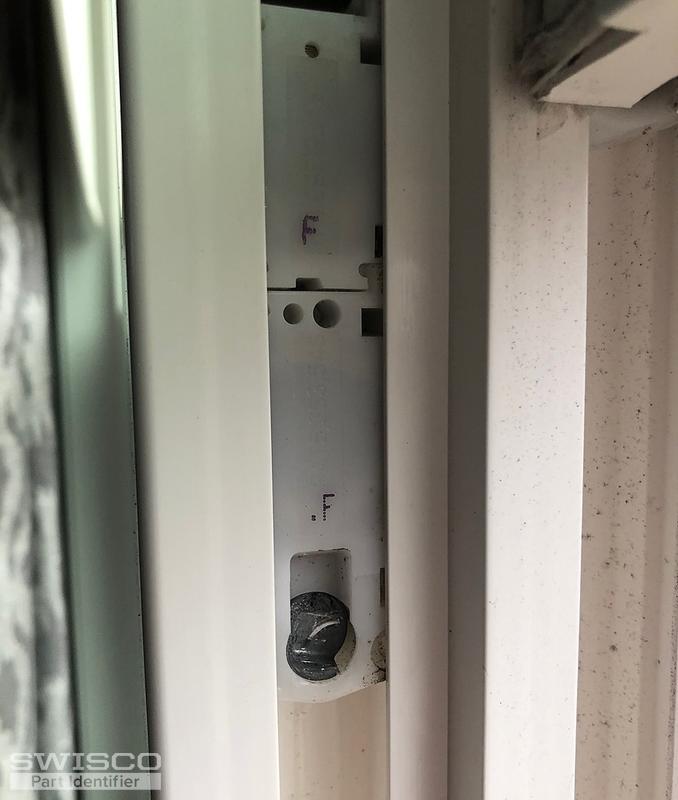

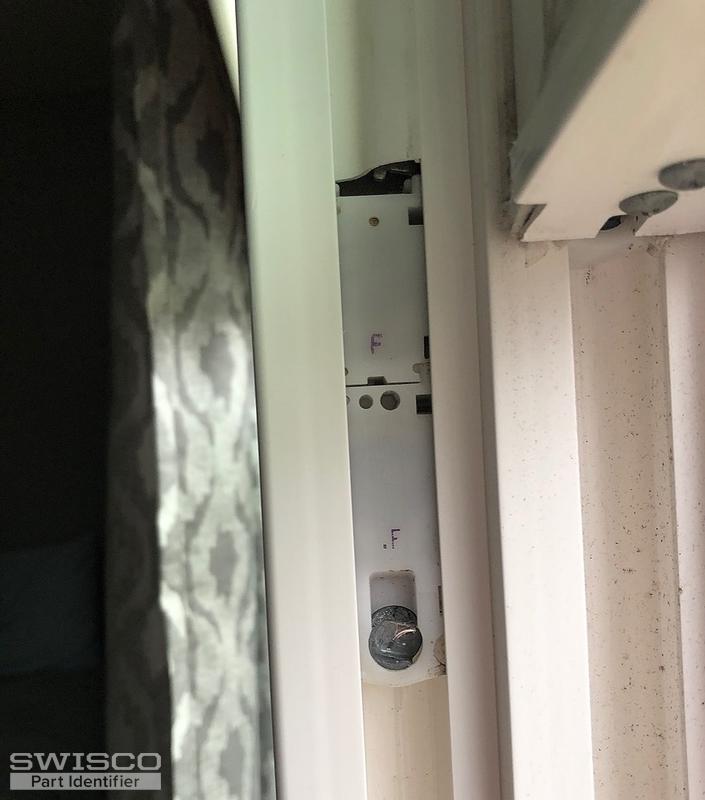

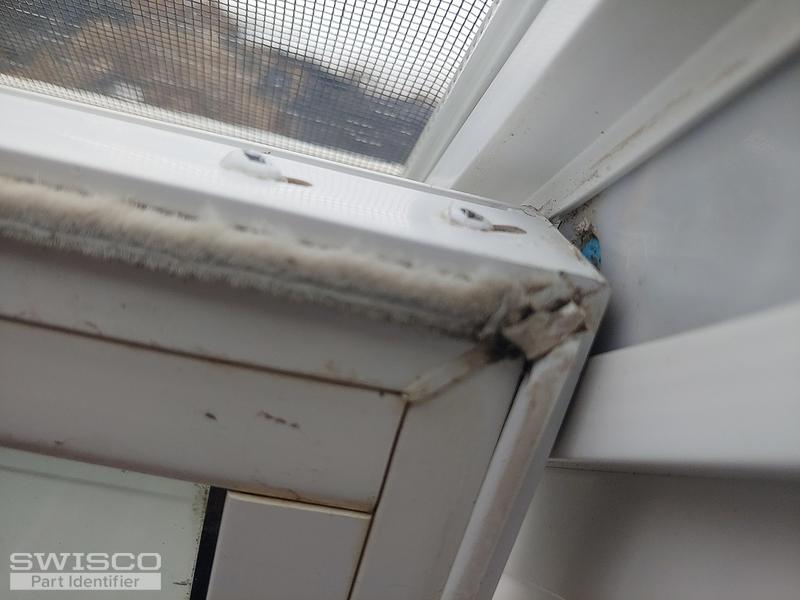

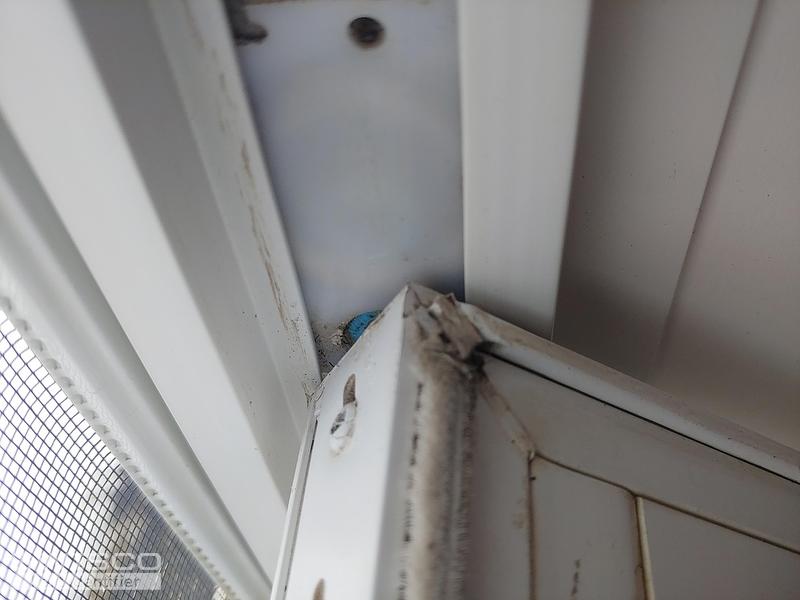

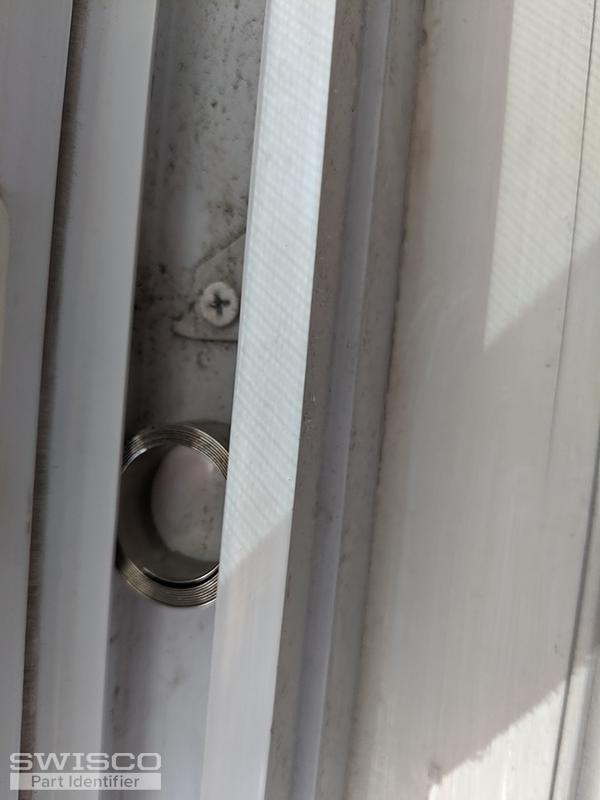

Hello; I have a window with broken coil springs, and I am not sure how to remove the window to get at the coil springs. The window does not come out when set a a 90 degree angle, as it appears to be in a solid pivot coil. I have attached a few pictures that hopefully you can assist me with. Thanks D ... (cont.)

My measurements on the attached part; length 1 1/4" width 9/16" and height 2 1/2".The Series 210 Roller-Tilt on the width is 7/8", and won't fit my window.Please advise.Thank you.Marcus

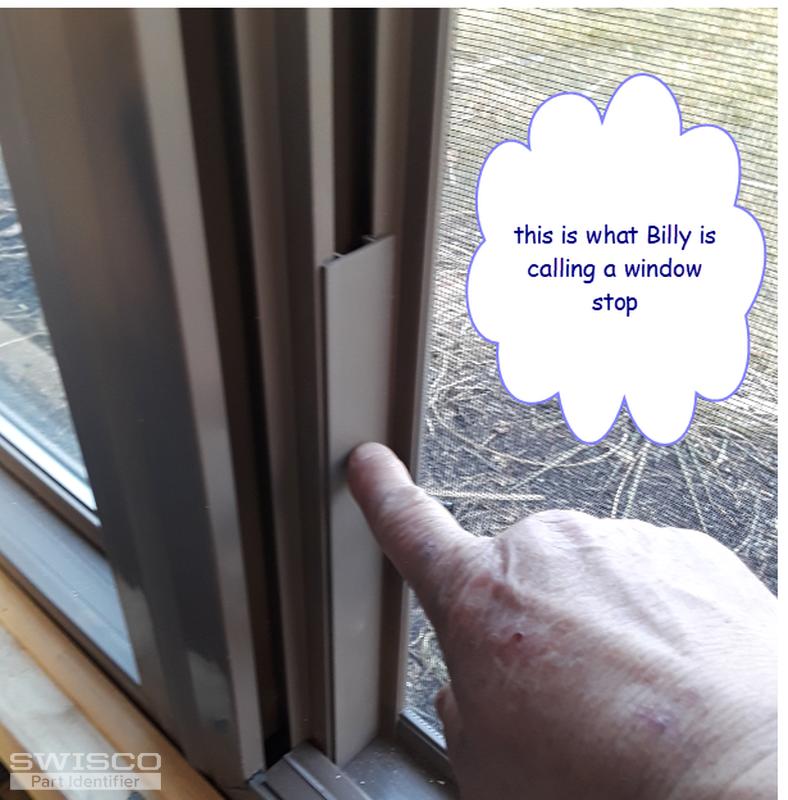

Good Morning,See attached.We need replacement parts for attached double hung windows.Inside the windows say's 6lbs.Balances for 2 complete windows ? total of 8 balances.4 window stops at 11 ¼ inchesClips that tilt both windows.I have pictures below of items needed.Your help and time will be apprecia ... (cont.)

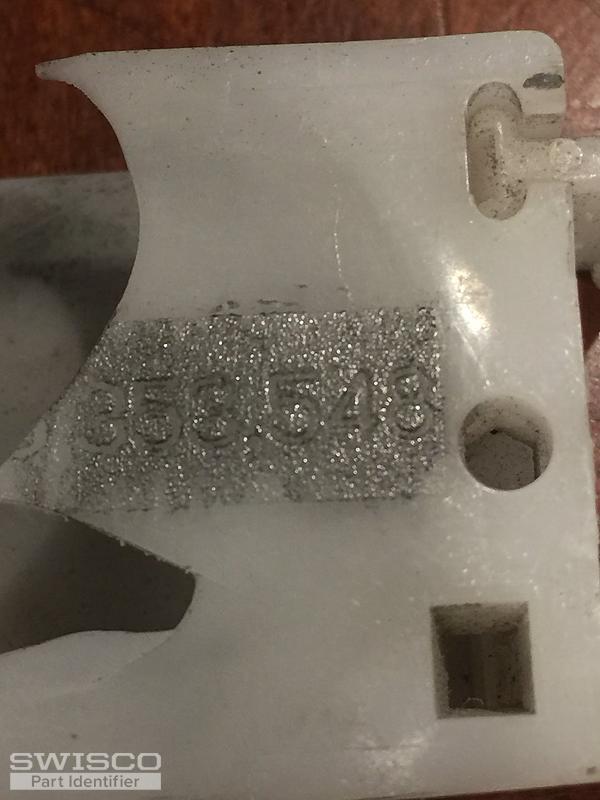

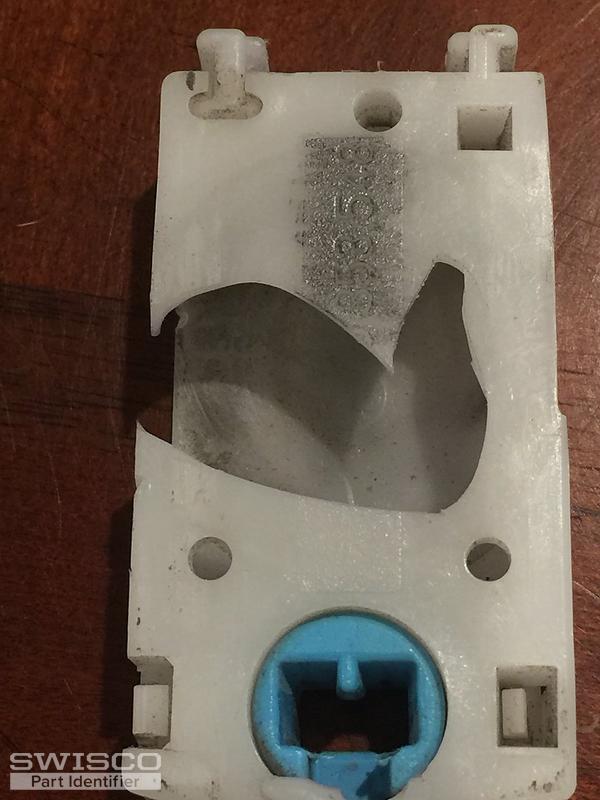

The part has the patent # 5.353,548 molded into the part. One pic is of the part disassembled, showing one spring in 3 pieces and one plastic part broken. The other pic is of a window that has an identical balance installed. There is no manufacture name on the balance or the vinyl window frame tha ... (cont.)

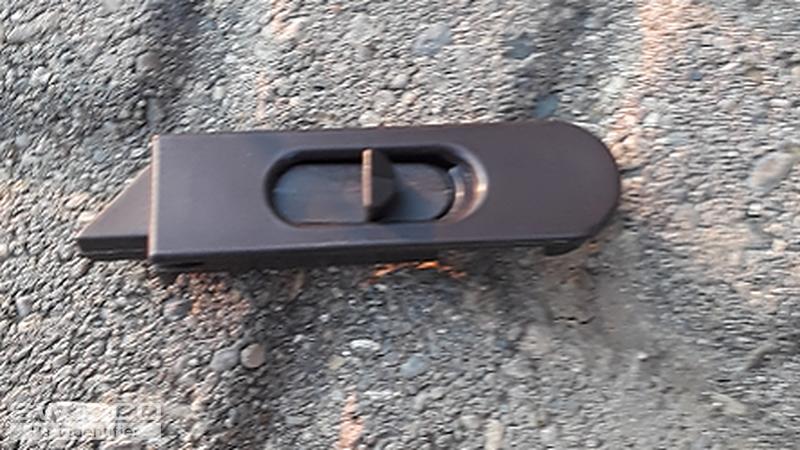

I need 2 ,one for each side what looks to be 15-086 and 15-807 pivot shoe or maybe tandom coil housing the window (lower ) weigh 18 pounds, S180-8 for springs ? . Also need 2 16-024 mounting bracket and 2 of the top locks that measure 11/16 wide x 1 5/8 long. pat number on the window pivots are 5353 ... (cont.)

Unknown maker of permanent force spring balance. Do you have equil substitute and adequte pivot bar. Appriciate,

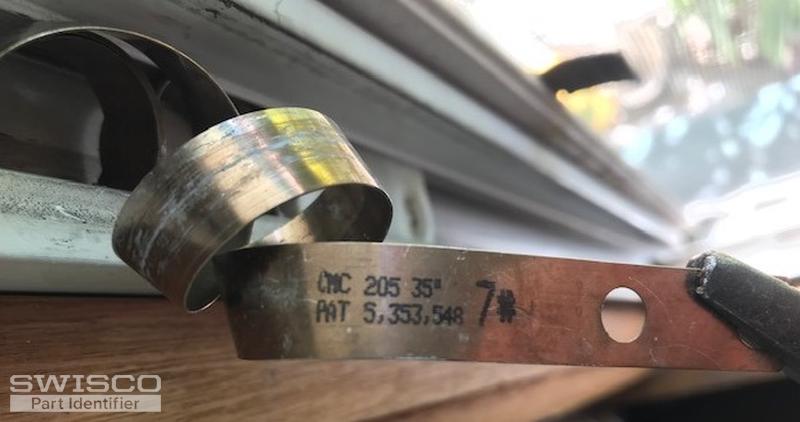

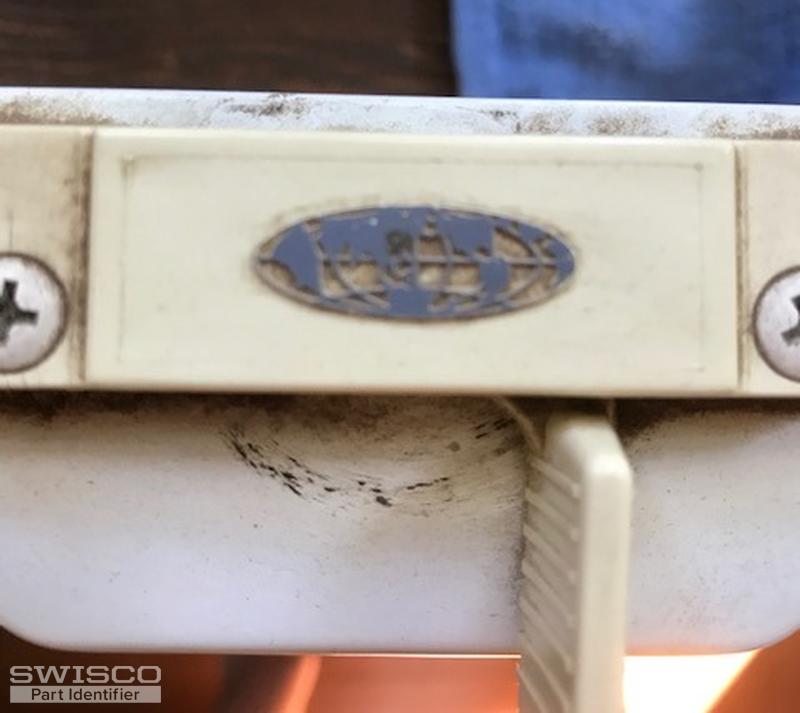

Hello,There is a patent # 5353,548 written on the plastic case. The design is similar to the series 140 but not identical. I could not find a name of the manufacturer only a logo.Thanks for your help.Peter

double hung window. I need to get the complete balancer assembly.

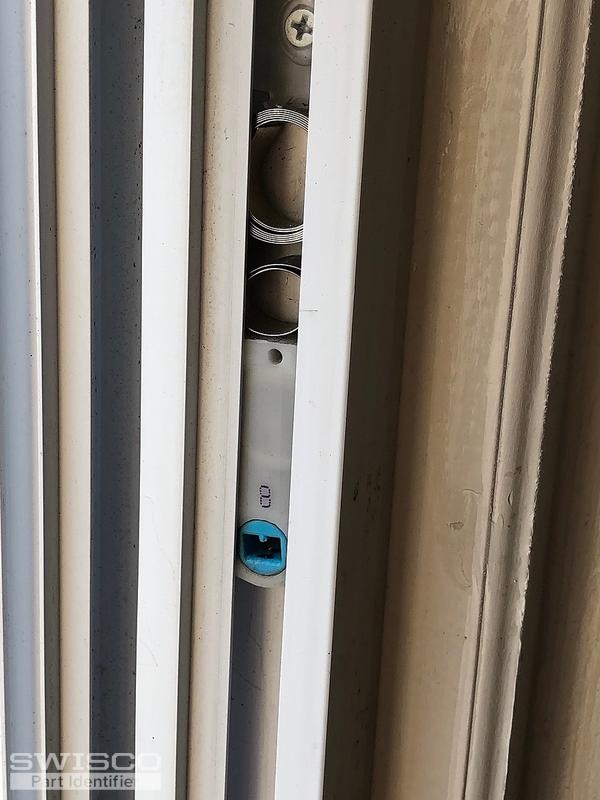

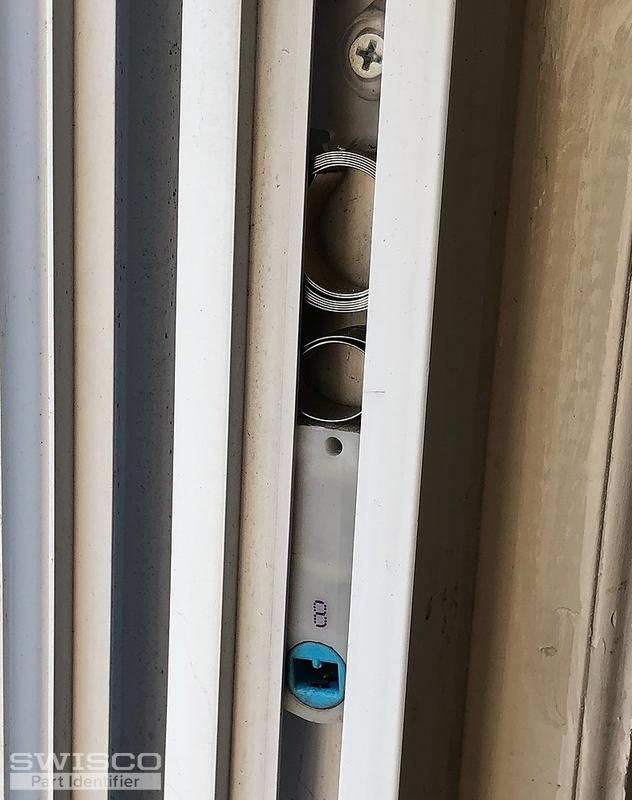

I'm assuming i need S140-7 as the shoes read 7L 7R. They are also marked T5,353,548 but i don't know if that is relevant. I do not have permission to cut yet. I don't see any markings on coils that i can make out. In the one photo is the coil with shoe, in the other is the additional coil. Bottom sa ... (cont.)

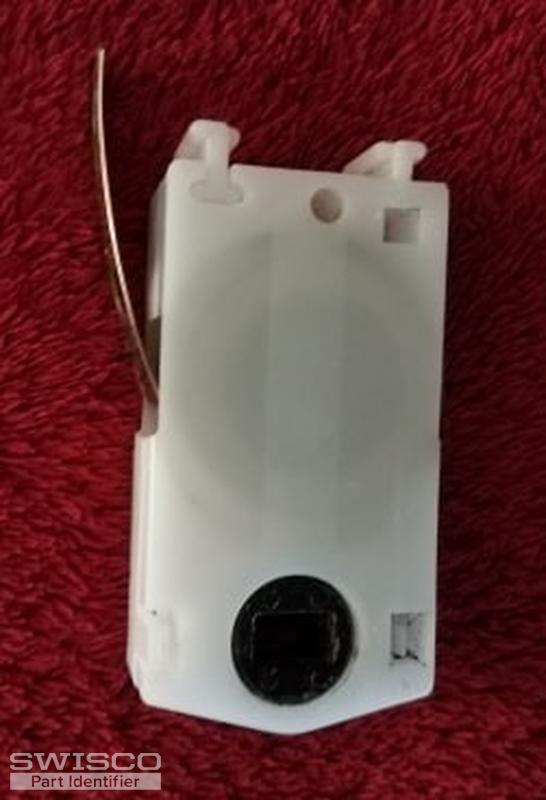

I need a balancer set for Gorell 5300 Double Hung Windows. I am attaching a picture of one. Thank you for your help.

No markings on coil for LB s. 1.5 in wide. 1/2 in or 9/16 thick. Looks like your s180 spring. Single coil. Need about 10.

Need a left and right bottom balance, window sash does tilt. Is there a special tool to install ?
