Viewing all customer Discussions for:

15-180 Coil Balance Shoe

This coil broke in two and there are no markings. Can you identify so we can order a pair? This coil did have a number 8 stamped on the coil where it would attach to the shoe.Thank youMike

try to my windows by ny self

Hello I need a quote for this coil assembly for a customers. Sash weighs 64 pounds and the mechanism is broken on one side. The coil is not stamped. Thank you for your time, Mike

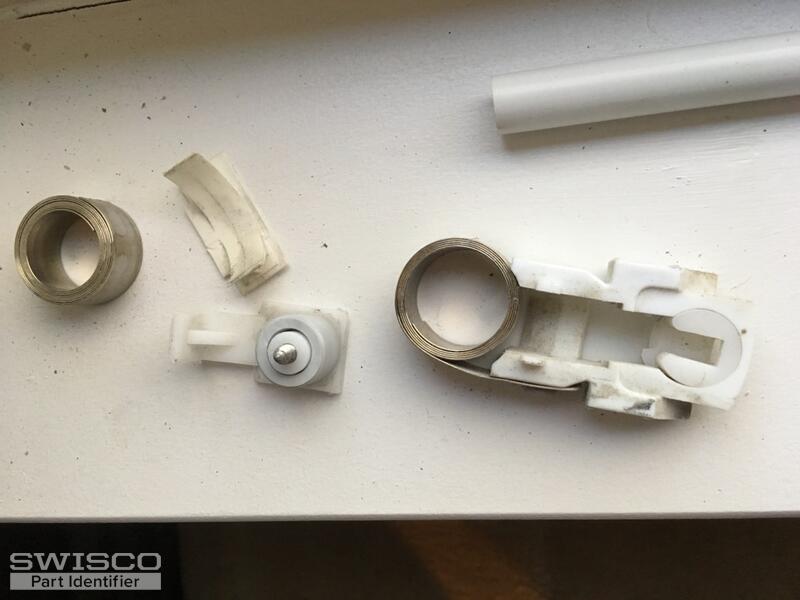

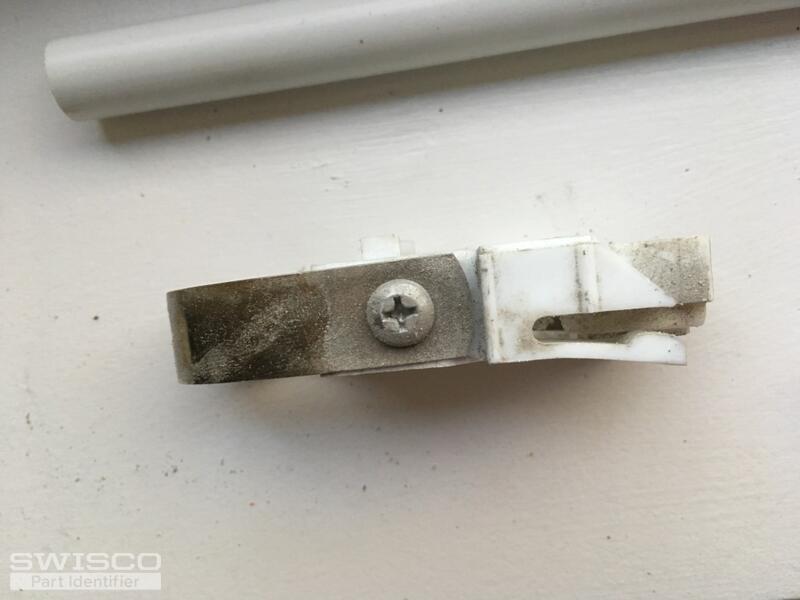

Image 1 is the broken coil balance. It's a dual coil balance. The detent clip is 3/4 inches wide and 3 inches long. The coil spring is 1/2 inch wide. The sash is 8 lbs. I need.to.replace the coil balances and shoe for the upper sash on both sides. Image 2 shows the lower balance and shoe unbroken fo ... (cont.)

Coils are 1//2" wide with a single screw mount & slightly curved edge where mounted, with 427 stamped on each coil. The coils look like your S190. White balance with white cover with 2 spacers on cover for balance bushing to ride on similar to your 15-181. 2 screws go through balance bushing space ... (cont.)

Looking to order the part but not sure which one. Photo Is attached

Can you tell me what the part number is and do you have this item? This came out of a double hung tilt in window. The number on the coil is 9. Also, I will need a left and right. 3 sets. Thanks, Kelsey

The spring has two screws at the bottom and the number 640 stamped on the spring. The spring is 1/2 in wide

Hi, I needed this part for my window. Photo is attached . Thanks

Need to replace broken

Please take a look at the following images and let me know which replacements will work for me this is for an apartment complex

Used with 540 S190 Coil Balance

Bands on both sides have broken. Need parts on both sides plus coil balances as well

Please help me iedntify the parts that I need to replace this. Thank you!

I am trying to identify the attached pics coil balances. I think they are the 10 LB SERIES 140 QUICK-TILT, SINGLE but not sure its a small window. The wideth of the track is 1" and the height of the balance is 3 1/2"

I need all of these parts. Set of 12.

My double hung window wont stay. I took off this single coil pivot balance shoe and found it missed a small parts. I wonder if you have the matched white circle that fit in the loop to make this complete? or maybe a new whole parts that I can purchase? Please let me know the model and price. ... (cont.)

These pictures are from balancer. Front & rear. Windows purchased approximately 1999 from Home Depot. Thinking it?s a 8500 series ? Could you help me find the replacement part #. Thanks

I have attached the pictures of a same window, showing upper and lower portion. The circled pictures show the closeups of the parts I need to be identified to order. Please advise. Thanks.
