Viewing all customer Discussions for:

15-188 Pivot Lock Shoe, 1/2" Thick, Blue Brake

I need 2 cams for a series 401 double hung PL004-018 vinyl replacement window

GreetingsThe spiral tilt window balance is 24" long aluminium tube only and the pivot shoe is 1/2" thick, 2" long and 1 1/4" wide.Should I order part S600-24 and 15-046?If correct I will order 4 of each along with a charging tool part 75-006. There are no names or markings on existing hardware.Thank ... (cont.)

1/2 inch thick 2 inches height 1 3/16 inches width

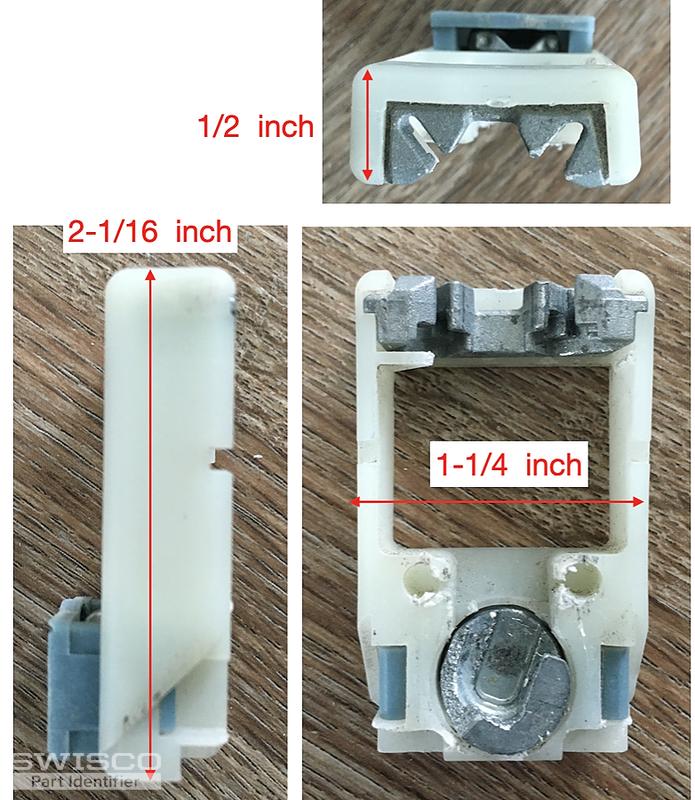

2-1/16 tall 1-1/4 wide 17/32 deapth the white one in the pic fit in size but the window does not go in. darker one (the one i need )has a step inside, for the window to sit in and lock in.

Need part

Hi, our house was built in 1997. The windows are Jeld-Wen brand. I'm looking for what I think are the Pivot Pins and Shoes. Pins have the number 9862 stamped on them. Thanks for any help you can provide.

I have 6 Ultramaxx vinyl tilt out windows. Many of them need new shoes and a few need bars. In some, the spiral balance holder is broken, in some it's the cam. The windows were installed in 1999. There are no cutouts otherwise I'd remove and take better measurements and pictures. I'll cut them out f ... (cont.)

For a double hung window.

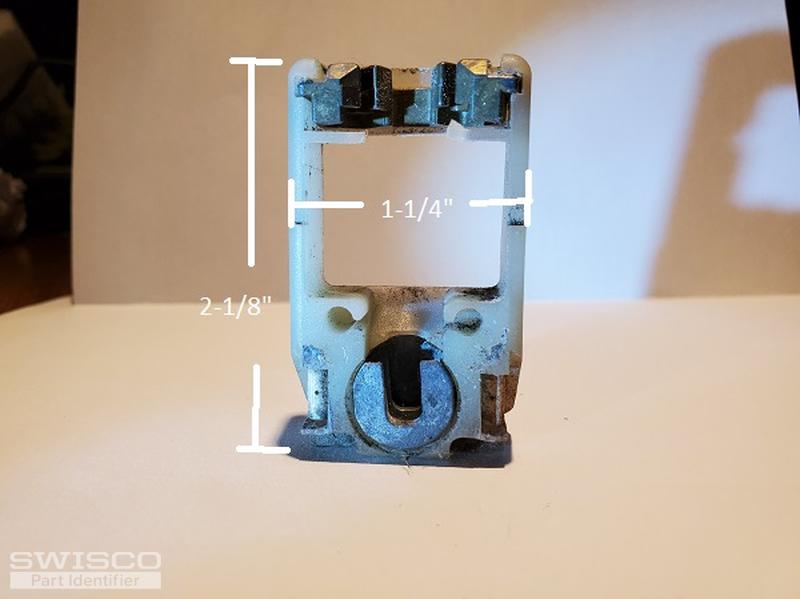

Please help me identify these window parts. There is no name on any of my windows. House was built in the late 80's. Approx. 2 1/8 long X 1 1/4 wide.

Hello Picture attached to shoe, which is obviously in bad shape. Only clue I have of windows is Newpro replacement windows. They are pivot out. Thank you.

Need help finding part numbers for both shoe and channel.

Just moved in the house need to find parts for the kitchen window if you can please help

Hello, I'm looking to identify my pivot shoe and pivot bar. I have tilt in windows, home built in 1999. Spiral balance is 28 inches × 3/8 inch with red/orange insert. Window weighs approximately 22 lbs. I also need the right and left tilt latch. I have attached images to this email. Please advise. ... (cont.)

Hello! I have a house full of Alside 0601 windows. Many of the spiral balances and shoes are shot. Could I have part numbers for blue tipped 5/8" width spiral balances that are 31", 25", 21", and 17 inch? Also, the shoes appear to be different on the right and left side of the window. The left has ... (cont.)

Lock Shoe, Window Balance Pivot, 2.062" L 1 1/4" wide Need a whole house. all the pot metal is broken.

Good Morning. The lower window panel was raised up a bit and we didn't realize that the channel locks were not engaged. A strong wind blew the window in, causing it to swing down. When the panel hit the sill, it broke the pivot brackets and sent the panel to the floor. We bought this house a numb ... (cont.)

Hi! Looking to replace a few broken pieces on my Crystal Windows. They are probably close to 20 years old.

Please see attached photos and advise if replacement parts are available. The windows are old and I do not know what brand they are.Thank you,Paul

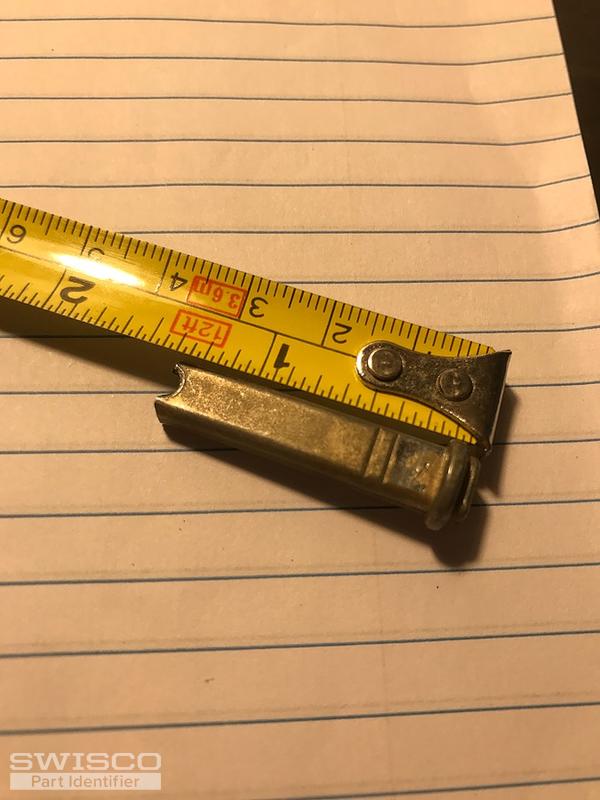

I was only given this piece of pivot bar, and a picture of the pivot lock shoe with dimensions, to find replacements. I believe the pivot bar is 26-226, based on the style and dimensions of the first hole. I can not seem to find a pivot lock shoe that corresponds to the dimensions i was given, 1" wi ... (cont.)

This is a broken pivot shoe for a double hung window. I would like to get a replacement one. Thanks! Haiping
