Viewing all customer Discussions for:

15-199 Pivot Shoe, 17/32" Thick

Looking for replacement

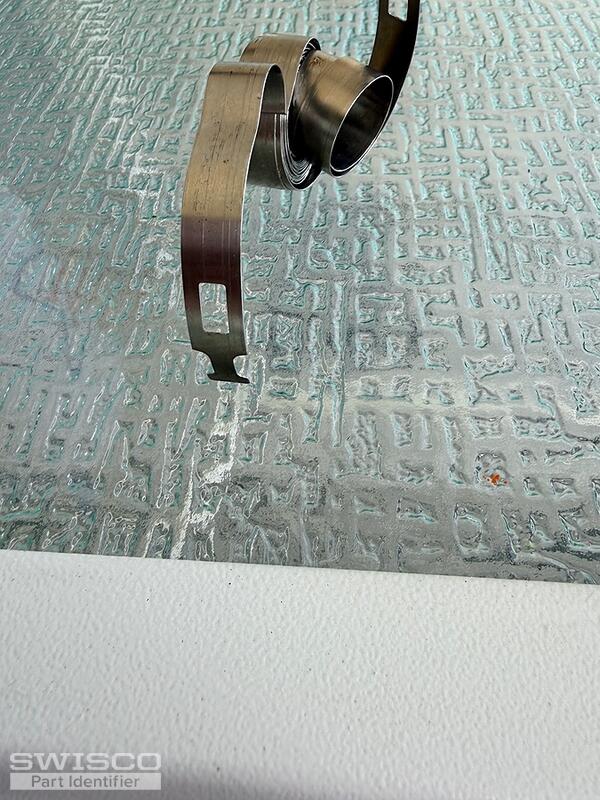

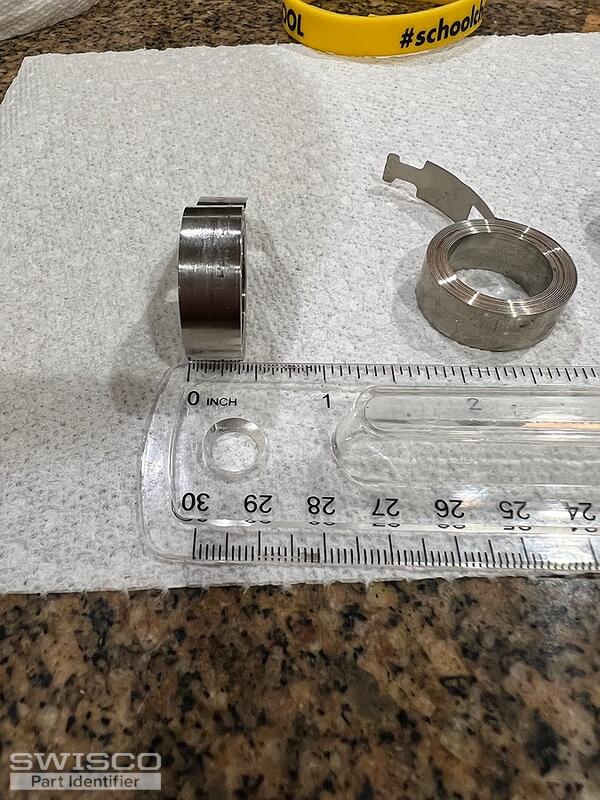

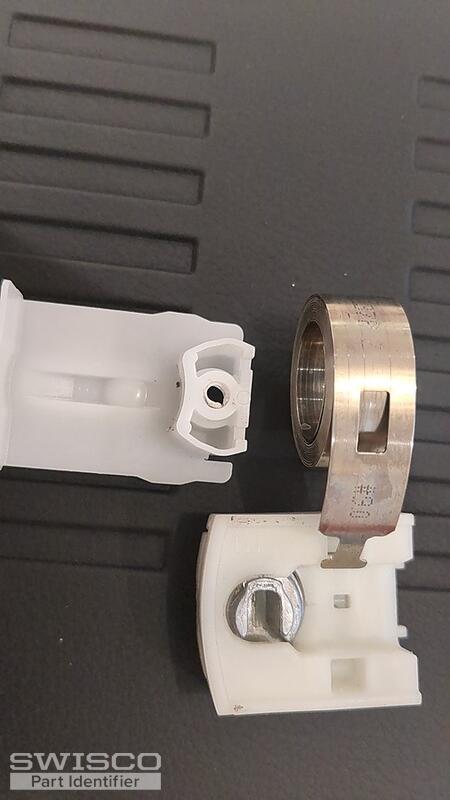

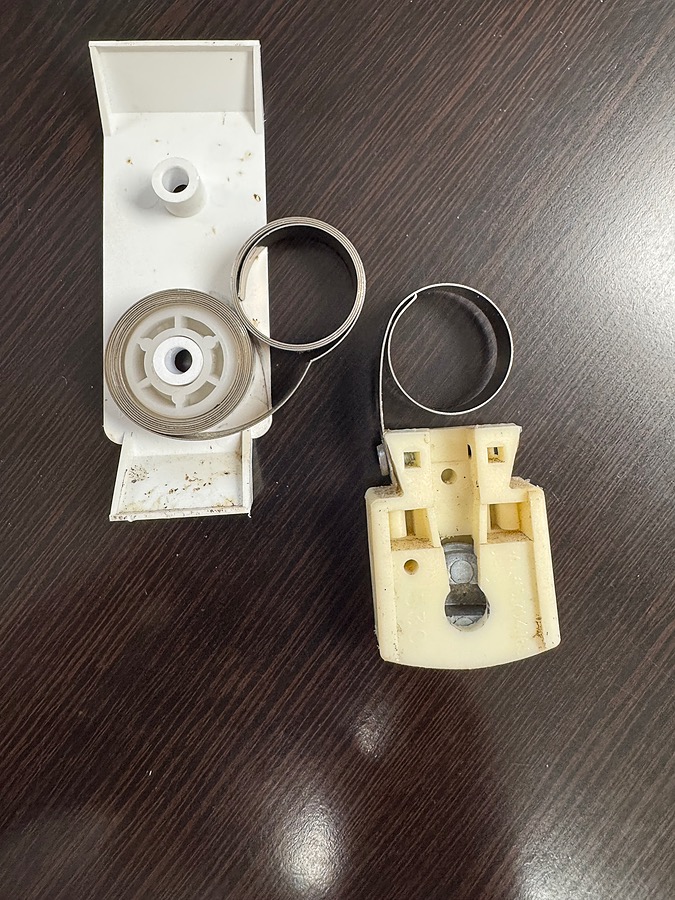

Hi. One of the coils in my window has broken. Can you tell me what part I need to order? The pictures I've attached are the front and back of the pivot shoe and the part of the broken coil attached to it and another picture of the coil itself so you can see what it looks like. There are some marking ... (cont.)

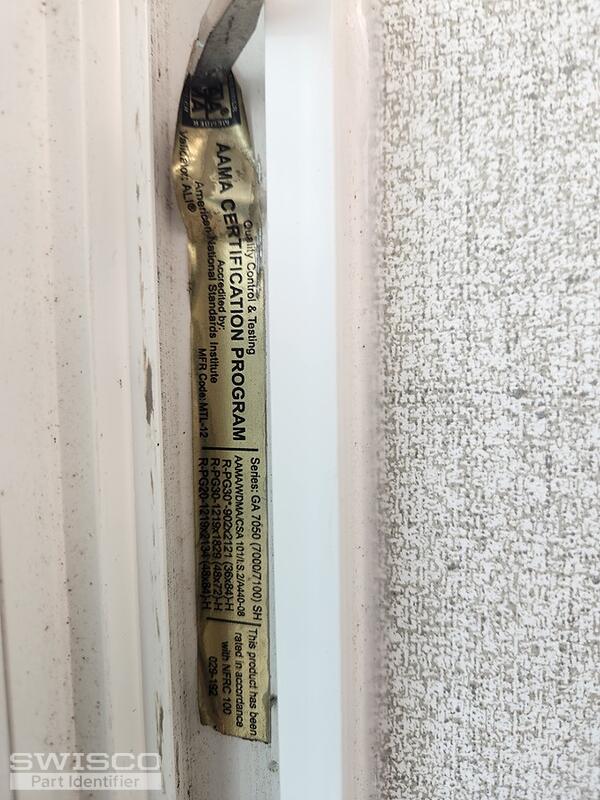

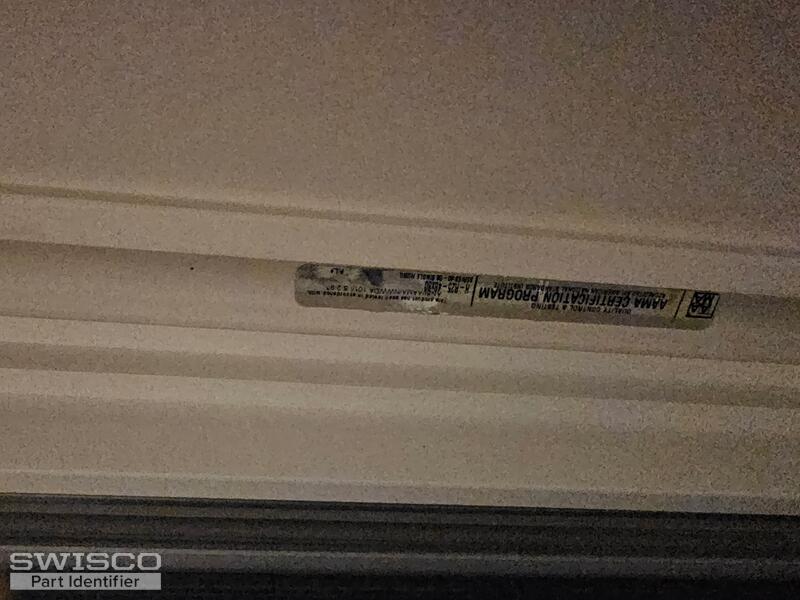

Hello, I need replace met parts to match the pictures attached. I need the pivot lock shoe as well as the coil balances shown. These pictures are are from the window on the right of the window that has the broken parts. I have also provided a picture of the label on the window. Pulte Homes install ... (cont.)

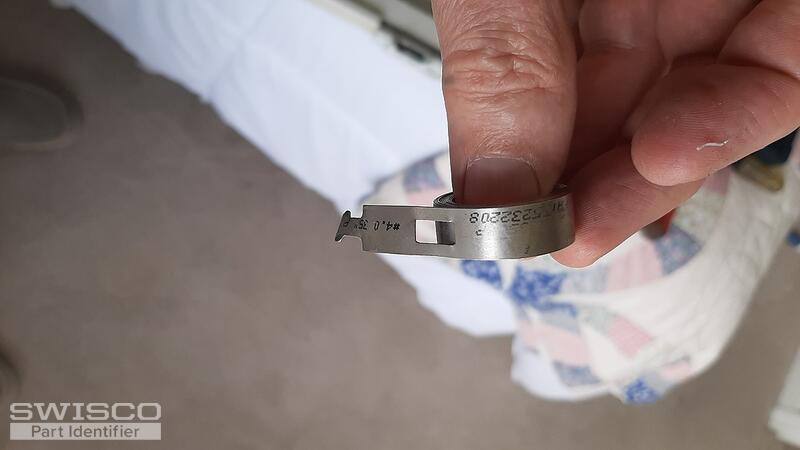

Hi, hope you can identify these parts for replacement. The sticker on window sash says "series 380DH" also has "H-R25-47x73". The coil part has #7.5 35" printed on it, also I can see the numbers PAT 5232208. The 2208 is clear but the 1st 3 numbers are questionable. The pivot pins are both slightly b ... (cont.)

Can you please help to identify the parts I should purchase? Thanks!

Can you please suggest which complete replacement parts I need to purchase? Do I need to replace pivot bar?

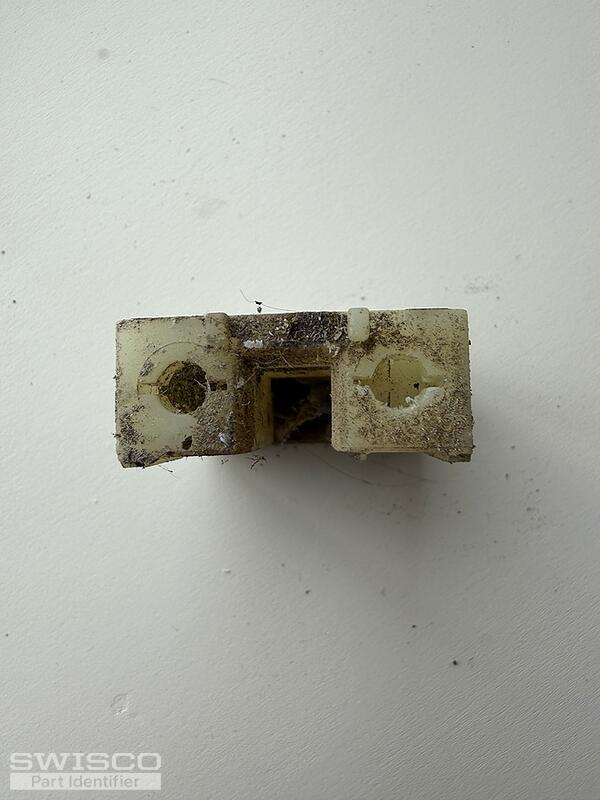

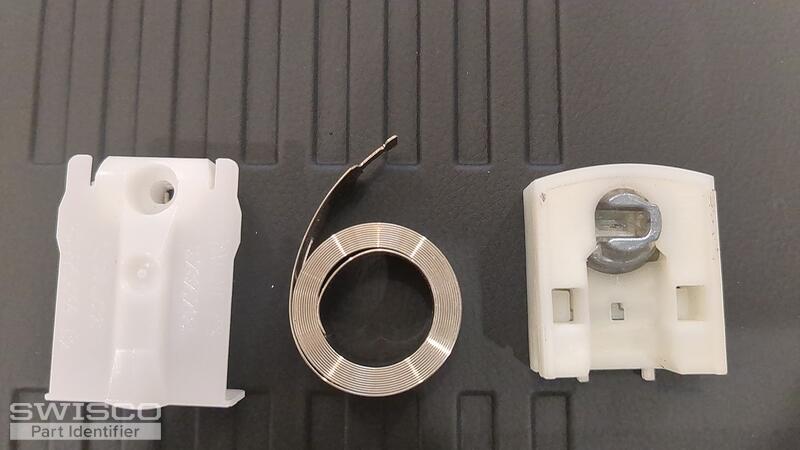

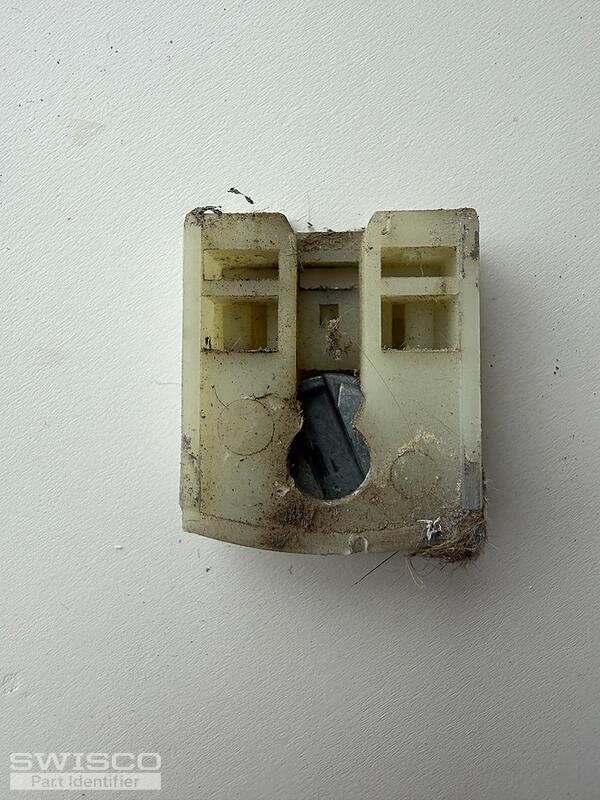

Need help with identifying this window balance shoe for replacement

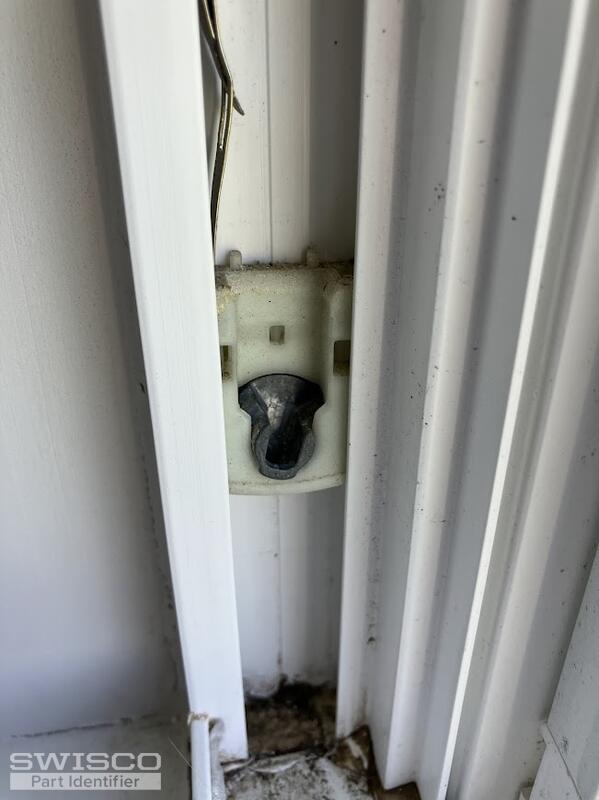

Hello, could you please help me identify the photo part? We have a sliding window that is now not staying up. It is extremely heavy because I believe this part broke. The part detached is one from a window that is not broken. The metal shoe has a plastic white part that says the letter E? The metal ... (cont.)

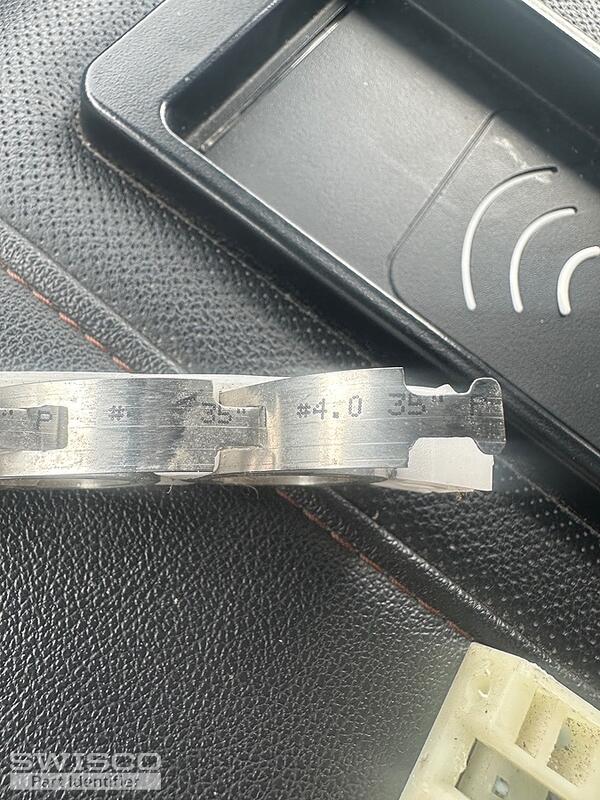

Dual spring appears to show 5# and 35"

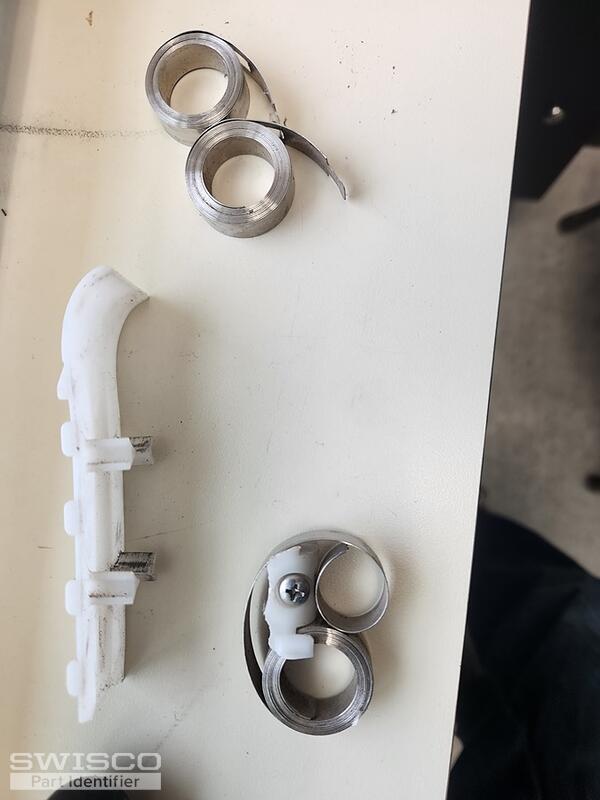

The coil balance parts are broken on the first window and not keeping the window up. These need to be replaced.

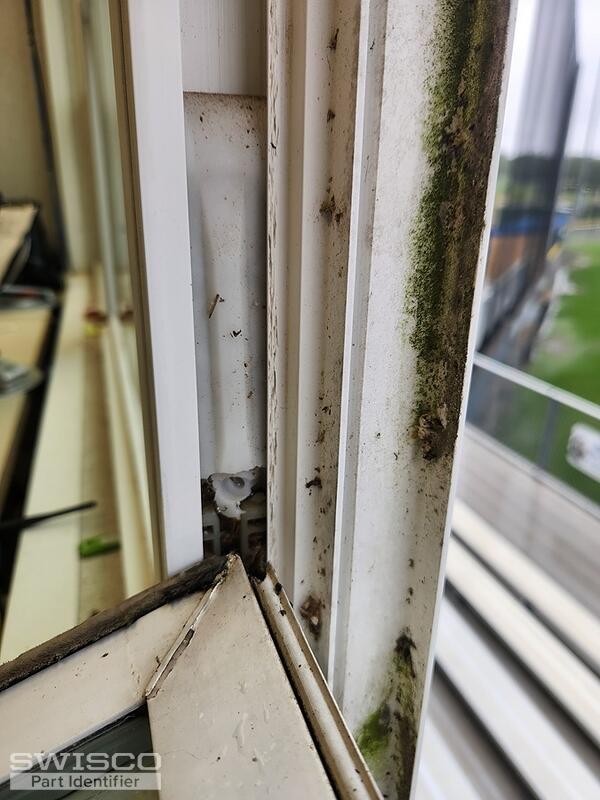

Tenant move into this condo and tried to open one window and it was very difficult to move. Tenant caused damage trying to move it. I need help with fixing that window and potentially others.

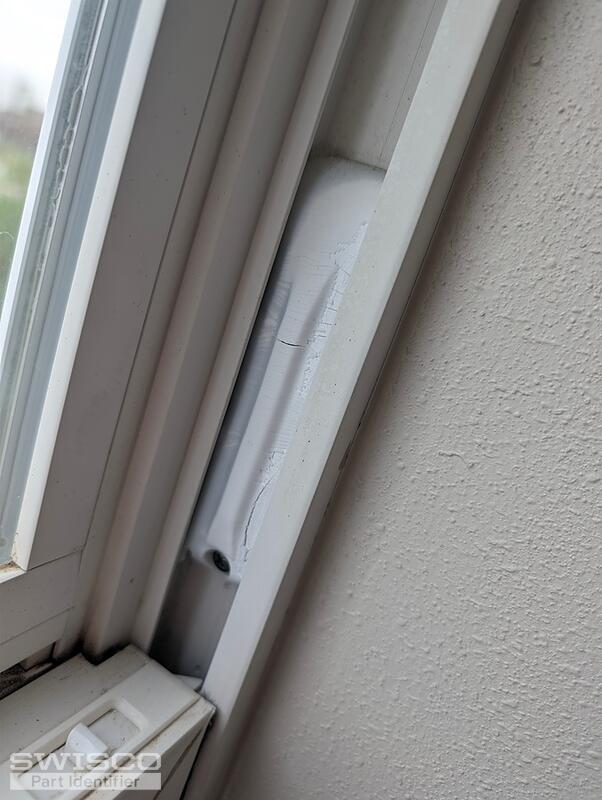

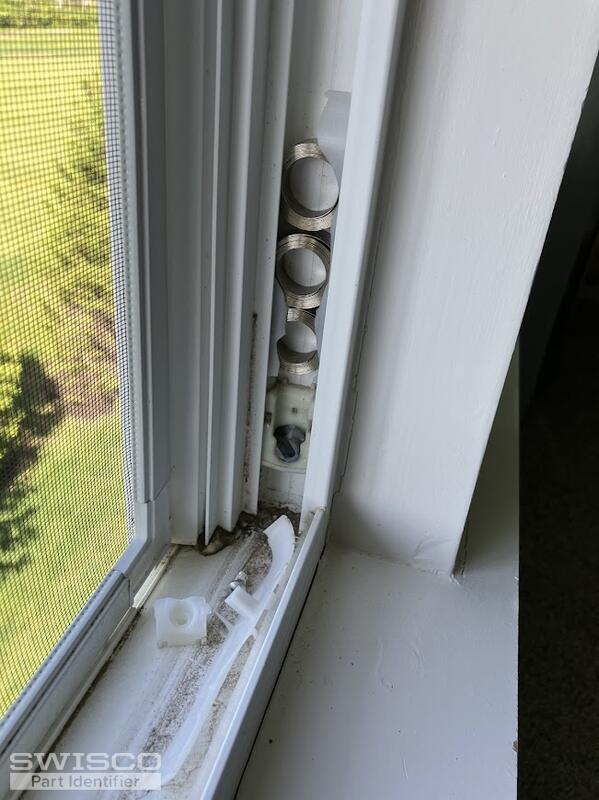

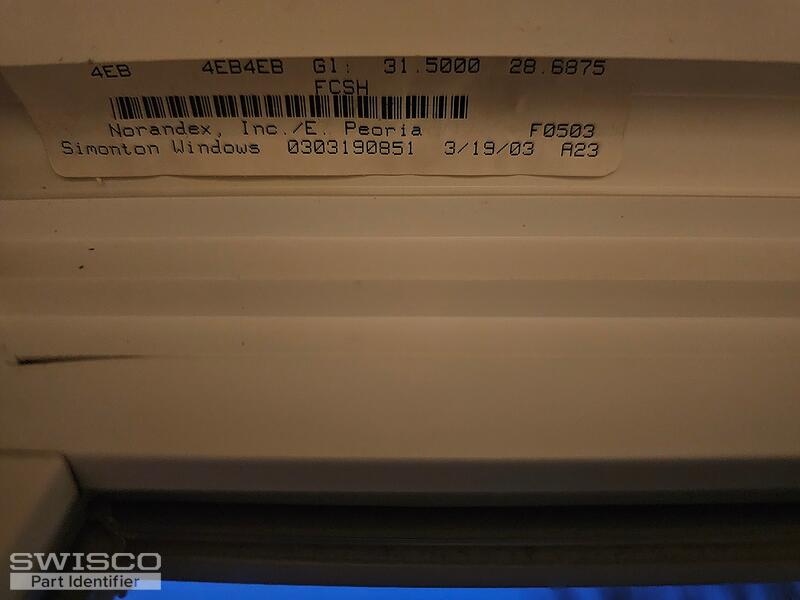

I have three double hung Simonton windows where the sash won't stay up. I'm pretty sure I need to replace the balance assembly. Can you help me figure out which part I need to order?

5232208

no part numbers or manufacturer seen. I included a photo of the sash where it comes out in one part from the face and one part from the opposite side. I just need to make sure I get the right part

Window measures 33.25" w, 29" h, and the coil is a triple coil that is 4.5" long. The opening of the window track seems to be 0.78" wide.

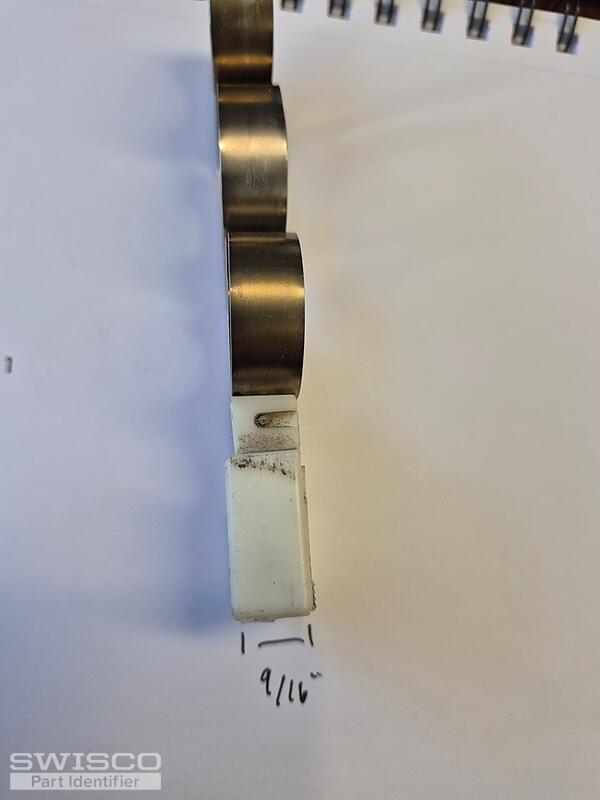

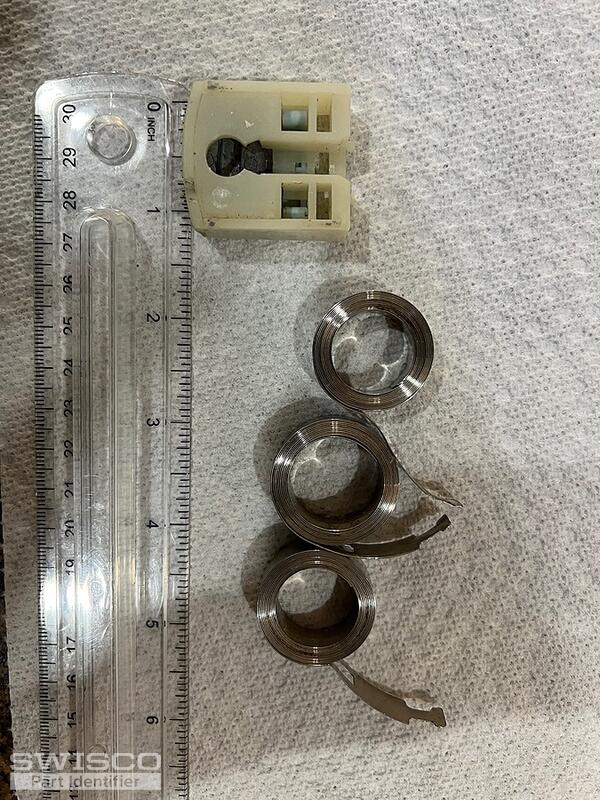

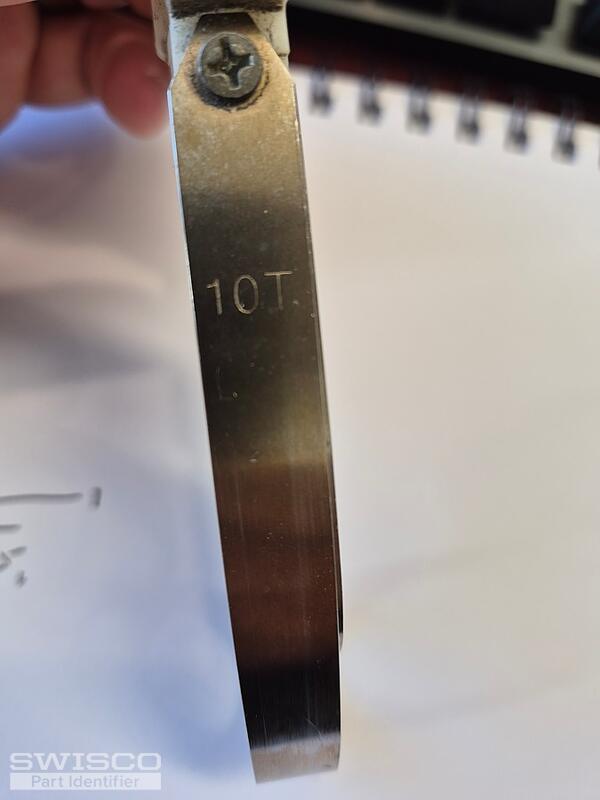

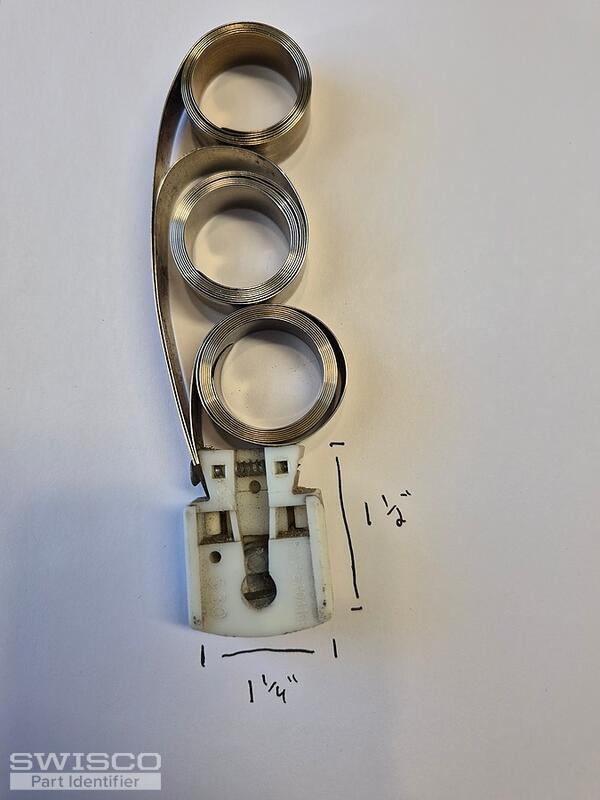

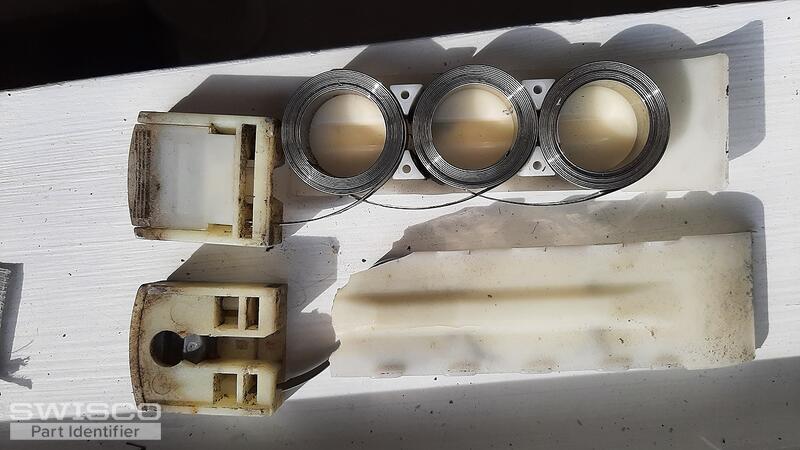

I am looking for a replacement for this triple coil balance. I've uploaded pictures including dimension. all three coils have a 10 stamped on them. I've found similar balance/shoes with these dimensions, but I am not sure about compatability.

Window balance and pin also latch's needed for vynil single hung windows

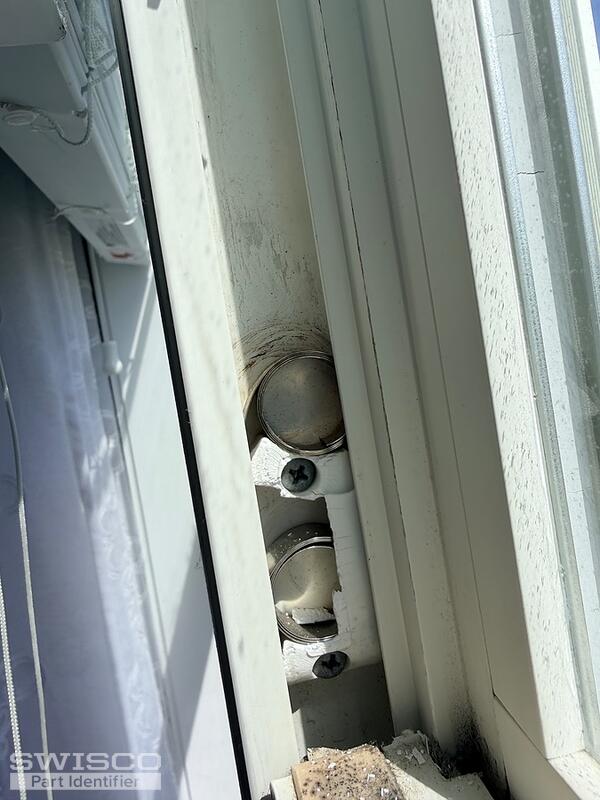

I need to replaces these window balances on most of my south facing windows.

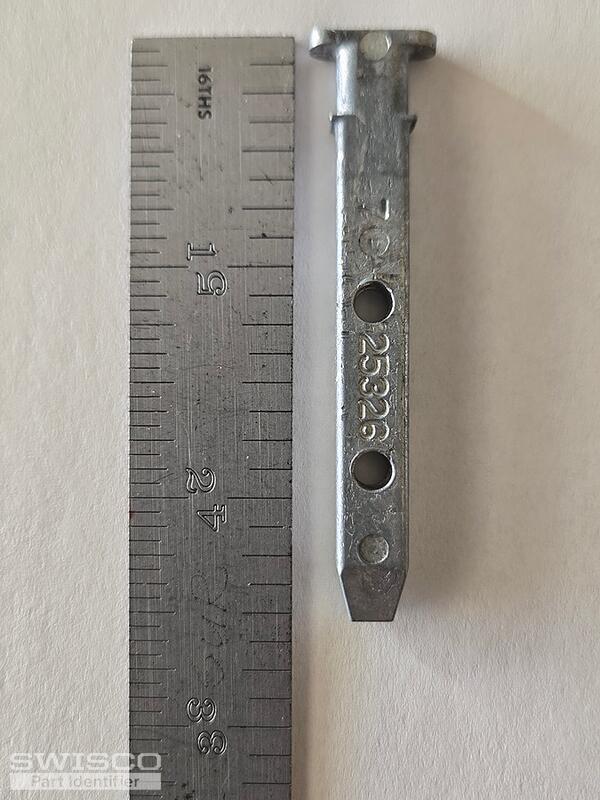

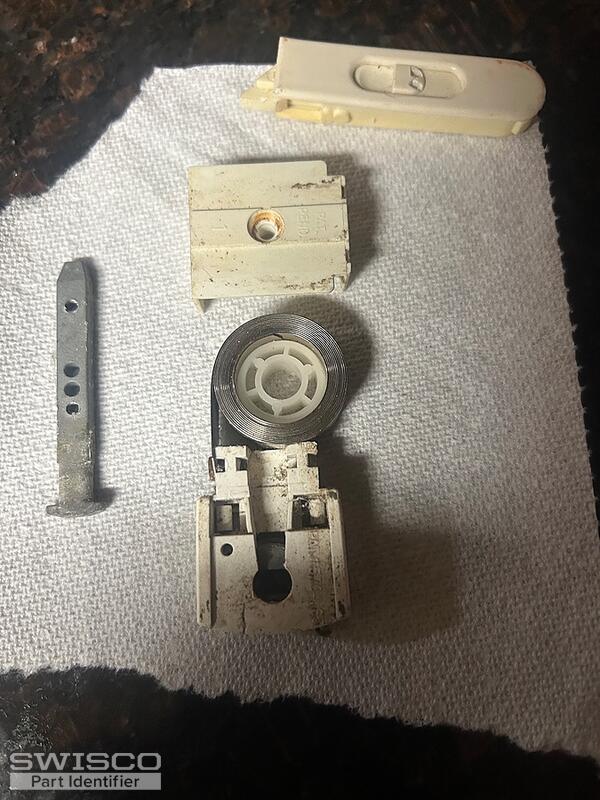

The pivot bar has number 25326 on it. The pivot bar is from Ply Gem Premium Series vinyl dual glazed clear/low-e windows. The first hole is 1 1/8" from the top (tee) and the holes are 11/16" center to center apart. The coil balance is 1/2" wide.

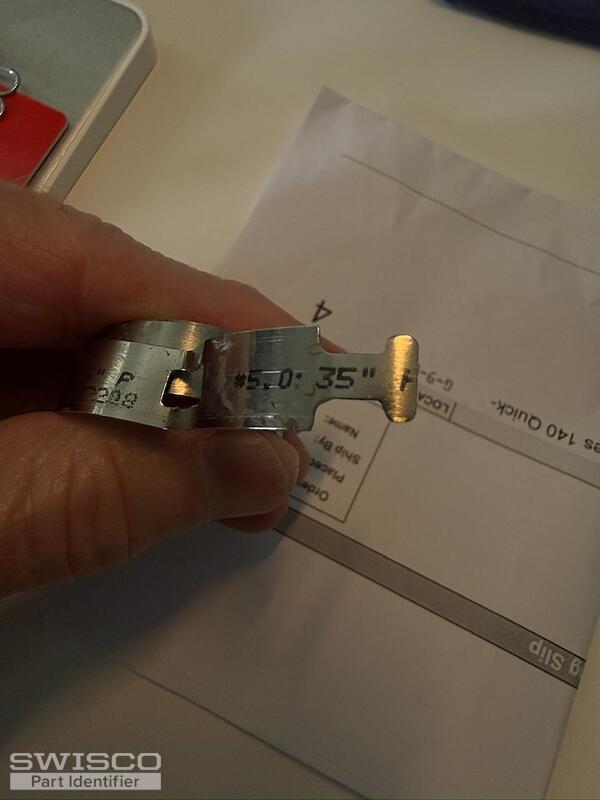

Coils have a #5.0 and 35 on them. The coil supports are 4 inches tall. I will need numbers for coils, coil supports, pivot shoes and pivots if bar. thank you
