Viewing all customer Discussions for:

S165-5 5 lb Series 165 Egress Coil Balance

I have one broken balance spring on a Simonton double hung window. Reading the numbers on the spring would seem to indicate it's a 35" spring with a 9# rating. (see) images. I would like to purchase a replacement and a couple of spares. I'd also like to purchase replacement holders. You selectio ... (cont.)

Hello, and thank you for all the help that you have given me in the past. I am in need of your assistance once again. I am looking for these coil balance shoe replacement parts. Thank you in advance and I will await your reply.

Part #801020 on white plastic #5.5 on coil 5232208 Can't see numbers on second coil Shoe 4,610,108 possible patent number

alcoa windows fischer home 2005 cincinnati oh liberty windows tilt latch replacement 7D on back side, 092 on the snap

I need to replace several coil balance springs on my Simonton windows, they are from 2005, I believe. I can't see a part number on it, but it looks like there are 3 coils inside the cover. Can you recommend a replacement? Please let me know if there is something more that I could provide. I am prett ... (cont.)

I'm looking for help identifying replacement parts for my windows' constant force balances with double coils, tilt latches, and the plastic support/cover. 1 1/4" shoe Back of shoe has "PAT. NO. 5.704.165" Coils: 5.0 35" PAT5232208 The old plastic cover/support was about 3 3/4" long. The old ti ... (cont.)

I need replacement parts as pictured above. I assume I will need new feet for the window base to fit into the new shoe as well. Can you help me identify the parts I need?

3 1/4": wide 1 3/8": thick 3 1/2" tall

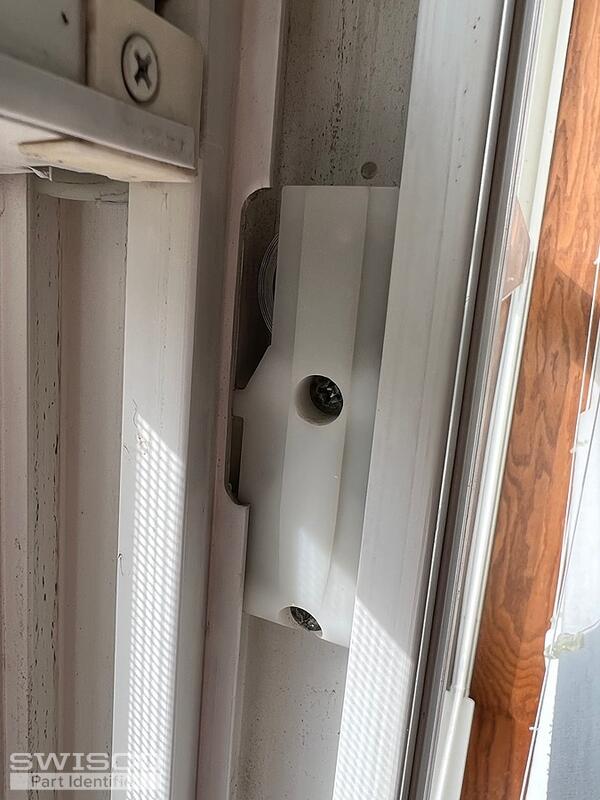

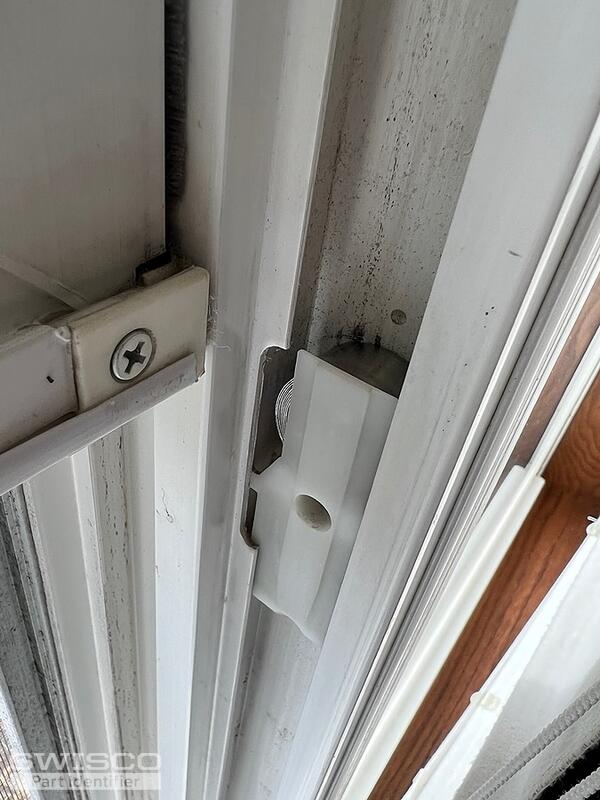

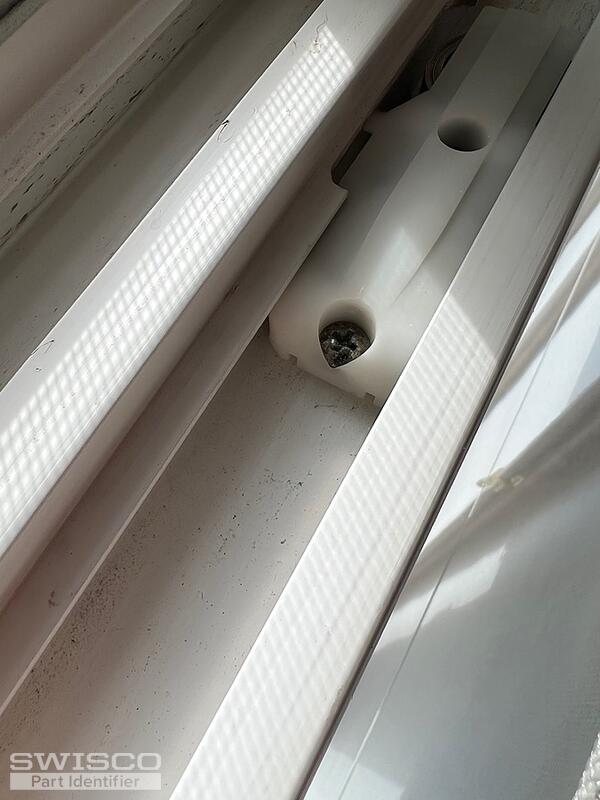

Looking for any help identifying my coil supports. The coils themselves are 3/8" wide, and there are two of them under each support. The ones I have are very brittle and I couldn't get any out that didn't get utterly destroyed in the process, so the best I could do was take pictures of a couple th ... (cont.)

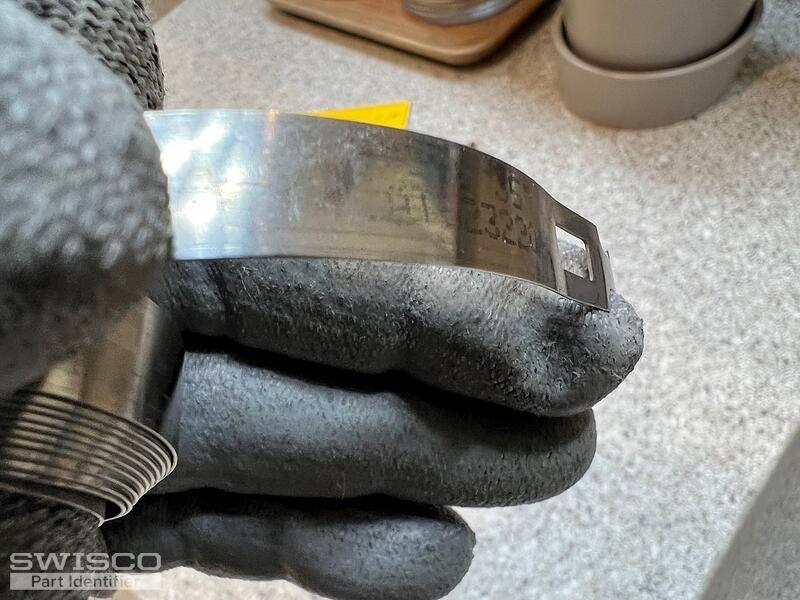

Hi there, Looking to get an accurate part number for this coil. I was able to piece together the complete writing from a few of the same coils in my house: 5.0# 35" PAT5232208 The coil measured 3/8" wide Thank you!

Good afternoon! I have three of the same-sized double hungs (regular Low-E w/ GBG) that the bottom sash weighs exactly 20 pounds. Including original order number from 20 years ago. I have attached a picture of the tilt button, spring, and tilt assist. I ordered the tilt buttons, but as you can ... (cont.)

Based on other posts and reply's I think I need 15-204 dual cover a 15-199 pivot shoe and a series 165 spring my problem is the coil weight not sure what to order the window was 19.8 Does this sound correct Thanks

To Whom It May Concern, I was wondering if you can help me with the balance spring for my 7000 series vinyl windows. I have attached an image of the type of balance spring I need. Thanks

what is the major difference between S165-4 Coil and S165-5 Coil? Not sure what type my window currently has and I have ordered the S165-4 before and didn't know if the S165-5 would work as well.Eric

I have a 20.2 pound sash. This combination features three 4-pound coils on each side. what do I need for my windows?

I have simonton windows....and need new coil balances....can you help

#5.0 35'' PAT5232208

no names, numbers, or markingsheight: 3 7/8'' to 4'width: 1 3/16'' to 1 4/16''

Hi, That parts the hold my windows up at my beach house have broken. I was successful in getting them out and need to replace them. The windows are otherwise in good shape and functional. Attached are photos of the parts I need. Window measurements are as follows: Height = 29.5" Width = 33" Weight ... (cont.)

On the coils I see 5.0 35" 5232208. The windows are Alenco. On the pin there is a 2. I need all parts shown in the photos to make complete sets for windows that need repairs made.
