Viewing all customer Discussions for:

39-417 Tie Bar Guide

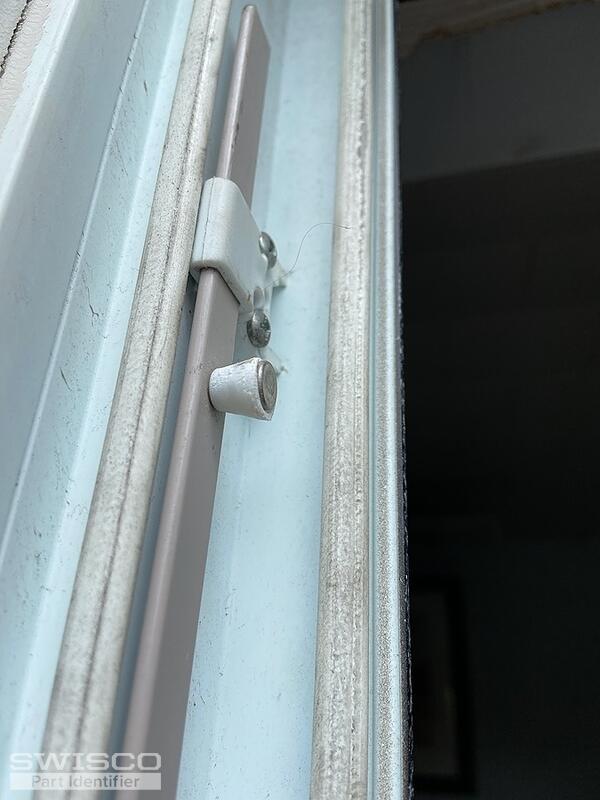

Hi, I have casement windows throughout my home installed when home built in 2005. No identifying marks on them. They crank closed just fine, but several will not lock closed due to broken or missing plastic brackets to keep the locking bar in place or to catch the knobs. Hope the pics help identify ... (cont.)

Hi:The photo attached is from a BF Rich casement window. It is a plastic piece that guides the metal rod that runs from top to bottom that is used to lock the window to the frame. Is this something you carry?Thank you,Mike

Daystar / Morningstar Casement window Metal bar and attachments With a plastic guide clip

Looking for a few of these for our vertical crank open windows. These hold the latching lever bar in place.Can you please help.Thank you Doug

This piece broke on my kitchen window when I was trying to lock it in place. Do you have a replacement for this?

Im looking for tie bar. I just want to make sure you have same dimension from top to first cone roller. See pictures attached. Also need Tie Bar Guide. I assume its 39-417.

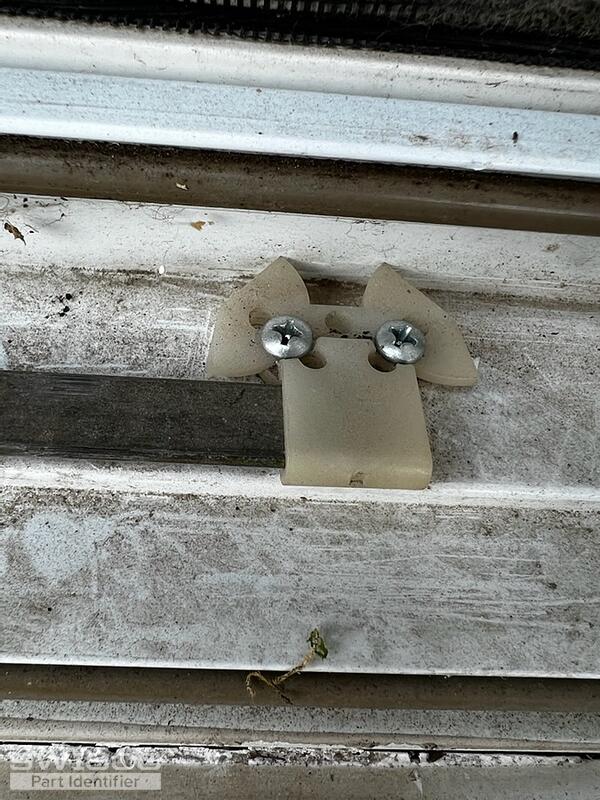

I'm looking for these plastic fasteners that holds the closing slide in place while it locks. This is a Poly Bau casement window.

Attached is a photo of a nylon guide that needs to be replaced. The guide is part of a locking bar system in a casement window. Manufacturer believed to be CertianTeed window.

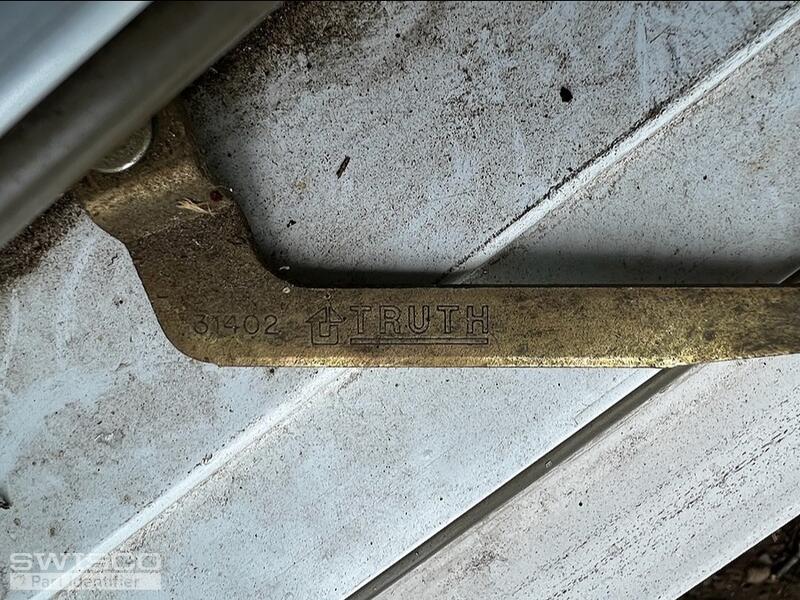

I have a customer that needs some hardware for a casement window. Can't seem to find it. The number on the hardware is 31402. Any help would be great.

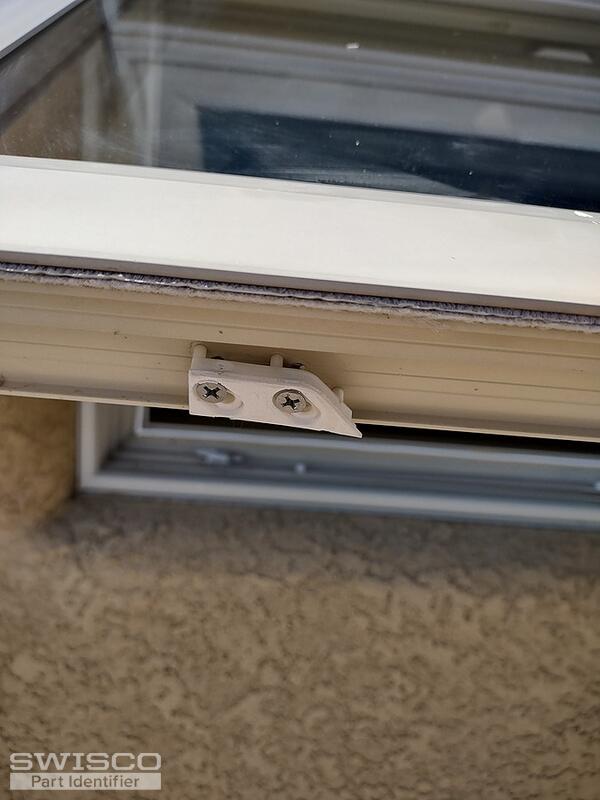

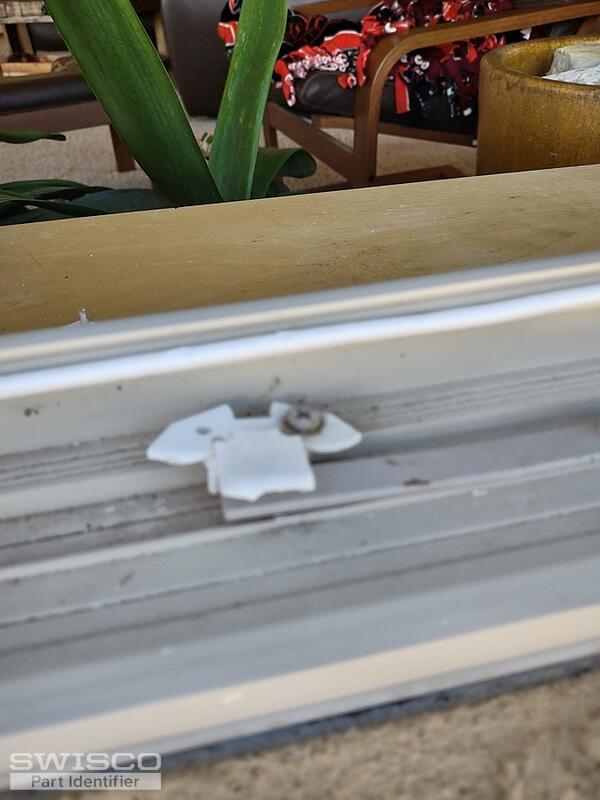

Hello, I need a part for the window in the pictures. I think it is a Crestline window but I am not sure. The rail that is shown is for the locking mechanism rail. The first picture is the broken clip. The second is the good part. The front of the plastic is broke. Thanks, Dave

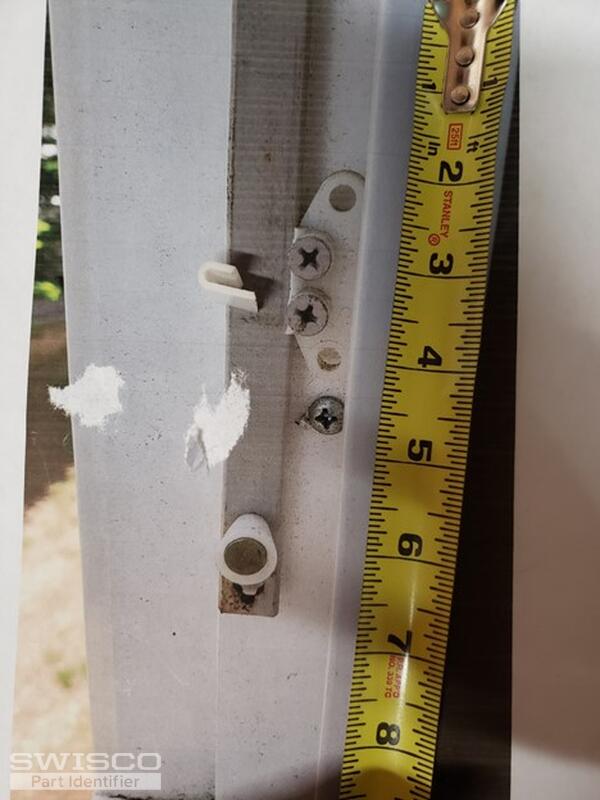

Here are several pictures with measurement of the replacement part I need. I think it may be 39-417 but I want to be 100% sure. Thank You Gary

Edge is broken.

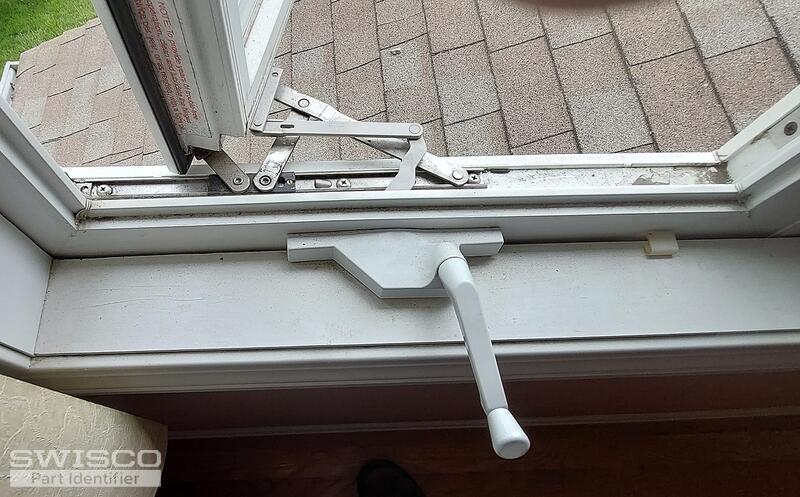

i have a couple of four season crank out windows and the tie bar guides are broken. can you tell me which ones i need. i will try to send pictures. thank you

The part shown is a twin of the broken part to be replaced. It is is installed on the sash of a US Window Factory casement w/ grid [34" x 36"]. The window is old (2003)but still operates well. It is able to crank out and in but cannot lock anymore.If you have a replacement part this will be greatly ... (cont.)

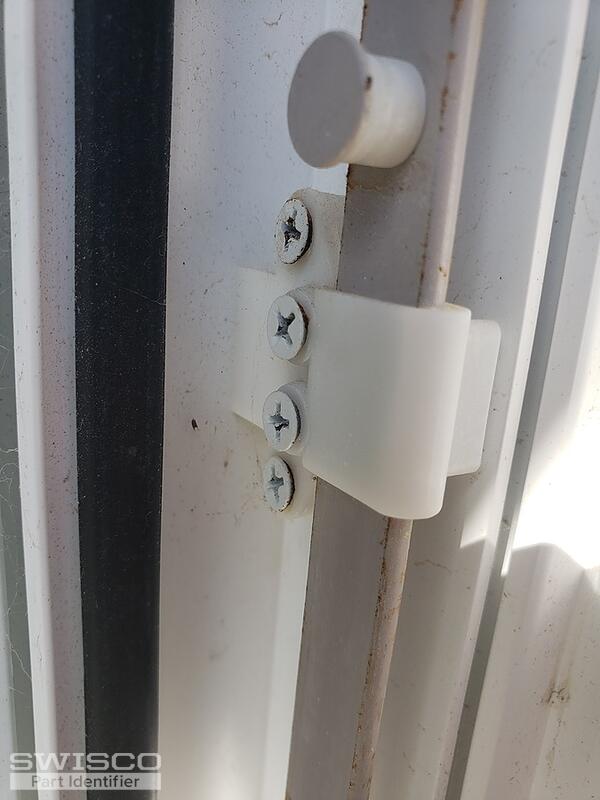

One of the retaining brackets for this vinyl roll out window broke, the image is of the good one. There is no identification sticker on the window. This holes the rail that slides up and down to latch onto the window for locking and pulling the window in tight.

Looking to match a tie bar guide for a multi point casement window lock. I have a picture of the part I need to match.

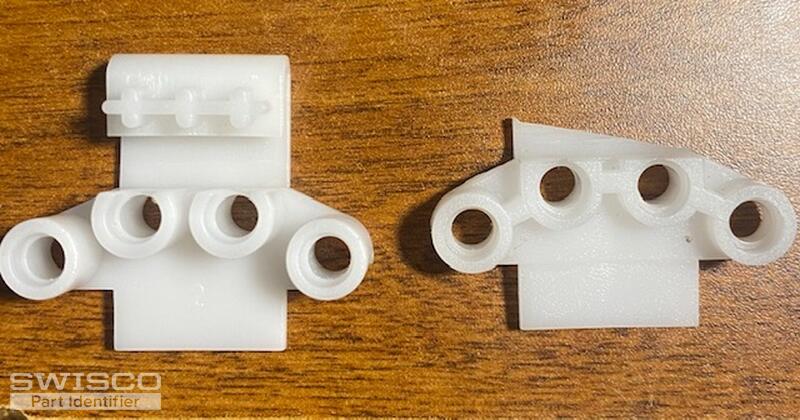

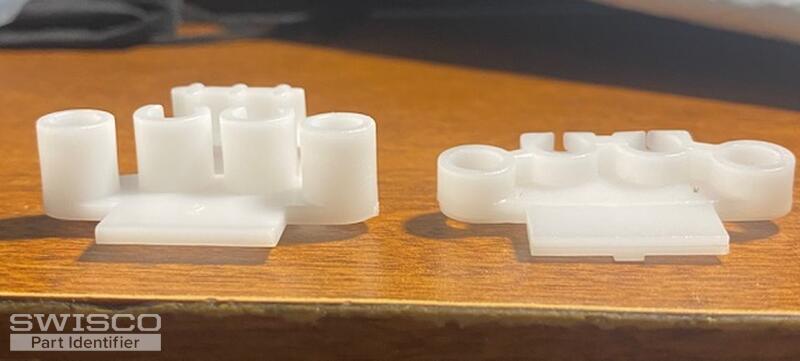

I reordered and received part #39-448 recently. The part (left below) is different than the part (right below) yet it has the same part number that I received in 2020. (see order history below). The 4 columns in the new part are longer than the previous part and wont allow the window to close. ... (cont.)

Cannot identify "truth" bar hinges. The operator is #39-188, vinyl casement window with multi- point locking system. I need to replace the hinge assy. on sill and head of sash. Cannot find any tags on window frame or sash, its a run of 5 casements and need to order replacement parts for most of the ... (cont.)

Do you have part for a vinyl casement window: I need a white plastic piece that holds the metal part up against inside of the window. It is like a clip with 2 screws.

Do you have a replacement for this item? Or will one of your items work for this?
