Viewing all customer Discussions for:

26-433 Pivot Bar, 2-1/2"

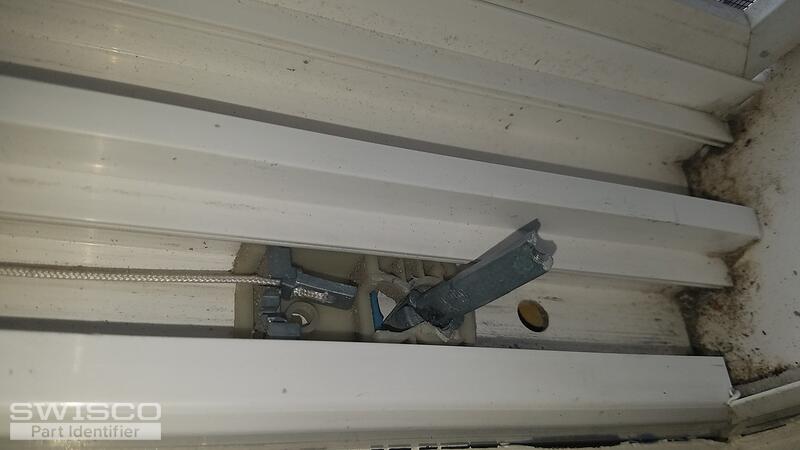

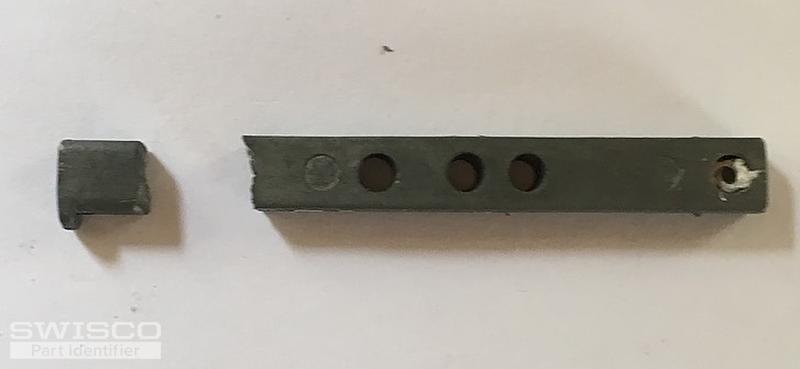

The first two pictures are from the broken side. The last picture is the broken piece. The 3rd and 4th picture are the side that is not broken. The piece that broke is made out of pot metal(?) and broke at the first screw point.

The pivot pin is 2 1/2" long. We think it might be part #26-433. I need the pins and the shoe that goes with it. Can you help me figure out what parts I need to order?

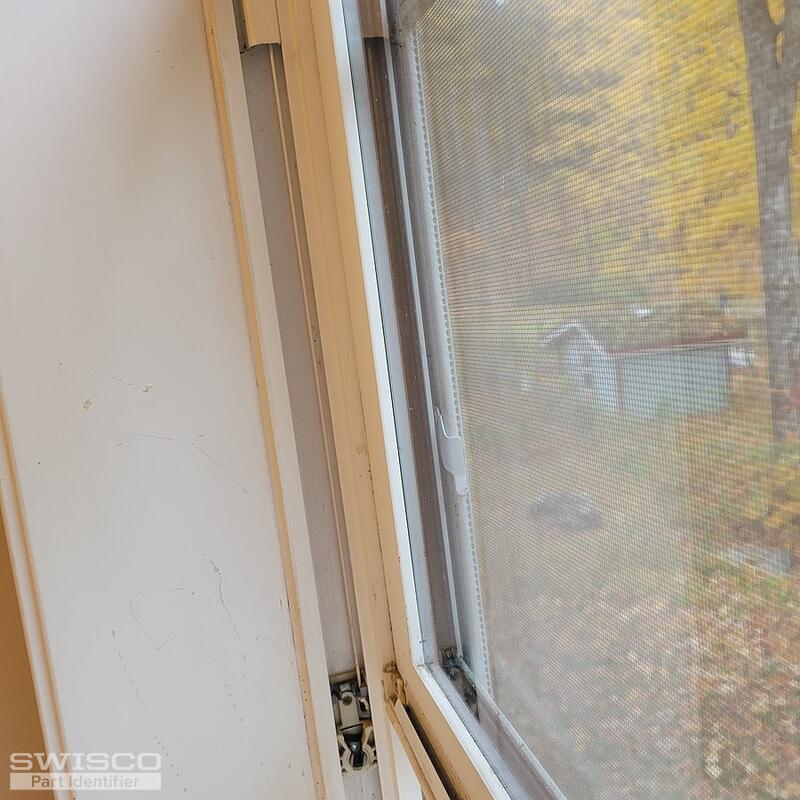

I am helping an elderly friend with a window that was, I believe, manufactured by your company. The window "pivot bar" (aka "sash tilt pin") is broken. See the attached 5 photos. Does this look like your window? If yes, do you sell a replacement "pivot bar" part?

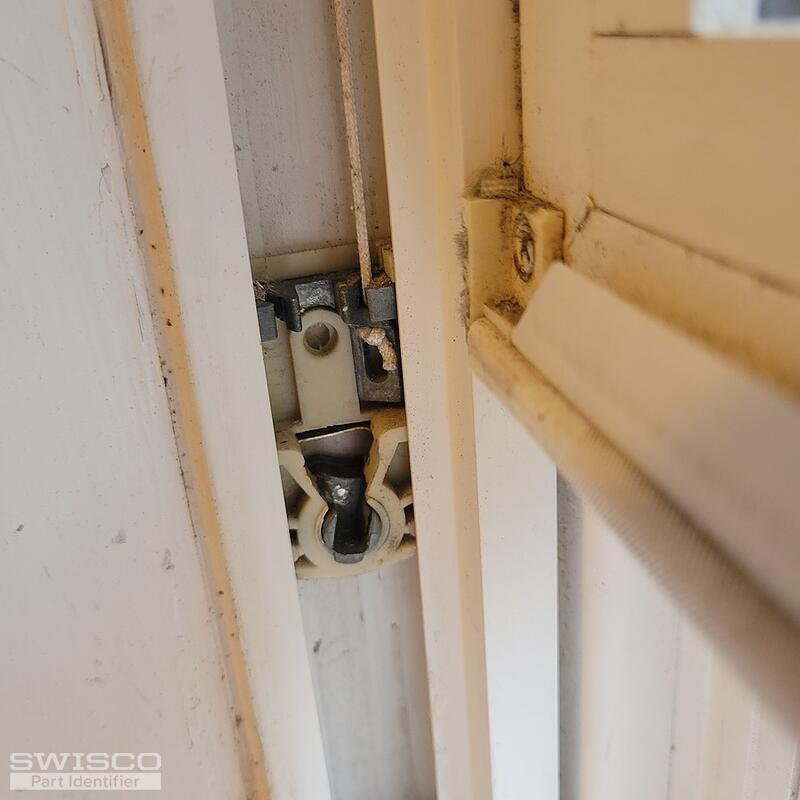

Tilt-in window looking for pivot bar and pivot shoe

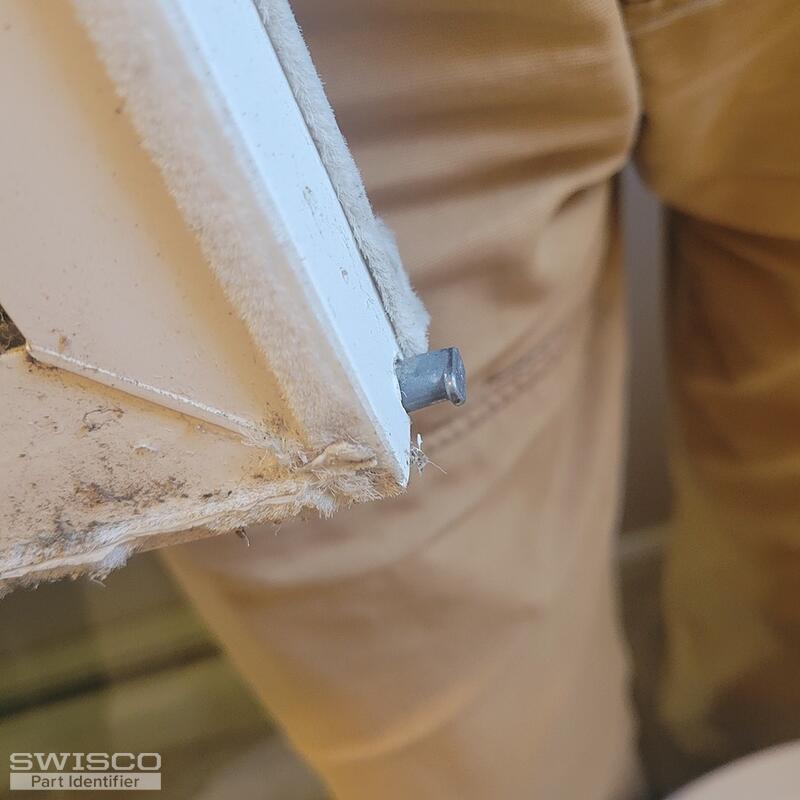

Pella pivot pin

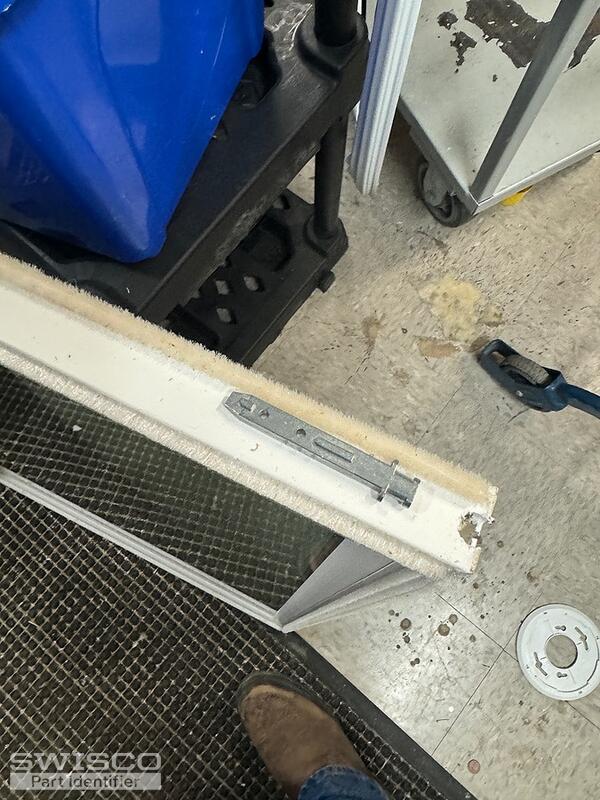

Hello, We are trying to figure out what these are and if we can get some new ones. Customer stated they are from 20 yr old Foley windows. Is there any way you can let us know what they are we think they are pivot pins.

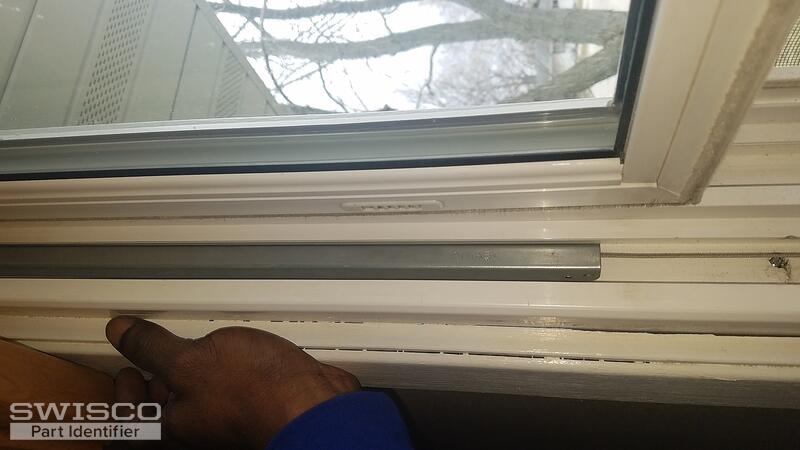

unsure if i need to replace the balance or just the channel

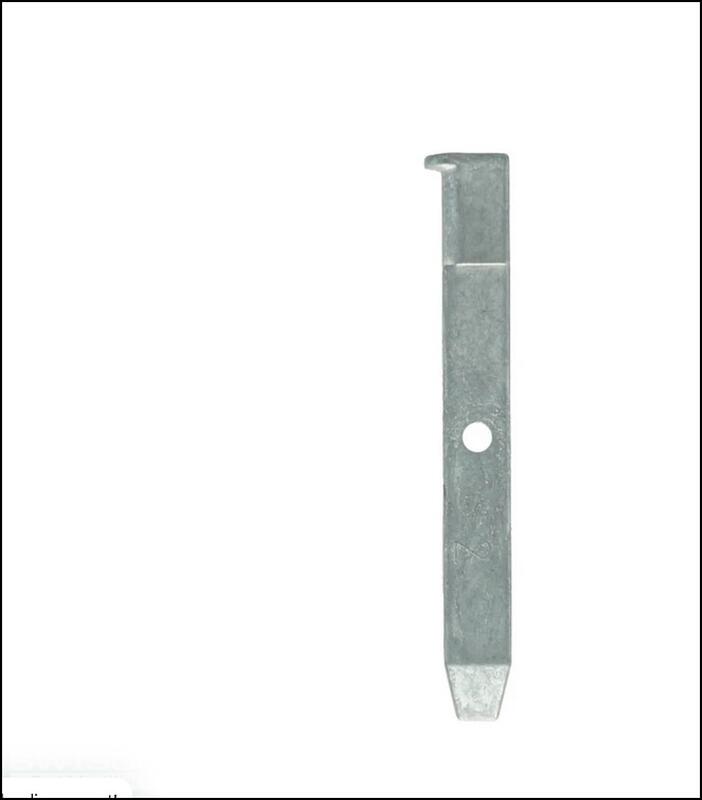

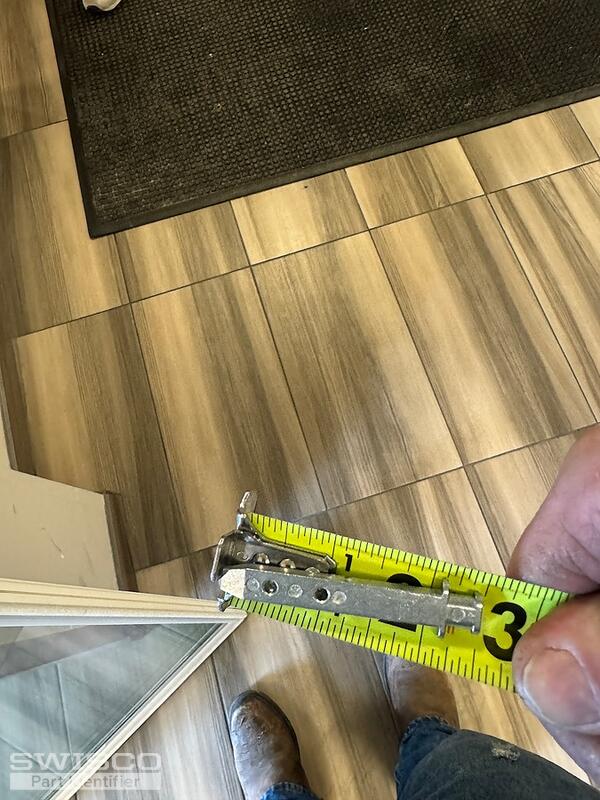

I need the 4 pivot bars in the picture above. 2-1/2 inches long 3/8 wide. l shape. first hole is 3/4 second hole is 1 7/8 from end cannot find one on website

We are in need of about 40 of these.Thank youBillie

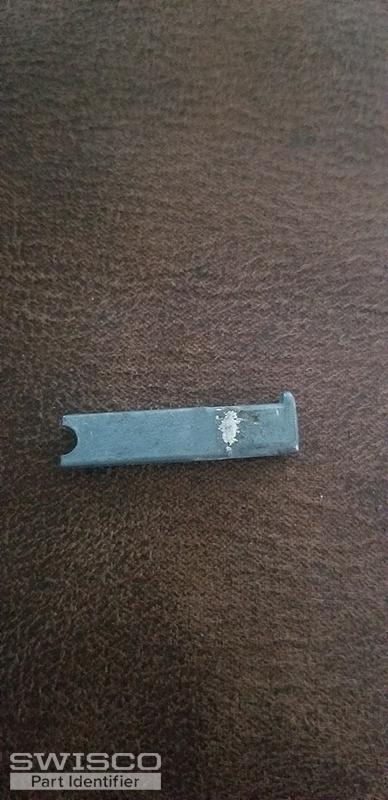

This piece is broken that fits on bottom of my window that fits into channel balance shoe

I think it is a Pella window. Double hung window in house built in 2016.

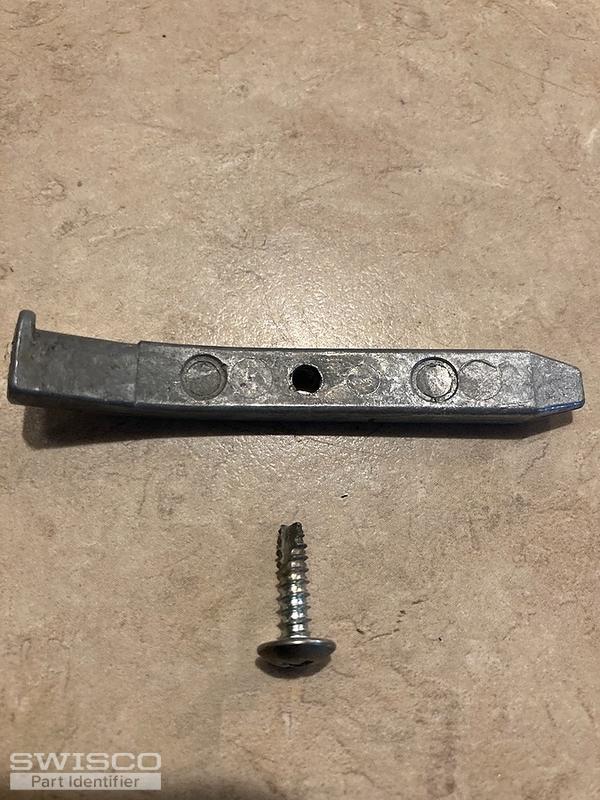

Trying to figure out correct pivot bar & screw size. I think it's your 26-433 pivot bar? Not sure on the self tapping screw? It's 1/2" in length. Unsure of the thread size I need?

Contractor told me this is what I need to repair my United 4200 series window. I just order the part on your website. I'm hopeful I got the right part.

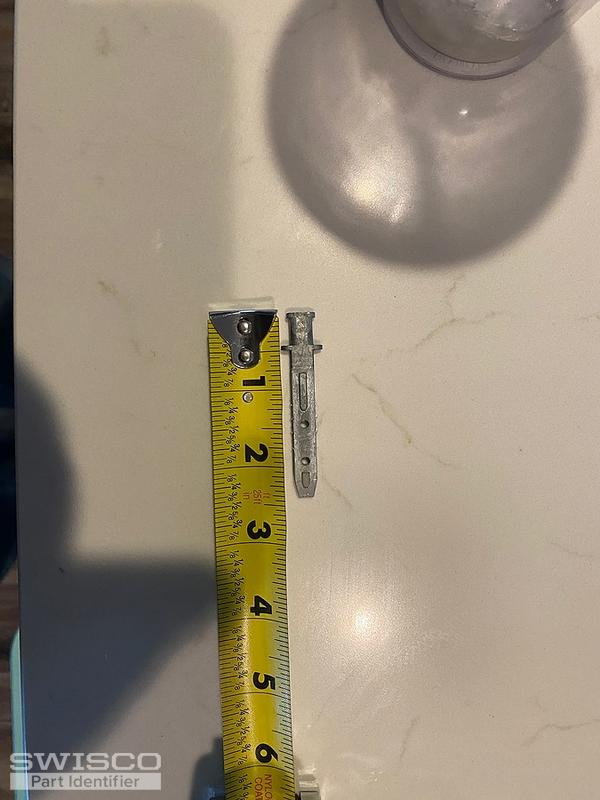

My pivot bar is 3 1/8" long and holes do not match your dimensions. I can drill to match. Suggestions ??

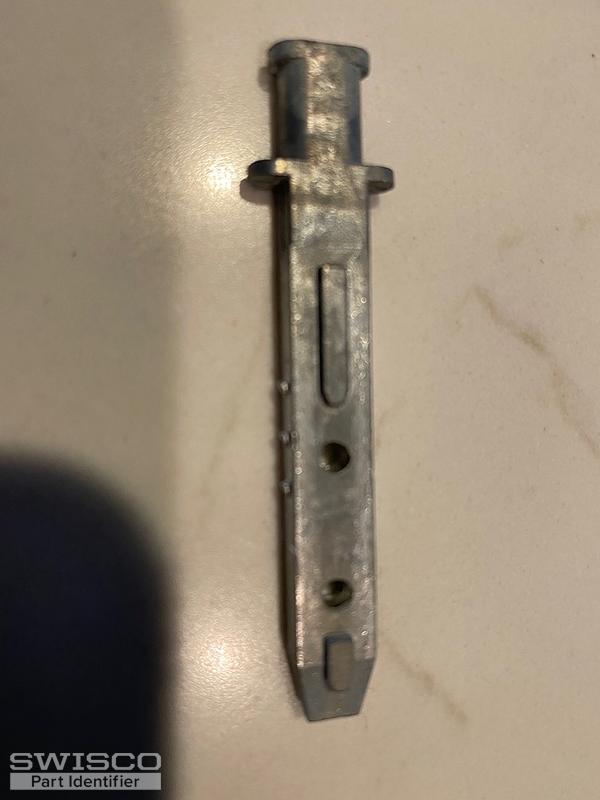

I am needing help locating 4 Pella DH Locking Pivot Bar Assembly part# V615340.

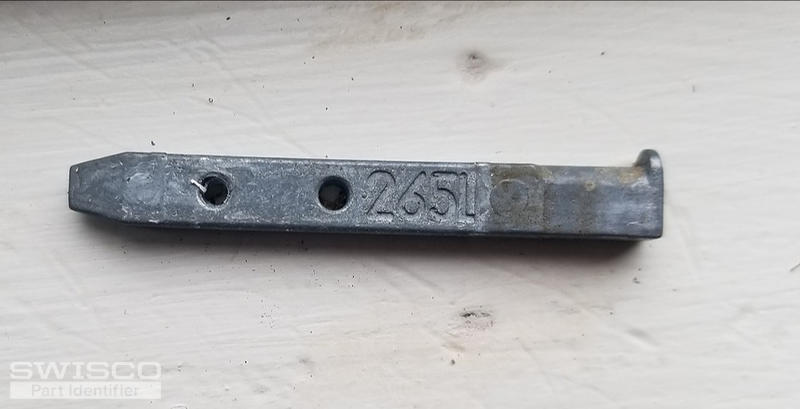

window tilt pin with the number 2651 stamped on it.

Once again, I have broken the pivot bars on my AK in 550 double hung windows. As my local distributor has gone out of business, I should probably get several of these to have on hand as I seem to break at least one every year when cleaning the windows. Would you have a replacement item? ... (cont.)

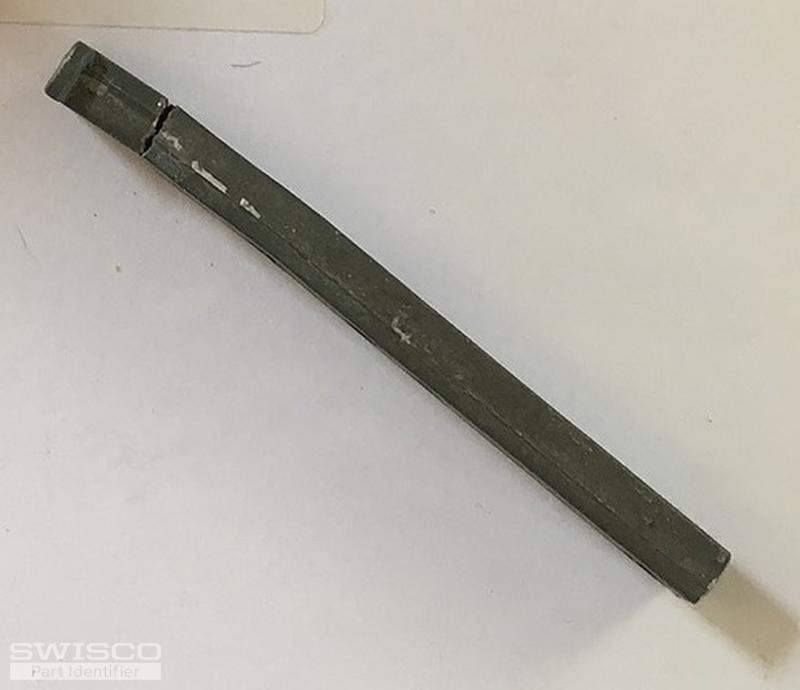

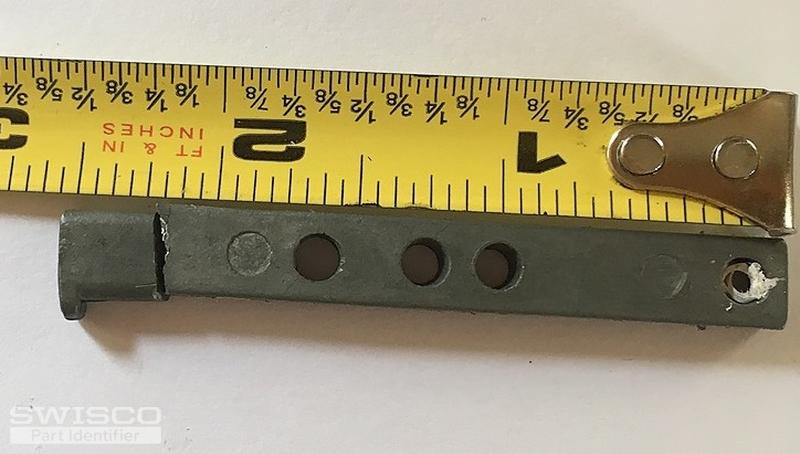

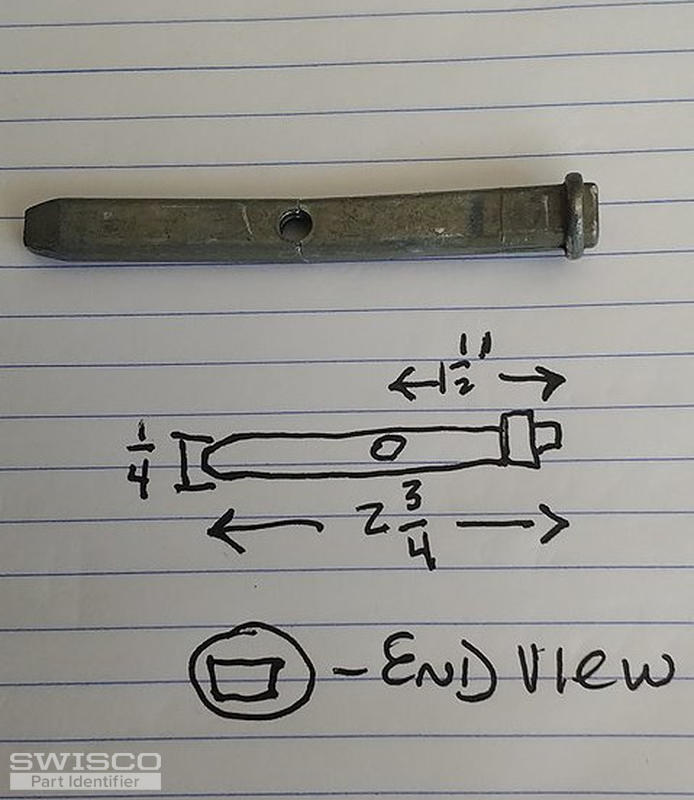

Attached please see the phot and drawing of the broken part. Can you recommend a replacement that is close or one I can modify ?Thank you ,Dick C

Hello, I am looking for a tilt pin for a Windsor Window. Their model number is 421695. Can you help me with this? Thanks

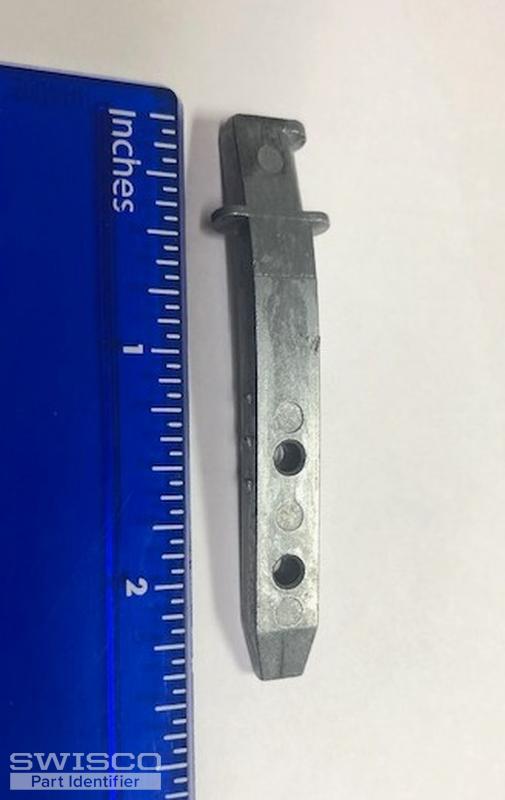

This is pivot from a double hung window 2.75" long with a screw hole located 1-1/8" from small end. #5 stamped on pin. Do you offer this part?
