Discussions for 15-015 : SWISCO.com

Do you need a screw for the 15-015?

Is a screw needed to retain the balance control rod shaft in the pivot shoe? There is a small screw (upper center of the pivot shoe)in the pivot shoes I have, at least most of them. This is old plastic so alot of these screw holes have cracked. If a screw is recommended, are they shipped with t ... (cont.)

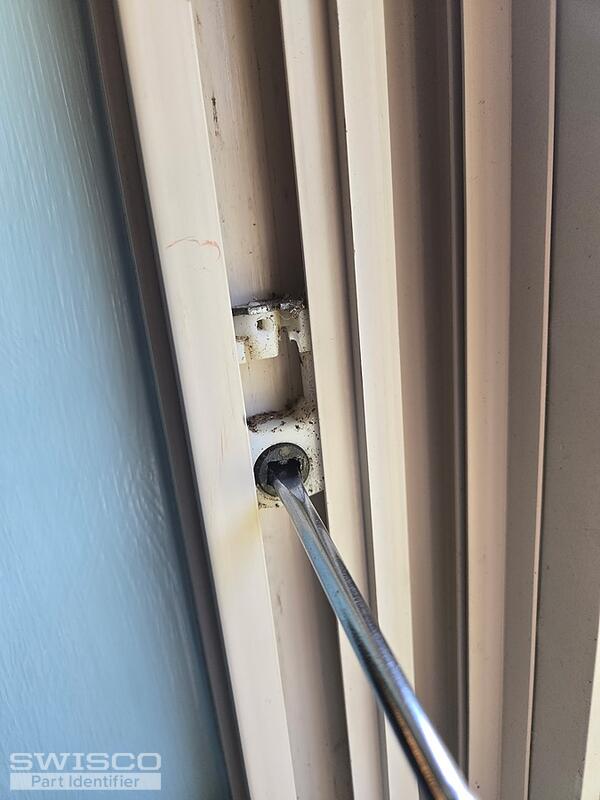

How do you remove the 15-015 shoe from the track?

show diagram how to install the 15-015 pivot lock? i think i need a cutout but i cant find one in my window

Double hung vinyl window pivot shoe

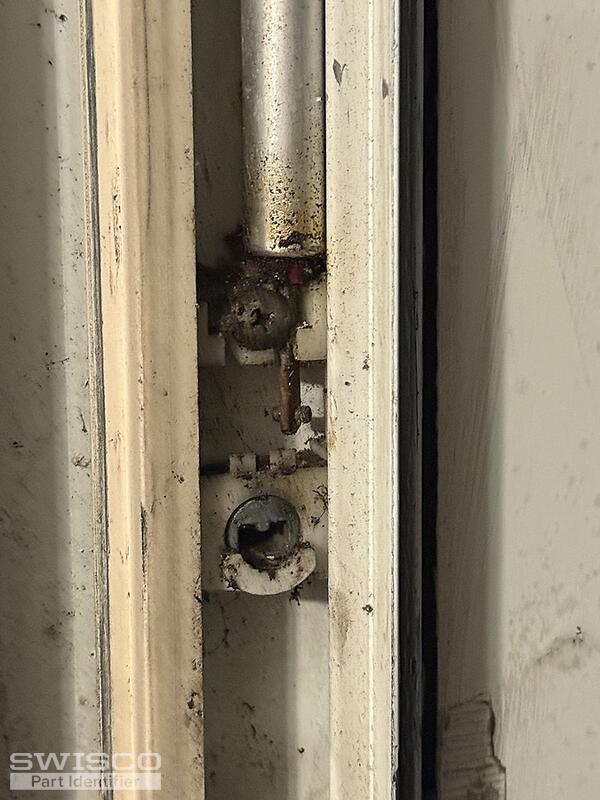

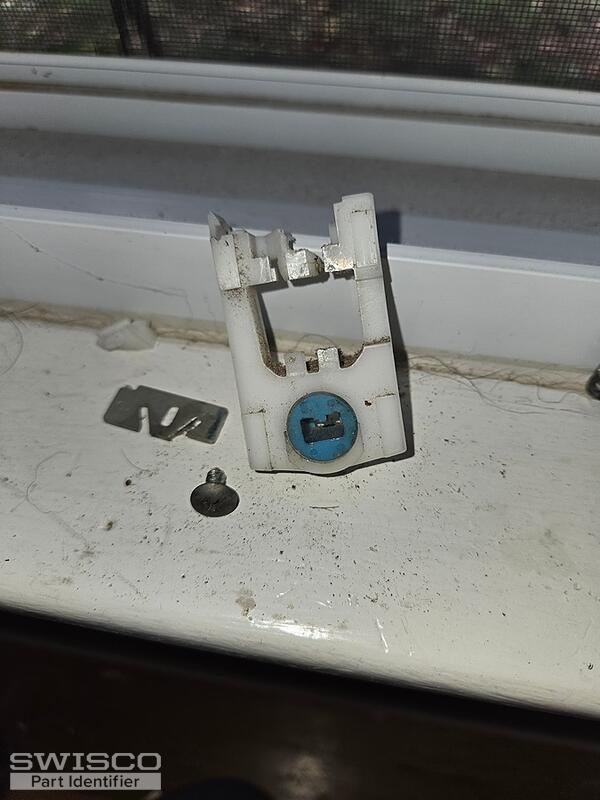

blue cam plastic broke removing sash.

Stegall LLC

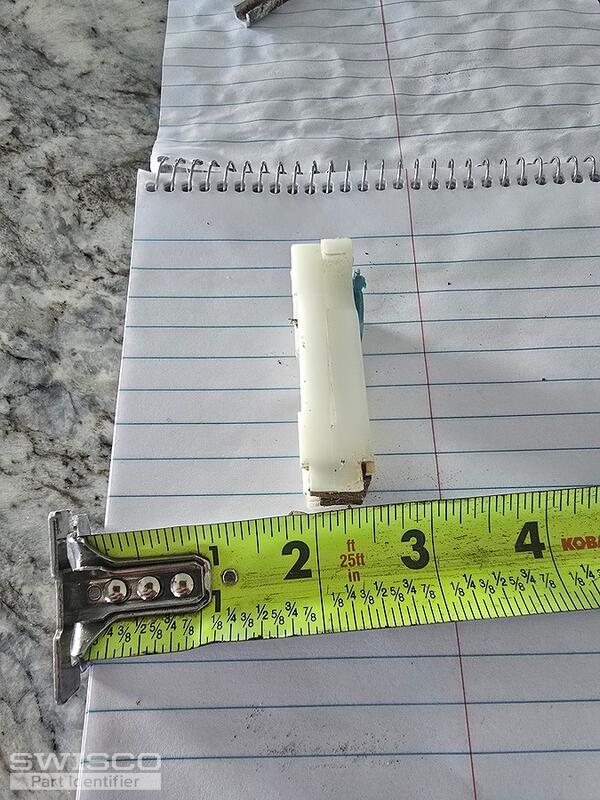

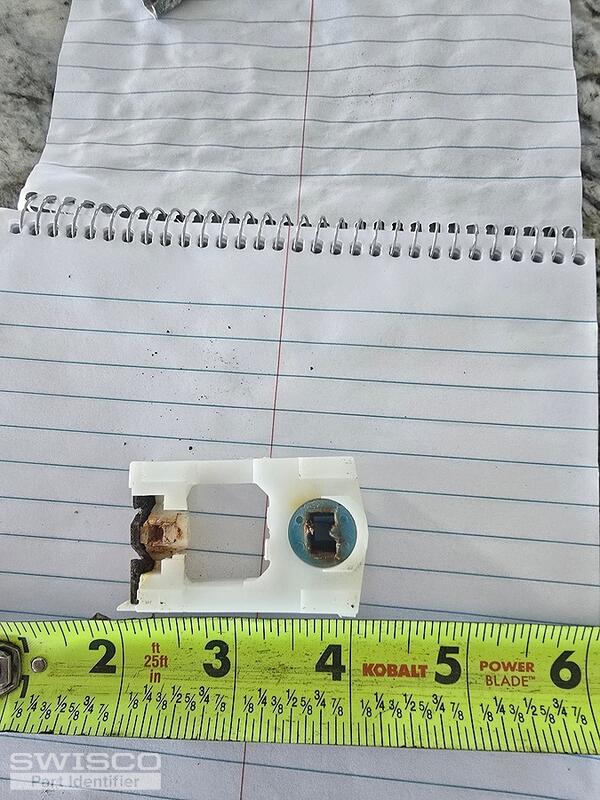

I need to identify this pivot lock shoe. It is 1 1/4" wide 2" tall and 17/32" thick

+1

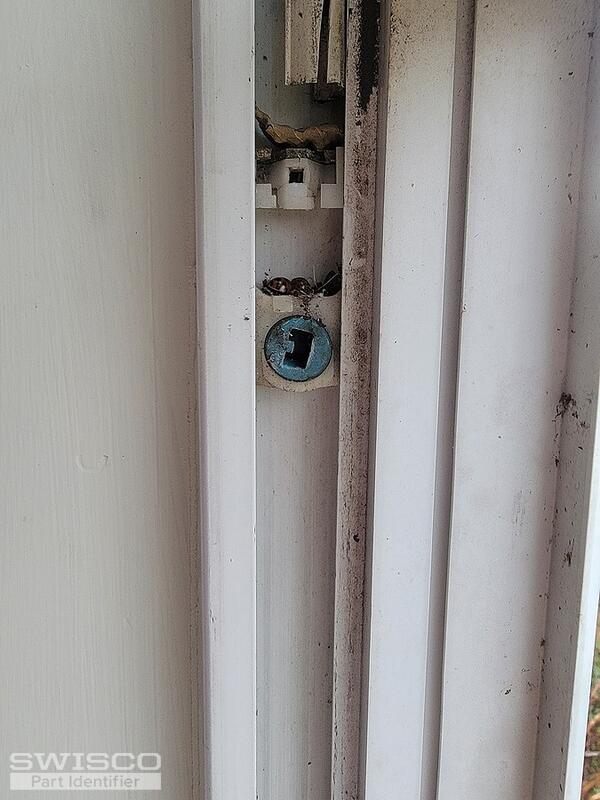

Pivot Shoe replacement

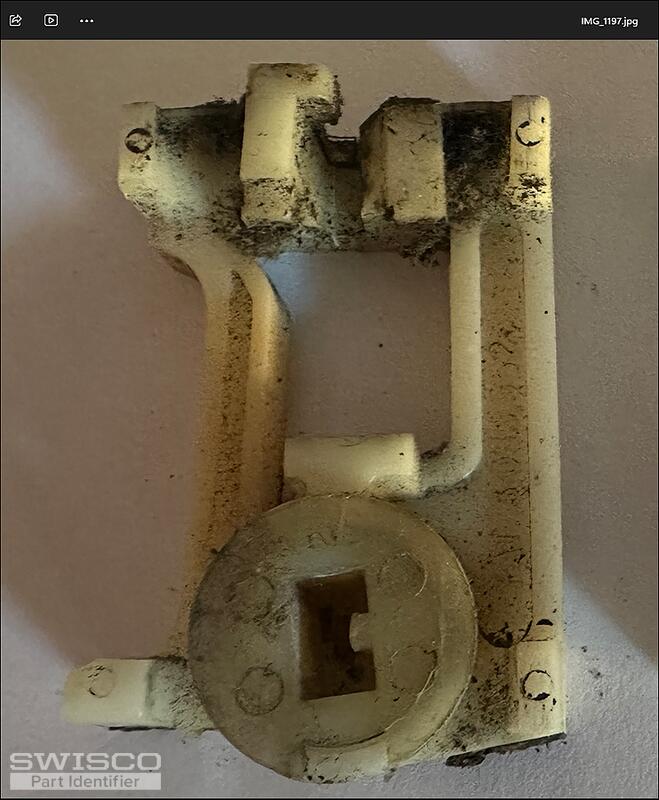

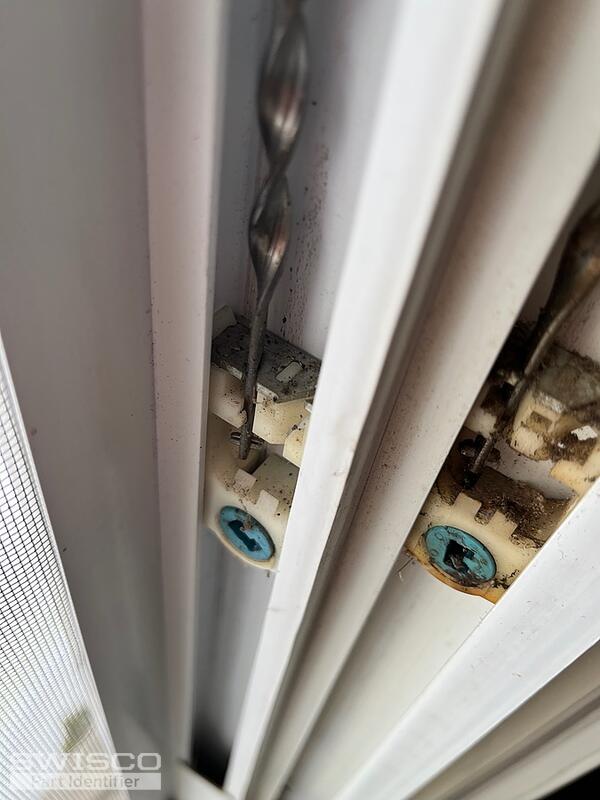

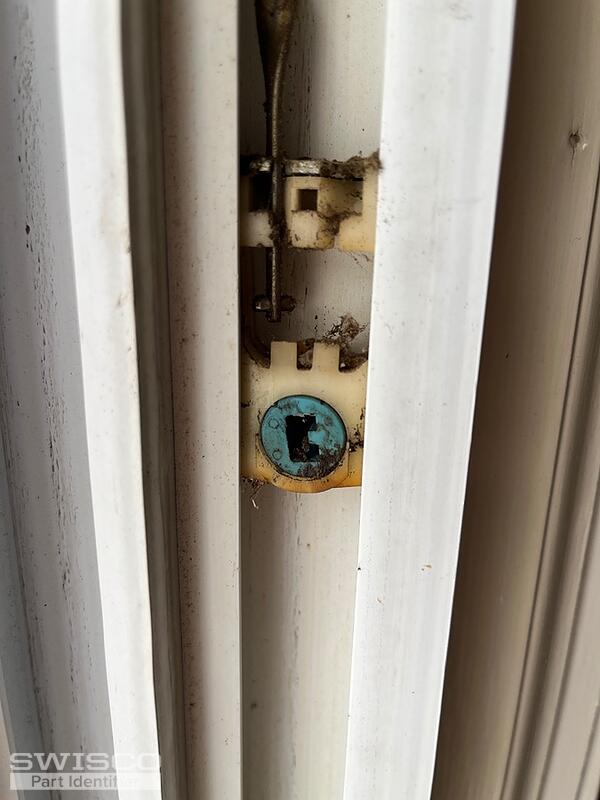

"Hi, I need help identifying replacement pivot shoes for my double hung windows. The windows are stamped TRA-6-83. The shoes are completely deteriorated and crumbling but I can see the pivot cam is round with a square hole in the center (appears blue in color). The plastic housing around the cam has ... (cont.)

Pivot shoe ID

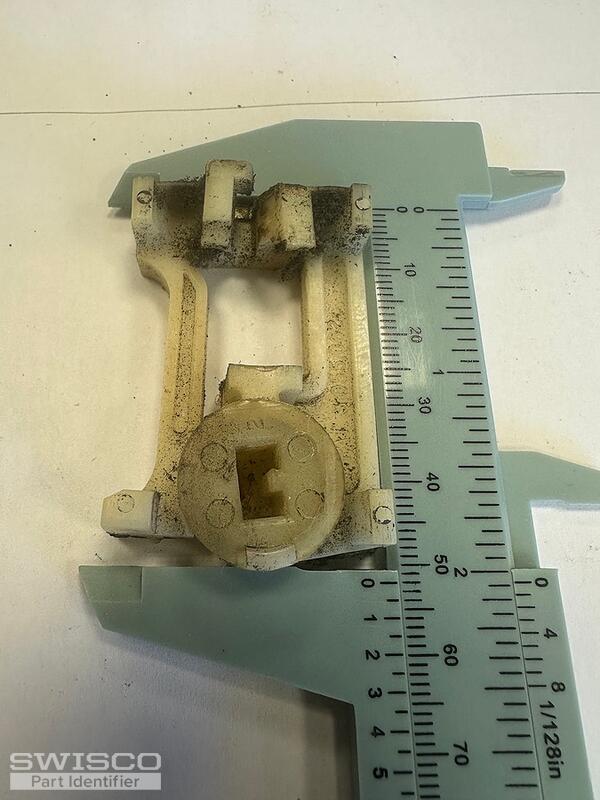

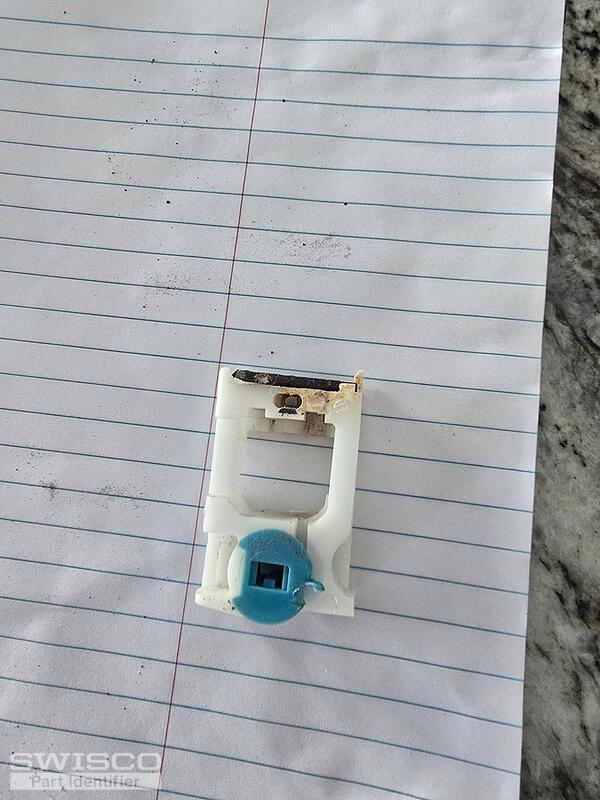

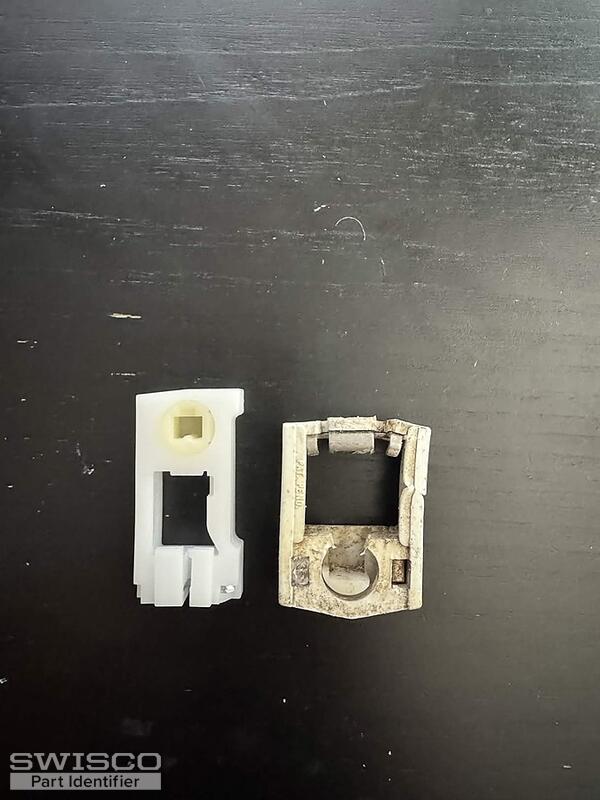

Replacing the old spiral balances in my windows, but got the wrong size pivot shoe. I got the S900-29 and the 15-045 pivot shoe to go with it, but the shoe is too small for the track. In the image is the old shoe to the right. I measured it at 1.5 in tall, 1.25 wide, and about 17/32 thick (i think?) ... (cont.)

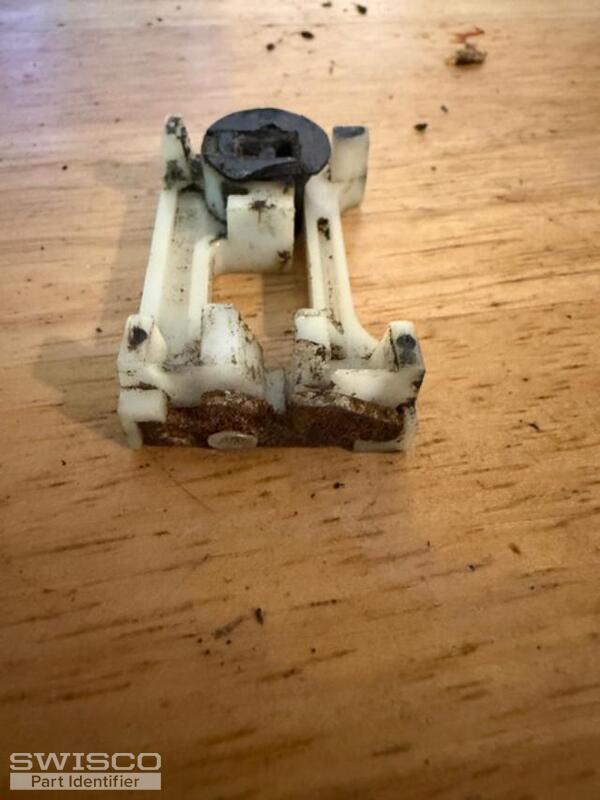

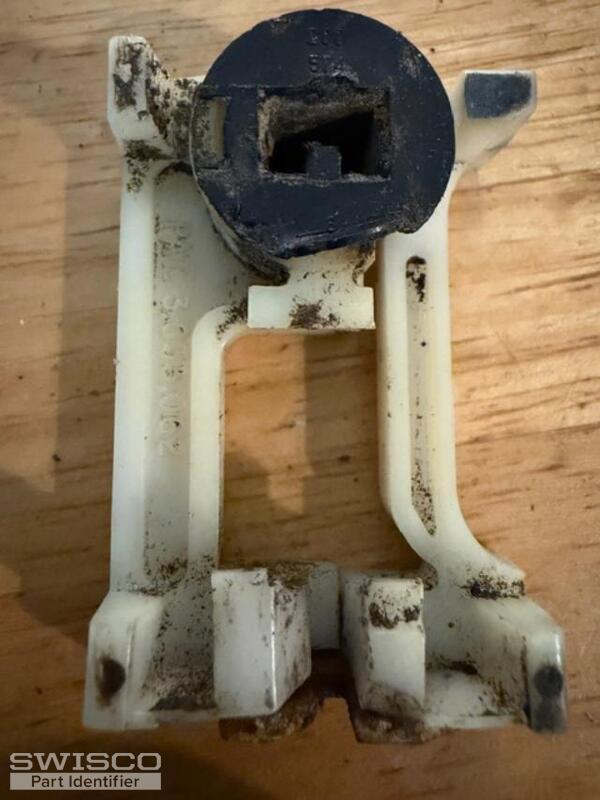

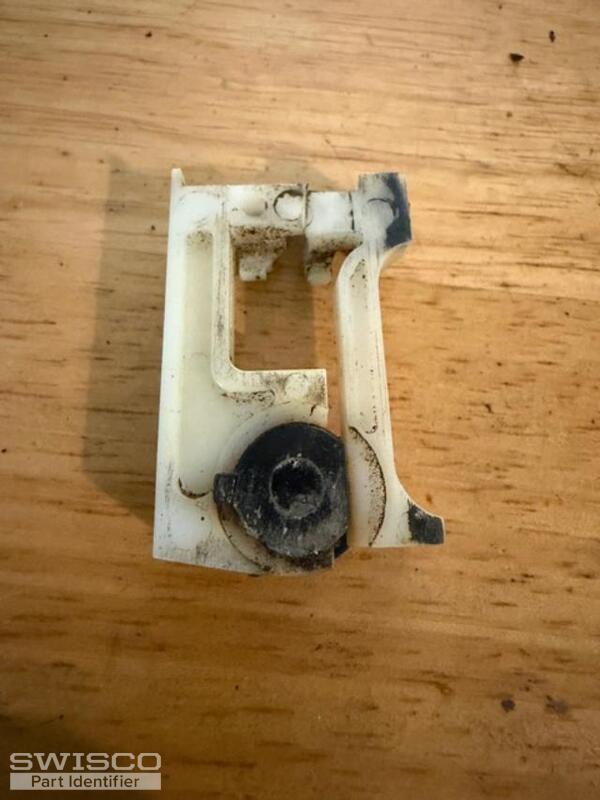

Pivot shoe unknown brand

Need this part along with captive screw for balance

+2

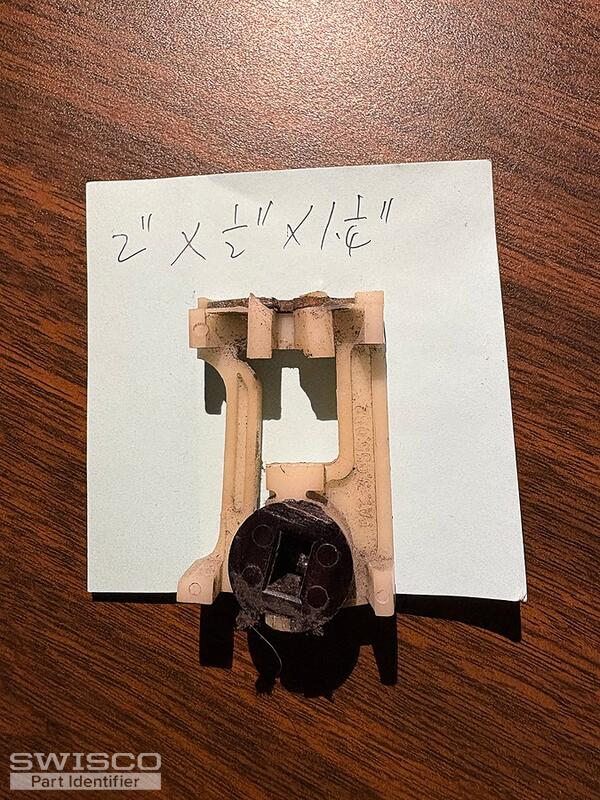

Pivot Shoe

Trying to identify part number o Replacement substitute for this shoe. 1 1/4" W 2" H 1/2" D

+2

Window spiral balance tilt shoe

Hello I am looking to replace the tilt shoes in my vinyl double hung windows. Do you have a replacement offering? They appear to be your 15-015 but I want your opinion. The size and shape look very similar. Thank you for your help

Part Identification.

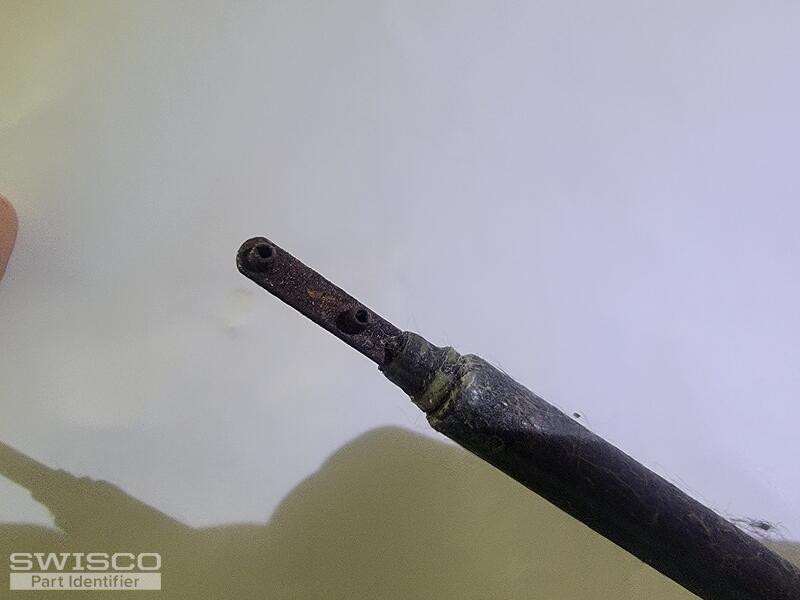

I need to know what (the stock number?, model? anything else), I should use to replace a 34" Black tip heavy duty 9/16 spiral balance as well as the Window Spiral Balance Pivot Lock Shoe.Thanks!James

Pivot Shoe

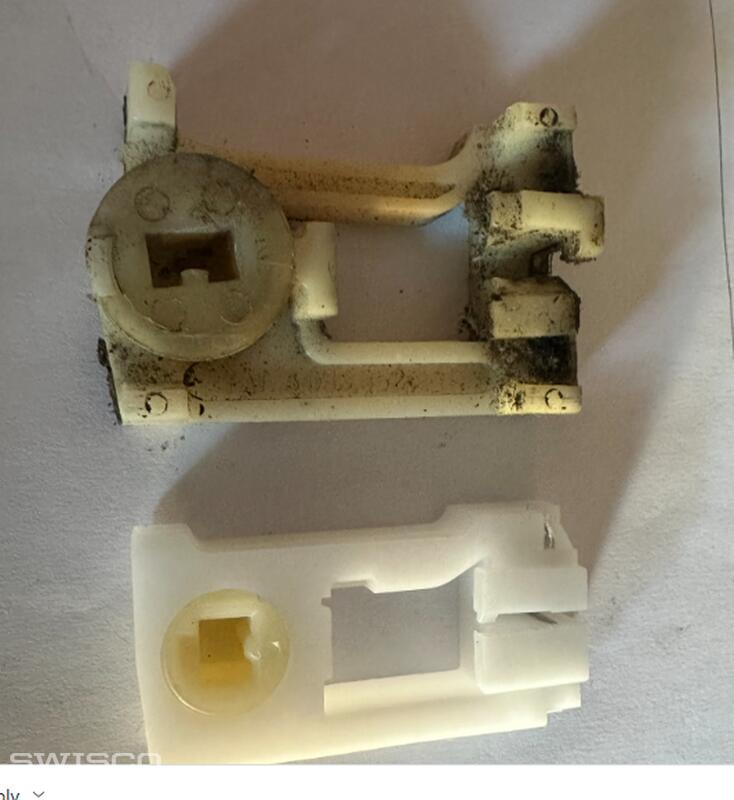

Hello, Can you assist me in locating a replacement for my pivot shoe? Previously I ordered 15-045 as it appeared to be the closest but as you can see in the picture it is much smaller. Please let me know what you think Thank you

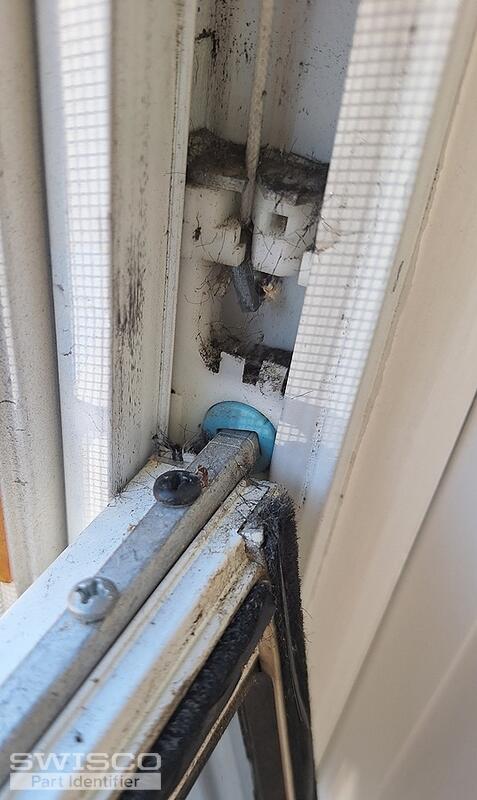

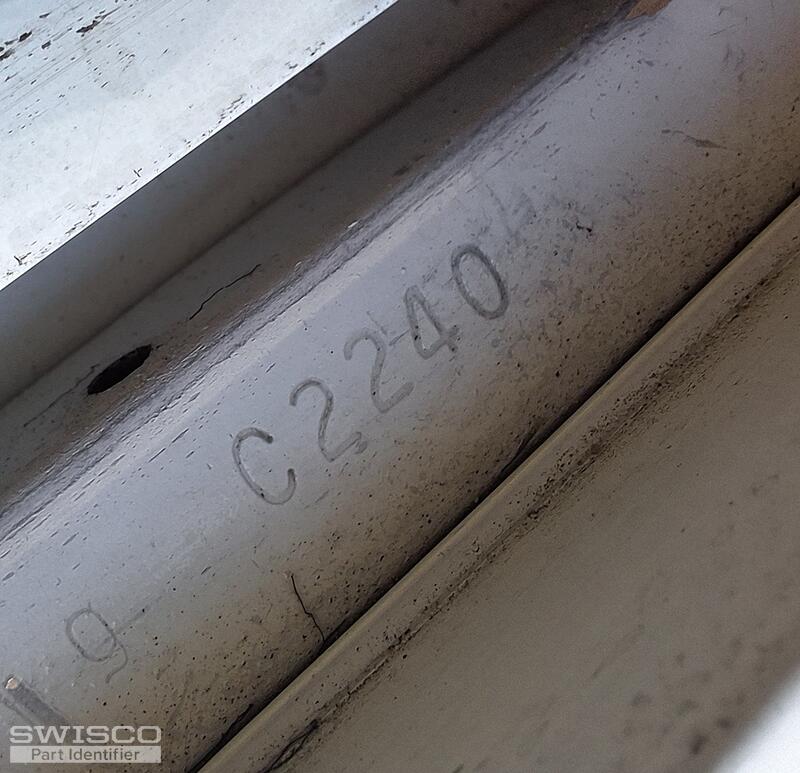

Spring Balances for International Window (Mfg. around 1996)

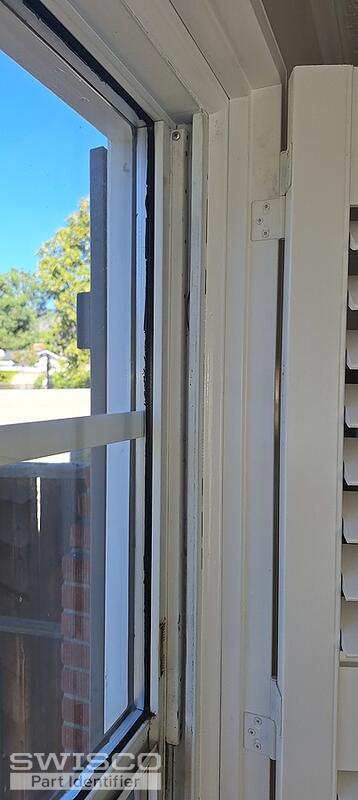

The windows are 3' x 4' . The balances fit in a channel. The dimension of the balances is 1/2 ' x 1/2 ' x 23 '. Each balance is stamped C2240. About myself: Homeowner, do-it-myselfer. I've changed out these balances before.

+2

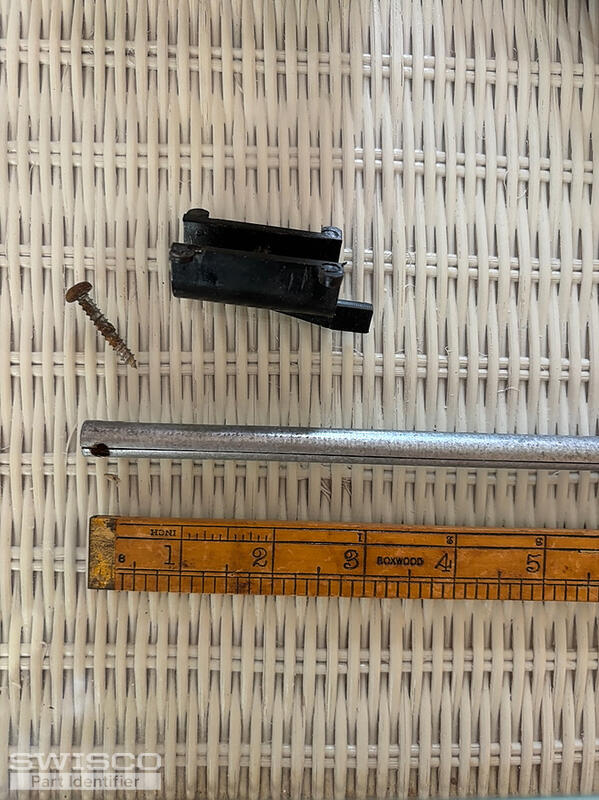

spiral balances for tilt windows

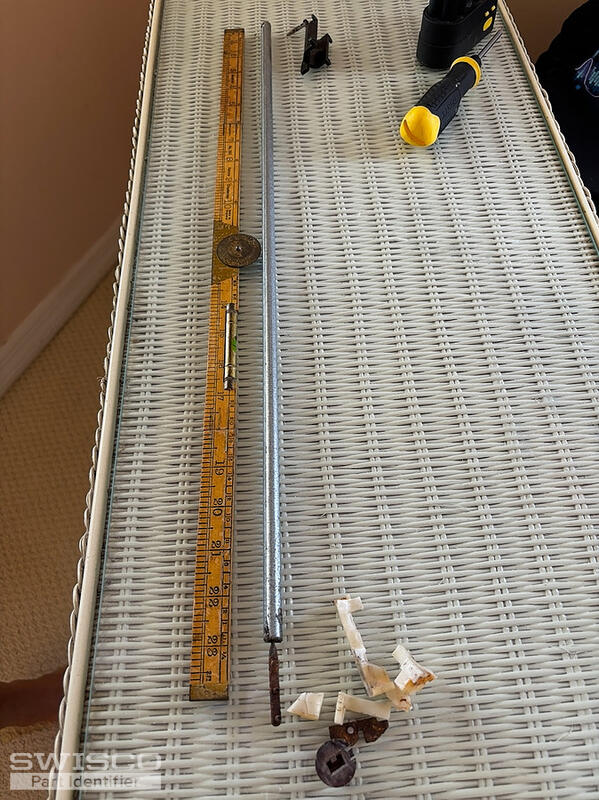

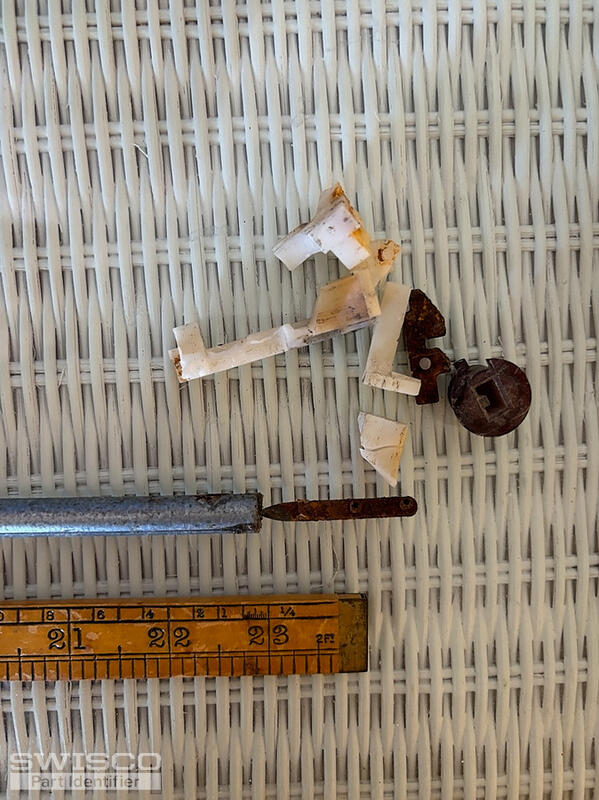

I would like to order parts to repair the spiral balance assemblies for 5 tilt-out windows (Acorn brand?) in an ocean-front Florida apartment. Window glass (single pane) and casings in good shape but slider hardware is badly corroded from the salt air. Sash weight is best guess ~20 lbs. Sash dimensi ... (cont.)

+10

Brake shoe

Im trying to help a customer and im having a hard time determining which part to order. I believe is the 15-154 all the dimensions match up . I was just trying to determine and am second guessing myself. And information youre able to provide is greatly appreciated! Thank you !
