Viewing all customer Discussions for:

15-015 Pivot Shoe, 17/32" Thick

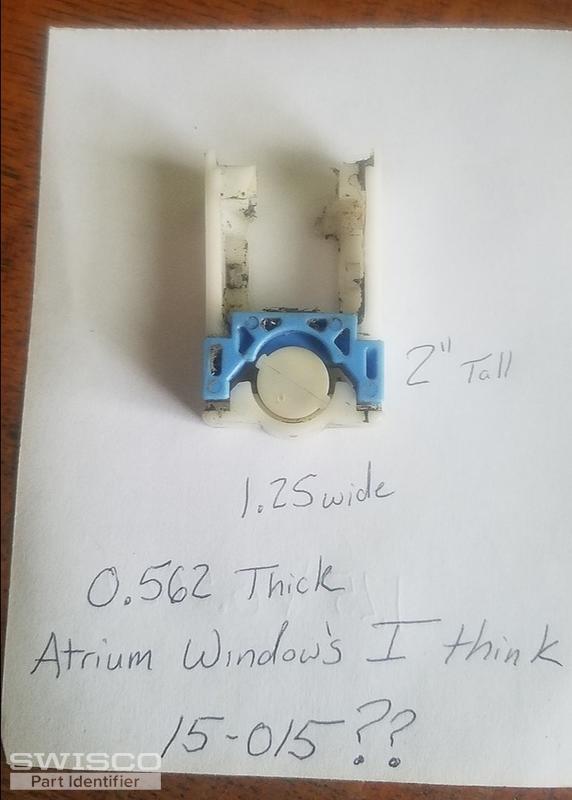

Good morningI am looking for this part Approximately 1 1/4". x 2". x 9/16"If you need more info let me know. Thank youSteve

I figured out all of the rest of the parts I need (spiral balancers, tool, pivot bars (Spectus 26-357) but the pivot shoe has me confused. It is approx 2" tall, 1-1/4 wide and measures .560 deep. It has a black cam. Windows are older Wellington out of Minnesota. The thickness falls between the ... (cont.)

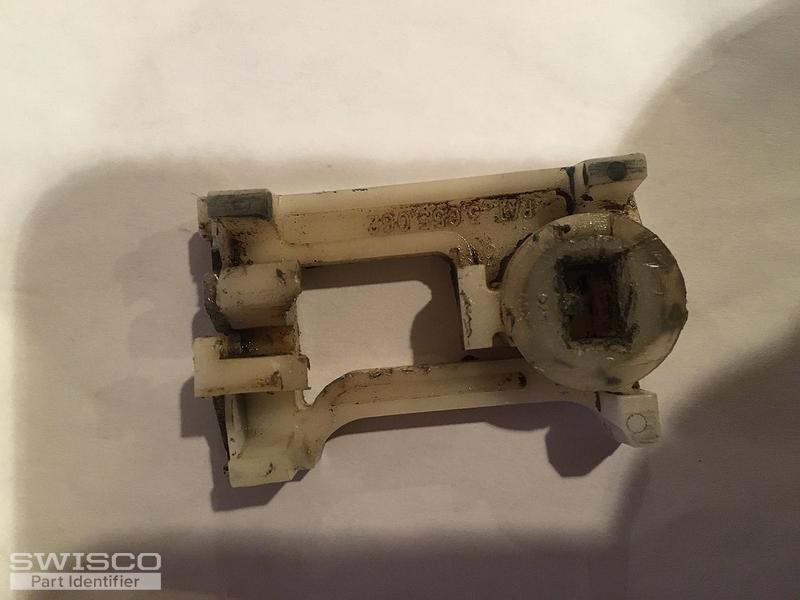

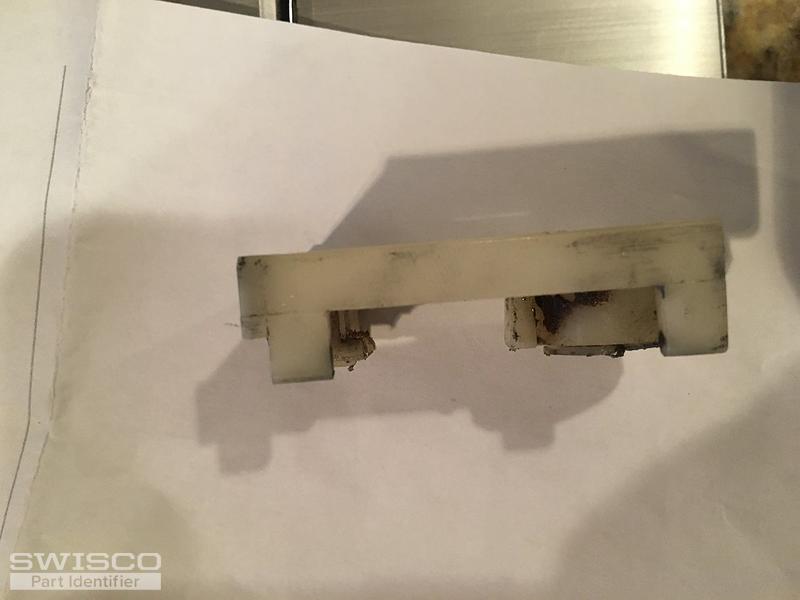

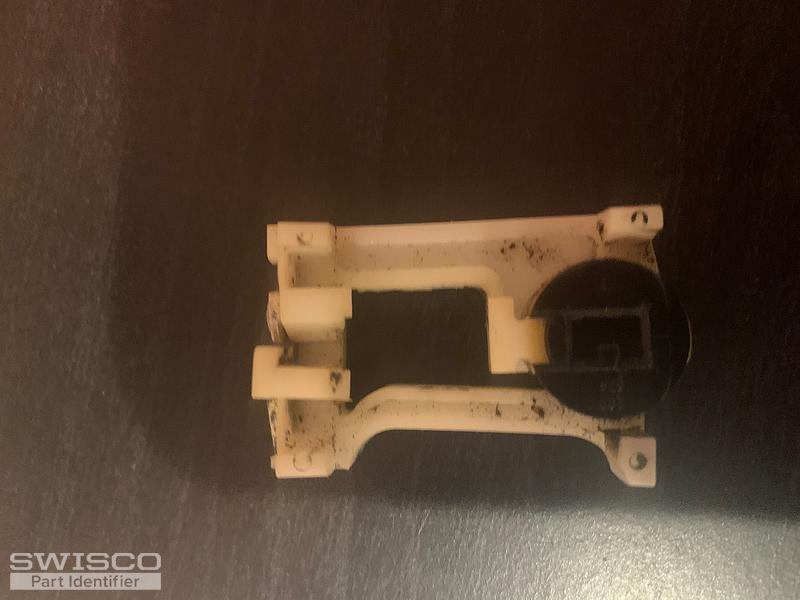

I purchased the 15-070 Thermal Gard Pivot Shoe and it is too wide. Do you sell a pivot that has the circle part flush to the main frame? Here is a picture of what I need. The other dimensions are accurate except for the depth.

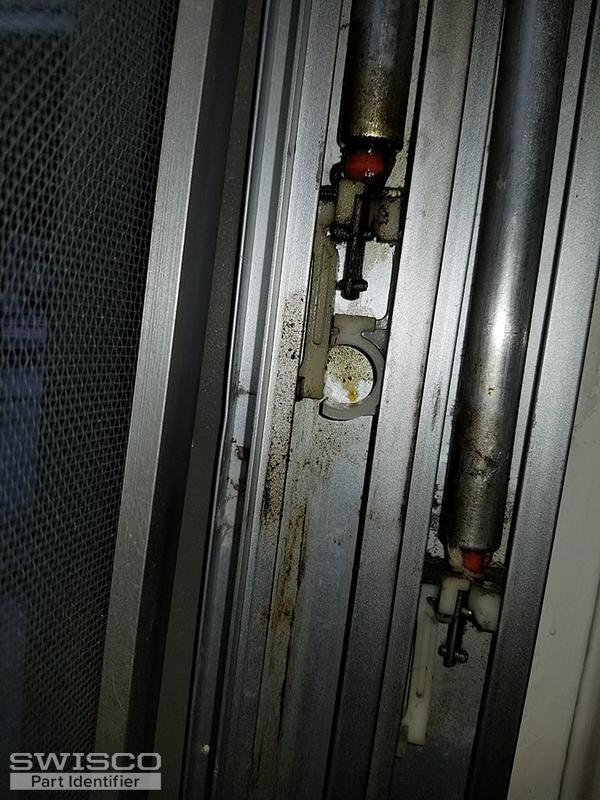

spiral balance bar 24"tube (25-1/2" is tube length plus the part that sticks out at the bottom} red tip for tilt window (what is diff between diff colored tips?) pivot shoe blue balance bar tool

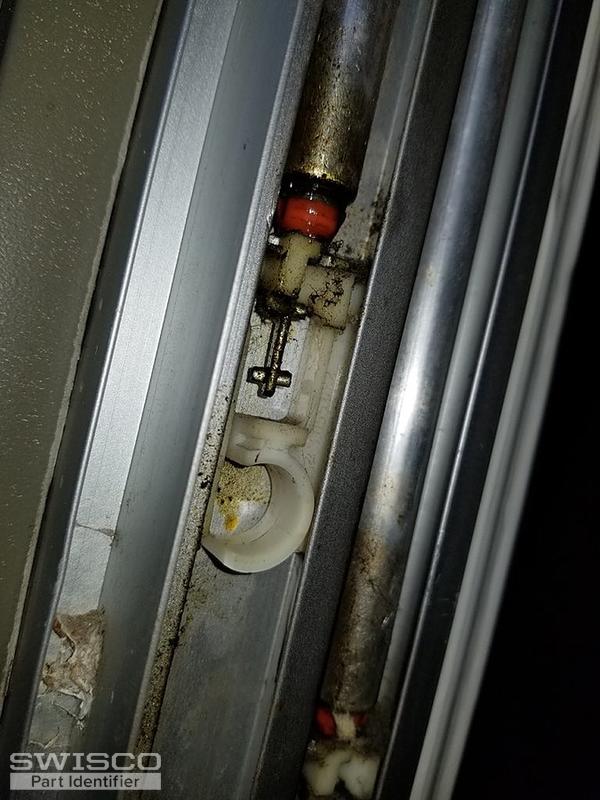

Hello, we live in a condo and our windows are very difficult to operate and many will no longer stay up. I would like to spend some time cleaning the tracks, replacing all the spiral balances, pivot shoes and possibly the stop blocks and getting them working the way they once did. It looks like th ... (cont.)

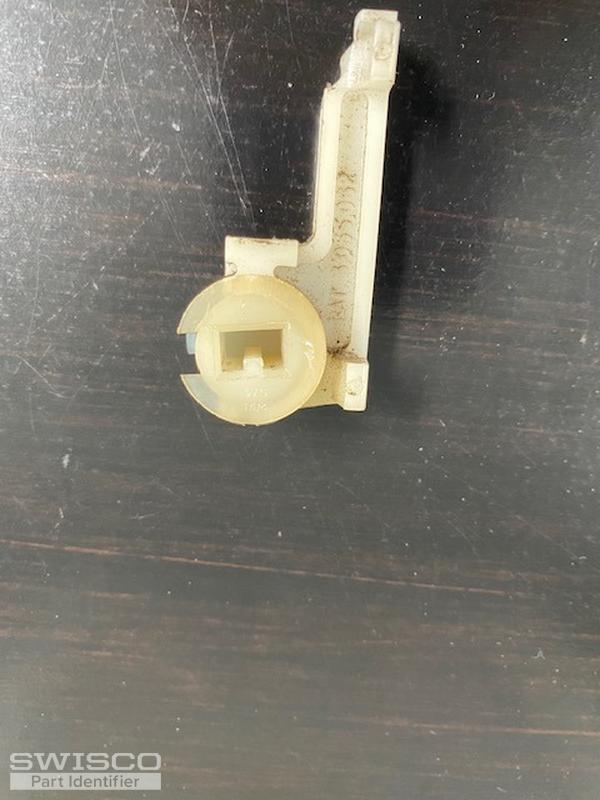

The pivot shoe I have is wide, do you have one this width?

I just bought a house and a lot of these are broken. The booklet left with the house said they are American Craftsman windows maybe series 1000. The pivot bars are all rusted into pieces so I need them too. Help please.2 inches tall, 1 1/4 inches wide 9/16 thick.

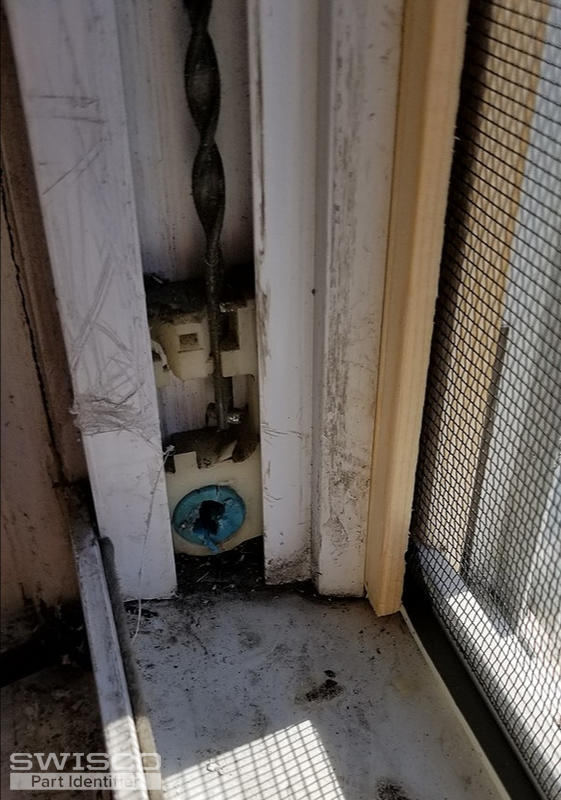

I'm looking into purchasing the 27" Series 600 Tilt Spiral Balance. 5/8 diameter. The issue I'm having is that I'm trying to find the corresponding shoe, which I'm assuming is part 15-047 but it has a black cam, while the one I'm trying to replace has a blue cam. Does the color matter? ... (cont.)

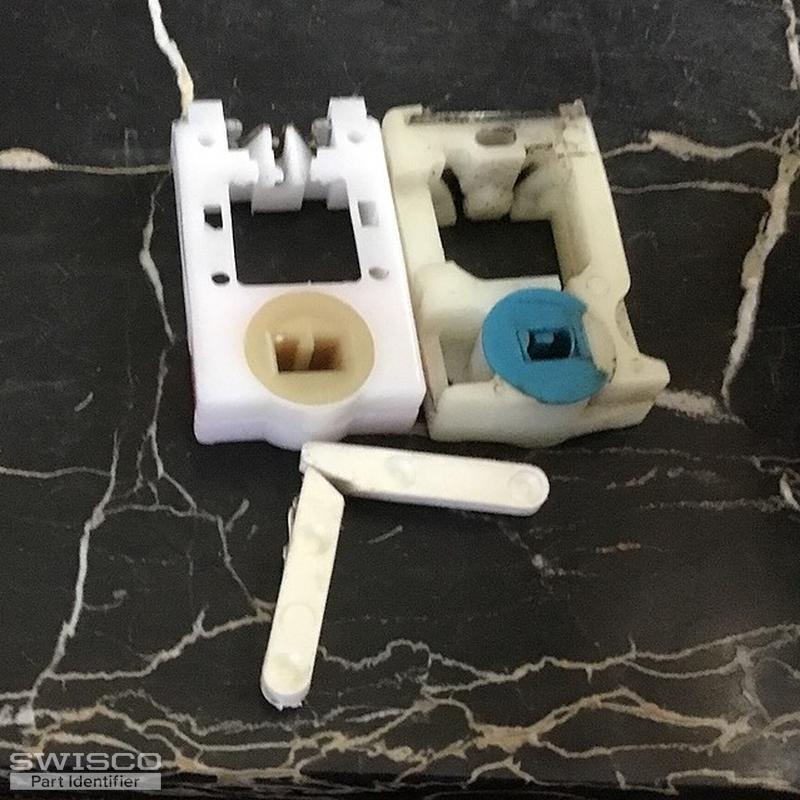

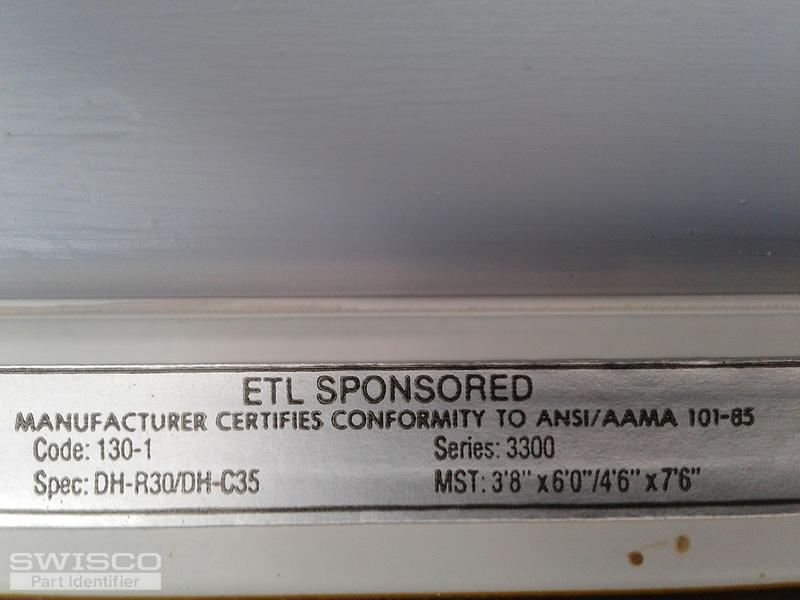

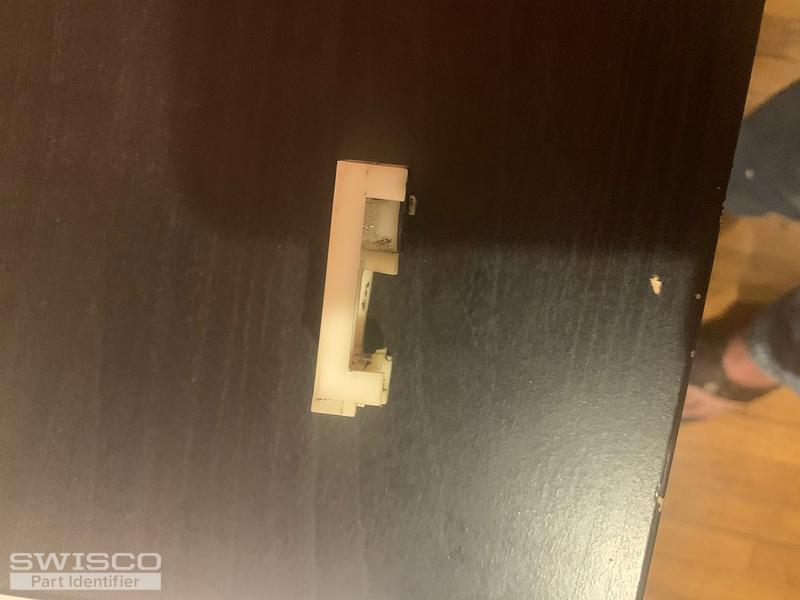

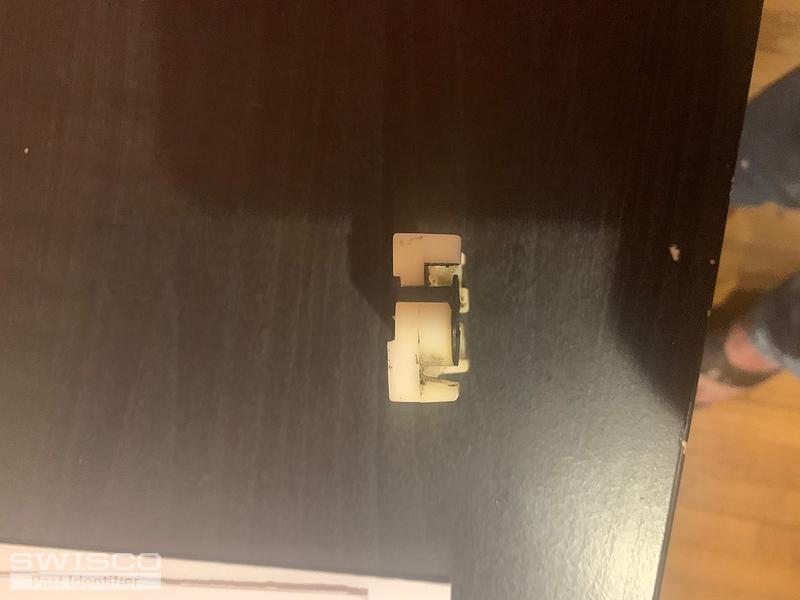

Hi there, I am hoping you can help with locating a replacement for the broken window balance pivot lock shoe. I have been looking for an exact replacement part without any luck. Attached is a picture of broken pivot lock and the information on the window frame. By the way, the spiral balance ha ... (cont.)

Hello, First off, your videos have been very helpful and I just wish that I hadn't gone through 20 other videos that all had a different kind of pivot shoe than my window does. We moved into this house about six months ago and we're still finding "good enough" fixes that have to be redone. One is o ... (cont.)

I measured (many times) the Traco pivot shoe with a precision caliper and I think that the 15-121 is the closest fit in size. I am replacing the spiral tilt window balancers with S600-22. I also considered the 15-173 since it looks similar to mine but the width is too short (31/32"). I also consid ... (cont.)

Hi Tom,I believe your pivot shoe has been discontinued, but either of the pivot shoes you choose could work. You will need to make sure the thickness is accurate so that it will fit in the channel. If you choose one that is too thick, you won't be able to install it. As for the top attachment that h ... (cont.)

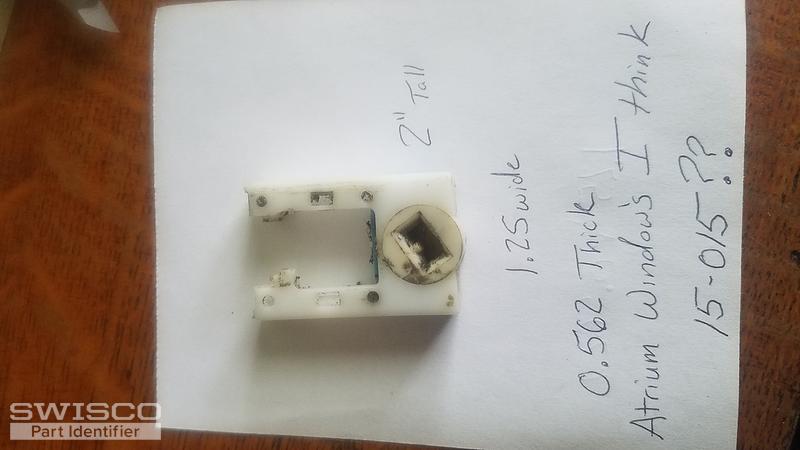

Atrium pivot shoe.

Pilot shoe for window

Looking to replace broken coil balances in one of my windows but not sure which is the correct part. It looks to me like the 15-015 pivot shoe and the S150-8 coil balance. The coil balance has "840" marked on it and is 1/2" wide.

I am in need of these balances and the clip. They are for windows that are 21,23,24,27 9/16

The part you're referring to is known as a pivot shoe. Take a look at our 15-015 pivot shoe. I feel this may be a good option for an alternative. You will need to remove the part out of the window to be able to compare your measurements with ours.

American craftsman 3500 purchased from Home Depot. Part holds window and the small piece is for the screen corner connector

Its is 5/8 thick and 1 inch 3/8 wide

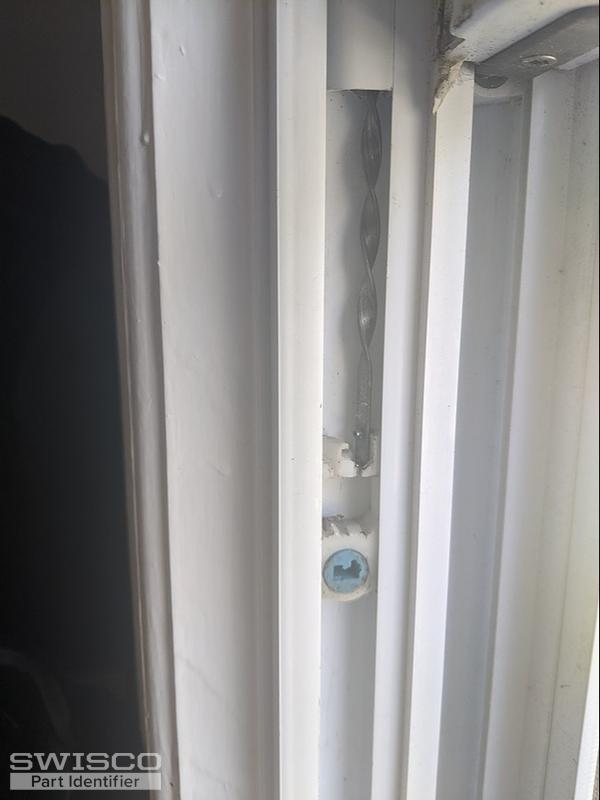

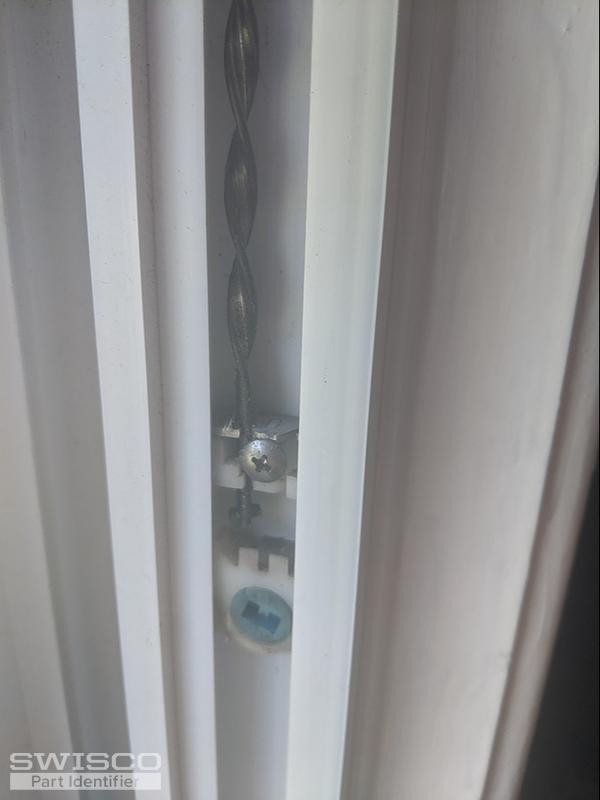

Windows are double hung and tilt. Pretty sure windows use the 5/8" tube diameter and the length of the cylinder is 31 5/8. (so 32"?) Pretty sure pivot shoe is 1/2 inch. Tip is black.
