Viewing all customer Discussions for:

15-015 Pivot Shoe, 17/32" Thick

Hi, What spiral will work for my window. The correct pivot shoe is 15-015 from what I see on the parts list. The tube is 29X5/8" thanks

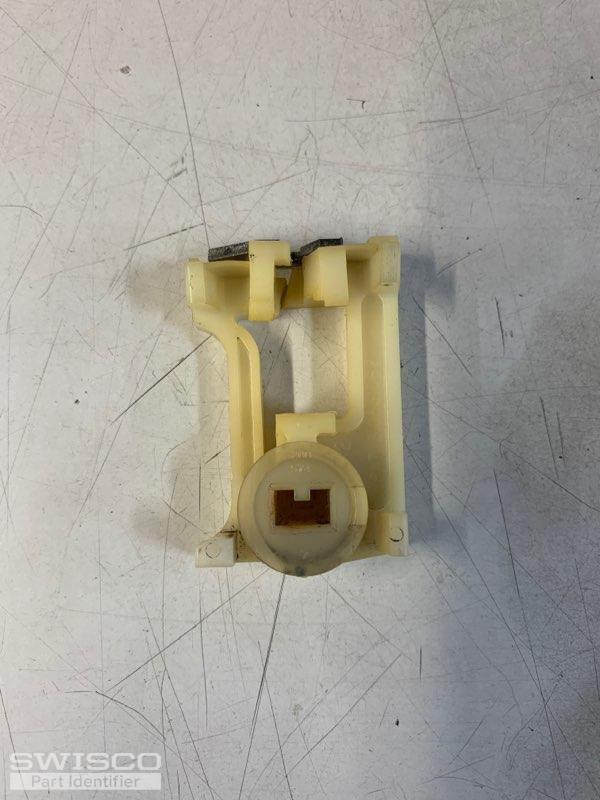

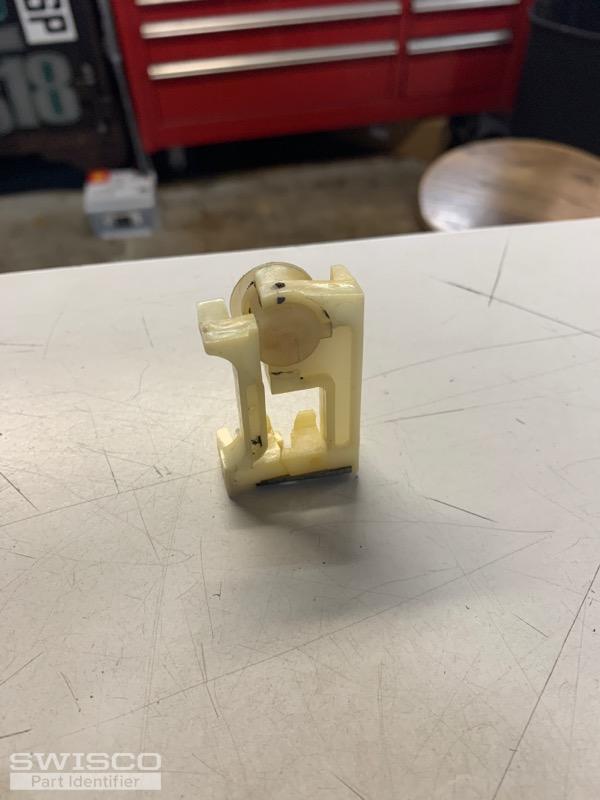

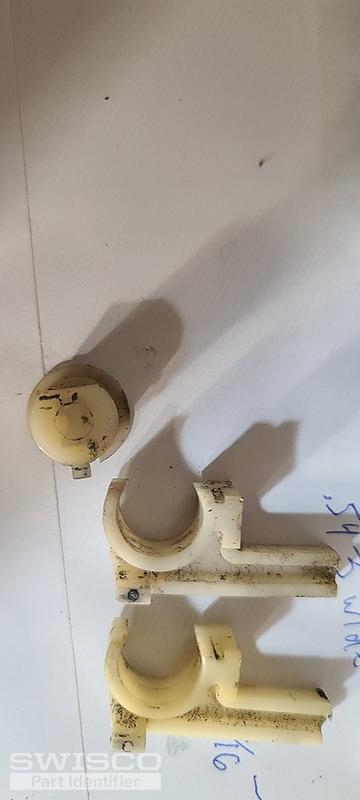

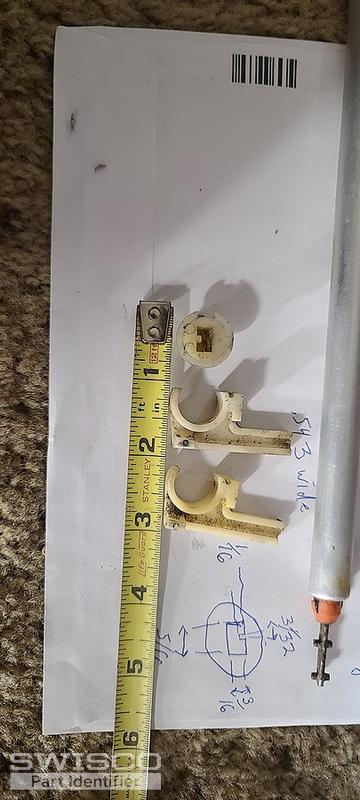

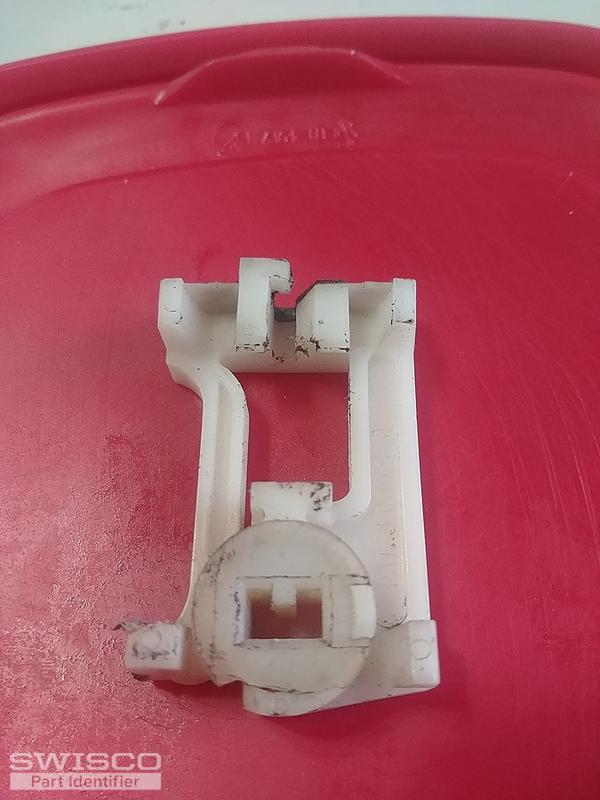

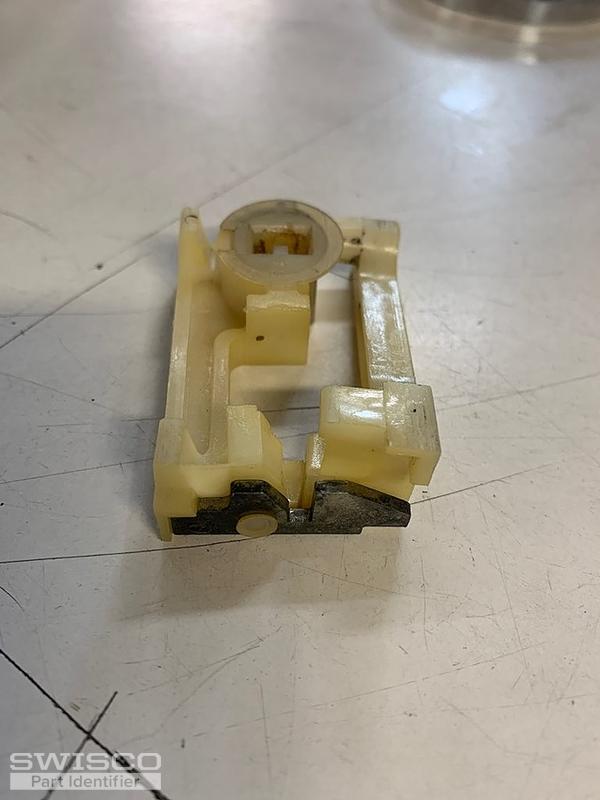

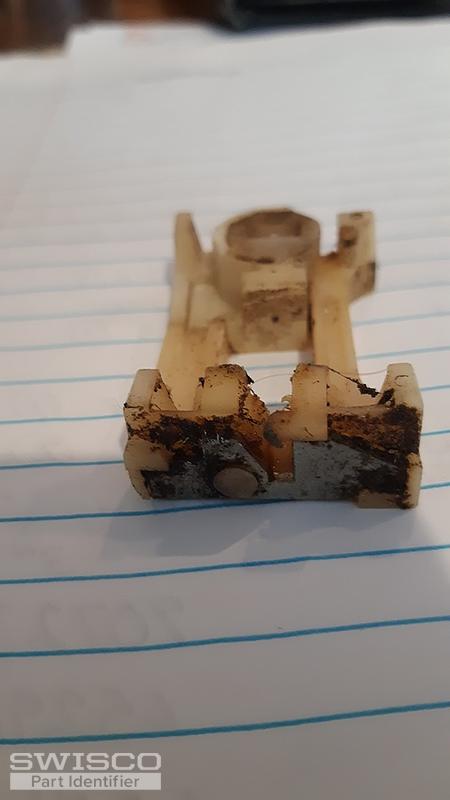

Trying to find a match for this pivot shoe. See pics. I believe there are no peices missing. The cam has a flat spot indicating it spreads the arms of the shoe, not sure. Let me know what you think, no information on the window.

I can't find a video that has my actual issue. I have a tilt window that won't close properly. The top sash drops about 1/4 inch so the locks don't line up, easy to deal with but now when bringing the bottom sash down, the entire sash sits to the left so there's a gap at the top right of the sash. A ... (cont.)

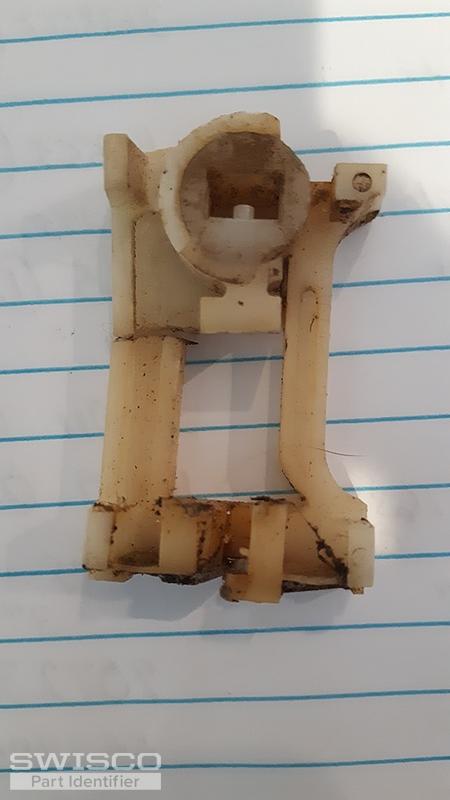

Need this plastic part. This one is holding but looks broken. The other side is completely gone.

We have no numbers or other identification information.

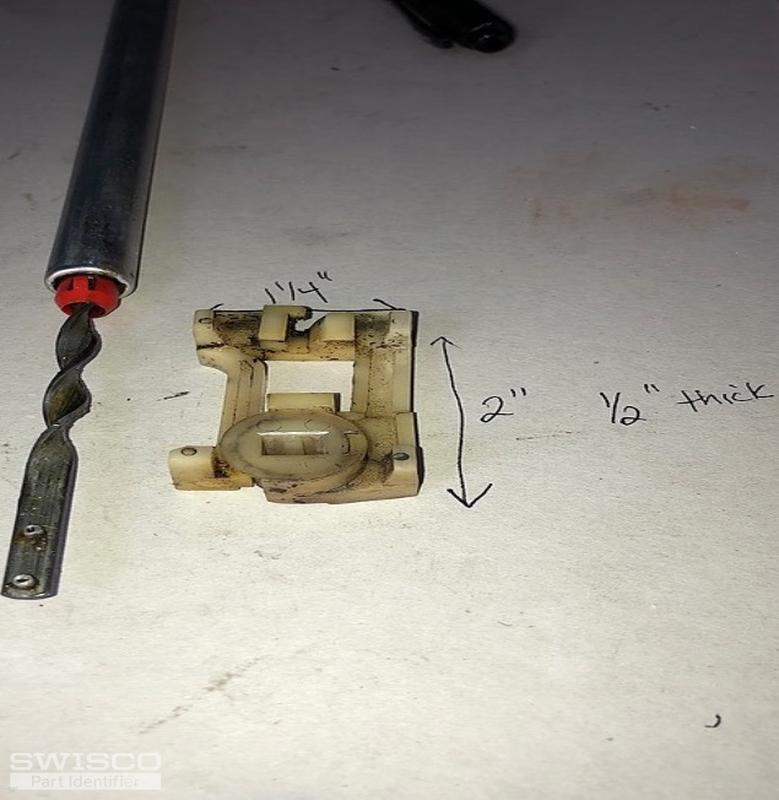

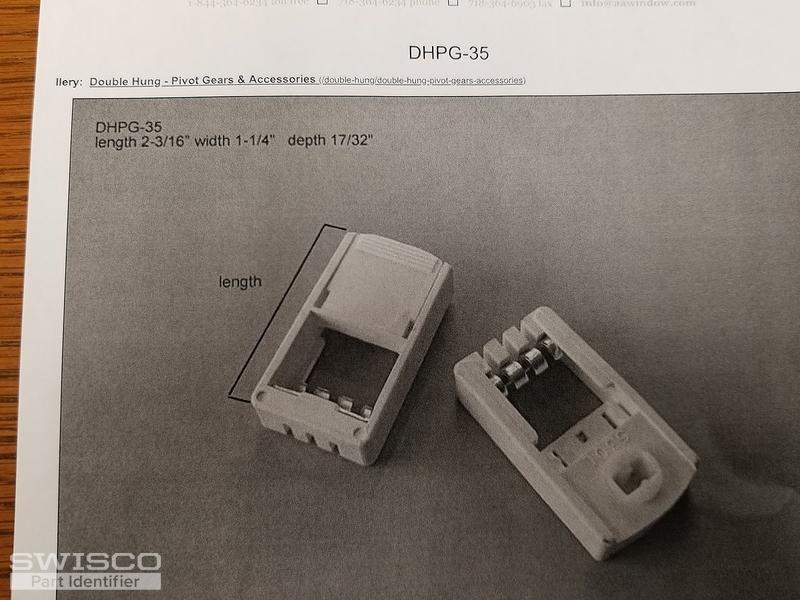

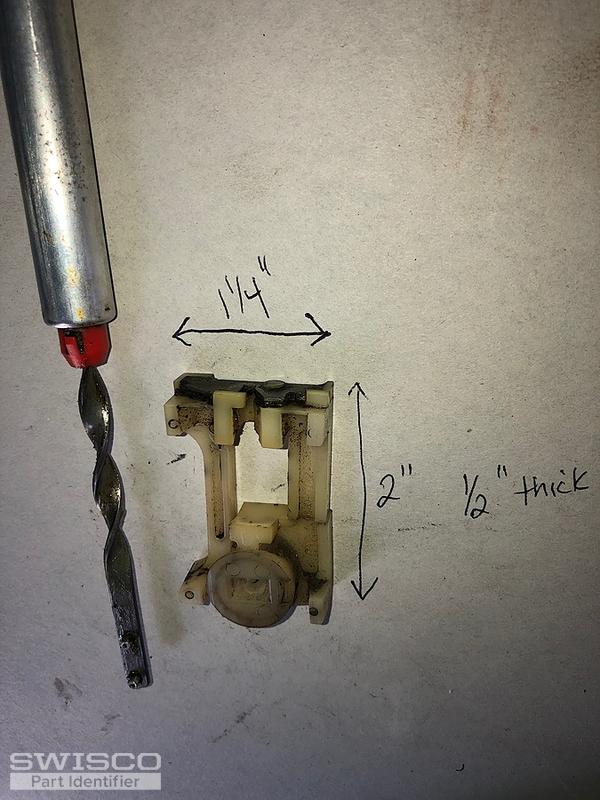

17/32 x 1"1/4 x 2". I think i was holding it together properly but not my wheelhouse. It would be connected to the 25" series 600 spiral tilt window balance, S600-25. Thanks for helping.

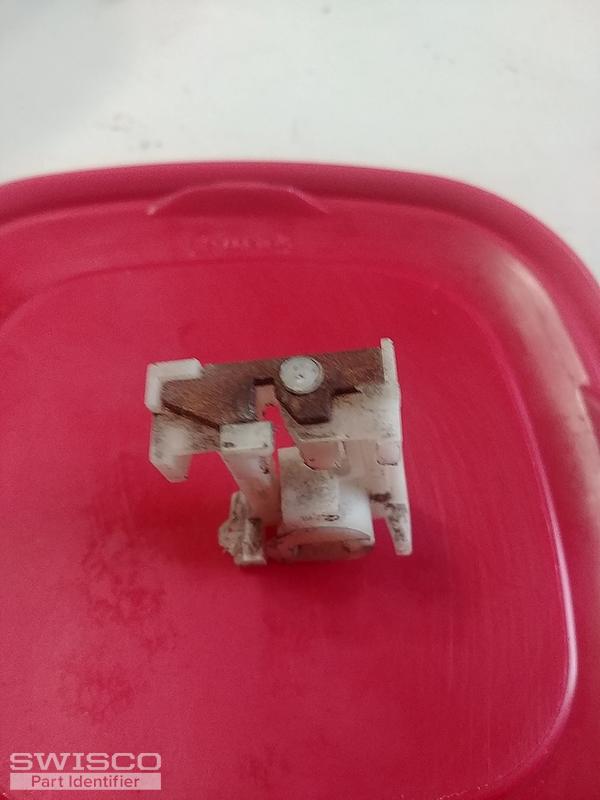

Replacement pivot shoe.Ken

i recently ordered replacement spiral window balances for double hung windows.when i tried to replace the old spiral balances, i saw that the shoes were missing or broken. marking found on the part: PAT.3.055.062 (all markings are clear, with the exception of the last character, which i think mig ... (cont.)

I am looking for four sets of spiral balancers with the appropriate parts to attach to the bottom of the window and slides.

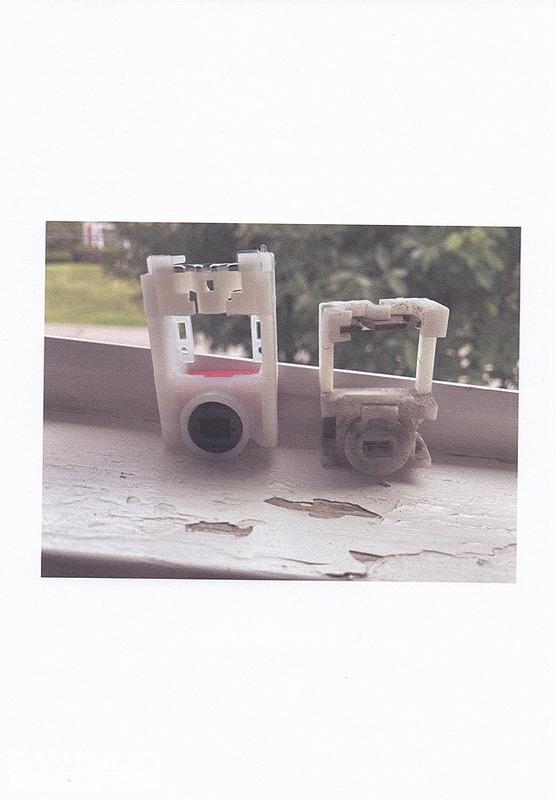

I purchased Thermal Gard pivot shoes for a job. They are Thermal Gard windows. Your product code is 15-070. I have attached a photo of the old one next to the new one. My old one measures 1 1/4" in width, 1 13/16" in overall height, and 5/8" in depth. According to your spec sheet on the 15-070, I ... (cont.)

Channel balance non-tilt: 28 windows = 56 of ea item MFG by: Seasonall Stamped: 29901 BSI 35; 29.5" long (the actual metal part) balance shoe: 1-1/4"x1-3/16"x1/2" no wings (may be 15-003?) balance top: 1-1/4"x1/2"x1/2" no wings (similar to 19-002 except has round groove) sash guide: 2"x 3/4" 1" to ... (cont.)

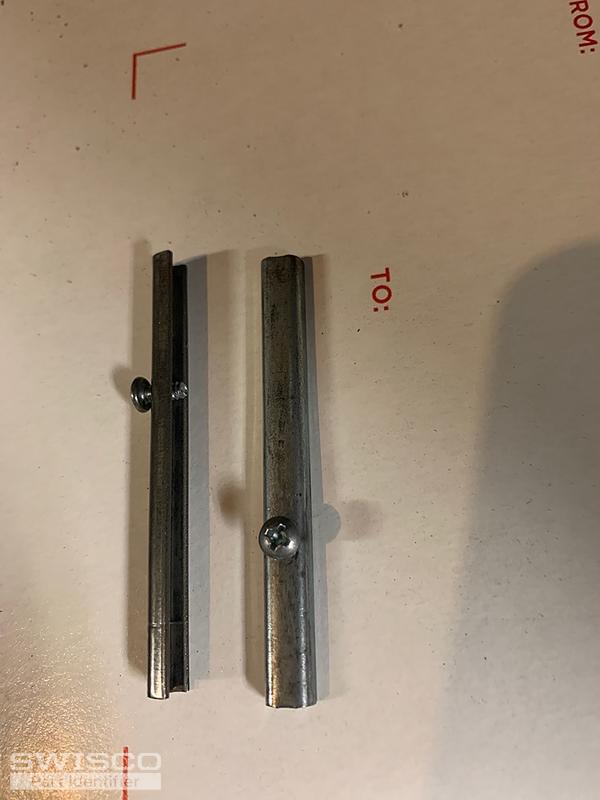

two sides of channel balance? Not sure how to measure it. 30" or 31" 3rd photo is a roller on a pot metal arm with a screw in it. Placement is on bottom left of lower window.

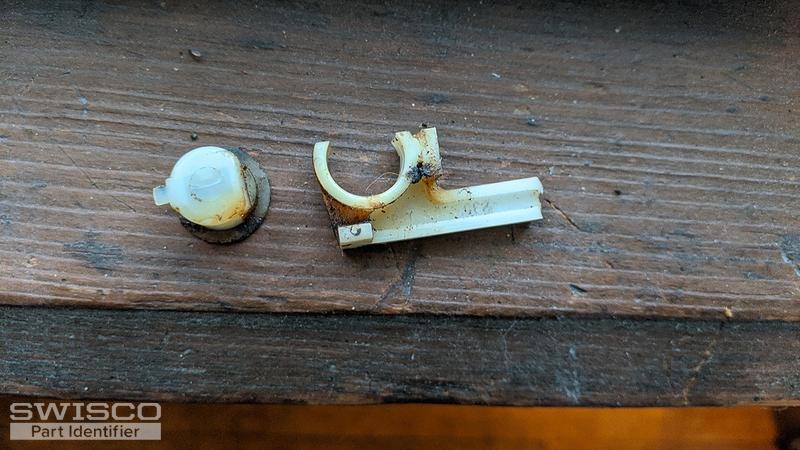

I guess these windows are from late 70's or 80's. Double hung tilt. No names or numbers on windows. Balances are 19" long look a faded red. The upper windows have 17" balances. I couldn't find these pivot shoes. Only the top portion appears to be broken. The open part seems to be made that way I tho ... (cont.)

How does one replace a pivot shoe....there seems no way to remove it from the channel

These photos are from one window - left and right side. They were very tight to get out and I had to really push them. I'm thinking that theywere possible oversized replacements. The original wondows ( picture attached) were installed in 1981. Thanks for any help.

I NEED 12 OF THESE WITH THE BALANCE ROD12 SPIRAL RED TIP 5/8 BALANCE

My older broken pivot shoes are different (see pic) but match dimensions on this 1/2inch one. I have the series 600 spiral balances. Just wondering if you think these will work about the same? Thanks.

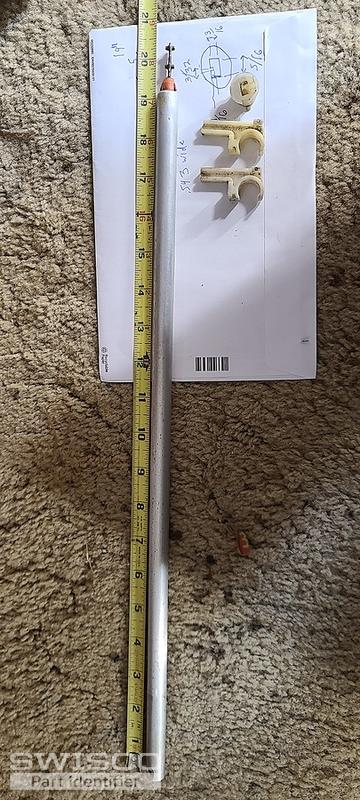

The spiral balance needed is a 3/8? diameter x 29? long. I need the bottom clip that goes in the channel as well that the bottom of the window locks into and pivots for removal. The bottom clip is 1 3/4? long c 1? wide see pics. 251-599-9170 Rick Lewis

I need 4 tubes and 4 plastic pieces

looking for two parts, one is the plastic window slide inside sides of windows, second is metal piece on bottom of window. All windows were installed by Crystal windows in Queens.
