Viewing all customer Discussions for:

15-015 Pivot Shoe, 17/32" Thick

Please advise on your replacement part number and cost, thanks.

I am looking to replace my pivot shoes. What do the different colors mean?I measured it precisely with a digital caliper, and here are the dimensions I got:Overall dimensions: 1-1/4"w x 2-1/16"hThickness: 35/64" (or just 9/16")U-Cam opening: 5/16"w x 3/16"hAlso, there are 2 numbers printed on the ca ... (cont.)

Vinyl replacement window (unknown brand), pivot shoe measures 1 7/16" wide X 2 1/8 tall X 1/2" thick, I will have to use the cut method to remove the old shoes, but holding off till have replacements in hand. Thnx for any help you can provide, have already used your site to replace all of my plasti ... (cont.)

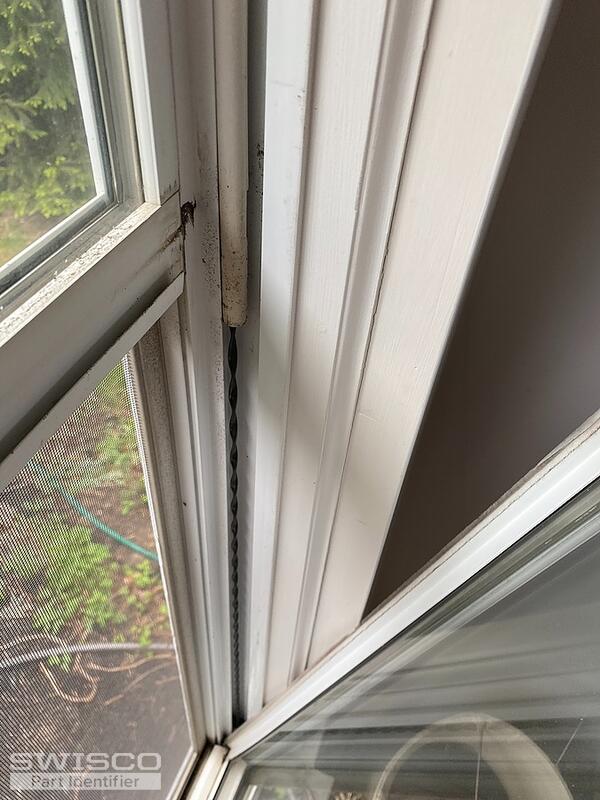

My Window will not hold up and slams closed (Home Built in 1999). The cork-screw like balance is 28.5" long (white sleeve part) plus extended probably double that if you count the cork-screw part coming out of the sleeve. I'm guessing if the window doesn't stay open then both sides need to be repl ... (cont.)

I am looking for replacement pivot lock shoes. The shoe is 2-1'8" tall. I have not tried to remove the shoe(s) yet, but the channel dimensions are 1-1/4' wide x 1/2" deep. I would like to speak with someone as I damaged these shoes while attempting to remove the sash to replace the balance. ... (cont.)

Not sure what it's called but more importantly I just ordered some balances as samples for a customer. If they are right, then I'm going to need to find 60 pieces of this part in addition to the window balances. Do you have this part, or access to it?

I m looking for these items to fix my window.the size are lengh 25 and 25 58.

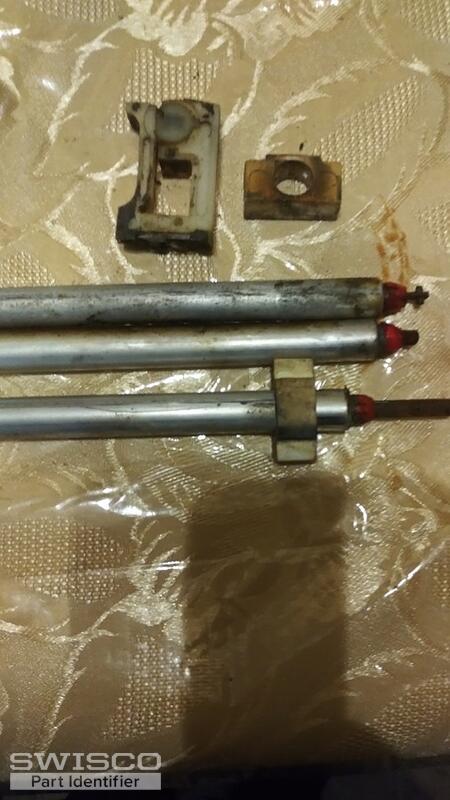

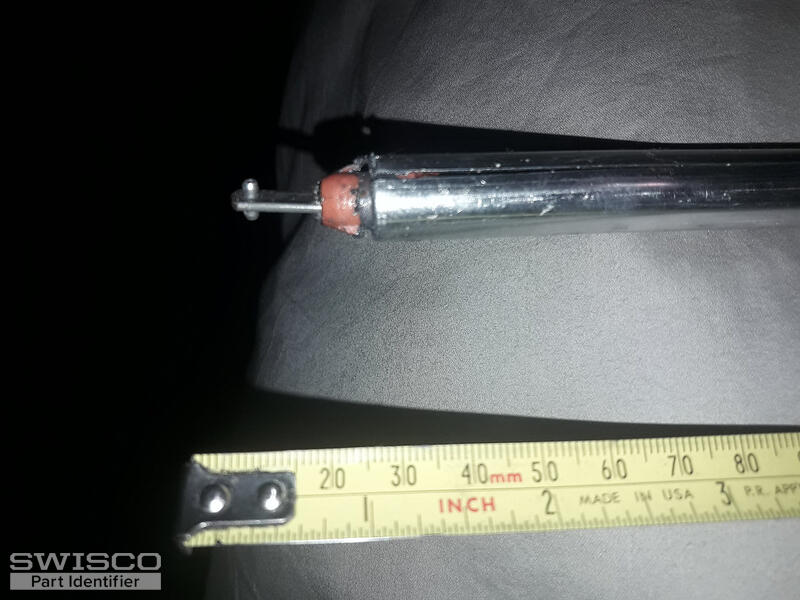

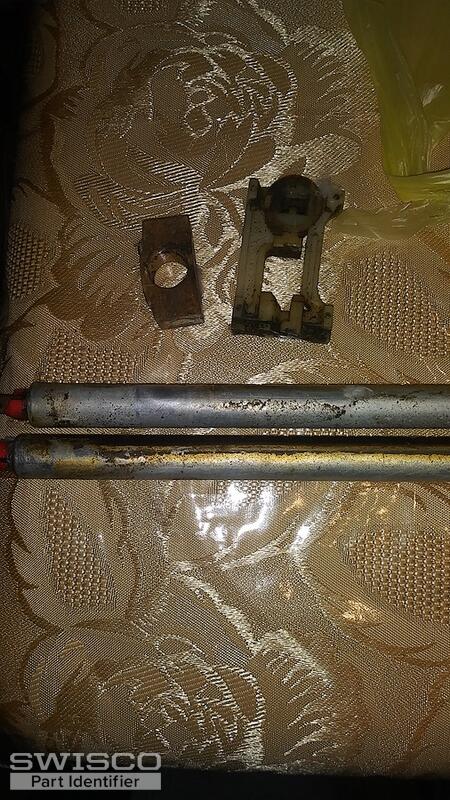

Hi GD Everyone, Hope all is well with you and your family.Trying to replace the broken balance's for this window. The balance measure 35" L x 5/8" diameter, it has a RED tip. Plus the track and the window clips are broken. Based on the photos can you assist in the replacement and is there anything e ... (cont.)

I need 2 each non-tilt red spiral springs 25" x 5/8" and 2 each shoes 1 1/4" wide 2 1/64" high 17/32" deep. (sorry, I'm a machinist) I replaced a set of springs a few years ago (I'm pretty sure I got them from you, even got the tension tool.) on a same but different location window. The springs look ... (cont.)

Hi, I'm trying to refurbish multiple windows in the same house with basically the same windows. Almost all of the pivot shoes are broken except for one. I have not had any luck finding replacements. Please help.

No names, numbers, or markings on part. It is for a shoe/balancer.

Can you match the one that I have . I need 10 .

looking for a pair of pivot shoes for a Norandex single hung window, built and installed in 2003

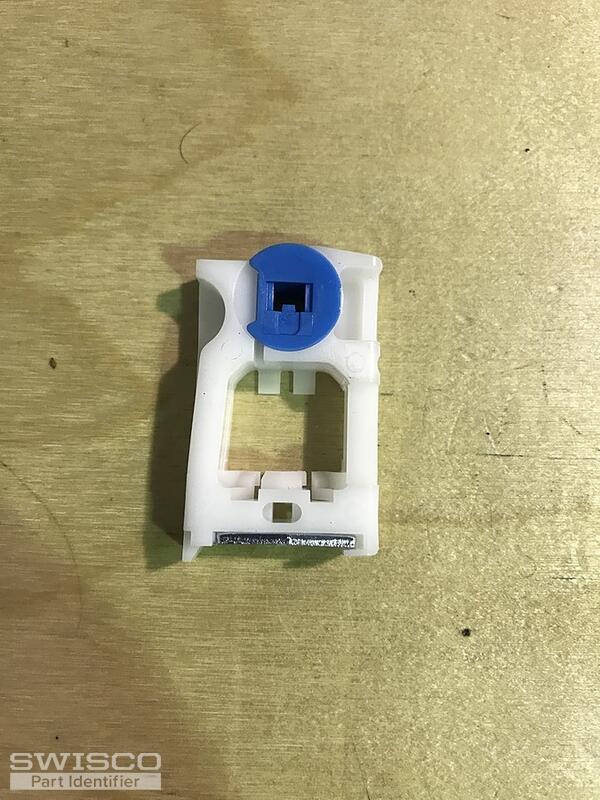

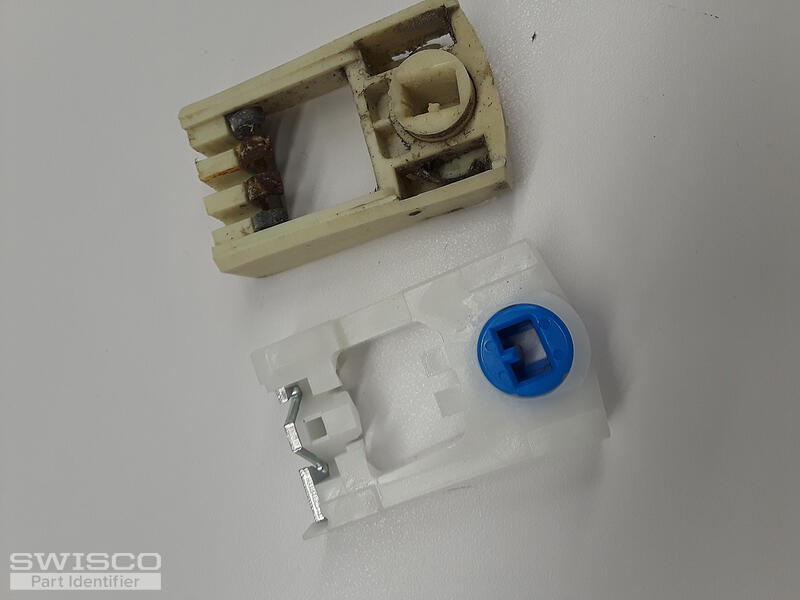

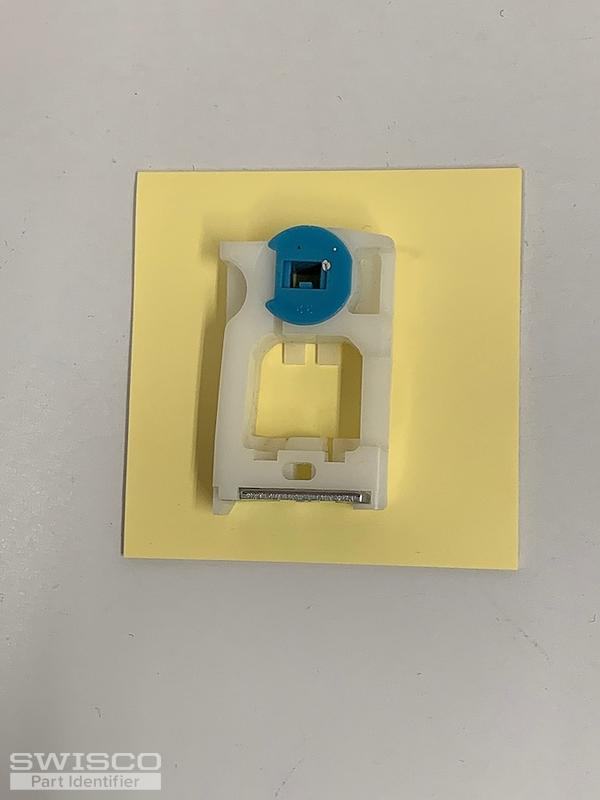

Hi, I purchased many of the "blue" window shoes to replace bad ones in my windows with success. Recently I took the old ones out in another one of my windows shown in the picture and replaced it with the new "blue" one. It fits but it seems a little snug. The old one measures 1 3/16" wide. I believ ... (cont.)

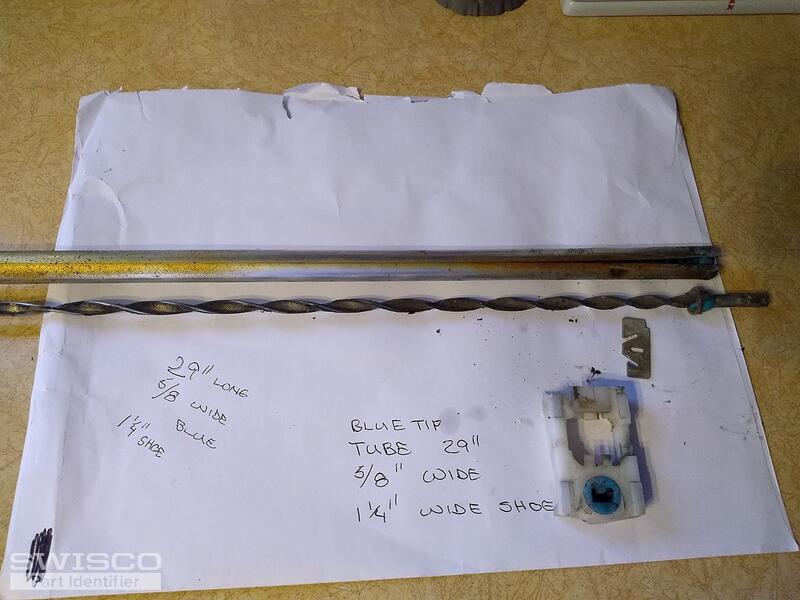

Hi, What spiral will work for my window. The correct pivot shoe is 15-015 from what I see on the parts list. The tube is 29X5/8" thanks

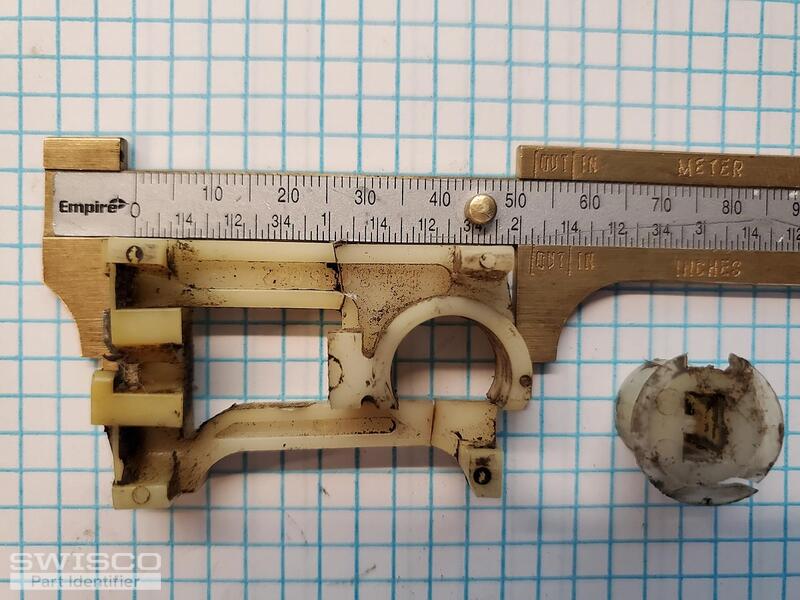

Trying to find a match for this pivot shoe. See pics. I believe there are no peices missing. The cam has a flat spot indicating it spreads the arms of the shoe, not sure. Let me know what you think, no information on the window.

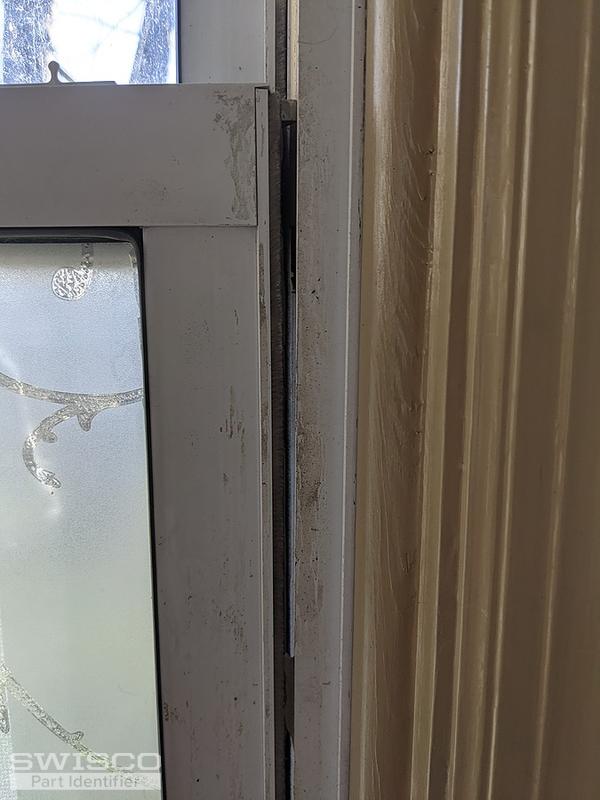

I can't find a video that has my actual issue. I have a tilt window that won't close properly. The top sash drops about 1/4 inch so the locks don't line up, easy to deal with but now when bringing the bottom sash down, the entire sash sits to the left so there's a gap at the top right of the sash. A ... (cont.)

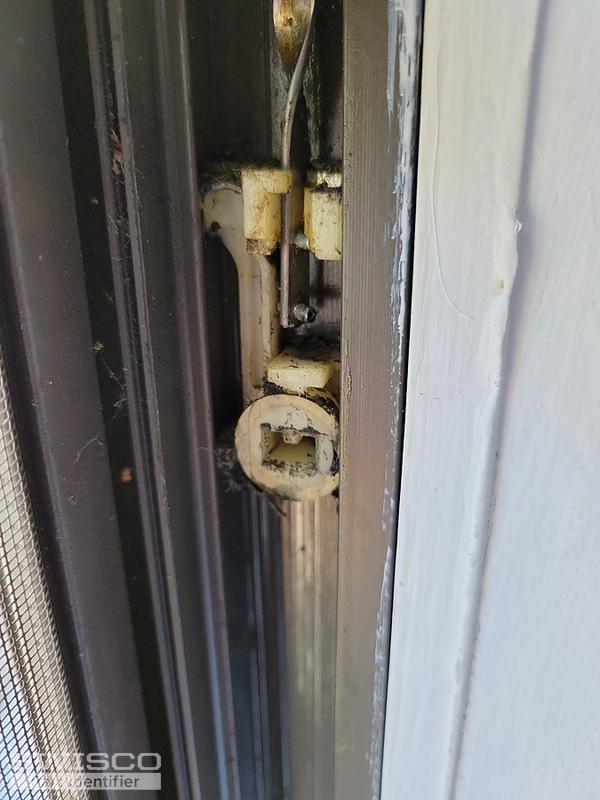

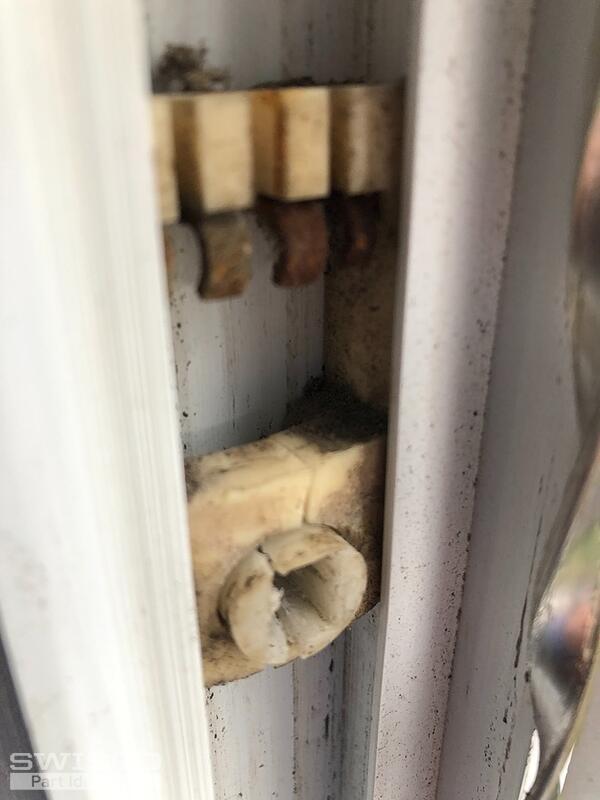

Need this plastic part. This one is holding but looks broken. The other side is completely gone.

We have no numbers or other identification information.

17/32 x 1"1/4 x 2". I think i was holding it together properly but not my wheelhouse. It would be connected to the 25" series 600 spiral tilt window balance, S600-25. Thanks for helping.
