Viewing all customer Discussions for:

75-006 Spiral Balance Charging Tool for Tilt Windows

I think I need the Series 900 spiral balance. The tube on my existing balance is 33.75in. 3/8" diameter. Would that be the 34" Series 900? Window is a 30"x 69.25. Bottom sash weighs approximately 20lbs. Double hung tilt. Pics attached.

Have no ideal what this part is called. It mounts to bottom corner of window and the other end fits inside a square piece that slides up and down the track on the outer frame

I want to replace balances in 4 of out bedroom windows. I have tried to measure the balance and I believe it is a 5/8 diameter balance. The length of balance is 28". The tip is definitely orange. I was also going to purchase the charger and the shoe on all the windows which I have attached two pi ... (cont.)

Looking for vinyl window pivot bar. I was told the window mfg was CertainTeed. Photos below. Hope you can help. Thanks

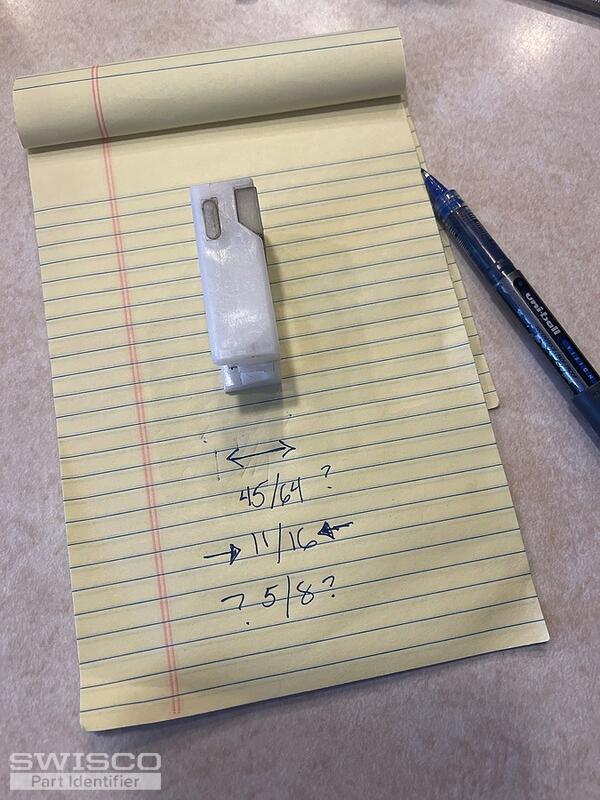

I have several vinyl replacement windows that have pivot lock shoes which have broken at the point that the spiral balance connects with them. I have yet to find a replacement part for the broken shoes. the issue is the thickness of the shoe. I have found 5/8 and 9/16, but I have not been able to fi ... (cont.)

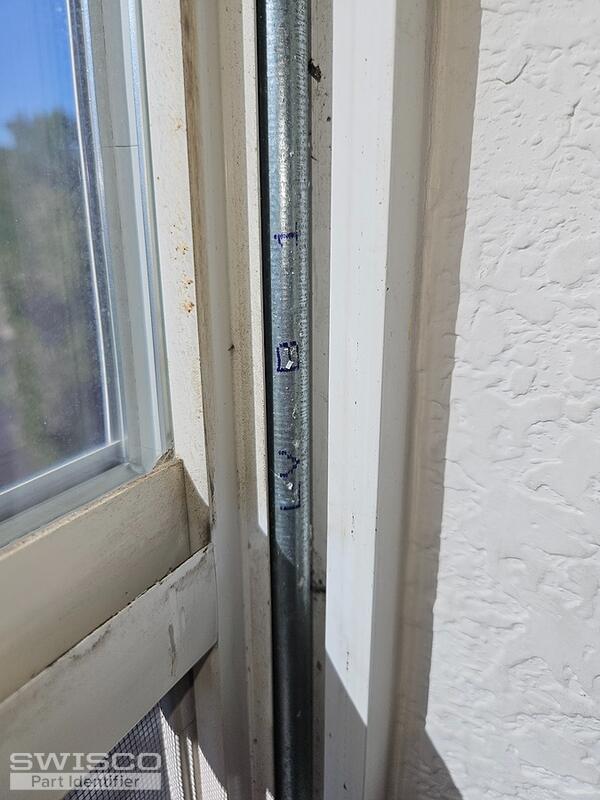

My name is Larry and I work for Mr. Handyman of Northwest Austin. I have ordered parts from you in the past. The length is 30 3/8 inches tip to tip. Orange plastic piece at the Spiral exit of the tube. The letters KRAO are printed on the galvanized part of the spiral balance.

Recently purchased my 20 year old house. It has several tilt windows of which very few open and those that do are difficult. I've ordered two rods 3/8 - 35 in -spiral - green tip to try and install myself. If I can install successfully and the window operates as designed, I will order more. If I ... (cont.)

Why do these keep popping out of the white part

LBV1 spiral tilted window balance Larger window. 36in wide give or take

THE WINDOWS ARE APPROX 15 YEARS OLD. THE TOP PLASTIC LATCH IS BROKEN. THE WINDOWS WERE INSTALLED IN A MANUFACTURED HOME NEAR DURANGO CO.ALSO, THE METAL GUIDE AND SPIRAL ON THE LEFT SIDE DON'T WORK PROPERLY. NEED HELP FOR PARTS AND REPAIR INSTRUCTIONSTHANK YOU, PLEASE CALL HERB

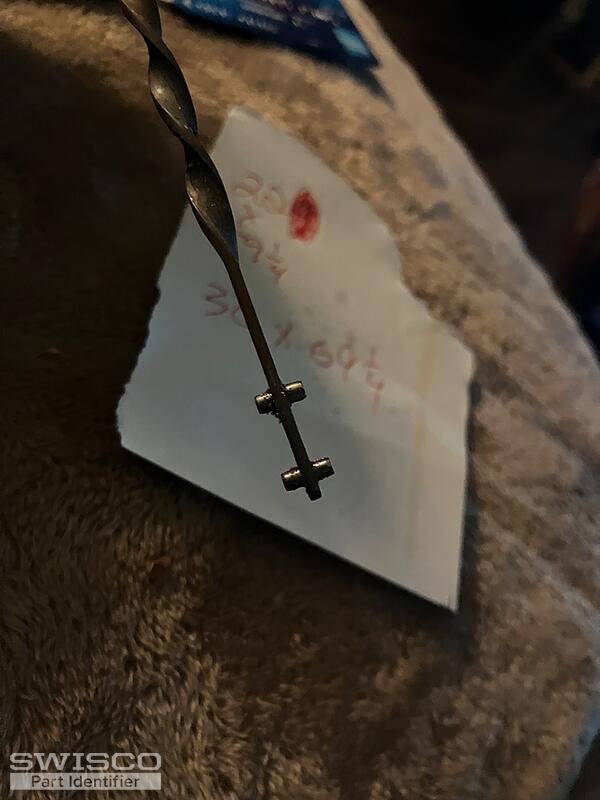

Hi, Can you tell me why there are two pins in spiral window balances? Thanks, Deb

I have Patriot Windows used in a new Ryan Homes built home from 1999. I bought Pivot Shoe 15-046 for these but do not understand how to get the old one out and out the new one in. I looked at your videos and seem to find information on how to cut vinyl etc but it does not seem to apply to my parti ... (cont.)

Trying to find replacements for the balances pictured. Balance measures 20", have yellow tips and white plastic tube (not pictured).

So, inspected this MW window and is in need of balancers, pivot lock shoes, 1 tilt latch and possibly metal tilt pins, depending on your thoughts with the new shoe.I believe the balancer is S900-29 and -26 for upper and lower spiral balancer 26" and 29" x 3/8" tube, but sash seems light and tips are ... (cont.)

I miss placed the parts. Photos are what I have. Numbers you gave me are:S600-19 blue tip75-006 tool15-046 foot. Slot is approximately 1/2"Found the parts the foot is 1/2".

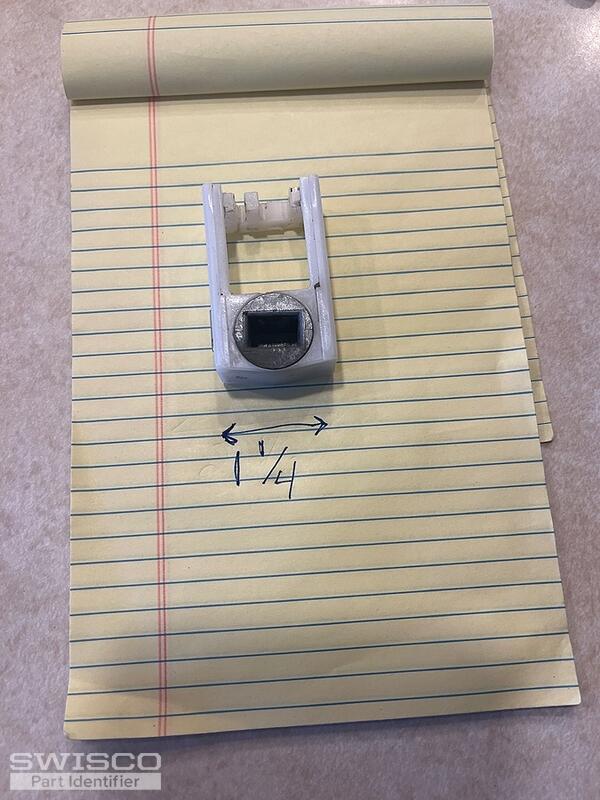

Screw mount for securing balance spring torn away. Shoe travels in 1 1/4 inch channel and is itself about 2 inches high. May also need new balance spring assembly. Thanks in advance for any help. One photo shows broken shoe and another the intact shoe opposite. If you know of service person availabl ... (cont.)

Please help me find the right part, pictures attached

Our windows are tilt-ins. The old balances (which look like S600's, have the same double-pin ends and go into a pivot shoe like the model 15-046) are 5/8" X 31", with green tips. Problem is, I can't find the green-tipped ones on your web site. I weighed the bottom window and it's 17.8 lbs. We are ... (cont.)

Hello, I'm in need of: (16) spiral balances(2) spiral balance pivot lock shoes(1) spiral balance toolSee enclosed pic. Can you help me identify the correct parts?Is there a discount on a large order like this?Thanks!Mike

i bought a new house, and two windows need a spiral balance mechanism replacement. One balance mechnisem is completely missing. I measured the length between the upper scerw and the bottom sash and it is 17'. the second window got broken mechanism. and by the same method of measurement it is 24.5' ... (cont.)
