Charging a spiral balance

Sure, I'll do my best to clarify this term.In short, charging a spiral balance is when you wind the spiral rod in place to allow the spring to build up tension. This is necessary during the installation process for just about all spiral balances.The easiest way to do this is to use a special tool ma ... (cont.)

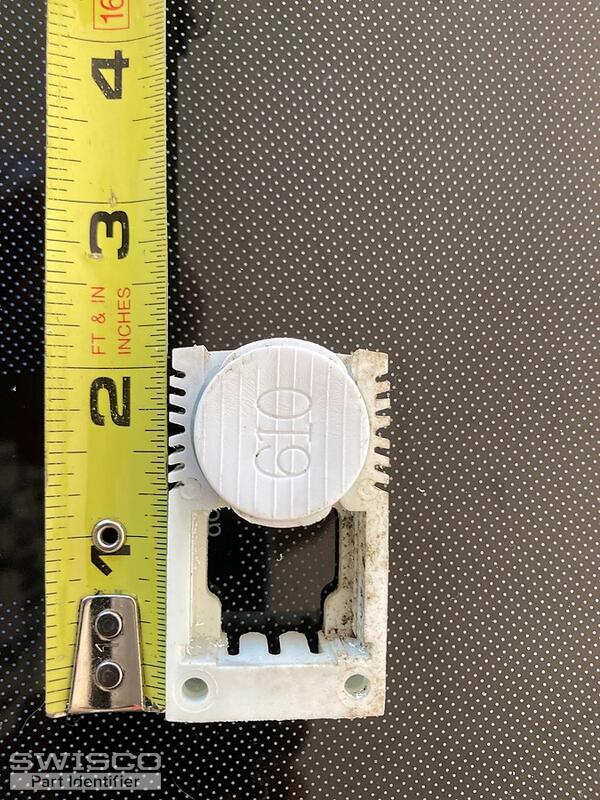

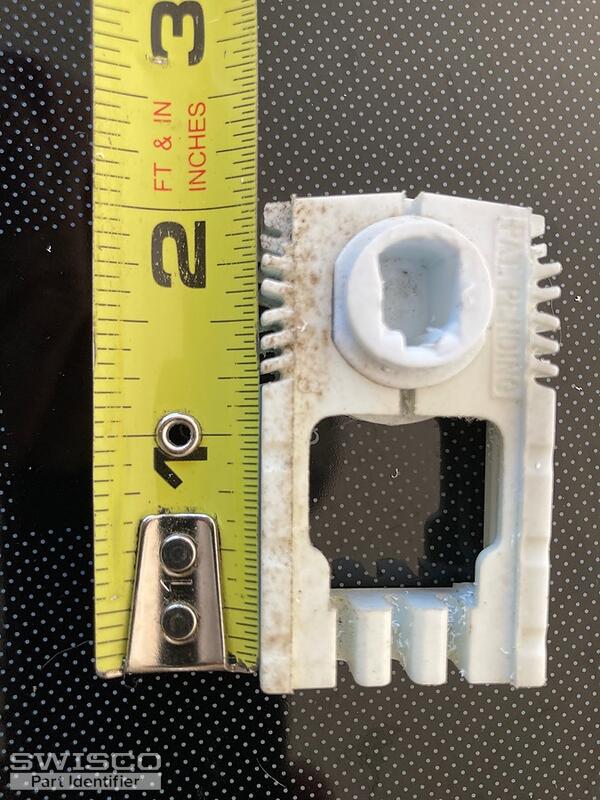

Pivot shoe

Not sure about the brand but the window lock shows harvey on it

Pivot shoe

4 windows won't stay up. The pivot shoe is broken and doesn't hold the balance spring. I will need the spring tool also.

Replacing vinyl replacement tilt in window spiral balances

Weight of sash is 12.2 lbsLength of spring housiing tube is 20 inchesOuter diameter of the housing tube is 3/8 inches Number on housing tube #FQA 0I believe these were manufactured by Chelsea Building products in NY State approximately in 1997.

need help

Greetings I am seeking assistance in replacing the following two (2) window sash balancers with the same specifications: 3/8 diameter barrels 16" barrel lengths 29.75" overall lengths One side is missing a small spring that measures approximately 1.25". This spring provides resistance against one o ... (cont.)

+2

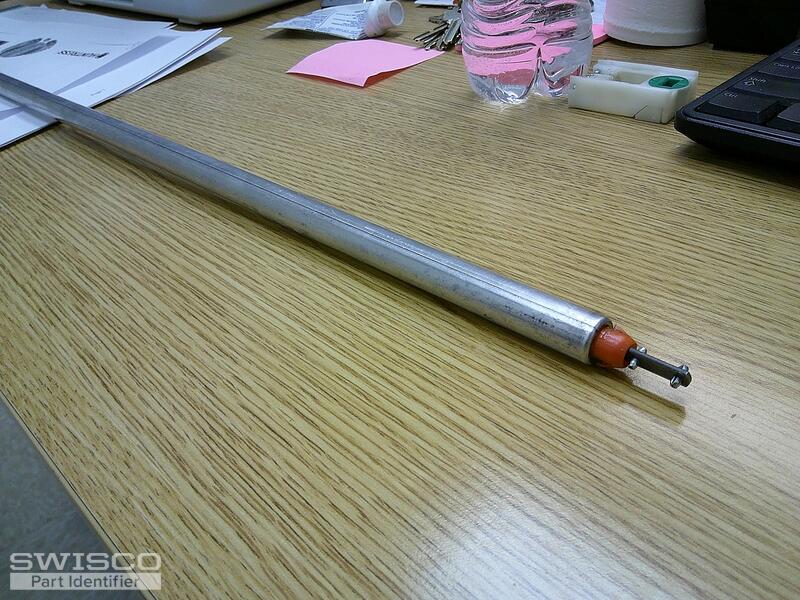

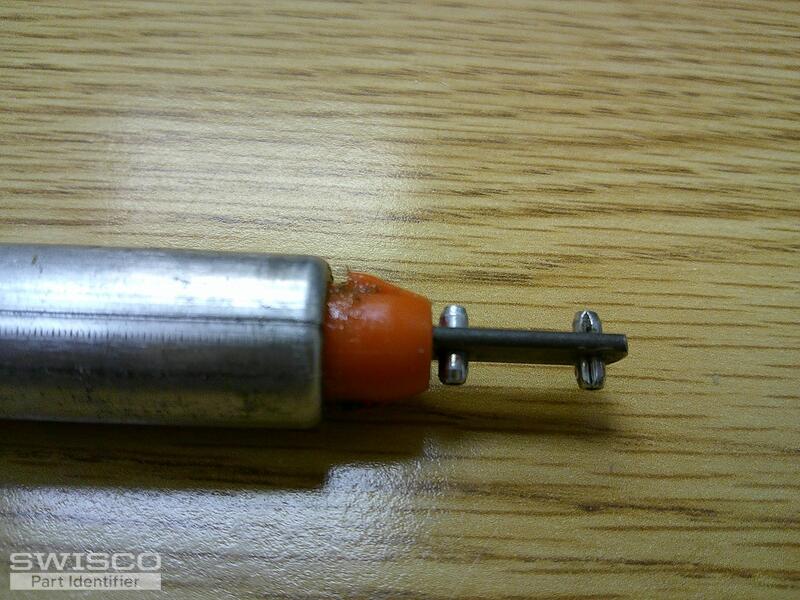

Window parts

Silver cylinder with spiral rod. Orange cap at the end. Rod is about 1/2 inch diameter and 28 inches long.

Window repair

looking to replace parts

+2

Replace 2 of the items listed below need tensioning tool also

29" rod for tilt window

Spiral balancers and related parts

the metal tube on the balancer is 35inches the white part on the left islides to allow the window to tilt the white part on the right is activated when the window tilts to lock the balancer in place I am hoping you don't need the pictures of the parts installed I won't have immediate access as the c ... (cont.)

Spring replacement

26" long 5/8 diameter blue tip.

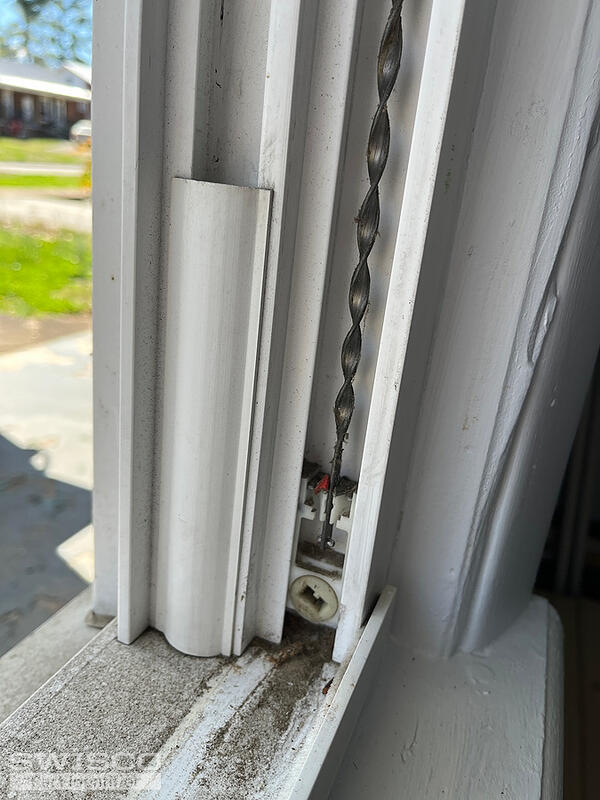

Need help identifying Tilt Latches, Pivot Shoe, and Spiral Balance for Vinyl Window

I need help finding the right replacement parts for my vinyl double-hung tilt window.Here is what is broken and needs replacement:Tilt Latches: The top plastic latch snapped off.Pivot Shoe: The bottom shoe broke inside the jamb track.Spiral Balance: The spiral rod twisted and popped out.I have attac ... (cont.)

+2

sash rebalance clip

need to replace 65 sash rebalance clips for this window

Spiral Balances for Tilt Windows

I need 13",20",27". Length

+2

Window sash

I'm looking to replace this window sash. I am unable to find any sticker on the window to find make or model.

+1

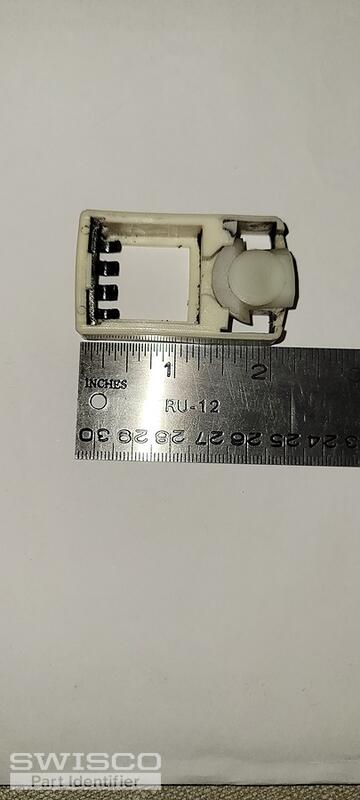

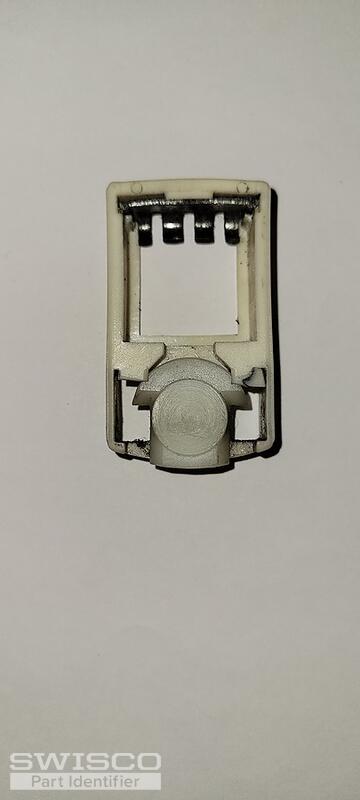

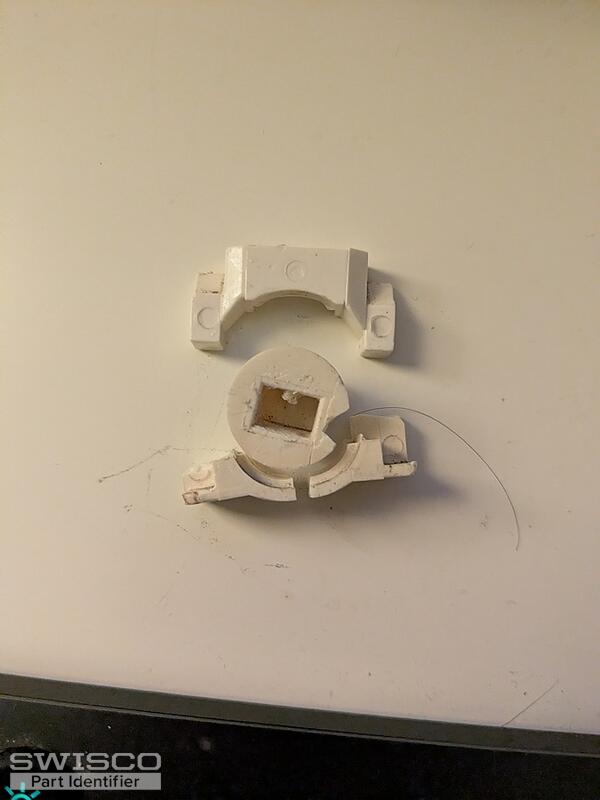

Pivot shoes I'm trying to replace

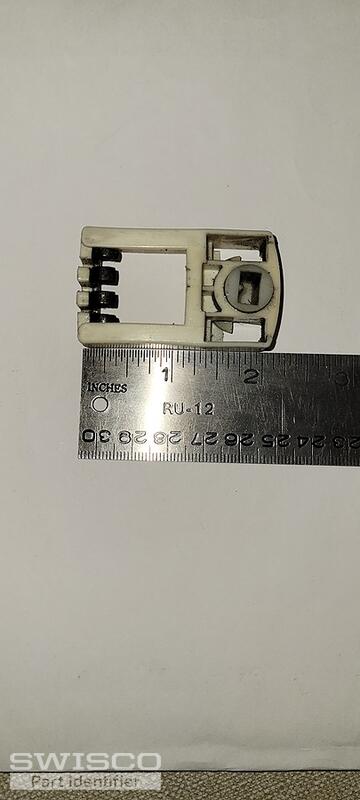

Attached are images of the pivot shoes I'm trying to replace for my spiral balance double hung windows. The old pivot shoe fragment measures 1.25 inches across. I'm not able to figure out what brand are my windows unfortunately.

+3

trying to identify spiral balances

the length is 28 7/8", lower window sash is 18 lbs, 3/8" diameter but the tube is white plastic and looks like the tip may be white and inside the tube when the spiral is closed. Looks white when fully extended. Can you help me identify what i need?

+1

Spiral balance tubes

Hi, my tilt windows in my sunroom were installed when the room was added in 1999. I didn't move in until 2016, and they have never opened/closedd easily. Some make a hideous, loud clicking noise when opening. I think I've determined that it is likely my spiral balancing tubes. I've determined tha ... (cont.)

simonton

hello im trying to fix 2 windows for a customer of mine. i beleive they are simonton. i need 4 spiral balancers, 4 shoes, 4 pivot bars. windows are 47x47 vinyl double hung insulated glass. parts are for the lower sash only for both windows.

I need new counter ballance

I need new counter ballances for this window. Can you identify the parts from this picture? I have pulled the windows out, so removing the part and taking more pictures would be easy too. Thanks John

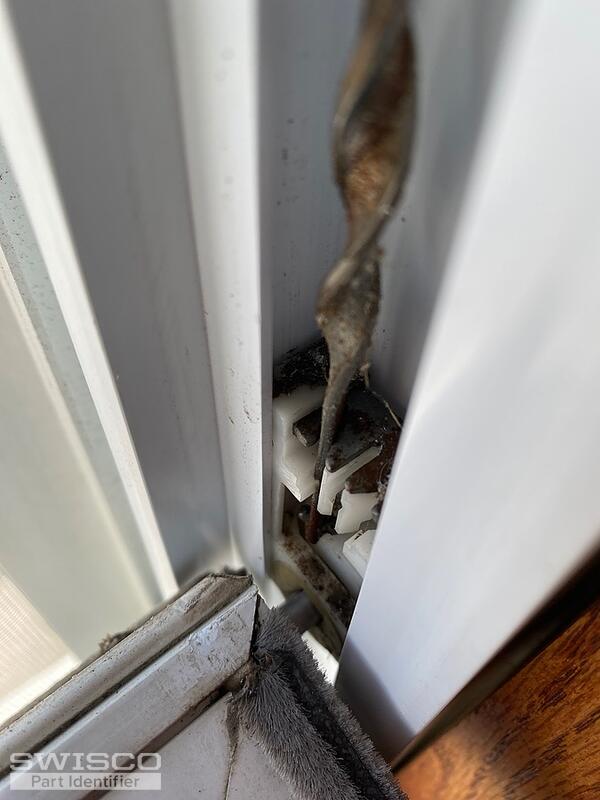

Window cannot stay open

Need help

+4
