Viewing all customer Discussions for:

15-178 Pivot Lock Shoe, Brown Brake Pad

This is the pivot foot on each side of each window. It is 2" tall x .75" wide. Not sure if these are even made anymore. These are for tilt windows. I can get better measurements by removing the shoe if needed. These windows are circa 2000 and the brand name is unknown.

I have a broken window shoe. Can you send me 2 replacement shoes? I've attached photos of the shoes and windows to help ensure that I get the correct part.

Here are my pictures. I will check if I have any other info or descriptions. Thanks, Adrian

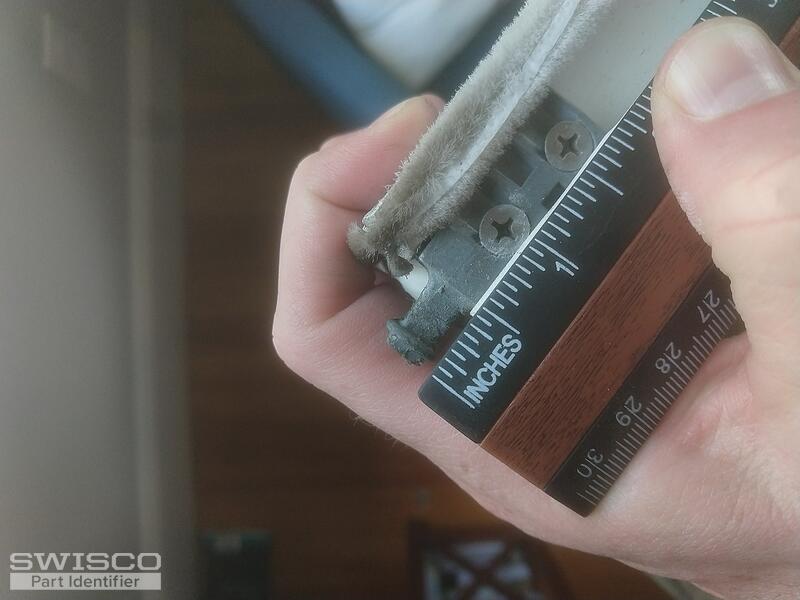

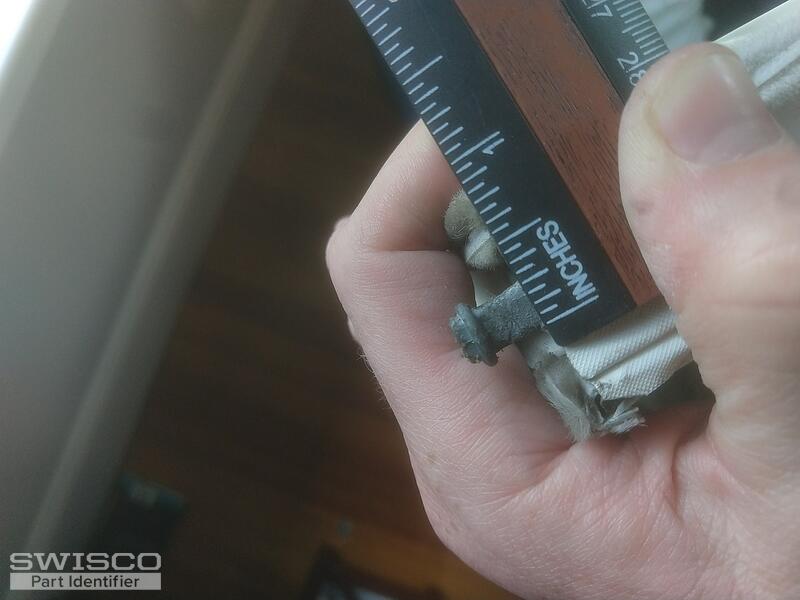

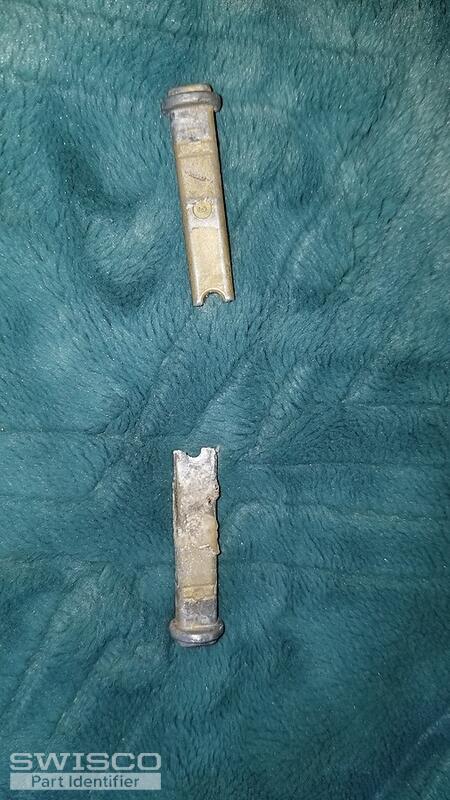

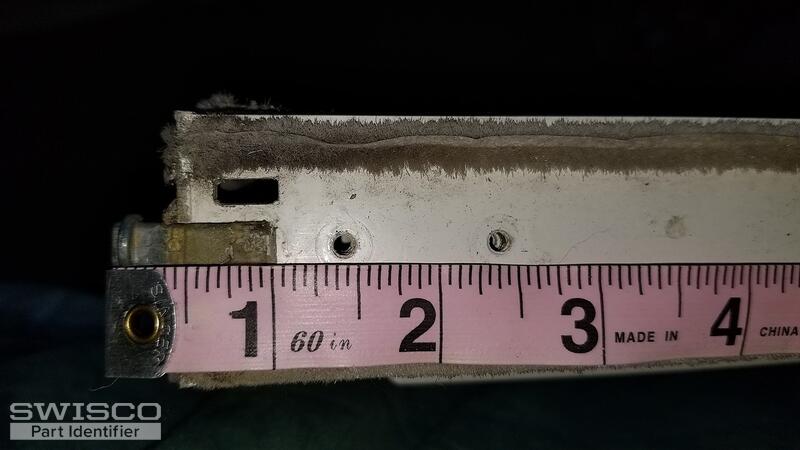

I placed an order yesterday for some pivot shoes 15-178 picture of current pivot shoe and pivot bar the dimensions of my original pivot shoes are the same as on ordered my concern if the new shoes will accept my original pivot bars pictures of original bar included. The pivot bar is 1/4 in wide. ... (cont.)

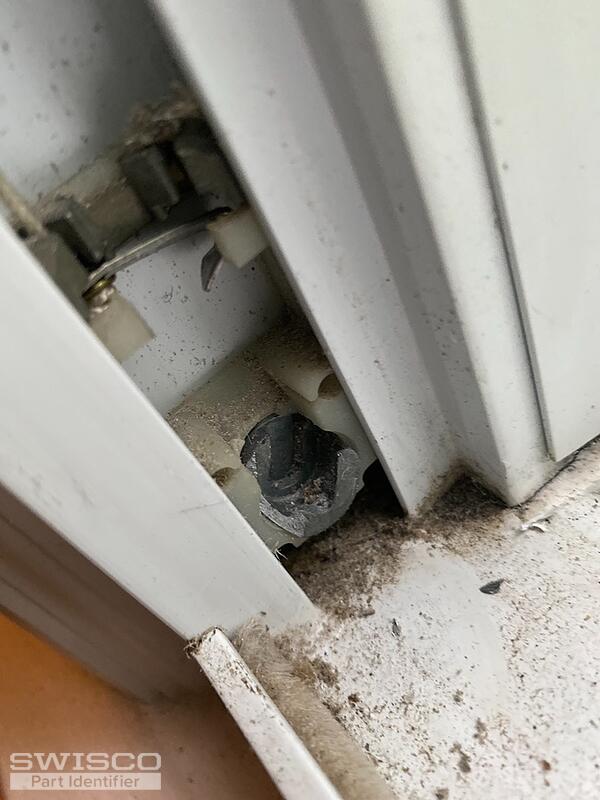

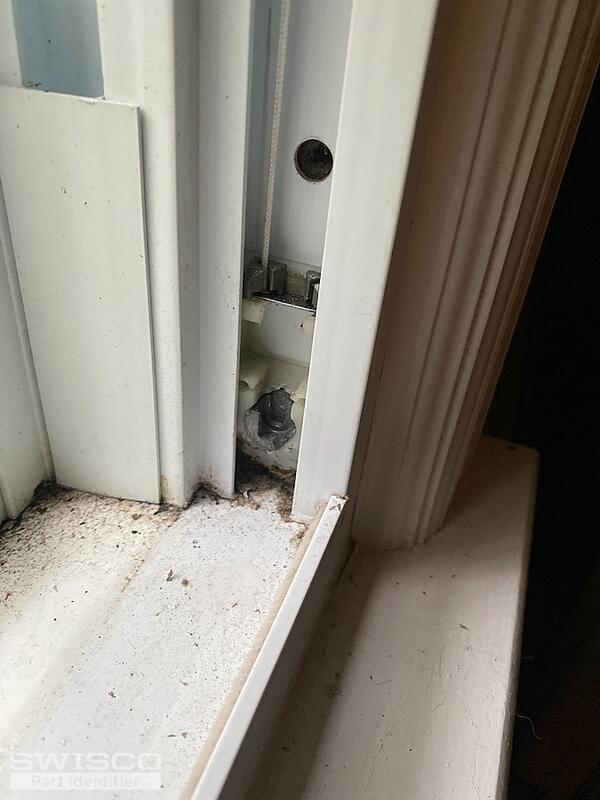

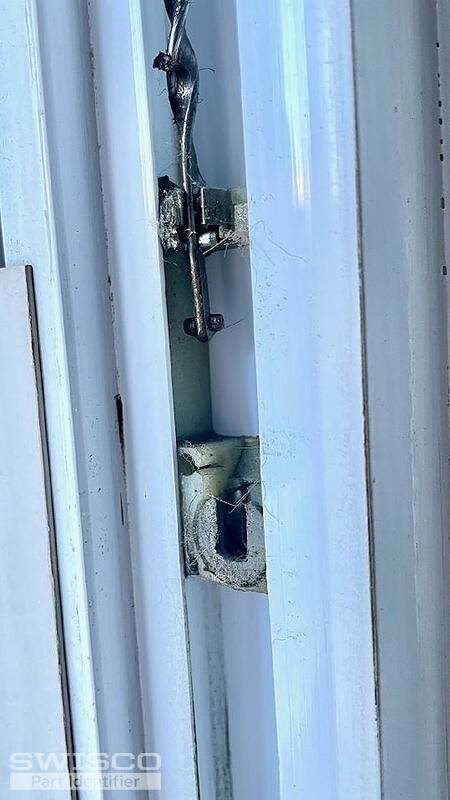

I have a window with both pivot points that are broken/shattered into multiple pieces. This is a picture from a sister window. The piece appears to be made out of metal that connects to the spiral ballast and holds/houses a pot metal pivot point. The pot metal is what broke.

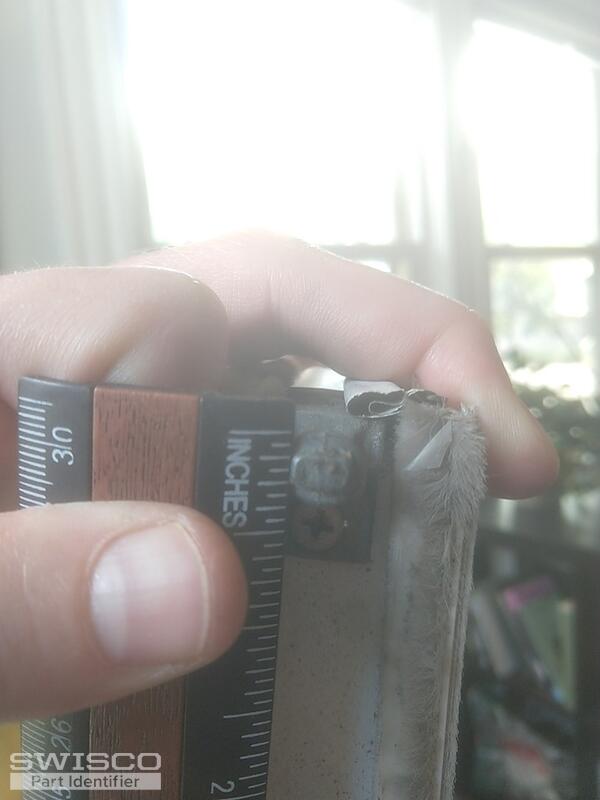

This shoe measures 2 x1/14 x 1/2. It has a heavy cord attached to it . I will attach a photo. Thank you .John

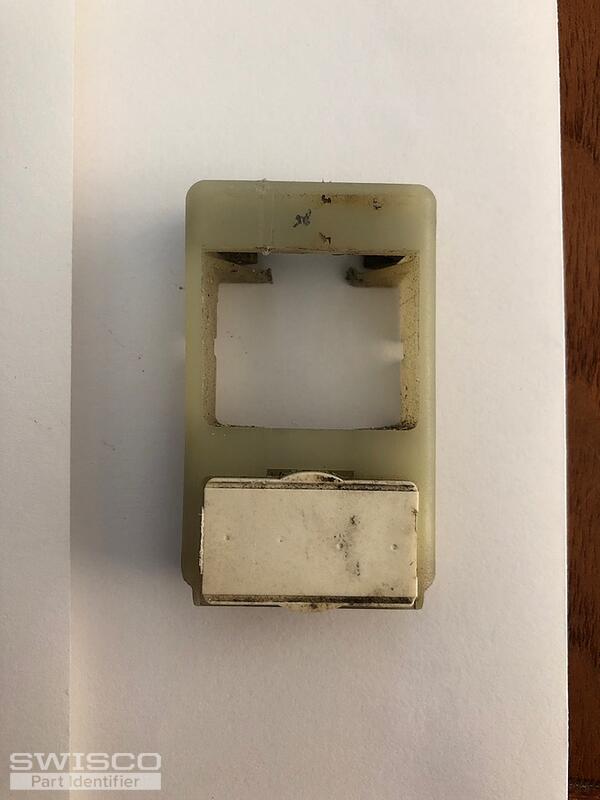

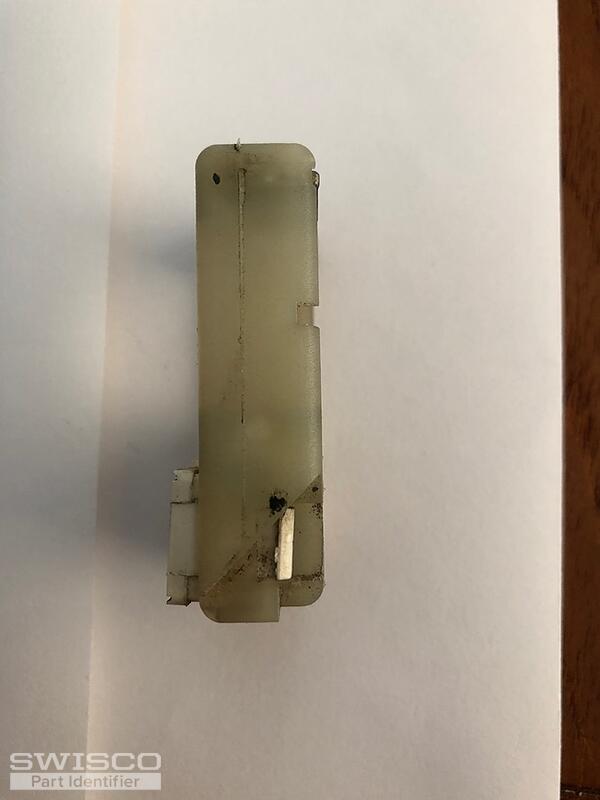

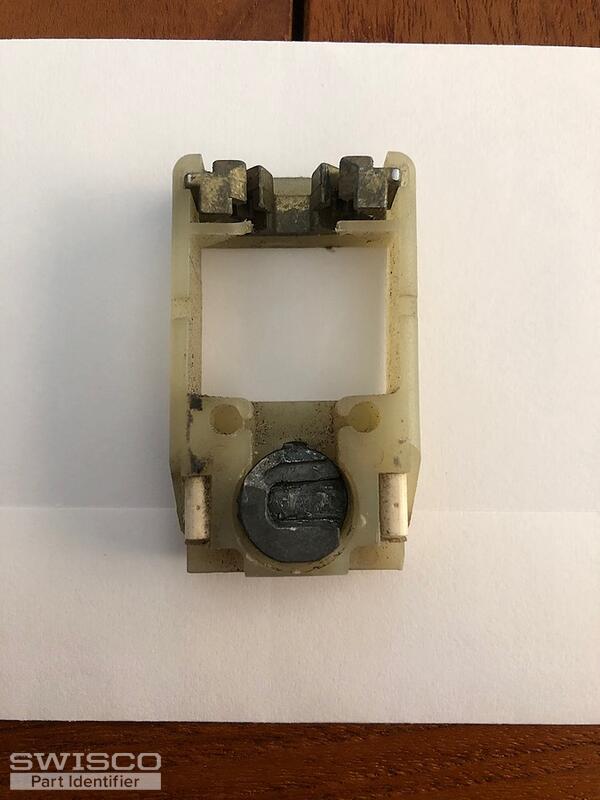

Here are photos of a broken pivot shoe and the part that goes into it. I would like to buy a replacement picot shoe.Thanks!

The top of this part is where the end of the spiral balance is hooker and the bottom of this part is where the window attaches.

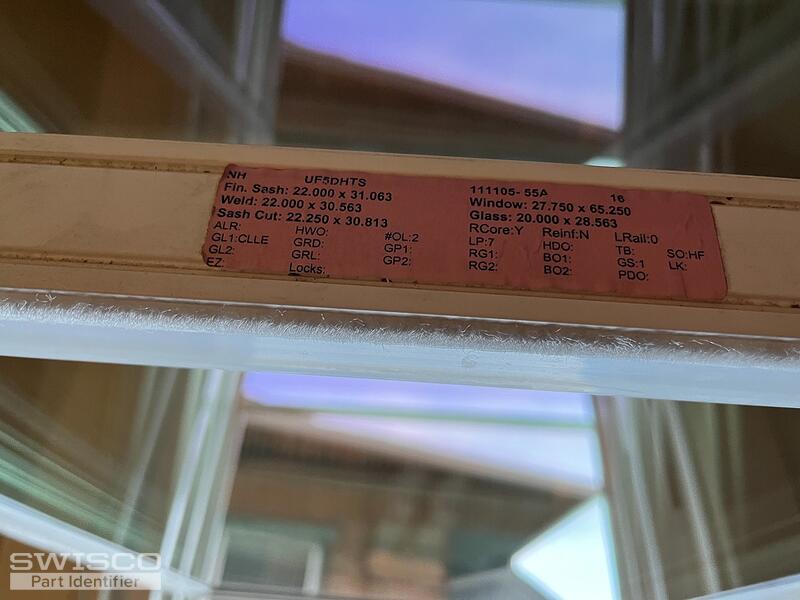

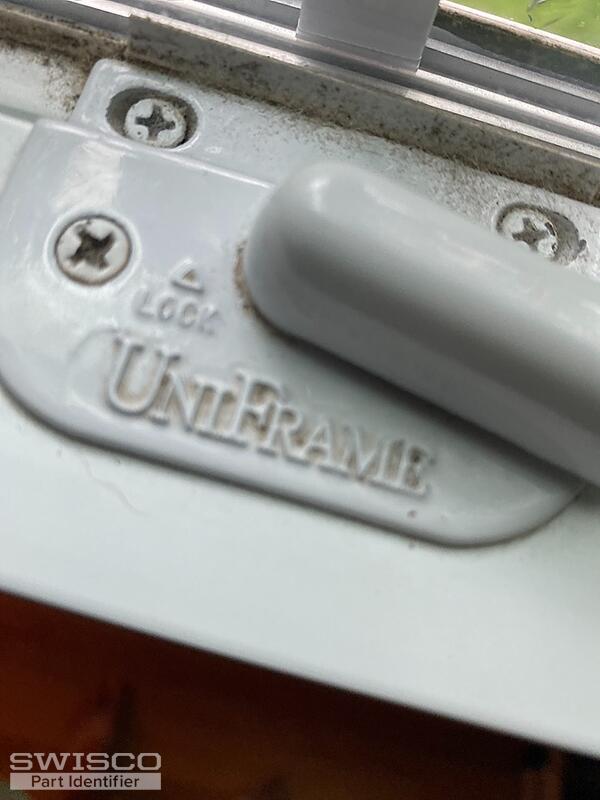

Sorry this is the only pic I have. This series is from around 96. MANUFACTURER STIPULATES CONFORMANCE TO NAME: SEASONSHIELD ANSI/AMA 101/1S.2-97 SPEC: H-R50 SERIES: 5100SH PVC #NCTL210-2299-3 ENTRY RESISTANT

Need help locating these parts on your web site

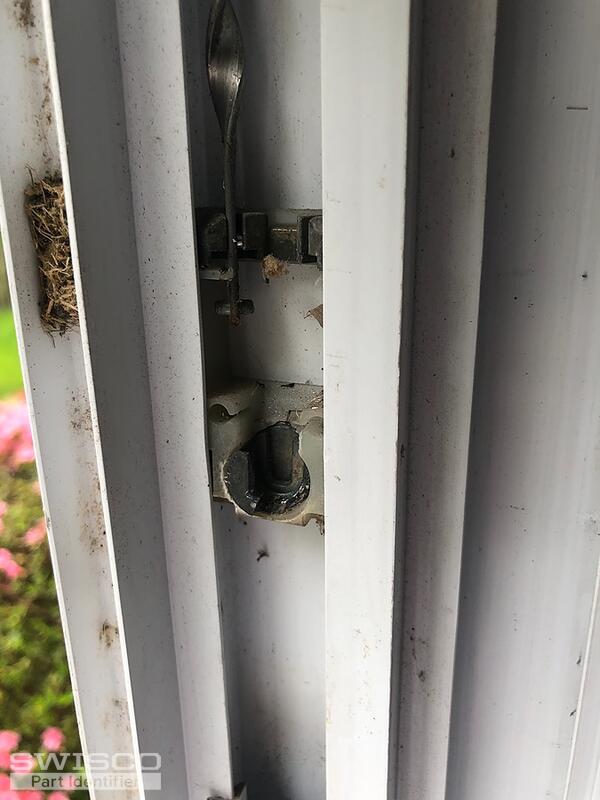

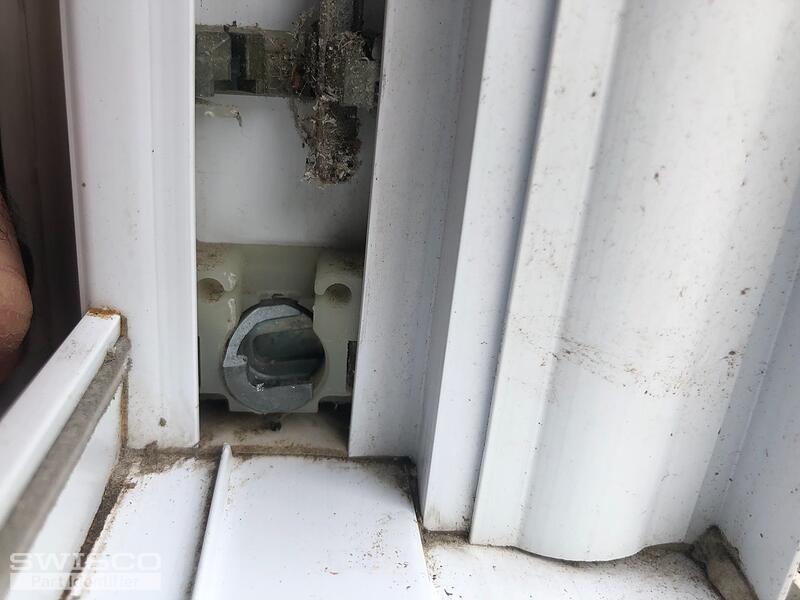

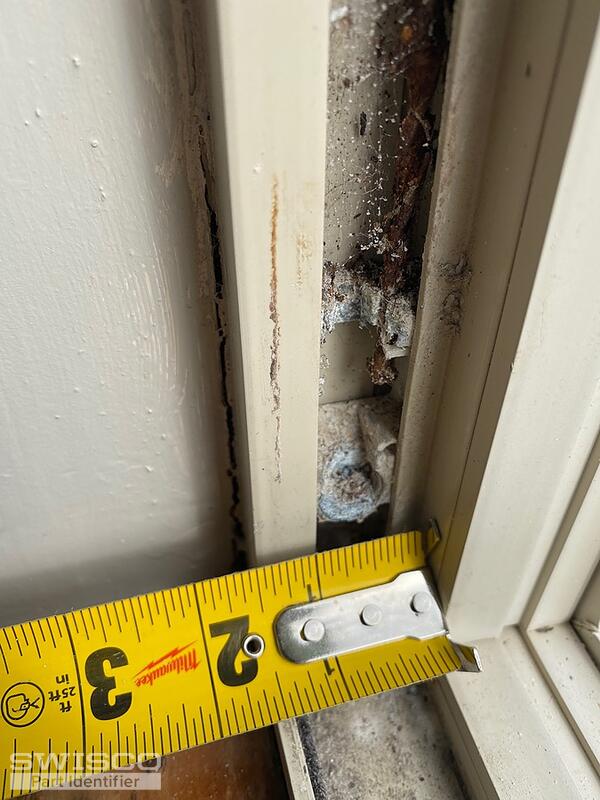

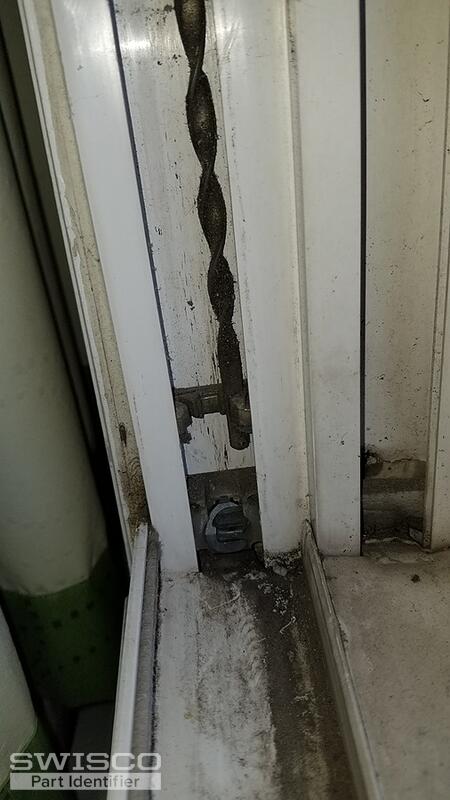

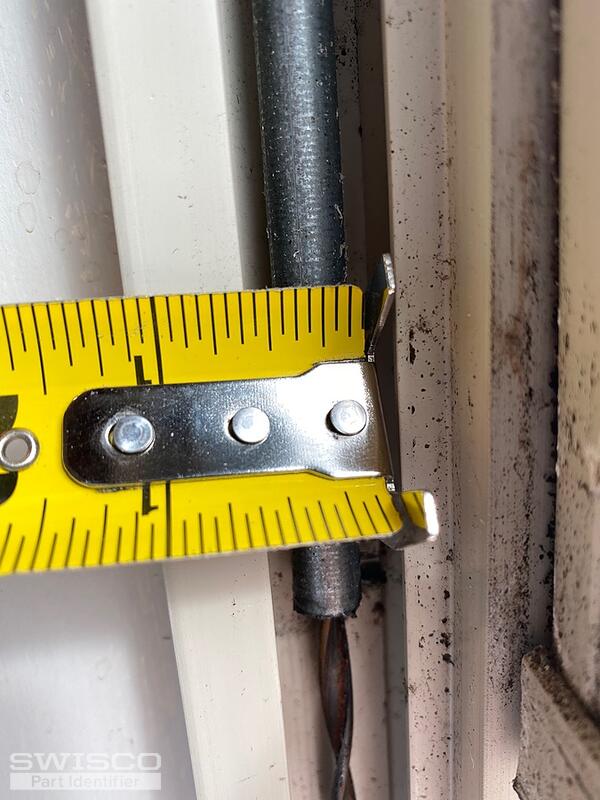

Hi. I am looking for a replacement pivot lock shoe for the spiral balances on my tilt window. The channel in which the shoe rides looks to be 1-1/4 inches wide and 9/16 inches dep. the windows were probably installed in the mid 1990's. I have been replacing the spiral balances in my windows and have ... (cont.)

Thickness 17/32" Width 1 1/4" pair with spiral tilt window balance Could you please find a replacement for me? Thanks.

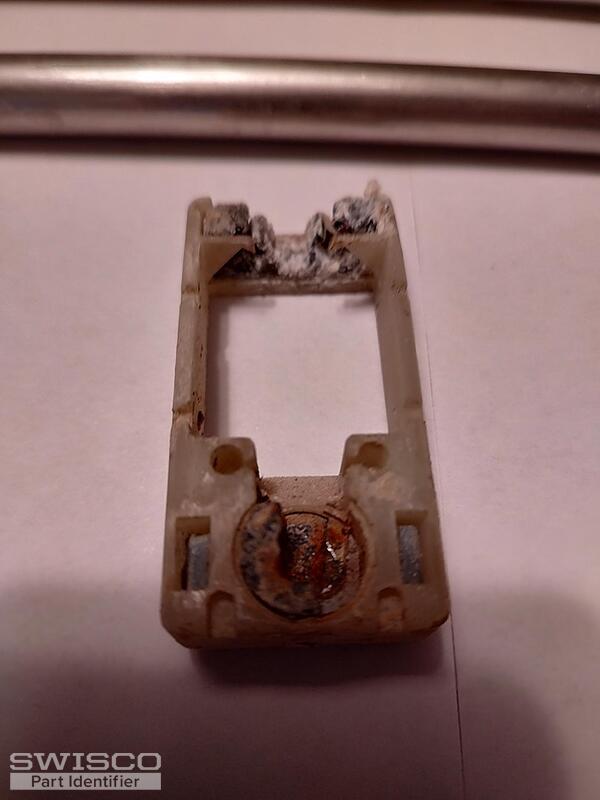

I have some broken window balance shoes. See attached photo. The metal part is broken that the window pin fits into. Do you have these parts? John

Trying to fix my windows..I need to find the right part. These windows installed in 2007. The shoe is 3/4 in high and 7/8 in wide.

This pivot shoe is out of some older Alside windows. The pivot cam is broken on a few of our windows. Measurements agree with your p/n 15-178 except for the thickness. Yours is 17/32" thick while mine measures 0.542 which is slightly thinner in thickness. Will the 15-178 pivot show work? You have a ... (cont.)

Hi, Could you help me with a part # for these? Measurements 1.25" x .536" x 2.12". Barrel has to accommodate slotted/circular frame pin ( see Pic). Thanks.

What pivot shoe matches the photo? I'm including pics of the interlocking cam that would slot into it. The pivot shoe measures 9/16 x 1-1/4 inches Thanks!

I was looking to match up these shoes. Thank youKen

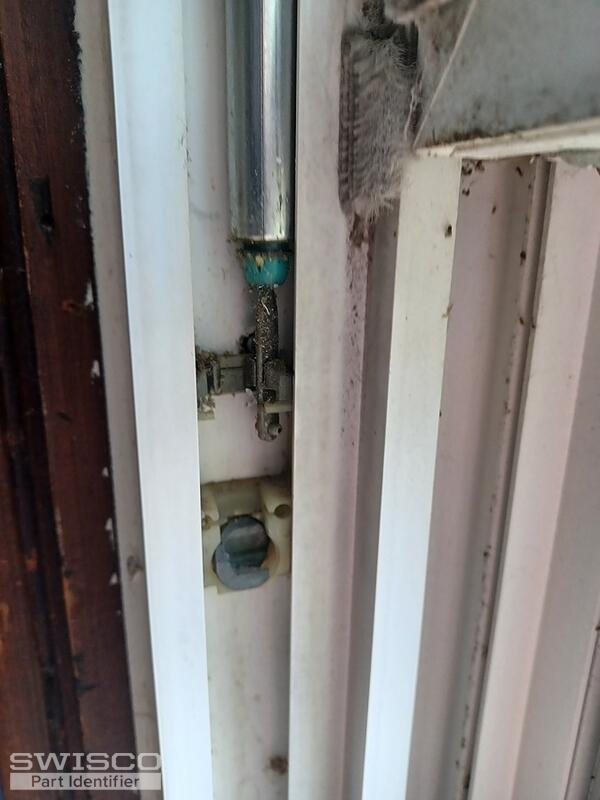

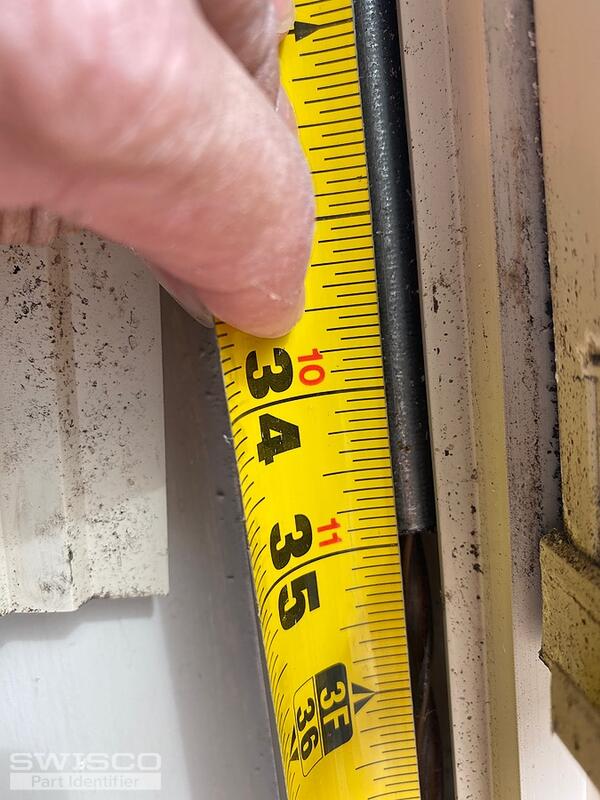

What I am looking for is 17 x 5/8 & 14 x 5/8 my tip looks orange but could by red. Also need the shoe/cam for both sashes, see above picture. Measures 9/16 or 5/8 thick 1 1/4 wide and 2 9/16 long. The sash pin area is open so that pin drops down into it. Would it be possible to use a different style ... (cont.)

Hello. I am looking for base shoes (or where the bottom pegs put the window into the frame). They are for Alside UltraMaxx windows from the mid 1990's. Do you guys carry the base shoes for these?
