Viewing all customer Discussions for:

S500-17 17" Series 500 Spiral Balance

Good morning, I am looking for non-tilt spiral balances in two sizes. One is 17" for a 5lb window, the other is 21" for an 8lb window. I am looking for the closest style of bracket to my original, as that is what my windows are calling for.

Pretty old windows I know its a 17"L 5/8"D Need top and bottom guides

I took this out of my kids' bathroom window. It is a small window that I expected to have a 3/8 balance in but found this instead. It is a 17" 5/8" Spiral Balance with a white tip. If you do not have any white tips, can a pair of red ones be used instead? Also, I have 22 windows. They are all Mayfa ... (cont.)

1/2 inch 17 inches end looks white

can you help me identify these parts

these are pretty old, the tube was plastic which cracked as removed them the tips seem tp be white, the sashes are wooden and non - tilt

Trying to locate a spiral balance for a up and down sliding keller aluminum type window. 17 inches in length. Diameter is about 9/16th (I see 5/8th inch online so maybe it should be counted as that 1/16th larger size). Has the bottom portion that serves as an anchor that is screwed to the bottom ... (cont.)

It is 9/16" wide by 17" tube with a 3" mounting strap. The window weighs about 9#s. The photo is on a scale in case I missed a measurement. This window is closed in the up position, but I dont believe that matters to the balance, but I don't know for sure. I'll need 2 of them to finish my project. T ... (cont.)

Request assistance identifying suitable replacement parts for pictured spiral balance, bottom sash guide, and top sash guide. Thank you in advance.

Need to replace the balance on a non tilt window. The existing balance is 17 inches and 5/8's diameter. Please advise the appropriate replacement. Thank you.

?Hello, I am interested in retrofitting the lower sashes of the double hung windows in a seasonal cottage with spiral balances. The windows include two sizes, the lower sash on one is 17 1/2" tall, with 14" tall glass and weighs 3.5 lbs, while the second size is 27 3/4" tall, with 24" glass height a ... (cont.)

It has a white tip. It is 5/8 and 17" long. The main question I have is I do not know what series I have. Also, I don't know the weight of my windowAlso the coil extends past the metal shaft by about 1 and a quarter. Don't know if that matters

I think this is called the bottom shoe? It's attached to the bottom of the spiral balance and slides up into the channel at the bottom of my window. If you have it, I'been looking right past it. I am led to believe these are capital aluminum windows but I can't be certain.Please advise,Jim ... (cont.)

Can you recommend a replacement balance for my windows please. Thanks. Early

sent 3 pictures but will send more in a separate email. lifter/ balancer/lifter 17" X 1/2" round. 1 is red tip 1 is blue? Spiral mechanized. note small snap in aluminum block appears to hold base of shown lifter against bottom of window, maybe to eliminate inserting a screw?? Question do I need t ... (cont.)

DO YOU HAVE THIS?

looks like i need 17 inch 500 series balancer but the one i removed has a white tip not blue or red

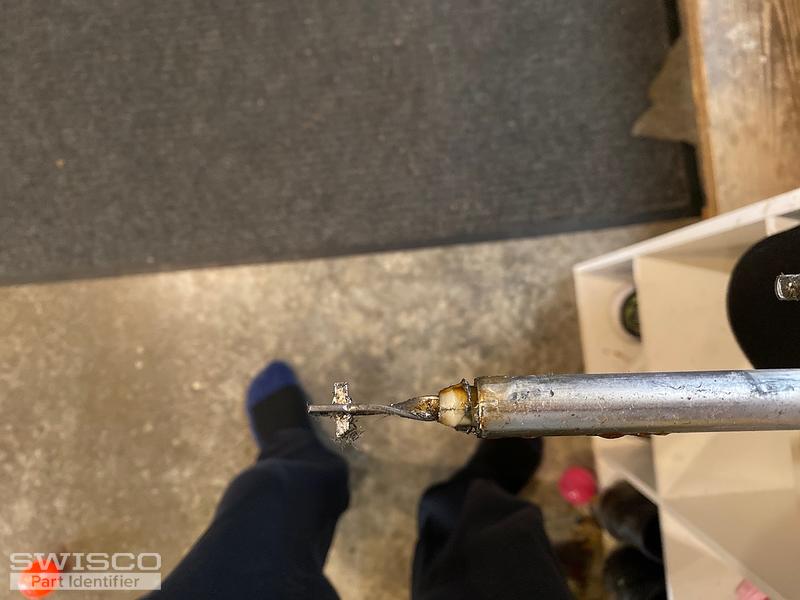

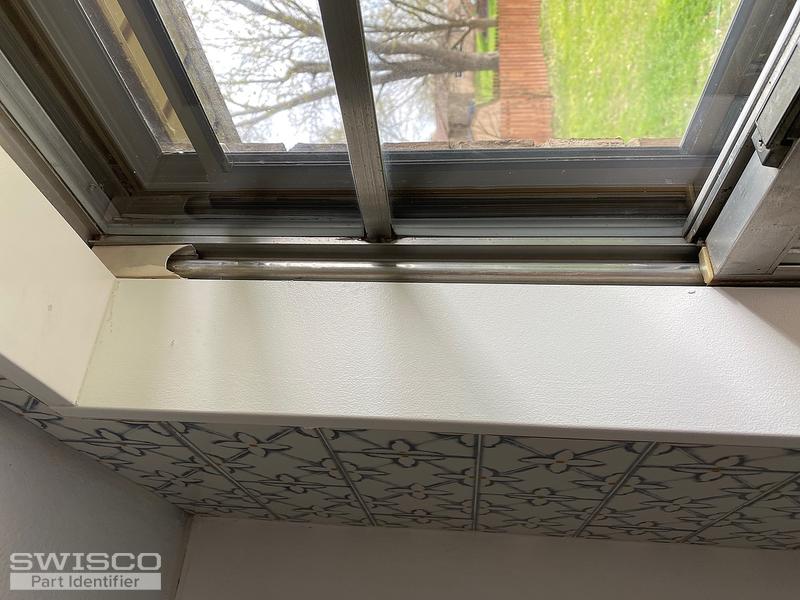

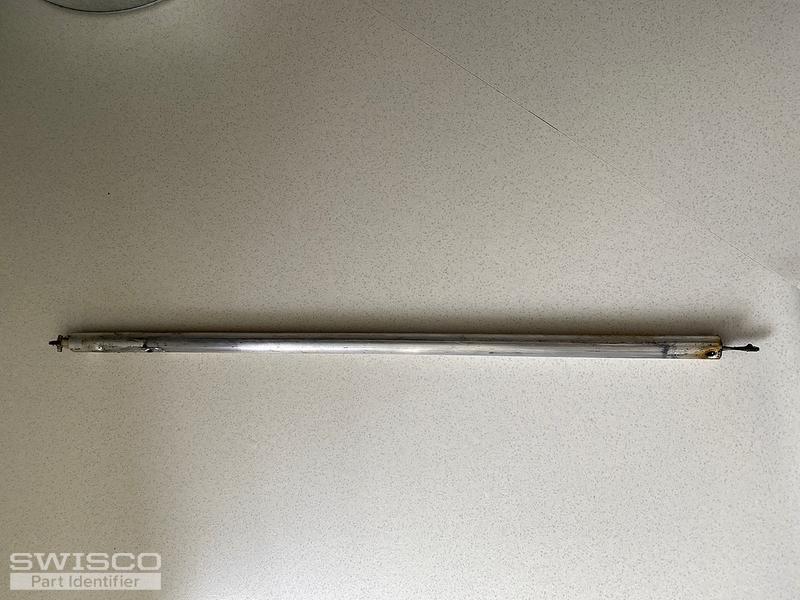

Hello, please see the attached images for spiral window balance 17" non-tilt replacement. Image 0035 is the best shot I could get of one still installed. Image 0038 is from one uninstalled. Image 0861 is top and bottom of uninstalled, and 0863 is width, but I think there is plenty of room f ... (cont.)

House is in south Texas, built early 60's. Windows are aluminum, single-hung non-removable sash.

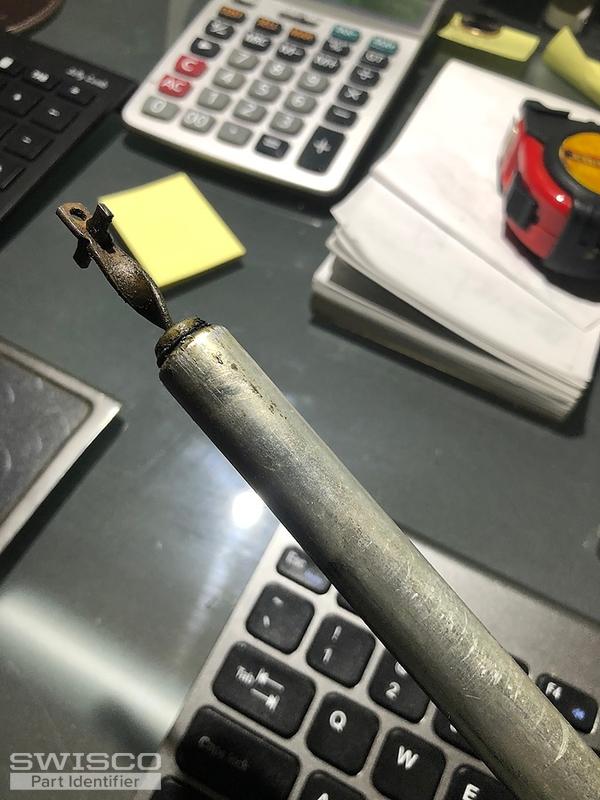

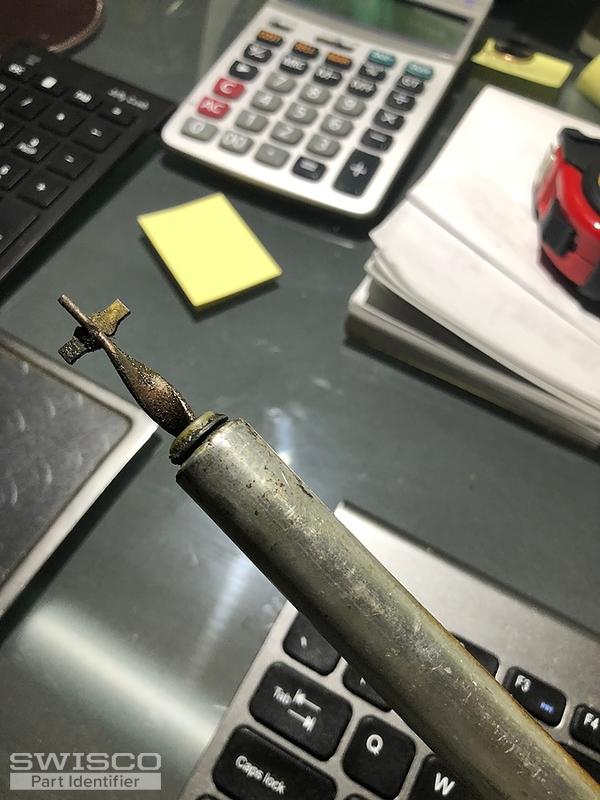

I am preparing to replace the spiral window balances for a window, but I can't determine the correct color to request. The existing balances are probably over 50 years old, and have an unfinished metal tip, instead of a colored tip. The window is a bathroom window, about 17" tall by 28" wide. There ... (cont.)
