Viewing all customer Discussions for:

16-024 Mounting Bracket

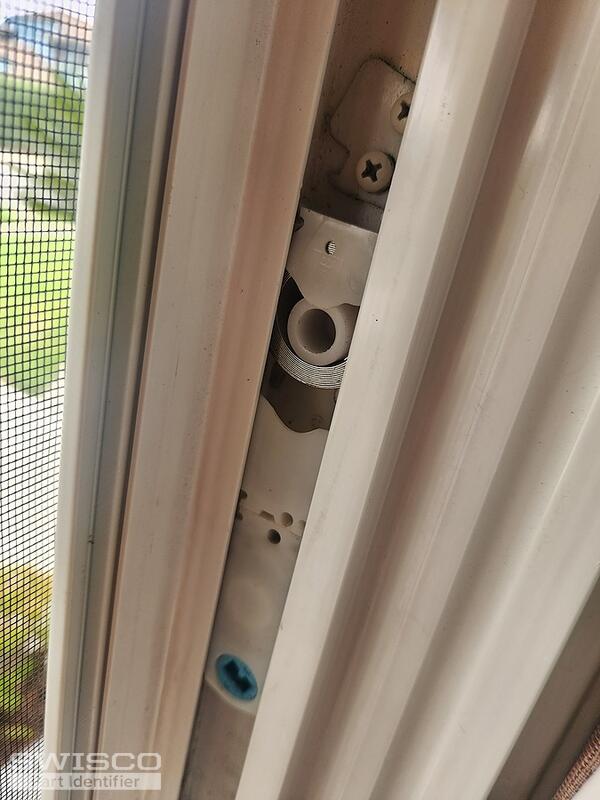

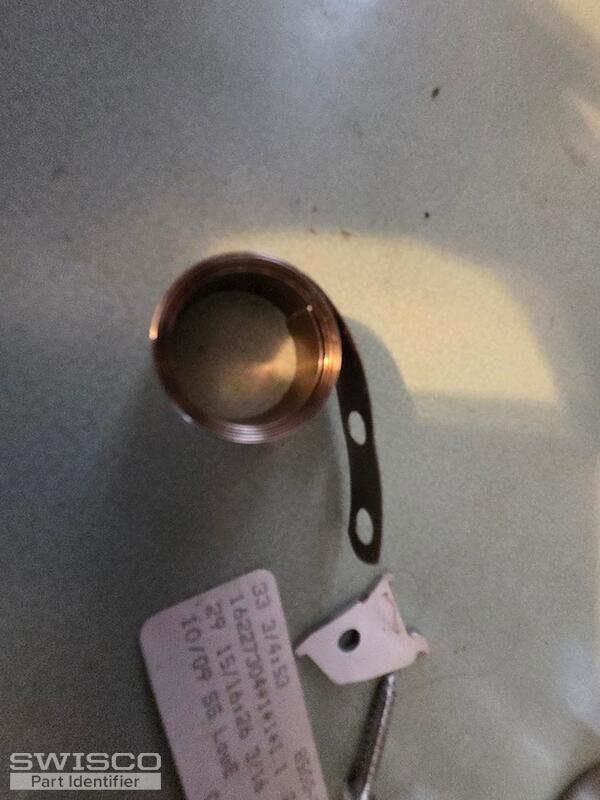

One of my window sashes doesn't stay in place and keeps sliding down. These windows were replaced before I got the place and have no markings for the manufacturer or the coil mechanism. Attached are pictures from the broken coil spring (both sides are broken and the coil is out). I've attached a pic ... (cont.)

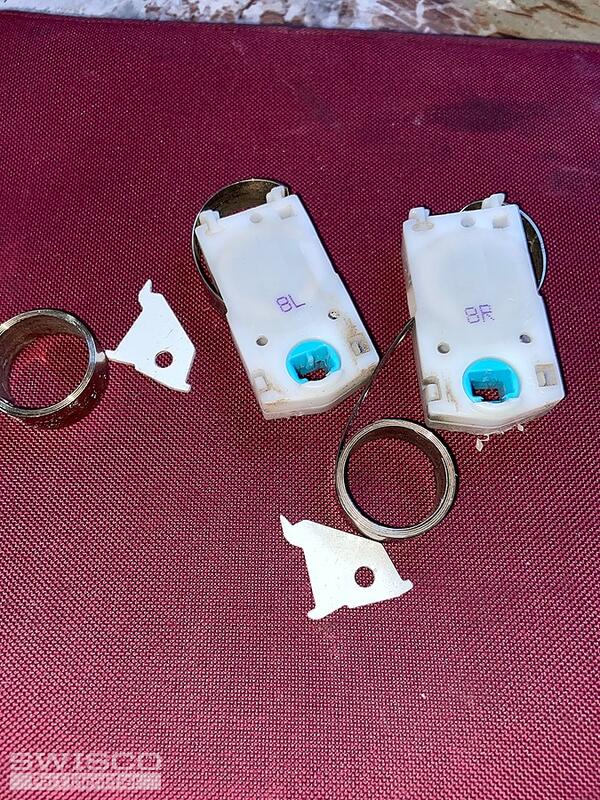

Hello, Can you please help me identify the correct replacement for what looks like a tanden balance (shown in photo). The broken coils are marked "4FC" and "5FC" (shown in photo). The coils are 15/32" wide. Can I replace this with one Series 161 9 lb single spring on each side, or do I need to re ... (cont.)

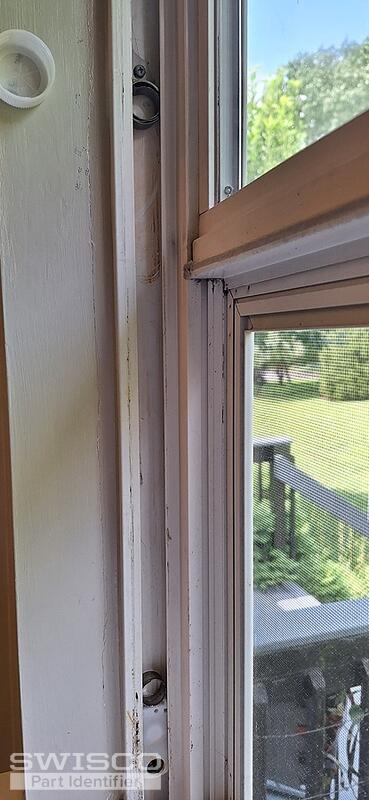

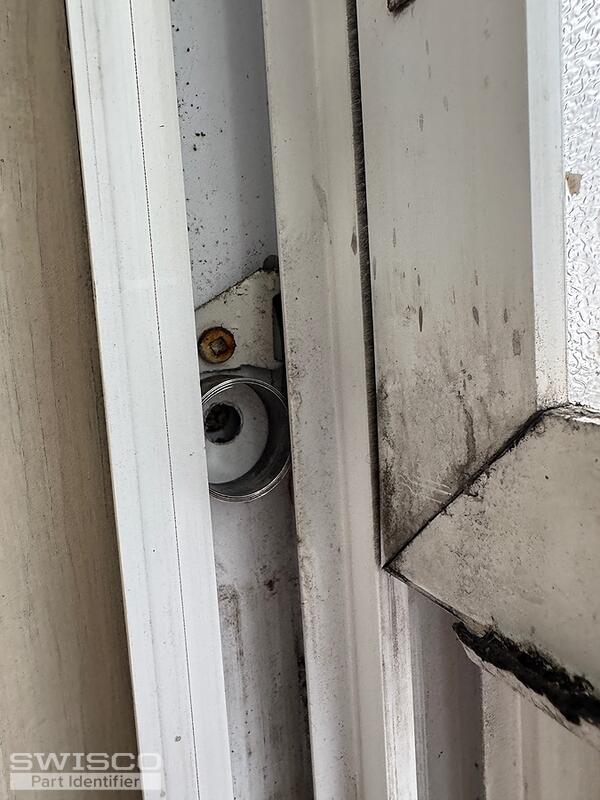

Hi.. I have double hung windows and was opening to clean. I can not get it back in correctly and I do not see that circle silver piece in the picture exposed in the other window that is its neighbor. I wanted to see if I can replace both of those parts in the photo. All I know is that it is Anderson ... (cont.)

I was told this was a ipex series jeldwen I need both sides for coil balances also tilt latch sliders

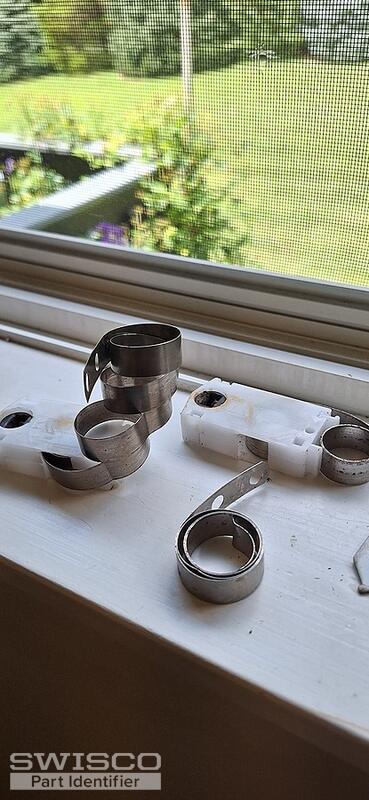

Hi, I need help figuring out what parts I need to replace the coil balance in my window. The whole thing is completely broken and I'm not sure what parts I need. Thank you.

Hi, not sure which parts these are or how to replace. Can you help me identify full replacement parts? Thank you!

Hi there. I have some vinyl windows in my home of unknown origin. The one in the bathroom decided to come crashing down. Both balances are broken. There are no markings on them and i have no clue how to remove them or measure them for the correct one . Can you help ?

hello I'm looking to find replacement parts if available. Thanks.

It has .5 stamped on it. It fell and cracked so you see a whole in the side. It wasn't there originally.It's double hung window in the bathroom. It's about 10 to 15 years old. Thank you.

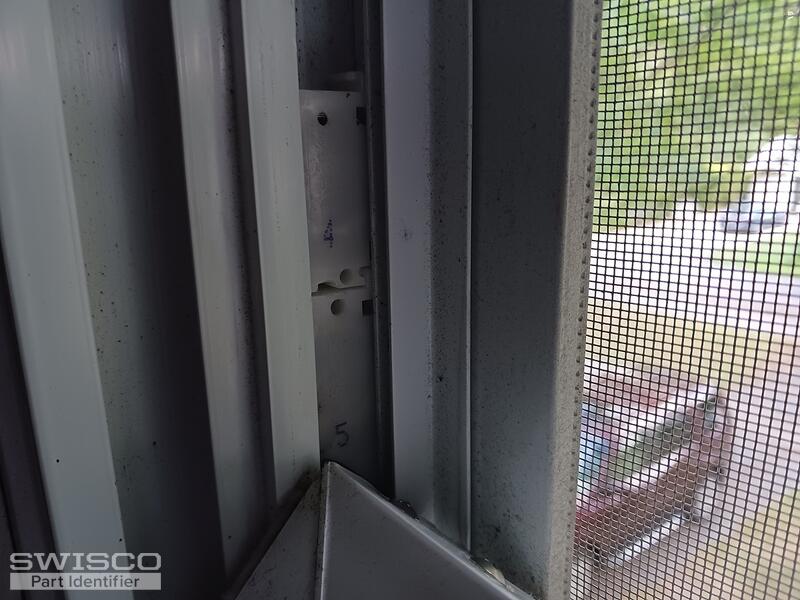

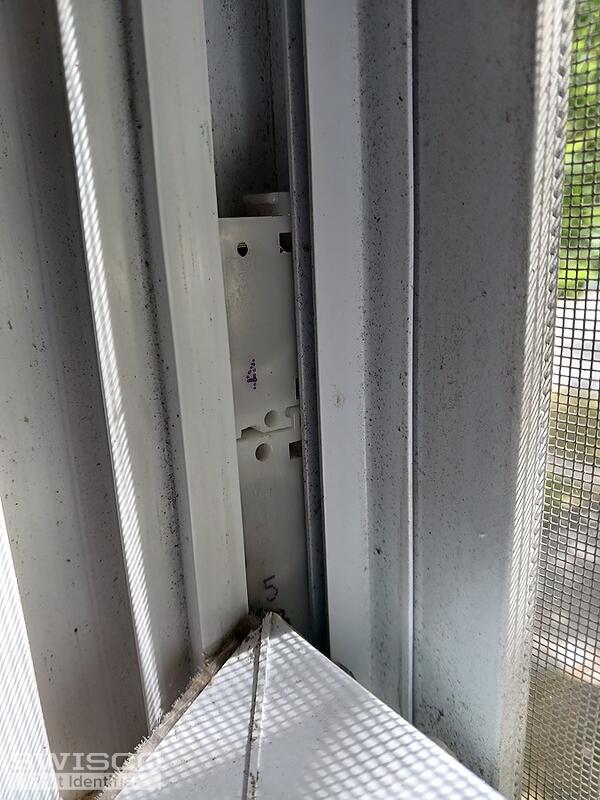

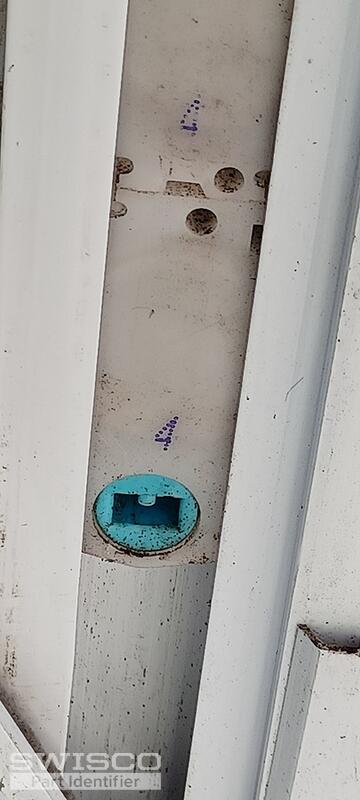

All I see is a #4 on these plastic pcs.

Hi Do you have one set of these balances available?

Double hung windows

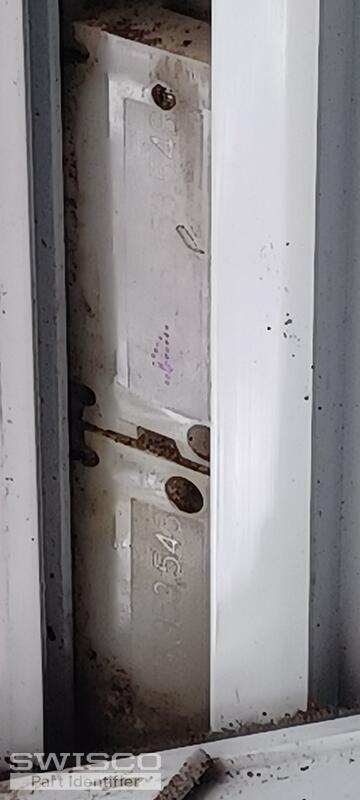

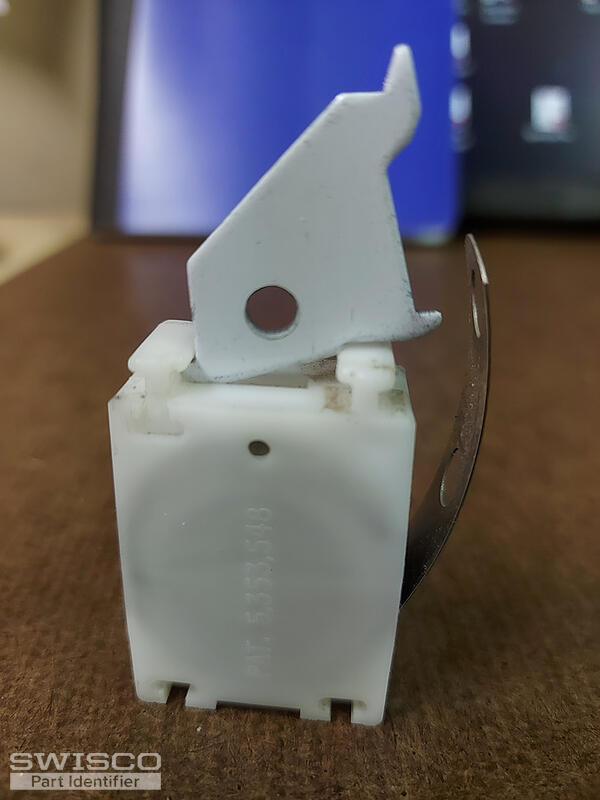

Need part id for this. Has pat# 5.353.548. Approx 4" tall 1" wide. Tension seems to work ok, but upper housing broken. Also I don't see cut out to remove. Is housing simple to replace with that coil spring tension. A video reference would be appreciated. This window is traco series tr4200 dh ... (cont.)

Need new pivot shoes for American Craftsman 8500 windows that were purchased 10/25/2012 from Home Depot.

Good Afternoon, I ordered 15-087, 15-086, 16-024, 26-089, and S180 Coils with 33-072 Screw. Are there full installation instructions on how to get both Coils and parts in the jamb? Is ther a trick to getting both Coils on the Bracket? Thank you very much!

Hi I have an American Craftsman window with a lower sash that has broken/missing coil springs and housing. The attached picture is from another different sized window but has the same housing except the number is different. The number printed on the housing of the one I need is "00". I can't read th ... (cont.)

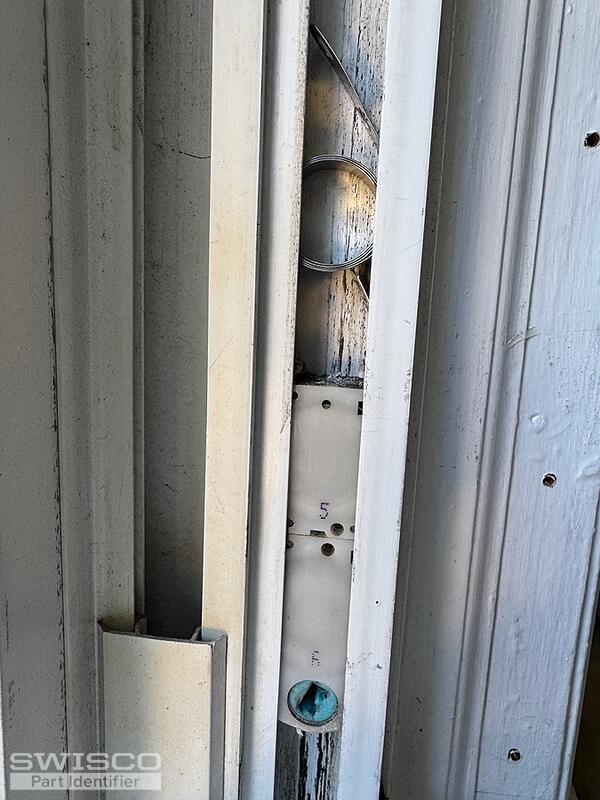

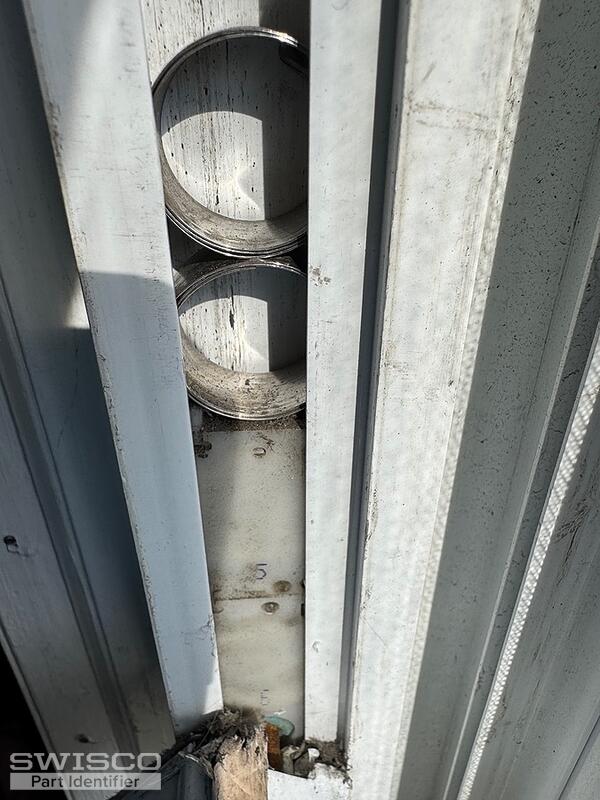

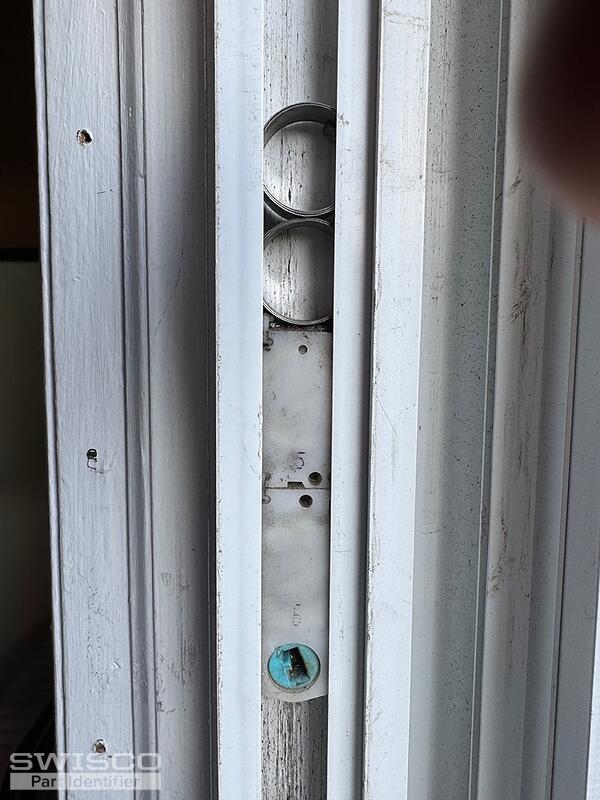

There is a hook where two spring is attached and is under constant tension . The number on these two balance is 6 and 5 on each side of window. Can you send some instructions videos on how to remove and install new complete balances. I need to order asap. Thank you I had previously inquire sbout ... (cont.)

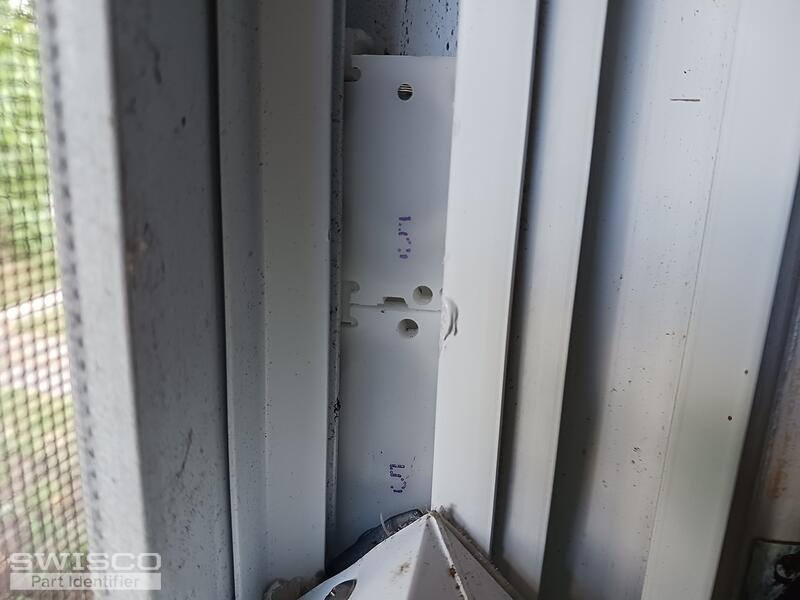

I do not see a part # but I found a couple #'s on the broken springs. One shows a 5 the other shows a 6. I am looking for the entire part including the housing and tilt mechanism. Thanx for this site!

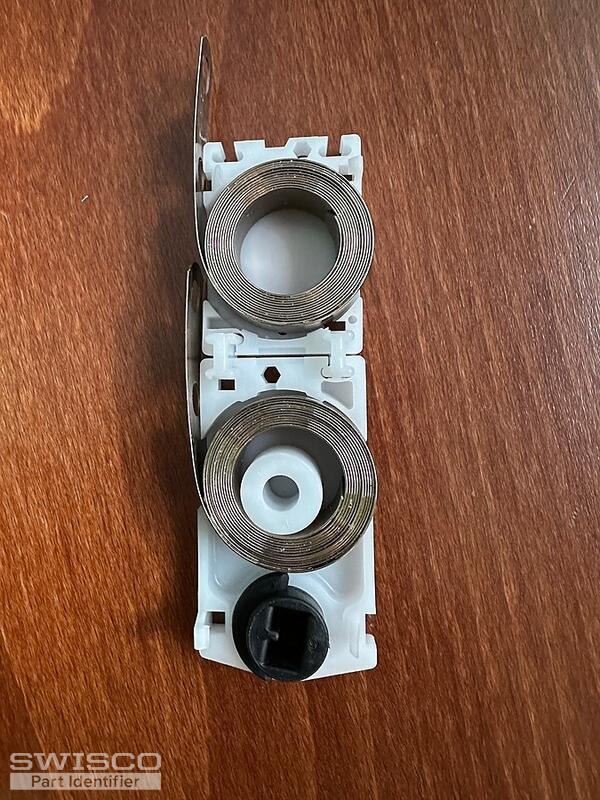

I ordered Coil housing pivot, tandem coil housing and two new coils. My question is how to align up both coils (since one is stacked above the other) so that both of the hols in the coils can be secured in the frame via those holes. The top coil does not need stretched but I need to pull tension on ... (cont.)

I have a window where both coil balances assemblies are broken. One of the mounting brackets are missing and both tilt latches are not functional. The only number I see on the removable coil is JD8 and see PAT 5,353,548.
