Viewing all customer Discussions for:

15-087 Coil Housing Pivot

Customer states "Schulco"? Windows..looks like I may need to replace the pins in the window no longer slotted as these are? Thanks, Steve

Hello! I have a window that will not stay up (the tilt late is broken on both sides). On the left-side, the tilt latch is broken, and the window frame is missing some sort of object/part that would "catch" the triangular-shaped late piece within the window frame. On the right-side, you will see that ... (cont.)

Broken won't stay up. Please recommend actions and parts! Thanks Ken

Hello here is a photo of one of the two constant force springs that i need (left and right) the bottom window weight is 17.5 LBS the numbers on the springs are 5.15x and 4.16x i hope this can help in identifying the correct parts Thank You Marc,

Hi, I am looking for the following items. The windows are over 15 years old and there are no brand markings on them so I am assuming these are custom windows. The coils have broken and the only markings that are visible are 7A (see attachedphotosforreference). The coils are attached to the pivot sho ... (cont.)

The coil on our track window has snapped. Need a replacement and instructions on how to fix it! Help!

Hello Swisco Technical Support: I have a Cascade Design (CDI) single hung window with a broken coil housing pivot. It appears to have the number "6" imprinted on the spring so I assume its rated for 6 lbs. The sash weighs about 17 lbs. The springs appear to be in good shape, but should I order new c ... (cont.)

Hi - thanks in advance for any help. I think this is the part number but I have attached my pic.Darryl

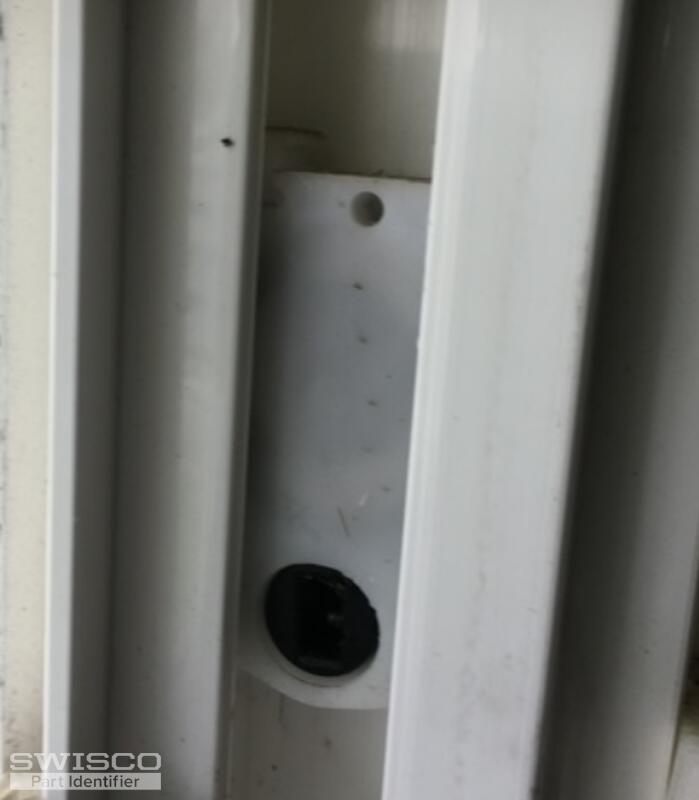

From the picture are you able to identify the balancer?

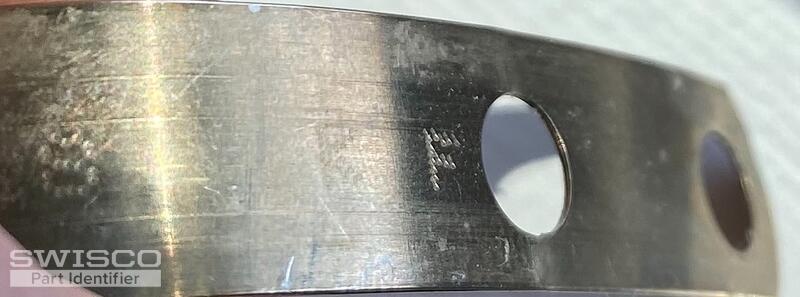

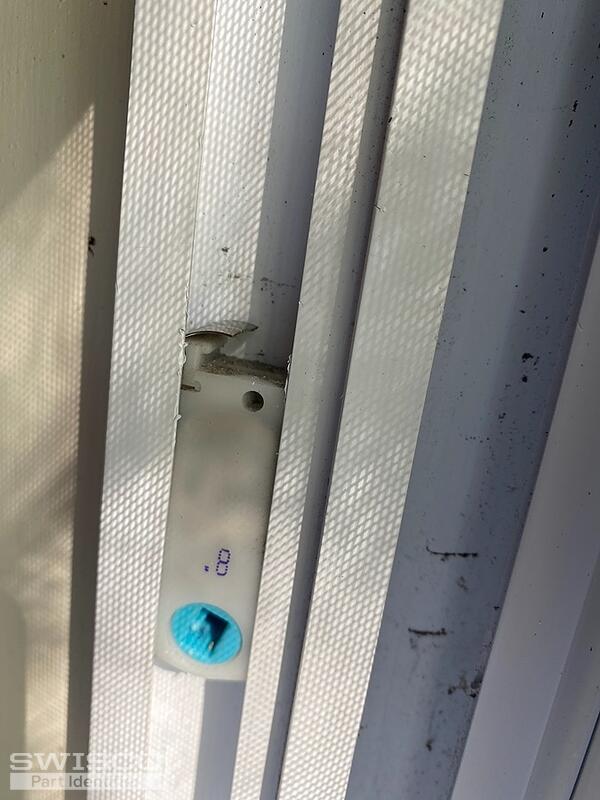

I'm trying to determine the correct coil weight to order. The stamp on the coil appears to say "8KF" or "SKF" (see photo) and the coil housing pivot says ".8" (see other photo). I weighed the sash and it is 14 lbs, but want to make sure the coil weight matches the coil I'm replacing. I have ID'd ... (cont.)

Need to replace the coil spring on my window. The cam is Tee shaped, which I am finding hard to find.

Hi there. One of my windows is not working and it is in photos 2,3,4and 5. Other normal windows are shown in photo 1. I think I need "tandem coil housing " for both sides , my questions: 1. Do your "tandem coil housings " with product code 15-086 fit this window? Or what of your parts that fits this ... (cont.)

Hello,This is an American Craftsman brand double hung window. The sash balance for the lower sash on the right side (viewed from indoors) has broken. Can you identify the correct replacement for me? Is it advisable to change them in pairs?Thanks,Bob

Hi, I have Cardinal series 8501 windows in my home and the coil balances on one of the windows are broken. I attached images that will hopefully help determine what replacement coils are needed for my window. If you need any more details, please let me know. Thanks, Jeff

Need constant force spring balance for 40"wx26"h Window sash

I need pivot bars for Jeldwin windows as shown above and also need pivot bars for Jeldwin Windows 15-087. 15 each

looks like I have a 15-087 coil pivot. I need the coil but will the series 161 housing and coil work with the pivot pin that fits 15-087 with the u type slot? Thought I'd ask

Looking for parts to fix broken spring assembly and sliding assembly as shown in pictures

Not sure how good picture is but you can see items that need replacing.... basically all parts for the balance. The number on what I think is the shoe is #6. Please let me know what I need to order! Thanks, Bill

Looking for the balance for my Gorrell 5300 series window. Thanks, Scott
