Viewing all customer Discussions for:

15-087 Coil Housing Pivot

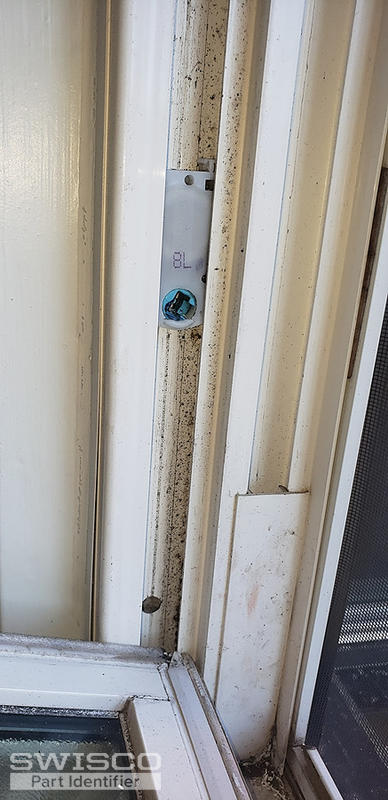

Hello,This is an American Craftsman brand double hung window. The sash balance for the lower sash on the right side (viewed from indoors) has broken. Can you identify the correct replacement for me? Is it advisable to change them in pairs?Thanks,Bob

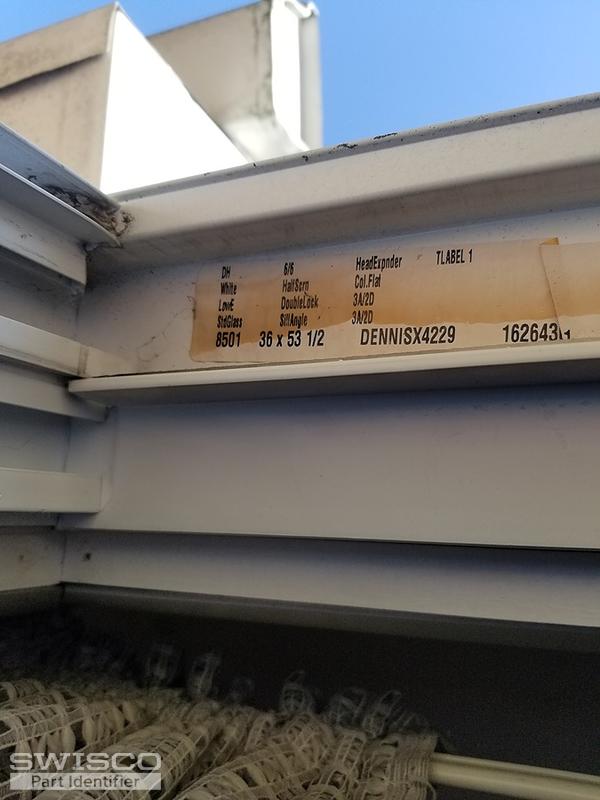

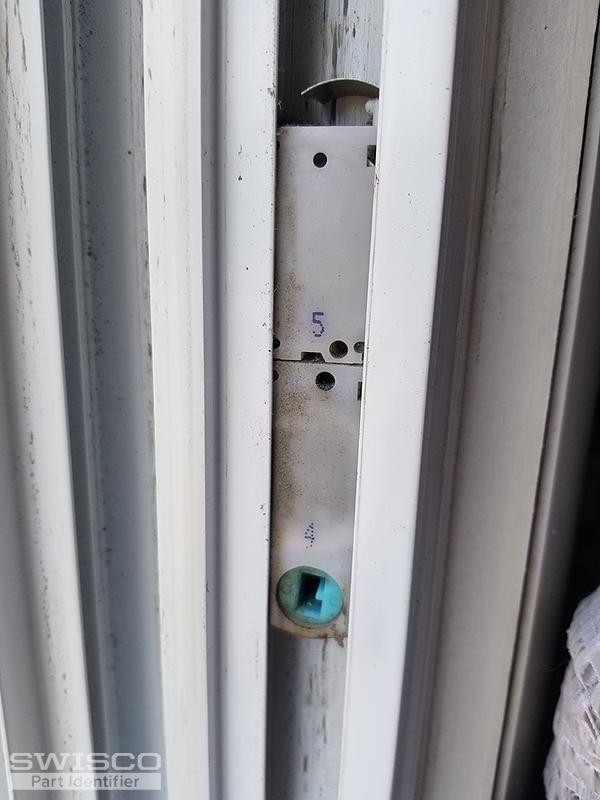

Hi, I have Cardinal series 8501 windows in my home and the coil balances on one of the windows are broken. I attached images that will hopefully help determine what replacement coils are needed for my window. If you need any more details, please let me know. Thanks, Jeff

Need constant force spring balance for 40"wx26"h Window sash

I need pivot bars for Jeldwin windows as shown above and also need pivot bars for Jeldwin Windows 15-087. 15 each

looks like I have a 15-087 coil pivot. I need the coil but will the series 161 housing and coil work with the pivot pin that fits 15-087 with the u type slot? Thought I'd ask

Looking for parts to fix broken spring assembly and sliding assembly as shown in pictures

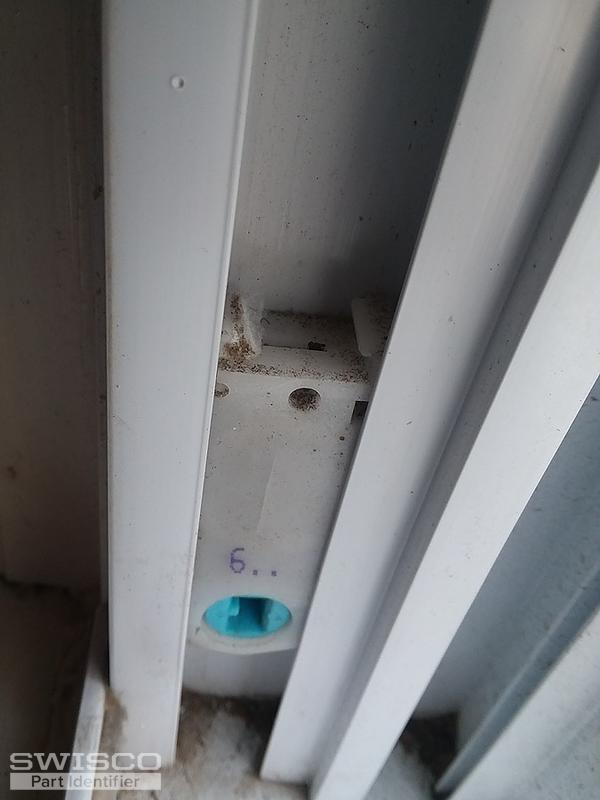

Not sure how good picture is but you can see items that need replacing.... basically all parts for the balance. The number on what I think is the shoe is #6. Please let me know what I need to order! Thanks, Bill

Looking for the balance for my Gorrell 5300 series window. Thanks, Scott

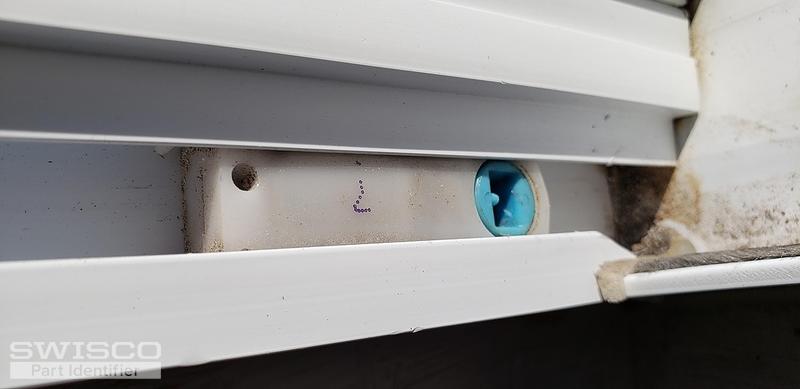

Looking to identify and purchased coil balance for double hung window. Thank you. Dave

Hi! We have been working on our Gorrell windows to replace the pivot pins as well as add back perished seal. As we go around doing so, we are now finding a few that will need this piece replaced too. This particular one still looks ok, but others are splitting. Can you please advise from photo which ... (cont.)

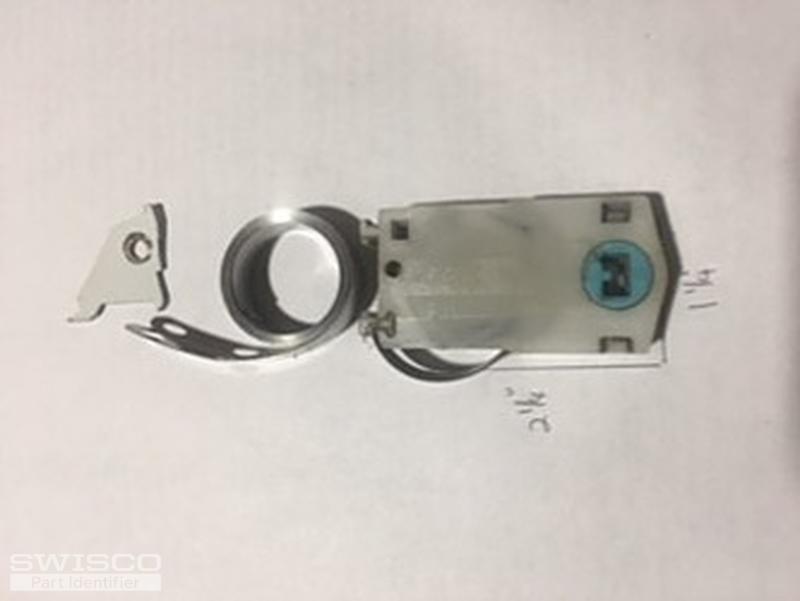

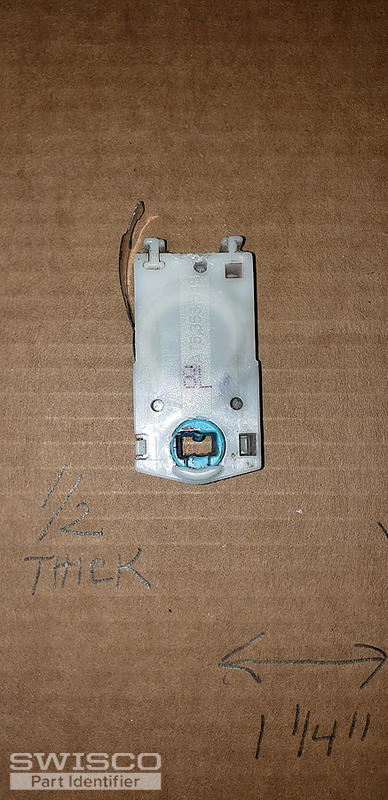

Hello, I need to replace a few of these cracked parts, some are in worse shape than this one. Can you help me identify the parts I will need, would like to replace the whole thing. Width is 1 1/4 inch and height is 4 inches total. Please let me know if you need more information, I haven't taken it o ... (cont.)

could you help me identify the right replacement springs are these called: Coil Balance, Constant Force ?

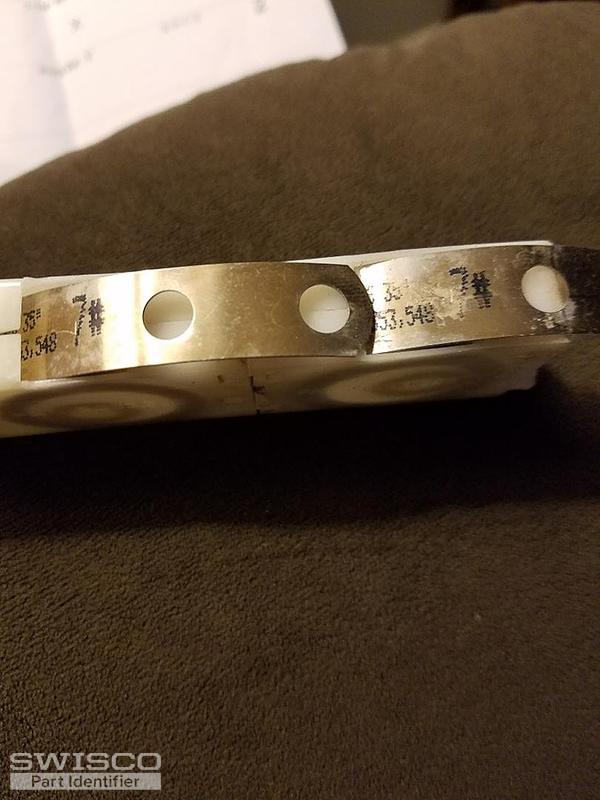

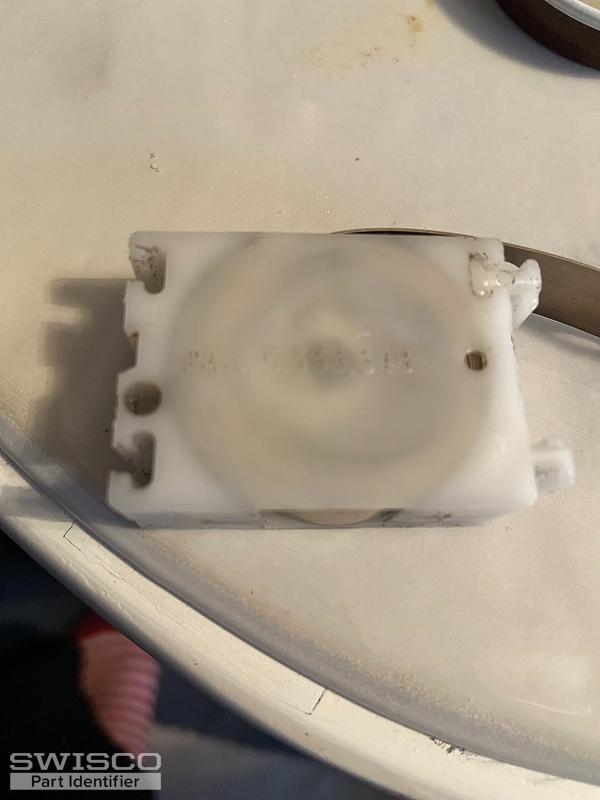

How I will now which lb I need replacement part,the white box shows PAT5.353.548 and part inside is 6 23T.I need two of each. Thank You for your help.

Need parts for both sides and price

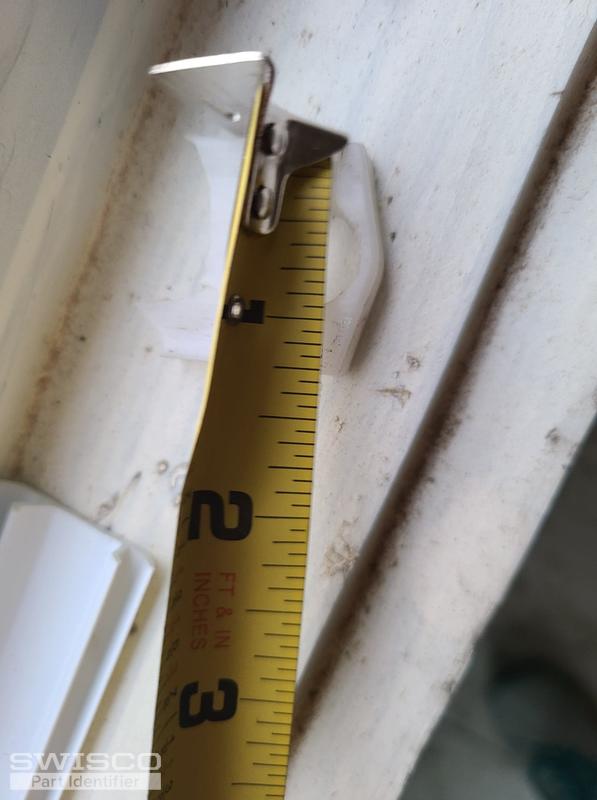

I have a Gorell tilt vinyl window and the pivot bar snapped off when removing sash. The bar measures approx.3" long and about 1" from the end, it has one single screw hole. Everything is rusted. I have replaced the mounting bracket wit your 6-o24, 15-o87 coil housing pivot, 15-086 tandem coil housin ... (cont.)

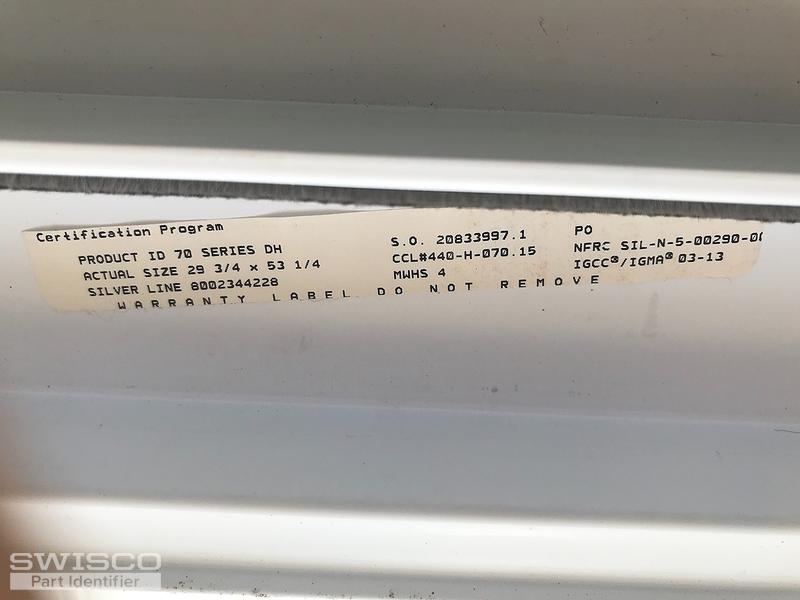

I need to replace the balancers of one window.I bought the windows at Home Depo : American Craftsman By Anderson.Vinyl.Single-Hung Serie 70 width 36 height 54

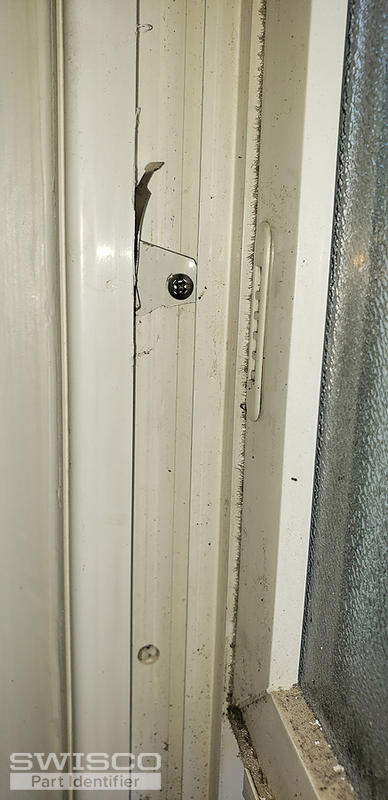

top sash problem-coil spring mangled bottom sash problem- pivot bar missing

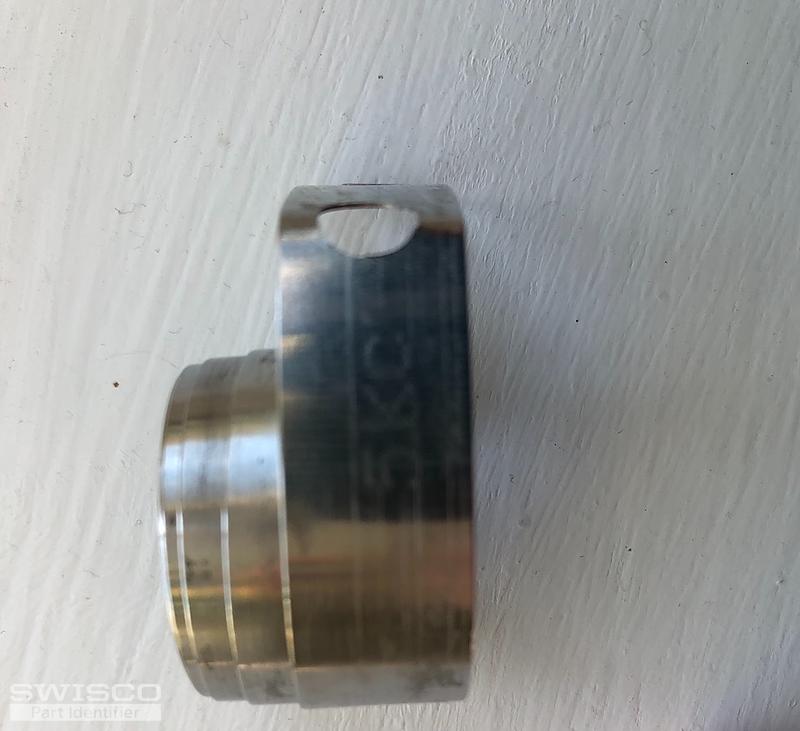

I need spring balance coils for three Reliabilt windows. One has the label 5KC and the other coil has7KC. Also I have a Harvey Window and also need the Pivot. First two photographs. Thank you, Pablo

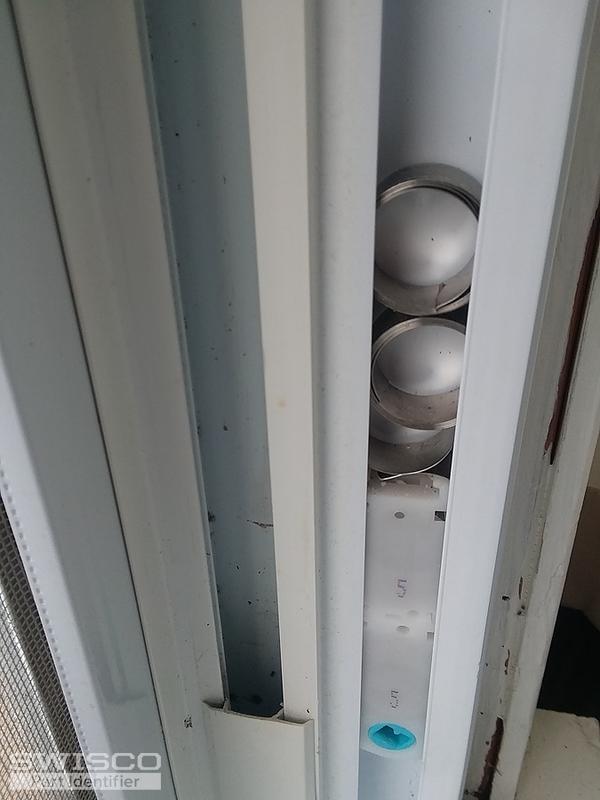

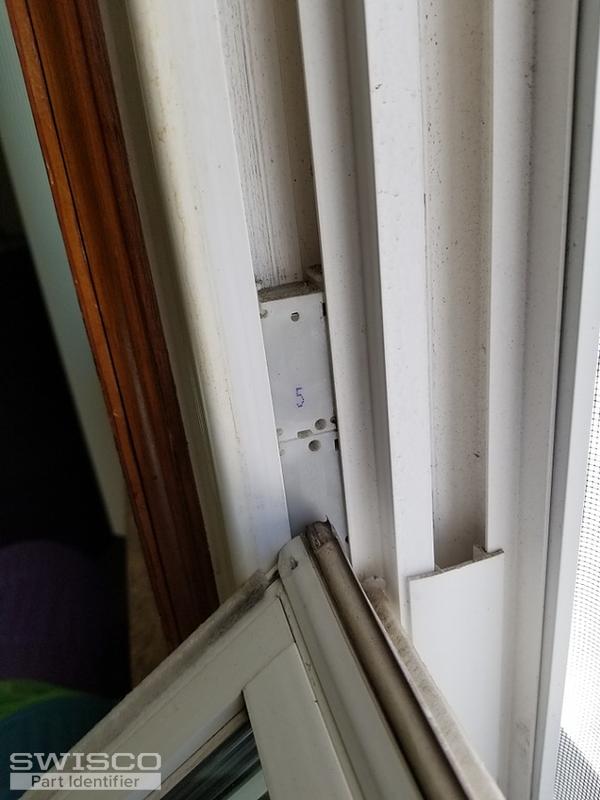

See photos some have #5 and some have #6 on them. Sunny side uv Ray's kill vynal This part helps keep window up.

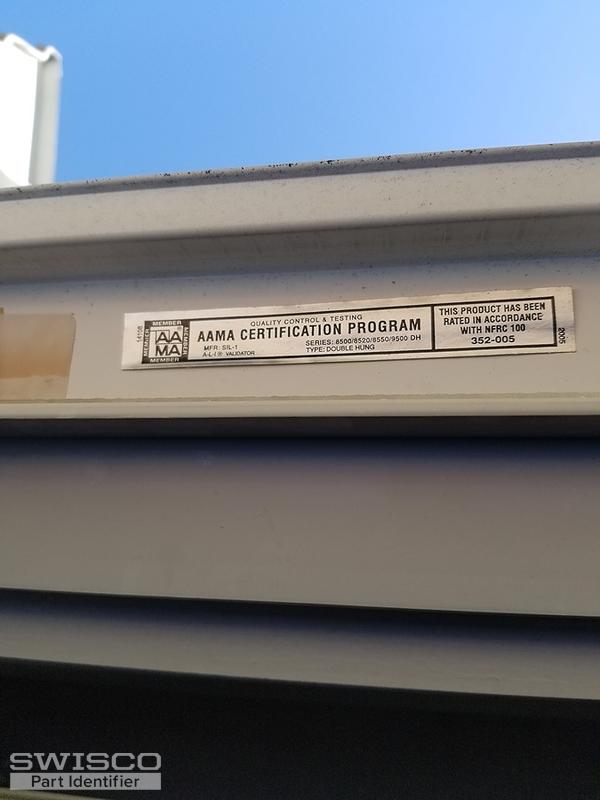

looking for window springs for American Craftsman series 9500 from about 2008 I'm not totally sure who took over the company, but I had heard that Anderson did, so that might help.
