Viewing all customer Discussions for:

15-087 Coil Housing Pivot

The coil on our track window has snapped. Need a replacement and instructions on how to fix it! Help!

Hello Swisco Technical Support: I have a Cascade Design (CDI) single hung window with a broken coil housing pivot. It appears to have the number "6" imprinted on the spring so I assume its rated for 6 lbs. The sash weighs about 17 lbs. The springs appear to be in good shape, but should I order new c ... (cont.)

Hi - thanks in advance for any help. I think this is the part number but I have attached my pic.Darryl

From the picture are you able to identify the balancer?

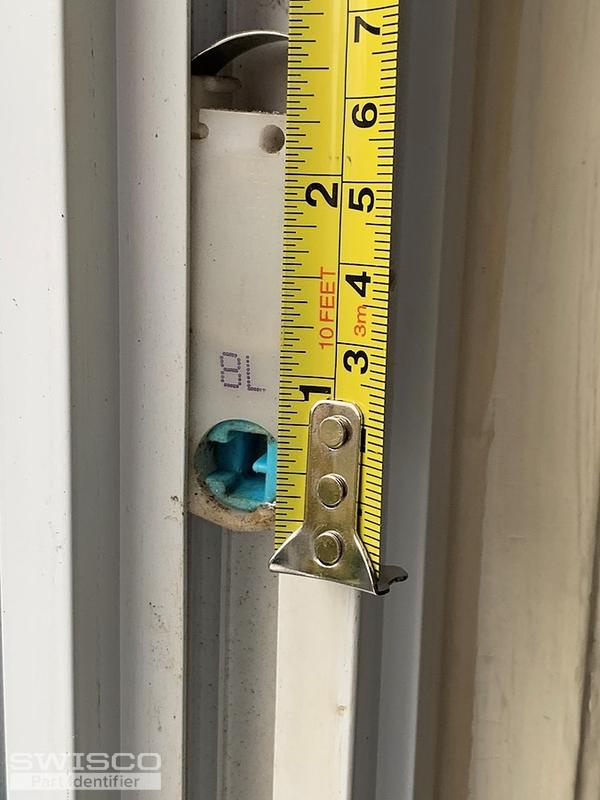

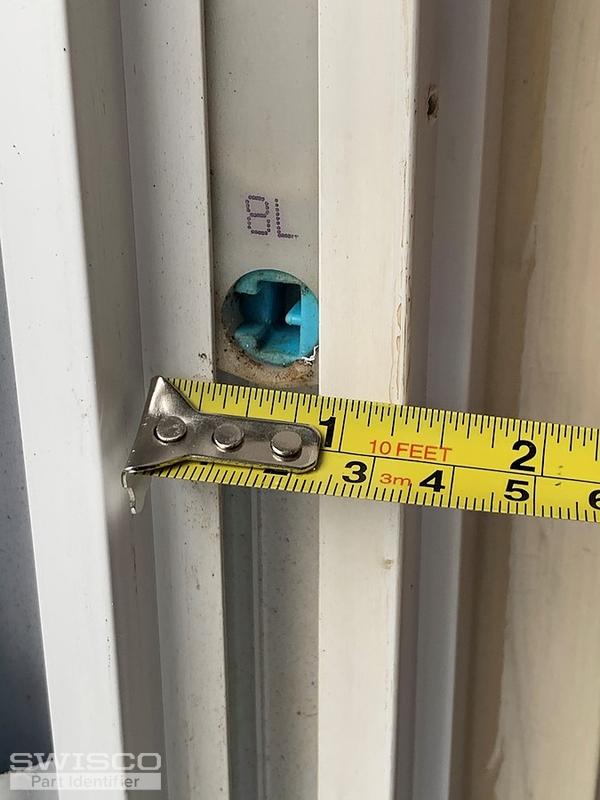

I'm trying to determine the correct coil weight to order. The stamp on the coil appears to say "8KF" or "SKF" (see photo) and the coil housing pivot says ".8" (see other photo). I weighed the sash and it is 14 lbs, but want to make sure the coil weight matches the coil I'm replacing. I have ID'd ... (cont.)

Need to replace the coil spring on my window. The cam is Tee shaped, which I am finding hard to find.

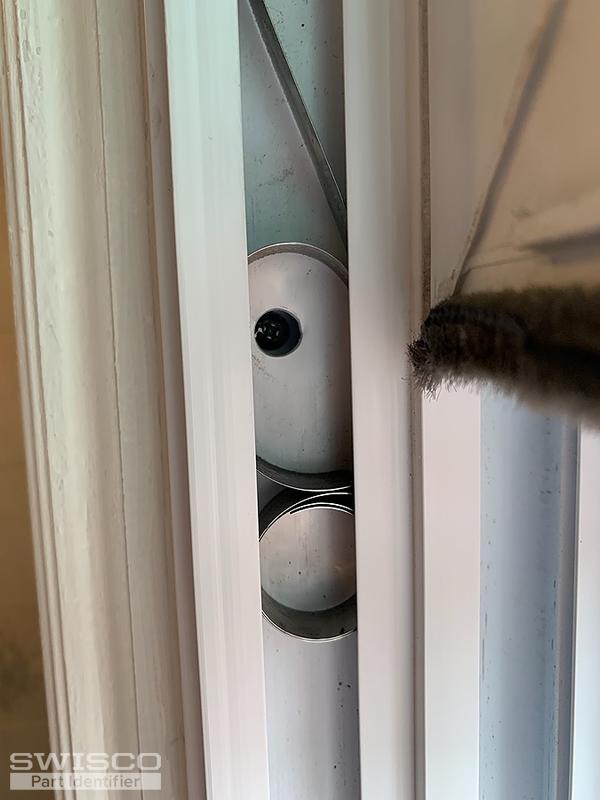

Hi there. One of my windows is not working and it is in photos 2,3,4and 5. Other normal windows are shown in photo 1. I think I need "tandem coil housing " for both sides , my questions: 1. Do your "tandem coil housings " with product code 15-086 fit this window? Or what of your parts that fits this ... (cont.)

Hello,This is an American Craftsman brand double hung window. The sash balance for the lower sash on the right side (viewed from indoors) has broken. Can you identify the correct replacement for me? Is it advisable to change them in pairs?Thanks,Bob

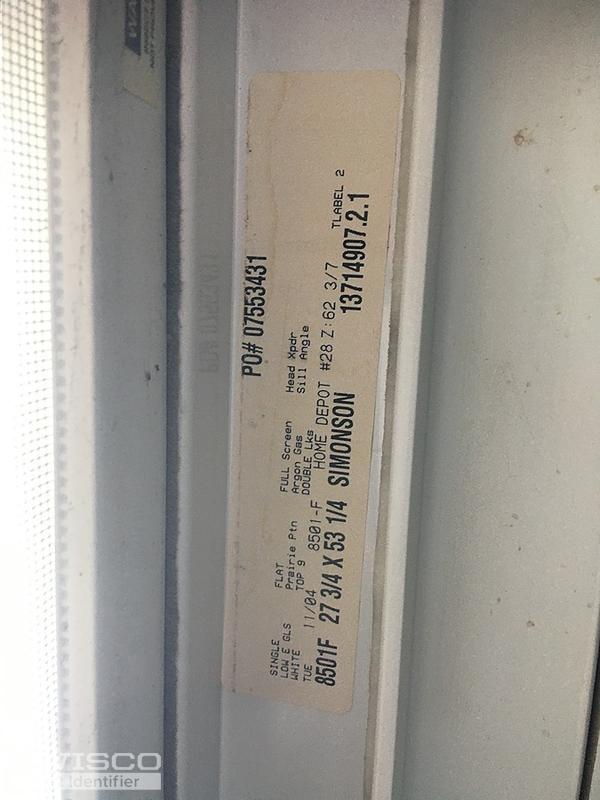

Hi, I have Cardinal series 8501 windows in my home and the coil balances on one of the windows are broken. I attached images that will hopefully help determine what replacement coils are needed for my window. If you need any more details, please let me know. Thanks, Jeff

Need constant force spring balance for 40"wx26"h Window sash

I need pivot bars for Jeldwin windows as shown above and also need pivot bars for Jeldwin Windows 15-087. 15 each

looks like I have a 15-087 coil pivot. I need the coil but will the series 161 housing and coil work with the pivot pin that fits 15-087 with the u type slot? Thought I'd ask

Looking for parts to fix broken spring assembly and sliding assembly as shown in pictures

Not sure how good picture is but you can see items that need replacing.... basically all parts for the balance. The number on what I think is the shoe is #6. Please let me know what I need to order! Thanks, Bill

Looking for the balance for my Gorrell 5300 series window. Thanks, Scott

Looking to identify and purchased coil balance for double hung window. Thank you. Dave

Hi! We have been working on our Gorrell windows to replace the pivot pins as well as add back perished seal. As we go around doing so, we are now finding a few that will need this piece replaced too. This particular one still looks ok, but others are splitting. Can you please advise from photo which ... (cont.)

Hello, I need to replace a few of these cracked parts, some are in worse shape than this one. Can you help me identify the parts I will need, would like to replace the whole thing. Width is 1 1/4 inch and height is 4 inches total. Please let me know if you need more information, I haven't taken it o ... (cont.)

could you help me identify the right replacement springs are these called: Coil Balance, Constant Force ?

How I will now which lb I need replacement part,the white box shows PAT5.353.548 and part inside is 6 23T.I need two of each. Thank You for your help.
