Viewing all customer Discussions for:

15-180 Coil Balance Shoe

Looks like I have to replace the pivot shoe, and reattach to the coil assembly? Would you please recommend the correct parts for this and necessary tools? I'm guessing I also need to remove the coil assembly to reattach the shoe, correct?

I think these are called pivot lock shoes and bars The pivot piece is broke from the housing Need 2 replacements

there is a number 6 on the coil

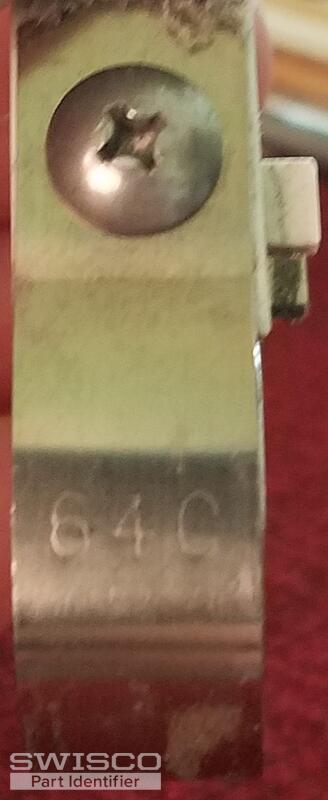

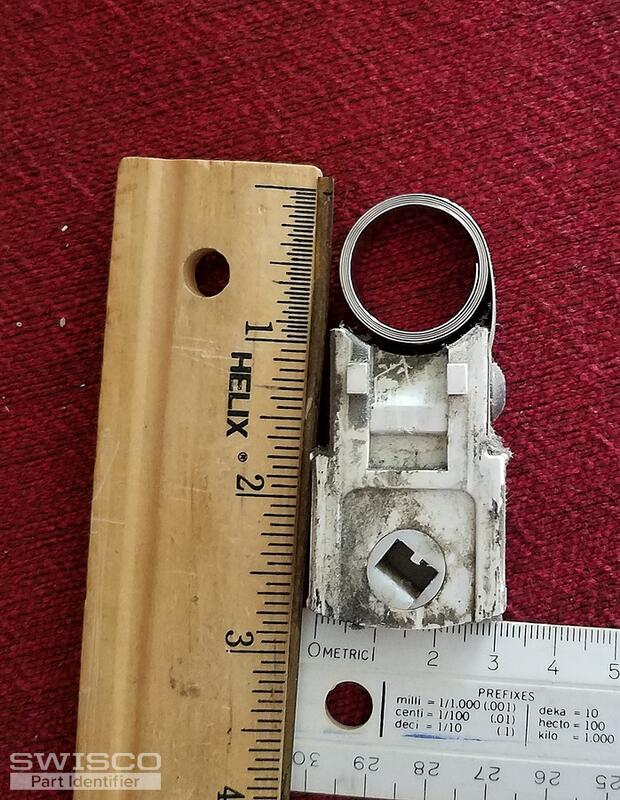

Replacing the coil balances for a 23 year old bathroom window. The coil is 1/2" wide and is stamped with 64C. From your coil replacement page it looks like S190. Can you tell me which one I need?

It is hard to see but on the 'a' picture on the right it has a '5' in there. I weighed the window and it is about 19#. There are two coils on each side so it looks like each side takes like 10#. The coils are .5 inches wide and 1 inch diameter. The whole thing when not broken to pieces is about ... (cont.)

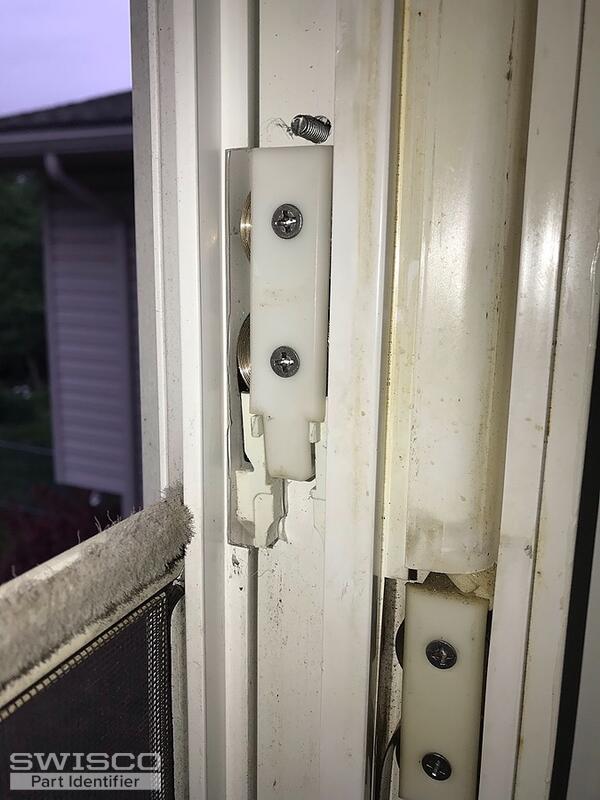

this is where the vinyl window is inserted. one on the left and one on the right to hold window in place

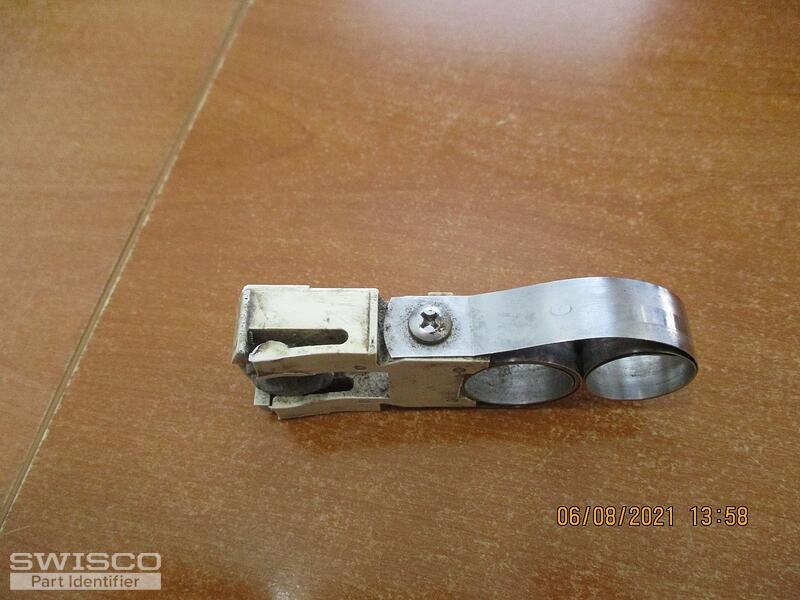

Hello, I supplied a picture of a double coil window balance with sash pivot. The sash pivot fell out because the casing cracked and is broken. Looking for a replacement part can you help?

I am trying to figure out which spring to buy but there is not a balance number on the spring. This is a single hung vinyl window installed around 1998.

I need the replacement spring for the pictured item. Is it possible to get replacement tabs for the same window?

I need two replacement coil balances. There are not marking on the broken balances. The window itself weights 19.5 lbs. It is a Capital 3500 Series Vinyl Window. The photos show the broken units with a ruler, operational units, and the tilt bar at the bottom of the window.

Can you tell what balance I need?

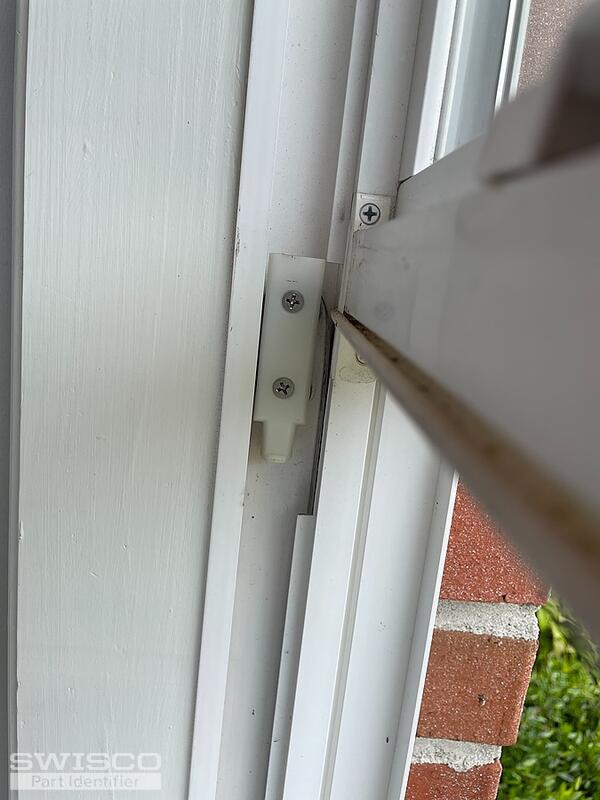

I don't have a picture of the part uninstalled because, long story, it was thrown away. The picture I uploaded is the one that's in place on the right hand side of the window. The one I need is on the left. I've looked everywhere I can think of on the window and I cannot find a name or a brand. It i ... (cont.)

Please get back to me as soon as you can. Window information is below: Wickes #023-Walden 75 5/8 × 56 3/4 - 9565CHS 08/01/2006 - 948768 SEQ: 86350 RM, WH, XX, CONT H/S TWIN, FIN, NO

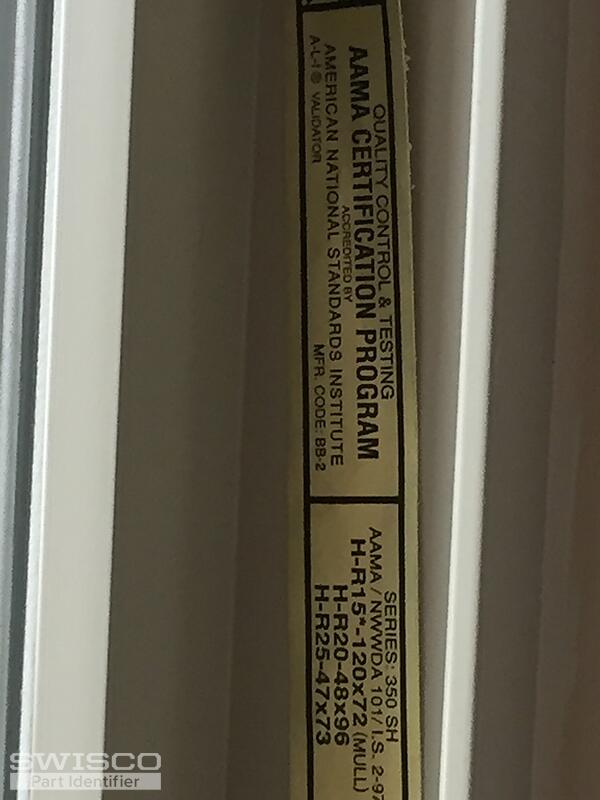

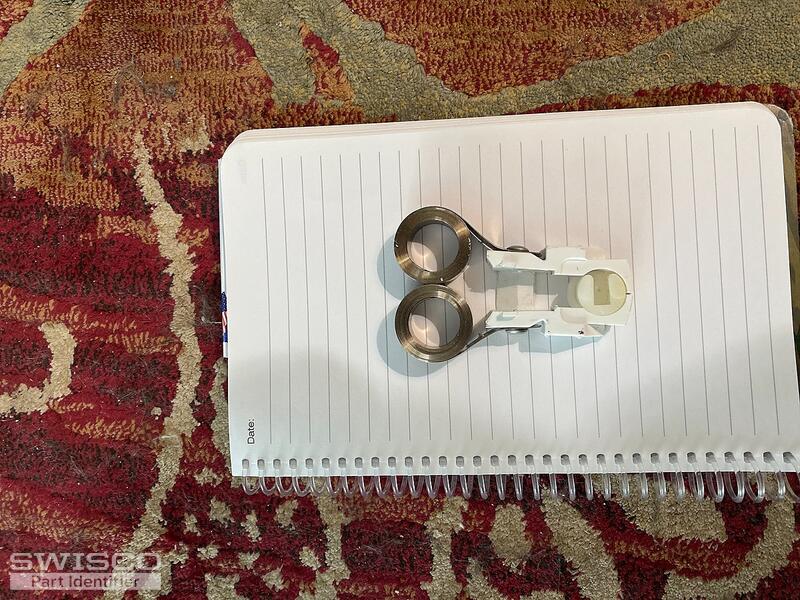

One side of my window's sash support coil has broken. The photos show what I "think" is a Pella brand 350 series single hung window, vintage around 2005 when the house was new.The plastic bit below the dual coil has broken - split, so now one side of the window is un-supported. Window dimensions a ... (cont.)

I have a mi window model 1650 and the pivot lock cracked now my window wont close. there is a serial number 26541842.2

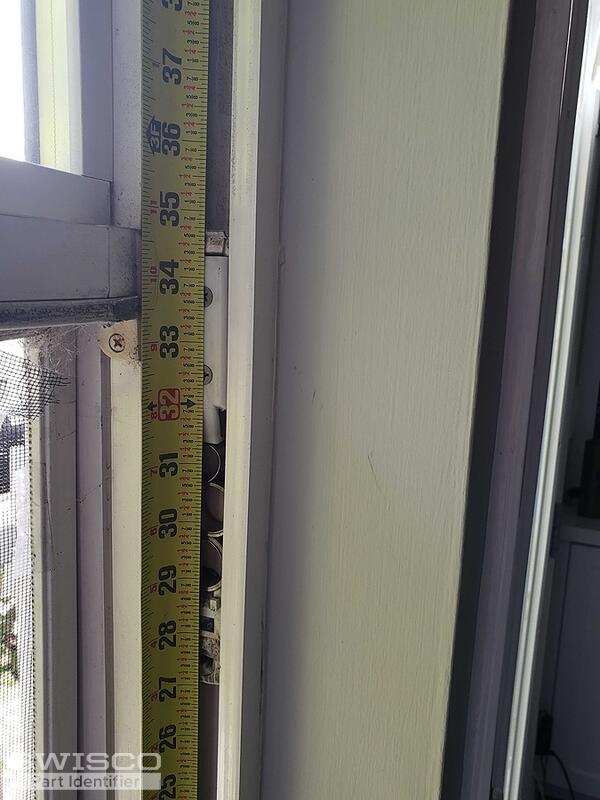

Window dimensions in photo. Double coil with 9 stamped on it.

Capital Standard egress window so I am

Greetings, I hope all is going well with you all. I believe this is the Series 190 Coil Balance but which one of those I have no idea how to figure that out. haha If I can get the right part I'm sure I can fix our window but I'm not sure which part and would love to get help. If there are other ... (cont.)

This is for a no name brand, builder grade window. Measures 4 1/4" long X 1 1/4" wide X 1/2" high. You can see the plastic part is what is broken. Can you tell me what part number to order?

The window is called Wickes. It is a lift-pull window. The holder or the spring set of the lower piece window is broken.
