Viewing all customer Discussions for:

26-352 Pivot True Pivot Bar

First I can't find any markings on the existing tilt windows.The tube is 24 inches long and 9/16 diameter I've included pictures of the tube end that you can see has a "red" end.I need to identify and replace a number of pivot shoes, picture included. Also need help in understanding how you replace ... (cont.)

These aluminum window pivot cracked on me

I need a slide that fits in the track of a Polaris replacement window. I purchased the shaft that fits in the bottom of the wi dow from you within the last year.

I have taken 2 pictures that show what I am working with. I believe by appearance and measurement that the "shoe" part of this assembly is possibly 15-175. I have not discovered any identifying markings on the windows. There are straight pivot bars at the bottom corner of each window measuring appr ... (cont.)

I have 6 vinyl replacement windows that were installed 6 years ago and over the last three years 4 have failed; they no longer pivot inward for cleaning. The culprit appears to be cheap steel used in the pivot bars which then snap. The only information regarding a manufacturer I could find appears ... (cont.)

This broke in half, there are two on either side of the bottom of the window where do I find this part?

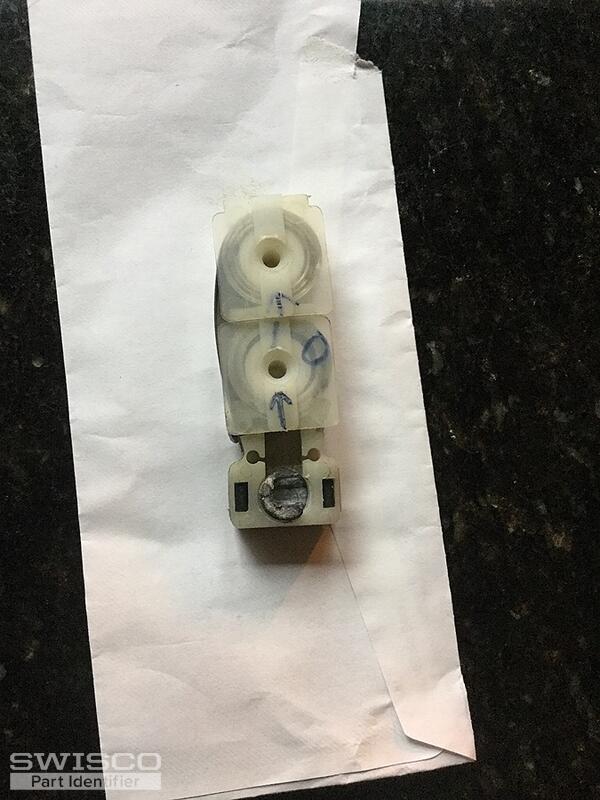

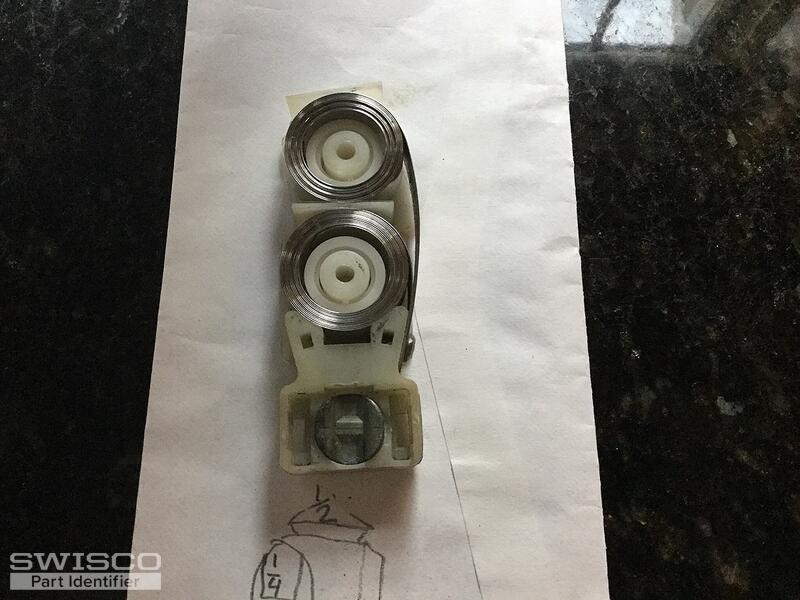

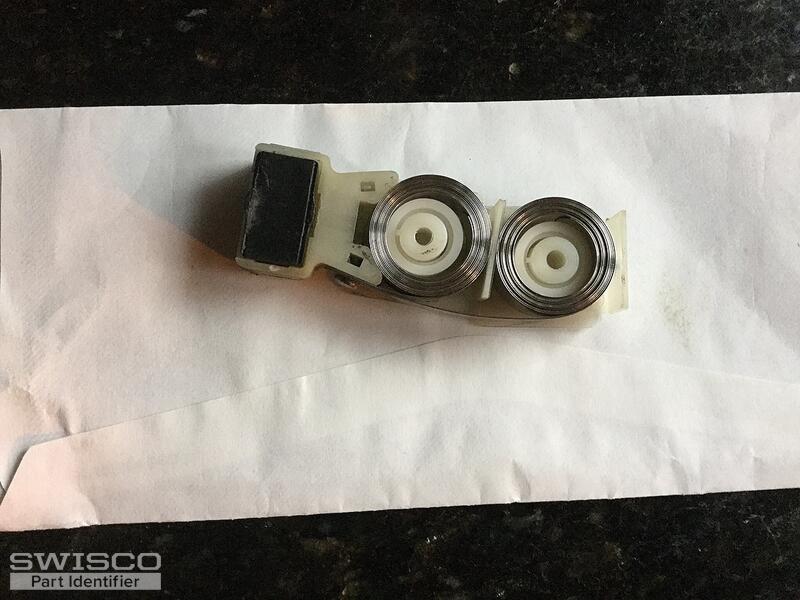

Hi, My sash falls down. I used a fine tool to open up the side of he window (since mine does not have a notch) to remove the constant force window coils to find that my coils were broken. - There is a letter E on the coils. They are 1/2" wide. - The white plastic balance cover that the coil sits ... (cont.)

This is the metal part found underneath the bottom sash that gets right in the pivot lock shoe purchased last week (15-179 / 9/16" thick)

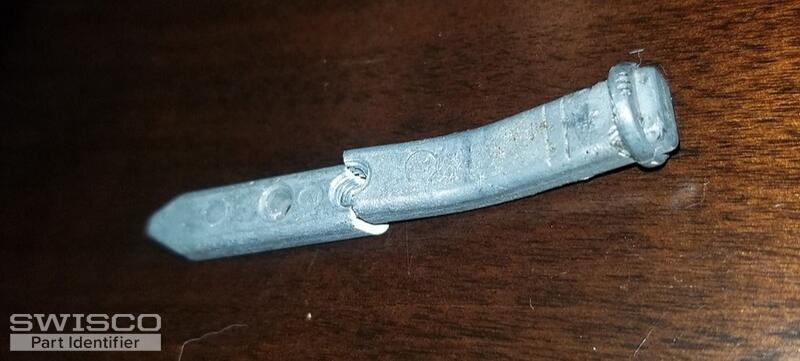

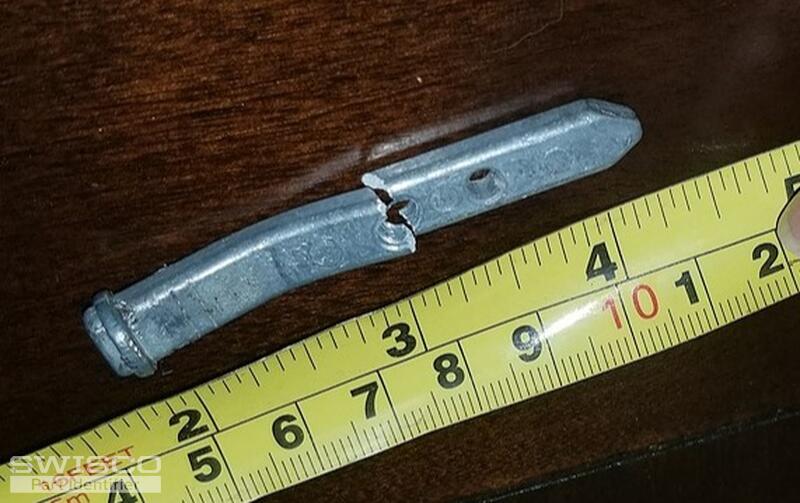

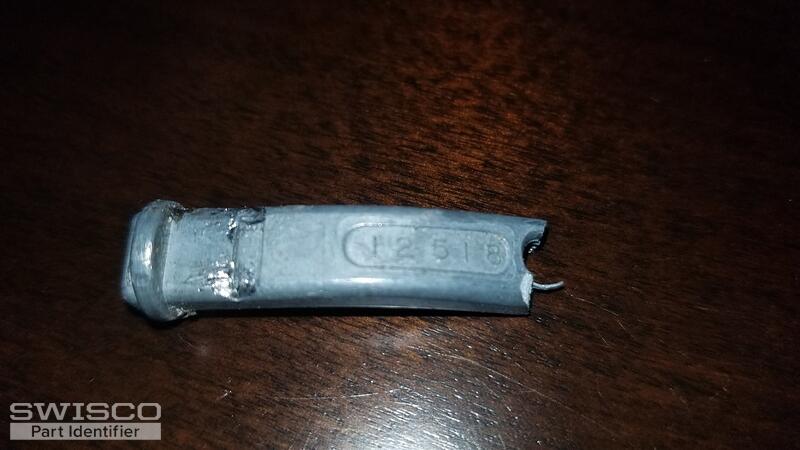

Good Morning,We have a few windows that have broken pivot bars. The first picture is what the windows look like. They were installed 13 years ago. I took a picture of one of the broken pivots. There is a #5 etched into it.I really hope you can help us. We are moving and the inspector is not going to ... (cont.)

Pivot shoe and bar for Harvey double hung spring balanc with a hook

I am looking for a pivot bar for my double hung windows I see some that are similar but none with the right dimensions. Any help would be appreciated.

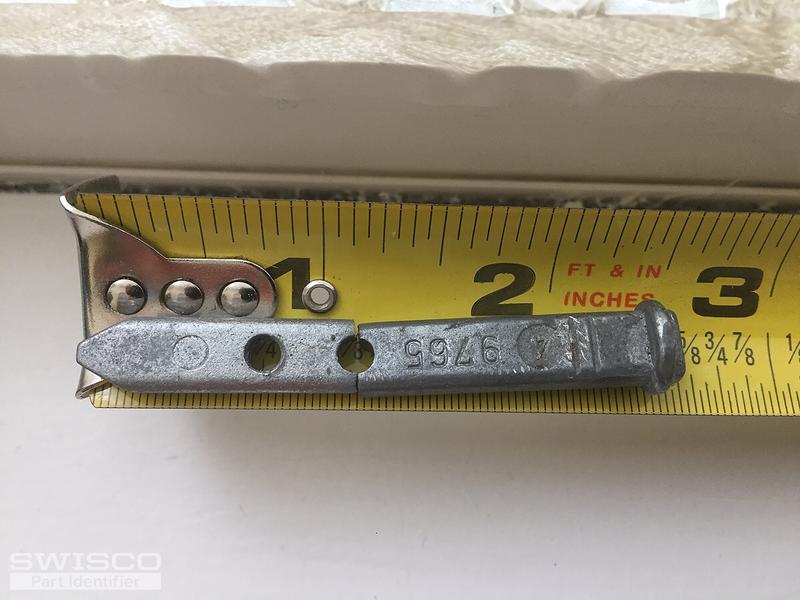

Pins appear to be aluminum, there is a circle on one side of the pin near the rounded end with a number 1 inside the circle. I'm not sure age of windows? - 2-3/4" long - top to middle of screw hole- 1-1/8"

Spiral balance vinyl window slide/tilt key

Hi, This pivot shoe measures same as your 15-178. 2 1/8" high; 1 1/4" wide and 17/32"thick across main body but is 9/16" deep at the brake. However, this brake is white while your 15/178 is brown. Is the 15-178 the correct pivot shoe? Thanks, John

What I need is the metal cam that goes in the pivot shoe and pivot bar I think the manufacturer is Guthrie glass

pivot bar piece is approximately 1 1/8" to center of hole a # 7 is cast into piece. Appears to be 1/4"wide perhaps slightly less.remainder of piece is in channel at bottom of window I have been unable to remove it but am able to move it further into channel. Penguin was manufacturer, window is 10-12 ... (cont.)

Hi, The Pivot Pin broke.Here is a picture of the other one that didn?t.No name on window The window does have a label which I will take a picture of.Please help I have had my window like this for 8 years.Thank you

New customer. Home is a manufactured home...maybe 20 years old. The Jeld Wen decal is on the sliding door. Windows have nothing that tells me manufacturer. I?m guessing manufacture of home use same company thru out for windows and doors but thats only guess. Anyway what does the guru of window / doo ... (cont.)

I have attached a sketch of the part. It is similar to your part number 26-226. However, the hole location on the piece I need is approximately 1-5/8" from the head. Any help you could possibly give me would be helpful.

Can you help me to identify my pivot bar?
