Viewing all customer Discussions for:

39-348 Sill Mounted Awning Operator

PLEASE FIND 5 ATTACHED PHOTOS PER YOUR REQUEST.Mike

I need a replacement for my window the arms are 8 inches

Have any replacement.

Could you please help me identify these parts to order. I need four of them.

I SENT AN EMAIL WITH THE SAME INFO TO YOUR CUSTOMER CARE DEPT. THEN i SAW THIS SO YOU MAY GET DUPLICATE QUESTIONS. THE THREADS THAT HOLD THE BUSHING WHERE THE HANDLE GOES IN ARE STIPPED. STRIPPED ON THE CASING NOT THE BUSHING, MAYBE THE BUSHING IS WORN TOO.

Try to locate this truth awning type of mechanism and crank handle. Searched for numbers on the arm but could only locate patent number 3457675 and casting number 45002 underneath sill mount

Handle has a part #45012. The locking screw threads are stripped. Also, how do you get the mechanism out of the window frame, as I don't see any screws from either side.

my awning window operator broke. I know it is a truth part # 11.16.32.001 will part # 39-348 in white work.

Here are the pics of the 1995 Caradco window operator that has gone bad. Please advise replacement parts at your earliest convenience.

Rehabbing a old place, want to replace the operators (base is about 5inches). What are the dimensions of this unit? (hole placement, the cover length etc) thanks, Richard

The operator I have looks a lot like your 39-348. The mounting holes are different. The casting has the name Standard Thompson and the ends of the arms have metal "buttons" that ride in the channel. The distance between the buttons is 34 3/4".

The base number is 45179, the arm is 40761 and it's 12 inches. Question does it come with the "screw thing" don't know the name?

Where can I find a drawing showing the locations of the four screw holes in the operator or What is the dimensions of the four screw holes to each other?

Do you carry this part that is shown in the picture. The arms are approximately 11 inches long.

Attached is a picture of the existing awning window pivot shoe operator in one of my windows (Hurd 36"x 17 window). Also attached is a pic of the damaged part that is preventing the window from opening and closing. As you can see from the third photo, the existing operator is quite similar to your 2 ... (cont.)

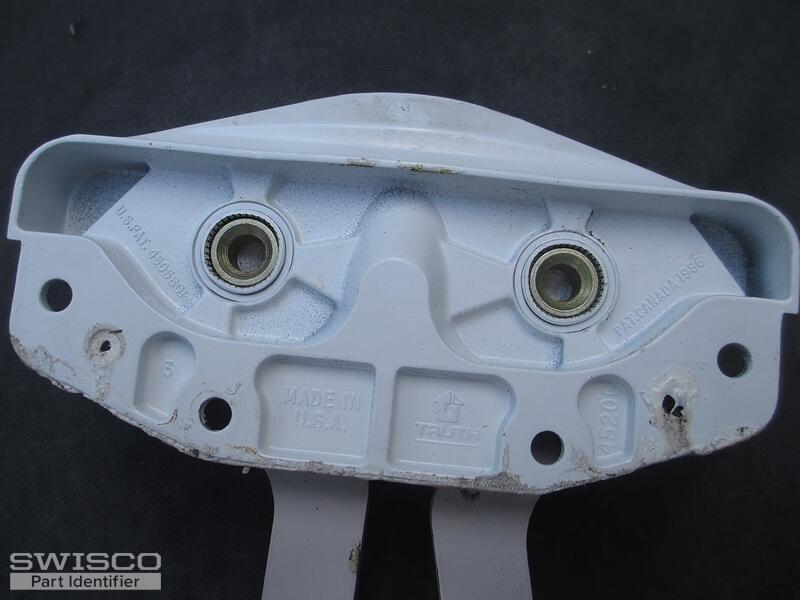

U.S. PAT4505601, PAT> CANADA 1986

I hope to attach pictures of windows in a house I bought 2 months ago and moved into just before Thanksgiving. The house was built in l952 but I doubt all the windows are that old. There are 3 crank-windows in the living/family room. They "looked" good when I bought the place but I have learned the ... (cont.)

I have a couple of problems with one piece of my order. As I don't know the correct names for all the pieces, I've attached a couple of photos for reference. (1) 39-348 : Sill Mounted Awning Operator First - the operator came with only one clip (see attached photo). The left end had a clip b ... (cont.)

Hello, The crank on our window is broken. I have included pictures. There is no brand name mentioned, just the number 45054 on the inside of the crank. What part(s) do I need? Can I just replace the crank or will I need to replace the entire thing? Thanks very much for your help. Matthew ... (cont.)

Think I need part numbers 39-413 and 39-348? If so do the clips come on the sill mounted operator? Should I replace the shoe studs? What are the dimensions of the crank body as I measured in my pictures? Are they the same?
