Viewing all customer Discussions for:

15-199 Pivot Shoe, 17/32" Thick

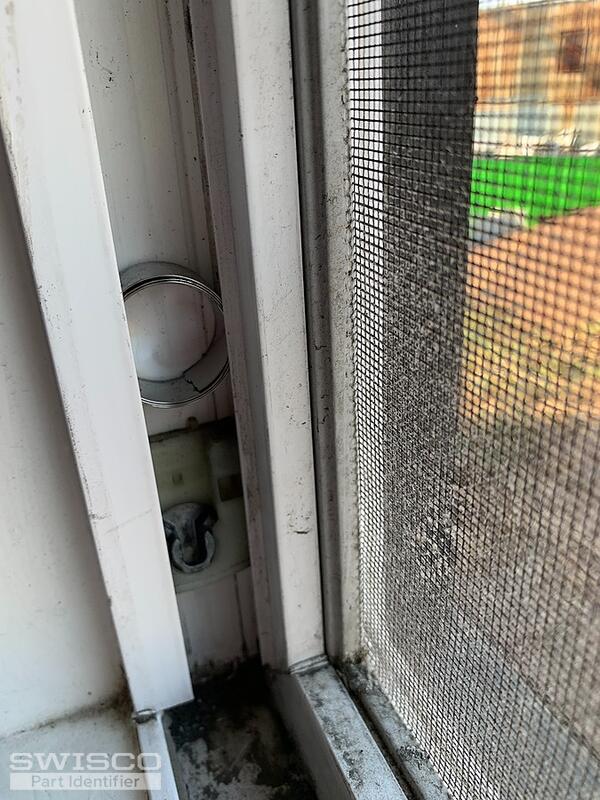

I have a A double hung 2852W purchased fall 2006. The coil spring (it is actually 3 loops) and cover. Cover broke and one spring is deformed. Need new part. And insturction how to install as the "opening" is too short. This part had to have been installed

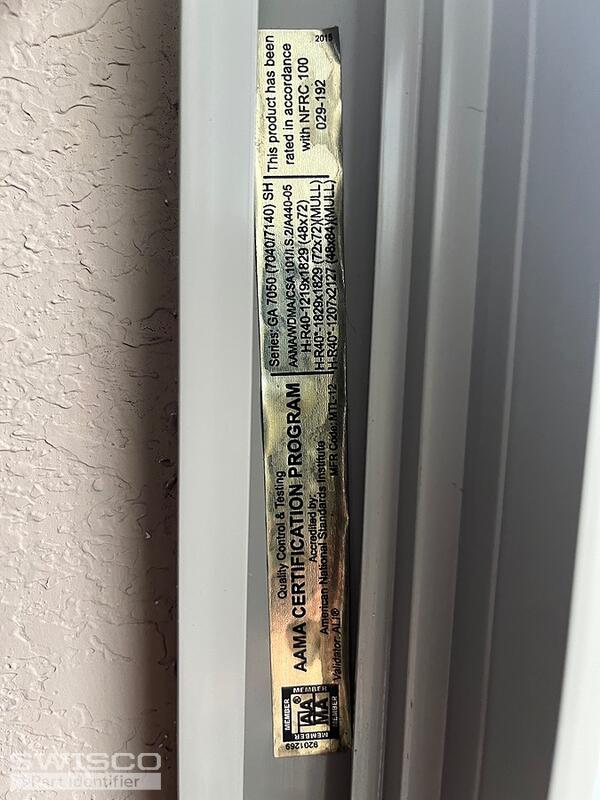

Hello, I need to replace my broken coil spring on my single hung tilt in windows. I've removed them and attached pictures. There is a gold label stuck to the left track that reads: AMERICAN NATIONAL STANDARDS INSTITUTE - MFR Code: MTL-12 / Series GA 7050(7000/7100) SH AAMADMA/CSA 20101/I.S.2/A440-05 ... (cont.)

Im trying to find the spring balance assembly parts for a Simonton Window. Also had a questino on removing the plastic part at the top as itis onger than the cutout in the window frame.

Hello, we are looking for this part.

The windows were installed in new construction 2015. Coil springs are completely destroyed on left and right of 1 - 3'x5' window - double pain single hung tilt vinyl window. I have included in pictures all the information I could on the window. Thanks.

Hi Swisco Team I am struggling finding the following parts 3 parts for my window 1. 1 pivot bar with 1 3/4 inches dimensions (see picture below. Can I use one for different dimensions? If yes what would you recommend image5.jpeg 2. 2 spring coil like the 2 image below image6.jpeg 3. 2 spring coil ... (cont.)

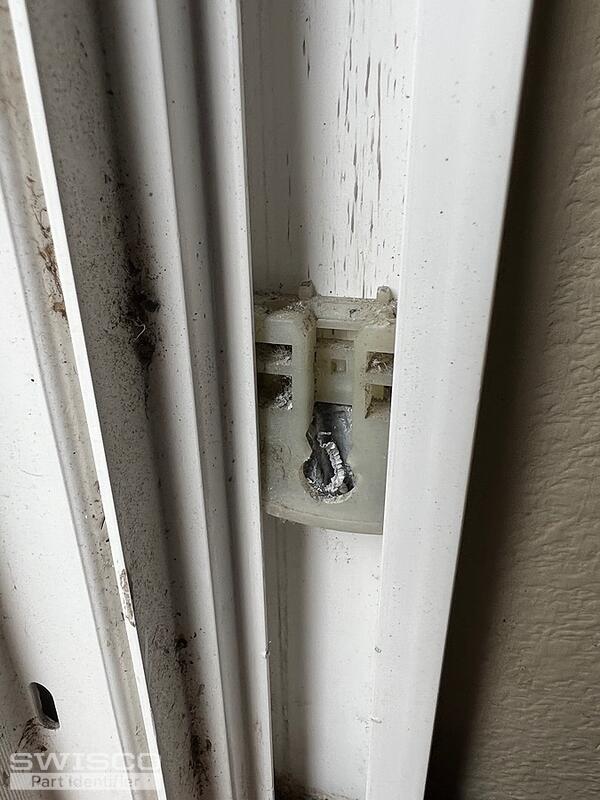

Trying to replace this broken balance for left side of window. Can't find a size or any identifier other than the PAT. #5,704,165.

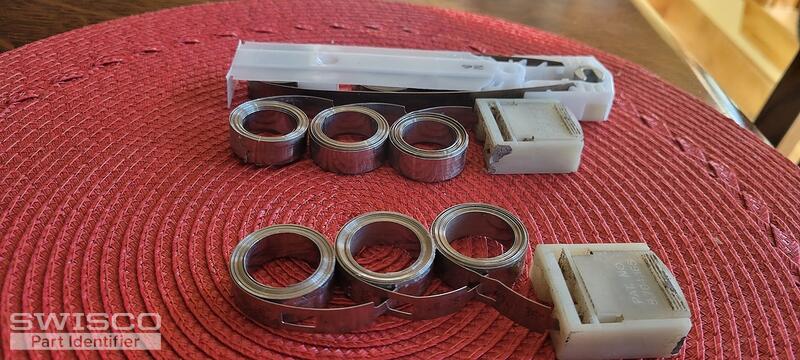

Need replacement parts - contains three coils

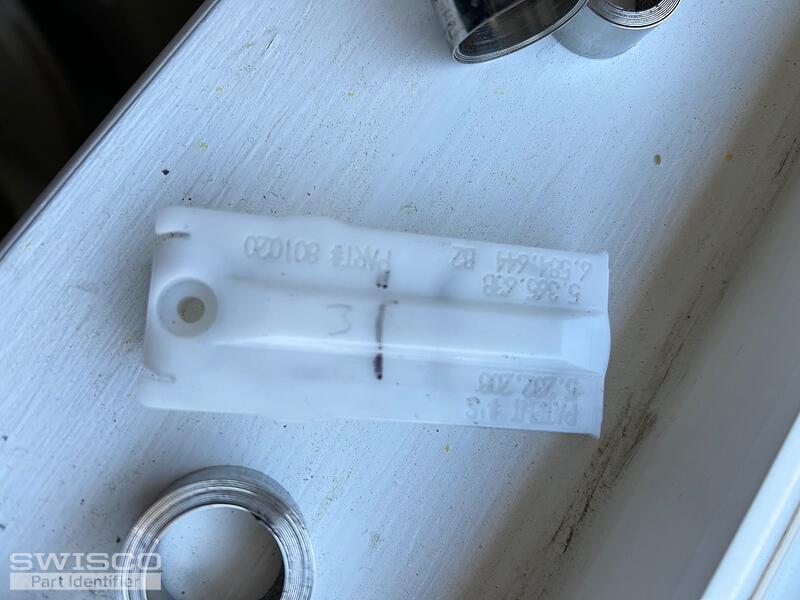

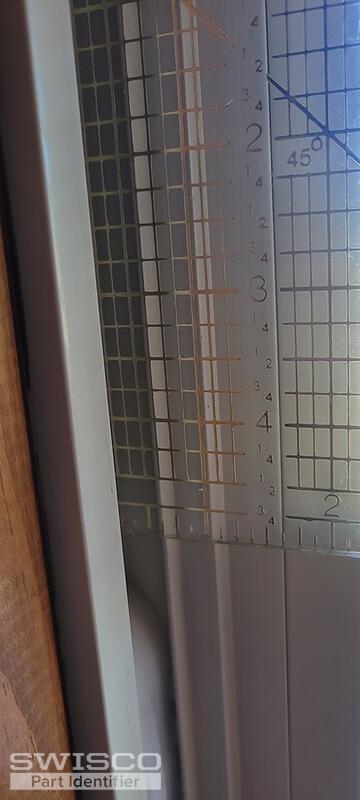

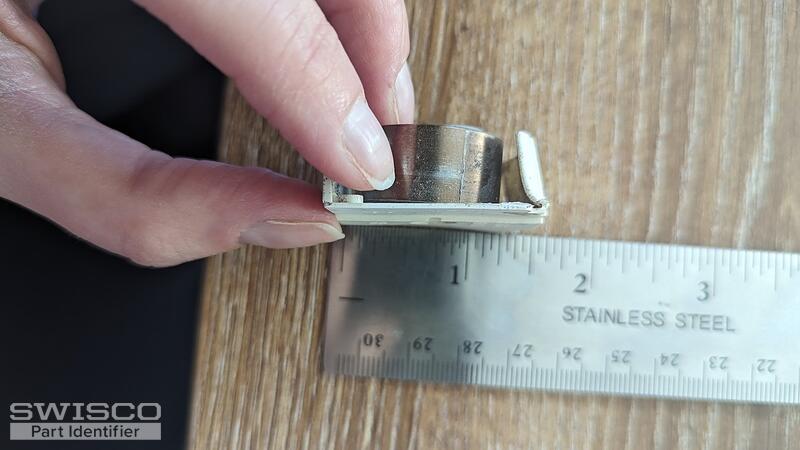

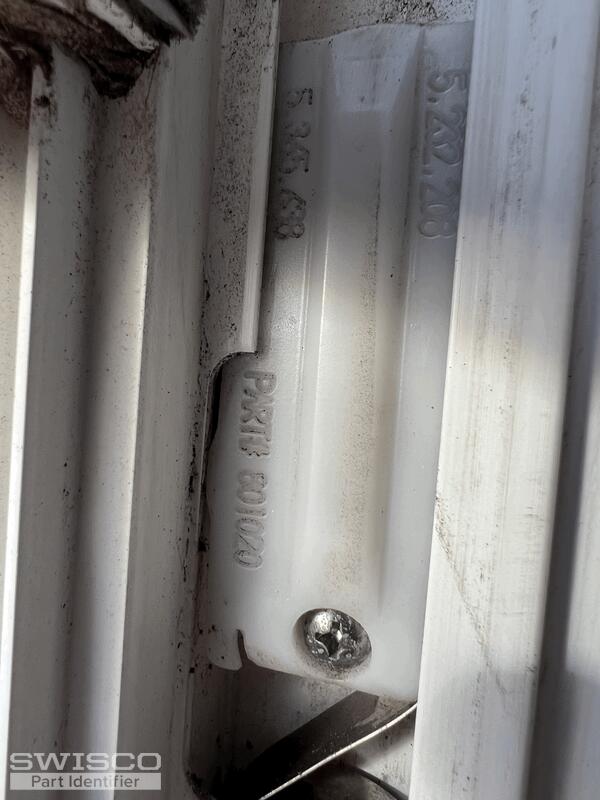

I ordered 26 lb series 140 quick tilt , triple spring balance system and I think it is too deep for my windows. I am attaching photos of my spring system against a measurement ruler. The channel break has part # 5.704.165 stamped on it. The springs have0.35" inked on it and one of the springs has ... (cont.)

As you can see I need a multitude of parts. 6 tilt pins. 4 left tilt lock/releases. 4 right tilt lock/releases. 2 single spring balance/shoe assemblies (blue). 4 double spring assemblies (blue). DBA StoneRidge Construction. I've installed replacement windows, mostly Alside, for over 30 years. 100's ... (cont.)

The Simonton Profinish in window in our Tallahassee FL home mainly face east and west, so they get a lot of sun. But, all the other windows have similar issues. Several of seats and lift springs (not sure if that is what the parts are really called) and a couple pins are broken or in rough shape. ... (cont.)

I have # 15-191 pivot will it substitute for the picture I sent you of that shoe?

Hello, I have several windows in my house where the windows done open and close easily they are Simonton windows.

Hi, I'm looking for help with identifying these coil balancers for my windows and the accompanying pivot so that I could replace them. thanks!

This broken spring on the window I am trying repair does not have a calibration number. How do I select the correct one?

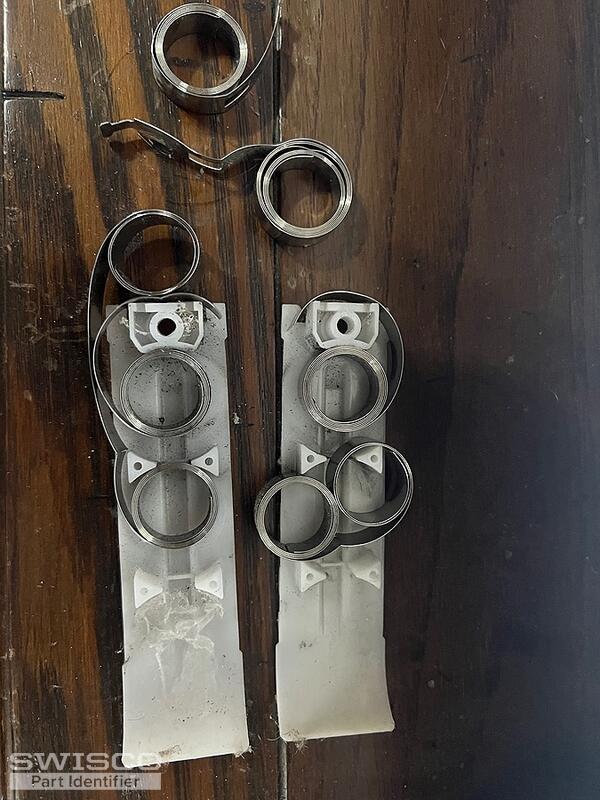

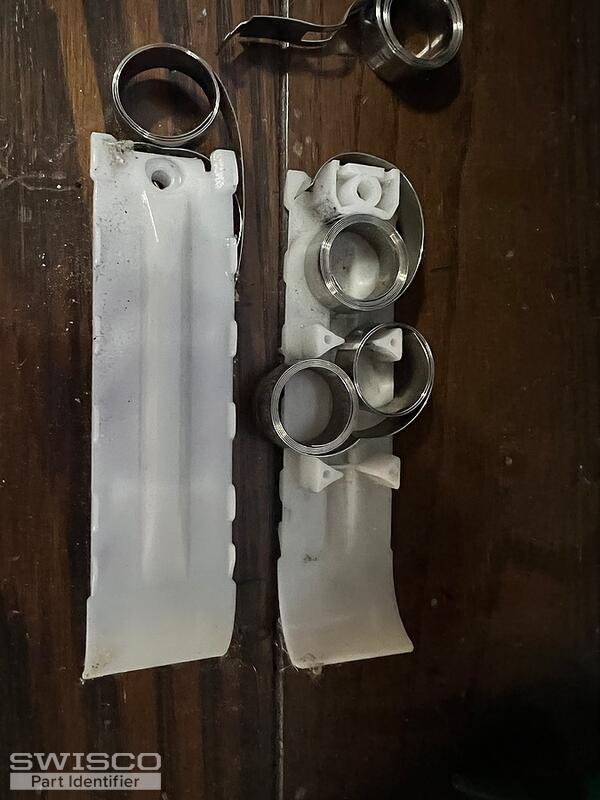

I have a tilt single-hung window with V-grooved IG units. The Sash weighs 29 1/2 pounds. It has an unusual triple-balance assembly with three individual coil supports connecting to the the T-bar tilt shoe. Only the bottom coil spring has a number 9 on it and the sash weighs 29 1/2 pounds. If I order ... (cont.)

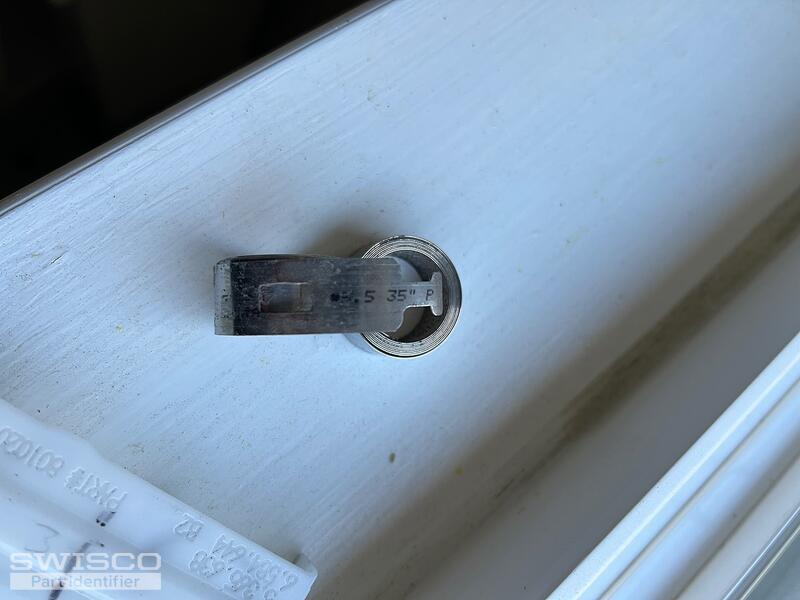

hi The dual coil springs have one #4.5 35" and one #5.5 35" coil springs (232208 is printed on #4.5 coil). The #5.5 35" coil spring was broken into halves. the sash weights about 17.6 lbs. which part should I order to replace the broken #5.5 coil spring?

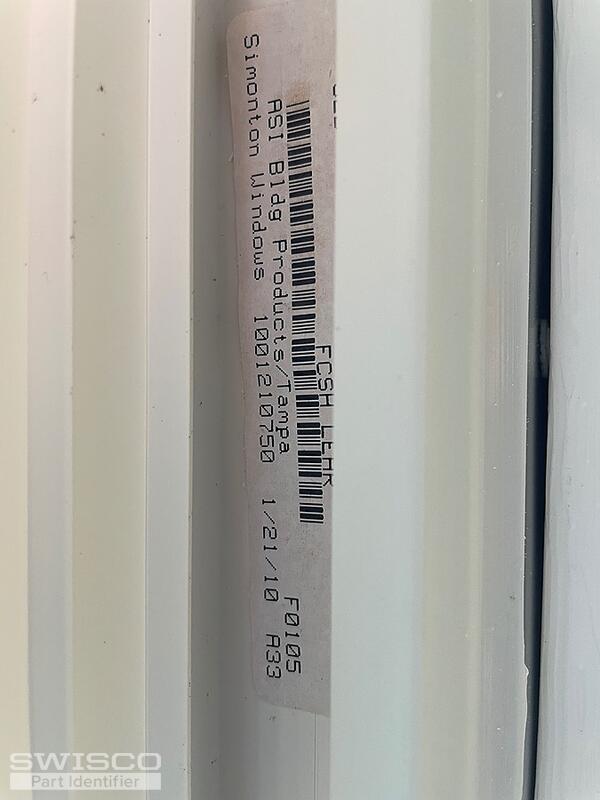

The one thing I DON'T have is a photo of the darned Simonton order number on the top of the window. But maybe you can tell from the description in the order (Simonton Impressions 7300) what the right size is...? It'd be nice if they were all the same size, or something. Thanks for your help! ... (cont.)

Window balancer coils. The covers are breaking apart.

Need counter balance springs
