Viewing all customer Discussions for:

20-016 Tilt Pin

There are no markings, names, or part numbers on the existing hardware or the window. The pin has the following dimensions: Pin diameter: 4 mm Pin length (from washer): 13 mm Washer diameter: 11 mm Washer thickness: 1 mm The “washer” appears to be an integral (molded) part of the pin r ... (cont.)

...a friction shoe for my wood windows. I think it was a cardaco window, and I see that in other posts you've suggested a 15-104 friction shoe, however it looks like it is a little different on the top and i don't know if the back side fits on the same track or not.

I see no numbers or information about the window manufacturer. I can see that the bottom of the plastic window piece, that has the spring attached at the top, has broken off. If you don't have exact replacement tracks are there any other alternatives? This is for windows in a cabin that is only heat ... (cont.)

This piece mounted to the bottom of a spring is supposed to be connected to the bottom of the window with a post going through that hole, but the piece is broken at the bottom, so the post slipped right through and the spring retracted entirely. I'm trying to figure out if I need to replace this pie ... (cont.)

Looking for the pivot pin pictured here. I have the jamb liner shoe but need the pin. Is this anything you have?

The pivot pin in the picture is a Torx Head Pivot Pin by MALTA Have been unable to locate any to date.

Hi, These threaded pivot pins have rusted threads and I need to replace multiple ones. Thanks for the help. Bobby

I need a replacement for this tilt pin

Needing a replacement recommendation for this part.

My windows are double hung 8 pane wood circa 1984 tilt out windows that slide on two full length plastic tracks that contain two 18 1/2" springs for balancing the windows. Tracks are 1 1/4" wide and approximately 53 1/2" long. Looking to repair or replace tracks on 6 or so windowsDonald ... (cont.)

I have a window that the bottom part of the window has been broken by painters. How can I get replacement parts for this window. The bottom part in question is screwed in place by a screw at each of the window. I feel also this part is glued as well. But the question is where can I find this pro ... (cont.)

I have never seen this window before. Has cbc 2-97 on the glass. The shoe that is in the jamb has the clip that the spring was attached to broken off.

I need to replace 3-sets of a bank of three windows. Not sure what brand windows I have. (Maybe Hurd or Built Best). Here is what I know. Double hung Woden sash (24" x 28" visible glass upper & lower) Window jamb liner for 5-2 windows (62" long) Spring loaded liners Possible P/Ns (86E-62W, 58 ... (cont.)

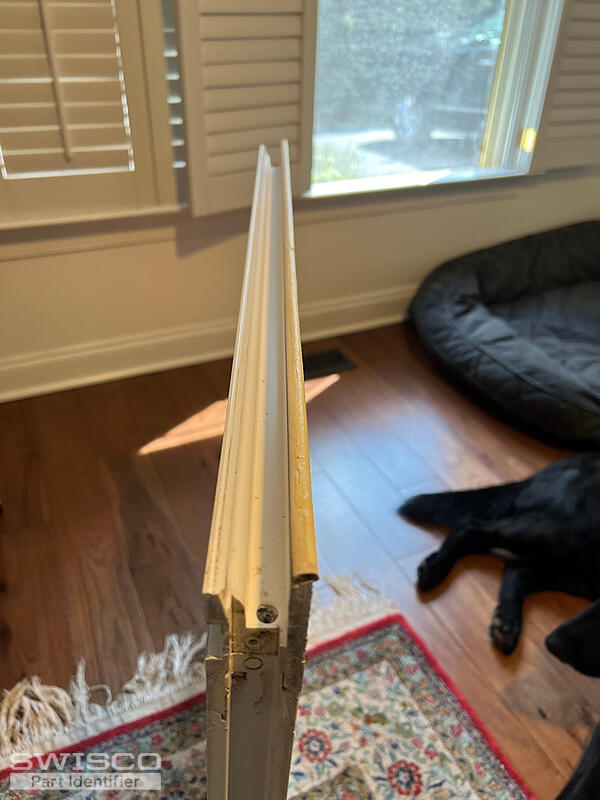

I have 12 Malta windows from the 1990's. The small plastic parts that hold the pully/wheels for the balance spring strings are crumbling. I am hoping to retro-fit a balance into the jamb fit liner. I've attached pics of the liner shape and size of the liner channels. The sashes are somewhere between ... (cont.)

Looking to replace the balances for these windows. I also need to replace a couple of the pivot bars/pins but I've never seen ones like these. Is this system obsolete? I didn't see any manufacturer stickers or labels so I'm not even sure who makes them. Any feedback would be appreciated. Thank you. ... (cont.)

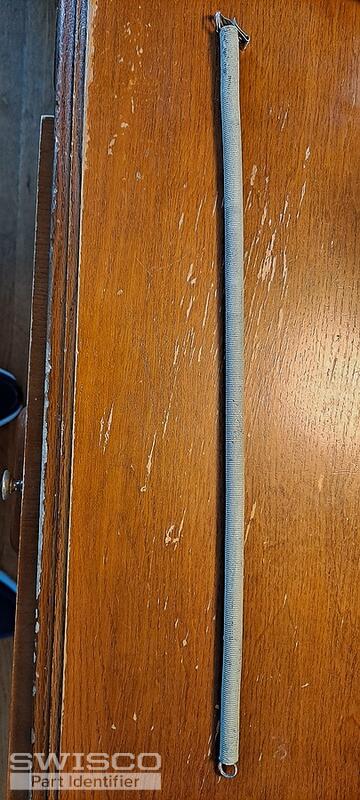

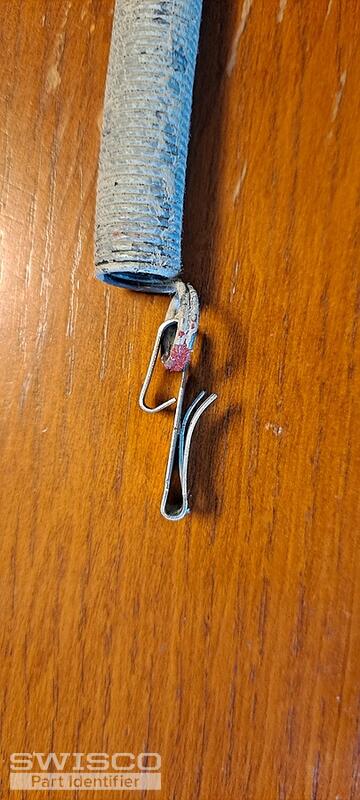

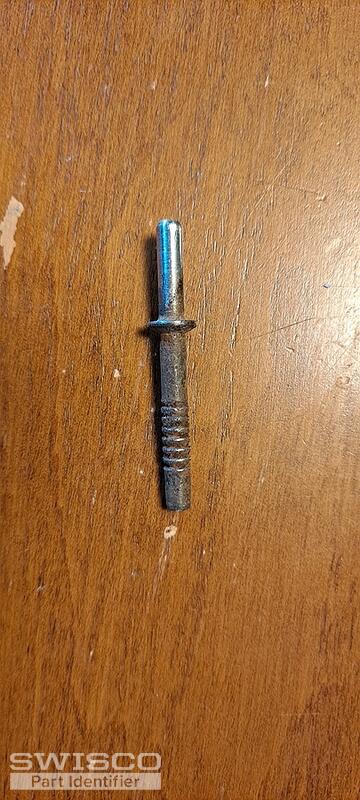

Spring is 17 1/4 (438.15mm) long, 1mm wire thick, 15/32 (11.9mm) diameter. Total spring length including loops is 18 1/16(458.79mm) Sash Pivot Pin is 1 3/4 long, pin is 5/8", rest being screw Clip is 1" Friction Shoe is your part # 20-022

Looking for these two parts for a double sash window. The house was built around 1980. No markings on the window as to who manufactured them. Thanks, Gary

My technician ran into a tilt pin/sash pivot bar per the attached picture. This was reputedly from a 1995 Windsor Aluminum Clad Double Hung window. Can you identify the pin and what it is from and/or a replacement?

I am looking for the parts of a spring balancing mechanism for my window and instructions on how to assemble them together. Spring does not look damaged. So, I am looking for the sliding "shoe" and bracket with the pin, which is scrood to the window, and how to assemble the spring with the "shoe", a ... (cont.)

I have finally got all the weights and sizes for the double hung windows that I need parts for. Here goes.*Total size is 40 widthx54 length inches weight is 12.8# The sheath with spring inside with attachments is 29 inches. Need 8 sheaths and springs. Pictures of the attaching parts are in ... (cont.)
