Drilling new holes for pivot bars

Can I drill a new hole in a window sash pivot bar if the pivot bar holes don't line up with the holes in the window channel??

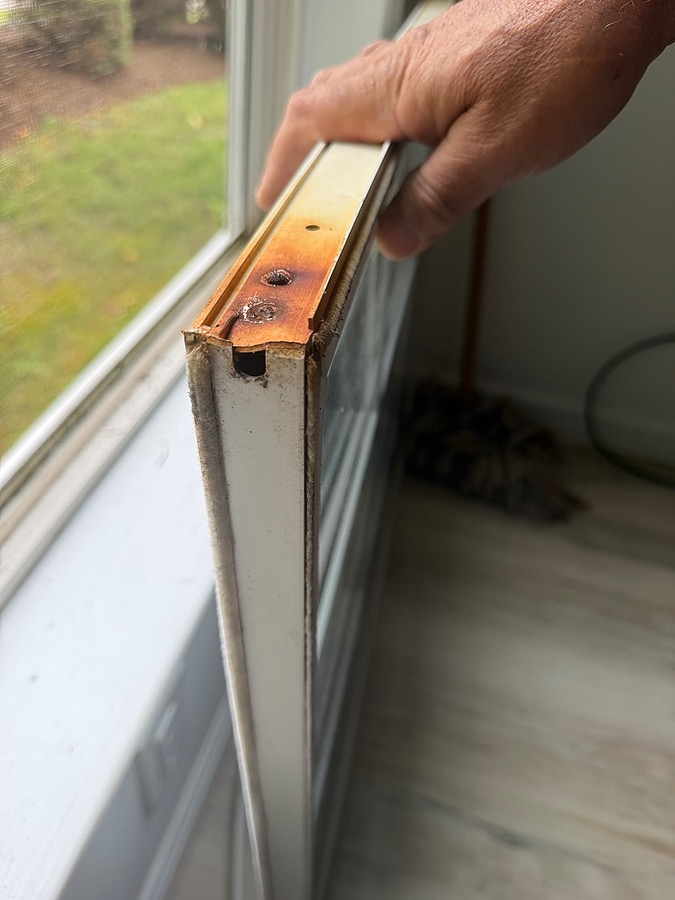

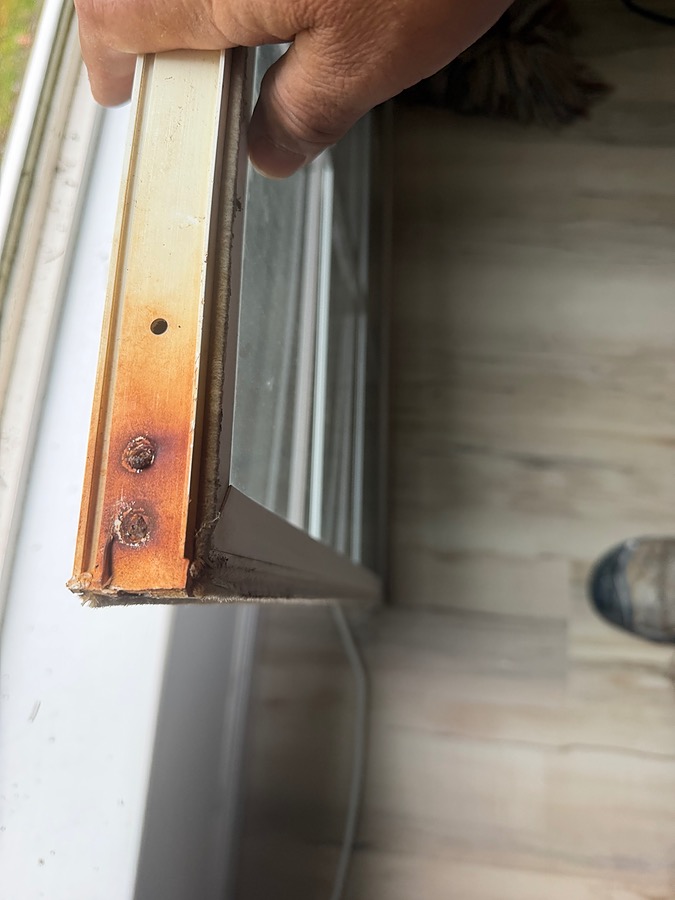

Pivot bar rusted out and pair is stuck in pivot shoe and will not pull out

Hi, I have some windows and the pivot bar rusted out. It is still in the pivot shoe. On one I was just able to pull it out with pliers. However, 5 of them are rusted in and will not pull out. How can I get it out of there? Is there something that will devolve the rust and not hurt the pivot sho ... (cont.)

replacement parts

Looking for replacement parts Thank you

+1

Windows keep falling down, cant stay open

Windows keep falling down, cant stay open, it seems the failing part goes on the side of the window?and connects to the removable bottom part of the window ( the one that goes up and down when opening) that part also seems to be failing

+2

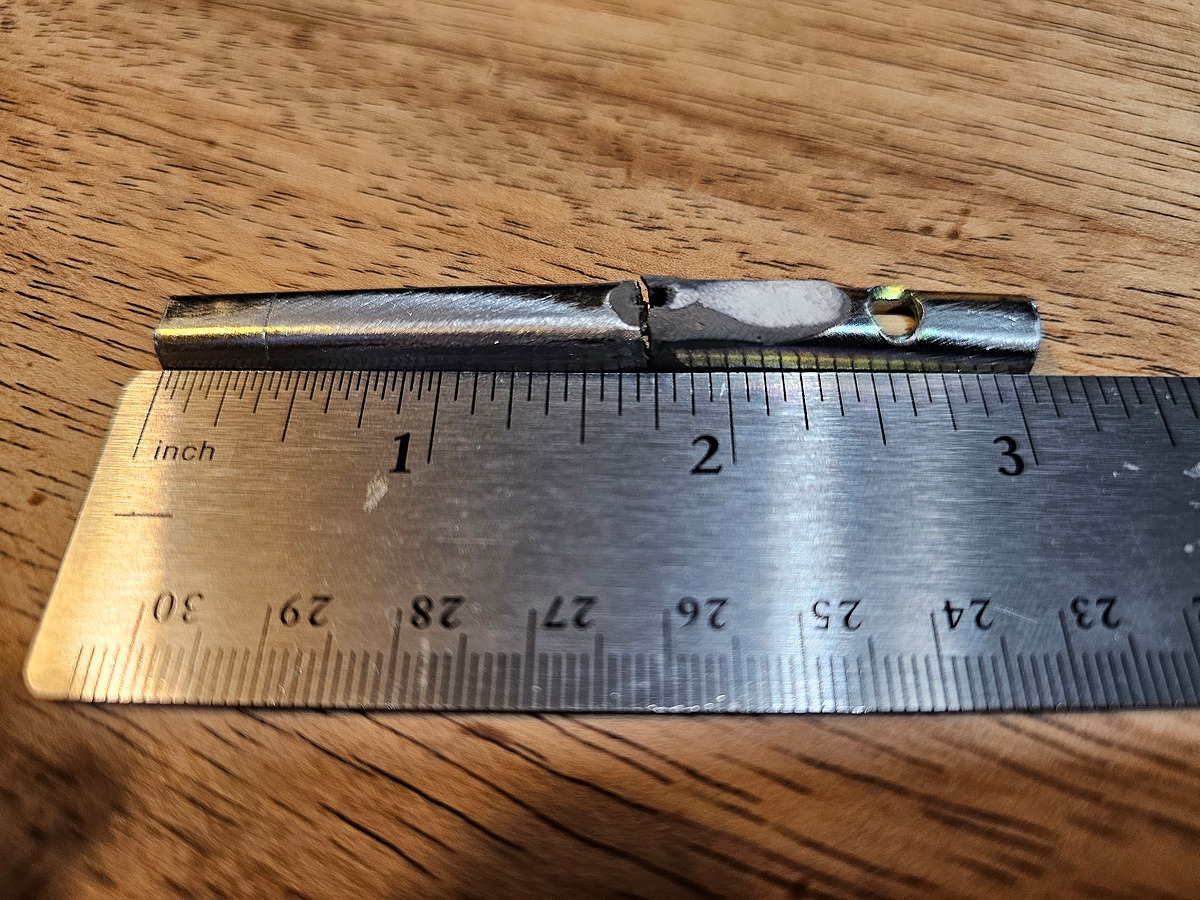

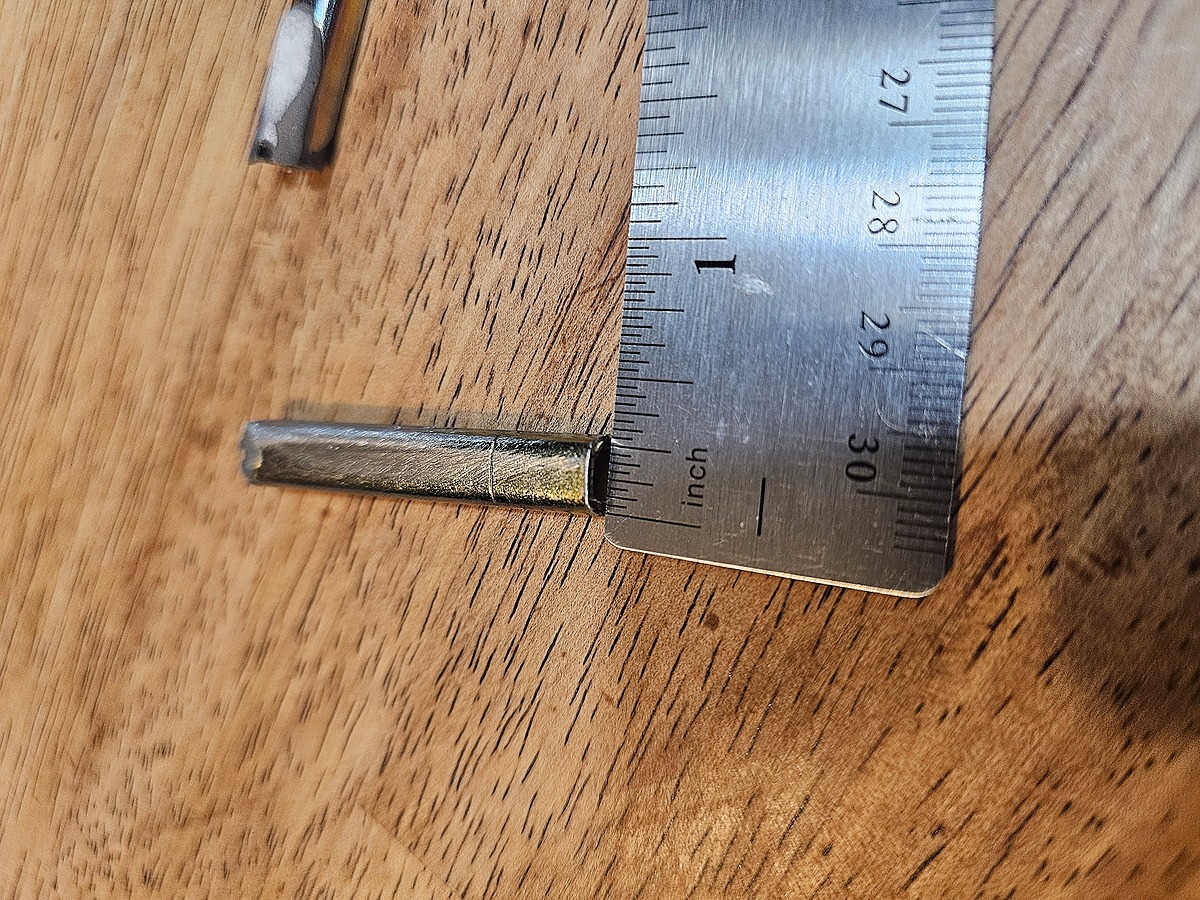

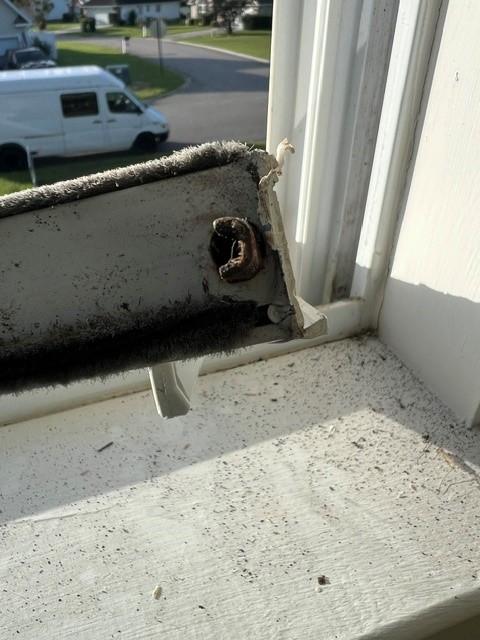

Pivot pin

Gorell window series 5100 pivot oin replacement part

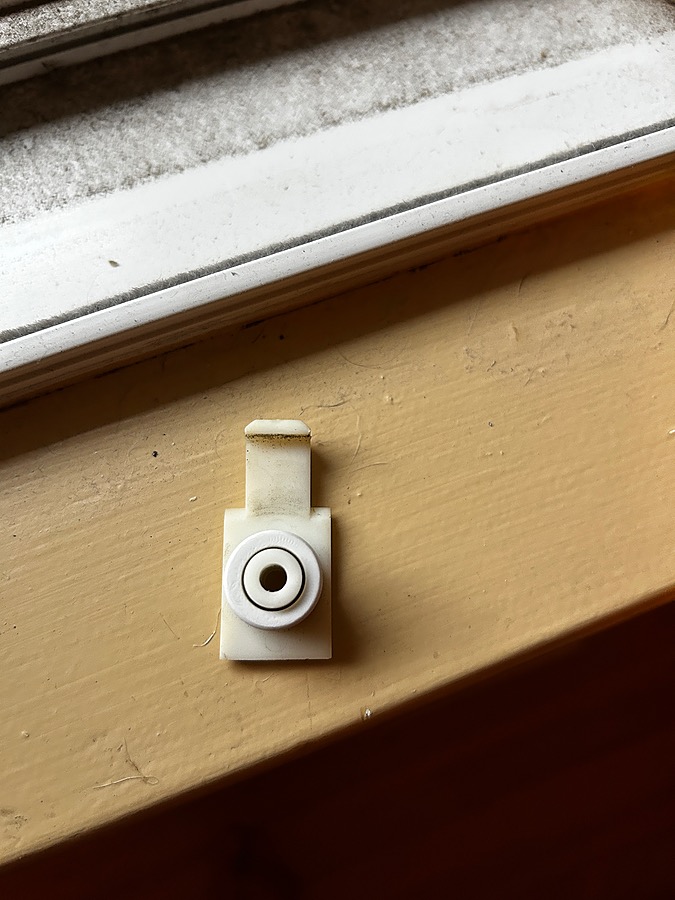

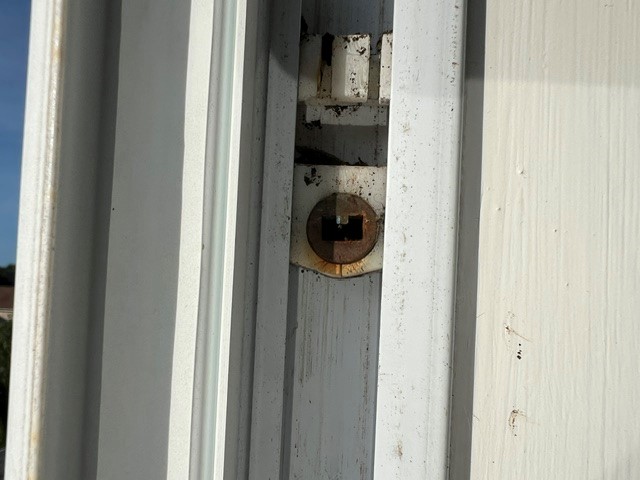

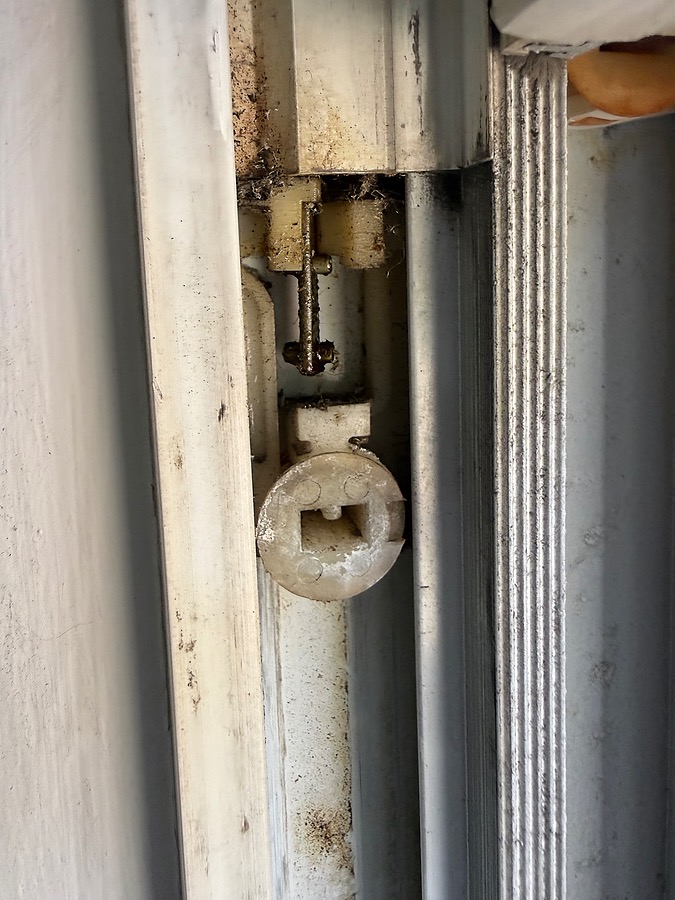

Tilt window pivot shoe

One tilt window in home identical to this one is missing its pivot shoes. No visible markings or branding could be determined anywhere on the window

Pivot Bar

I'm looking for replacement pivot bars possibly for climate guard windows.

Coil balance

I ended up taking it out but no part numbers.

+2

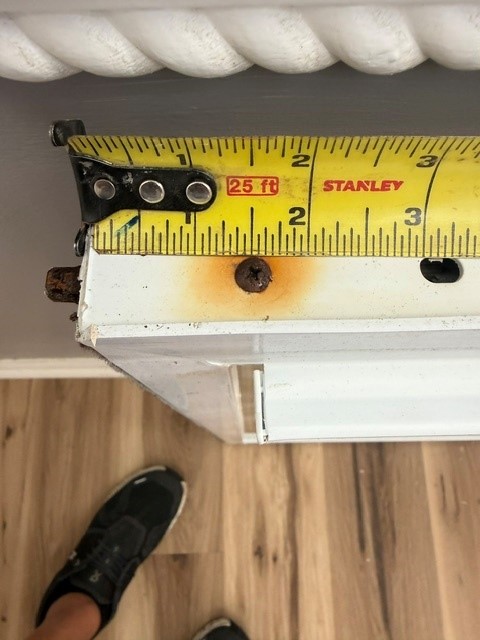

Stanley vinyl single hung window pivots

Looking for the right pivot pins and the part that the pin goes in to the window. Hoping you can help

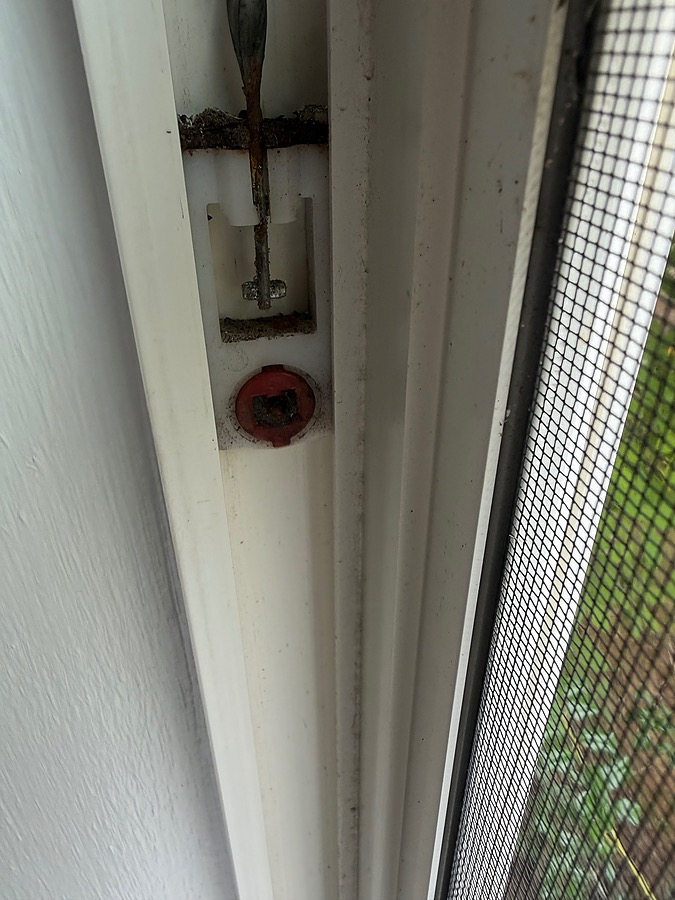

Need window parts

I appreciate any help you can give me on this window problem. The window channel is 3/4 on an inch. The tube length is 28 inches. Again thank you for all your help. The shaft is 28” x 3/8 red tip Pivot bar the picture I sent you I need six of them. They were pretty rusty so this is the best ... (cont.)

+1

Pivot part

the part rusted off. I could not find any markings etc.

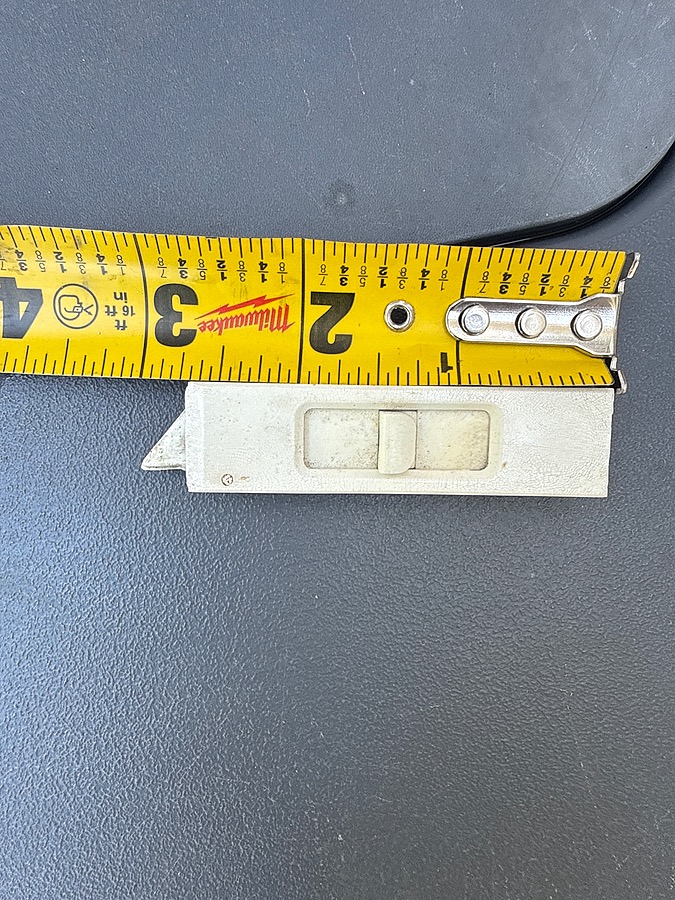

window

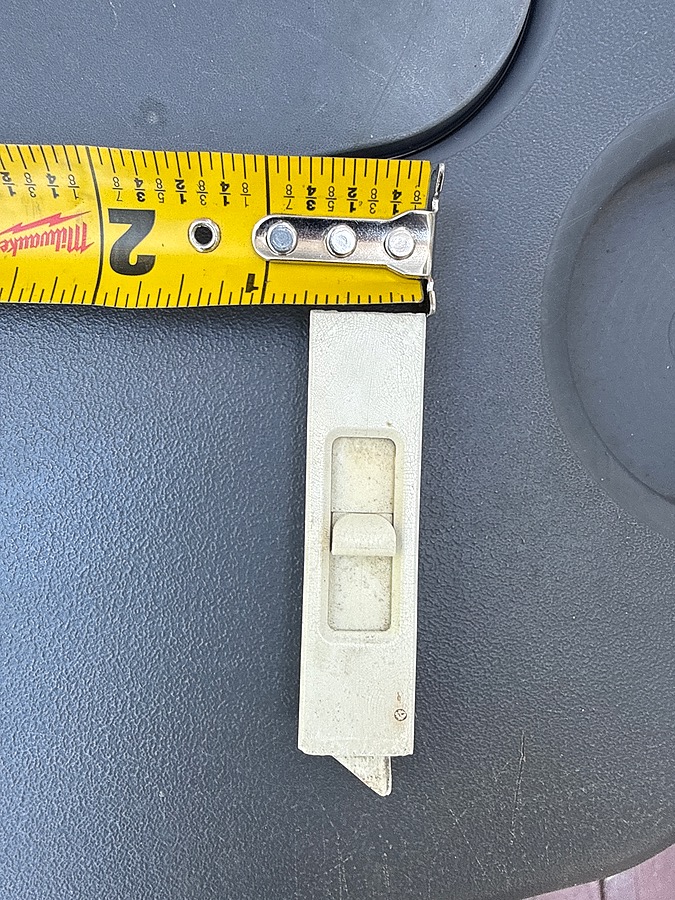

“I need a replacement for this internal tilt window latch. The window uses SWISCO S795-27 balances. Please identify the correct left and right replacement tilt latches.”

+1

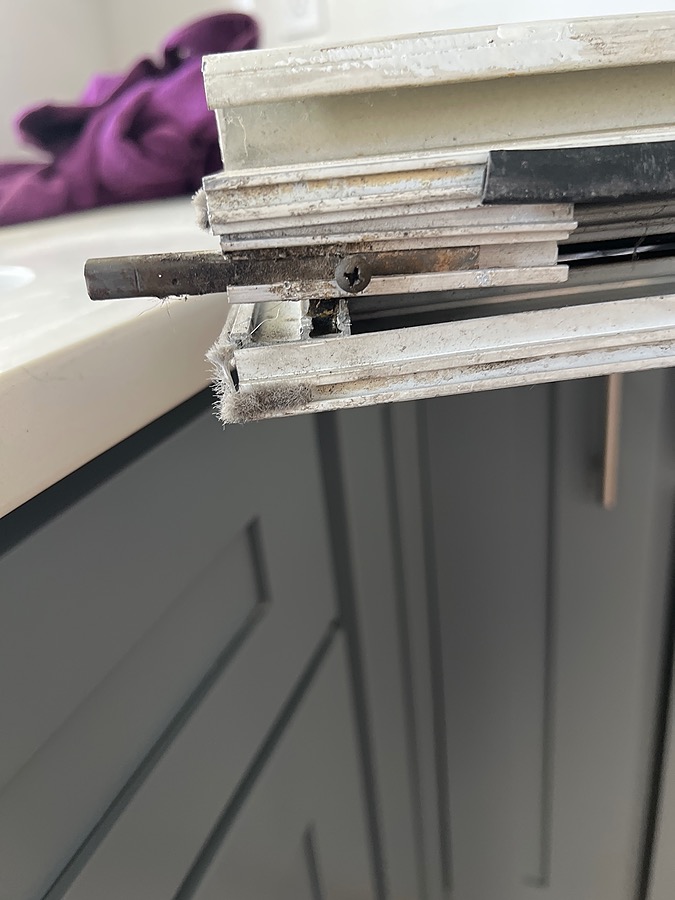

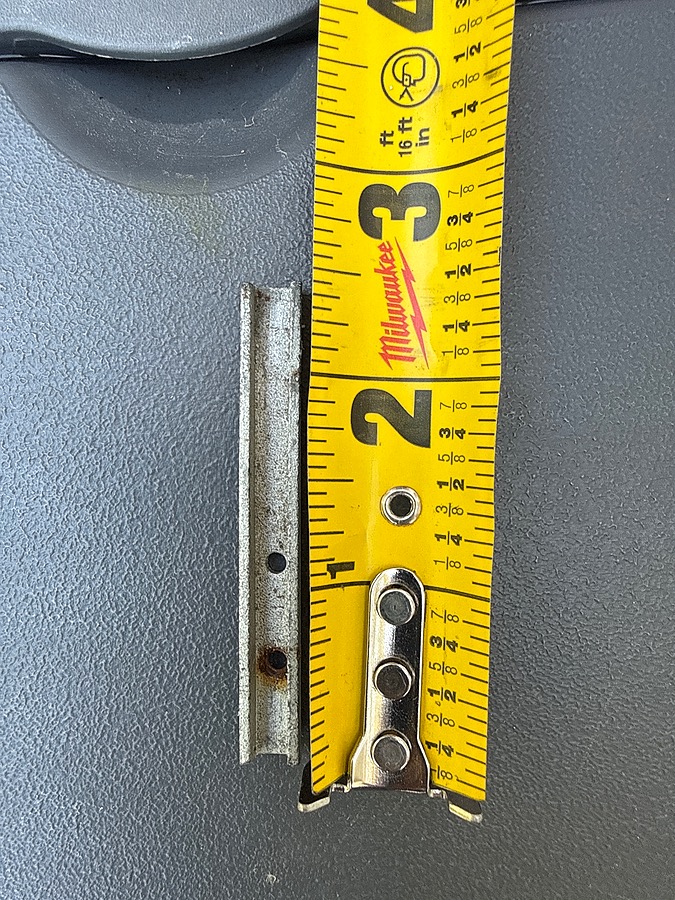

Pivot Bar

I looking to replace these rusted pivot bars that I found when inspecting my new home. I am currently having trouble getting them out of the windows but will get help with that. But wanted to know if you could please help me identify these rusted pivot bars? I know it is u-shaped and is about 1/4 in ... (cont.)

+2

Jeld-wen Window Tilt Bars & Tilt Latches

Tech notes attached w/ photos for reference on what exactly we need plus sizes and location of screw. Please let me know if you need any additional information.

+1

Window

It goes on the bottom of the window where it sits into the spring that pulls it up it is 2 inches long and 1/8 inch thick and 1/4 inch wide it is held in by a single screw

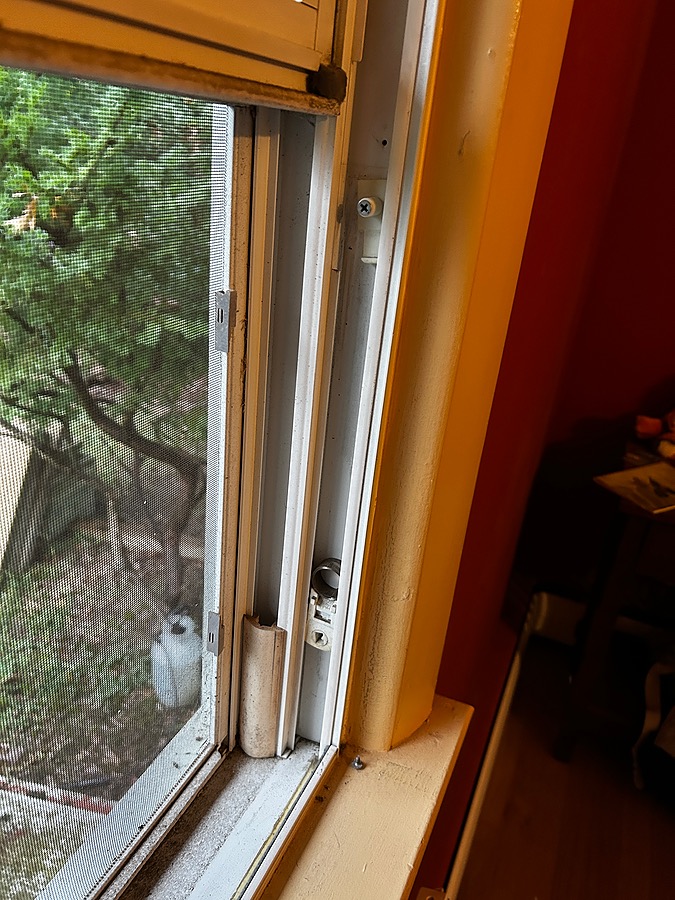

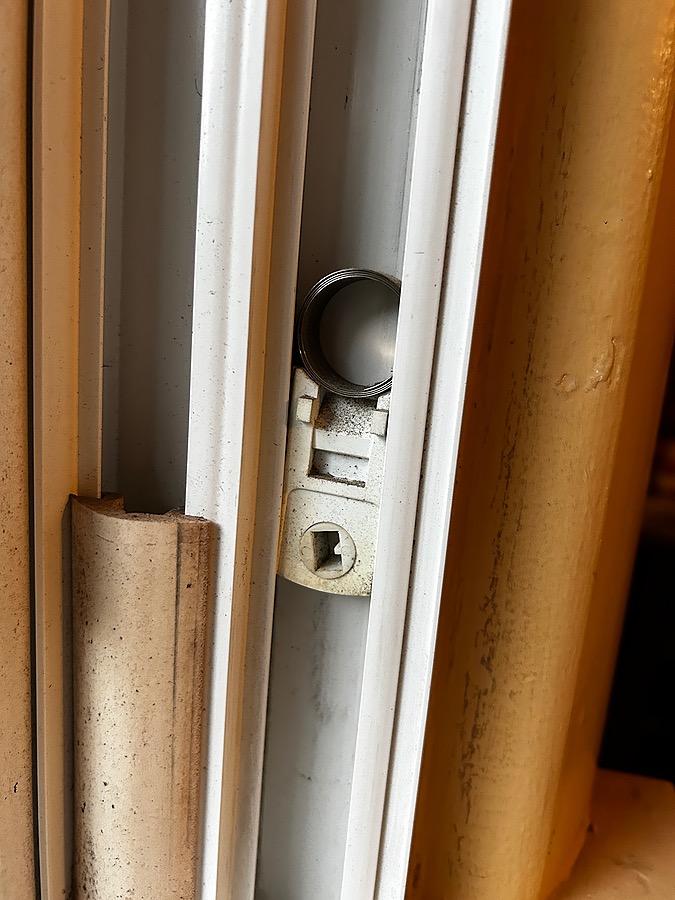

constant force coil balance needed

Hello, I am looking to replace the coil balance assemblies for a window. shoe width ; 1.25 shoe depth ; .5 coil spring thickness ; .5 8lb spring rating. There appear to be two coils in the assembly, but I am unsure if this is a single coil that snapped or if I must replace both. Thank you in ... (cont.)
