Viewing all customer Discussions for:

15-150S 1/2" Coil Single Support

Looking to match which part i need. I watched a video and a guy was able to turn the gray part or lock and twist the actual part out. Didn't see how to Get this one outto actually measure it. The reason i was trying to replace them is because my window won't stay up. This happened when i had a cont ... (cont.)

Two

Hi - the coil balances in my bathroom window broke and I am trying to determine which parts I need to repair them. My hope is that I only need to replace the metal spring part and can attach replacements to my exsting balance assembly parts, but would greatly appreciate any help / suggestions you ma ... (cont.)

I have taken several pictures of window. Please see attached. Thank you in advance

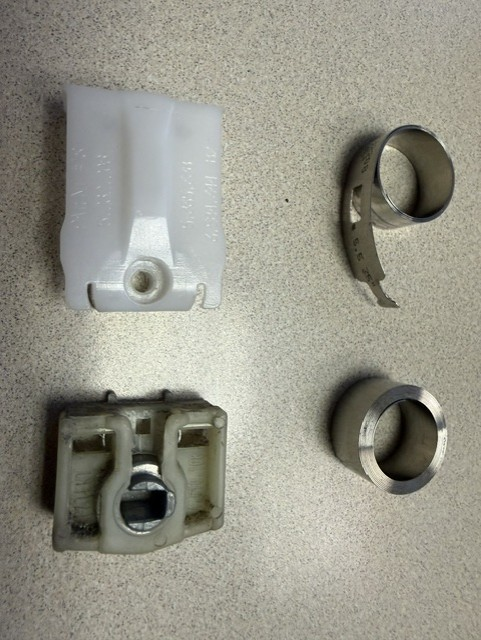

Hello, Attached are some photos of the coil balance hardware needed.

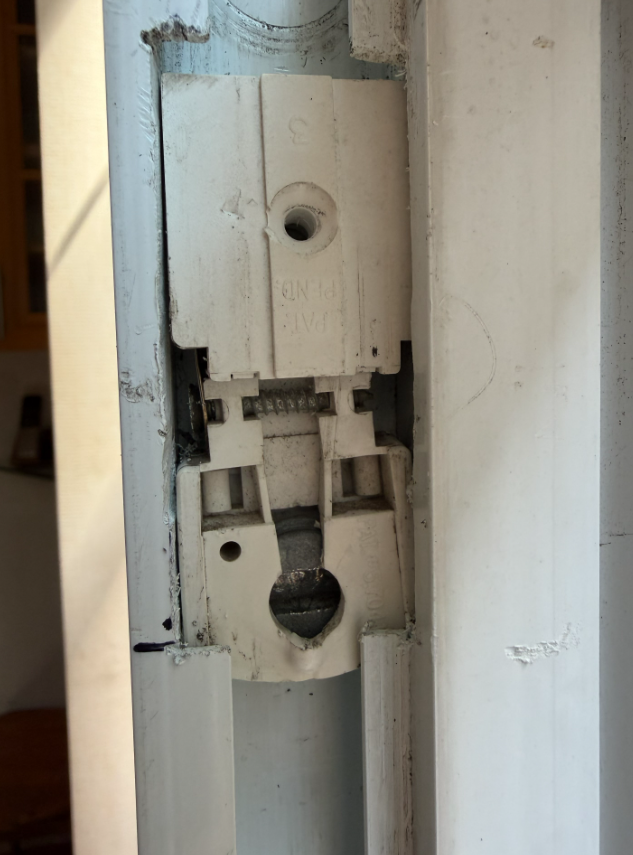

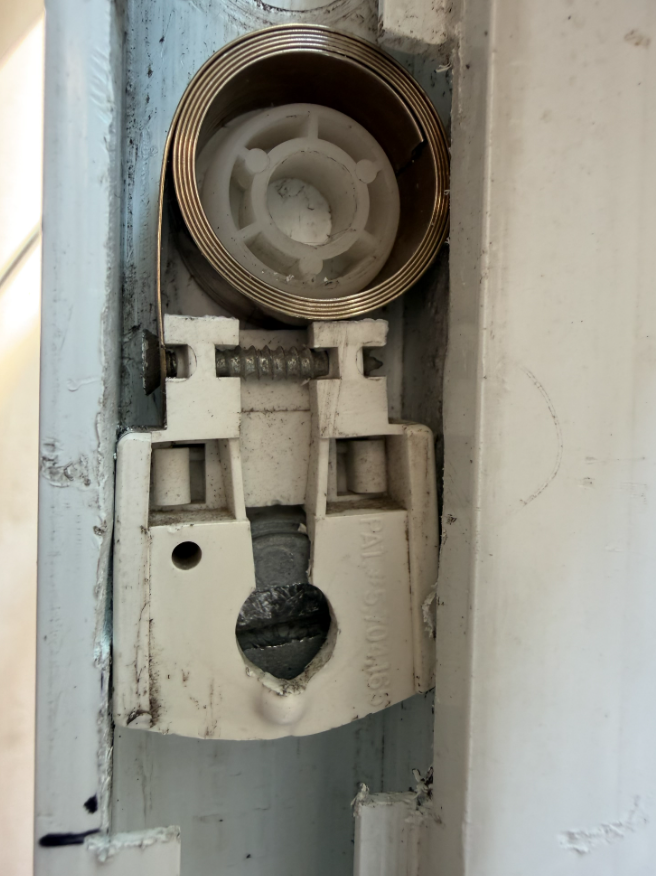

1. Window sticker 2-3. Broken coil and pivot arm inside track 4. Parts removed 5. functional side window coil says 6.5 pounds 40 inches. White part is shattered but holds the coil and I cannot read the part number. Need also the pivot arm and the mangled shoe thing.

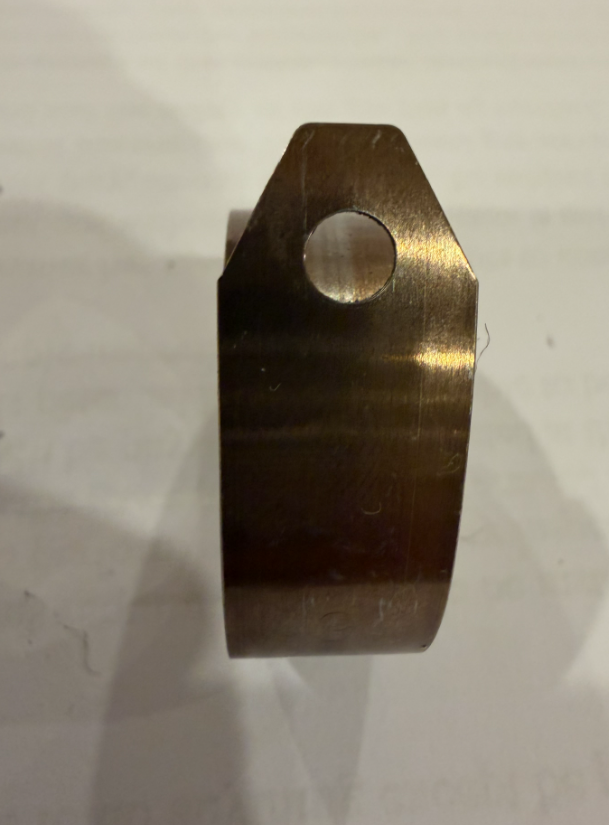

I have a picture that I will attach to The top piece broke upon disassembly The coil has a 4 stamped on it Lmk what else you may need Thanks

Hi, can you help me with finding the parts and instructions on how to replace these coil balances?

Graboyes Encore Double Hung window (manufactured 4/2/2010). Right-side constant-force coil balance has become disconnected from the pivot shoe. Coil is marked approximately 6.5. Looking for the correct replacement coil and coil support. thanks so much!

Please let me know if you have a comparable window coil balance parts for my sindow

I need to find coil balance 35" #4.5 35" P. what is the closest to match mine? They are 1/2" wide. I think the pivot shoes are still fine. thanks

The window has no identifiable markings for manufacturer or otherwise. They said some handyman installed and never said where it came from. I am in need of two new systems. It appears as if it's a 6 lb spring with factory stamping 933. Any and all help would be appreciated for this need. John ... (cont.)

Just need coil spring that will work for my other parts - coil stamp is 7.5

Window dont stay up

Identifying numbers on the actual coil are: Patent #5232208 #10.0 35" Does this come in a complete kit? Thanks in advance,Lee Hemphill

Hello looking for assistance with the coils spring pivot shoe and latches. Let me know if you can assist. I do not have but can search for a manufacturer label

this is for bathroom window, approx 2'x3', brand Simonton, no label on window, approx 6 year old retrofit windown, the removable window wieghs about 8lbs.

My coil broke in 1 of my vinyl replacement windows. It is a double hung, left side, lower window. It is stamped 7.5 31". There are other numbers on it but much has been worn away. I can still make out, "AT52320".

Request # 36978919, Sorry, I didn't get back to you in time with these photos. I have two window sashes, each one weights 18 pounds a piece. I have attached the photos of the pivet shoe that I need 4 of and the 1/2" coil spring, I will need two left and two right of the coil springs. I need the latc ... (cont.)

Spring and tilt mechanism
