Viewing all customer Discussions for:

26-226 Pivot Bar, 3-1/16"

Hi, our house was built in 1997. The windows are Jeld-Wen brand. I'm looking for what I think are the Pivot Pins and Shoes. Pins have the number 9862 stamped on them. Thanks for any help you can provide.

Hello I am a handyman and have a customer that disassembled the window and gave me all the parts. I am not sure how to convert the letters on the springs to the appropriate weight. the 2 top springs in the picture do not have a letter or number. The plastic piece in the middle on the left has the le ... (cont.)

I have 6 Ultramaxx vinyl tilt out windows. Many of them need new shoes and a few need bars. In some, the spiral balance holder is broken, in some it's the cam. The windows were installed in 1999. There are no cutouts otherwise I'd remove and take better measurements and pictures. I'll cut them out f ... (cont.)

10

I can find no discernible identification markings on my window. Fairly certain this is or resembles your product code 15 - 177

parts hold the window in place (bottom) as you tip out to clean. 2 screws hold in place on window and end holds into frame

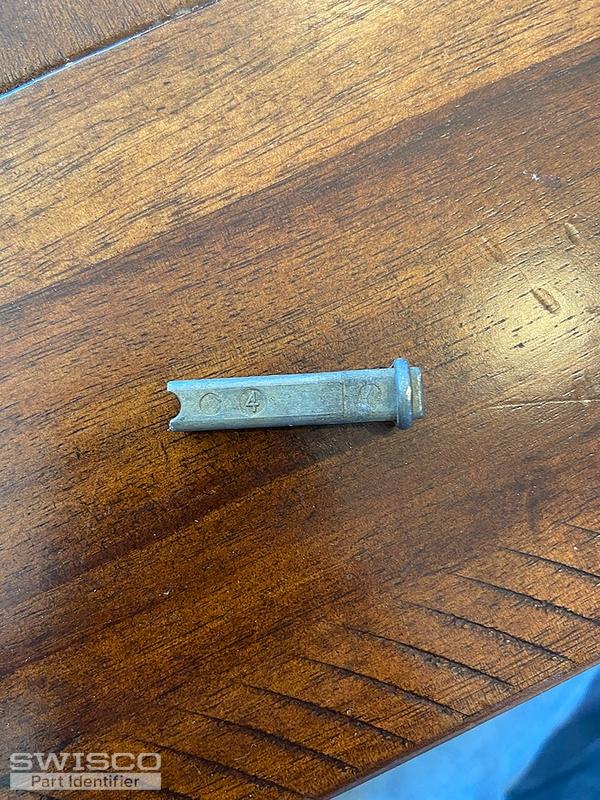

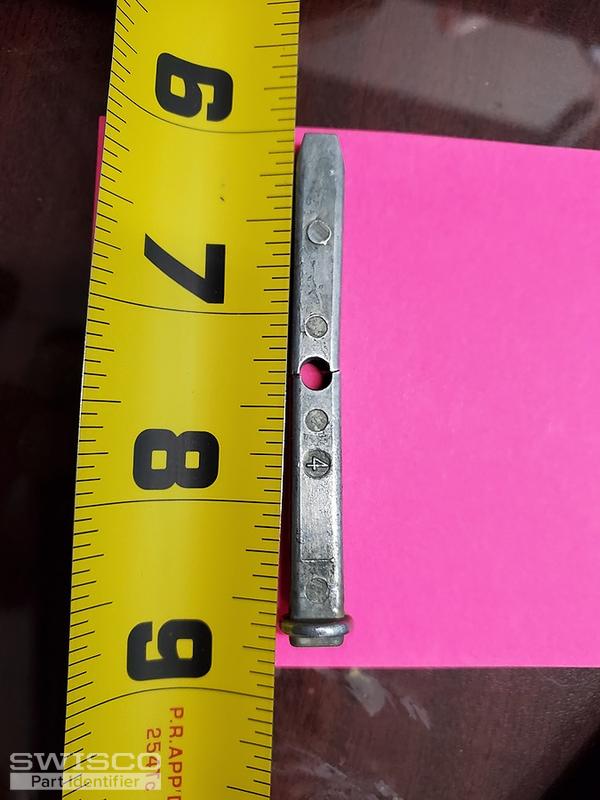

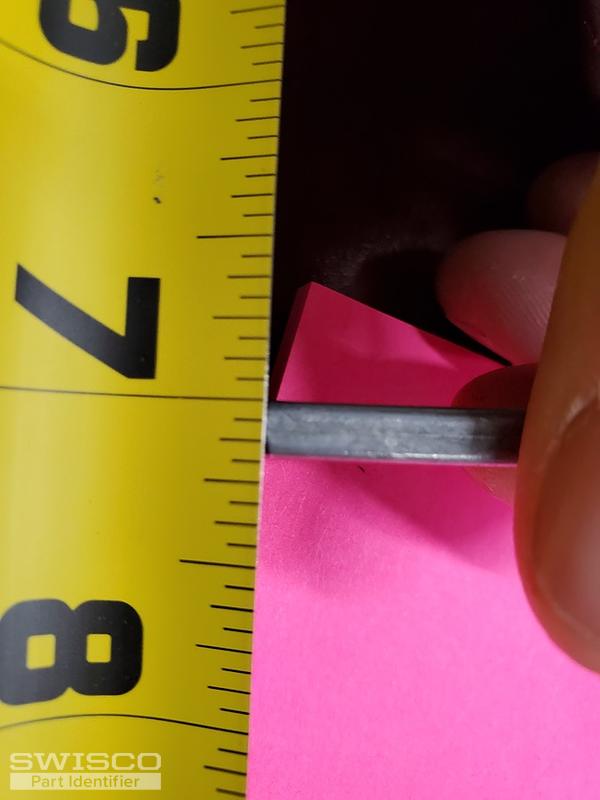

2 and 7/8 inches long. 1 hole in the middle. Numbers 2 , 3, 4, 7 on individual bars.

I need the pivot shoe if you have similar size. I can actually change out just the cam lock (the aluminum cam with the U lock) if you sell just that piece but if not I'm interested in the whole unit maybe S-140-7. I did not realize there are "left" and "right" coils and was assuming one would just ... (cont.)

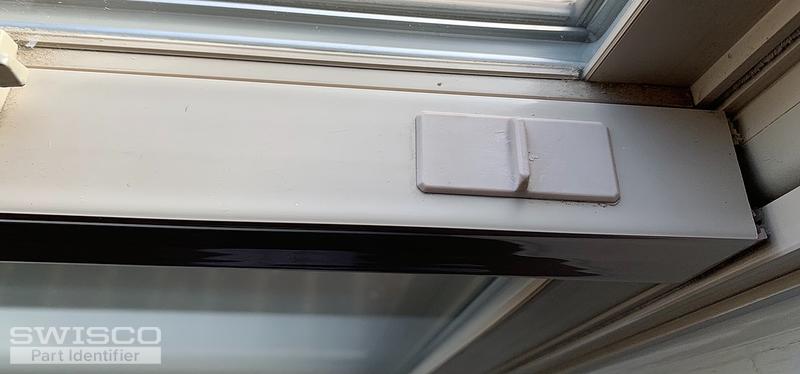

Needing the tilt latches and the tilt pins

I was tilting my window in to clean it when one of the metal pegs picture tilted and came loose. As I was trying to reconnect it the other one broke off. Now I can see that the peg still attached has become slanted so I cannot reconnect it, and I need a replacement for the other one. Is there any ... (cont.)

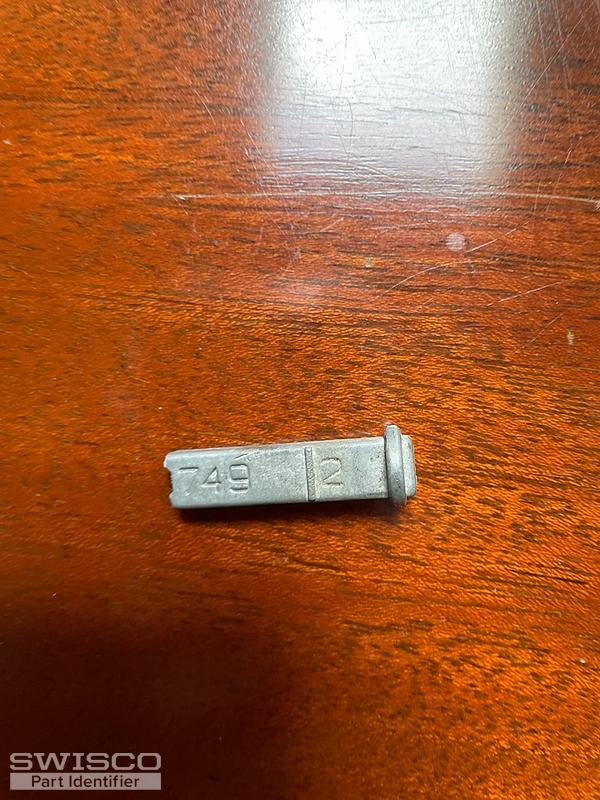

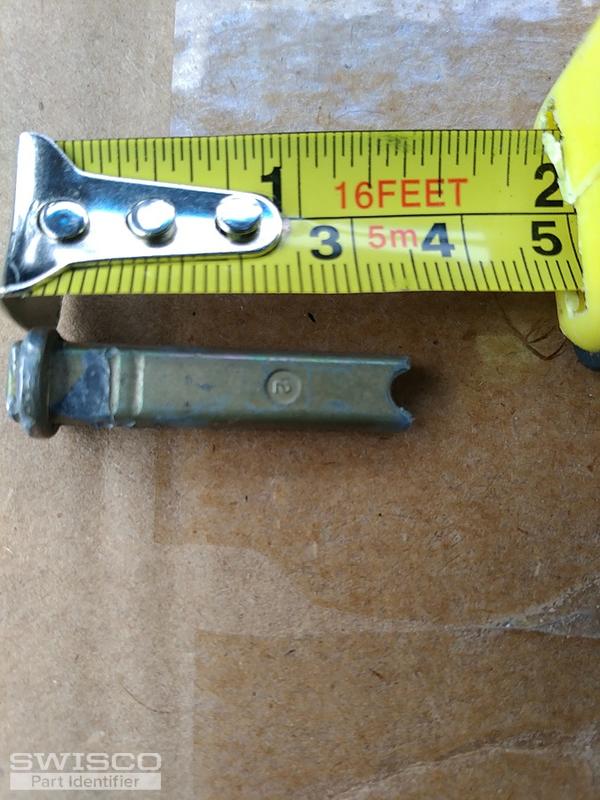

2 1/2 inch pivot bar, 11/16" between holes, bar is 1/4" tall, 3/4" from collar on right end, '2' stamped in a circle between the second screw hole and the bar. In locally produced vinyl Badger windows installed in 2000, I'd like 3 or 4 if you can find them. We appreciate your help, Mik ... (cont.)

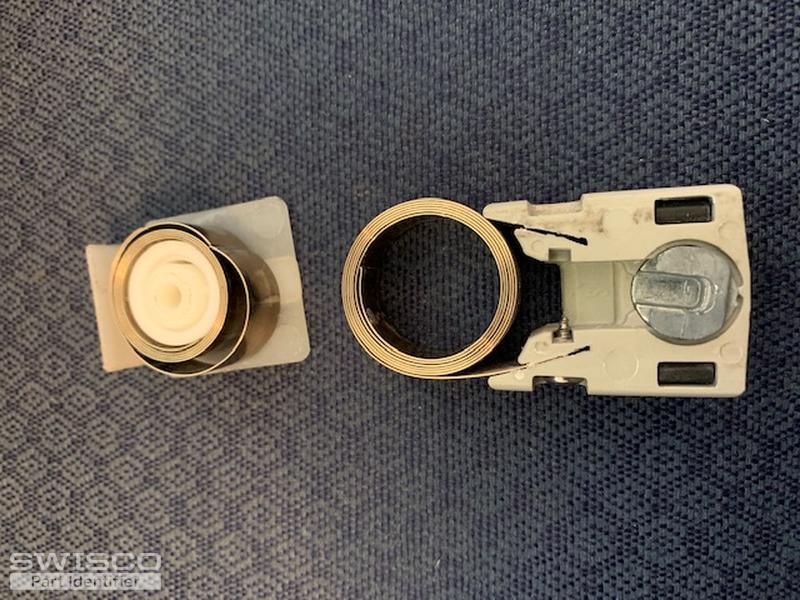

Hi I'm looking for 3 replacement coil balances with the plastic housing parts as pictured. The top two coils are stamped EL and the bottom one is stamped E The pivot bars for this model are 26-226 and the coil balance shoe is 15-175. Thanks!

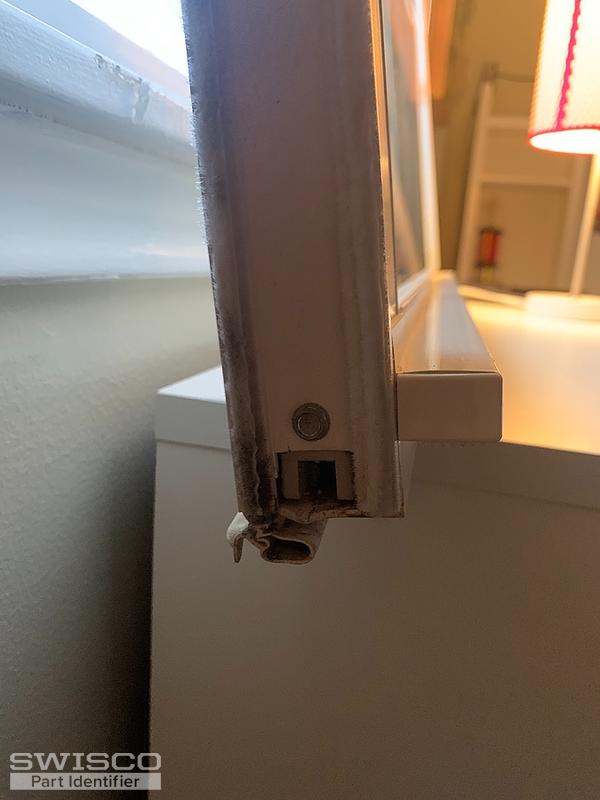

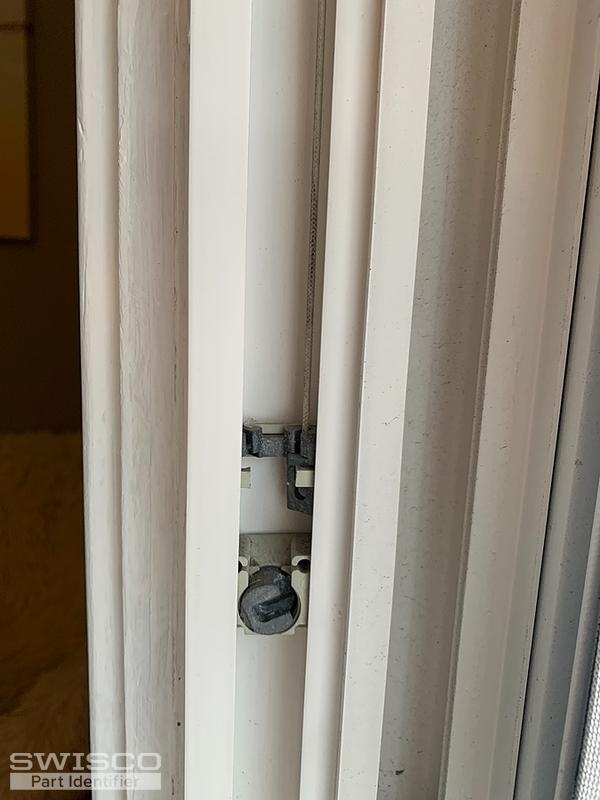

Good evening,I am in search for Pivot Shoes/Springs for two windows. I appreciate this forum and the help.They are both Alside Vinyl Replacement Windows installed in 2001.The picture taken is in our bathroom.I had already removed everything prior....but you get the idea I'm sure as I hold this back ... (cont.)

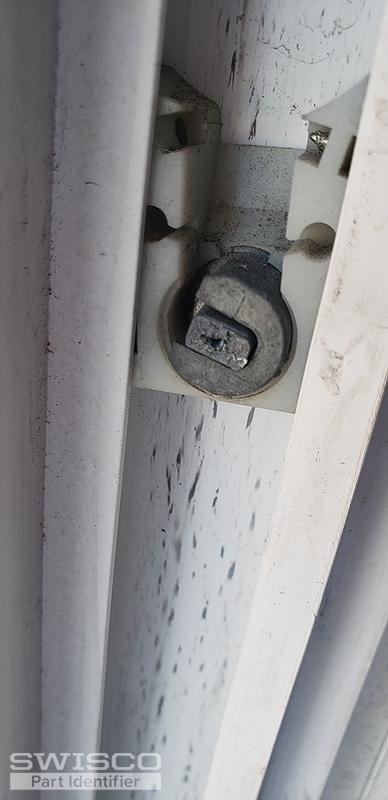

Hi I would really appreciate your help. I am trying to find replacement lock shoes for Monitor (Great Lake) windows for sometime now with no success. I have supplied some pics of the broken lock shoe and the pivot bars. The shoe has steel CAM i believe. Thank you in advance Carolind ... (cont.)

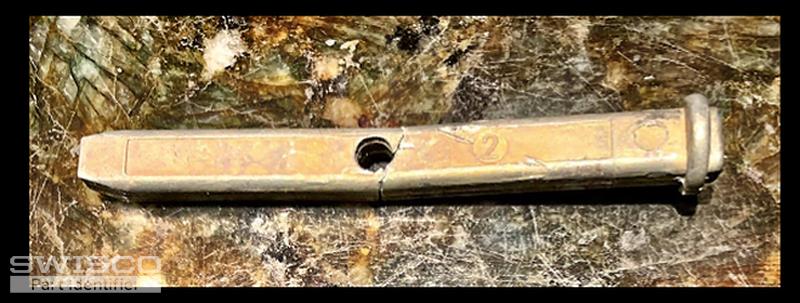

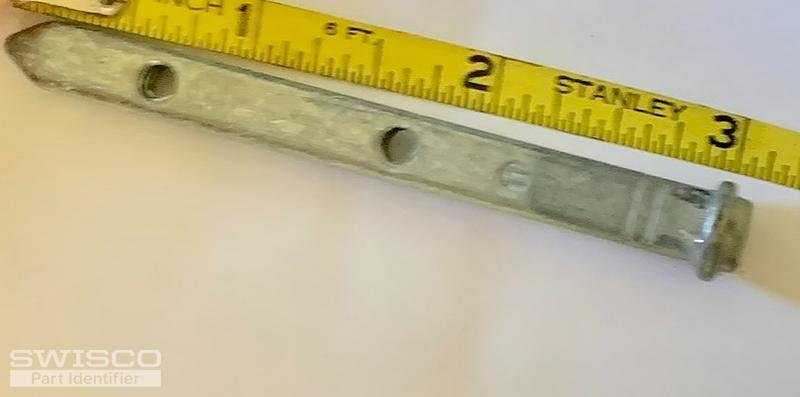

I need pivot bar it is 2 3/4 long measures 1 3/8 from end to hole

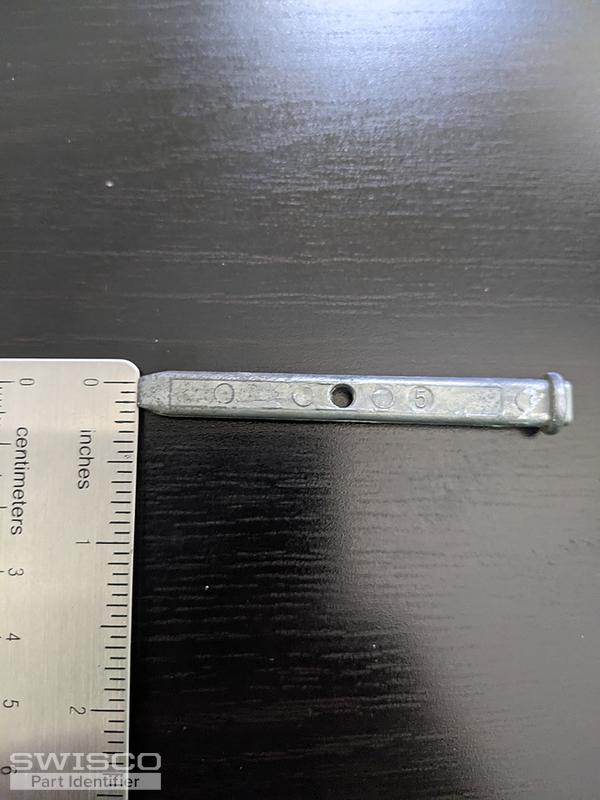

Has "5" stamped on the side

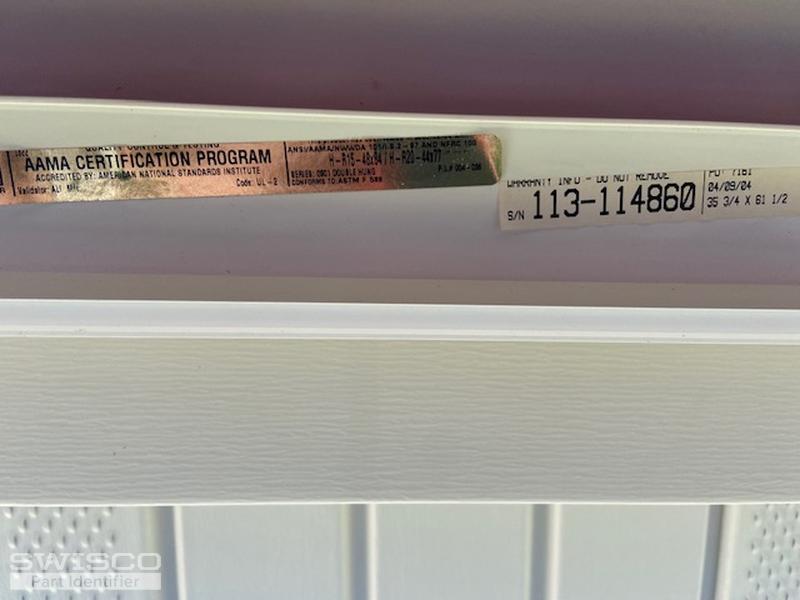

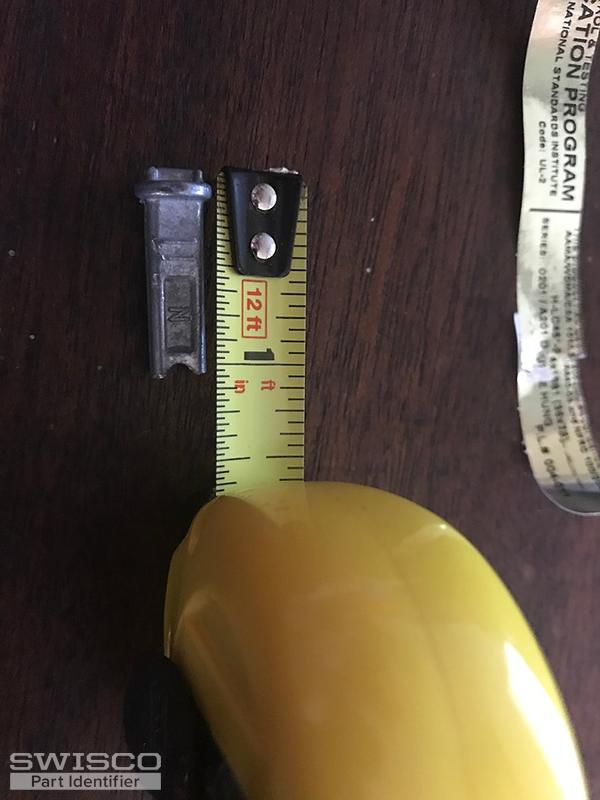

Need 4 pivot bars for the above window information. When I googled the "series: 0901 double hung window" it took me to your website for pivot bars. The bars that I had broke so I'm unable to get an accurate measurement.

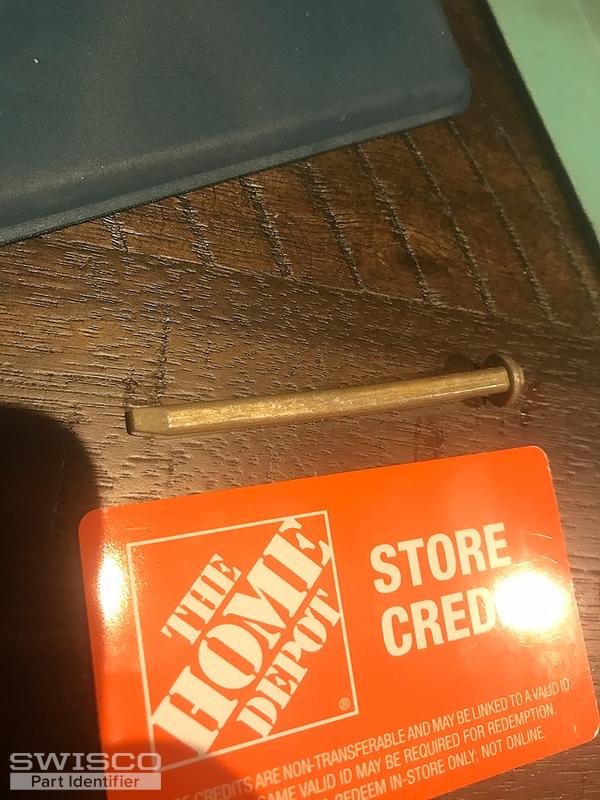

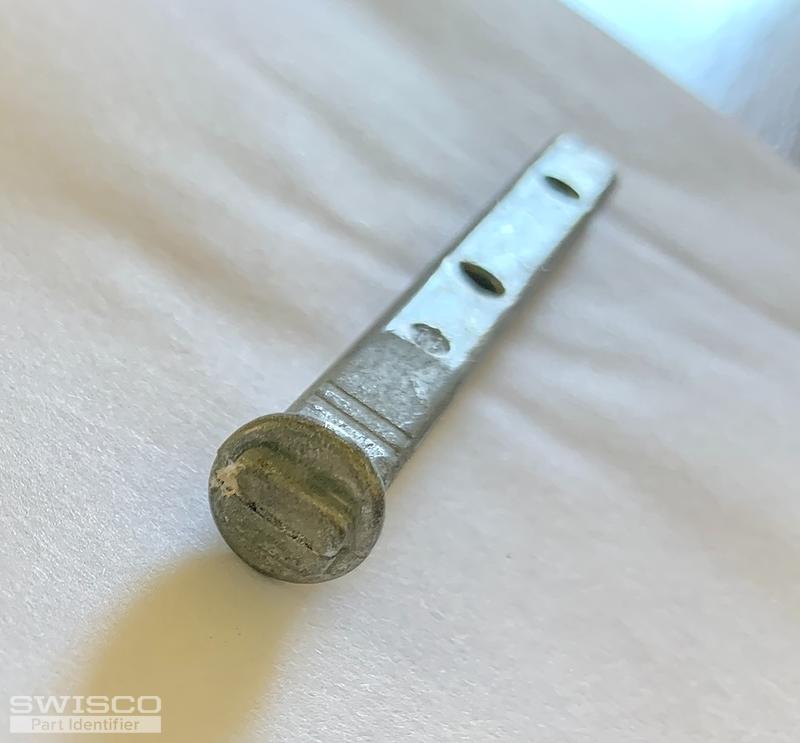

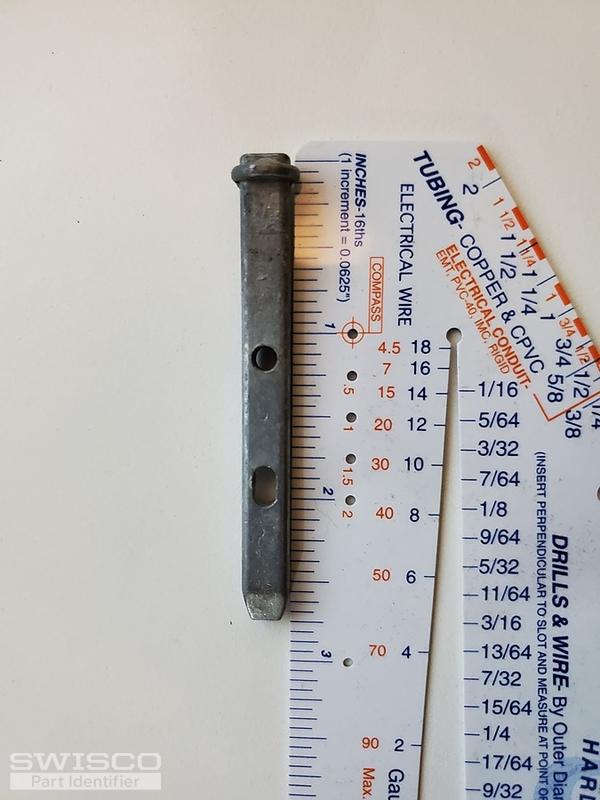

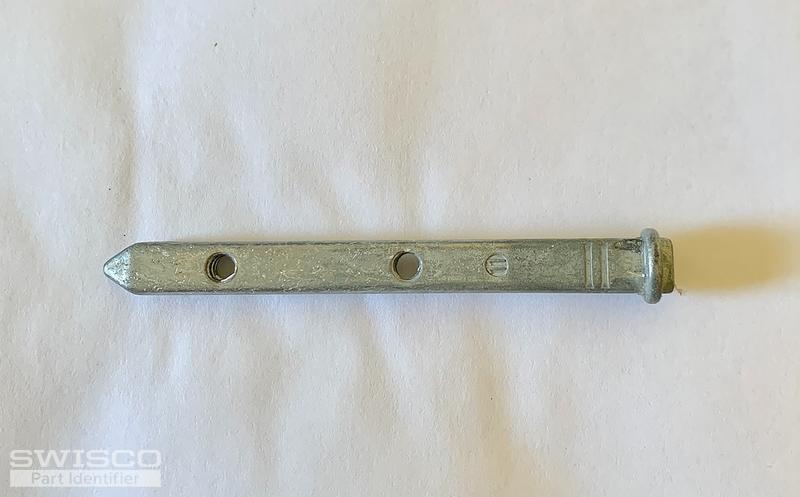

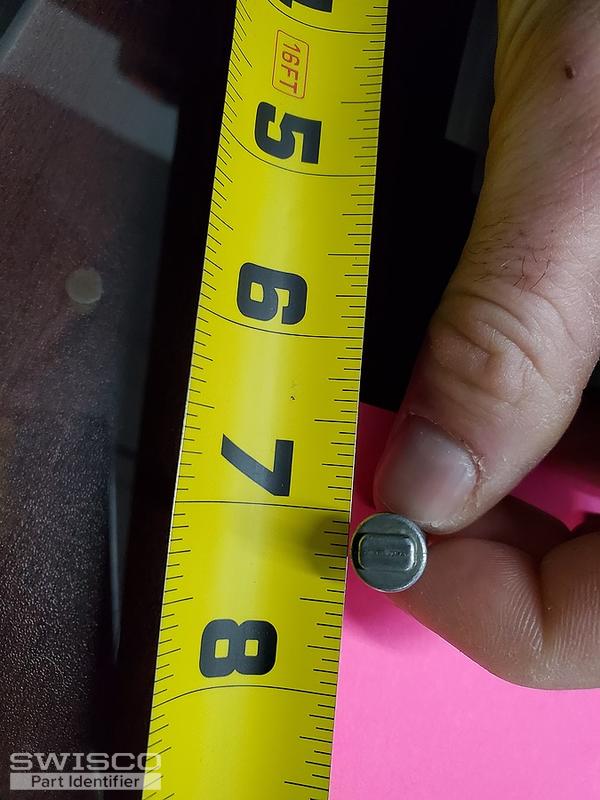

Hi, attached find a photo for a pivot pin. I need about 6 of them. Do you have a replacement? thanks! dave

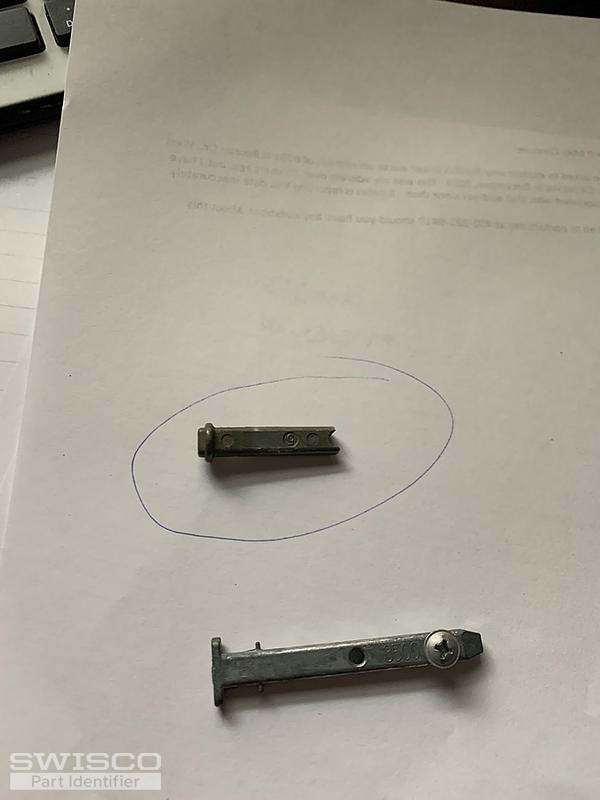

I was only given this piece of pivot bar, and a picture of the pivot lock shoe with dimensions, to find replacements. I believe the pivot bar is 26-226, based on the style and dimensions of the first hole. I can not seem to find a pivot lock shoe that corresponds to the dimensions i was given, 1" wi ... (cont.)

Purchased S140-10 : 10 lb Series 140 Quick-Tilt, Single, both left and right. Now realize I need to replace the male peg on the sash itself that seats into this.
