Viewing all customer Discussions for:

26-226 Pivot Bar, 3-1/16"

Need pins and shoes for windows double hung

I needs size 3 1/8 inches pivot true bar

green label is from older windows. the older looking pivot shoes are from these windows. there are 8 windows. lhe wound up spring thingy to help the windows open and close also need repair / replace.thanksrichard

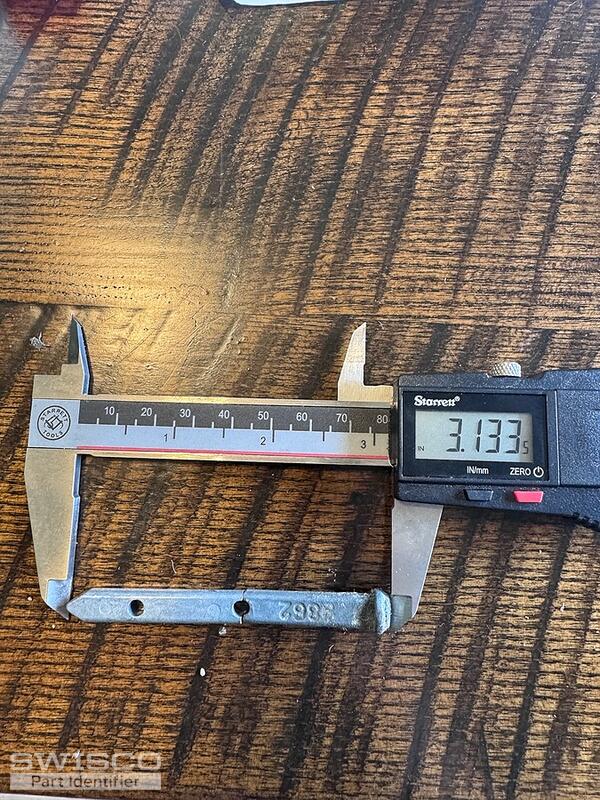

I would like to replace the slides, pivot pins and springs on my pace setter windows. Slides are 1.25 in wide, 1.4 in tall, .55 in thick. The only markings on the springs are CL on one and B on the other. The windows weight 20 lbs each. The pins have 9862 stamped on them and are a little over 3 inch ... (cont.)

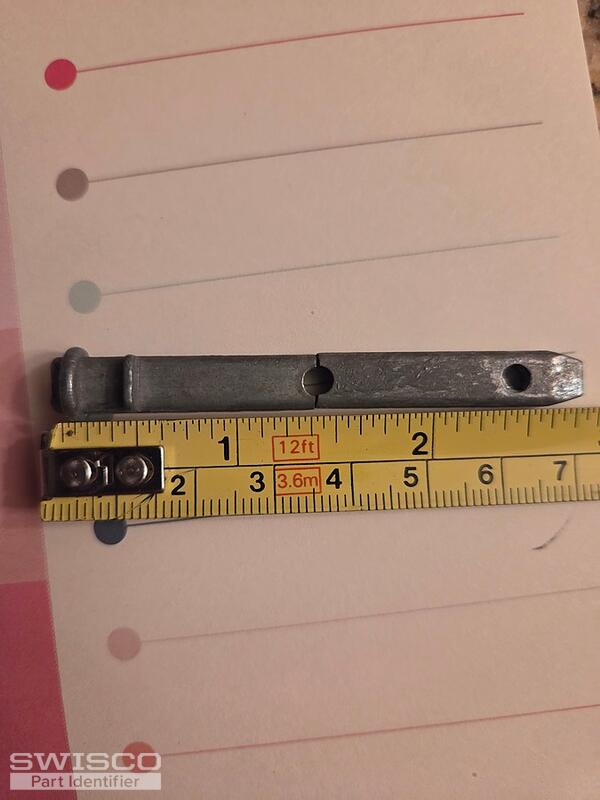

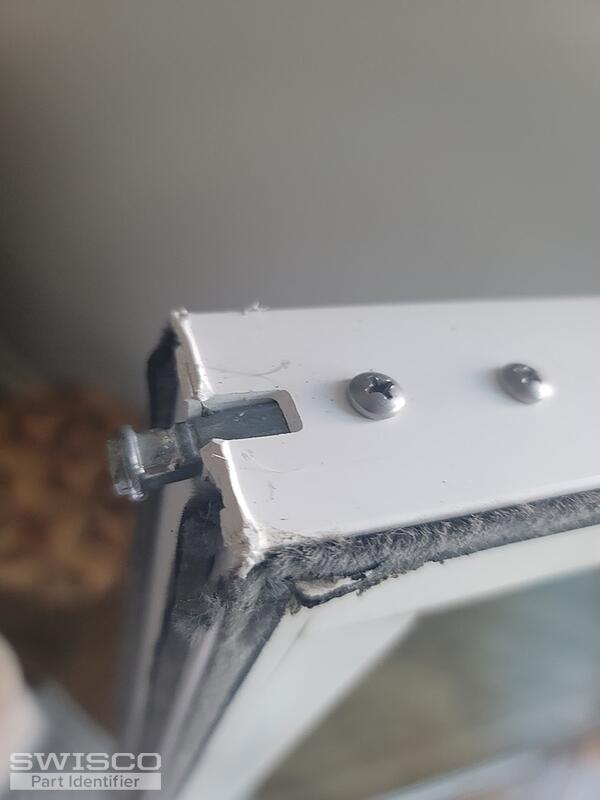

Unknown vintage or manufacturer of window or installation. Pivot pin appears broken. Length of in is about 1-1/4" in current state. Suspect origina was 1-1/2" Please advise if this part is available. Thanks.

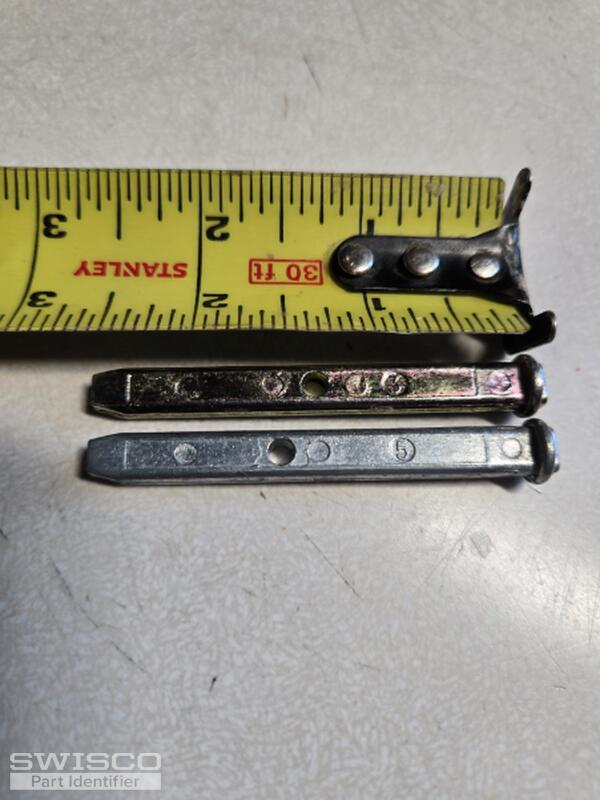

I'm looking for a pivot pin #3 for a bottom sash. The top sash has the #5 on it. I need the #3 Thx

message

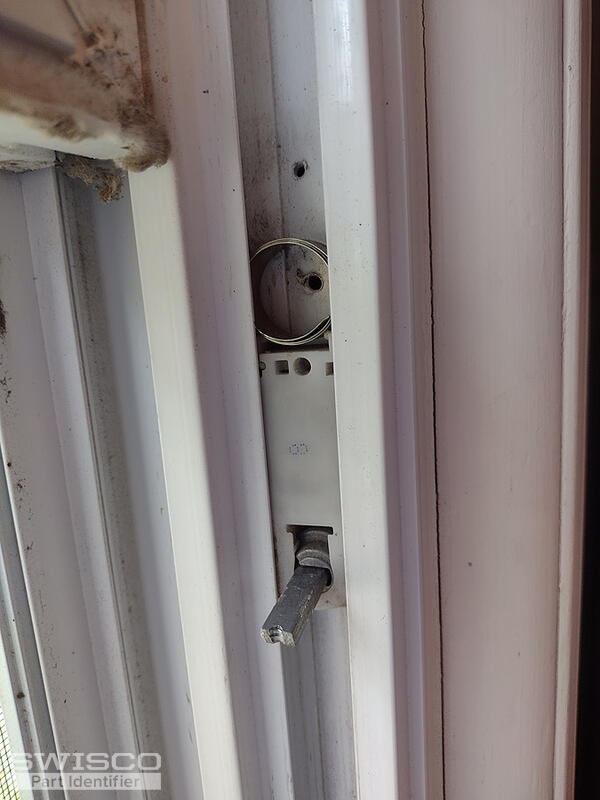

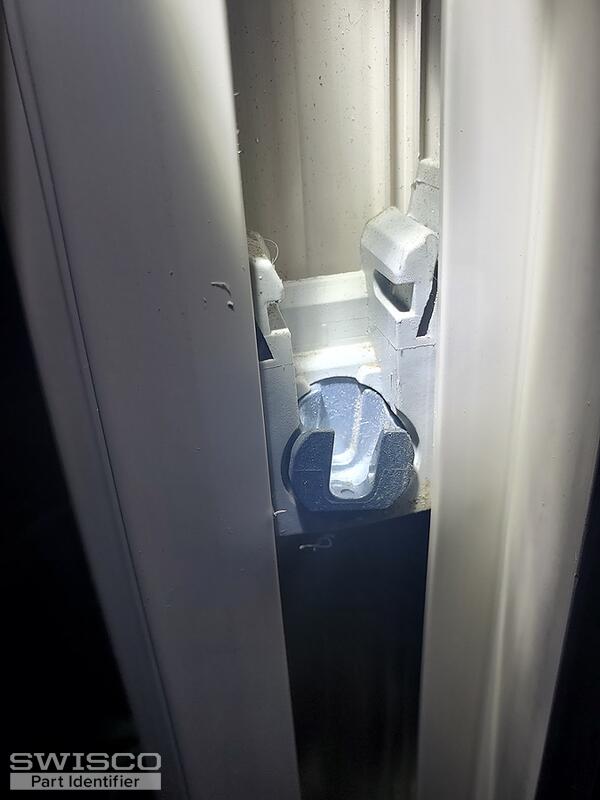

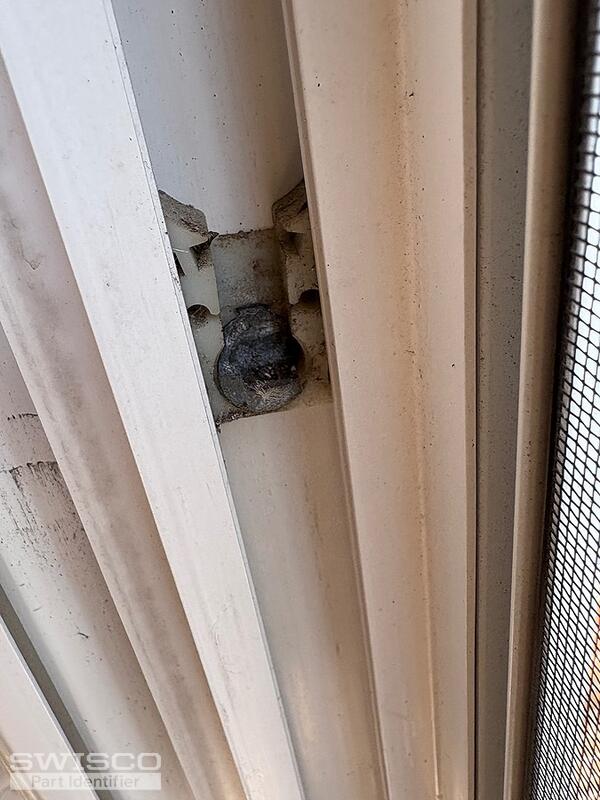

Looking for this pivot and the return spring setup

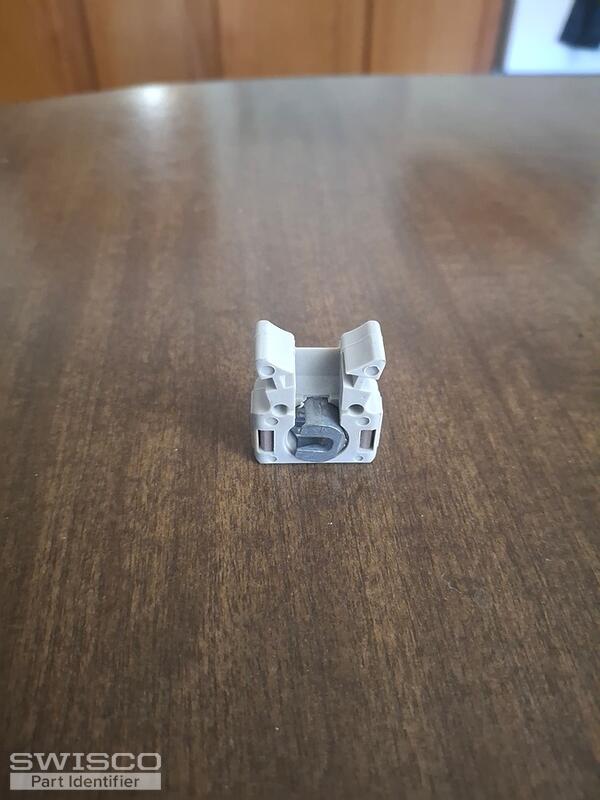

I need the 2 metal parts in the first photo and the shoe in the other picture. I have included a picture of the entire assembly.

Photo 2615 is the broken part that fell out when I took bottom window out. The balancer has a blue/turquoise tip on it, 3/8 diameter. The spiral rod stilll has tension but the part it hooks onto, I believe, is what broke. I'm trying to figure out what part(s) I need to replace and how to do it. ... (cont.)

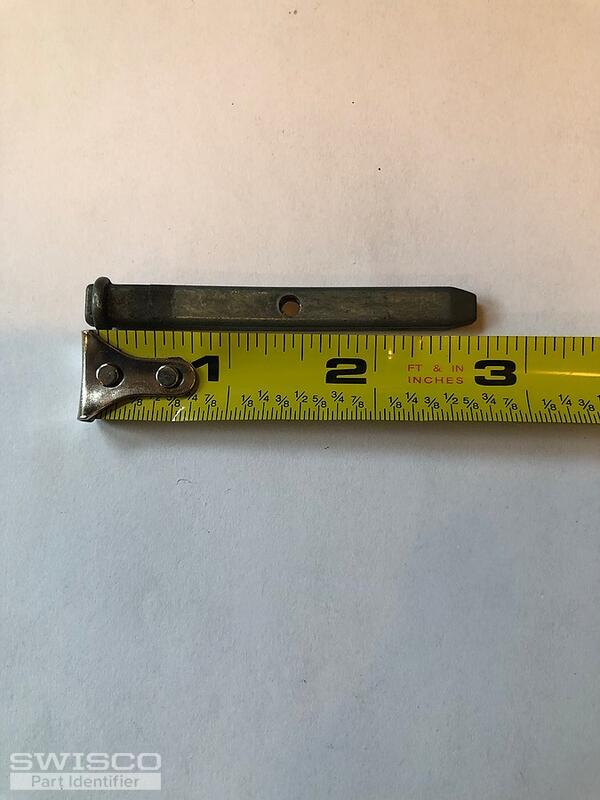

The spring has the letters CL stamped on it. The post is 3 1/8" long. I need 4 complete units. Or an equivalent substitute.

Suspecting Alside windows, multiple pivot bars are broken - looking for replacement parts S/N 121- 603838

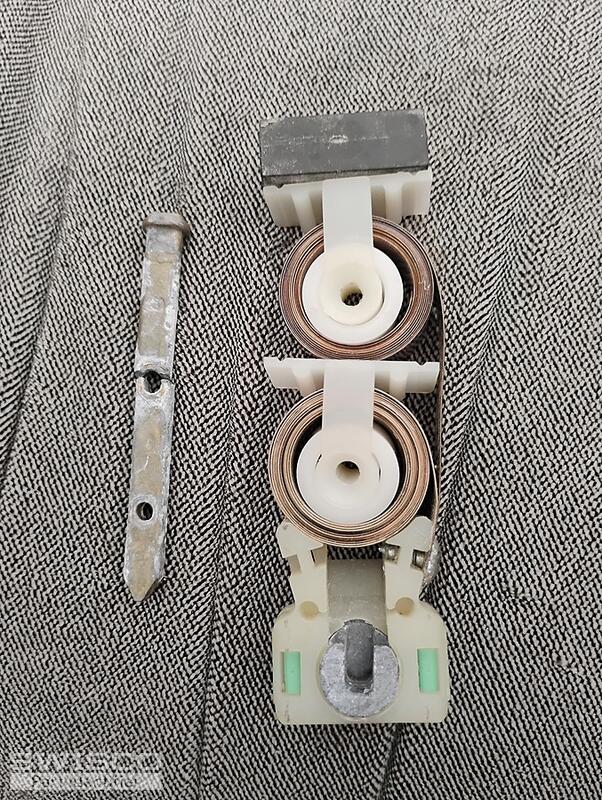

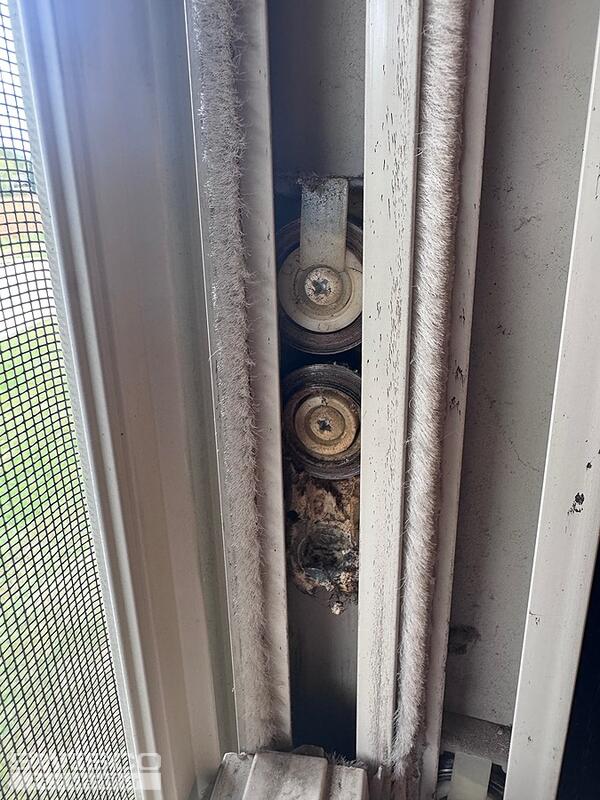

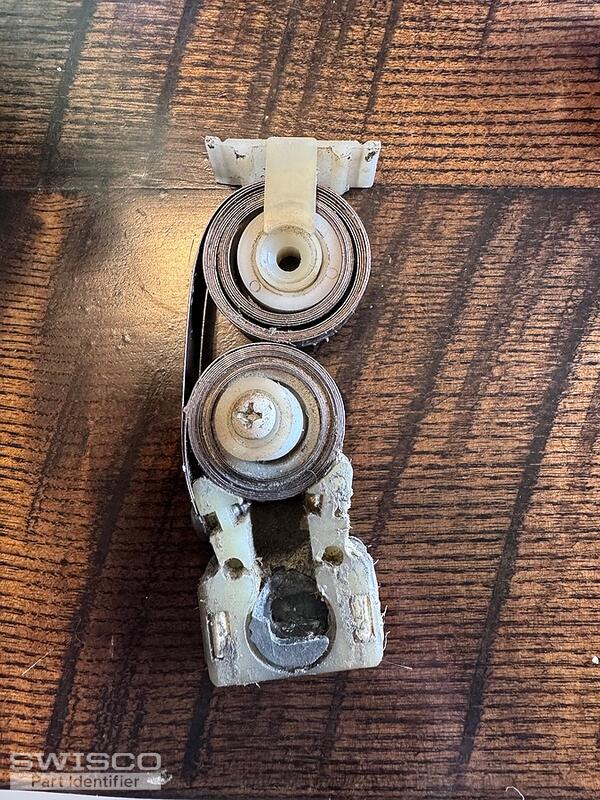

These parts are from a 901 series double hung window sash. The length of the pivot pin is 2 3/4" and is currently held in by 1 screw. The sash weighs 20 lbs and there are two coils per side. I was not able to identify part numbers on the coils. What are the recommended replacement parts to put m ... (cont.)

Need pivot bars

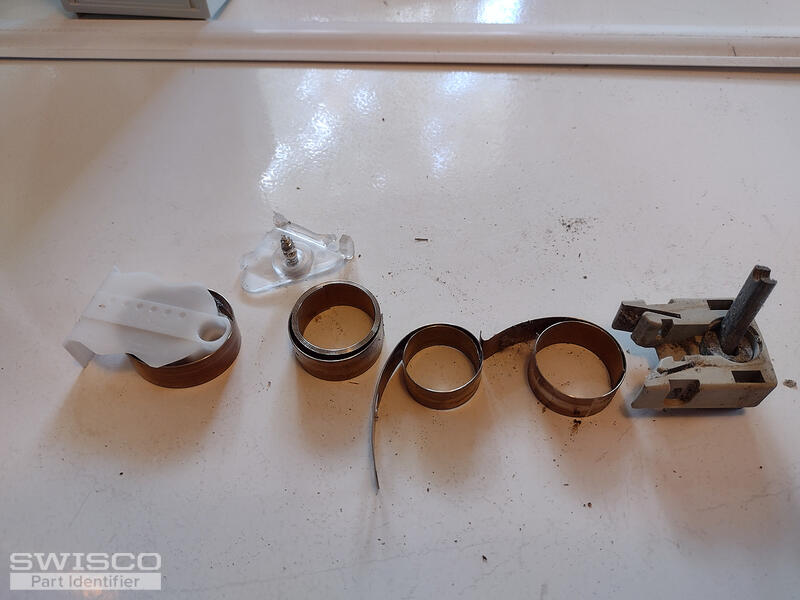

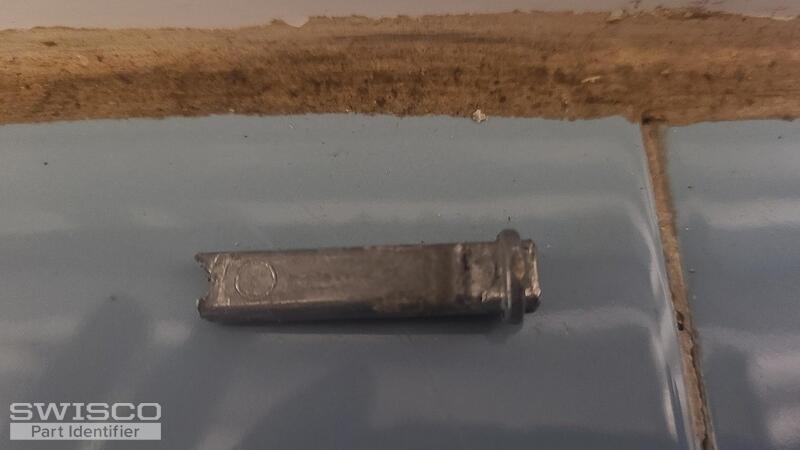

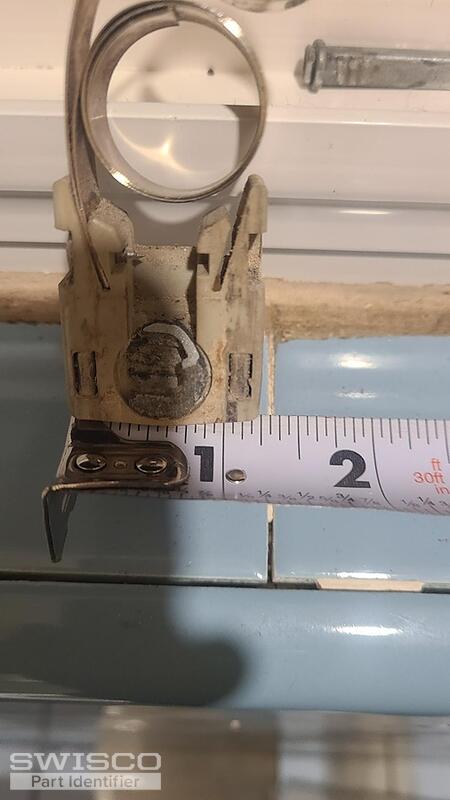

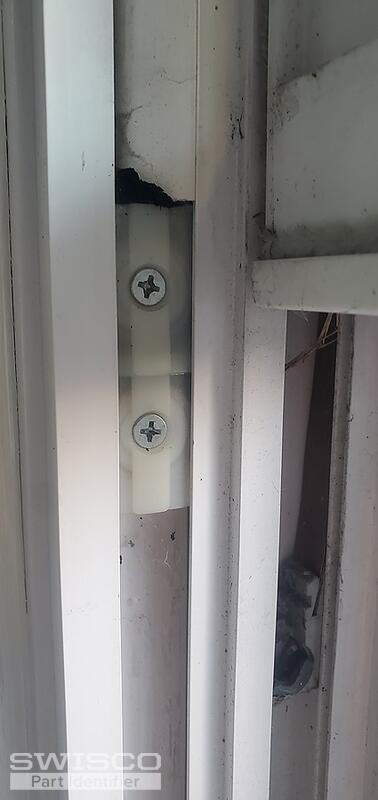

Hi. Looking for parts to replace entire coil balancer system. I have included several pics. Pic #1000014969 shows the coil housing/keeper but I believe there were 2 of them (I see 2x keepers on the other sash). We have had the original window company service theses 2x since they were installed in ... (cont.)

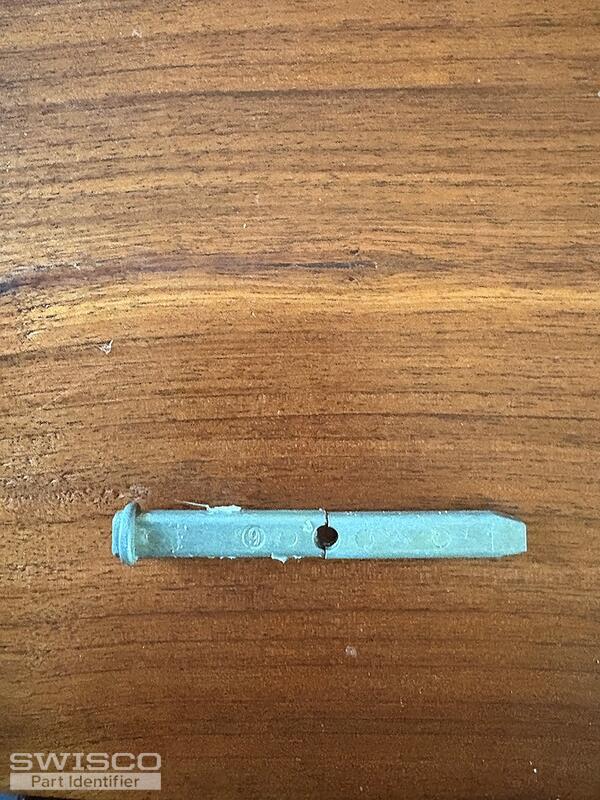

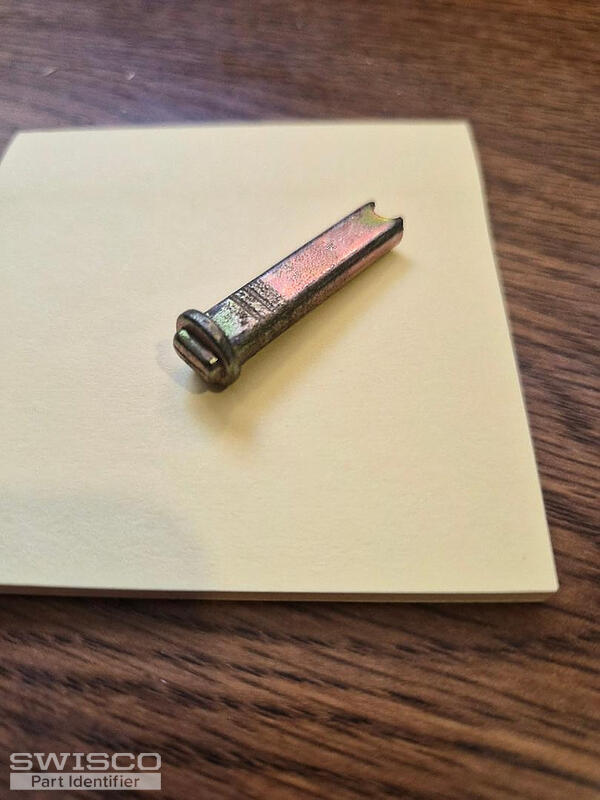

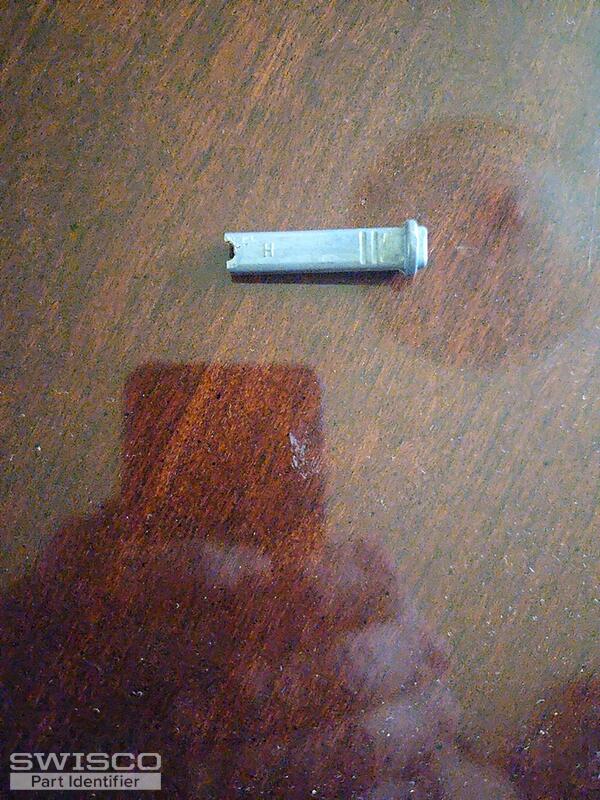

This pin Came From the Bottom window pane and broke off. Label came off of the same window

I bought a home and have what I believe are champion windows . I found 3 windows and 3 half windows where all the pins were bent and broken at the first screw hole . I tried to straighten the pins and reinstall the broken peice into the spring loaded horse shoe slider (possibly part number series 1 ... (cont.)

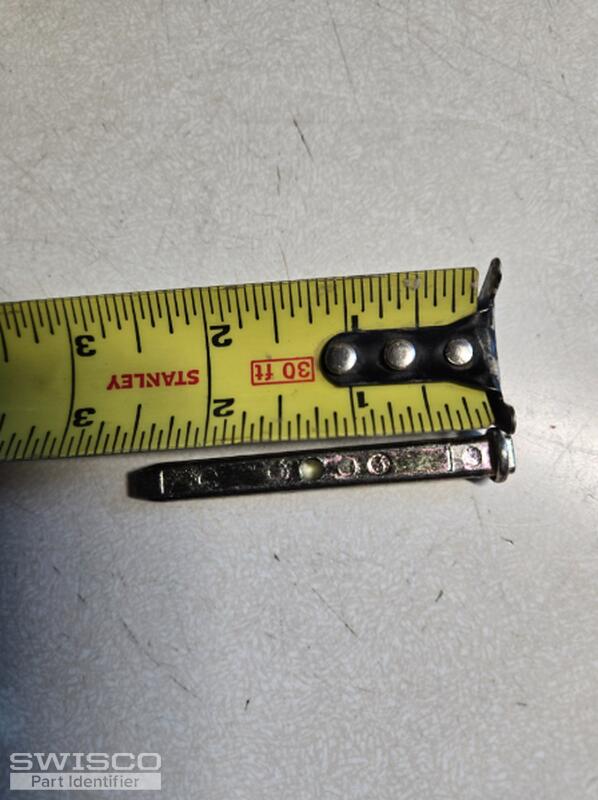

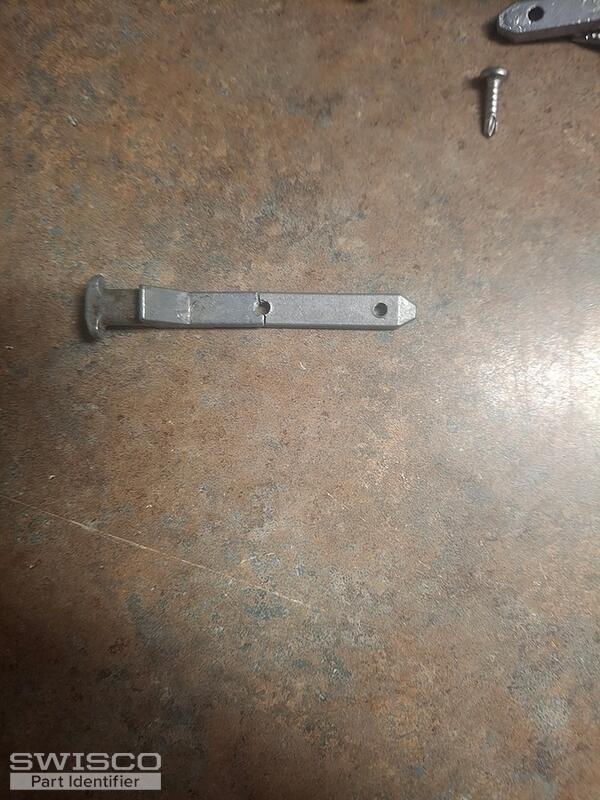

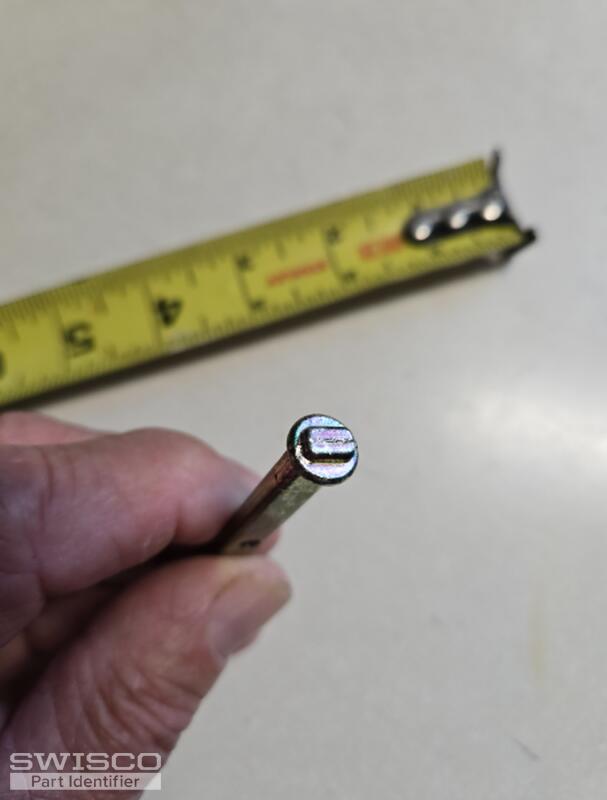

I Need to replace the broken pin from my window

Looking for information on replacing one that broke along the screw port.

I have 8 of these pivot bars and shoe coils that broke. I think I found the right replacements but I want to be sure.
