Viewing all customer Discussions for:

26-226 Pivot Bar, 3-1/16"

message

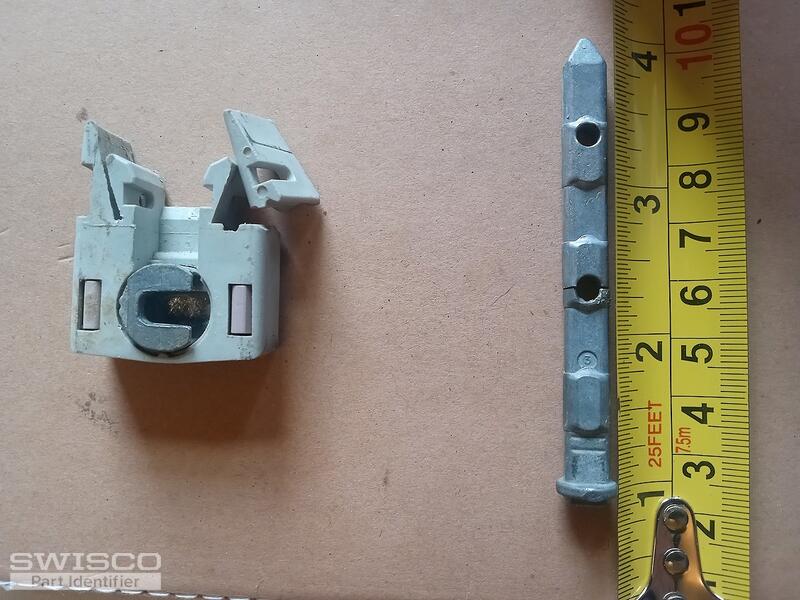

Looking for this pivot and the return spring setup

I need the 2 metal parts in the first photo and the shoe in the other picture. I have included a picture of the entire assembly.

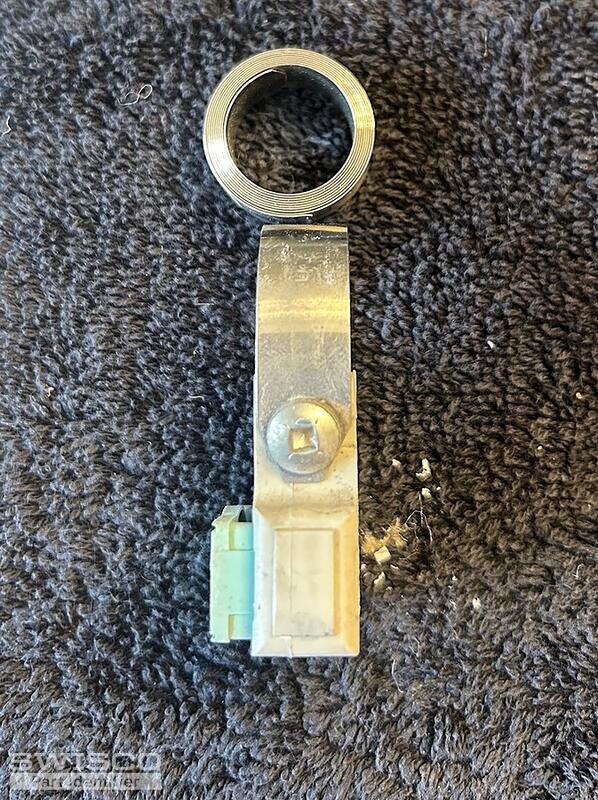

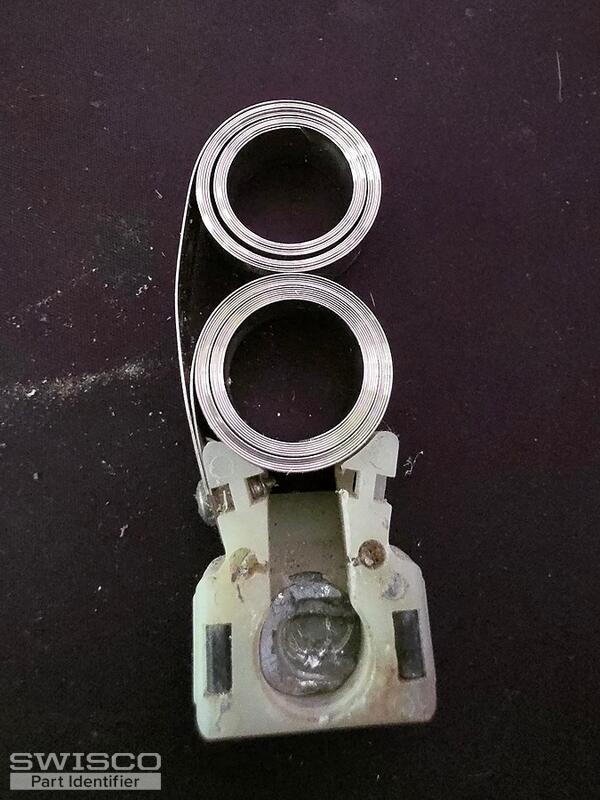

Photo 2615 is the broken part that fell out when I took bottom window out. The balancer has a blue/turquoise tip on it, 3/8 diameter. The spiral rod stilll has tension but the part it hooks onto, I believe, is what broke. I'm trying to figure out what part(s) I need to replace and how to do it. ... (cont.)

The spring has the letters CL stamped on it. The post is 3 1/8" long. I need 4 complete units. Or an equivalent substitute.

Suspecting Alside windows, multiple pivot bars are broken - looking for replacement parts S/N 121- 603838

These parts are from a 901 series double hung window sash. The length of the pivot pin is 2 3/4" and is currently held in by 1 screw. The sash weighs 20 lbs and there are two coils per side. I was not able to identify part numbers on the coils. What are the recommended replacement parts to put m ... (cont.)

Need pivot bars

Hi. Looking for parts to replace entire coil balancer system. I have included several pics. Pic #1000014969 shows the coil housing/keeper but I believe there were 2 of them (I see 2x keepers on the other sash). We have had the original window company service theses 2x since they were installed in ... (cont.)

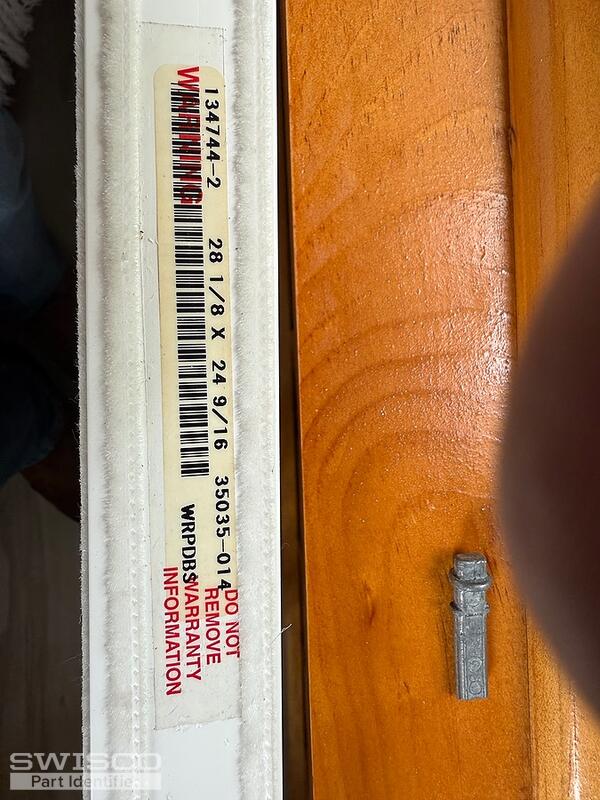

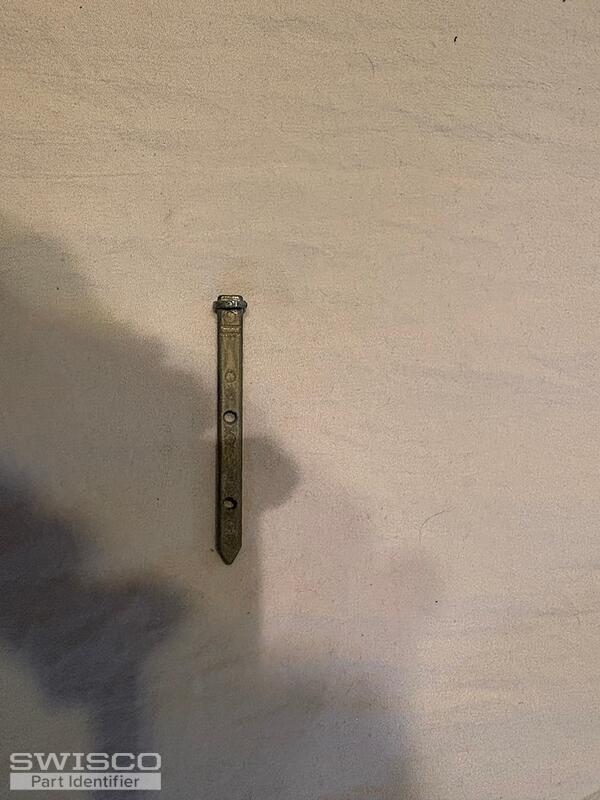

This pin Came From the Bottom window pane and broke off. Label came off of the same window

I bought a home and have what I believe are champion windows . I found 3 windows and 3 half windows where all the pins were bent and broken at the first screw hole . I tried to straighten the pins and reinstall the broken peice into the spring loaded horse shoe slider (possibly part number series 1 ... (cont.)

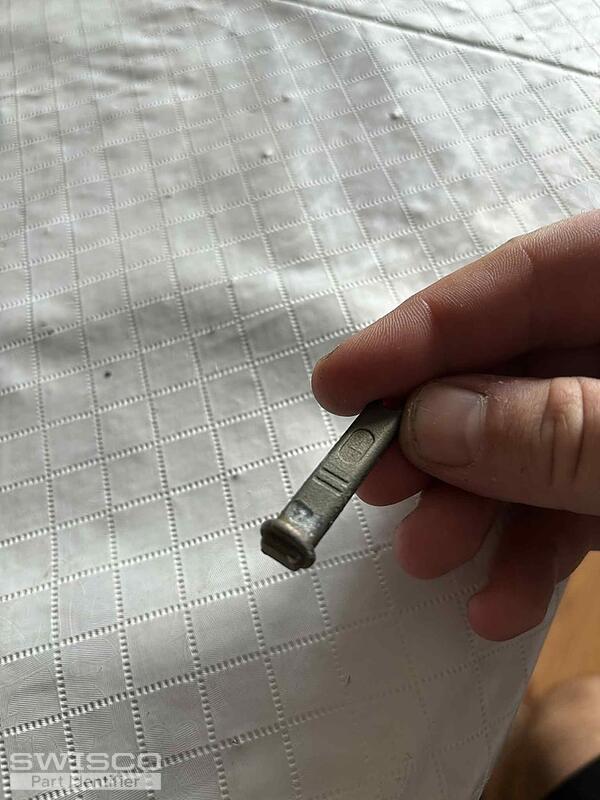

I Need to replace the broken pin from my window

Looking for information on replacing one that broke along the screw port.

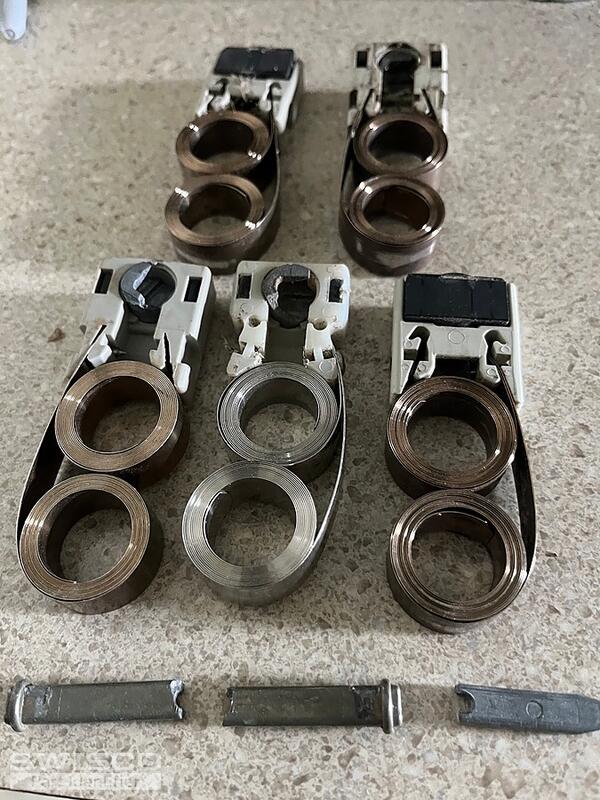

I have 8 of these pivot bars and shoe coils that broke. I think I found the right replacements but I want to be sure.

Please see pictures

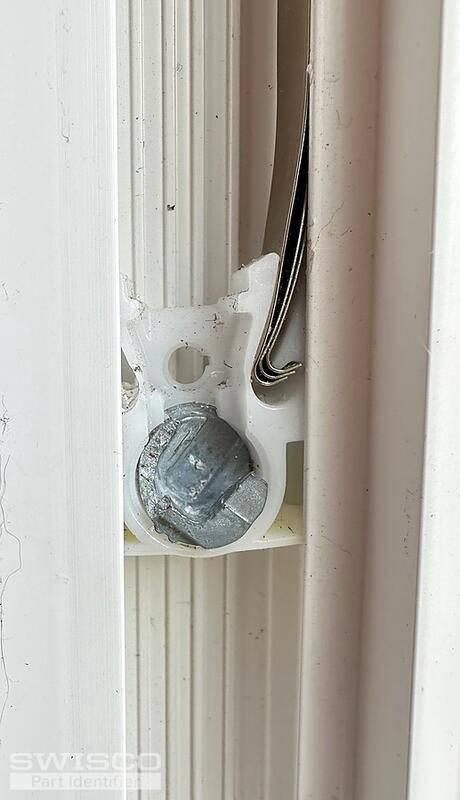

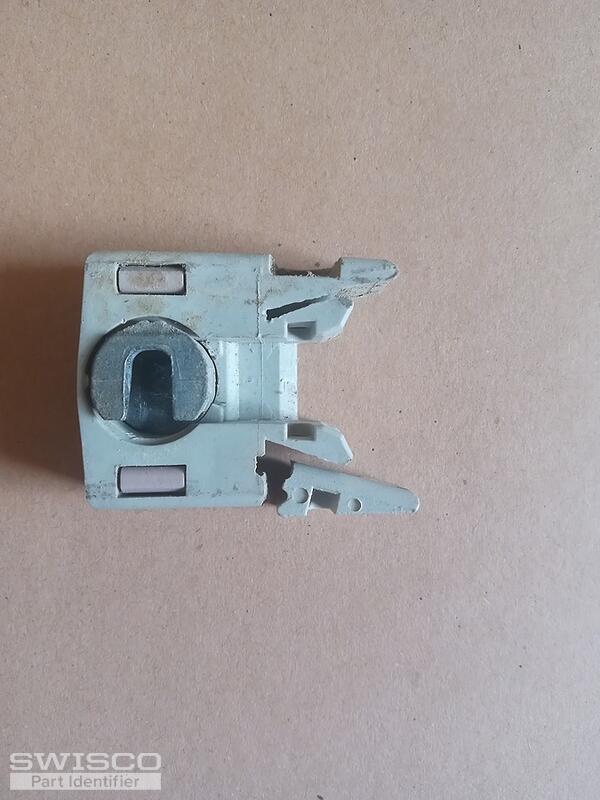

Pivot Shoe - Measurements 1/2" Thick, 1 1/4" wide, 1 1/2 " Height. For tilt window.

not 100% sure what i need, i thought it was a simple pivot shoe (also no idea how to get this out and new one in) and can i get it out without those springs killing me :) bunch of them

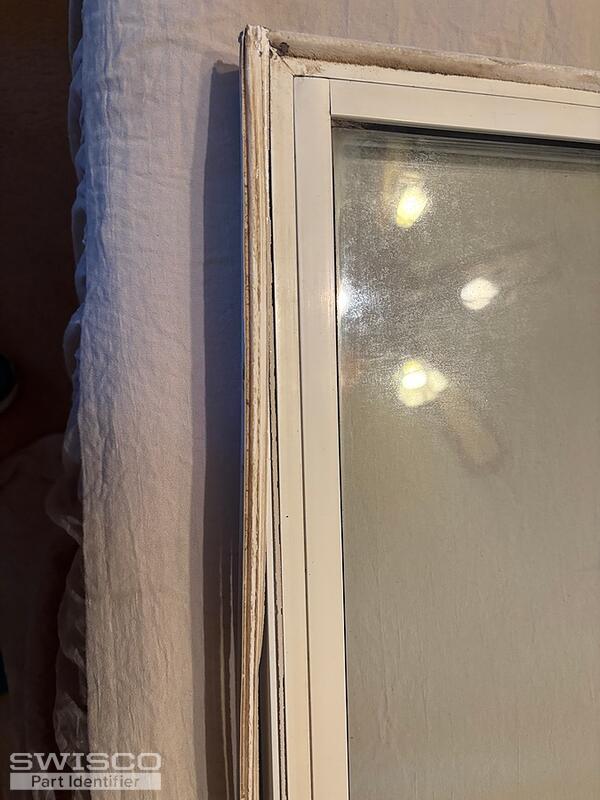

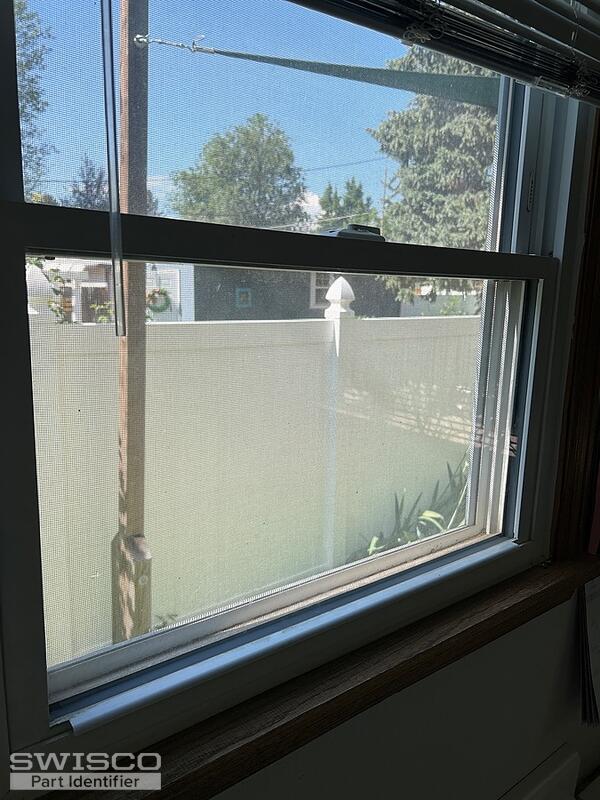

Do you have anything that would fit this 2018 window we had installed?

if you have a job to repair for windows. 4 complete sets needed. is there any more information you need? and hopefully you can help us quickly as two of the windows are in operable at this time. Thank you, Randy

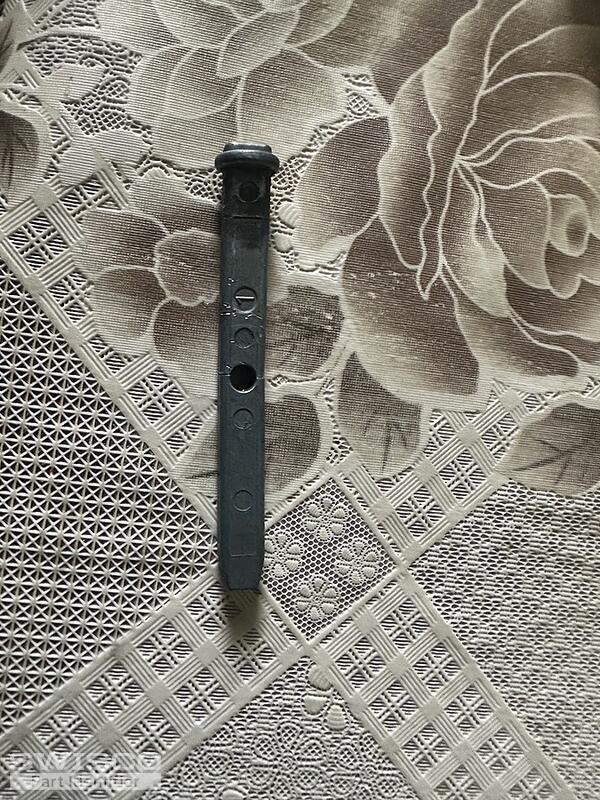

Pivot bar has the # 4 imprinted on the side. This is from a double hung window.
