Viewing all customer Discussions for:

36-048 2-Bar Hinge Set, 10"

Need

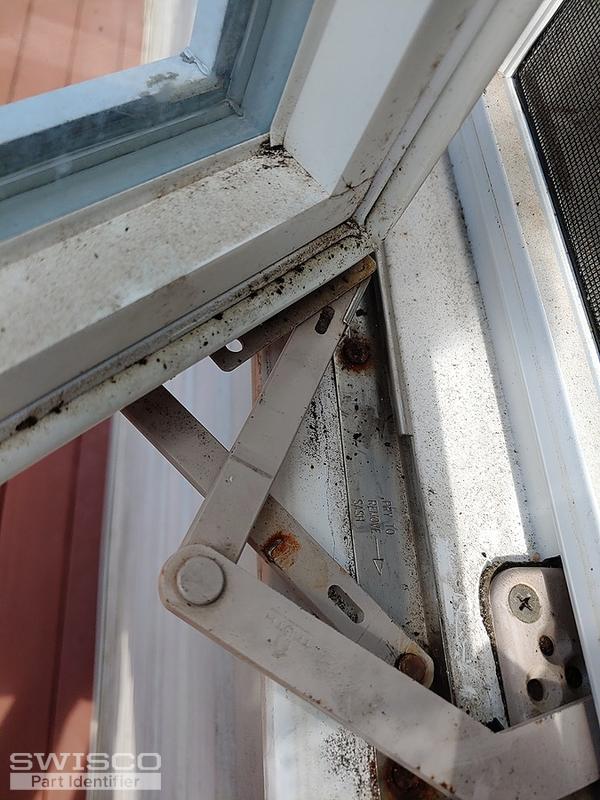

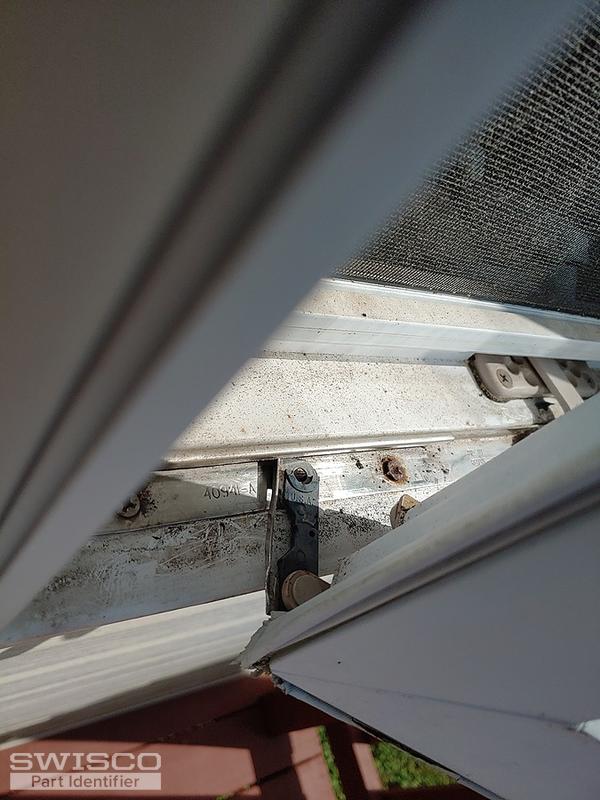

I'm looking for the replacement "clip" and "track" that hold the window corner in. In the attached images, the clip is out of the track and rotated 90 degrees so it is perpendicular to the track that I think it should be riding in. The crank and other levers are intact and pull the window in, but ... (cont.)

Milgard window. Can you help us find the proper parts based upon these pictures and measurements? 7 1/4 top sash arm from frame to sash, 12 or 13" top track, 10 1/2 or so long arm on bottom, right hinged window, 4 1/2 or so curved arm

Hello, Looking for help identifying and ordering the part shown. Please pardon my poor description ... It's a casement that hinges in the upper right and left, and pushes out/cranks out at the bottom. The plastic that travels in the track cracked and isn't sliding properly. I'll order both side ... (cont.)

Vinyl casement window. Can be whole crank. Broken part is the shoe that slides and engages in track.

Hi, we have casement windows from the 80s and are wanting to update the operators. The number on it is Truth 30382. It looks like a dual arm and the large arm is appx 13" long. I cannot seem to find one with this spec. Can a single arm work? Can I reuse the smaller arm? Help! Thanks, Joe ... (cont.)

Hello! The first photo shows the general assembly. The second photo is a closeup of where the lower corner of the window connects with that little slider thingy. As you can see, it appears the pin connecting the window to the slider has sheared. (The window's pin should line up more toward the le ... (cont.)

This is bent and broken on the opposite window. It cant be opened. Need these parts but for one that opens opposite direction. Thanks

Looking for a couple 2 bat hinges. The piece that connects to window is 7.5".

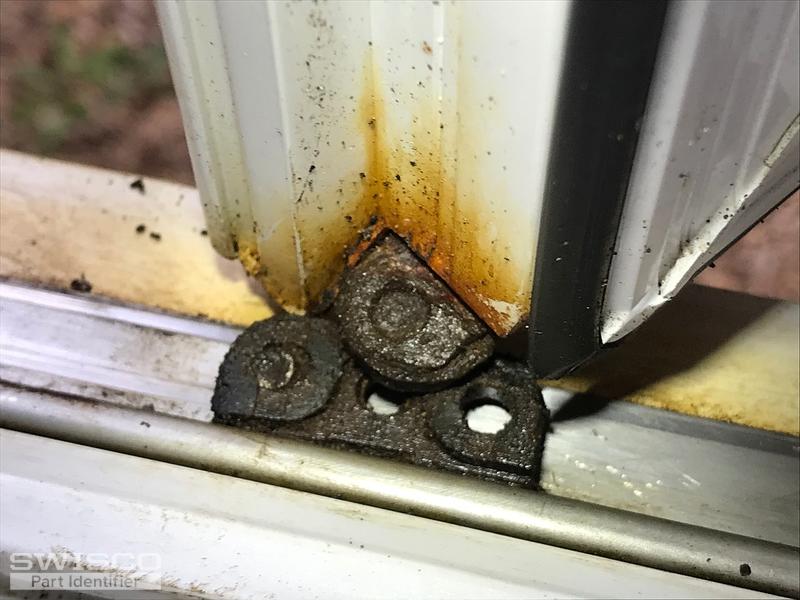

Hope you can help me. Thanks in advance. There is a black plastic piece attached to the window that allows the window to slide along a track on the window frame. If that is broken, then the window does not slide along the track and can come out at that end. This black plastic is broken. Can you id ... (cont.)

My windows are Weathershield Visions 2000 vinyl casement. Need hinge arm/track Have total of 6 windows. 3 RH and 3 LH Visions part numbers are: 972001 & 972002 Need 3 of each.

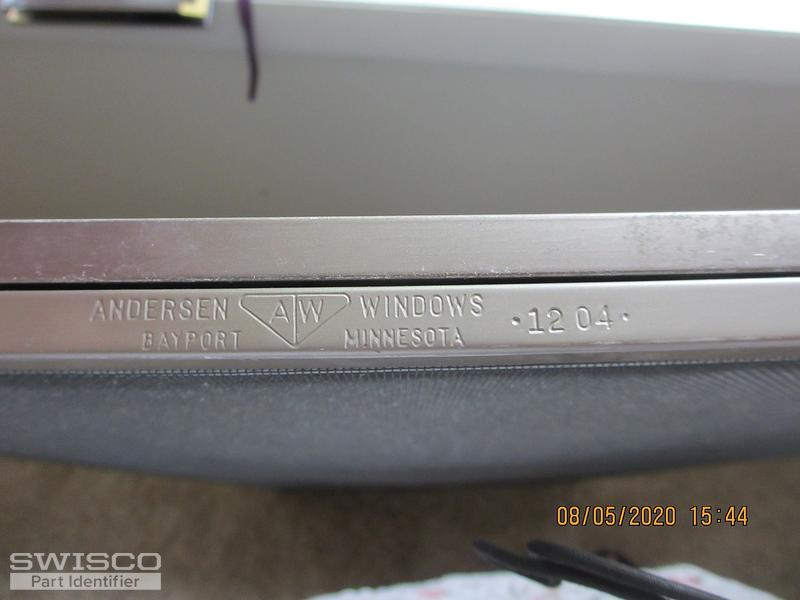

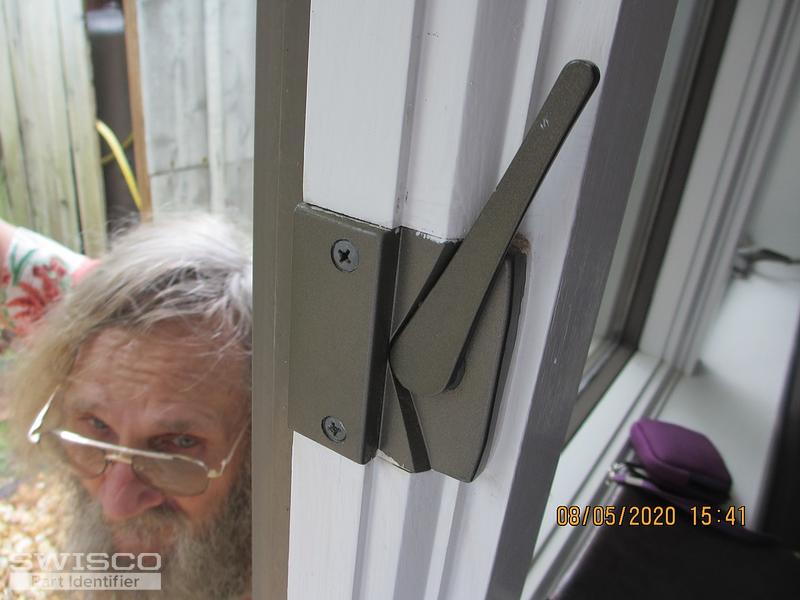

Upper hinge shoe is natural in color or white and the bottom shoe is black in color. The operator is a straight arm. The window locks are shown as in one of the pictures. the screen shows a date of 12 04. The glass view is appx 19 3/4 W x 43 H. the outside measures 22 7/8 x 46 3/8. the glass sta ... (cont.)

I need to order "Truth Hardware" for a 2008 Jeld Wen Builders Clad Casement window, Frame size 24X66 inch, Sash Size 22 7/16 X64 7/16 inch. Hinge is on right when looking out window. The black plastic covering on the part that slides on the lower track has degraded and does not keep it in the track ... (cont.)

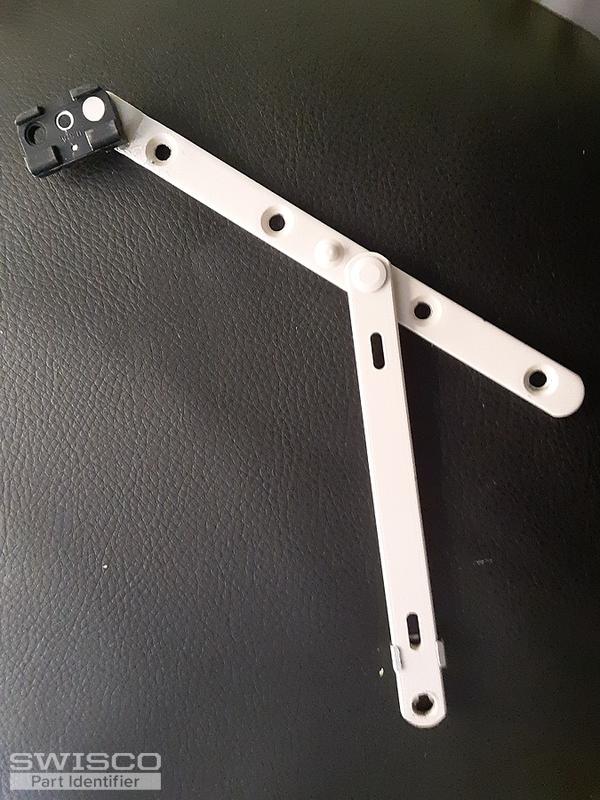

She's dead Jim. I need a new hinge bar fora casement, looks like your 36-048 10" hinge

Do you have both top and bottom replacement hinges like this?

The kitchen wood casement window hardware has gotten bent and needs to be replaced in order to close the window. These photos are taken from the outside looking in. It's the left side looking in. We're hoping that the part/assembly is available. My neighbor(contractor) has sent these photos since I ... (cont.)

I actually need the opposite side arm...left hinged lower looking from the outside. I believe the American craftsman number might be 07-14-34-00-001

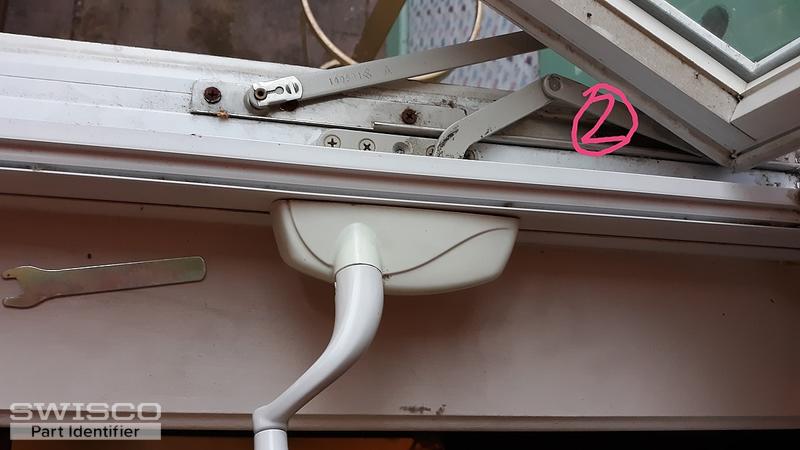

Measurements for numbered parts in photos: #1 = 7" #2 = 7.5" #3 = 3.5" X 1.5" Sill where crank mechanism is attached is 1.5". Sorry we have not removed the part, it's holding the window. Window no longer closes...purchased the little wrench but adjustments failed to remedy. Mgr. won't help us. Than ... (cont.)

need to replace the very bottom bracket the longest one on the very bottom I think its the hinge arm what do you recommend for a CertainTeed window approximately 14 years old. Thank you

Was wondering if you could help me identify these arms for replacment for my Casement windows. Thanks in advance
