Viewing all customer Discussions for:

15-259 Coil Balance Pivot Shoe

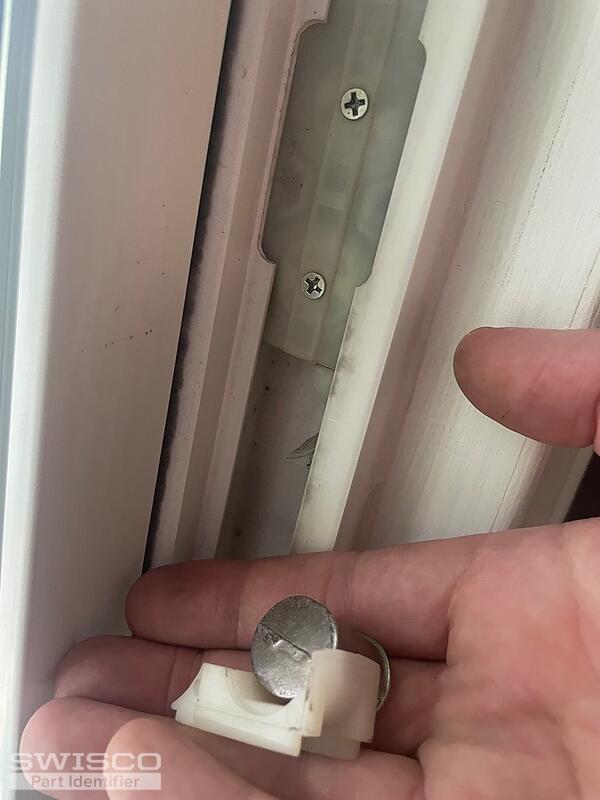

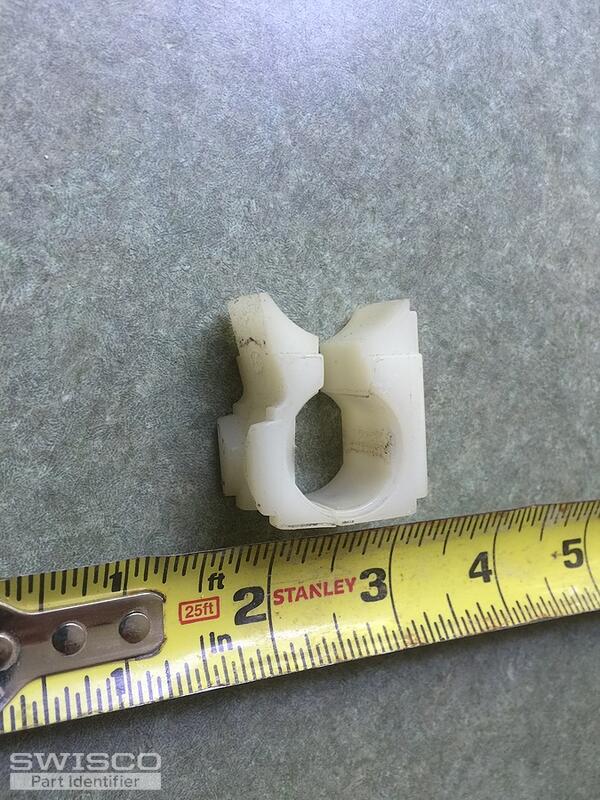

Please see attached pictures. The side pivot pieces on both sides are broken as well as the sash clip on the right side top.

I have a few windows where I am replacing the upper and lower sashes on and in the process I'll be replacing the hardware as well on a few of them. Looking for compatible balancing assemblies / hardware. Best Regards, Patrick

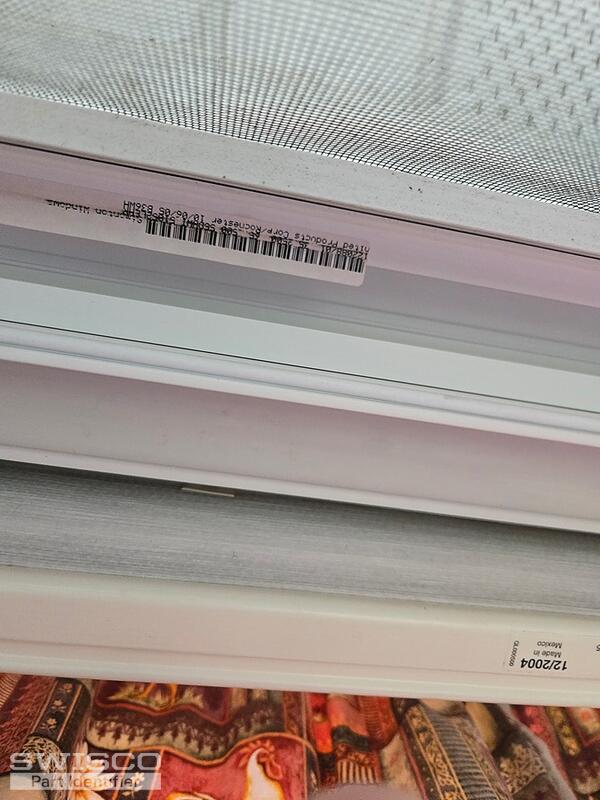

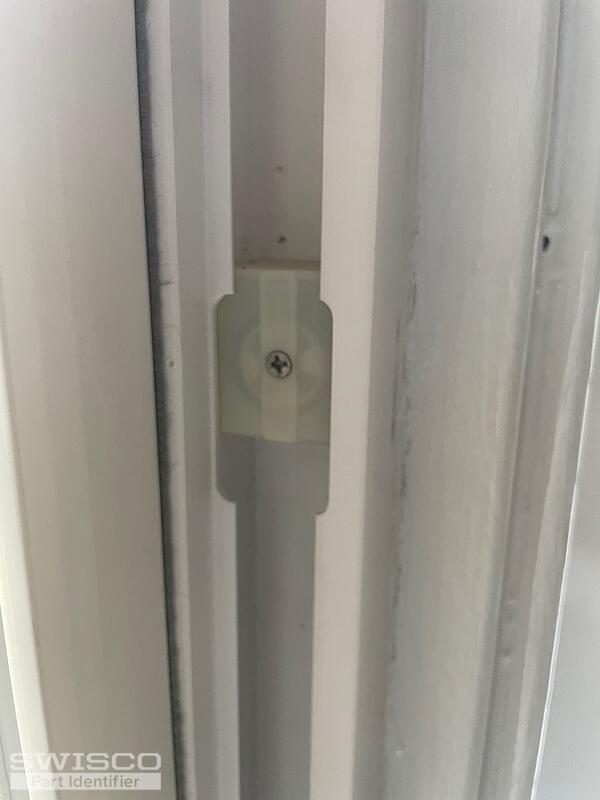

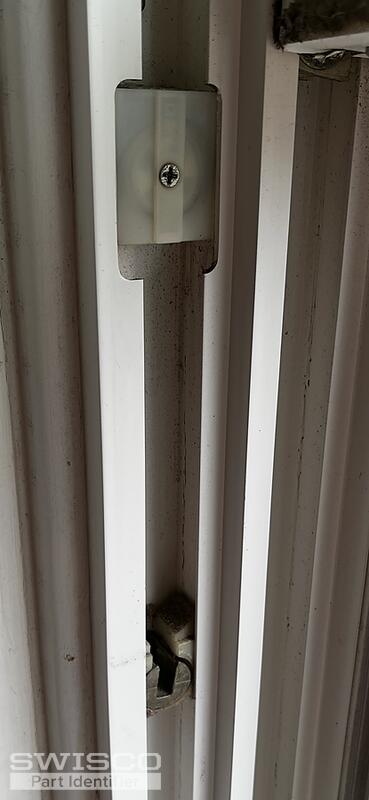

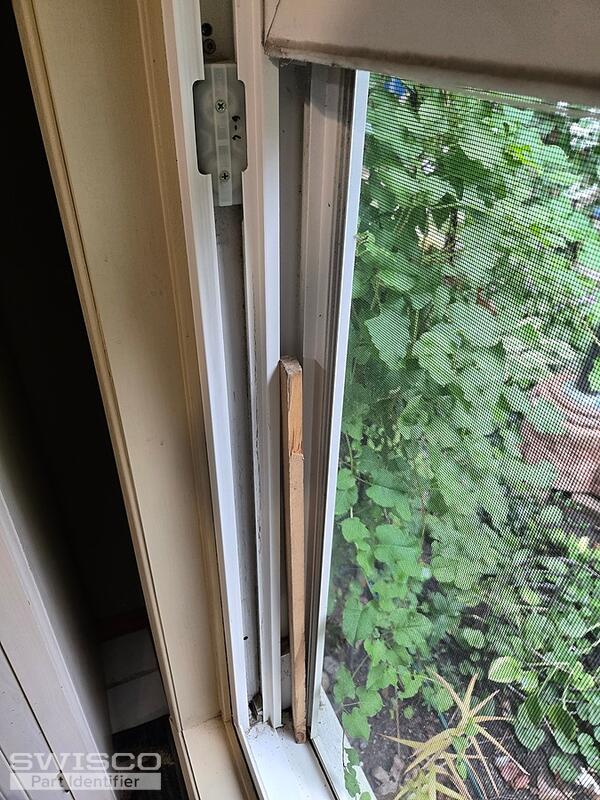

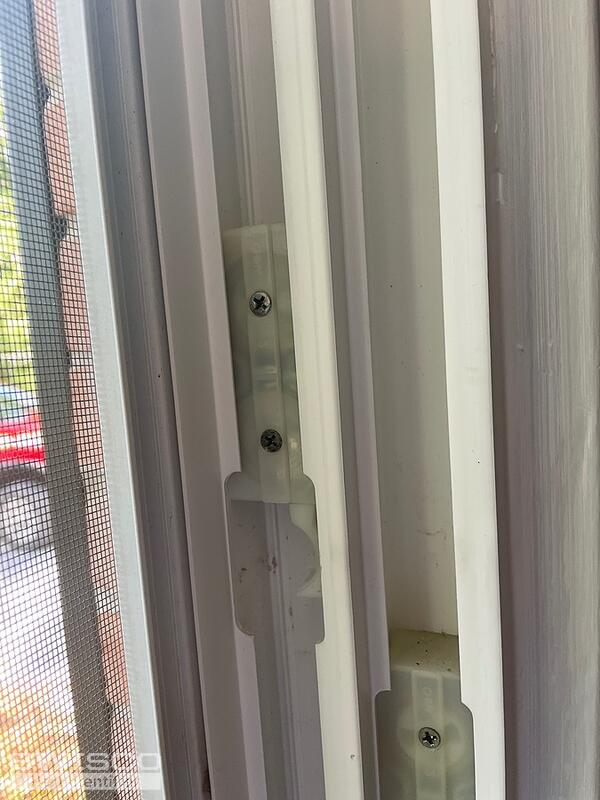

I attached a picture of the window, kind of in the attached photo.

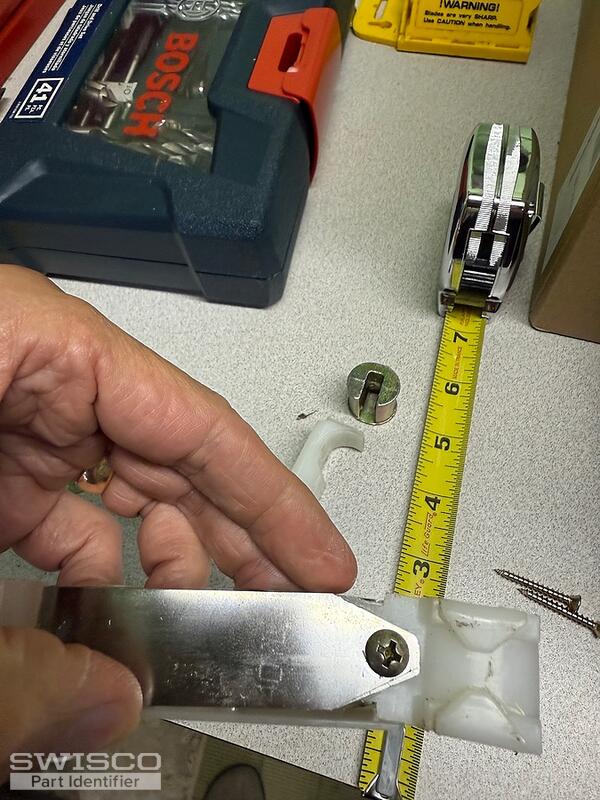

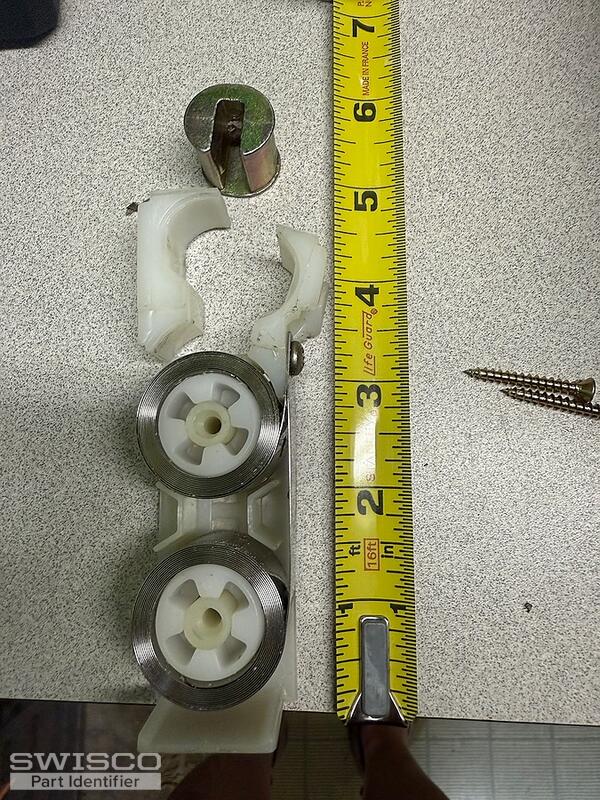

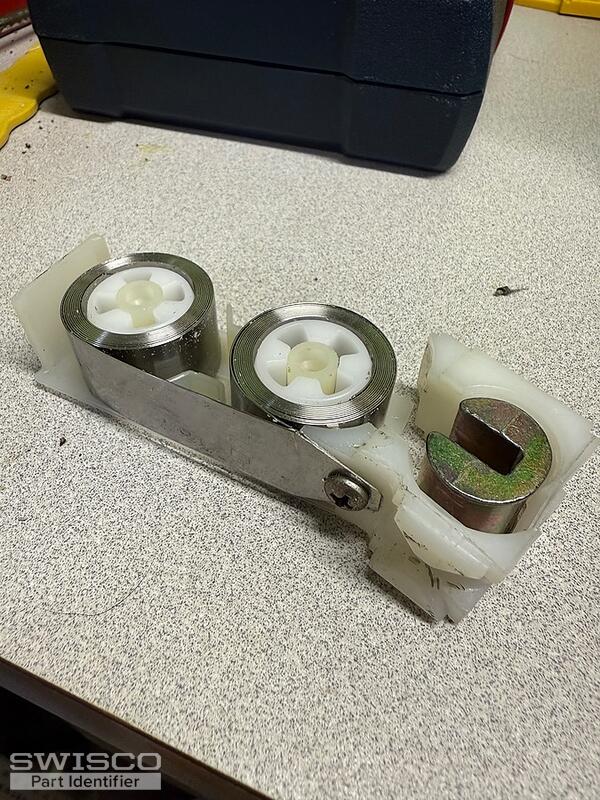

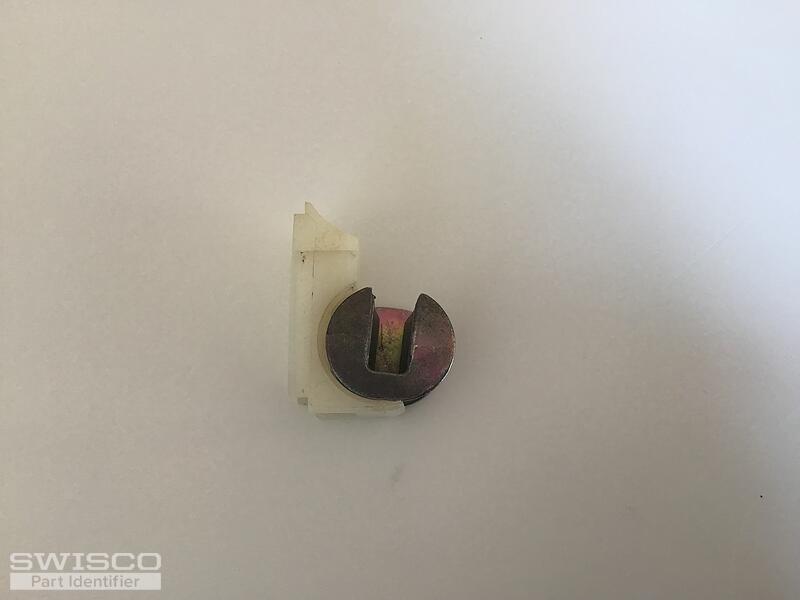

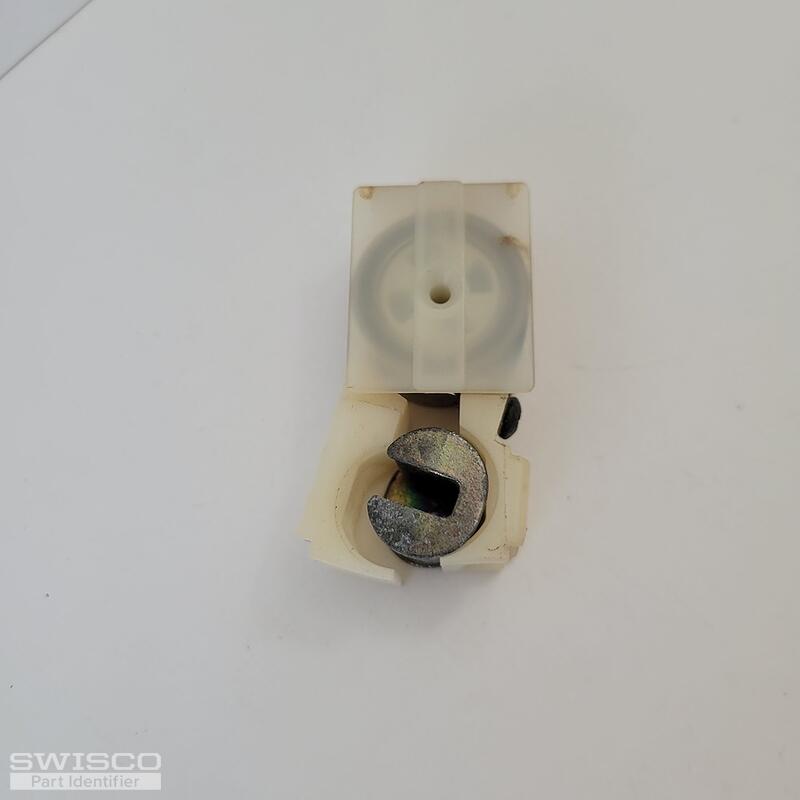

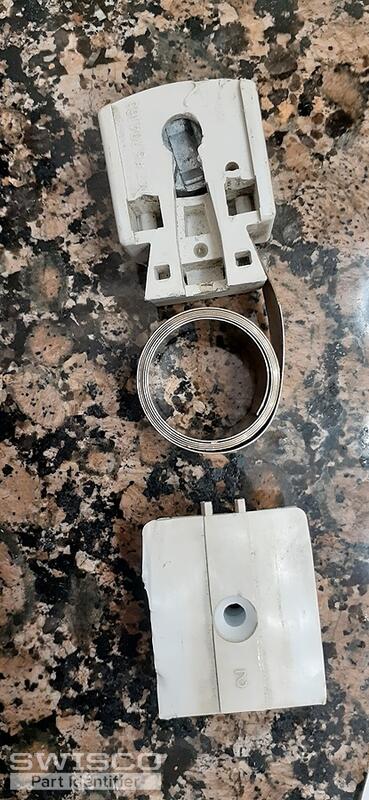

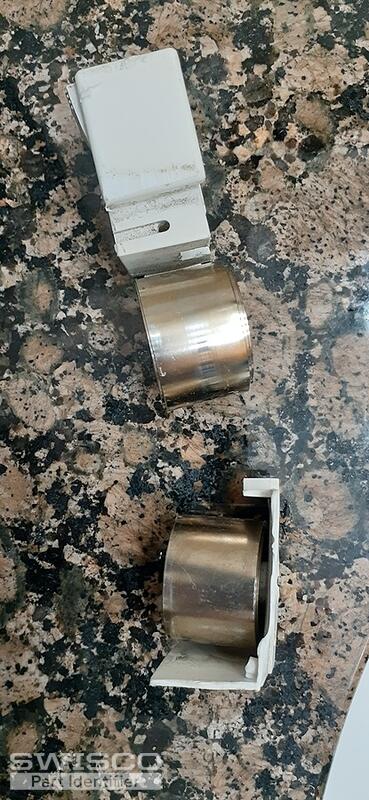

The shoe holding the pin locking piece broke (pictures attached). The markings on the outside of the coil are 40 / L. Looking for a replacement part or whole assembly is ok too.

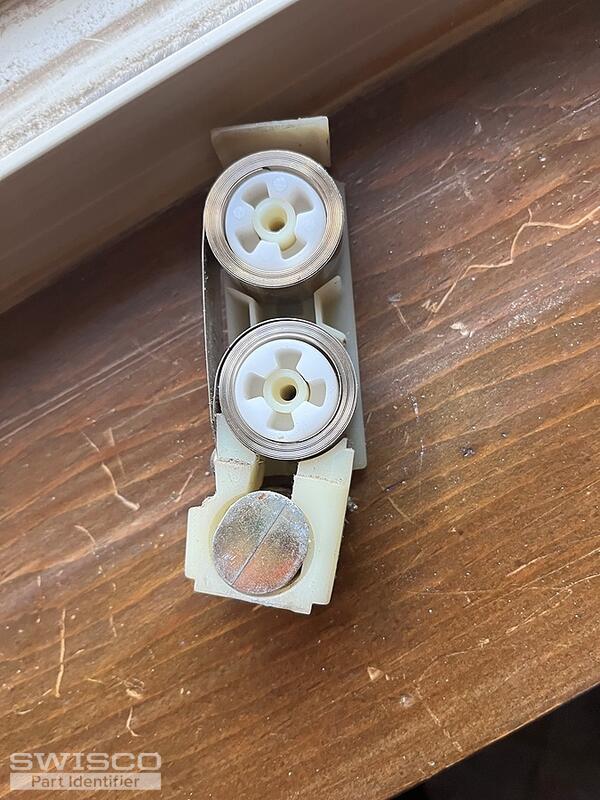

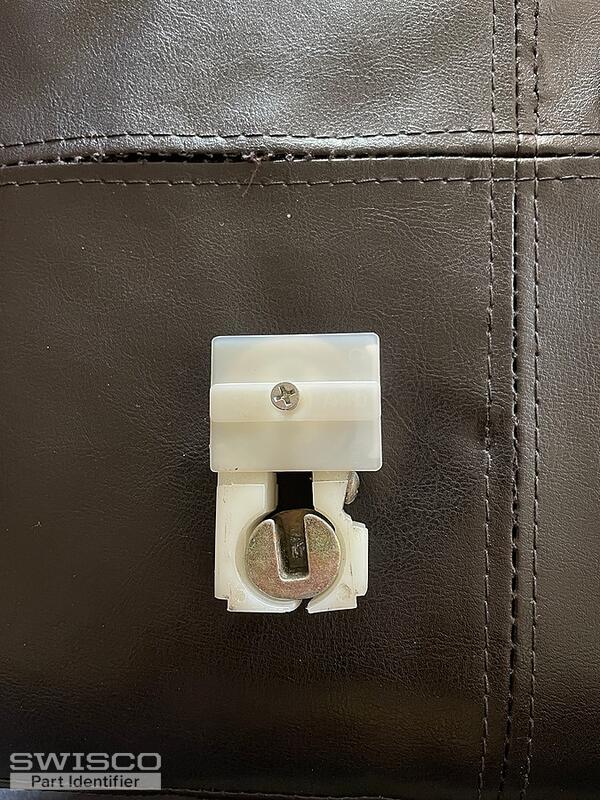

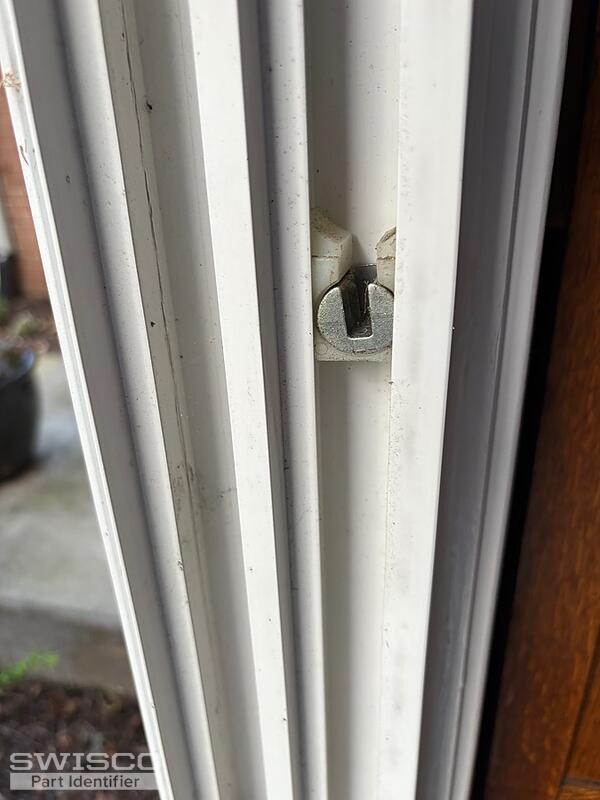

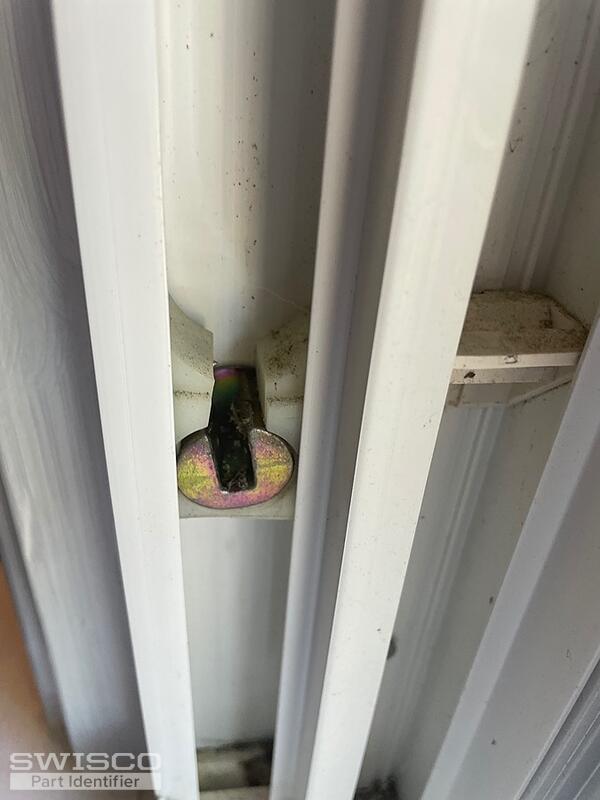

I have a client with 10 Simonton windows that won't stay open. Id rather fix than replace. The piece the cam fits into is broken. The rest looks in tack. Can you help me find the replacement part?

I need 4 of these

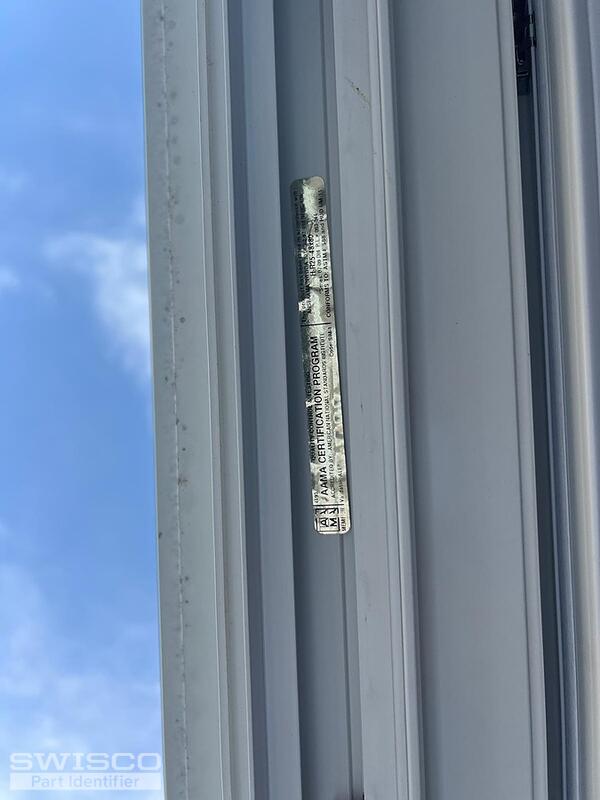

Hello Swisco Team, We have two broken Simonton coil balancers on lower half of window (pictures attached and were wondering what the replacement part would be. The window states "series 07-09" and 75-75DH inside the track. Thank you!

I have 4 windows that need bith right and left side part replaced. The pole at the bottom of the window rides inside the metal part, while the plastic piece rides inside the side window channels.

Looking for a replacement

Need to replace entirety on right and left sides. Please advise as to the part numbers needed.

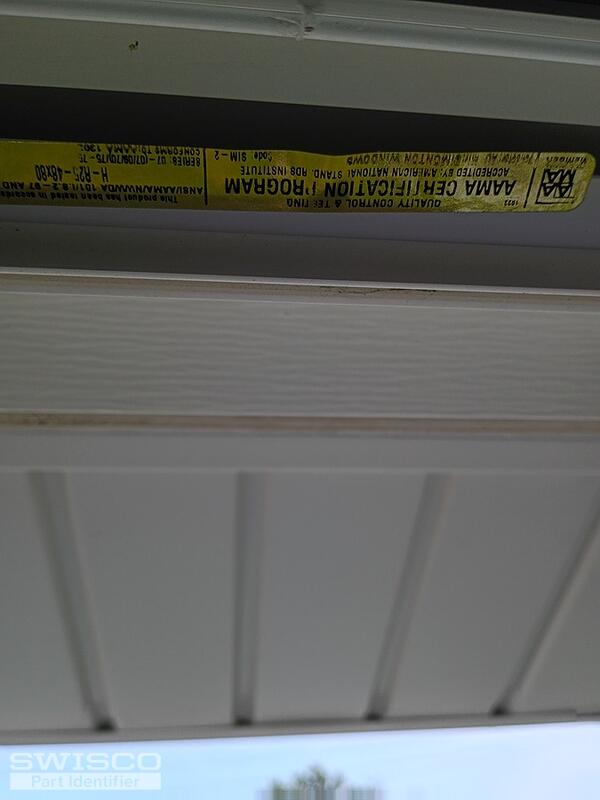

Hello! I need to replace my Simonton window coil balance. There is more info below:"30 3/4 x "42 1/2H-R25-48x80Series: 07-09 DH P.L* 063-044CONFORMS TO: ASTM F 588 and HUD UM 11I'ved watched this video but I am not sure which Coil Spring weight I will need: https://youtu.be/wJgNG8giUuc Qty 2 15-259 ... (cont.)

Hi, I ordered a set of '10 lb Series 140 Quick-Tilt, SingleS140-10' and installed them. My window is struggling to open and it sort of tilts from side to side on the way up and down. Could it be because of the depth of the coil? My old ones are 3/4" and marked 10J, the new ones are about 1/2". Doubl ... (cont.)

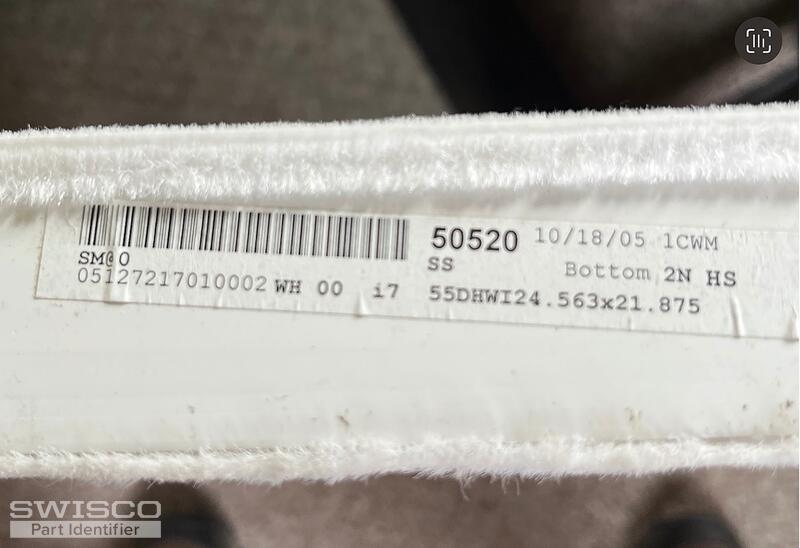

Window series 40-17 double hung P.L. #063-038 61DHMHV330.313x21.375 I need pivot shoe replacement. Window are from 2005 year

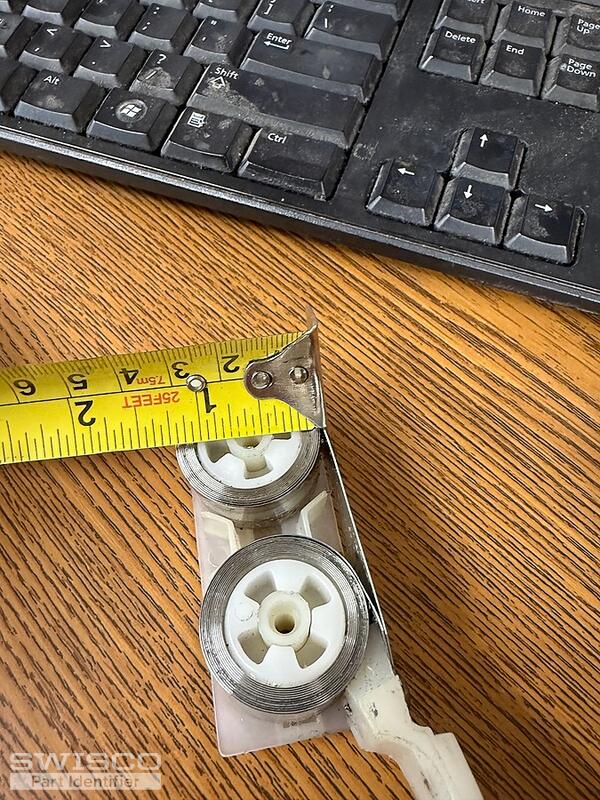

Hello. I have some Simonton double-hung windows, and need replacement coil balance sets for both sides for 2 windows (4 assemblies in total). Each side of the window has 2 springs. The springs weigh 50g each. One spring has "4065" printed on it. I need appropriate replacement springs, bushings, pivo ... (cont.)

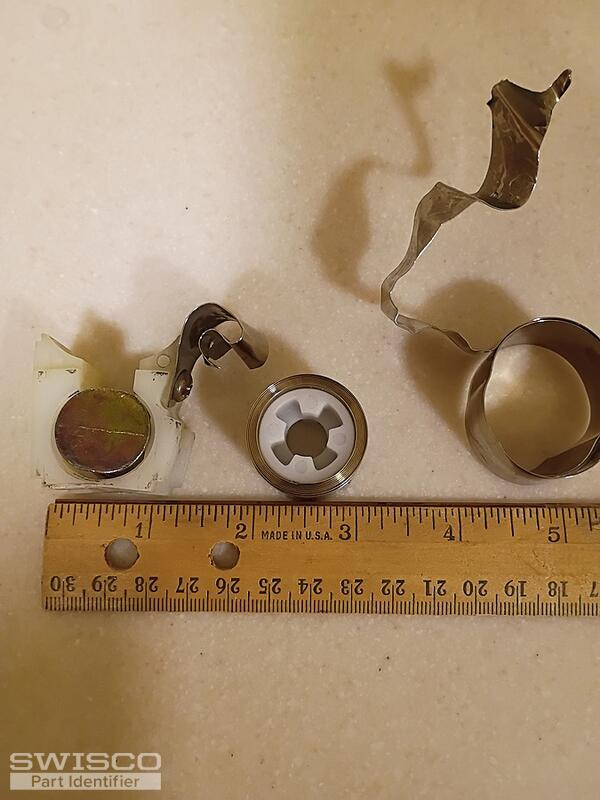

What parts do i need to replace this old coil balace?

Hi, I need help finding the correct replacement parts for my window. The pivot shoe is labeled: PAT #5,704,166. The coil balance is stamped with 11 on top and 1 on the bottom. The coil balance is 3/4" wide. The coil support is stamped with 2. The window weighs 20 lbs.

I had the balance on 2 Simonton 6500 windows break recently and I'm trying to find new parts. Looking at the instructions on https://www.swisco.com/discussions/Simonton-6500-Series-window-balances--77-248811 it says I need 4 parts, one of which is this S159 coil balance. The coil balance page asks ... (cont.)

Looks like the 15-192 replacement pivot shoe part will address my Simonton window issue once the aligner "bumps" on the front face are removed. Aside from the broken plastic shoe, my existing hardware can be reused. Question: Do you sell the plastic componet separately?

The piece I'm looking for is attached to the spring coil. It looks nearly identical to the one the model is holding in the photo on the "Coil Balances" page of your website, but I don't see one displayed as options to purchase. I also don't know if it is the same dimensions which is why I've include ... (cont.)

Simonton window balance /shoe assembly
