Viewing all customer Discussions for:

15-263 Titan Coil Balance Pivot Shoe

Hi do you have this kind of hardware its on the photos1/2 wide 35 long and 7/8 outside diameter

The plastic piece 1 in wide by 1 1/2in to the coil. The coil is approx. 21 inches. The pins in other picture for the window base are approx. 3 inches long. I need 1 dozen of each. Please let me know if you have these parts in stock.

Help locating these coils

Window was made 2019, 1 of the coil balance springs broke. I'll replace them all, but need to know the correct part to order. I think 4.5 indicates the weight, but not entirely sure.

Attached are pictures of a broken part that I need to replace. The last picture is an operable one installed

Hello- I need to replace these parts of my window to keep it from slamming closed. Please help

As per my chat with a Swisco help desk rep, this am, attached are pictures of the window parts I need. There are two pictures of each part. One is totally broke, the other seriously cracked. I need one for the left hand and one for the right hand side. Please let me know if you have them or someth ... (cont.)

Here's some additional information you requested.Lower window sash: 13#I was able to remove shoe & attached coils after opening up access. Both coils are marked 3.5. I'll attach pictures of the shoe with coils.shoe dim's: width:0.95'; length:1.0"; thickness:0.50"

I am needing to replace some window coil balances (Also known as constant force balances). I am enclosing a picture of the measurements of the coil balance that I made from one of the broken window's coil balances, I think the measurements that I have made are close but I was using a tape measure. ... (cont.)

1. It's is only 1 window it ha springs broken on both sides. 2. Spring width is 1/2 inch. Window is 10 Lb. 3. The stamp on spring is "5" so I suppose I need 2 x 5.5 Lb springs. Do you have exact pivot shoes number in case I need them I have ordered 2 x 5.5 Lb 1/2 inch wide spring coil balance. ... (cont.)

Looking for a replacement for this. Thanks!

I have reviewed your products that are similar in design to what I am needing. Unfortunatly, majority of the numbers are worn off the balancers that I have. The only numbers that I can read are (PAT 5232208). I'm needing the coils and the plastic piece that they hook into. I do not see any numbers o ... (cont.)

my pivot shoe is 1 inch wide. The opening of the window is 1 inch

coil # 9 B J PIN # 8 shoe # 6 Jeld Wen visions 2500 38x56 1/2 sequence 811 Batch 17308 date 3/6/2014

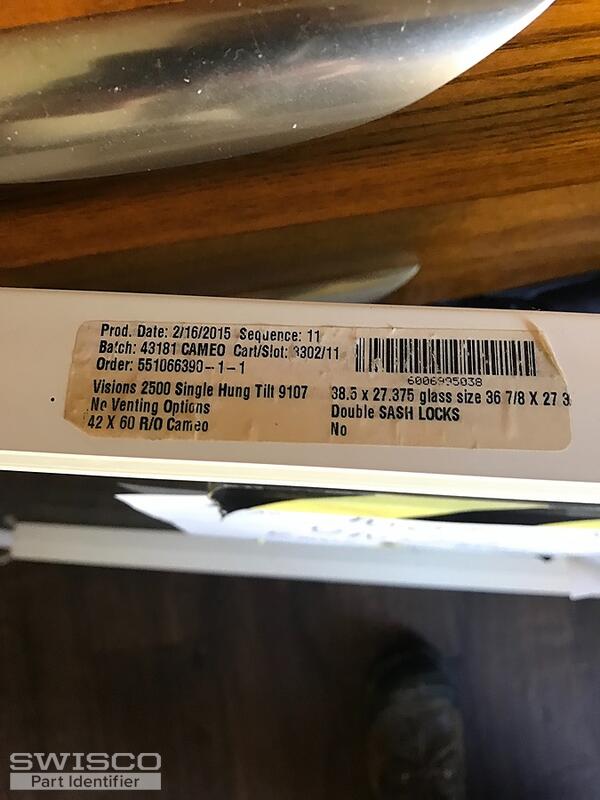

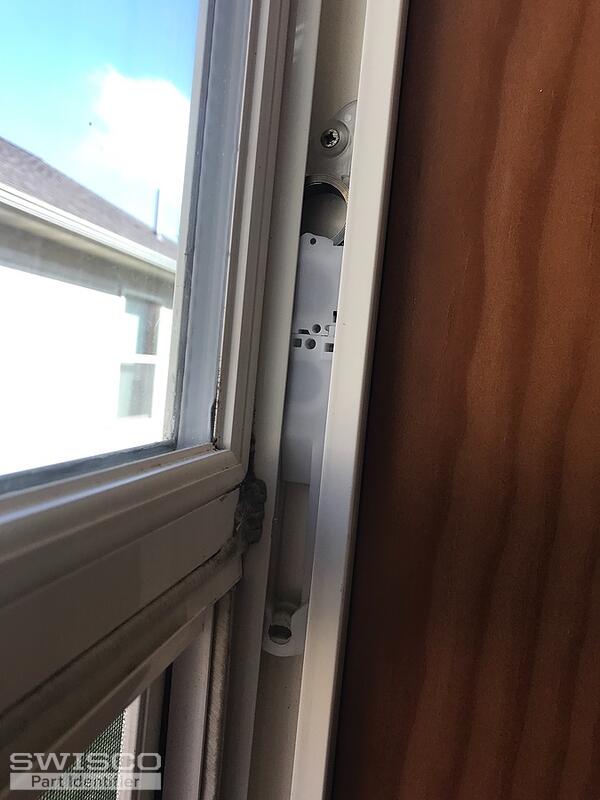

I am looking for parts for a visions 2500 single hung tilt 9107. Thanks , Phil

Hi I am looking for a coil balance (see picture) 6lb x 6lb x 10lb.

Overall length is 5 inches. Approx overall width is 1 inch Photo is of damaged Duralite tilt-window coil balance. Appears as though I will have to cut out part of the back slide pocket to remove coil balance and insert new balance

please help identify

The plastic is broken on one of them. It looks like it has 2 coils inside it. I order the piece below it in the picture x 2. I also ordered a coil but, it looks too big even though i ordered based on what was stamped on the old one.
