Viewing all customer Discussions for:

39-012 RH Superior Window Crank

my operator's dimensions resemble all of the specs you show on your 39-025, with one exception. My operator doesn't have that sharp offset in the inner arm. Would that make a difference?

I have to awning window operators that have stopped being able to close the windows; they handle just unscrews as seen in the dissasembled photo. Inside the operator (i think that is what the part that screws into the window on the inside is called) it says "RM JHL /L1". I was unable to find an ... (cont.)

I would like to replace three easement window hardware in brown. The windows were part of a Four Season Sunroom. The body measures five inches and screw holes are 5.5 " apart.Please identify this part so I may place an orderThank you,Morris

overall length 5-3/4" mounting holes 5-1/4" width 1-7/8" mounting holes 1-1/8" arm length 3-3/8" arm width 5/8" hole dia 3/8" made of steel

Here are pictures of the window mechanism. I have 2-5/8" for the lever, and 2 holes in the arm. See the second picture that I sent you.

What's a post? The crank has one hole at the top and two at the bottom. From top to bottom the distance is 5.25" measuring from center of hole to center of hole. The distance between the two bottom holes is 1 1/8". The armature screw is i/4" long (just the threaded part) and 3/16" thick. I sent a ... (cont.)

Hello!I have 13 right and 2 left operators I would like to replace in a home in southwest Florida. The patent number D 198202 was found embossed in the metal cover. Could you please identify these parts for me so I may completely replace all?Thanks for your support,Wayne.

The dangle linkage is 2 3/4" on centers. Looking for new replacement

My crank windows are on the porch of a 1960's modern ranch home.1

Hello My name is Ken I need both LH & RH vertical rollera. Isee no name or numbers on window or rollers, but here are the measurements. The roller has 1 hole in the top-- two holes in the bottom.Overall length-5-3/4in . width-2in.c-c top hole -bottom hole-5-1/4 in, ( not aligned) c-c bottom hol ... (cont.)

Looking for replacement operators. Need about 30 or more. Please see photo for dims. Thank you, John

Marking inside housing are PAT. No. 198 202 U.8 - ?8 a bit worn; 2 R.H. RD1963 CA There is also a square with diagonal lines from each corner with .06 stamped in the center. This is on the inside of the top corner of the housing. Dimensions Operator link holes are 2 3/4" apart. Has Nylon bushing ... (cont.)

There are no names or part numbers on the existing crank. I ordered 39-060, the Keller window crank, hoping it was the right part. It is not. The case appears the same, but the arm is shorter on this one (~5cm) and the hole that attaches to the window arm is wider in diameter (~1cm). Serves me r ... (cont.)

Hello - was hoping you could help with identifying a crank. The interior markings are: Pat. No. 198202 US 2 R.H. RD. 1963 CAN 93 Thanks for the help.

I need 5 of therse window cranks IH CO 790.

The interior markings; Pat. No. 198202 US 2 R.H. RD. 1963 CAN 93 The handle broke cleanly off. I'm looking for a left hand version as I want to move it to the left hand side, anyway.

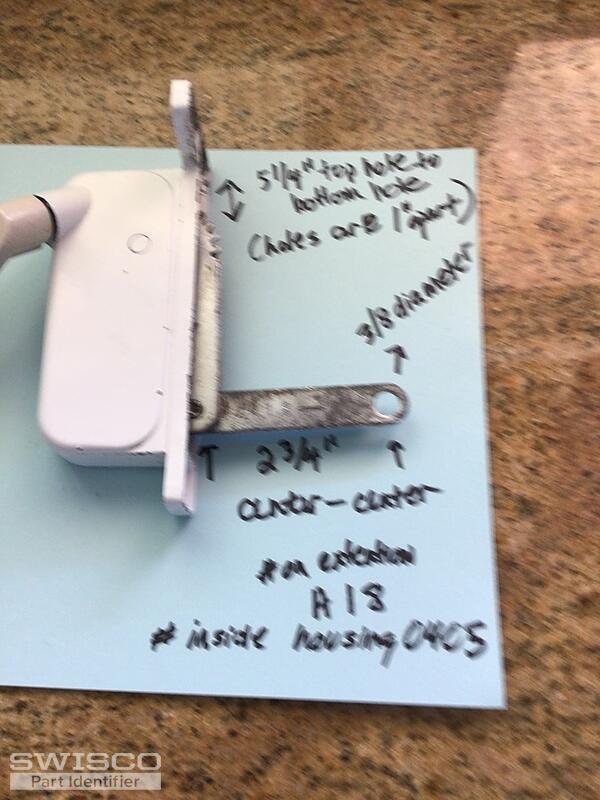

Right handed operator. 5and1/4 inch top to bottom center of holes. 2 and3/4 inch between holes on extension bar hole in extension 3/8 inch diameter. extension bar has number A18 stamped in it. Inside housing has 0404 stamped inside. Bottom holes are 1 inch center to center guy at hardware told m ... (cont.)

need two one right one left

5 1/4" long hole to hole.... 3 5/8" center to center hole offset arm.... 1 1/8" wide mount holes center to center on bottom. 5/16" pin hole for E-clip.

The mount on the crank housing broke and the worm gear that attaches to the handle came out. I jerry-rigged it and got it to close. Is a replacement available? I'll need a right and a left (so they match. Thanks.
