Viewing all customer Discussions for:

39-013 Casement Window Operator, 13-1/2" Arm

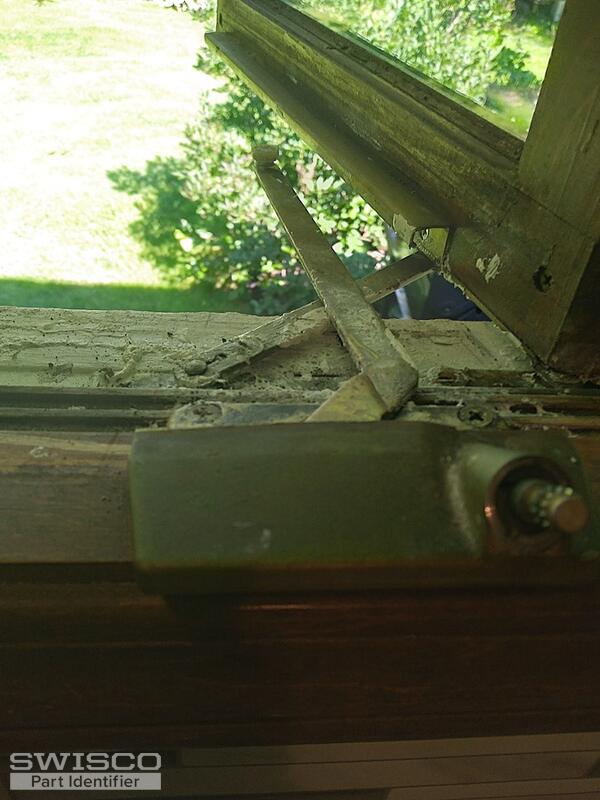

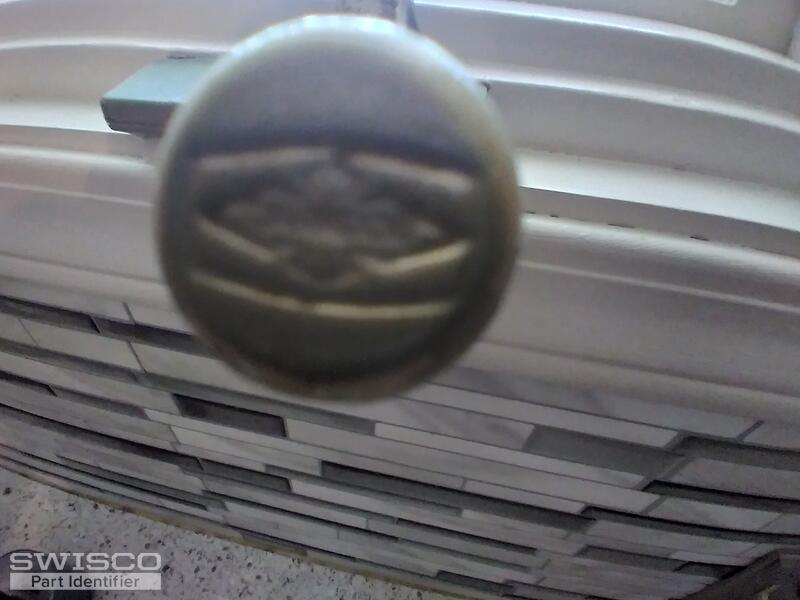

Only marking is on the crank knob, 4 screws in the base, approx. 8" arm with wheel on the end. Need 2 right side casement operators.

I am looking for 2 right hand closers and 2 left hand closers. Craftline is the manufacturer

I'm looking for these parts for the top and bottom of the window. Part numbers I can see are 33177b and 30744. Not sure what brand window is.

I need to replace an operator. It would be the opposite side of the one shown. I am not sure the length of arm I need. ThanksJoe

Hi, I am trying to find a replacement part for my casement windows. I have attached some photos and also uploaded a video to my Google Drive:

Need crank opener

HI, hoping you can tell me what part/s to order.. the handle just goes round.. it doesn't catch correctly to open and close.

Hello I posted four pics. The first One is from a thread that someone else asked I have the same issue and my operator looks the same. From reviewing remarks I think the 39-014 will work in its place along with the gasket 39-564. The arm on my operator measures 13 1/2 " from center of gear to nyl ... (cont.)

I need to to replace the assembly shown in the pictures. I believe they were Louisiana Pacific windows. Casement or crank out type Circa 2000 build Crank out windows are wood type with dark brown aluminum overlay on outside. There are built in screens on inside.

Looking for a replacement window crank. Looks like a 13 1/2" single arm. The short arm has 6007 stamped. It is a wright mechanism. Cover is 4" long. I could only find ones that are 3 3/4 or 5" I'd like to see if they them with a folding arm. Most of them the long arm gets stuck going over the p ... (cont.)

I am looking for a replacement worm gear for the casement window cranking assembly. No markings are visible.Thank you,Jim

Can you ID this?

I need a window crank hinges on the left. Size of the arms: long: 12" + 1. The long arm has a bend on it. The short spur on the bend is 1 inch. Plus I would need a similar crank with hinges on the right. The long arm is 10" and the short arm is 8"+1. On that crand the short arm has the bend on it. ... (cont.)

WeatherShield was able to find these drawings of my operator. Can these help you identify an operator match from your catalog

Not sure which piece to order for replacement

Looking for casement window crank replacements for what I believe are Andersen windows. The crank arm is 13.5 inches long. Original hardware and windows from 1973. Hope you can help me. Need 4 left and 4 right. Thank you. Patricia

Hi, I recently ordered a 39-014 - Casement Window Operator, 13-1/2" Arm from your website. It works perfectly however it's slightly different from my old hardware. The old operator is flat across the top and this one is slightly thicker with a curved top (see attached photo). I was able to make it ... (cont.)

I'm looking for a replacement crack for my casement window.

Hello, Trying to determine if you have a crank replacement for my window.

Looking to replace multiple casement window operators. The track on the window is from below.
