Viewing all customer Discussions for:

15-047 Pivot Shoe, 5/8" Thick

Hello Swisco Teams. I am looking for tilt windows pivot shoe for bottom sash and top sash pivot shoe come with filer. (Looks like a double in track) Window old may be 15 years? Thank you.

I need the pins that go from the window to the window adjustment bars thanks JEF

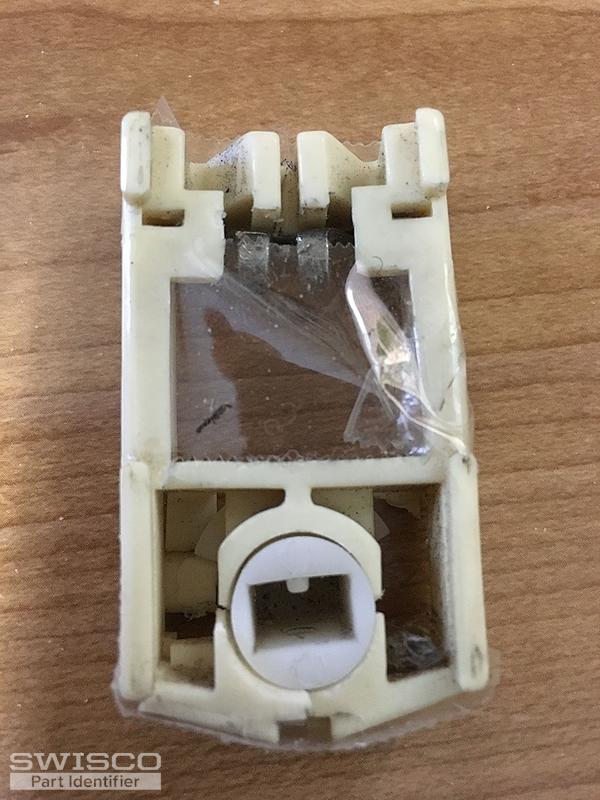

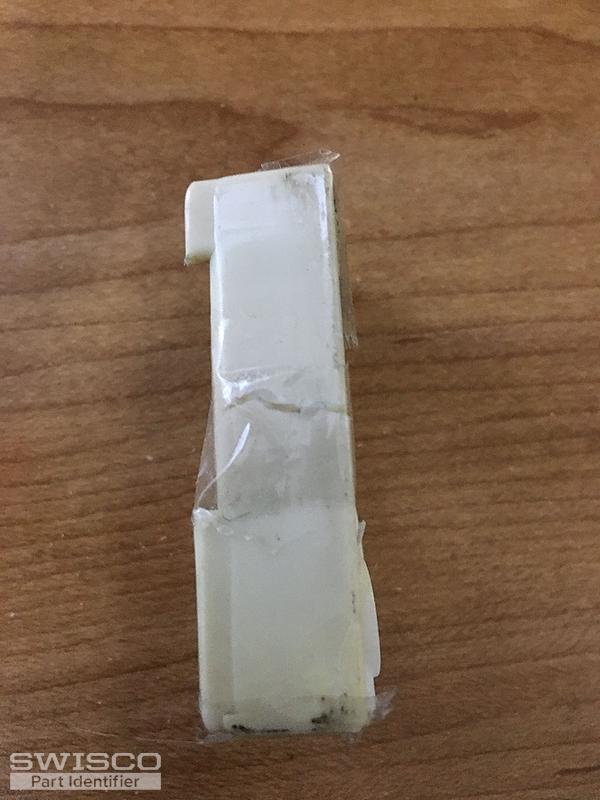

Good morning,I'm trying to identify this pivot shoe. The dimensions are 2 1/4" long, 1 1/4" wide, and 5/8" thick.ThanksBob

Does anyone know how these come apart to replace pivot shoes or spiral balances? Windows were installed about 1996 and are still in good shape, except for the pivot shoes. The frames are very rigid fiberglass, not vinyl so jamb spreaders will not work. Thanks if you can help, Bill ... (cont.)

Hi Swisco, I am thrilled to find this form where I can submit my photos!!! Amazing. I have what I think are Sears Windows that are probably 20 years old. My house is a not too distant tear down so no point in replacing the windows but I would very much like to repair them. I do not see any mark ... (cont.)

I have not removed the pivot shoe but it looks like a 15-015 without the screw to lock the spiral balance, based on the dimensions. The spiral balance is 42" but it has a blue end piece. It is 5/8" diameter. It seems red and black tips are only available on your website. Can you confirm the Parts ... (cont.)

Identification please

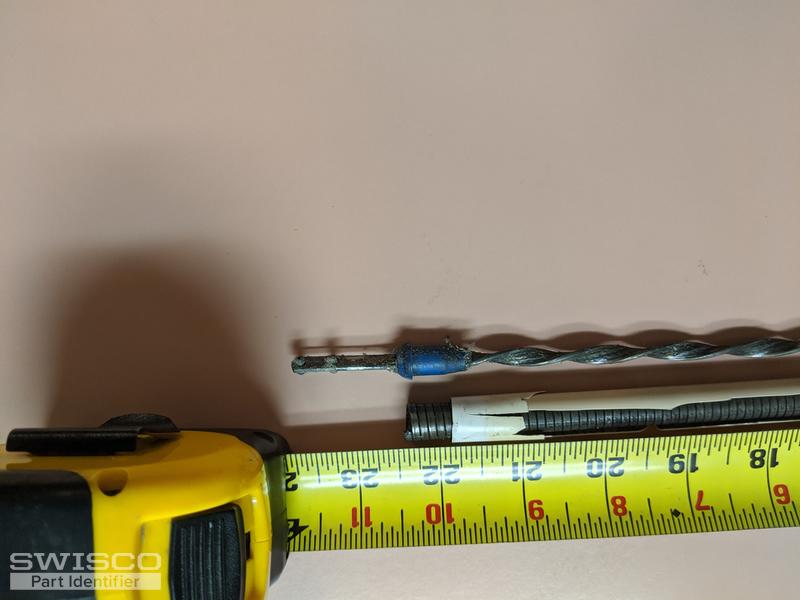

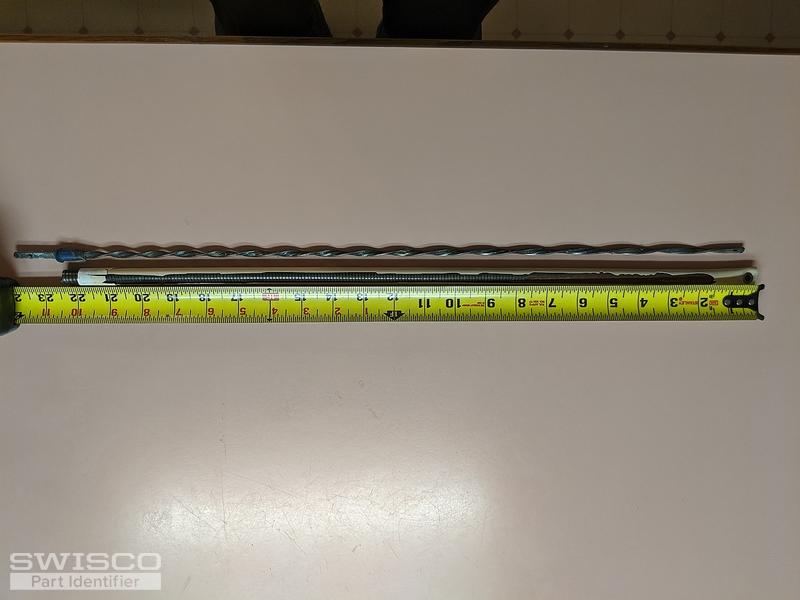

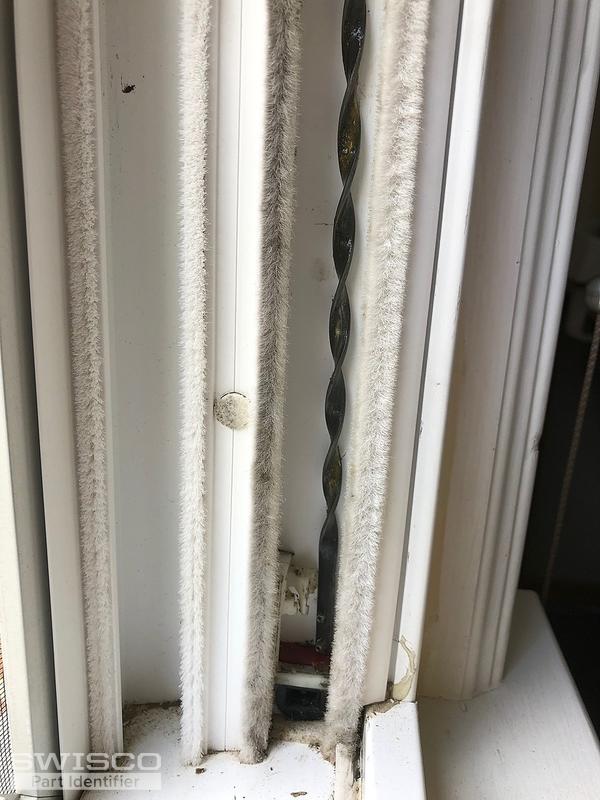

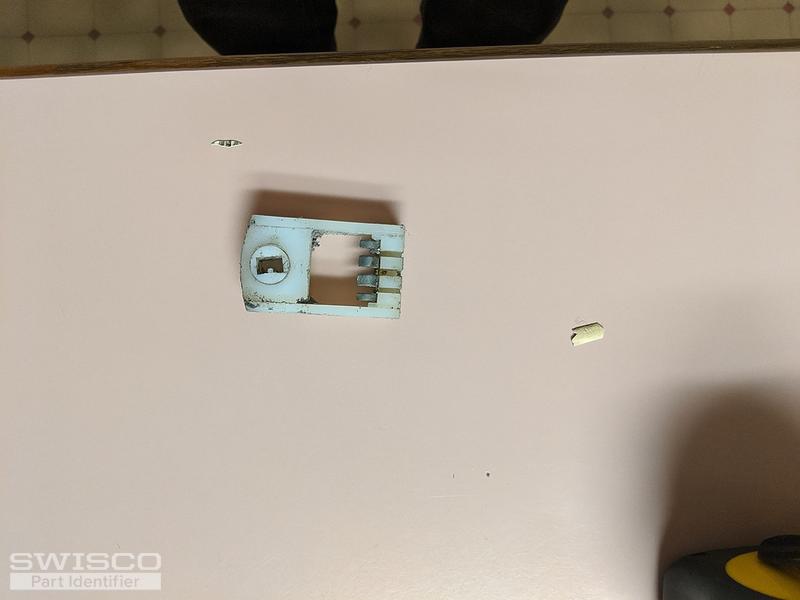

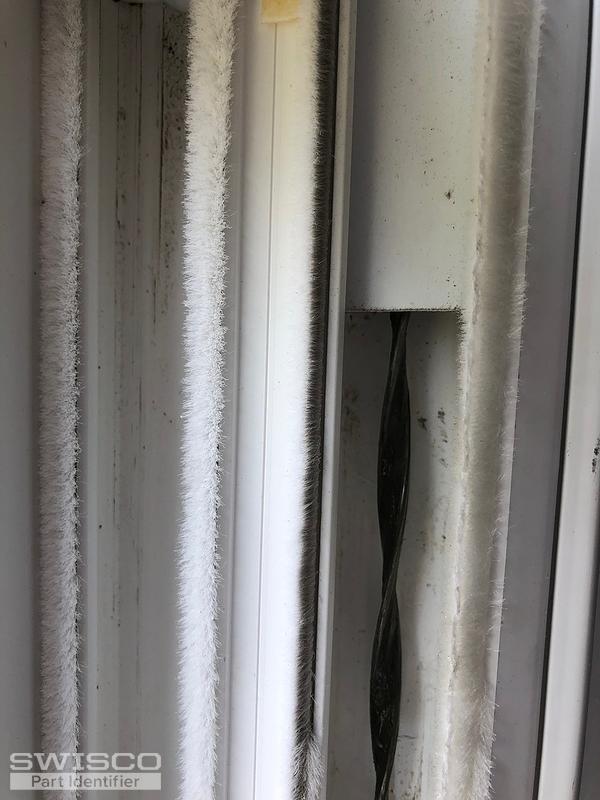

Good Morning. The first two photos are of a spiral balance from a double hung tilt out window. The second photo is the pivot block. I need 8 spiral balances and 8 pivot blocks. Can you help?

I thought I bought he correct pivot shoe 5/8 thick. But after i replace 4 of them and tried to re hang the windows the pivot bar wont fit into the Pivot Shoe. Now i got 20 pivot shoes that wont work and a wide open window. Is there a different pivot shoe that will fit.If that little piece of plast ... (cont.)

Hi,I need 4 of these shoes.Can you help?Thanks, Paul

This is a large single hung window. Moveable sash is 39 x 44. It is a Certain Teed vinyl window made about 1995. It is a spiral balance system. Pictures of the pivot shoes are attached. The dimensions of the pivot shoe are 2 1/8" High, x 1 1/4" wide x 5/8" deep. What pivot shoe part number wo ... (cont.)

Piece is 1 1/4" wide. Channel is 1/2" deep. Entire piece is 5/8" thick. (The round part sticks up a bit more than the part that rides inside the channel. I don't know what brand the window is. I'm hoping either 15-047 or 15-046 will work. Your opinion? I might just order both as they're cheap, as lo ... (cont.)

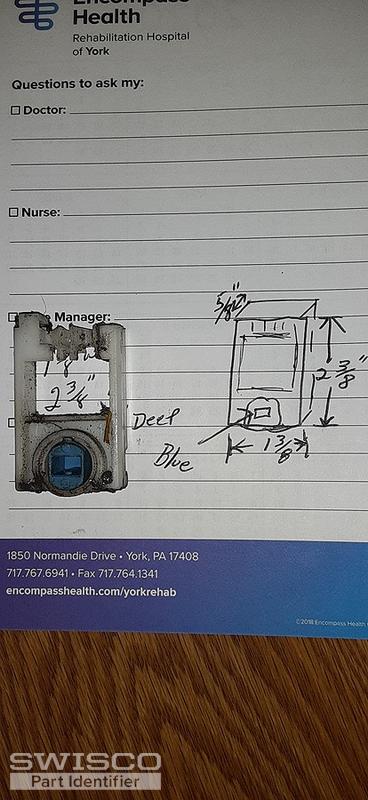

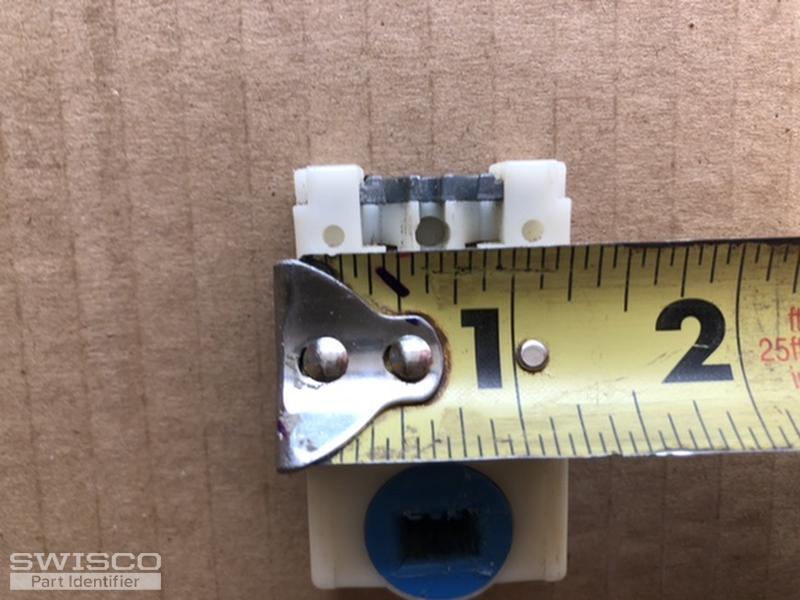

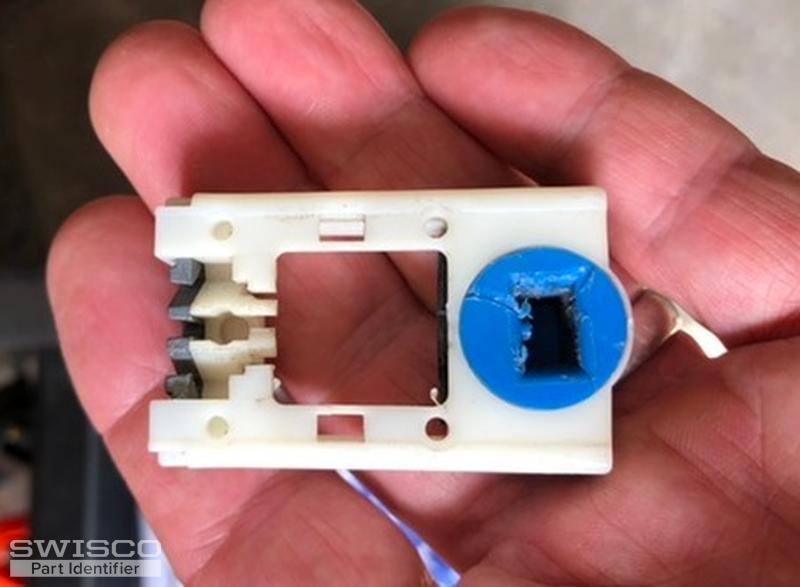

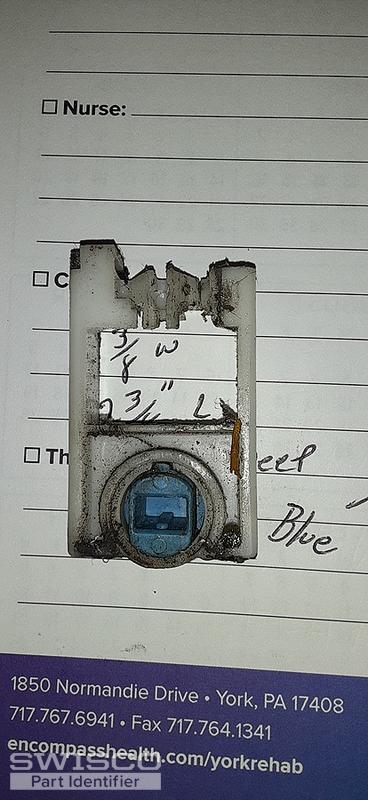

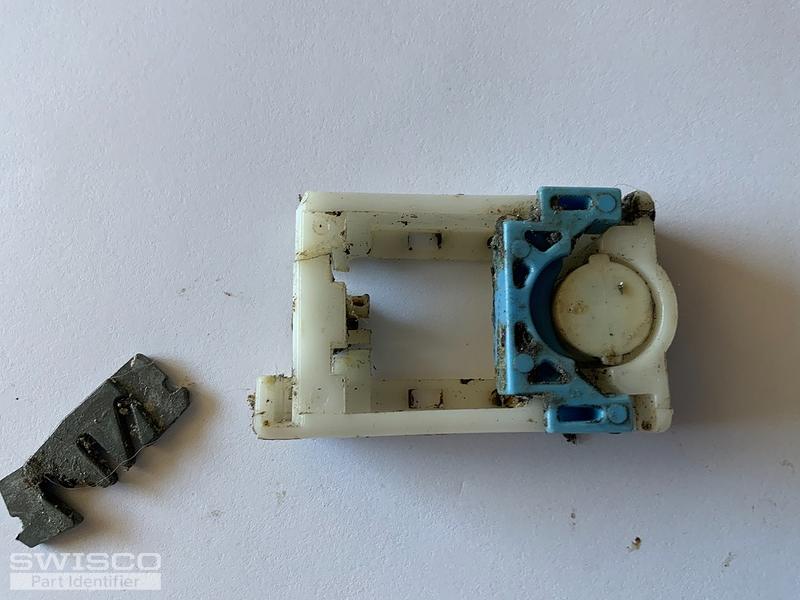

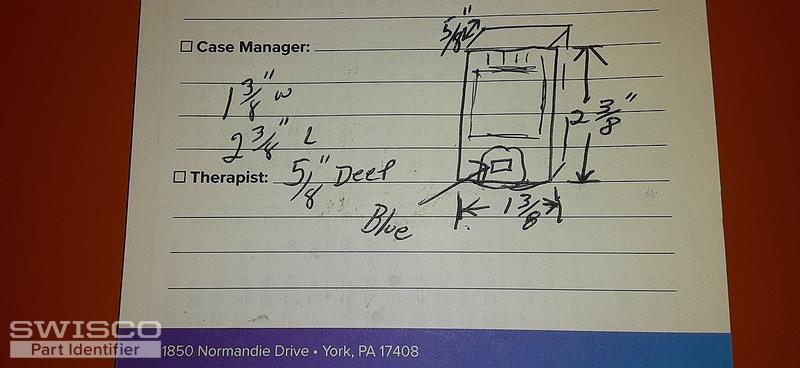

For a certainteed windowWith spiral balanceBlue insert for sash pivotRight and left side neededSpiral window shoe1-3/8 wide2-3/8 length5/8 thick

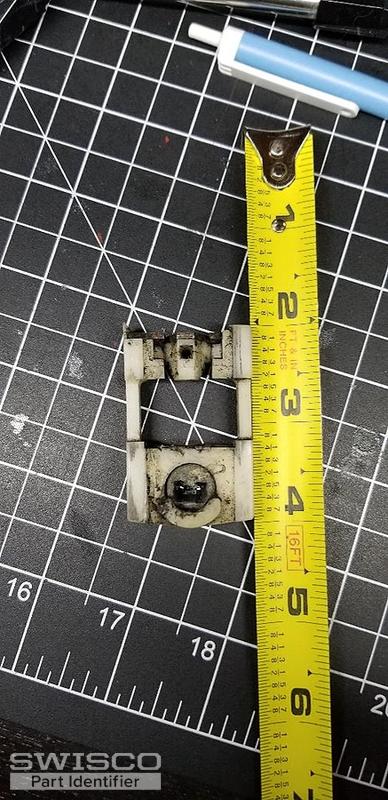

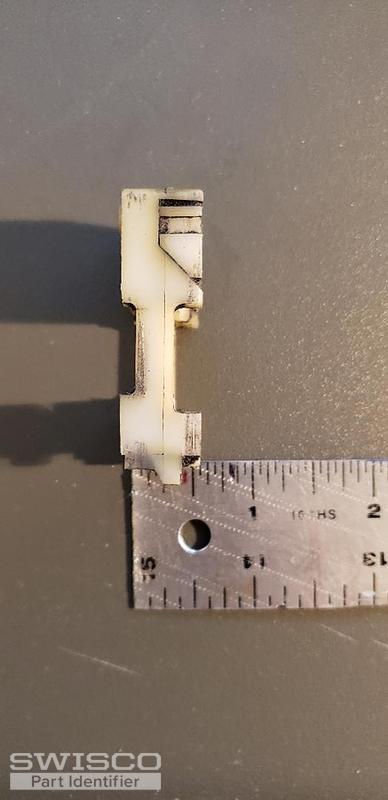

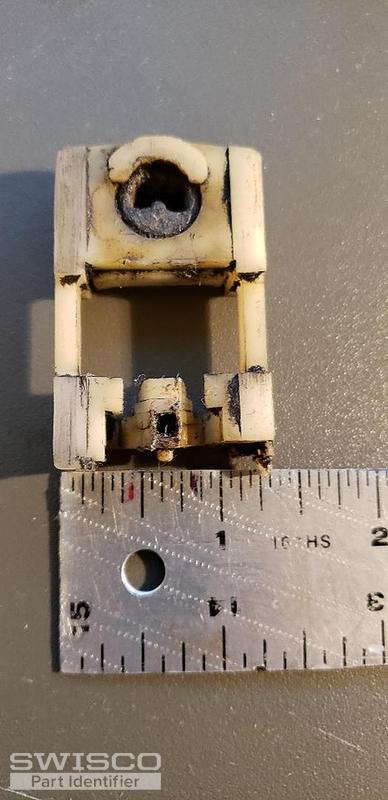

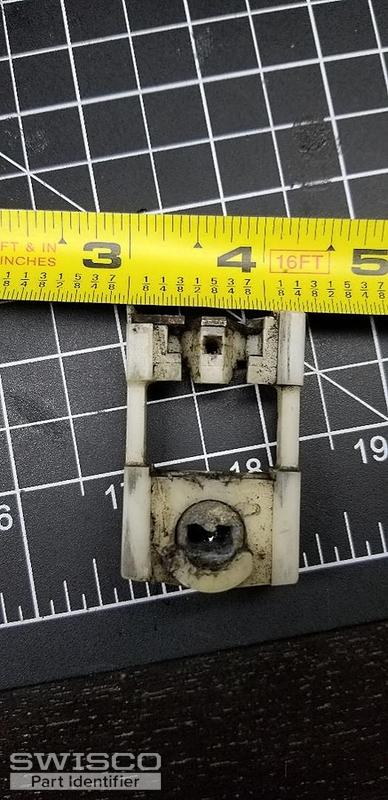

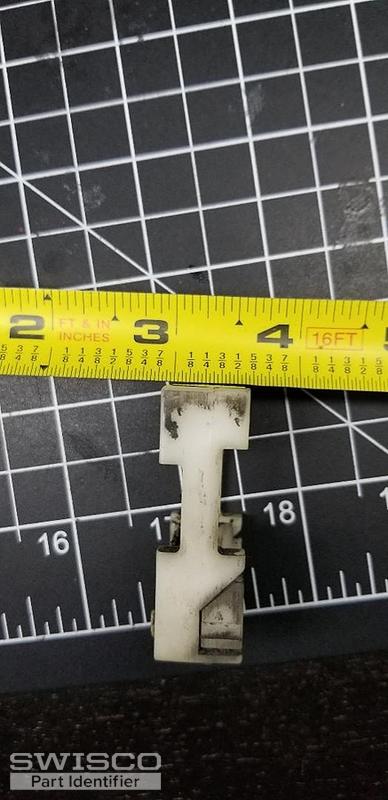

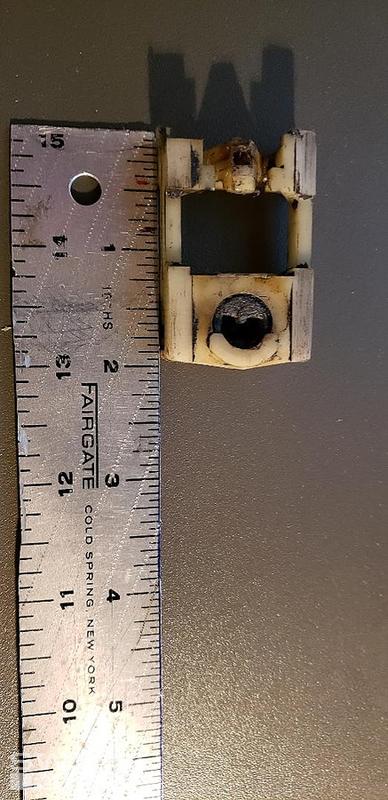

Hello,I need a few replacement pivot shoes for my double hung tilt window.I do not know of the name brand or model number but I have enclosed 4 pics against a ruler. Can you please advise what is the proper shoe that I need to get?Thanks.Regards,Ted

Greetings!~ My name is John. I've been told that this shoes is ancient and I've gone to many stores to ask for this shoe but not this exact one thats showning on the photos. What I need is one that is 1 1/4 thick. Can you guys direct me to something similar that will work the same or the thicker bro ... (cont.)

I NEED 12 OF THESE WITH THE BALANCE ROD12 SPIRAL RED TIP 5/8 BALANCE

Dear Sir or Madame attached are three photos of the tilting piece for my window it is 2 inches tall, 1 1/4 inches wide and1/2 an inch deep. Please advise I would like to have these as soon as possible thank you

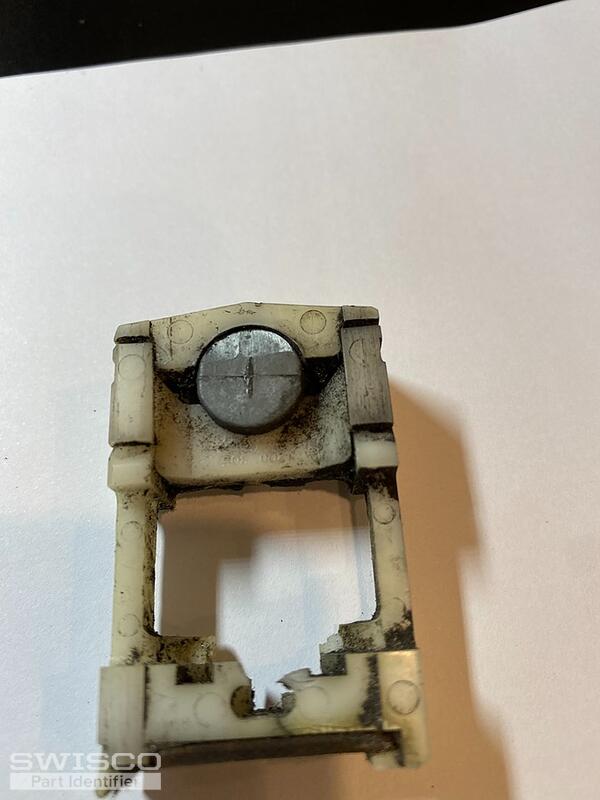

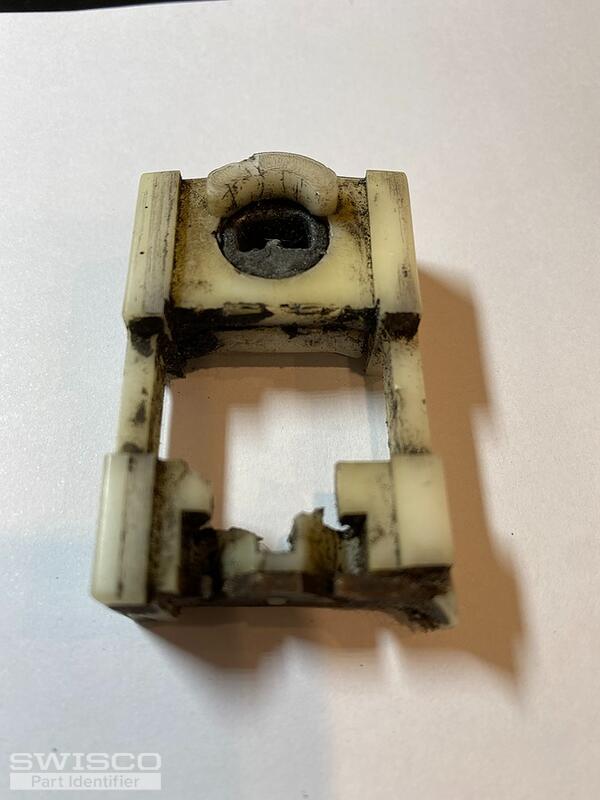

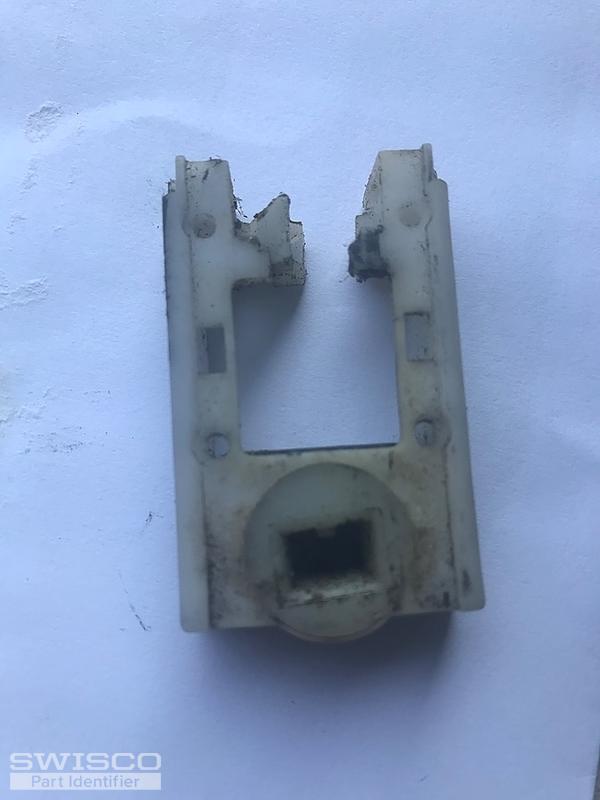

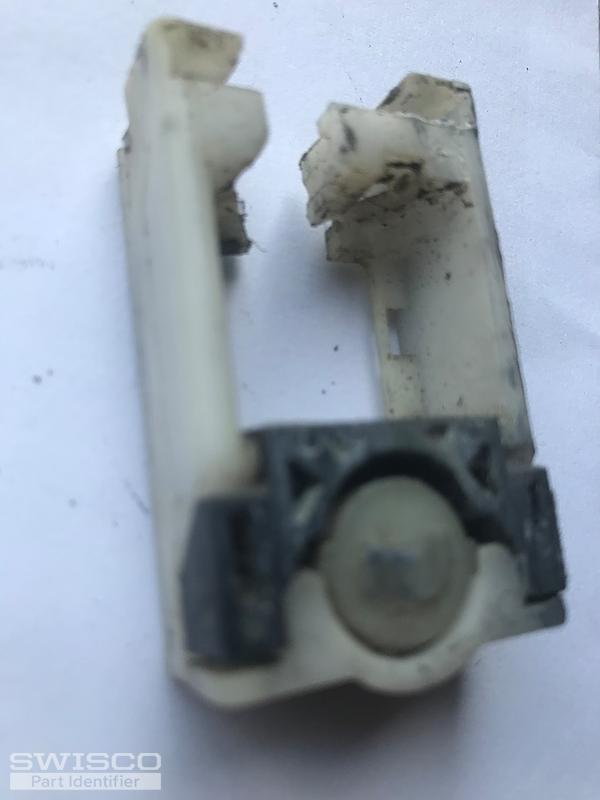

This pivot shoe is badly damaged. It is 2" long and 1.25" wide. It seems to be slightly thicker at the base. Can you recommend a pivot shoe? Should l buy more than 1 size in case my measurements are off?

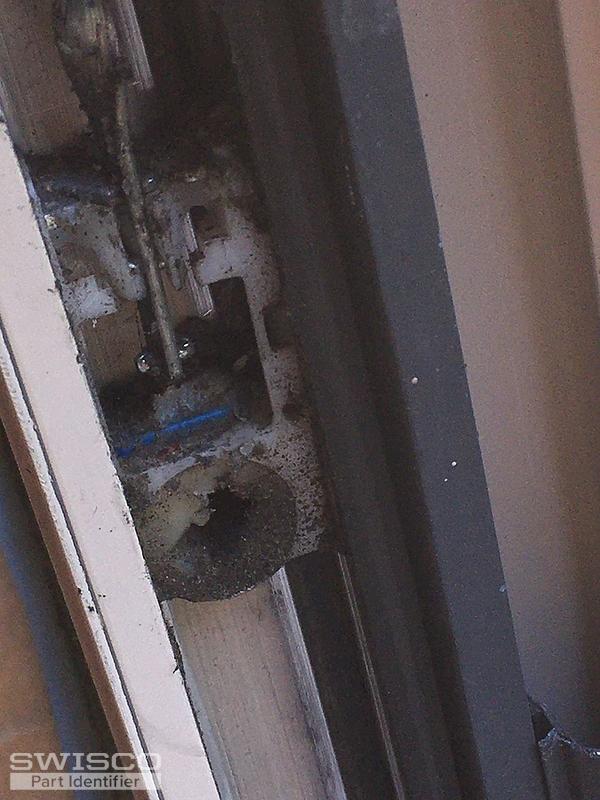

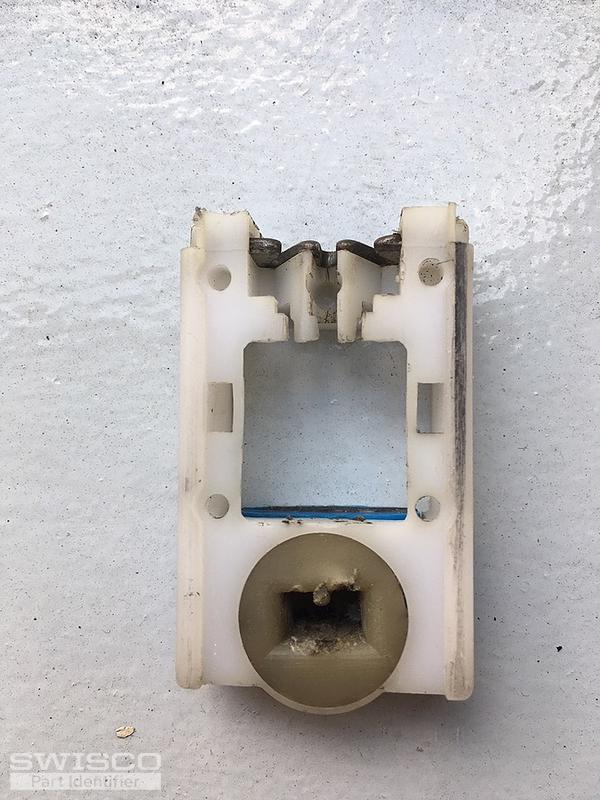

Hello,We have Crystal Double Hung windows built sometime around 2000 -2003.The sliding mechanism is pictured in IMG_0718, the end of the balance and the pivot shoe. I removed the pivot shoe and cleaned it up, IMG_0725. The dimensions of the pivot shoe are 2.125=H, 1.250=W, 0.625=D. Looking at your ... (cont.)

I've got a couple old vinyl windows that I can only guess are just warped or worn because the 2.5" pivot bar ( 26-083) just keeps popping out. I replaced every single pivot shoe and bar on one window, and within a few ups and downs one side or both pops out.. Both sashes have this problem. I wa ... (cont.)
