Viewing all customer Discussions for:

15-047 Pivot Shoe, 5/8" Thick

Hi, I live in old building - have spiral window balance. Looking to replace the spiral and pivot shoes. Have ordered spirals arleady.Looking for help on the correct pivot shoe/spacers to order. Thanks, Brent

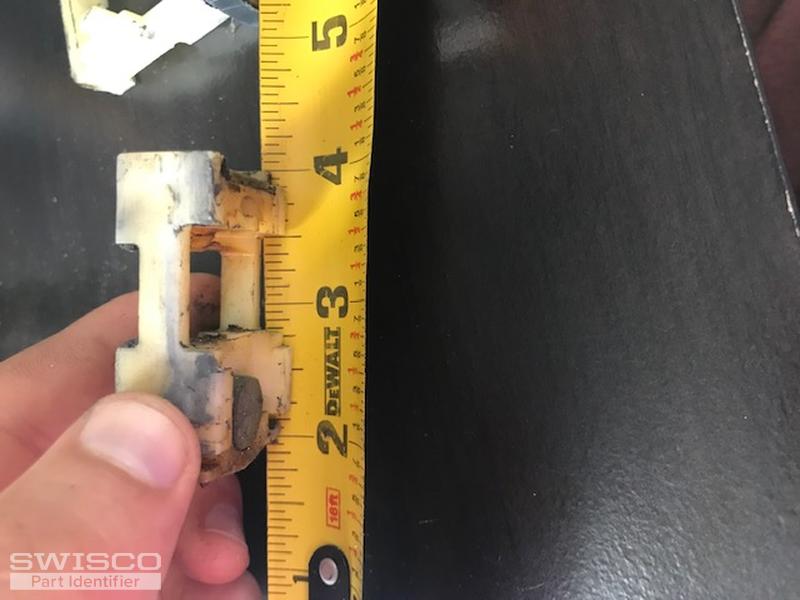

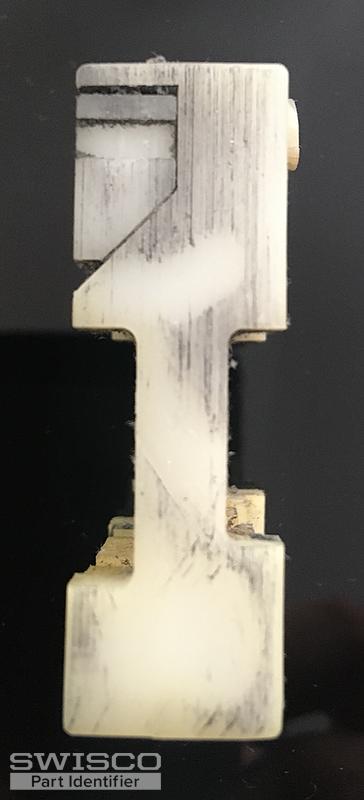

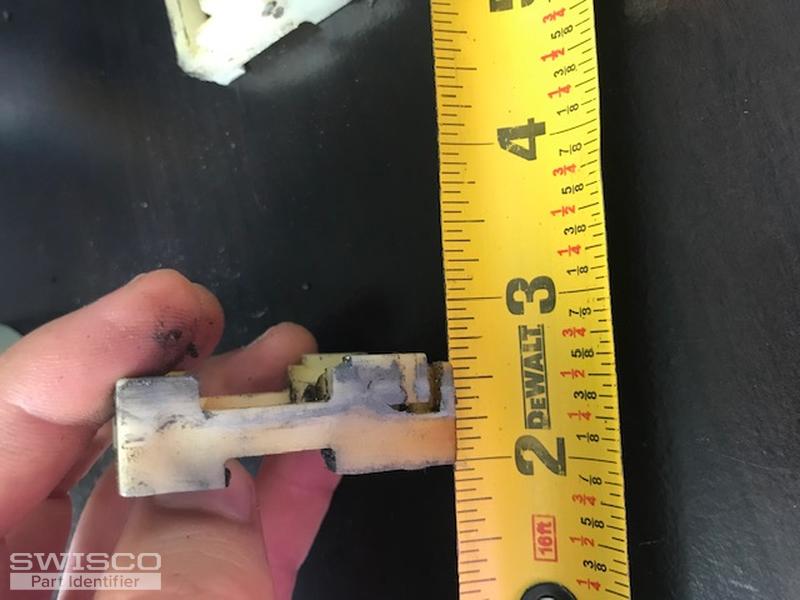

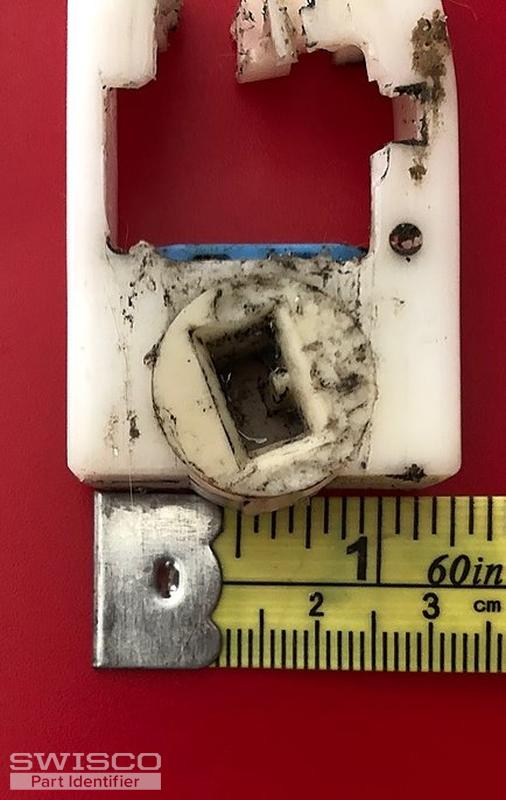

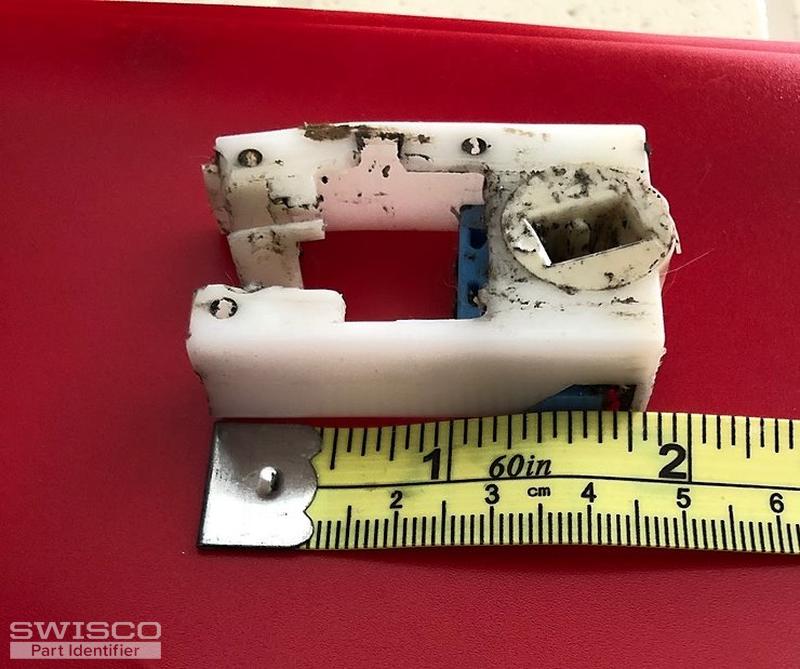

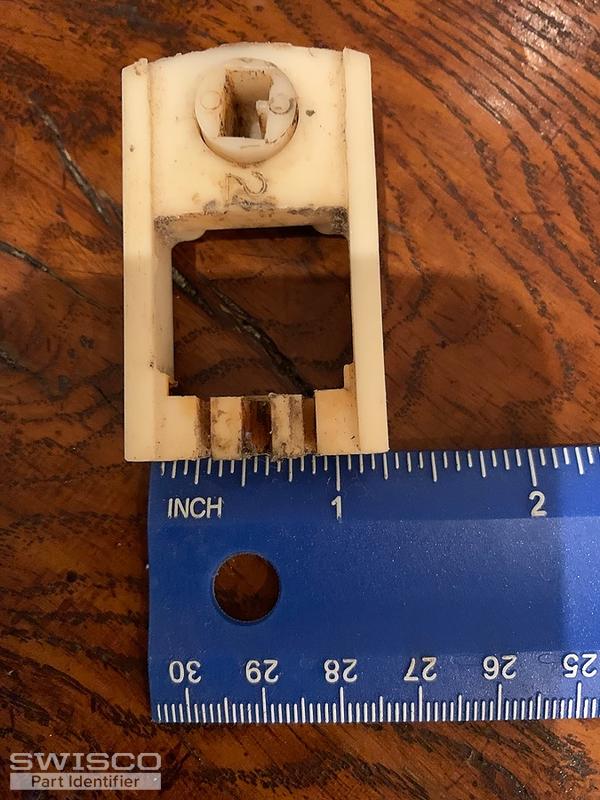

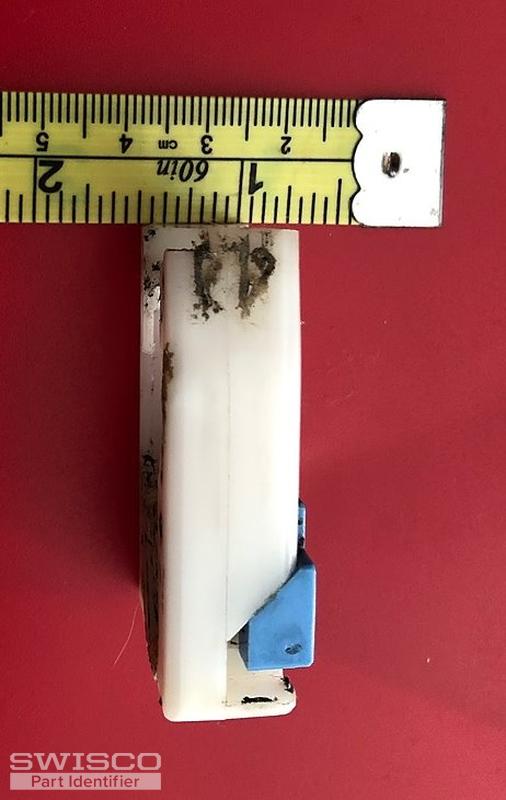

I am looking for a replacement pivot shoe based on the attached photos. The dimensions are: 2.0" x 1.25" x 0.6" or (50.9mm x 31.9mm x 15.4mm). Thank you!

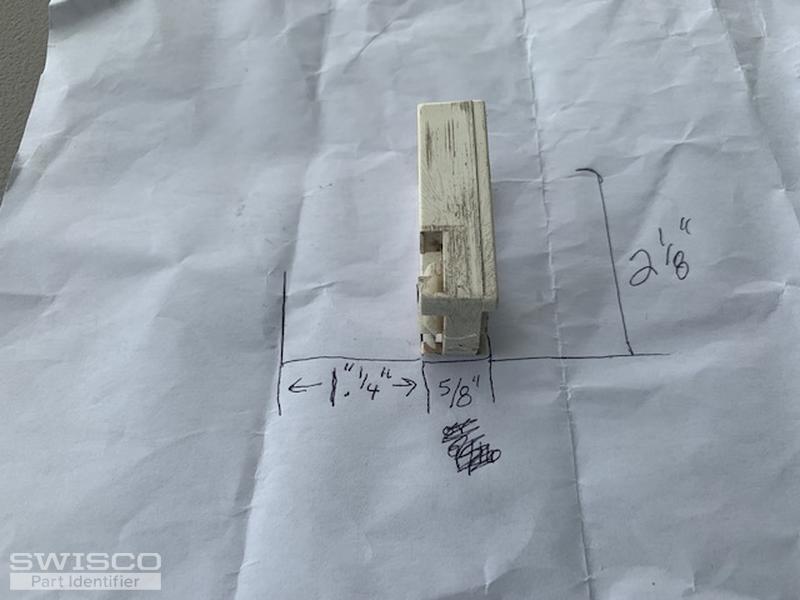

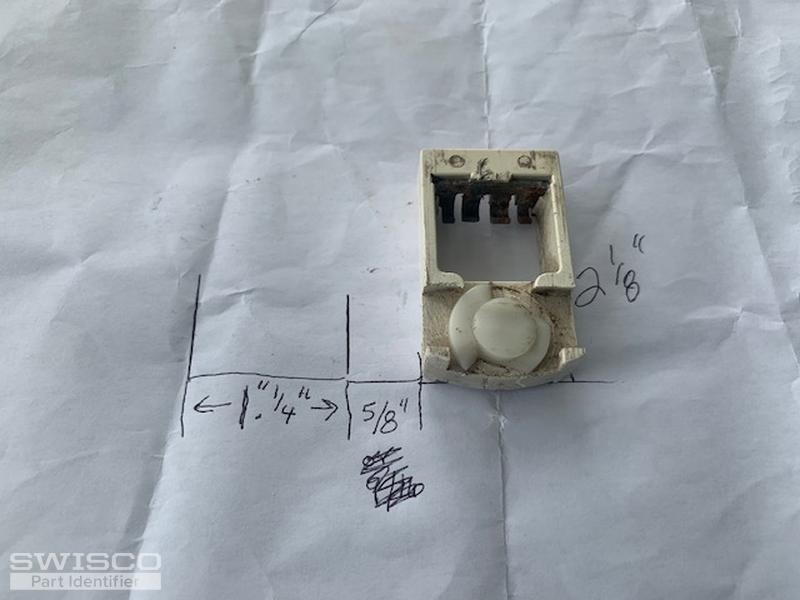

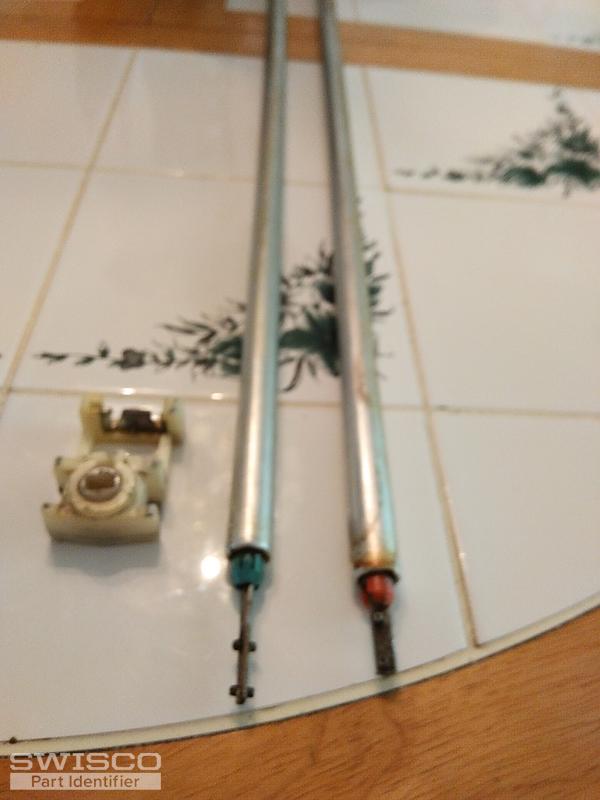

One balance is 23" by 5/8 color is orange. Other balance is 21" by 5/8 round color is blue or green. The 23" go on bottom window with weight 22.5 lbs. The 21' go on top window. The size of shoe is 1.25 wide 5/8 thick 1.75 tall. To

Is the color coding on this piece letting me know it is a particular size?

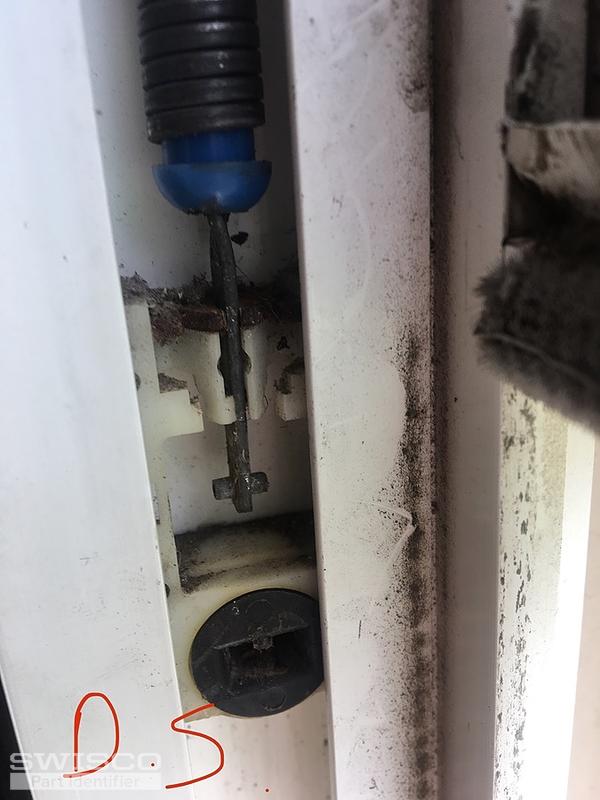

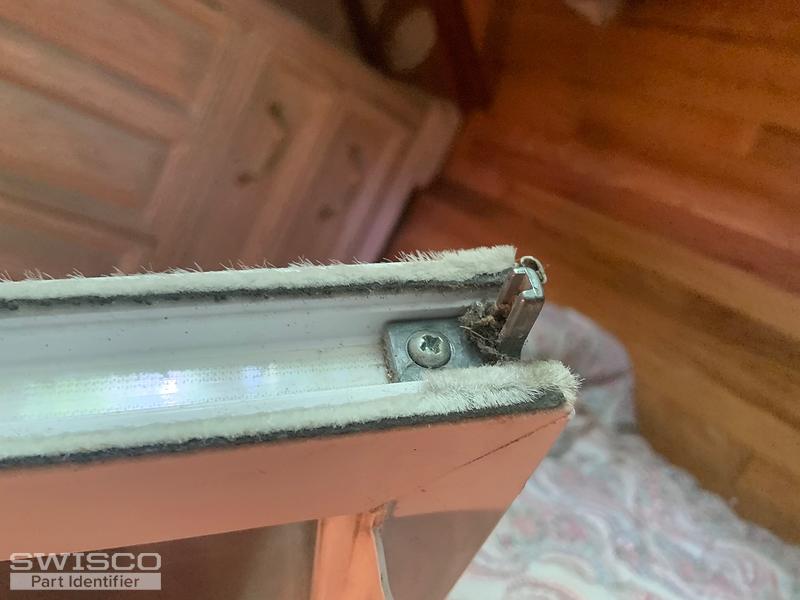

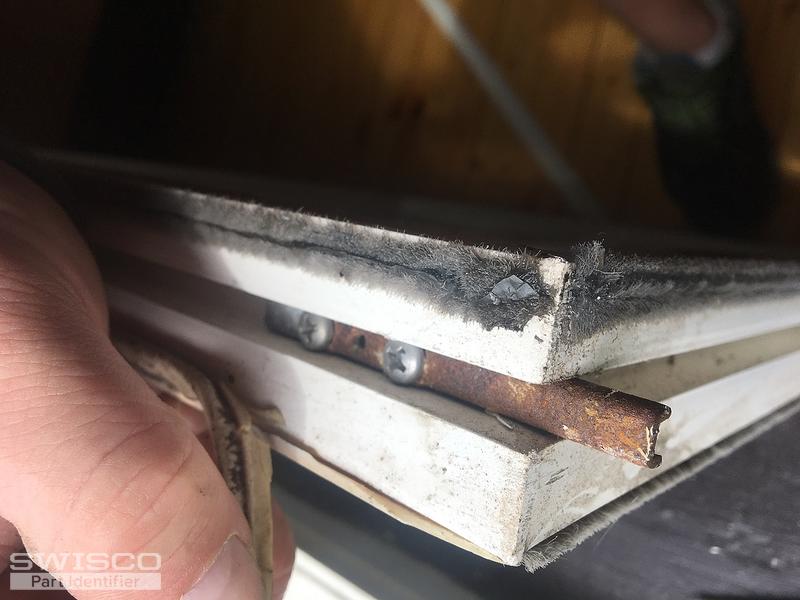

Looking for this pivot bar. Don't know the brand of window.PS. Here's a photo of the shoe.

Good day, Can you please provide guidance on a replacement item for this window lock shoe? The center gap (that metal piece fits into) is just under a 1/8 of an inch, and the side slots are 1/16 wide. Many thanks.

The window is double hung with a sash that weighs 20 pounds and is 30 inches tall (26 inches glass). The color on the tip of the balancer is blue. I would need to replace the shoe and spiral balancer. I would also need to tool to tighten them. Please provide a list of parts needed. Email if any mor ... (cont.)

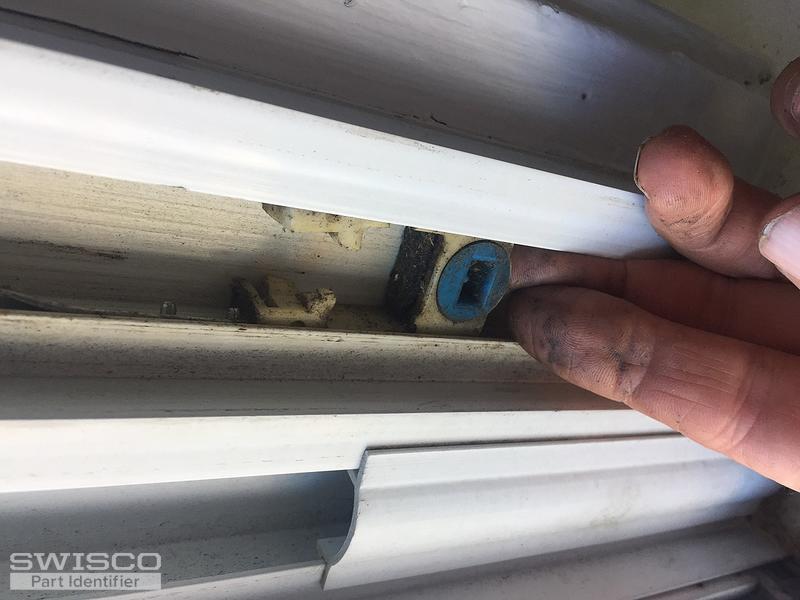

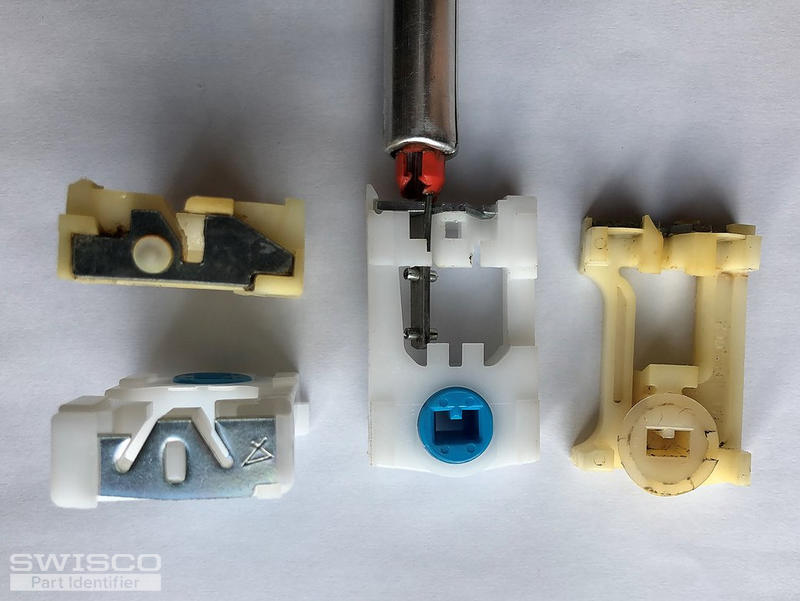

I'm trying to replace my shoe pivots and want to make sure I get the correct one. I've included pictures and was wondering if you could tell me the correct one that I need. I got thrown off by the different colored cams and wasn't sure if that made a difference. I need 16 of theses plus the tool f ... (cont.)

Needing to purchase some spiral tilt balances and pivot lock shoes. Windows on our house are vinyl and approx 25 years old. The outer covering on the balances (35" length) is also vinyil/plastic and are the 5/8 " (measures more like the 9/16"). Tip colors on the balances don't seem to correspond ... (cont.)

looking for replacement shoes and Latched. The black latch is what i have ,,,,it does not work good at all, the white one I took off a window it works. I have a shopping cart online. with a lot of parts, but can not move forward untill i find the right show , balance bar and lock. Rodney ... (cont.)

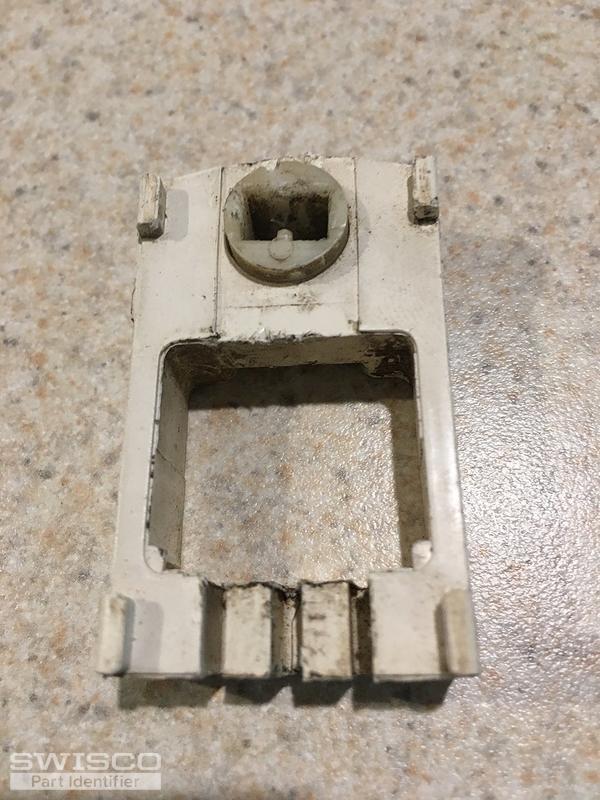

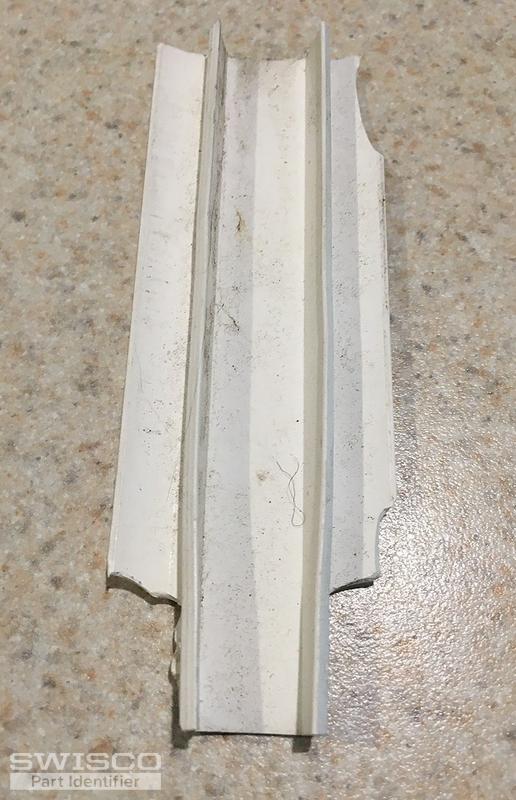

First 2 pictures are I believe called a channel cover it is an overall width of 1 3/8". Remaining 2 pictures are I believe a pivot shoe It is 2" long, 1 1/4"" wide and 5/8" thick of I include the tabs 1/2" thick with out the tabs.

spiral balance: 16" long, 3/8" diameter pivot shoe based on broken pieces: 5/8" deep, 1.5" wide, ~2" long based on similar shoe on another window

I have old tilting windows that will not stay up. I noticed that one is missing a pivot shoe and thought that maybe the others should be replaced. H 1 15/16, W 1 1/4, Thickness is 3/8. I'm having trouble finding the correct replacement

Its is 5/8 thick and 1 inch 3/8 wide

Windows are double hung and tilt. Pretty sure windows use the 5/8" tube diameter and the length of the cylinder is 31 5/8. (so 32"?) Pretty sure pivot shoe is 1/2 inch. Tip is black.

I need spiral balance for 4tilt windows 37" black tipAlso pivot Shoe for 4windows 15-047?3" pivot bars 26-040?Top tilt latch for 4windows 1"x3" 2" center 26-344And a tool 75-033 I don't know if I chose the right parts parts the latches have to be brown or black . What say you?The balance number is S ... (cont.)

I spoke with an agent by phone and mentioned an issue with the 15-015 pivot that does not have a CENTER slot for the spiral balance shaft. The 15-015 was what was recommended by you contact based on his observation that the original pivot shoe looked to be 17/32" thick and not 5/8" (15-047).I recei ... (cont.)

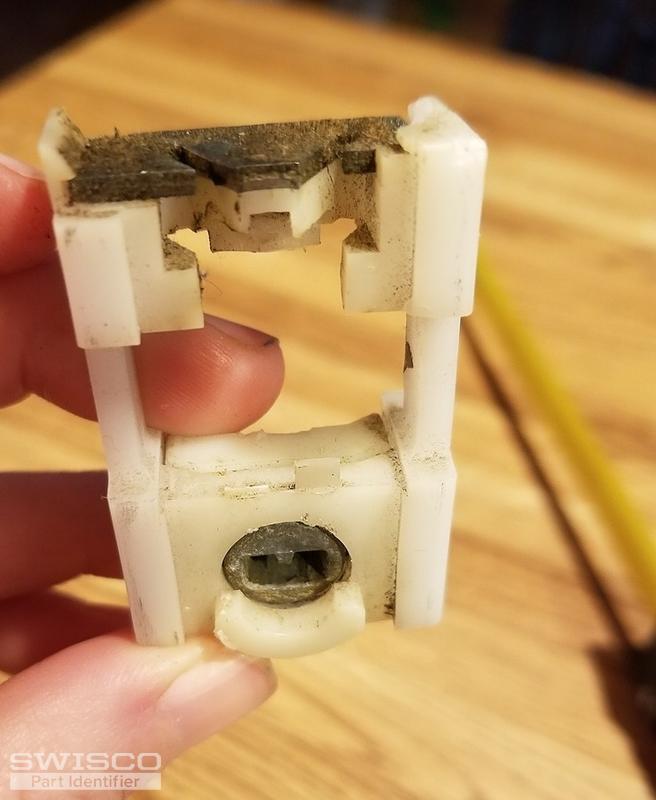

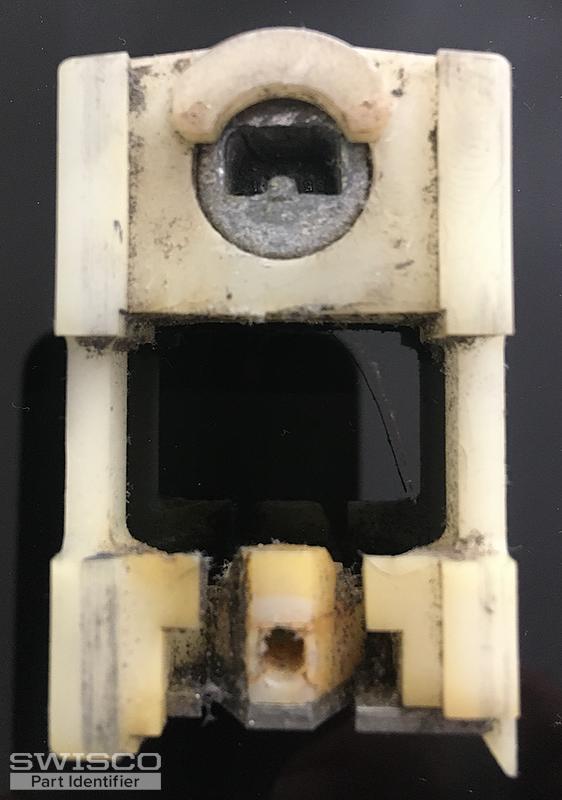

I have to replace 20 of these plastic slider/cam assemblies. The metal spiral spring clips into the plastic slider. The springs are all fine, just the plastic part has deteriorated on all the south facing windows. They are 2" high X 1-1/4 wide X 5/8 thick. You were able to supply an obscure storm do ... (cont.)

Greetings - I need at least seven pairs of windows shoes. I do not have an intact one to attach, only the broken pieces shown in the attached pics. I do know that the patent number on them is 3.055.062 but I am not sure that only one size shoe goes with that patent number. Can I be confident that ... (cont.)

looking to purchase replacement pivot shoes want to make sure I order correct one. I was thinking 15-047 or 15-070 thanks for you help
